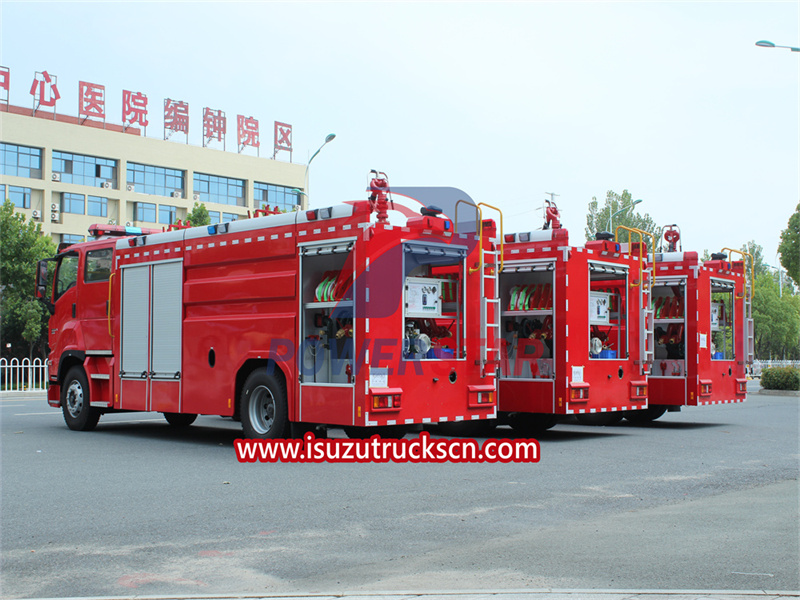

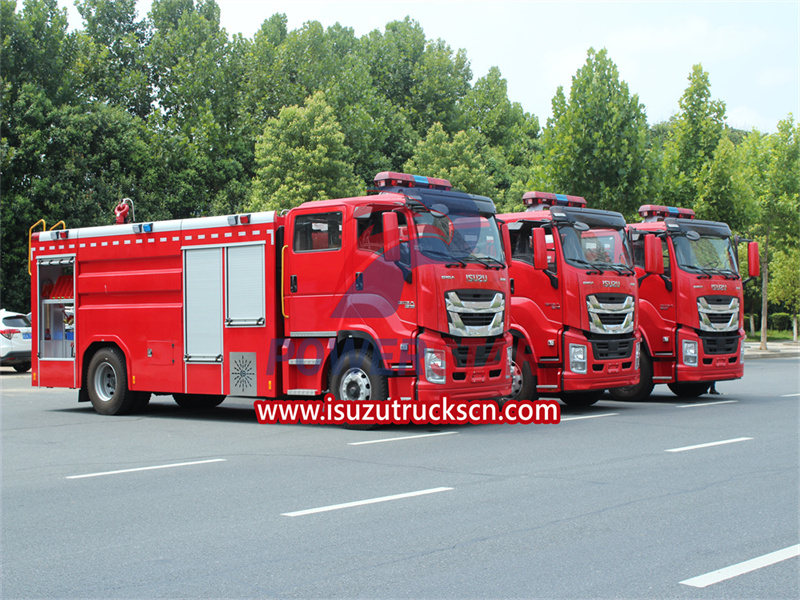

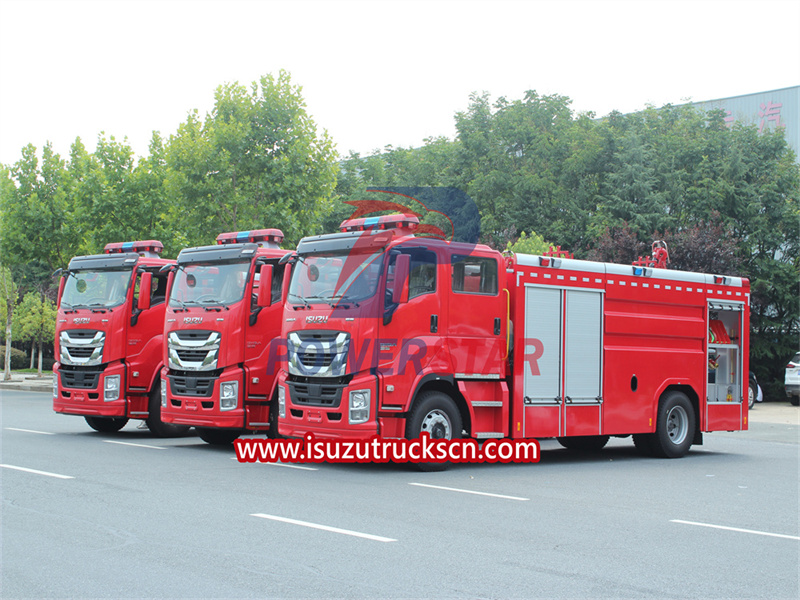

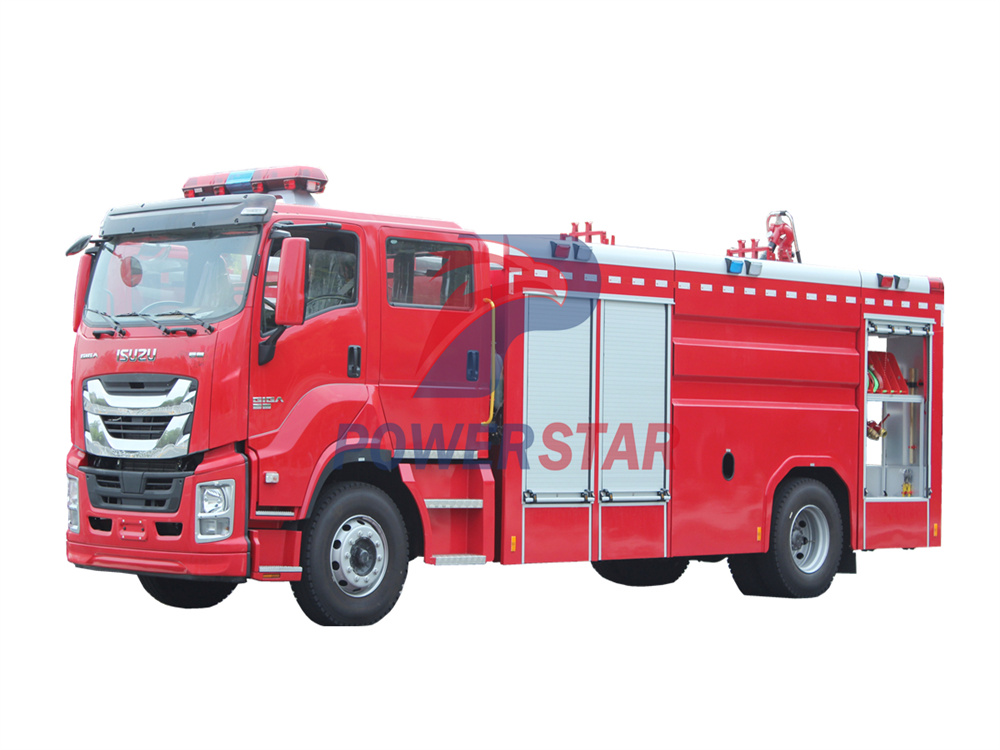

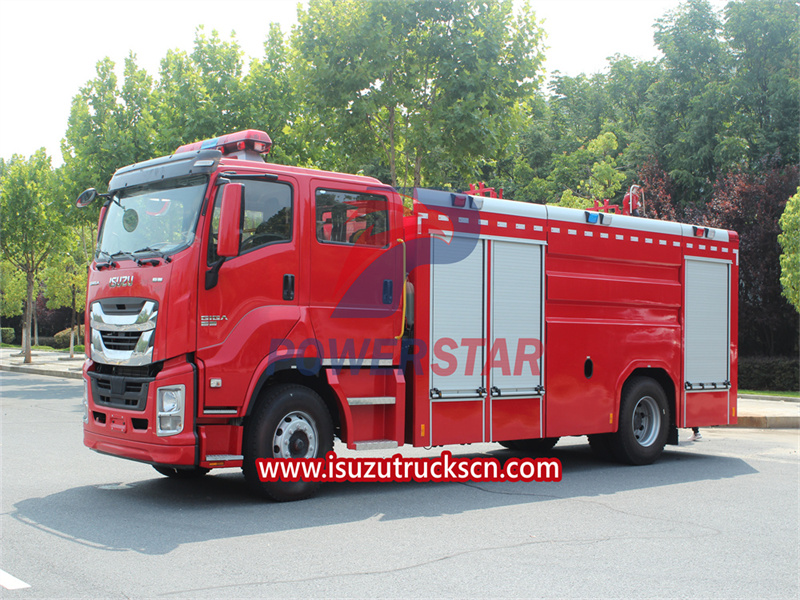

Isuzu GIGA fire truck is also called Isuzu water fire truck, Isuzu tank fire truck, Isuzu water fire tender, and Isuzu fire engine. The best-selling Isuzu tank fire truck is modified from a Class II Isuzu truck chassis. The special part consists of liquid tanks, pump rooms, equipment boxes, power output and transmission systems, pipeline systems, electrical systems, etc. Isuzu fire pump trucks are widely used in urban public security fire brigades, petrochemical industries, factories, mining enterprises, communities, forests, ports, docks and other departments. They can quickly approach the fire scene to carry out fire-fighting work, extinguish various fires, and can also complete other fire-fighting and rescue tasks.
Work capacity:
8000LTruck model:
PT5220GXFSEngine power:
380HPEngine type:
6UZ1-TCG51Axle drive:
4x2Gear box:
FAST 12-speedRemarks:
ISUZU GIGA double row cabin,powerful engine, well-known brand chassisIsuzu fire trucks are also called Isuzu fire extinguisher trucks, Isuzu water fire truck, Isuzu tank fire truck, Isuzu water fire tender, and Isuzu fire engine. Isuzu fire rescue trucks, and Isuzu sprinkler fire trucks; they are widely used in various disaster relief and rescue scenarios.

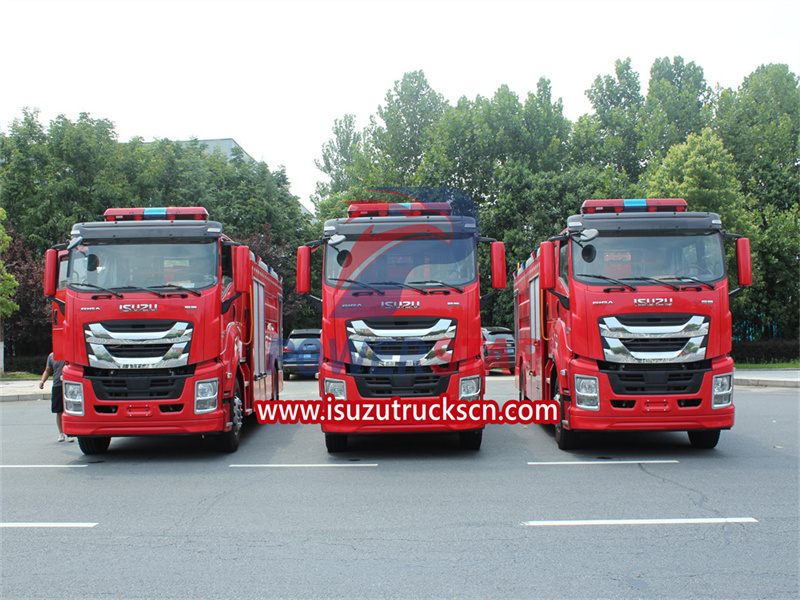

Isuzu Giga water tank fire truck has strong power and good maneuverability. It is suitable for extinguishing general solid or liquid oil fires and is easy to enter and exit narrow urban roads and village-level highways. The vehicle has a scientific and reasonable structural design and a neat and elegant appearance. The vehicle is equipped with a variety of fire-fighting and rescue equipment, which is easy to operate and maintain. It has the characteristics of excellent performance, fast response, high power, multi-function, high performance, easy management, intelligence, short wheelbase and so on. It is the first choice tool for urban public security firefighting forces and new urban firefighting.

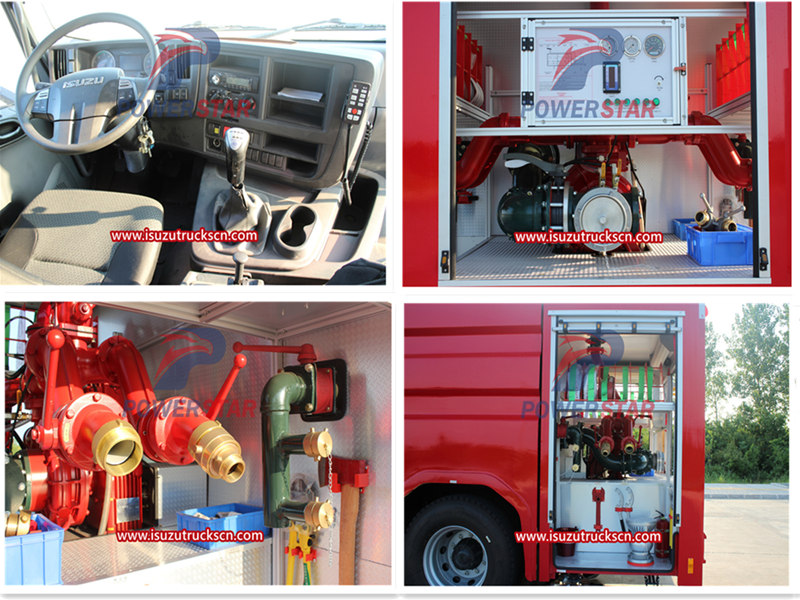

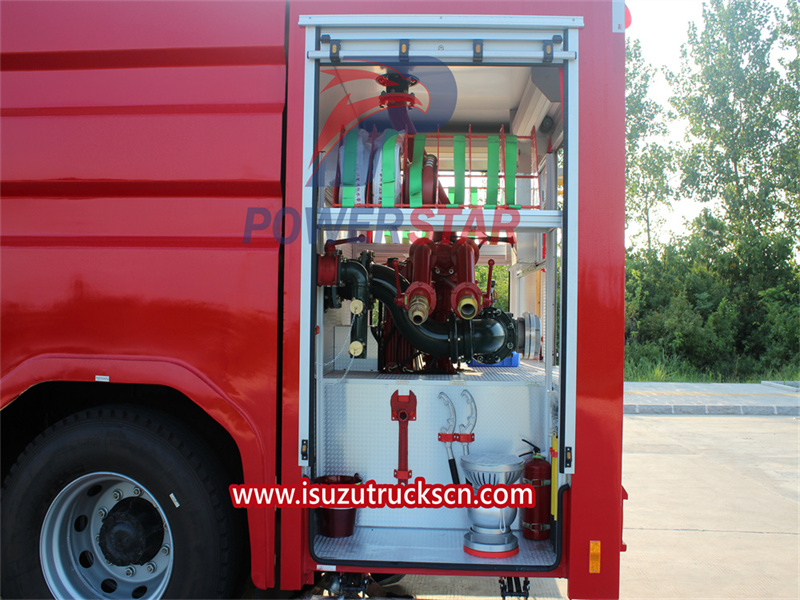

The body of an Isuzu Giga water fire truck usually consists of a crane, a truck chassis and a box. The crane is used to load and unload fire-fighting tools and equipment. The truck chassis provides driving power and carrying capacity. The box is equipped with a pump system, water tank, sprinkler system, fire-extinguishing equipment, etc. The engine is the core component of a fire truck. It usually uses an internal combustion engine, such as a diesel or gasoline engine, to provide power to drive the vehicle. The pump system pumps the water to the fire truck and outputs it through pipes and sprinkler systems. The water tank is used to store the fire-extinguishing water, and the sprinkler system sprays the fire-extinguishing water to the fire source. Fire extinguishing equipment is usually stored in the carriage, including fire extinguishers, protective clothing, fire shovels, fire axes, etc.
Product Specifications
|
TECHNICAL SPECIFICATION |
|||
|
Chassis |
Chassis brand |
/ |
ISUZU |
|
Model |
/ |
PT5220GXFS |
|
|
Drive type |
/ |
4x2 left hand drive |
|
|

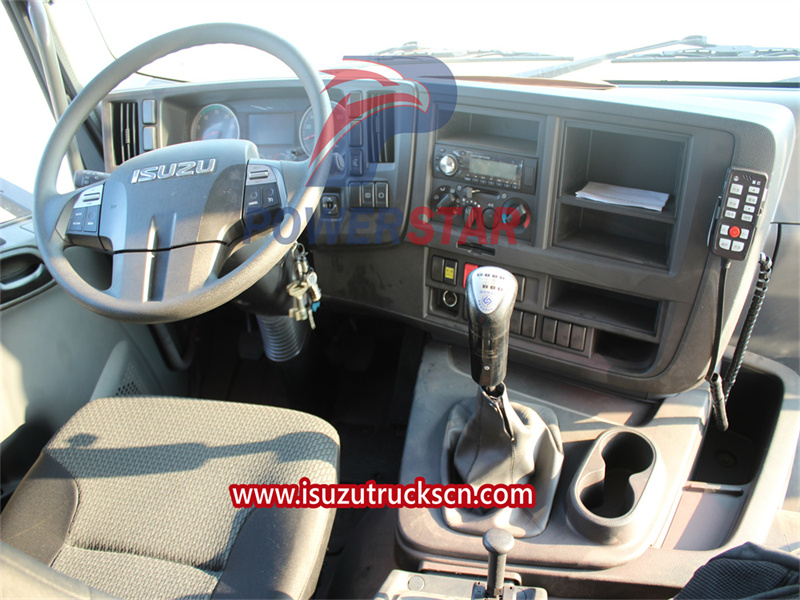

Cabin |
/ |
double row,2+3 seats |
|
|
Overall dimension(L*W*H) |
mm |
8900*2500*3500 |
|
|
Total mass |
kg |
18000 |
|
|
Curb weight |
kg |
10800 |
|
|
Wheel Base |
mm |
4600+1370 |
|
|
Approach/departure angle |
(°) |
24/12 |
|
|
Spring No. |
/ |
8/6+5 |
|
|
Tyre No. |
pcs |
6, (front 2, rear 4) |
|
|
Tire |
/ |
295/80R22.5 |
|
|
Axle No. |
/ |
2 |
|
|
Steering wheel |
/ |
left hand drive |
|
|
Gear box |
/ |
MSB ,Fast 12 speed forward with 2 reverse, manual ,with ABS |
|
|
Engine |
Engine model |
/ |
6UZ1-TCG51 |
|
Engine brand |
/ |
ISUZU |
|
|
Engine type |
/ |
6 cylinders in line |
|
|
Maximum power |
HP/kw |
380/279 |
|
|
Fuel type |
/ |
diesel |
|
|
Displacement |
l |
10 |
|
|
Emission Standard |
/ |
Euro IV |
|
|
Tanker |
Water tanker |
/ |
8000Liter , Stainless steel |
|
8000 litres water tank & 2000 litres foam tank |
|||
|

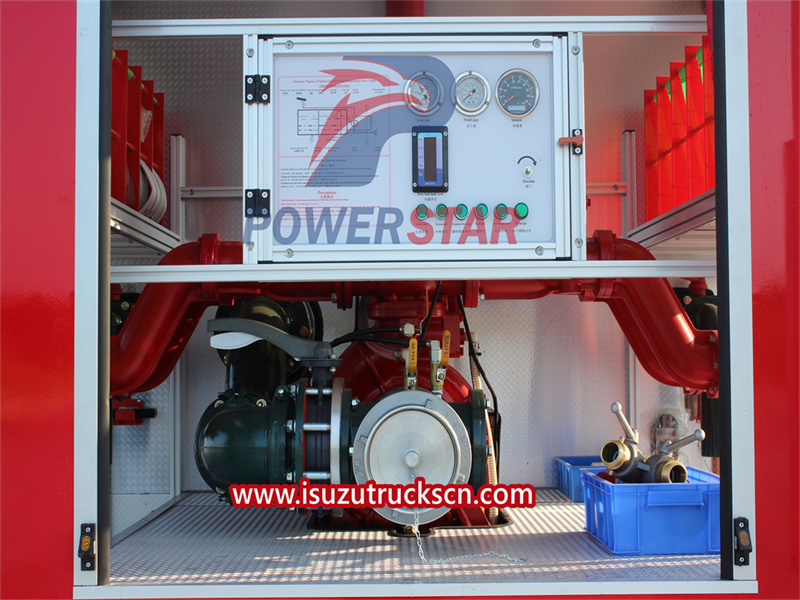

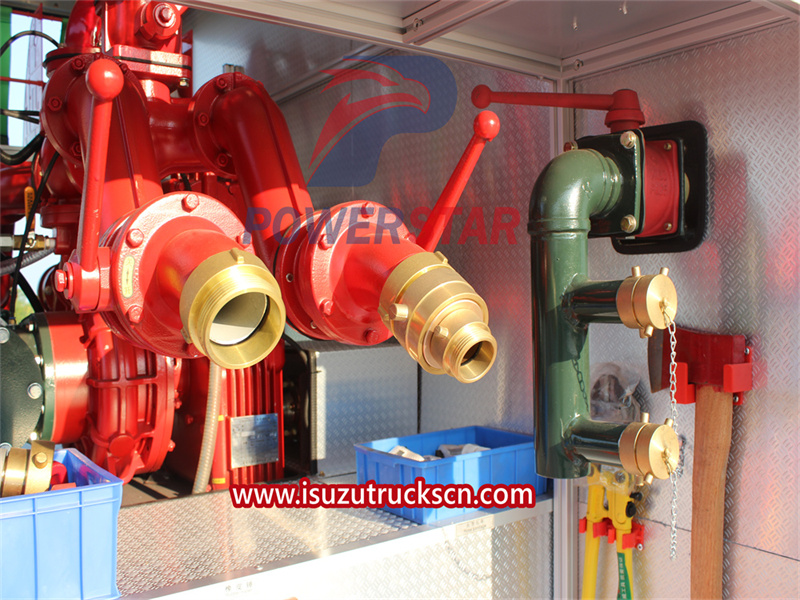

Fire pump |
Model |
/ |
CB10/40,Normal pressure pump |
|
Pressure |
Mpa |
≥1.0 |
|
|
Max suction height |
m |
7 |
|
|
Flow rate |
L/S |
40 |
|
|
Input diameter |
mm |
125 |
|
|
Outlet diameter |
mm |
2xΦ75 |
|
|
Fire monitor |
Fire monitor model |
/ |
Ps40 |
|
Fire fighting nozzle range |
Water (m) |
≥60 |
|
|
Rated Working pressure |
Mpa |
1 |
|
Isuzu Giga water tank fire truck is a firefighting vehicle specially designed for fire extinguishing work. It usually has the following characteristics:
Water tank capacity and water spray system: Equipped with a large-capacity water tank and a high-efficiency water spray system to ensure that firefighters have sufficient water sources at the scene for fire extinguishing operations. Water spray systems usually have a variety of spray modes, such as direct spray and mist spray, to meet the needs of different fire conditions.
Power performance: The permanent high-performance engine ensures that the fire truck can quickly respond to emergencies, arrive at the fire scene quickly, and play its fire-extinguishing role.
Mobility and controllability: The design is flexible, has good maneuverability and controllability, and can adapt to different road conditions and environments, including narrow streets and complex urban roads.
Durability and Stability: Designed to be durable to cope with various harsh environments and emergency situations. The vehicle's structure is stable and capable of maintaining efficiency in difficult conditions.
Emergency rescue equipment: Usually equipped with a variety of emergency rescue equipment, such as fire extinguishers, safety ropes, etc., to support firefighters in their rescue efforts in emergencies.
