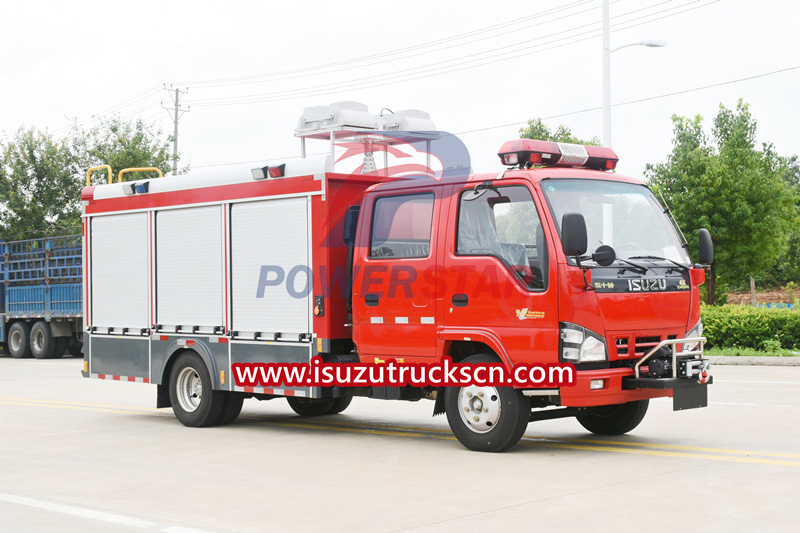

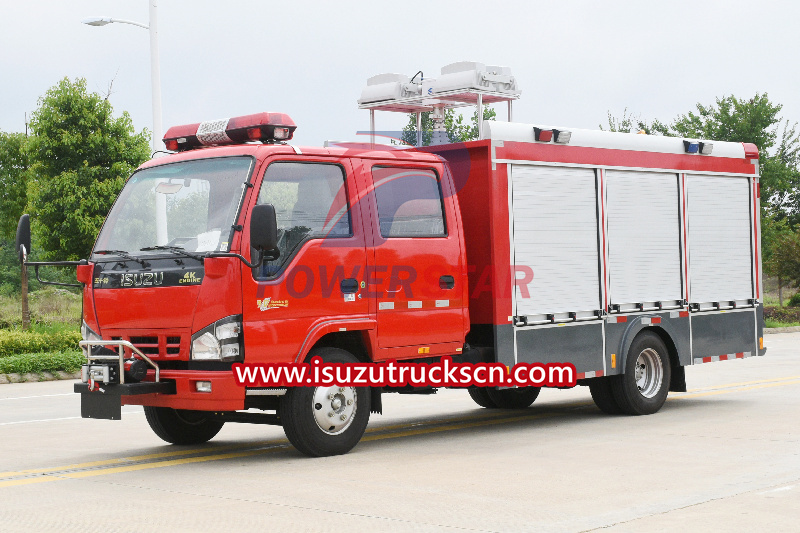

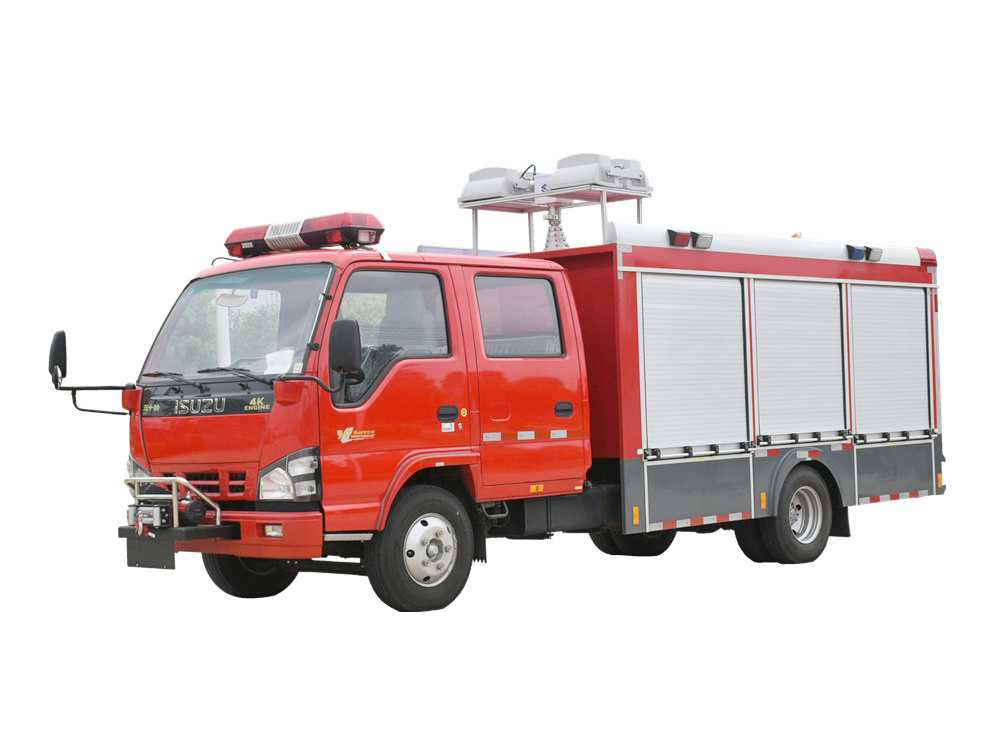

Isuzu Telescopic Lighting Rescue Vehicle for sale. Isuzu rescue lighting fire truck is a firefighting vehicle specially designed for disaster response and emergency rescue. The truck is equipped with lighting equipment that can provide powerful lighting support at disaster scenes and create a good working environment for rescuers and other emergency workers. Truck based on original ISUZU NKR truck chassis, optional 4x2 or 4x4 offroad driving model, 4KH1 diesel engine 120HP, MSB 5-shift manual gearbox, whole aluminum alloy frame structure, truck mounted with high power lighting system, with lifting height can be up to 7.5m, totally 4 lamp with each one power 1000W, working radius can be 400°
Work capacity:
7.5 m working heightTruck model:
PT5070GXFLREngine power:
120 hpEngine type:
4KH1CNAxle drive:
4x2Gear box:
ISUZU MSB 5-shift ManualRemarks:
1000W powerful lighting system with lifting height 7.5m

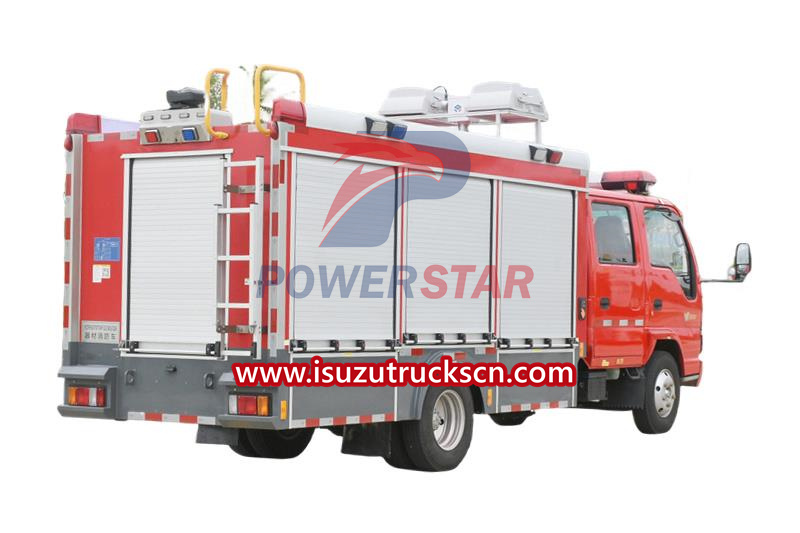

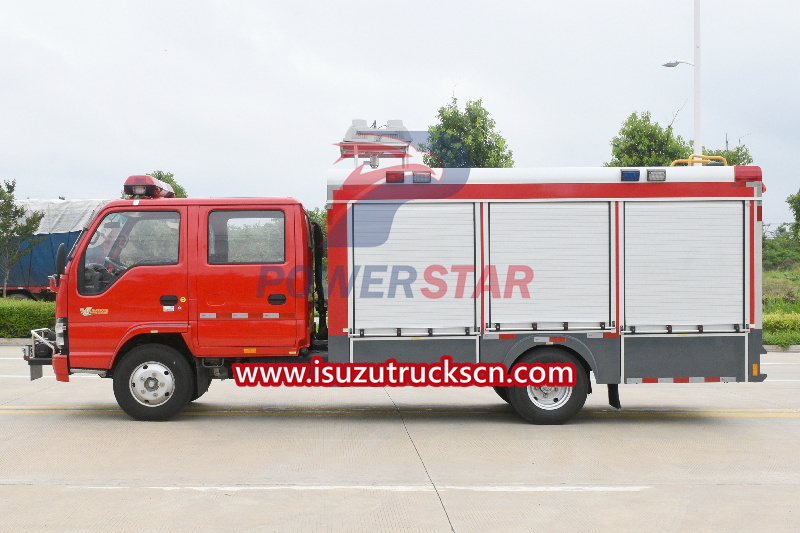

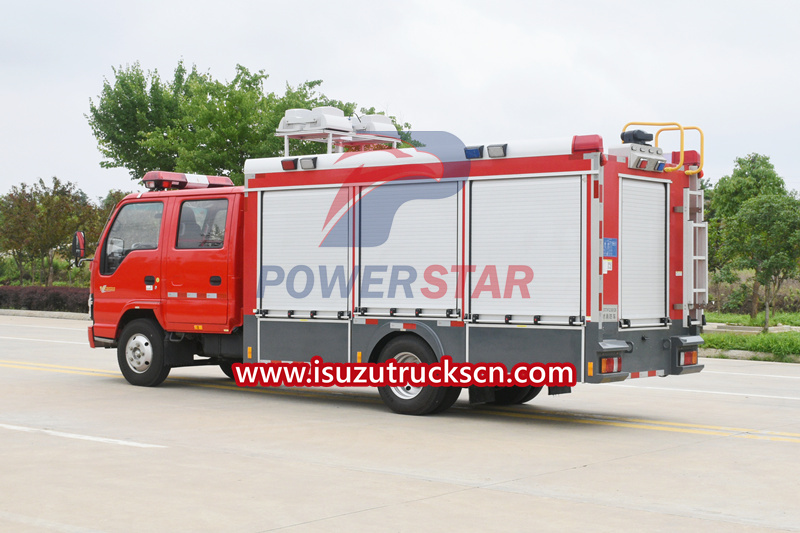

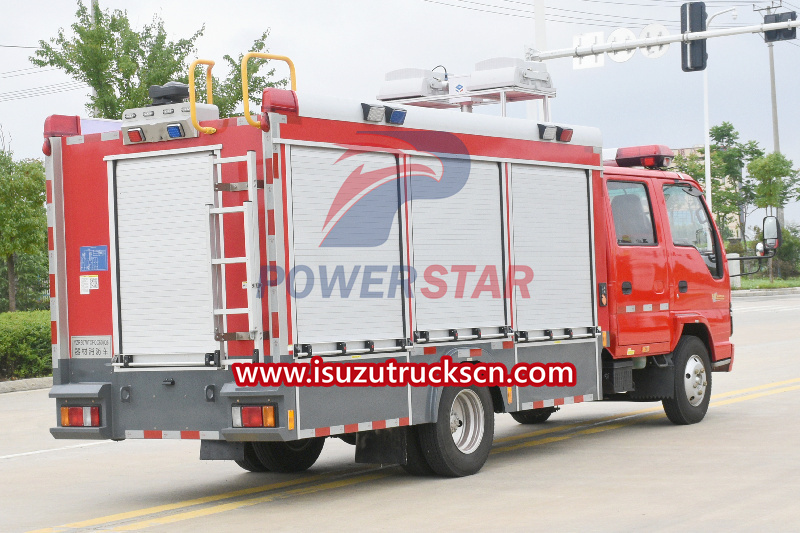

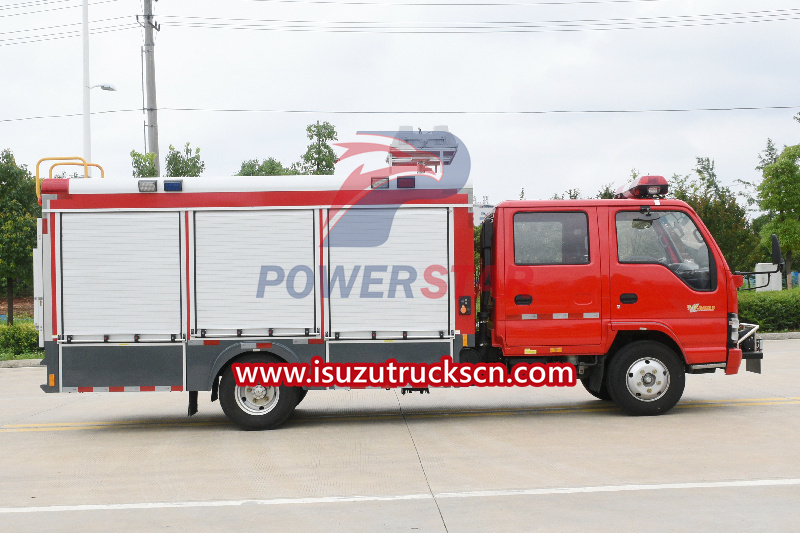

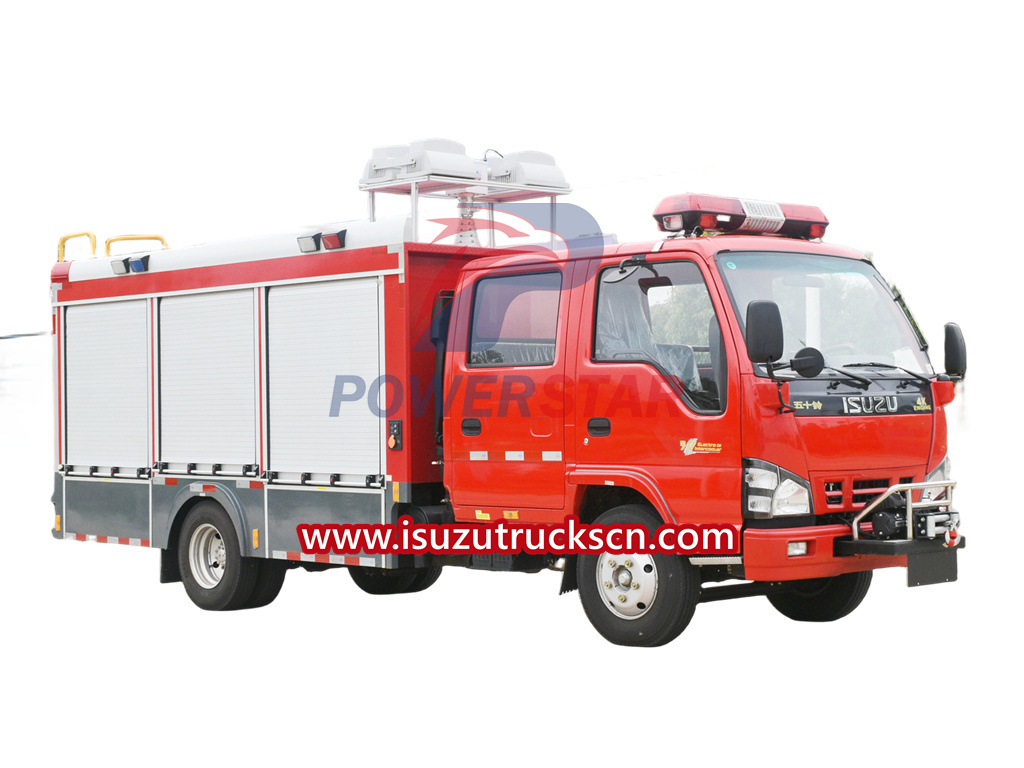

Isuzu 600P NKR emergency rescue and firefighting lighting truck has rolling aluminum doors installed on three sides of the car body, equipped with equipment racks, and can be equipped with fire rescue tools and equipment as required; a lifting lighting lamp is installed on the top of the car body, and the main light power can reach 4KW; it comes with a 10.5 kilowatt generator set , can perform lighting operations in outdoor rescue scenarios without mains power.
Isuzu lighting fire truck is a special fire-fighting vehicle that is specially used to extinguish fires and provide lighting. It provides firefighters with enough light to perform tasks at night or in low-light conditions. This vehicle is equipped with high-power lighting equipment that can project light onto the fire scene and provide necessary lighting support for rescue operations. Lighted fire trucks are often equipped with a light tower that can be raised and lowered to adjust and direct the range of light. This allows firefighters to direct light to specific areas as needed, improving their efficiency and safety.
In addition, the rescue Isuzu fire trucks are equipped with fire jets and water supply systems to support fire extinguishing efforts. These devices enable illuminated fire trucks to quickly respond to fires and extinguish them while providing lighting for firefighters. Isuzu NKR fire trucks usually have a large water storage capacity to ensure that firefighters have sufficient water sources for fire extinguishing work.
Products Parameters
The ISUZU Firefighting Truck, Isuzu lighting rescue fire truck produced by POWERSTAR Trucks have below advanced features:
1. Complete Aluminum Compartment and Never Rust. The compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust. PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. It has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance.
3. Modular Control System. The control system adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dust proof design, the protection level can reach IP56 or higher.
4. Modular Standard Parts. Water pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured as Chinese TOP 1 with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.
Name |
Technical parameters and requirements |
Dimension |
6560×2300×3300mm |
Total weight |
7300kg |
Max. net power |
120 HP |
Max. travel speed |
100km/h |
Emission standard |
Euro 6 |
No of crew |
6 |
Power density |
142/10=14.2 |
Approach angle |
≥16° |
Departure angle |
≥13° |
Max. pull of winch |
4200kg |
Max Lifting load |
3000kg |
Engine rated power |
10KVA |
Pneumatic lifting LED light |
Max lifting height :7.5m,power:4×1000W |
Chassis
1.Main parameters of chassis
Engine model |
ISUZU QL1070 |
Brand |
Original ISUZU |
Emission Standard |
V |
Wheel base |
3360 mm |
Tire |
7.00R16 |

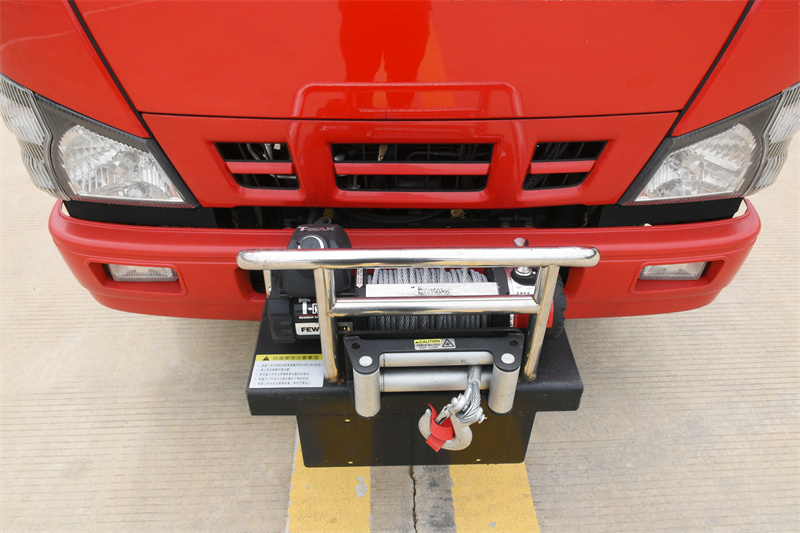

3.winch
Model |
9500LBS(24V) |
Rated pulling force |
4200kgf |
Length of wire |
Φ9.7mm*38m |
Working voltage |
24V |
4.lifting light
Model |
SG75-41000G |
Power |
4000w |
Max height of lifting |
7.5m |
Horizontal rotation angle |
380° |
Vertical rotation angle |
330° |
Distribution Cabinet |
One 380V input interface, one 380V output interface, and two 220V output interfaces can be used to power lighting and other equipment through a generator or through municipal electricity. There is overload protection system and monitoring instrument, each operation button is marked with obvious operation logo. |

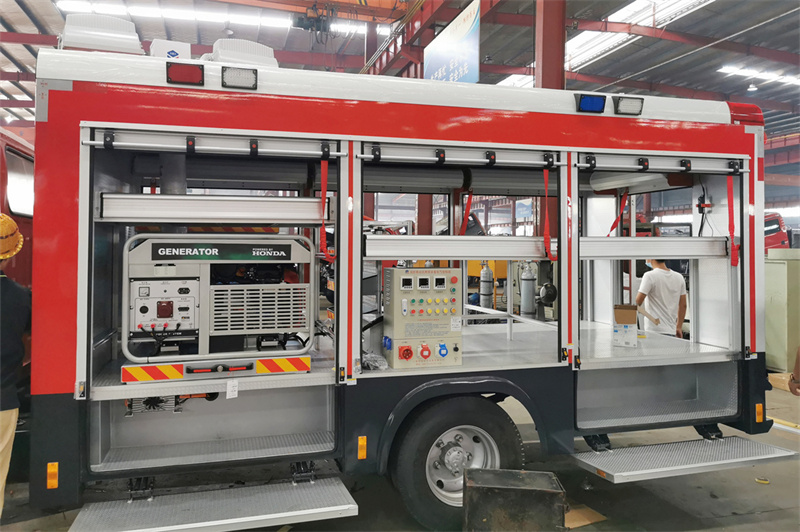

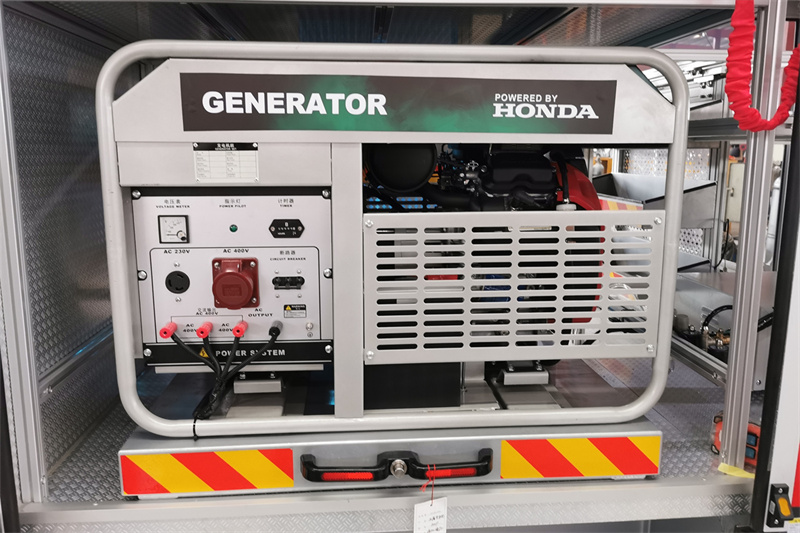

5.electric generator
Model |
SHT11500 |
Brand |
Sato Electric Co., Ltd. |
Rated power |
10.0KVA |
Stand-by power |
11.5KVA |
Voltage |
220V/380V |
Start-up mode |
Electrical starting |
Equipped |
One mobile coil 220V; one mobile coil 380V; grounding system |
Why choose Isuzu rescue lighting fire trucks from POWERSTAR:
1 High-power lighting equipment: Isuzu rescue lighting fire trucks are equipped with high-power lighting equipment, including high-brightness LED lights, spotlights, projection lights, etc., which can provide powerful lighting effects and make the entire rescue scene as bright as day.
2 Multi-directional lighting: The lighting equipment on the fire truck can flexibly adjust the angle and direction to provide multi-directional lighting support for disaster scenes and meet the lighting needs of different rescue missions.
3 Stable lighting effect: The lighting equipment adopts high-quality light source and lamp design to ensure stable lighting effect without flickering or eye discomfort, providing a good working environment.
4 Powerful lighting coverage: The lighting equipment of the Isuzu rescue lighting fire truck can cover a wide range, solve the problem of insufficient lighting that may exist at the disaster scene, and provide rescuers with a clear vision.
5 Energy saving and environmental protection: In order to reduce energy consumption and protect the environment, lighting equipment uses energy-saving LED lights, which can provide high-brightness lighting effects while reducing energy consumption and extending battery life.
6 Multiple working modes: The lighting equipment on the lighting fire truck can switch to different working modes as needed, such as adjusting brightness, turning on flash mode or setting a timer to automatically turn off, etc., to adapt to the needs of different rescue scenarios.
7 Special environmental adaptability: The lighting equipment has certain waterproof, dust proof and earthquake resistance capabilities, and can adapt to various complex and harsh rescue environments to ensure that the equipment can work normally.
8 Remote control and operation: The lighting equipment on the Isuzu rescue lighting fire truck can be remotely operated and adjusted through the remote control or on-board control panel, making it easy for the operator to adjust the lighting effect as needed.
