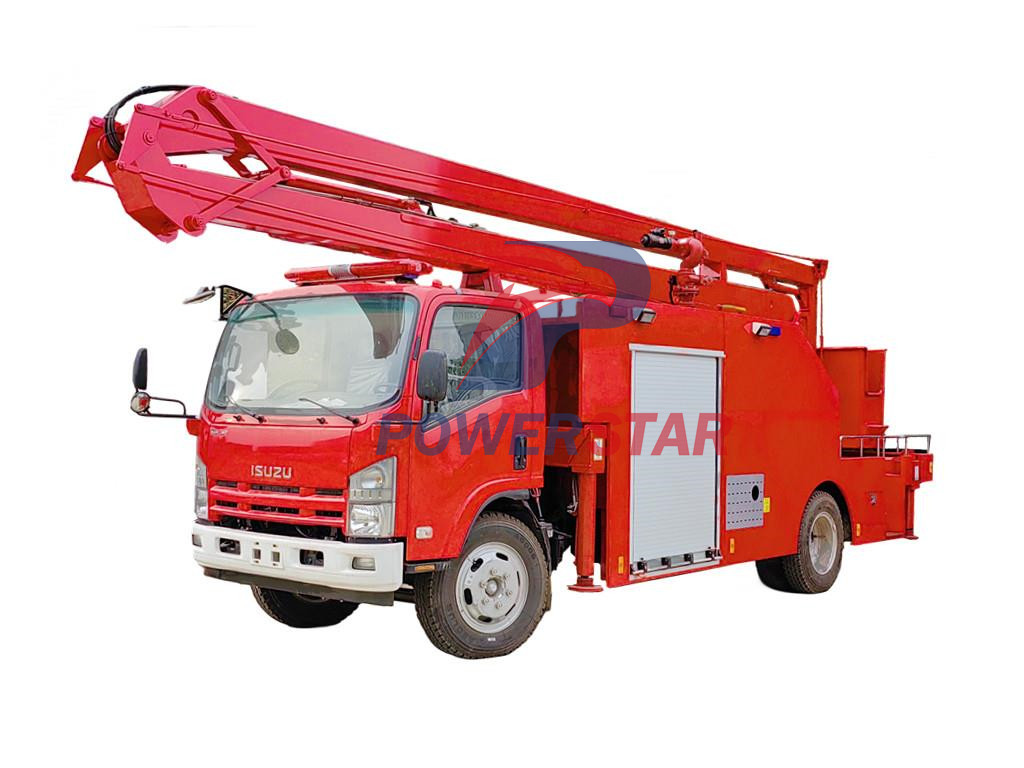

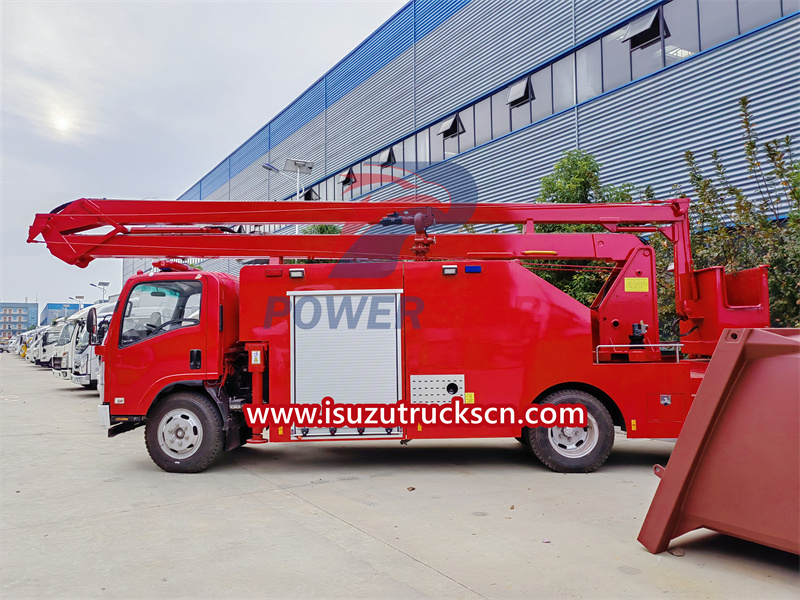

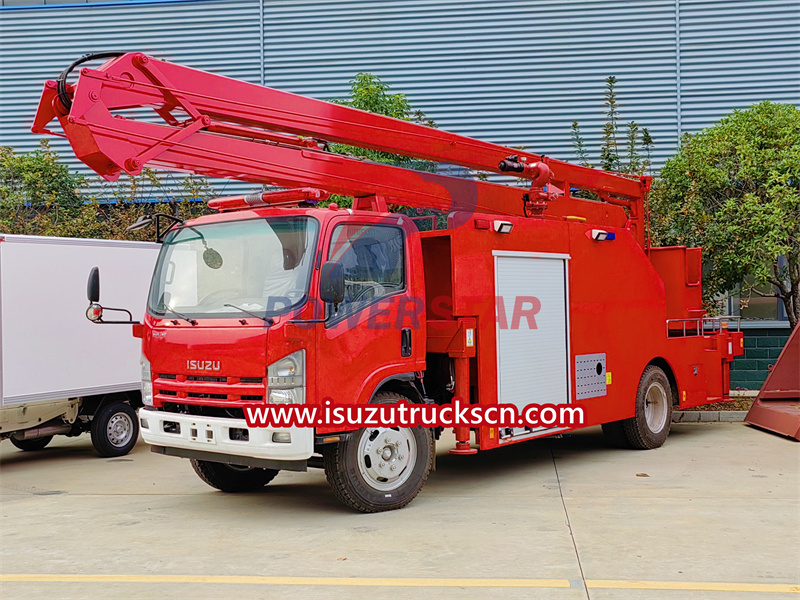

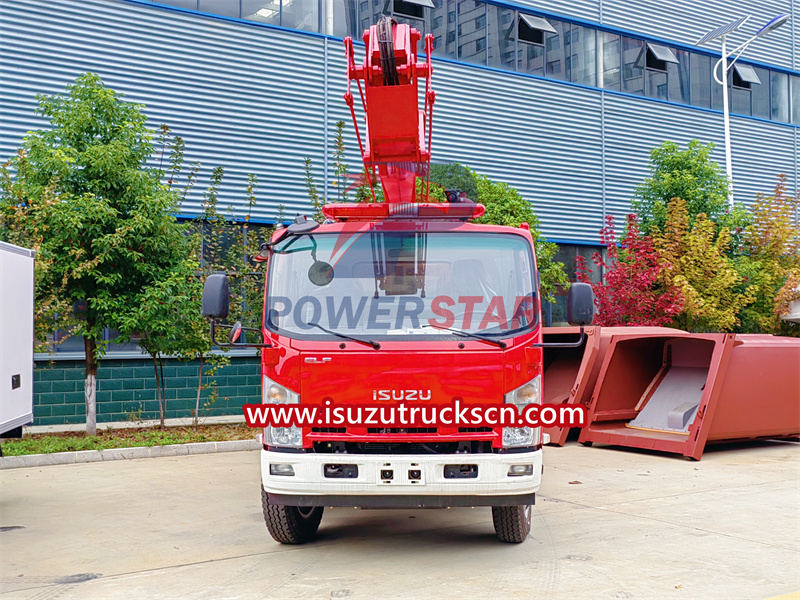

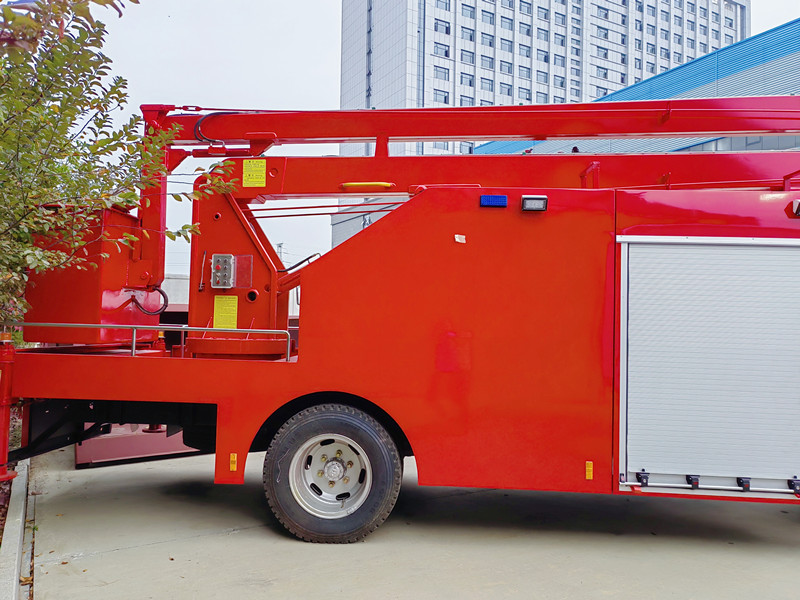

ISUZU ELF NPR model multifunctional Water Fire Engine(4000 Liters) with 16m aerial platform bucket, which is modified based on Isuzu’s original Class II NPR 4x2 model left hand drive truck chassis, with a liquid capacity of 4 cubic meters, equipped with CB10/40 type fire pump, PS40 type fire monitor, and equipped with commonly used firefighting equipment. It is powerful and mobile. Good performance, convenient operation, long fire range, suitable for fire brigades, full-time teams, communities, streets, villages, industrial parks, campuses, enterprises, scenic spots, museums and other places. Also mounted with articulated model aerial platform bucket, with working height can be up to 16m, rear insulated bucket is 100% customized.
Work capacity:
4000L water tanker and 16m heightTruck model:
PT5110GXFFMEngine power:
190 hpEngine type:
4HK1-TCAxle drive:
4x2Gear box:
ISUZU MLD 6-shift ManualRemarks:
Multifunctional 4000L water tanker and 18m aerial working platform
Isuzu ELF water fire truck, Left Hand Drive model 4x2 chassis, ISUZU MLD 6-shift manual gearbox, Isuzu 4HK1 model 190HP diesel engine, painting and logos depend on requirement.
Isuzu Elf 4000liters Water Tanker Fire Fighting Truck mounted with 16m insulated bucket: Which can be called Isuzu Fire Truck ELF (also called Fire fighting vehicle, Fire engine, Fire tender, Water Fire trucks, Foam fire engine) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance. We POWERSTAR can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on. All can be produced and customized with articulated platform model and used to as a manlifter truck. All our fire trucks with huge fire equipment and you can put fire-fighting immediately. Call me now and get your own trucks today!
Products Parameters for ISUZU NPR 16m high ladder fire rescue truck:
Fire Truck Model:
Isuzu 700P ELF NPR NQR Water Tank Fire Truck is composed of the type II truck chassis, water tank, water pump, pipeline, instrument circuit system and other components. The vehicle is equipped with aluminum alloy rear climbing ladder (removable), the pump compartment is at the rear of the vehicle. The tank body is fabricated from stainless steel/carbon steel, automatically welded, and the interior is coated with anti-corrosion. The Water Tank Fire Truck capacity is 4 cubic meters. It is equipped with a fire pump capacity 1800LPM@10BAR pressure and a fire monitor capacity [email protected].
| Fire truck Isuzu (5 cbm) | ||
| General | Vehicle Brand | Chengli |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7540 * 2300 * 3050 mm | |
| GVW / Kerb Weight | 10,000kg / 5,900kg | |
| Cab | Cab Capacity | 6 persons allowed |
| Air Conditioner | Heating/cooling air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 HP (140 KW) | |
| Displacement | 5200 ml | |
| Emission Standard | Euro 4 / 5 | |
| Chassis | Drive Type | 4X2, (left hand drive) |
| Transmission | Manual 6-shift speed levers with 1 reverse | |
| Wheelbase/No. of axle | 4175 mm / 2 | |
| Tire Specification | 8.25-16 | |
| Tire Number | 6 tires and 1 spare tire | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water tank capacity Foam tank capacity |
4,000L water Null |
| Tanker Material | Carbon Steel | |
| Fire pump | CB10/40, 40L/S | |
| Fire pump location | Center or rear | |

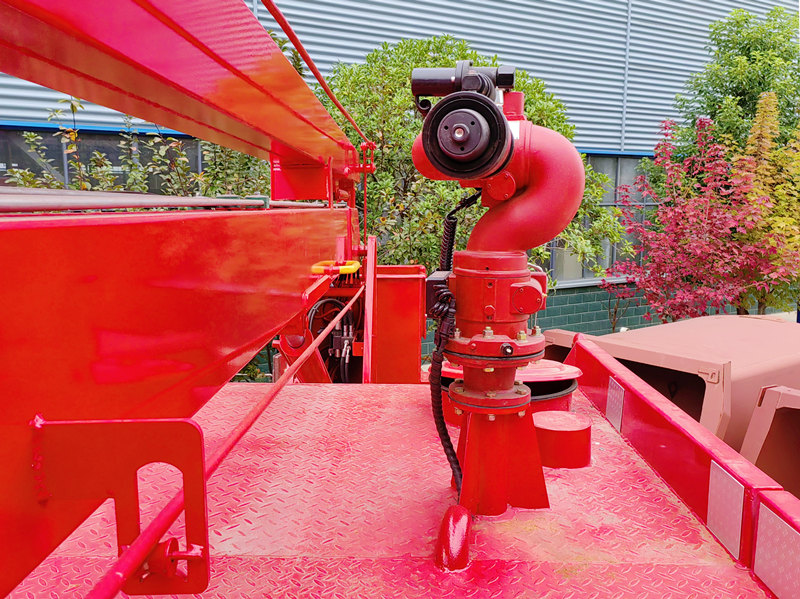

| Fire monitor | Water jet distance: ≥45m Foam jet distance: ≥40m |
|
| Electronic alarm | 1.2 m long | |
| Control panel | English or Your language | |
| All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual... | ||
| Optional | ** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional |
|
Bucket Model:
Isuzu NPR working platform truck (also named Aerial Boom Lifting Truck, man lift truck, man lifting truck, Cherry Picker,Telescopic aerial platform truck, overhead working truck, truck platform, beamlifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard, cherry picking and other high aerial works. the advanced ISUZU ELF articulated boom aerial bucket truck, an innovative solution for versatile aerial work operations with heights ranging from 12 to 16 meters. This cutting-edge machinery boasts full hydraulic operation, providing unparalleled precision and efficiency for various tasks at elevated levels.
|
Power take-off system |
Power is taken by the gearbox and operated in the cab |
|
|
Insulated Work bucket |
Size 1150×650×1150mm Rated load 200kg |
|
|

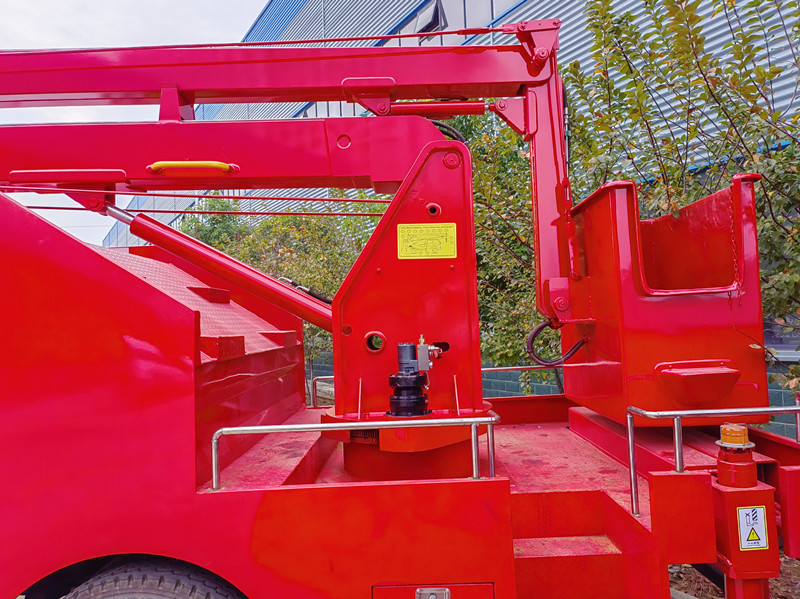

Boom |
Two-section folding arm |
|
|
Swivel device |
Two-way 360° continuous rotation |
|
|
operating system |

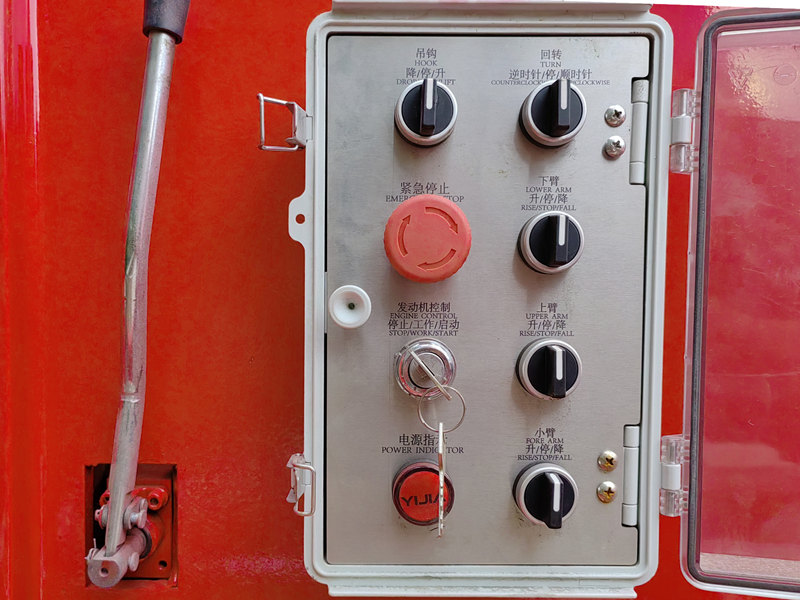

Two operating systems of working bucket and turntable |
|
|
Hydraulic system |
Electro-hydraulic control, stepless speed regulation, equipped with emergency pump |
|
|
Platform |
Multifunctional mounted with 4000L fire tanker system |
|
|
Safety devices |
Interlock for getting on and off the car, emergency pump, two-way balance valve, two-way hydraulic lock, vehicle level, working arm limit position alarm and protection device |
|
|
Leveling system |
Built-in combined automatic leveling system |
|
|
Main operating technical parameters |
Working height of bucket |
16m |
|
Maximum working range of working bucket |
7.2 m |
|
|
Rated load of working bucket |
200Kg |
|
|
Rotation angle |
±360° continuous |
|
|
Working range at maximum working height of working bucket |
3m |
|
|
Working height when working bucket maximum working range |
7.3m |
|
|
Lifting time of working platform |
80~130s |
|
|
Swing speed |
0～2 r/min |
|
|
Vehicle model |
ISUZU NPR |
|
|
Cabin |
Single row/W1995/right rudder |
|
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
6725×2100×2280 |
|
Wheel base(mm) |
4475 |
|
|
Weight data |
Curb weight(kg) |
5560 |
|
Gross vehicle weight（kg） |
11000 |
|
|
Persons in cab |
3 |
|
|
Whole vehicle main performance |
Max. speed（km/h） |
95 |
|
ENGINE |
Model |
4HK1-TC |
|
Emissions standards |
Euro 5/6 |
|
|
Displacement（L） |
5.193 |
|
|
Rated Power（kw/rpm） |
139 |
|
|
Gearbox |
Model |
6TS55 |
|
Front axle |
Type/Mainreducetion ratio |
4 T |
|
Rear axle |
Type/Mainreducetion ratio |
7 T |
|
Suspension |
Front suspension/Leaf spring number |
9 |
|
Rear suspension/Leaf spring number |
11+7 |
|
|
Brake system |
Service brake |
Drum pneumatic braking |
|
Parking brake |
Brake gas brake |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Wheels and tyre size |
6+1(8.25R16) |
|
Why choose Isuzu bucket trucks from POWERSTAR：
1. Versatile Articulated Boom: The aerial bucket truck features an articulated boom that allows for exceptional versatility and maneuverability. The boom is designed to articulate in multiple directions, enabling precise positioning of the bucket at heights ranging from 12 to 16 meters (approximately 39 to 52 feet).
2. High Reach Capability: With a working height of 12 to 16 meters, this aerial bucket truck is well-suited for a wide range of tasks that require access to elevated areas. It can efficiently reach and service overhead power lines, streetlights, signage, building facades, and other elevated structures.
3. Safe and Sturdy Bucket: The aerial bucket is built with safety as a priority. It is designed to provide a stable and secure platform for operators to work from. Equipped with safety harnesses and controls within easy reach, it ensures a safe working environment for workers at elevated heights.
4. Impressive Load Capacity: The truck's bucket is designed to carry significant loads, making it ideal for various tasks that require transporting tools, equipment, or materials to elevated locations. The truck's load capacity ensures increased efficiency and reduces the need for additional equipment on the job site.
5. User-Friendly Controls: The truck features user-friendly controls that allow for precise movements of the articulated boom and the bucket. Operators can easily manipulate the boom's extension, elevation, and rotation, enabling them to work with accuracy and efficiency at varying heights and angles. Intuitive controls contribute to improved productivity and reduced downtime.
