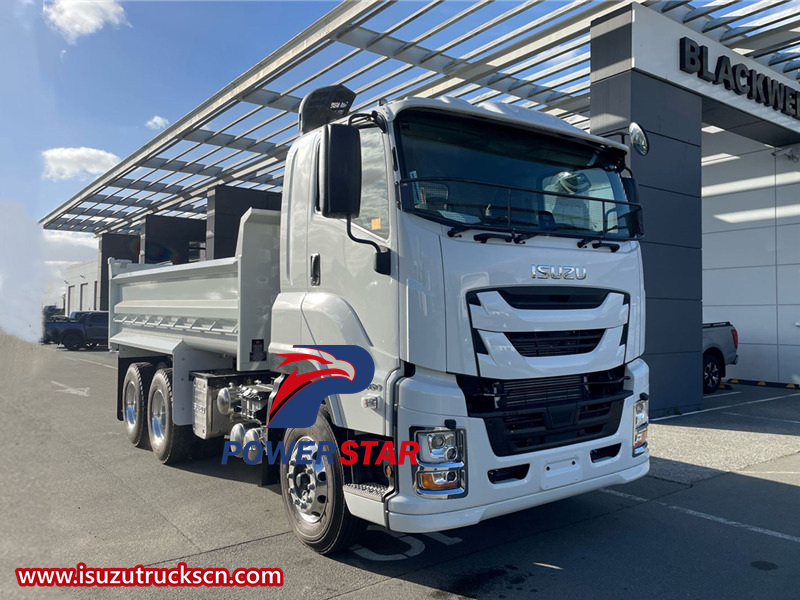

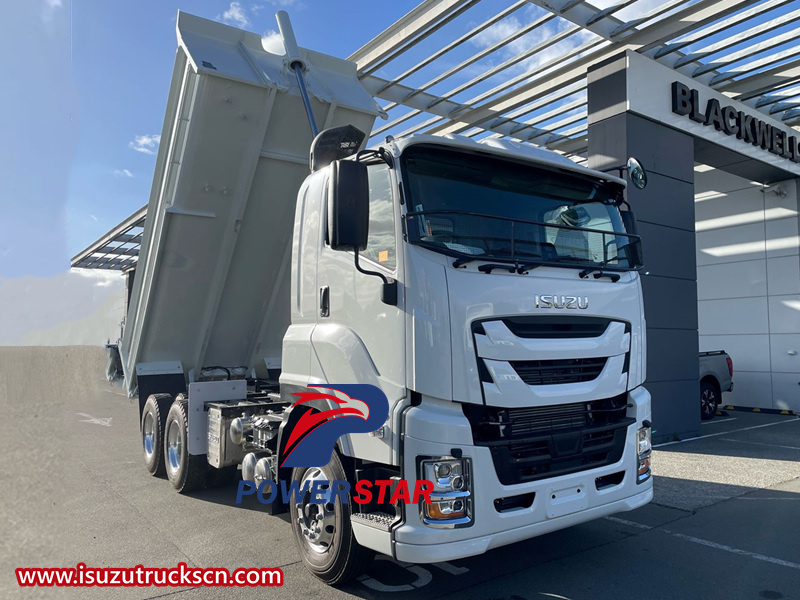

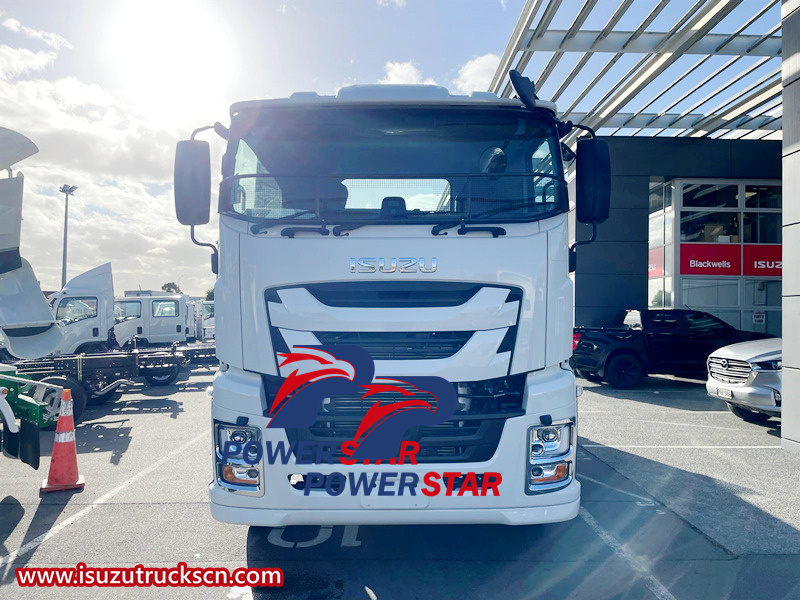

The Isuzu GIGA 30 T heavy dump truck is a formidable workhorse in the commercial truck industry. With a massive payload capacity of 30 tons, it is engineered to handle demanding tasks in construction, mining, and other heavy-duty applications. This robust dump truck is equipped with a powerful engine that provides the necessary torque to tackle challenging terrains and haul heavy loads with ease.
Work capacity:
30 tonsTruck model:
PT5300GXWEngine power:
460HPEngine type:
6WG1-TCG61Axle drive:
6x4Gear box:
ZF 16-speed,manualRemarks:
Middle lingting cylinder, customized color
Isuzu GIGA 30 T heavy dump truck also called Isuzu GIGA dump truck,Isuzu GIGA tipper truck,Isuzu dumper truck,Isuzu tipper lorry truck.The truck is a robust vehicle with a 30-ton capacity designed for heavy-duty hauling and dumping tasks. The Isuzu GIGA 30 T heavy dump truck is known for its reliability, power, and efficiency in construction, mining, and other industrial applications where heavy loads need to be transported. The GIGA series from Isuzu is well-regarded for its performance and durability in challenging work environments.

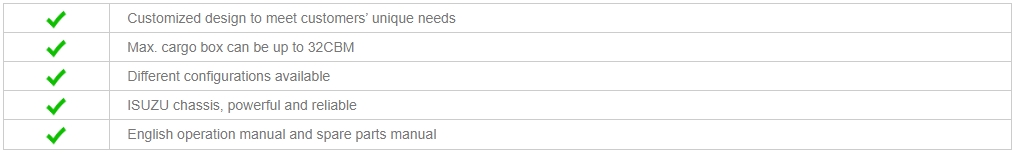

Advantage:
|
SPECIFICATION SHEET |
|||
|
Chassis parameters |
|||
|
Vehicle model |
PT5300GXW |
Chassis brand |
ISUZU |
|
Overall dimensions |
9800*2550*3450mm |
Wheel base |
3800+1450mm |
|
GVW |
37800 kg |
Kerb weight |
16000 kg |
|
Front/rear wheel track |
2060/1860mm |
Front/rear suspension |
1450/1250mm |
|
Approach/departure angle |
24/12° |
Maximum speed |
90km/h |
|
Cab |
Configuration |
Isuzu VC61 single air suspension cab, with air conditioner, allowable 3 passengers, with ABS, with air suspension seat |
|
|
Color |
white,other color is optional |
||
|
Engine |
Model |
ISUZU 6WG1-TCG61 |
|
|
Emission |
Euro 5/6 |
||
|
Type |
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine |
||
|
Rated power |
460hp |
||
|
Displacement |
15681ml |
||
|
Max.torque |
2060N·m |
||
|
Tire |
Size |
295/80R22.5 Tire, With one spare type |
|
|
Number |
10+1 nos |
||
|
Front axle loading |
7tons |
||
|
Rear axle loading |
in total 18tons |
||
|
Rated voltage |
24V,DC |
||
|
Transmissions |
ZF, 16 gears forwards and 2 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
LIFTING SYSTEM |
|||
|

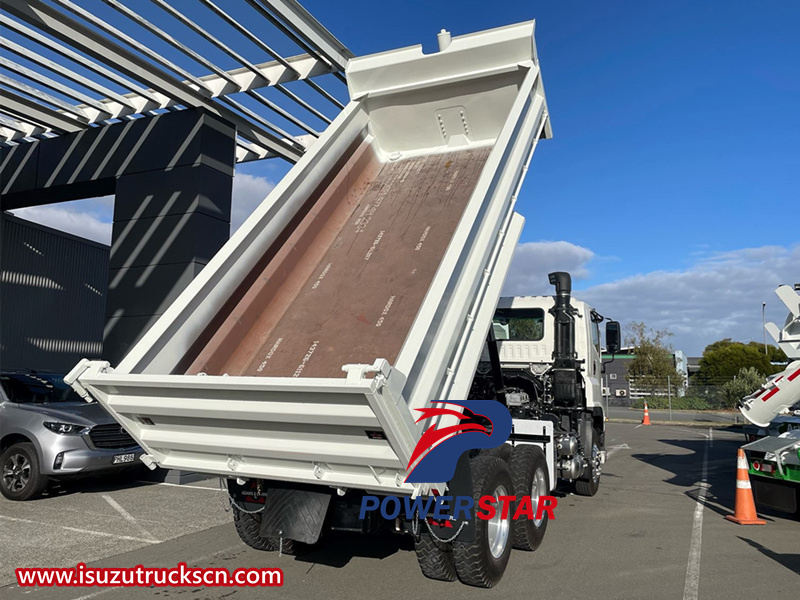

Dumper |
All-metal, about 30 T |
||
|
Sidewalls |
Sheet carbon steel (thickness: 5 mm) |
||
|
Bottom |
Sheet carbon steel (thickness: 6 mm) |
||
|
Discharge time |
40S-50S |
||
|
Discharge system |
lifting/dump type |
||
|
Dump angle |
50 degree |
||
|
Hydraulic system pressure |
30Mpa |
||
|
Standard equipment |
ITALY BRAND Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. |
||
The Isuzu GIGA 30 T heavy dump truck comes equipped with a range of features tailored to handle challenging hauling tasks efficiently. Some common features of such heavy dump trucks may include:
★ Powerful Engine: A robust engine with high torque to manage heavy loads and challenging terrains effectively.
Spacious Cabin: Comfortable and ergonomic cabin design for the driver to ensure efficiency during long hauls.
★ Advanced Safety Features: Safety systems such as ABS, airbags, traction control, and stability control to enhance driver and cargo protection.
★ Dump Body: Heavy-duty dump body for easy unloading of materials on construction sites or disposal areas.
★ Towing Capacity: Capable of towing heavy loads due to its design and powertrain.
★ Efficient Transmission: Transmission systems suited for heavy-duty applications, such as automatic or manual transmissions.
★ Off-Road Capabilities: Designed with features like good ground clearance, durable tires, and robust suspension for off-road operations.
★ Payload Monitoring System: Technology to monitor payload weight for safety and efficiency.

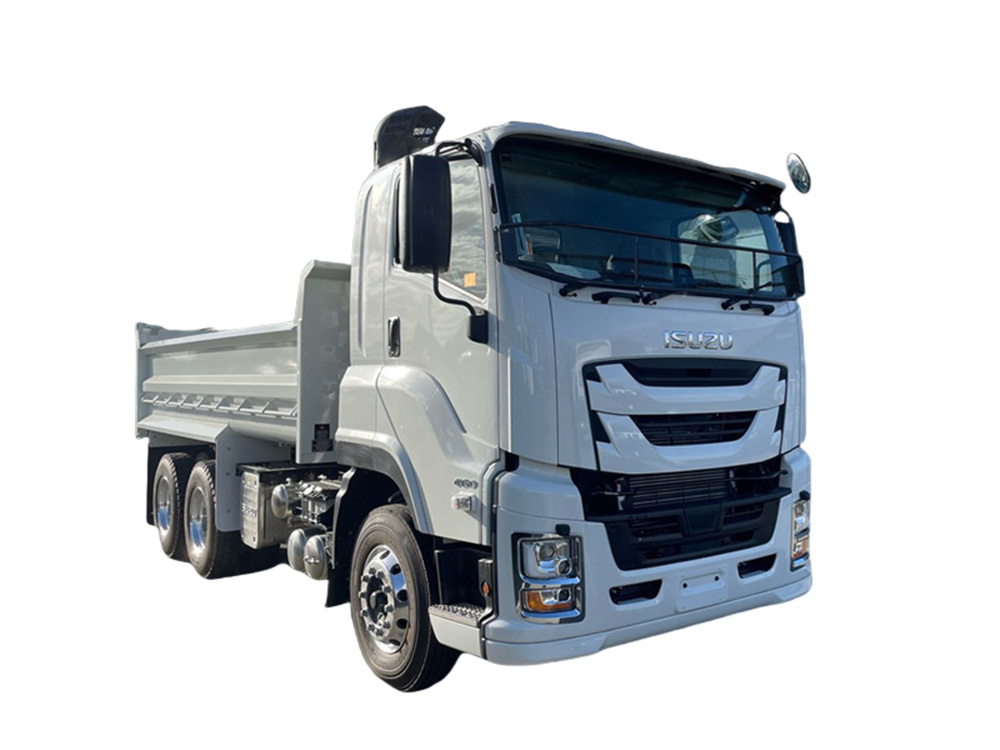

Isuzu GIGA 30 T heavy dump truck
