This modified crane truck is competent to lift 5 tons of materials. It is very efficient when it comes to moving heavy equipment, machinery, vehicles, and other items. It is widely used in construction sites, manufacturing sectors, mills, factories, and for transportation of heavy tools. Any special requirements regarding the specifications and configurations can be discussed and met accordingly.
Work capacity:
5 tonsTruck model:
PT5110GXREngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
MLD-6Q,manualRemarks:
Isuzu 4 sections telescoping boom crane with basketThe Isuzu boom crane truck with manlifter also called Isuzu 700P manlift truck with basket,Isuzu truck mounted crane with basket,Isuzu NPR 5 tons crane truck with basket,is a powerful and versatile machine, ideal for a wide range of lifting and material handling tasks. Its powerful engine, sophisticated boom crane system and Manlifter system make it ideal for construction, utility and industrial applications. With its user-friendly controls, durable structure and wide range of attachments, the Isuzu boom crane truck with manlifter is a valuable addition to any heavy vehicle fleet.
Features:
★ Isuzu 700P chassis, perfect performance
★ 4HK1 engine, powerful; reliable performance, no overhaul required within 100,000 kilometers
★ Strong lifting capacity
★ Flexible boom configurations：traight or folding arm, optional length
★ Easy to operate and maintain
|
Isuzu 700P boom crane truck with Manlifter |
||
|
Vehicle Model: |
PT5110GXR |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7400×2350x3340mm |
|
Wheelbase: |
4175mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2115mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Approach/Departure angle: |
17/15° |
|
|
Leaf Spring: |
8/10+6 |
|
|
Weights and Capacities |
Curb Weight: |
3420kg |
|
Payload: |
7000kg |
|
|
GVW: |
10550kg |
|
|
Axle Loads: |
3550/7000kg |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Generator |
24V-80A |
|
|
Max speed |
110Km/h |
|
|
Cab |
Number of Seats: |
3 |
|
Chassis |
Type |
Isuzu 700P single row,with A/C |
|
Drive Type: |
4x2,LHD |
|
|
Tires: |
7(Including Spare Tire) |
|
|

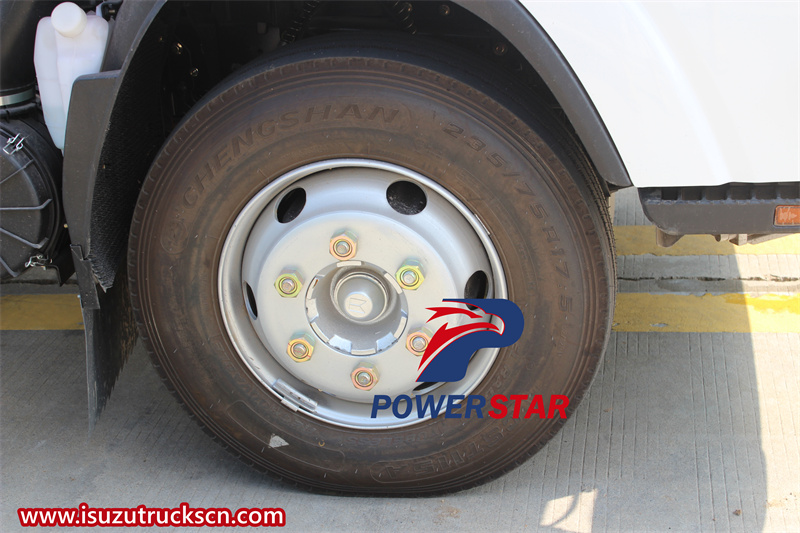

Tire Model: |
235/75R17.5 |
|
|
Fuel Tank |
Number: |
1 |
|
Type: |
Diesel |
|
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Free Maintenance Battery |
|
|
Crane Parameter |
Brand |
XCMG |
|
Model |
SQS125-4 |
|
|
Boom type |
4 sections telescoping boom |
|
|
Max. working height |
12.5 m |
|
|
Max. Boom length |
11.2 m |
|
|
Max lifting moment |
12.5 t·m |
|
|
Max. Working radius |
11 m |
|
|
Max. lifting capacity |
5000 kg |
|
|
Max. pressure of hydraulic system |
22MPa |
|
|
Crane weight |
2260Kg |
|
|
Rotation of turntable |
360° continuous |
|
|
Rotation of turntable |
±90° |
|
|

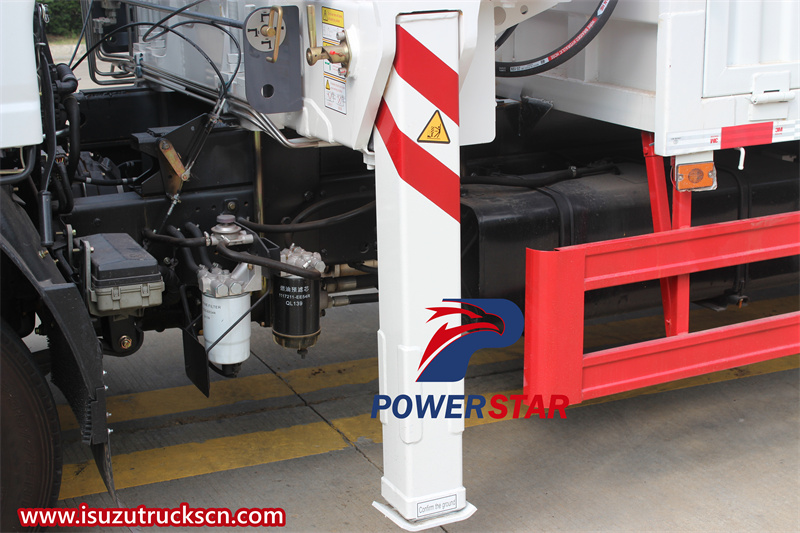

Outrigger |
Front H type,5000mm |
|
|
Installation space |
900 mm |
|
|
Cargo Box Dimension |
4500x2300x550mm |
|
|
Basket material |
Stainless steel |
|
|
Basket max. loading capacity |
200 kg |
|
The Isuzu 700P 4x2 5ton boom crane truck with manlifter is a versatile, powerful machine designed for a wide range of lifting and material handling tasks. This truck combines the rugged reliability and durability of an Isuzu truck chassis with the precision and versatility of the boom crane and Manlifter system, making it ideal for construction, utility and industrial applications.
At the heart of the Isuzu 700P crane truck with basket is its powerful engine. The truck is equipped with a rugged diesel engine that provides ample power and torque to handle the most demanding lifting jobs. The engine is designed for durability and efficiency, ensuring the truck can operate reliably in a variety of environments and conditions.

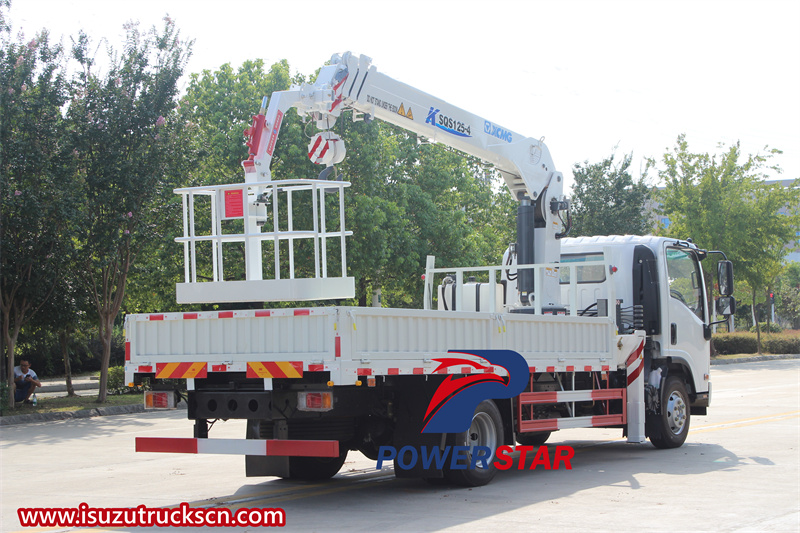

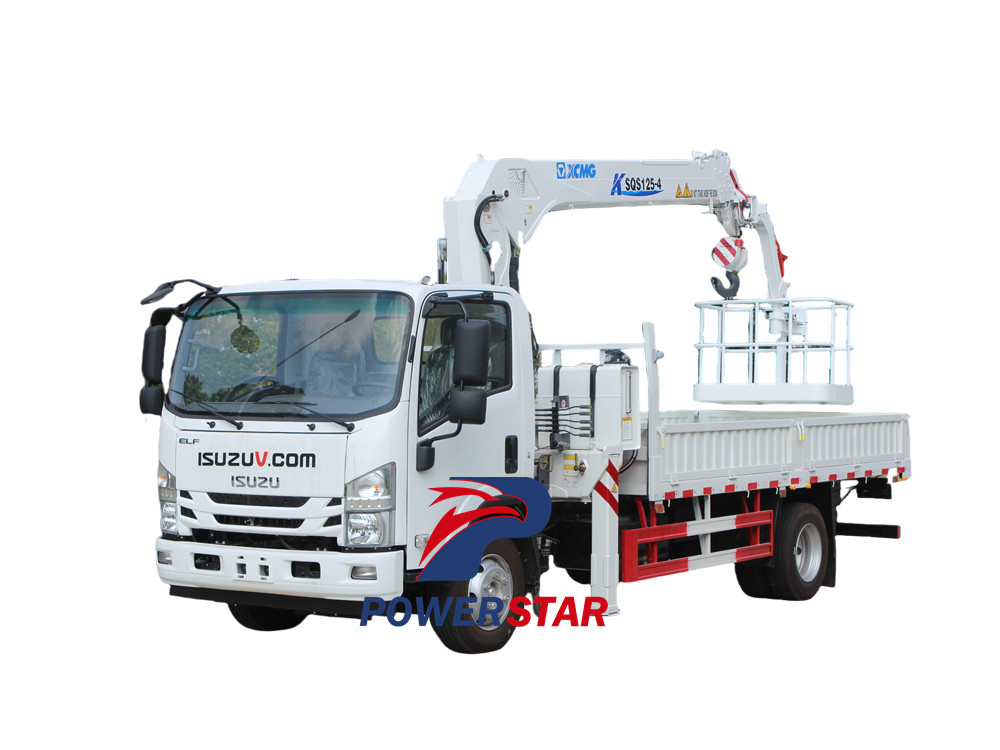

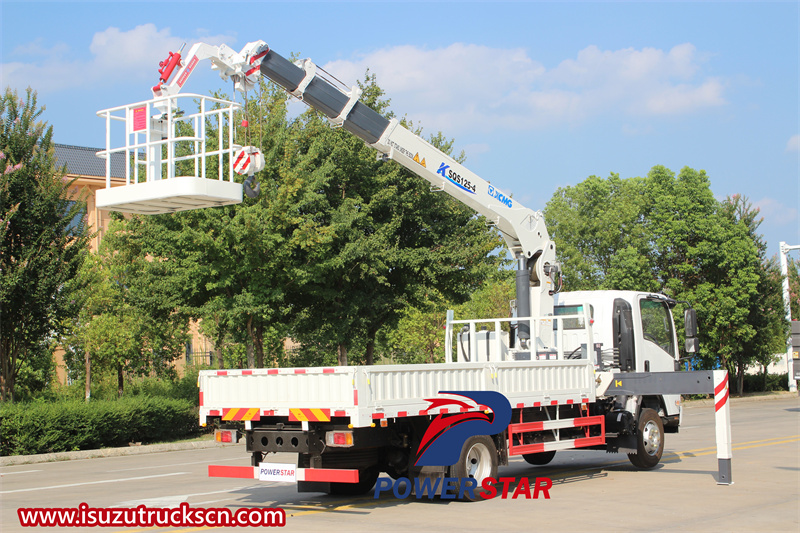

Isuzu boom crane truck with manlifter

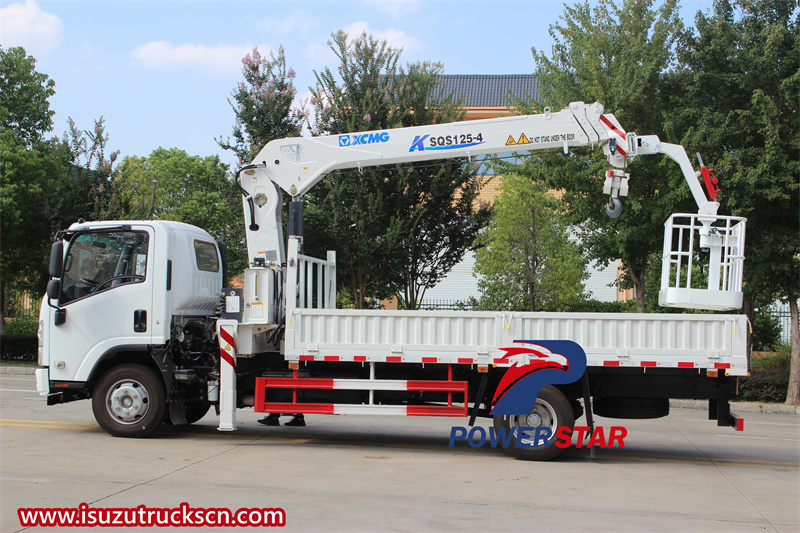

Isuzu 700P manlift truck with basket
The boom crane system on the Isuzu 700P is designed to be precise and versatile. The boom can be extended to a length of 11.2m, enabling it to reach high places and tight spaces. The crane is equipped with a range of hydraulic cylinders and controls that allow the operator to precisely position the boom and attachments, allowing for easy and precise lifting and moving of heavy loads.
One of the main features of the 5ton ISUZU Truck Mounted Hydraulic Crane is its Manlifter system. The Manlifter is a specialized attachment that can be mounted on the end of a boom crane, enabling it to lift and transport personnel in addition to materials and equipment. This feature makes the truck particularly useful in applications where workers need to be lifted to heights or hard-to-reach areas.

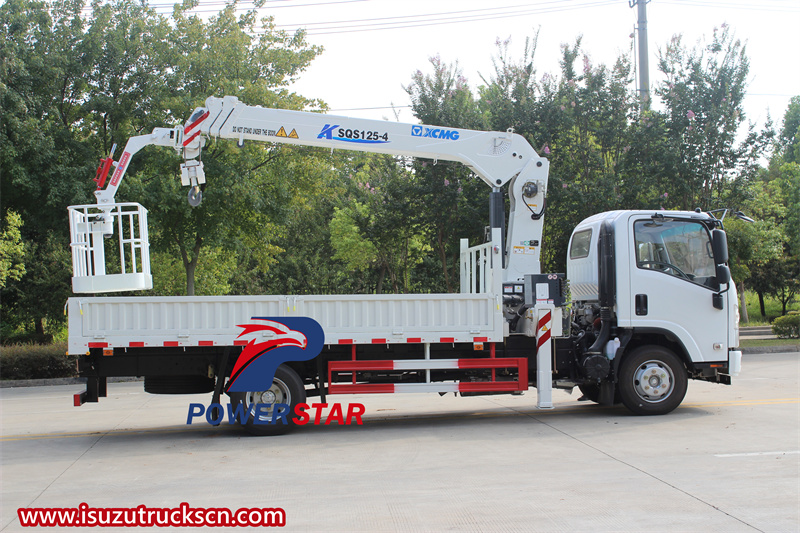

Isuzu truck mounted crane with basket
The manlifter system on the Isuzu 700P is designed for safety and comfort. It comes with a spacious and comfortable cab that provides workers with ample space to move around and perform tasks. The cab is also equipped with safety features such as seat belts, guardrails, and an emergency stop button to ensure workers are always protected.
The boom crane and Manlifter system on the Isuzu 700P are also versatile. The crane can be equipped with a variety of attachments, including buckets, hooks, and winches, enabling it to handle a variety of materials and loads. The Manlifter system can also be configured to accommodate different types of personnel platforms, making it easy to transport workers of different sizes and weights.
Isuzu NPR 5 tons crane truck with basket

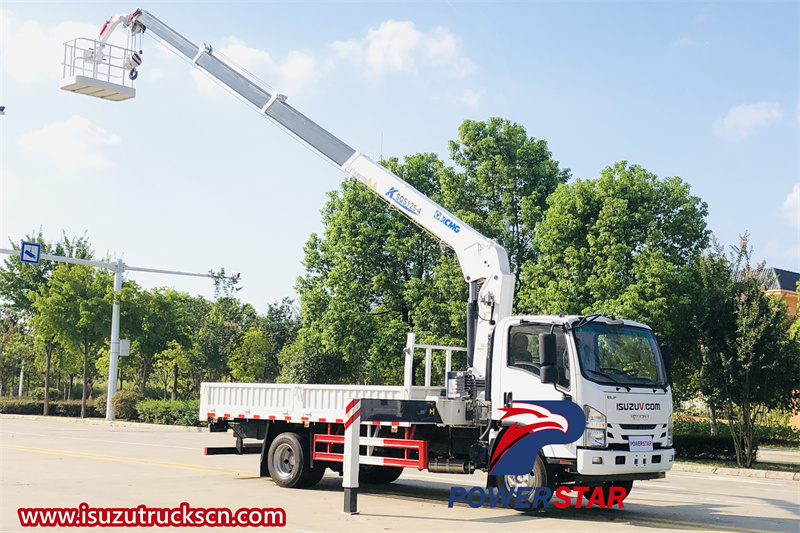

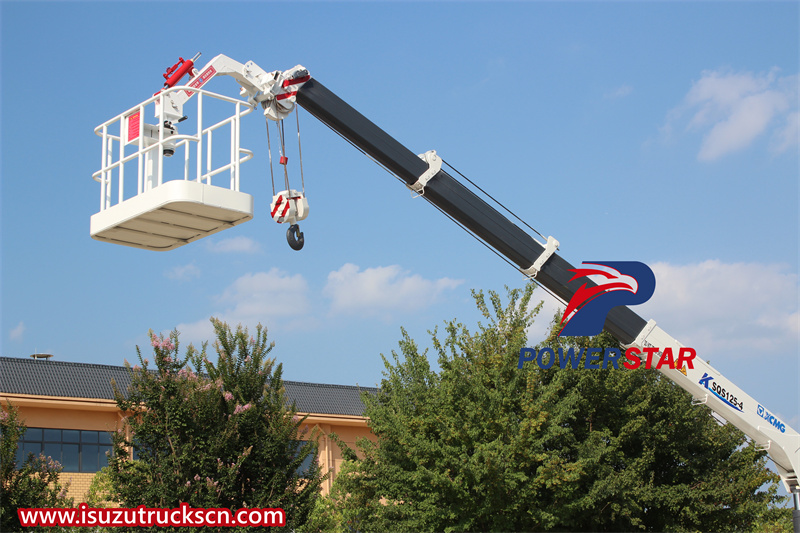

XCMG 4 sections telescopic arm extended
Feature:
● New Cabin
The new cabin model adopted front headlight follow-up steering technology, new 700P cabin is more beautiful, comfortable, and safe.
● New Power
ISUZU world-leading 4HK1-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability, and better low-temperature starting property.
● More environmentally friendly
POWERSTAR Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the perfromance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.
● More economical (fuel efficient)
Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.

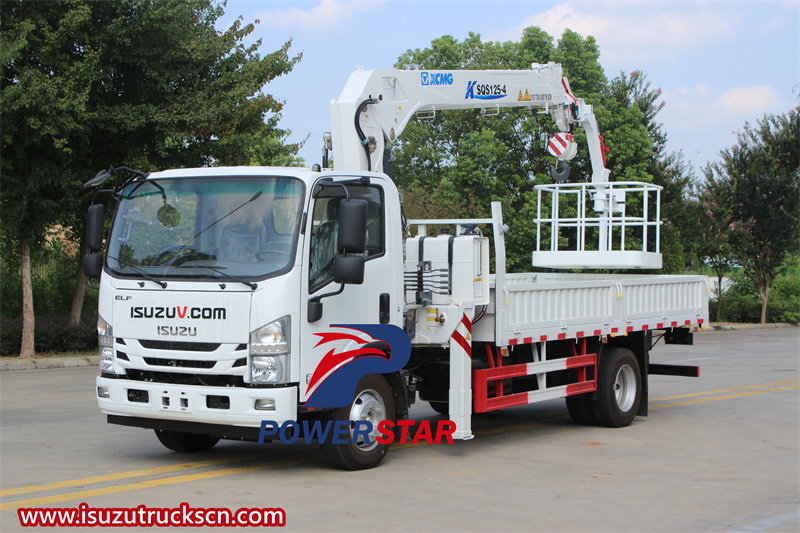

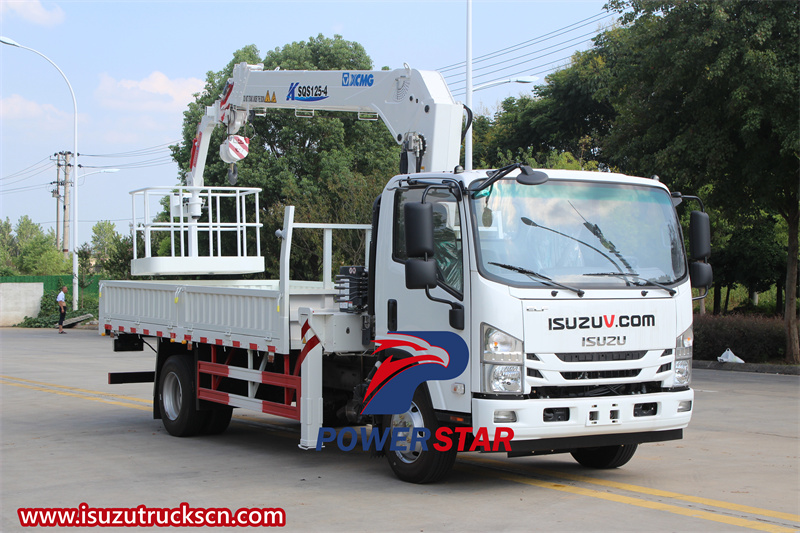

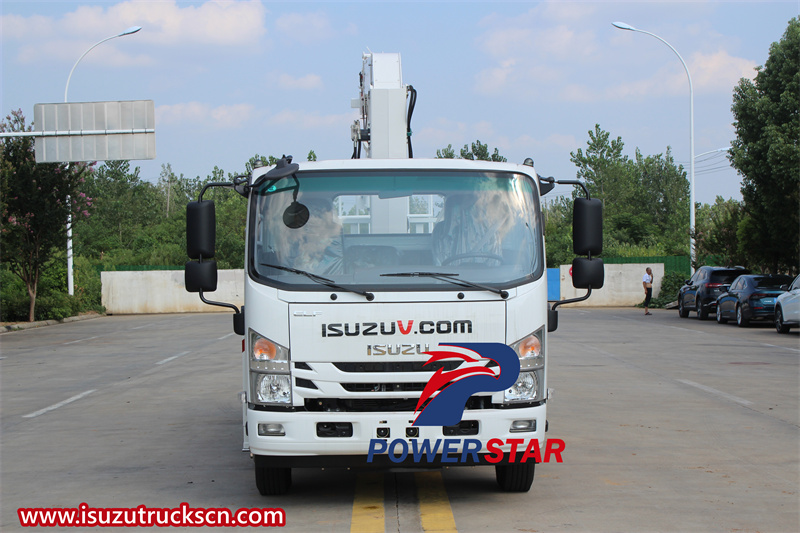

Front view

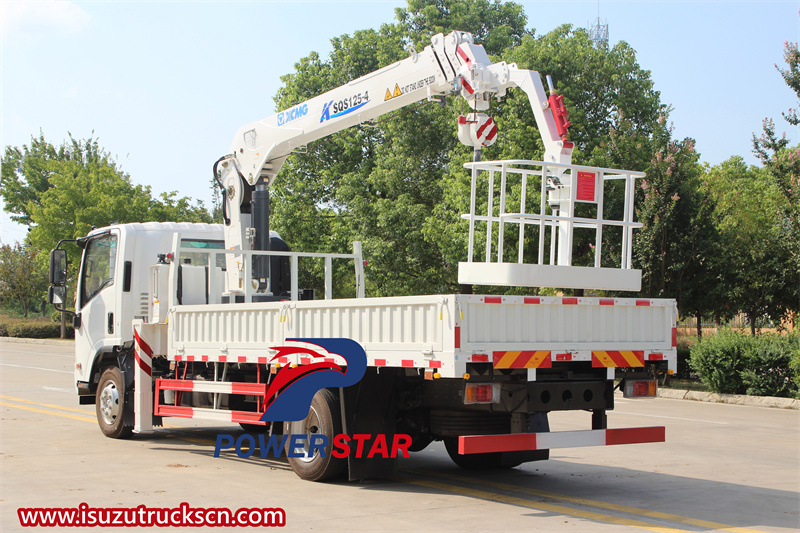

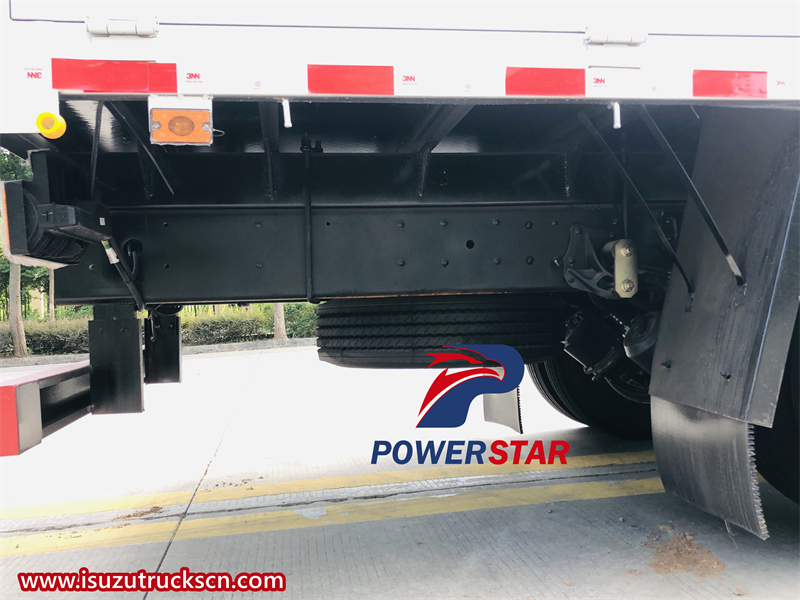

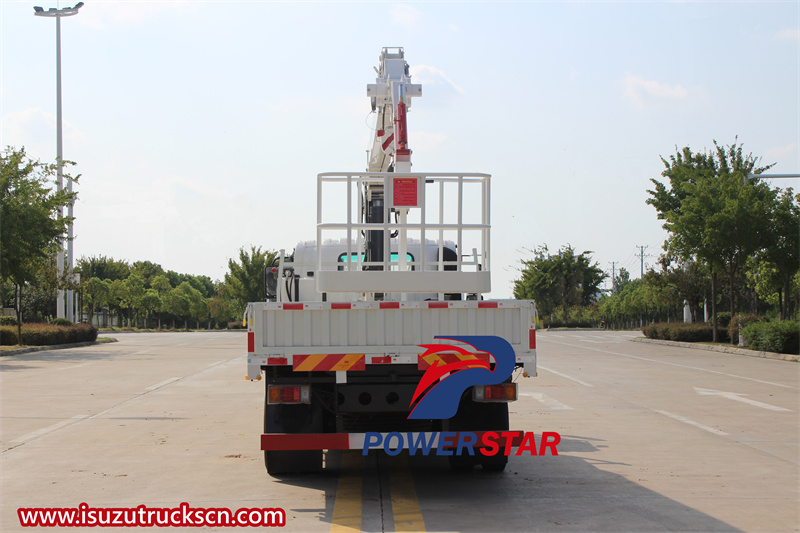

Rear view

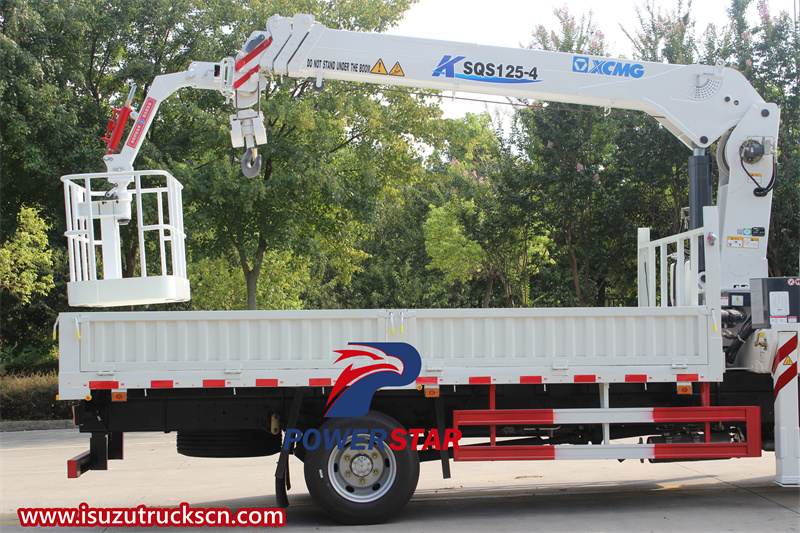

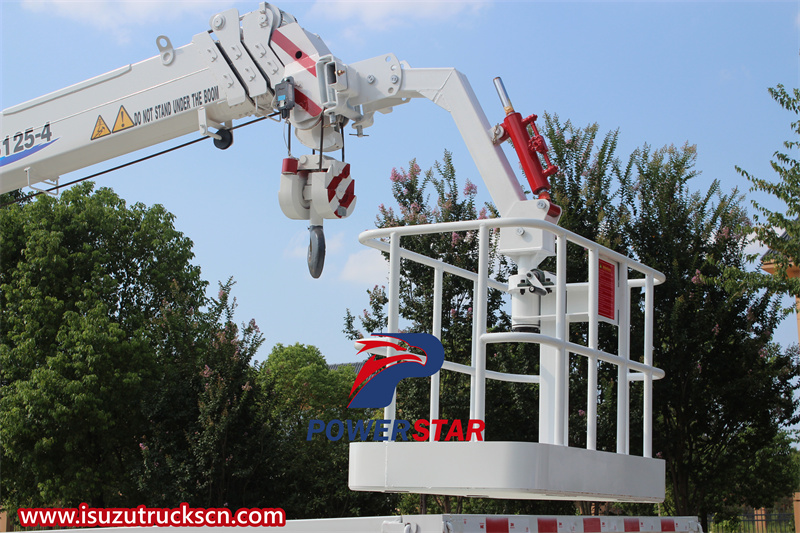

 XCMG 4 sections telescopic arm with basket |
|
 |
 |

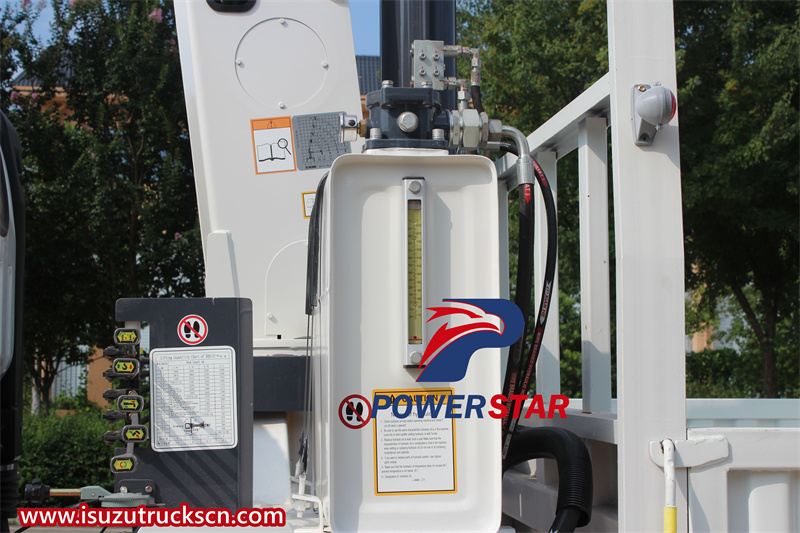

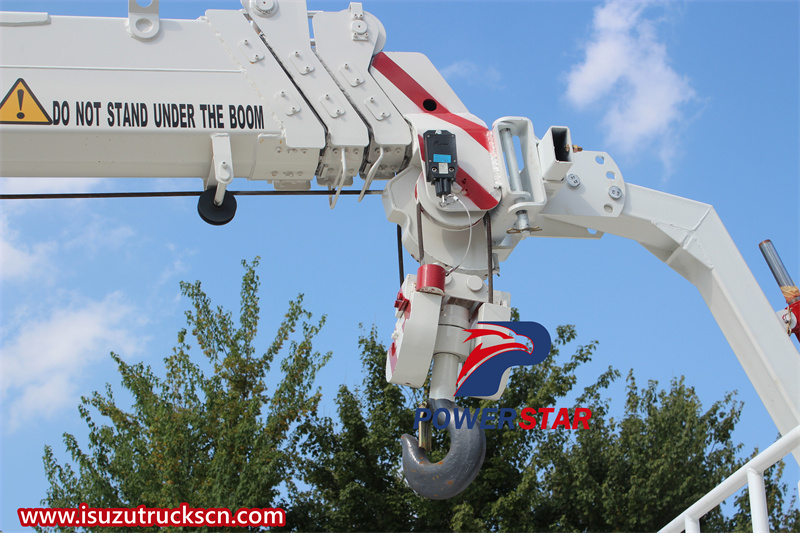

| Hook | Hydraulic oil tank |
 |
 |
|

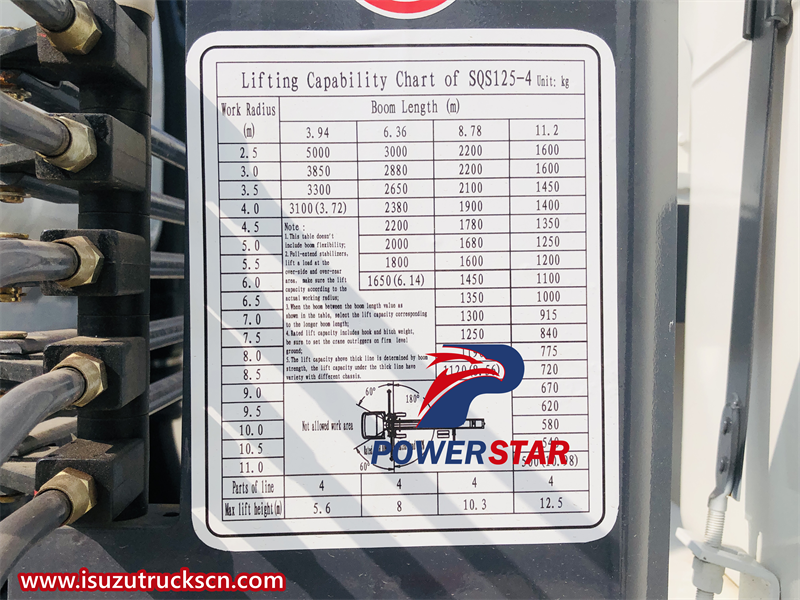

Lifting Capability Chart of XCMG SQS125-4 |

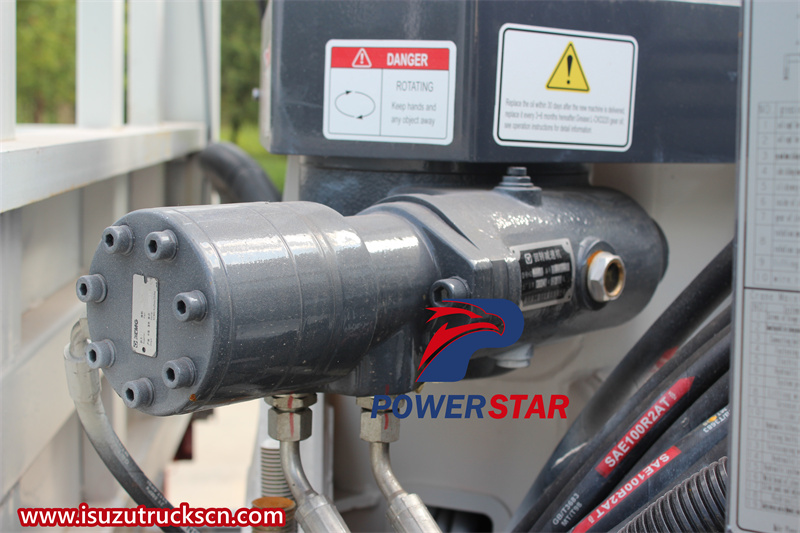

Rotary reducer |
