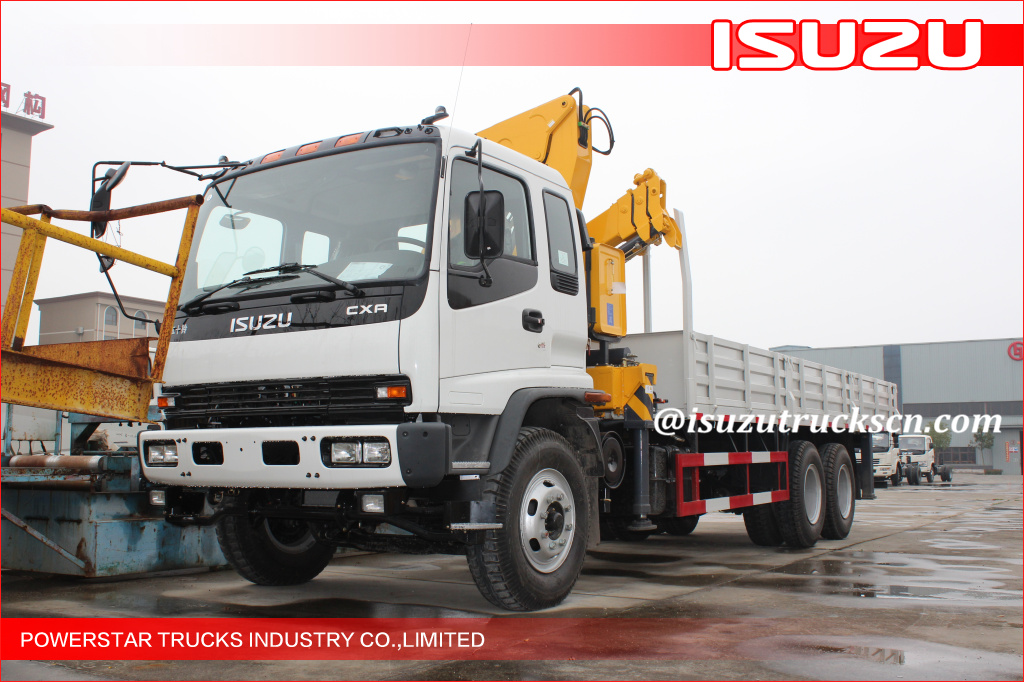

Isuzu NKR Telescopic Truck Mounted Crane ISUZU Truck With Crane
Order(MOQ):
1Isuzu NKR Telescopic Truck Mounted Crane ISUZU Truck With Crane
Durable Cargo Telescopic Truck Mounted Crane, XCMG Truck With Crane
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescopic boom crane SQ2SK2Q is lifting capacity is 2.1tons, moment is 4.2T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ2SK2Q |
Unit |
Max Lifting Capacity |
2100 |
kg |
Max Lifting Moment |
4.2 |
T.M |
Recommend Power |
9 |
kw |
Max Oil Flow of Hydraulic System |
20 |
L/min |
Max Pressure of Hydraulic System |
16 |
MPa |
Oil Tank Capacity |
25 |
L |
Rotation Angle |
360° All Rotation |
|
Crane Weight |
950 |
kg |
Installation Space |
850 |
mm |
Choice of Chassis |
ISUZU |
|
SQ2SK1Q Lifting capability diagram
Working radius (m) |
2.10 |
2.50 |
3.00 |
Lifting capacity (kg) |
2100 |
1600 |
1000 |
