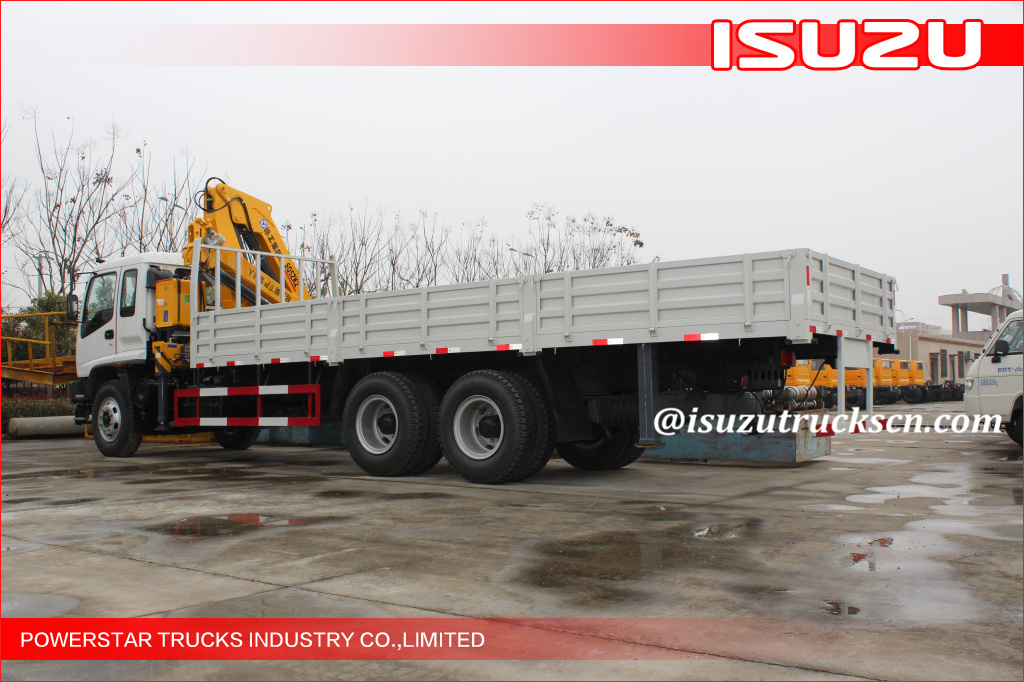

factory Isuzu 14 Ton Hydraulic System Truck Mounted Crane
Order(MOQ):
1factory Isuzu 14 Ton Hydraulic System Truck Mounted Crane
Durable 14 Ton Hydraulic System Truck Mounted Crane, 63 L/min Oil Flow
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Telescoping Boom Crane is an overbuilt, yet very compact, lifting device that can tackle heavy loads without taking up a lot of valuable cargo space. Adjustable boom elevation and reach means you can set the lifting point right where you need it.
Truck Loader Crane is a type of machine can carry heavy weights and transport them. The truck with crane mounted can load and unload the freight itself and don't need to employ another crane. The loader crane can freely route in 360 degrees, raise and extend, make the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Telescopic boom crane SQ14SK4Q is lifting capacity is 14tons, moment is 35 T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ14SK4Q |
Unit |
Max Lifting Capacity |
14000 |
kg |
Max Lifting Moment |
35 |
T.M |
Recommend Power |
30 |
kw |
Max Oil Flow of Hydraulic System |
63 |
L/min |
Max Pressure of Hydraulic System |
26 |
MPa |
Oil Tank Capacity |
160 |
L |
Rotation Angle |
360° All Rotation |
|
Crane Weight |
4845 |
kg |
Installation Space |
1300 |
mm |
Choice of Chassis |
ISUZU |
SQ14SK4Q Lifting capability diagram |
||||||
Working radius(m) |
2.5 |
5 |
8 |
11 |
13 |
15.5 |
Lifting capacity(kg) |
14000 |
6000 |
3500 |
2300 |
1800 |
1200 |
