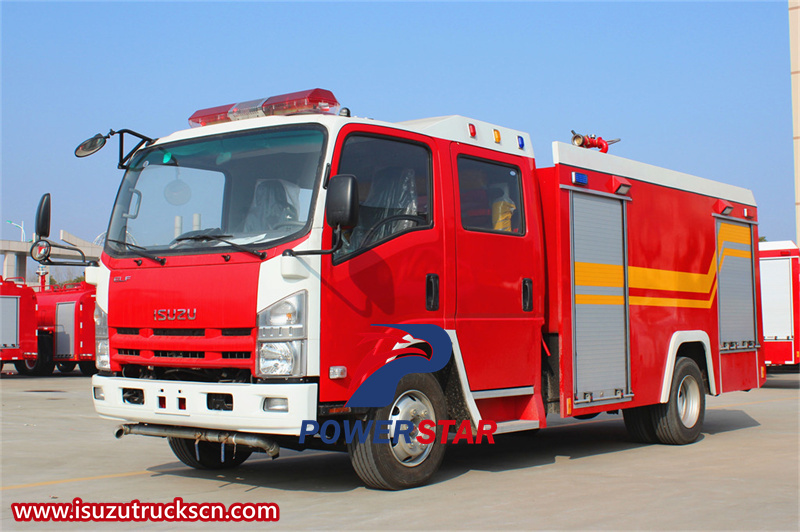

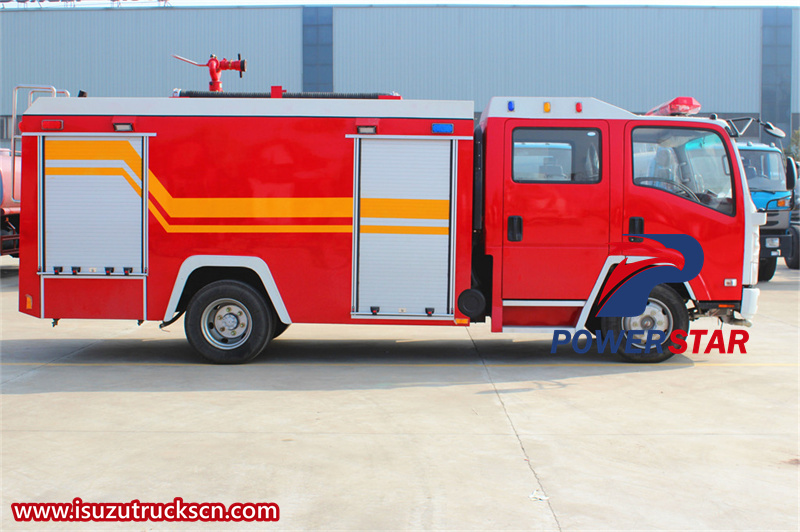

Isuzu 700P 5m3 water tank fire truck is equipped with a large capacity of 5m3 water tank, with high-efficiency water pump system and long-range fire cannon, which can quickly respond to the fire scene and provide a continuous and stable water supply. It is a fire truck with complete functions and excellent performance, and is an important equipment for fire departments to deal with emergency situations such as fires.
Work capacity:
5cbmTruck model:
PT5110GZREngine power:
190HPEngine type:
4KH1-TCG61Axle drive:
4x2，LHDGear box:
MLD 6-speed，with reverse，manualRemarks:
5cbm water tank capacityIsuzu 700P water fire fighting truck also called Isuzu 700P water tender fire truck,Isuzu 700P 5m3 water tank fire truck,Isuzu NPR 700P water fire engine,Isuzu ELF 700P double row water fire tender truck,Isuzu 700P 4x2 5 tons fire rescue truck,Isuzu 700P 5cbm pumper fire truck.

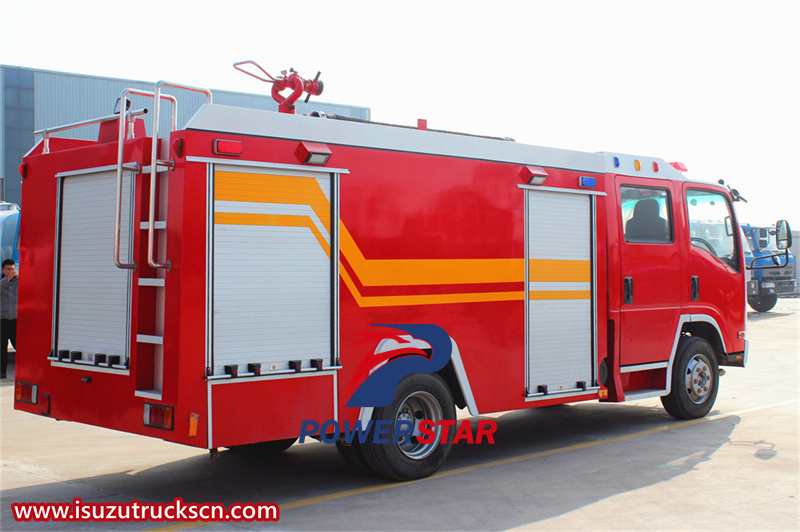

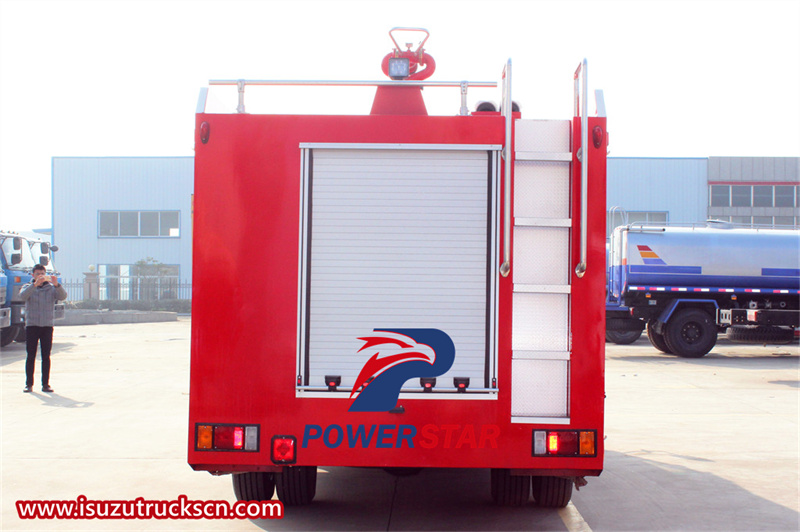

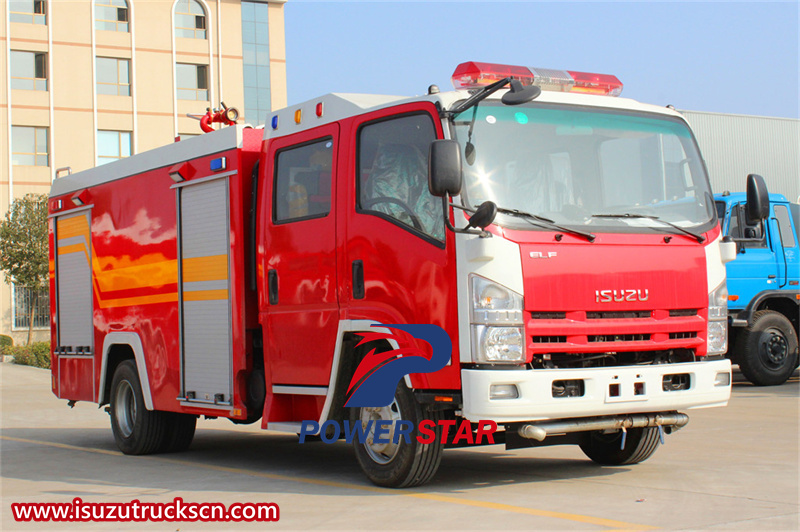

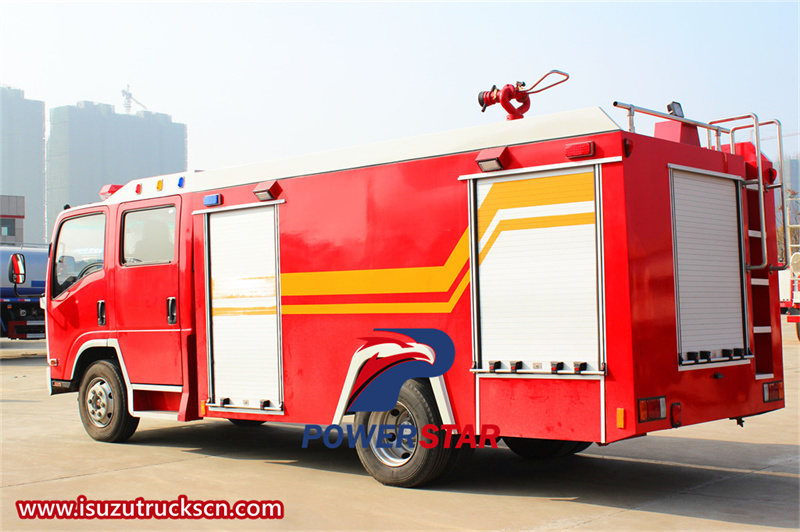

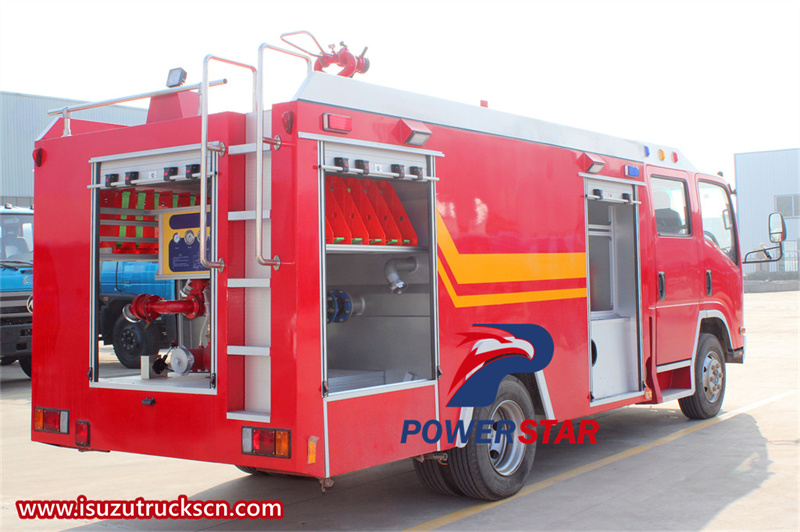

The Isuzu 700P water fire fighting truck is a professional firefighting equipment that combines efficient firefighting with flexible mobility. It is built on the sturdy and durable Isuzu 700P chassis, equipped with a double-row cab, and provides a spacious and comfortable driving space. The vehicle is equipped with a large capacity 5cbm water tank to ensure that sufficient water can be quickly and continuously provided for firefighting operations at the fire scene. Its high-pressure water pump system can efficiently spray water to directly hit the fire source and effectively curb the spread of the fire.

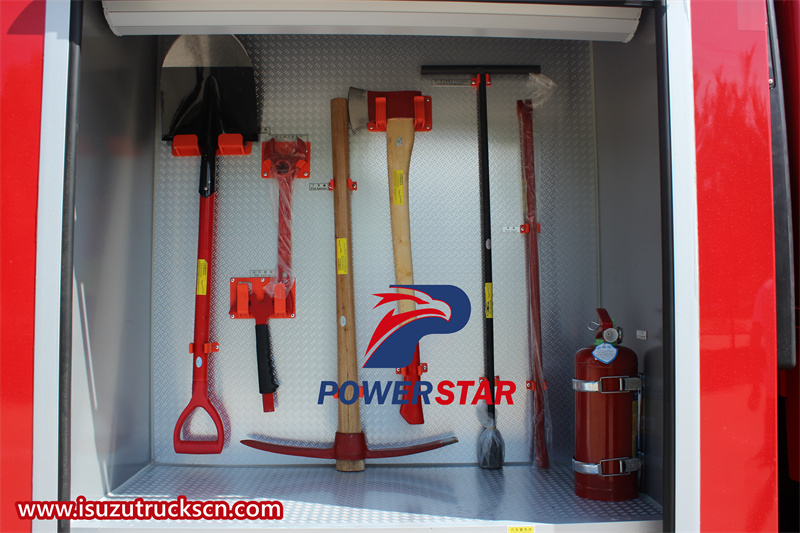

The Isuzu fire truck has a reasonable body design, good off-road capability and stability, ensuring that it can quickly arrive and operate effectively under various complex road conditions. In addition, the vehicle is also equipped with a variety of professional firefighting equipment and tools, such as fire extinguishers, fire axes, shovels, pickaxes, etc., as well as a full set of personal protective equipment for firefighters, providing firefighters with all-round safety protection.
Key Features
★ ISUZU 700P chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu 700P 5m3 water tank fire truck |
|||
|
Main specification |
Chassis brand |
ISUZU |
|
|
Truck model |
PT5110GZR |
||
|
Overall dimension(L*W*H) |
7240x2270x3080mm |
||
|
GVW |
10550kg |
||
|
Curb Weight |
5000kg |
||
|
Water tank volume |
5000 litres |
||
|

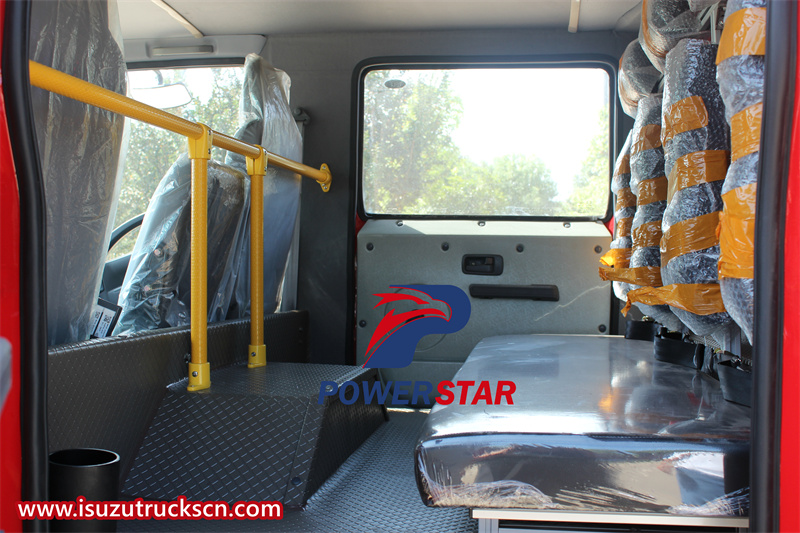

Cabin |

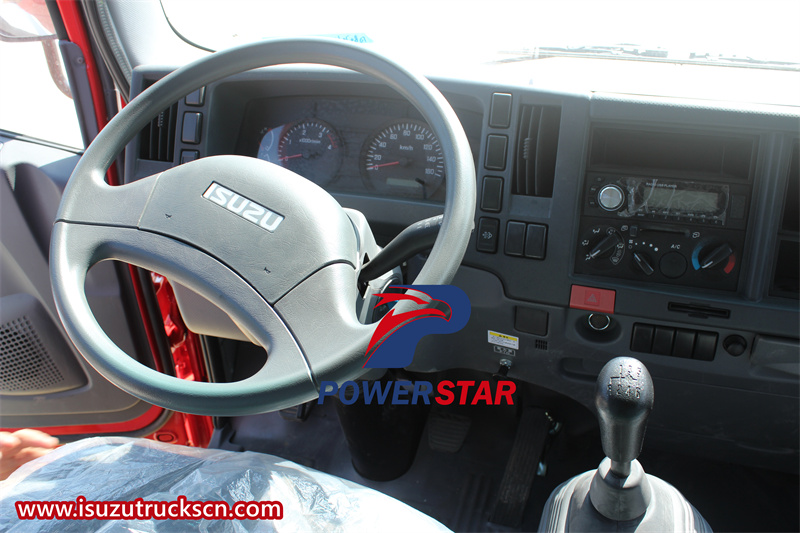

double cabin,with Air conditioner, electronic windows, USB, |
||
|
Chassis |
Drive modle |
4x2, left hand drive |
|
|
Front axle loading |
4000kg |
||
|
Rear axle loading |
7000kg |
||
|
Wheel Base |
4175mm |
||
|
Front/rear suspension |
1110/1955mm |
||
|
Approach/departure angle |
20/17 (°) |
||
|
Tyre modle & number |
235/75R17.5, 6+1 |
||
|
Transmission |
ISUZU MLD 6-speed, with reverse |
||
|
Voltage |
Have 2 batteries , each 12 volts |
||
|
Color |
Red and yellow including tanker , standard |
||
|
Brake |
Air brake, With ABS |
||
|
Max speed |
110km/h |
||
|
Engine |
Brand |
ISUZU |
|
|
Model |
4KH1-TCG61 |
||
|
Engine Type |
Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
||
|
Horse power |
190HP/139kw |
||
|
Displacement |
5193ml |
||
|
Emission |
Euro VI |
||
|
TANK SPECIFICATION |
|||
|
Tank capacity |
5000 liters water tank |
||
|
Tank material |
All Tank made of carbon steel .Thickness:4mm, |
||
|
Fire pump |
Model |
/ |
CB10/30 model ,low pressure pump |
|
Pressure |
Mpa |
1.0&1.3 |
|
|
Max flow |
L/s |
30 |
|
|
Max suction height |
m |
7 |
|
|
Rated speed |
r/min |
2600 |
|
|
Time of drawing water (s) |
s |
≤45 |
|
|
Input |
/ |
one nozzle , diameter : 100mm |
|
|
Outlet |
/ |
2 nozzles, diameter: 65mm |
|
|
Fire monitor |
Model |
/ |
PS30W,mounted on the tank as photo,standard |
|
nozzle range |
Water (m) |
≥55 |
|
|
Rated discharge |
L/s |
30 |
|
|
Rated Working pressure |
Mpa |
≤0.7 |
|
|
Rotation angle |
(°) |
360 |
|
|
Standard configuration |
Have alarm rotating light and which is mounted on top of the cabin , have fire-fighting equipment, and vehicle tools. |
||
The Isuzu 700P Water Fire Fighting Truck is a formidable and versatile piece of emergency response equipment designed to tackle the most challenging fire scenarios with efficiency and precision. Built on the robust and reliable Isuzu 700P chassis, this fire truck combines the power of a heavy-duty truck with the specialized capabilities required for firefighting operations.
Technical drawing of Isuzu 700P water fire fighting truck
Engine: The Isuzu 700P water tank fire truck is equipped with the Isuzu 4HK1-TCG61 engine, 190 horsepower, 5193ml displacement, matched with the MLD 6-speed gearbox, flexible gear position, and strong carrying capacity.
One of the key features of the Isuzu 700P Water Fire Fighting Truck is its large 5cbm capacity water tank. This tank is designed to hold a significant amount of water, allowing the truck to provide a continuous supply of water to firefighters on the ground for extended periods. The tank is also equipped with a high-pressure pump system that can deliver water at a rapid rate, enabling firefighters to quickly extinguish fires and prevent them from spreading.
The Isuzu 700P Water Fire Fighting Truck is equipped with a variety of specialized firefighting tools and equipment. These include hoses, nozzles, and other accessories that are designed to help firefighters direct water and other firefighting agents with precision and accuracy. The truck also features a ladder system that allows firefighters to access hard-to-reach areas, such as the upper floors of buildings or the tops of trees.
The water pump system and fire cannon of the Isuzu 700P double-row 5-cubic-meter fire truck are its important fire-fighting equipment. They work together to provide strong support for firefighting operations through efficient pumping systems and precise injection control.

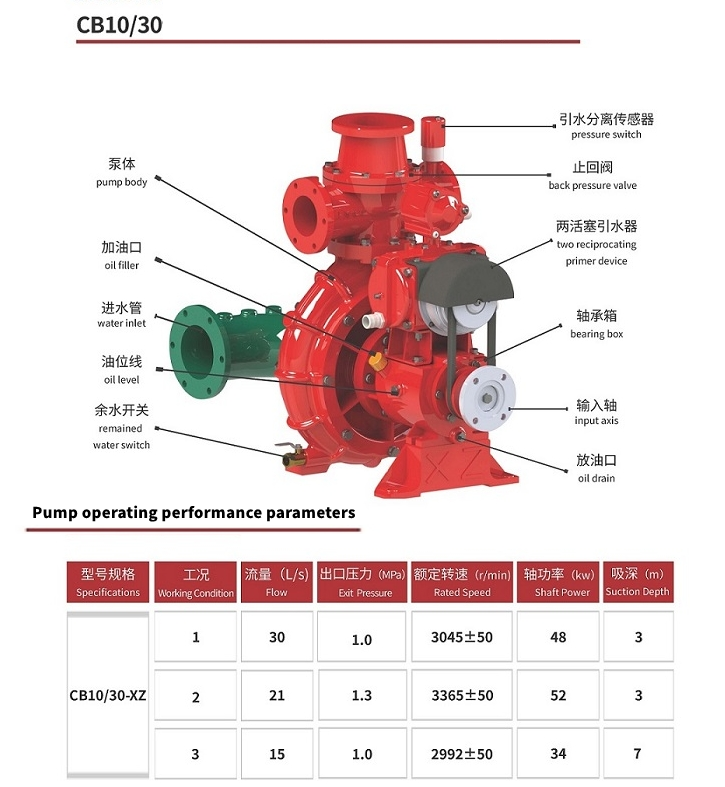

1.CB10/30 fire pump
This CB series medium and low-pressure fire pump fire pump can provide a flow rate of 30L/s (30 liters per second) under standard working conditions, which means that it can quickly and massively deliver water to the source of the fire. The working pressure of the pump is usually 1.0MPa (megapascals), which ensures that the water can be ejected with sufficient pressure to directly impact the source of the fire and improve the fire-fighting effect.
Working principle
The CB10/30 fire pump converts mechanical energy into kinetic energy and potential energy of water, pumps water out of the water tank and pressurizes it, and then delivers it to the fire cannon or other water spraying devices through pipelines. The impeller inside the pump body rotates under the drive of the drive device, generating centrifugal force to suck water from the water inlet and push it to the water outlet.

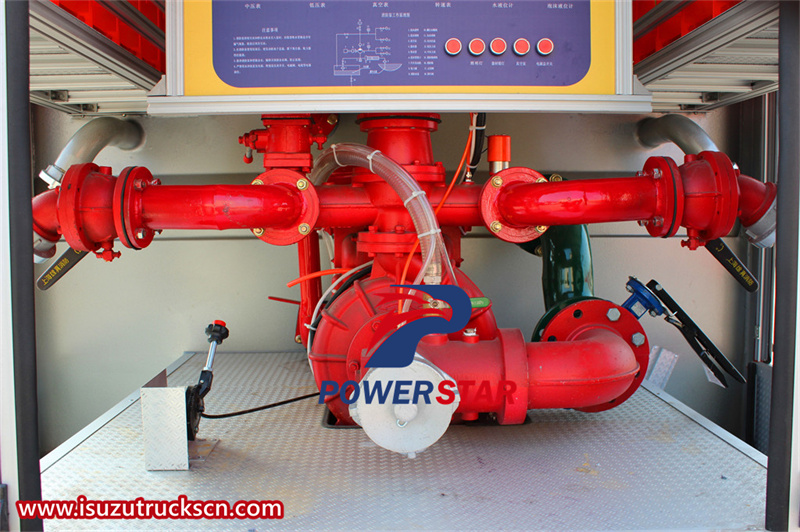

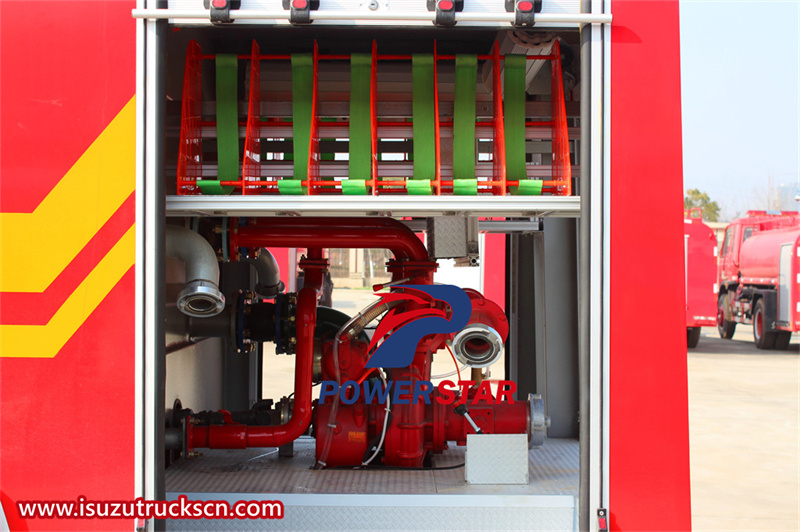

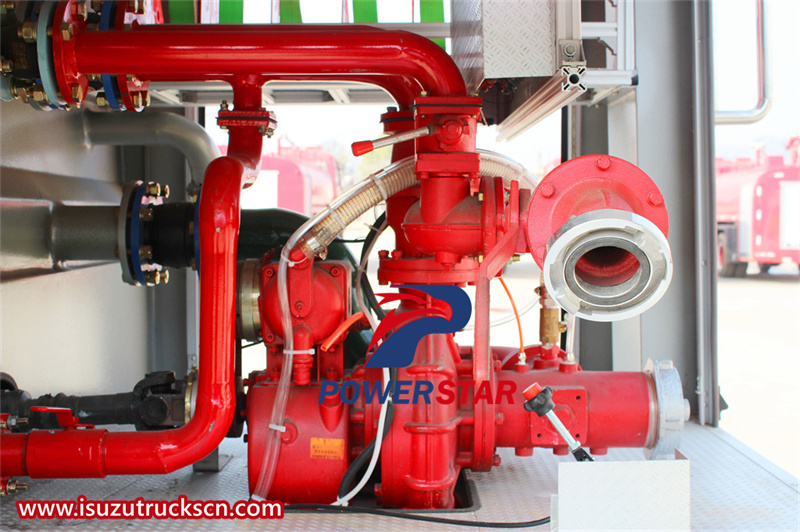

CB10/30 fire pump
CB10/30 fire pump

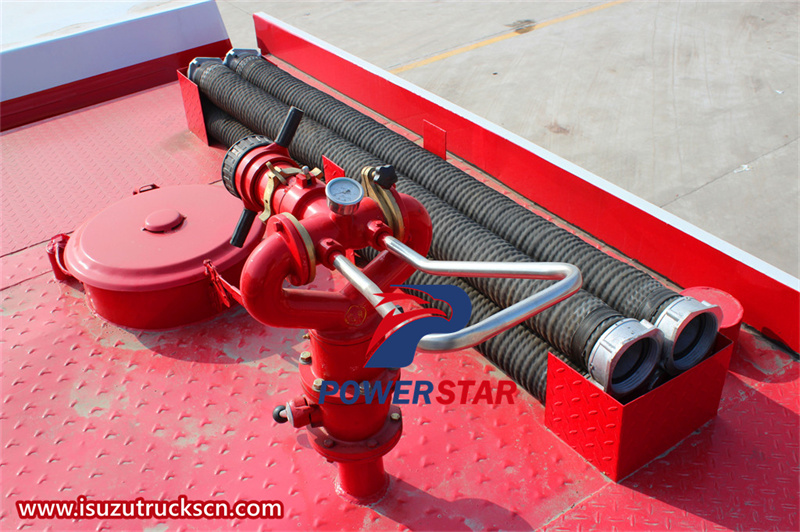

2.PS30W fire monitor
Matched with the CB10/30 fire pump, the PS30W fire monitor can spray at a flow rate of 30L/s after receiving the water flow from the fire pump. Under standard working pressure, the range of the fire cannon can usually reach more than 60 meters, which can cover a large fire extinguishing area.
Working principle
The PS30W fire monitor sprays water at high speed and high pressure by adjusting the direction and angle of the water flow. The nozzle and adjustment mechanism inside the cannon body can accurately control the spray direction and flow of the water flow to meet the needs of different fire extinguishing scenarios.
Fire monitor

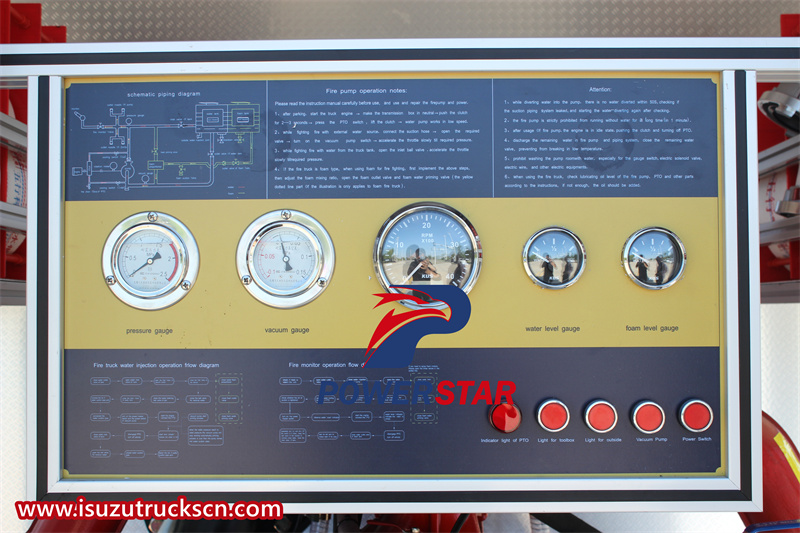

3.control panel
The control panel of this fire truck is simple and practical, equipped with key instruments such as pressure gauge, vacuum gauge, water pressure gauge and tachometer. The pressure gauge displays the pressure inside the system, and the vacuum gauge monitors the suction status to ensure the normal operation of the system. The water pressure gauge accurately displays the water pressure of the water pump system, providing important reference information for firefighters. The tachometer monitors the engine speed to help firefighters understand the working status of the engine.
Control panel
★ Specialized fire equipment and tools

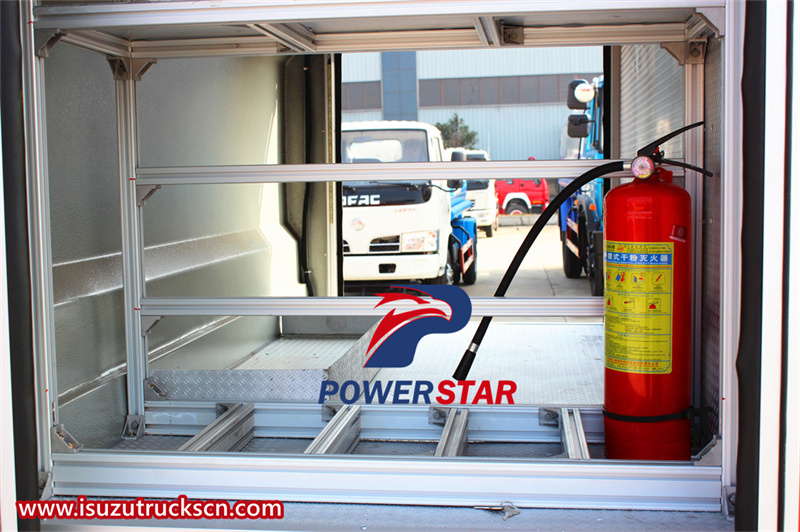

Dry powder fire extinguisher

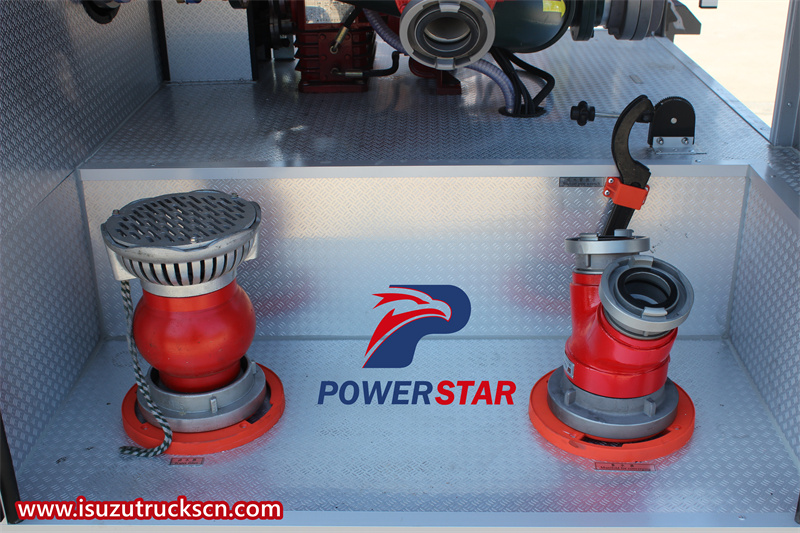

Water filter and water collector

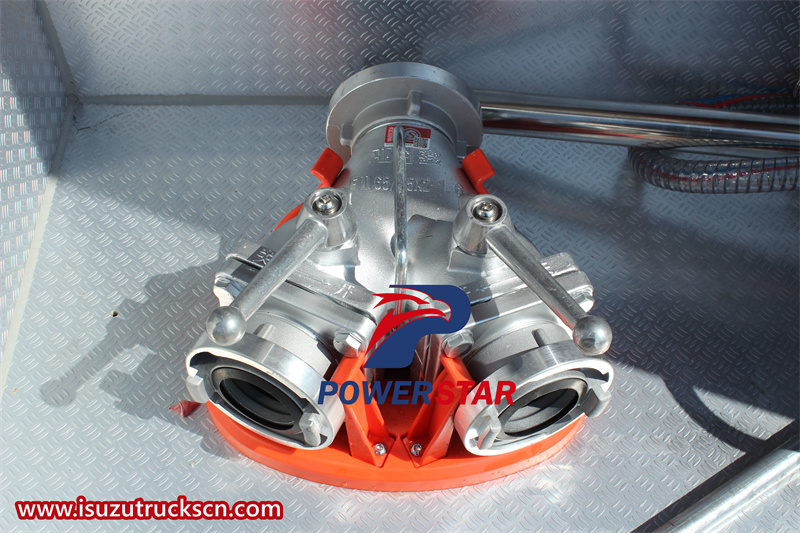

Water distributor

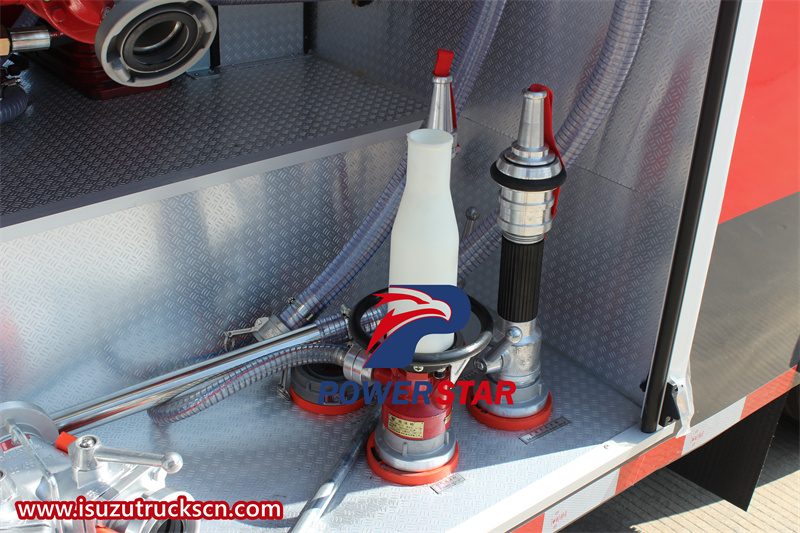

Water gun
