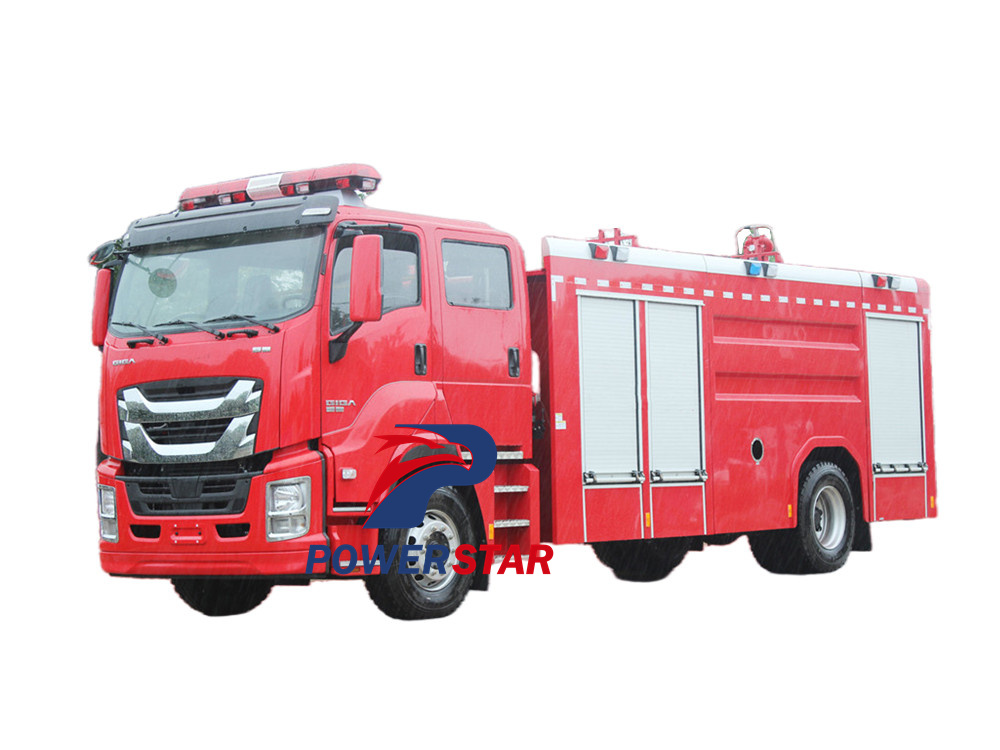

The Isuzu Giga 4x4 Airport Fire Truck emerges as a resilient guardian of airport safety, standing poised to combat emergencies with precision and power. Built on the formidable Isuzu Giga 4x4 chassis, this firefighting marvel blends rugged durability with unparalleled agility, offering a potent combination of strength and maneuverability to navigate the complex terrain of airport environments.
Work capacity:
8000 litersTruck model:
PT5180GXSEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
4x4，LHDGear box:
Fast 12 speed, manual,with ABSRemarks:
8000 liters water tankIsuzu 4x4 airport fire truck also called Isuzu 4x4 rescue fire fighting truck, Isuzu GIGA 4x4 water tender fire truck,Isuzu GIGA 4WD water fire engine,Isuzu GIGA 4x4 8000L water fire tender,Isuzu GIGA water pumper fire truck,Isuzu GIGA water rescue fire truck.

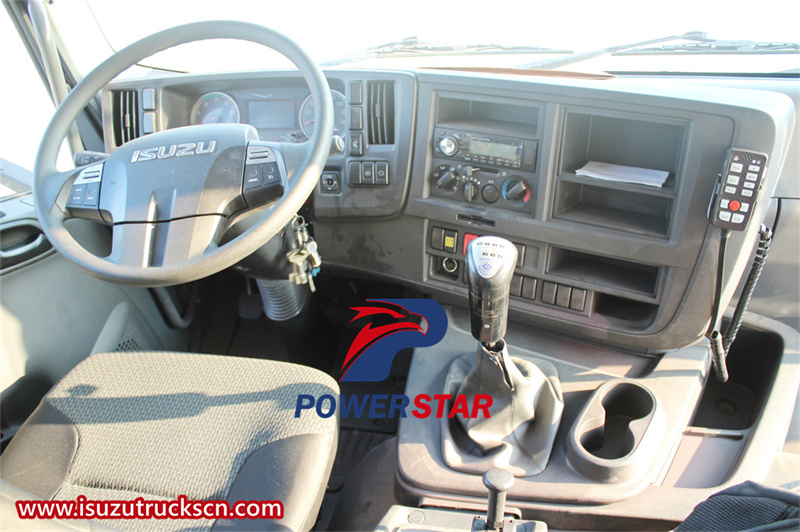

The Isuzu 4x4 Airport Fire Truck, featuring the robust Giga 4x4 chassis, is a powerful and versatile emergency response vehicle designed for airports. Its 4x4 drive ensures superior traction and stability, making it adept at navigating challenging terrain. Equipped with state-of-the-art firefighting systems and large water tank, it tackles a wide range of fires efficiently. Advanced communication and navigation systems facilitate seamless coordination, while the ergonomic cab ensures crew comfort and safety. This formidable truck is a reliable partner for airport emergency response teams.
Key Features
★ ISUZU GIGA chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu GIGA 4x4 airport fire truck |
||
|
Chassis |
Chassis brand |
ISUZU |
|
Model |
PT5180GXS |
|
|
Drive type |
4x4 left hand drive |
|
|
Cabin |
double row,2+3 seats |
|
|
Overall dimension(L*W*H) |
8900*2500*3500mm |
|
|
Total mass |
18000kg |
|
|
Curb weight |
9800kg |
|
|
Wheel Base |
4600mm |
|
|
Approach/departure angle |
24/12° |
|
|
Spring No. |
8/6+5 |
|
|
Tyre No. |
6, (front 2, rear 4) |
|
|
Tire |
295/80R22.5 |
|
|
Axle No. |
2 |
|
|
Steering wheel |
left hand drive |
|
|
Gear box |
Fast 12 speed, manual,with ABS |
|
|
Engine |
Engine model |
6UZ1-TCG61 |
|
Engine brand |
ISUZU |
|
|
Engine type |
6 cylinders in line |
|
|
Maximum power |
380HP/279Kw |
|
|
Fuel type |
diesel |
|
|
Displacement |
9839ml |
|
|
Emission Standard |
Euro VI |
|
|
Tanker |
Water tanker |
8000Liter , Stainless steel |
|
8000 litres water tank |
||
|
Fire pump |
Model |
CB10/60,Normal pressure pump |
|
Max Pressure |
1.3Mpa |
|
|
Max suction height |
7m |
|
|
Flow rate |
60L/S |
|
|
Fire monitor |
Fire monitor model |
PS40W |
|
Water Fire fighting nozzle range |
≥65m |
|
|
Rated Working pressure |
≤0.7Mpa |
|
Built on the Isuzu giga chassis, the Isuzu 4x4 Airport Fire Truck has a 4x4 drivetrain that propels it through challenging terrain and adverse conditions with unwavering stability and traction.
At the heart of this firefighting beast lies its powerful 6UZ1-TCG61 engine, which delivers strong performance to quickly reach the scene of an incident and extinguish flames efficiently. Equipped with a reliable powerplant, the Isuzu Giga 4x4 Airport Fire Truck has impressive acceleration and speed to reduce response time to emergencies and enhance its capabilities in high-pressure situations where every second counts.
Technical drawing of Isuzu 4x4 Airport Fire Truck
At the heart of its firefighting arsenal is a suite of advanced firefighting systems designed to extinguish fires precisely and effectively. Mounted on the sturdy chassis is a high-capacity firefighting water cannon that is able to spray water streams to great distances, enveloping flames and quickly eliminating their threat. With a large-capacity water tank and advanced pump system, this fire truck ensures a relentless attack on fires, resolutely protecting airport personnel and infrastructure.

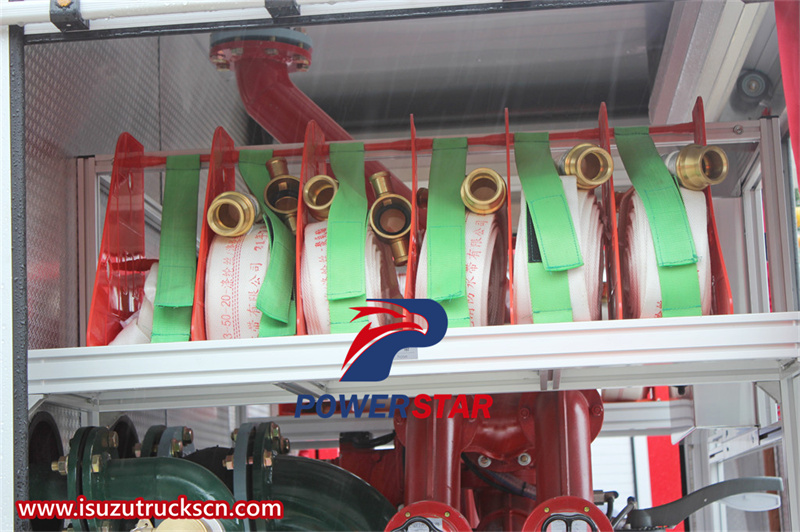

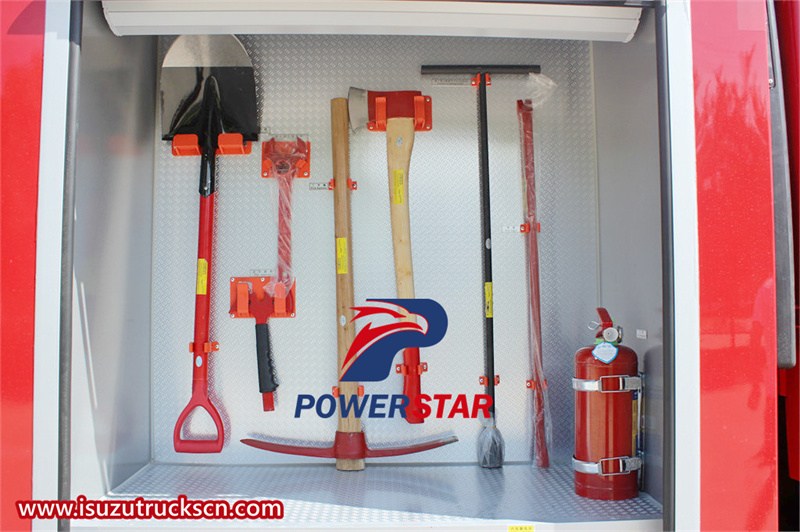

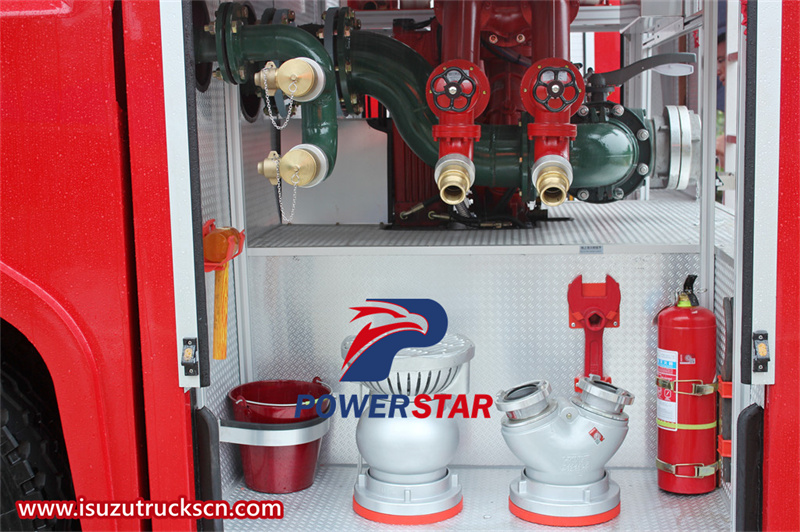

The Isuzu Giga 4x4 airport fire truck is also equipped with a series of firefighting equipment, including fire extinguishers, fire hoses, foam guns, water collectors, water filters, water distributors, fire hoses, fire wrenches, axes, shovels, pickaxes, fire suits, etc. These equipment are a supplement to the fire pump system and together ensure the airport's firefighting capabilities and efficiency.

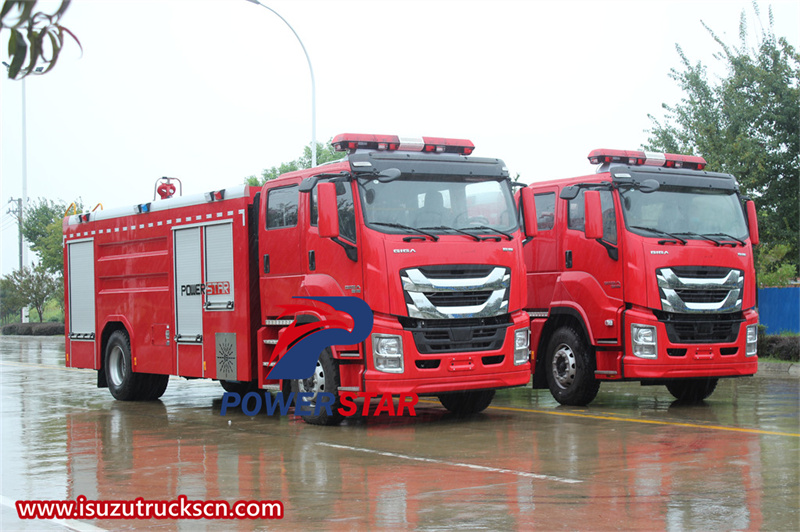

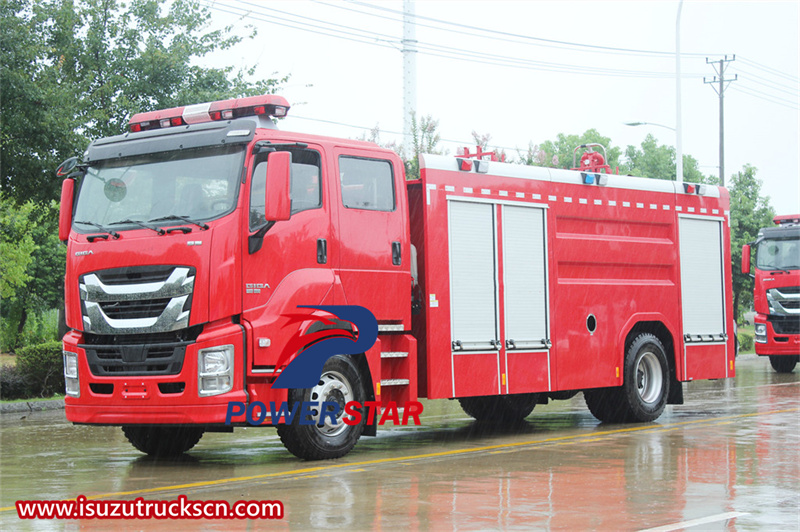

Isuzu 4x4 airport fire truck

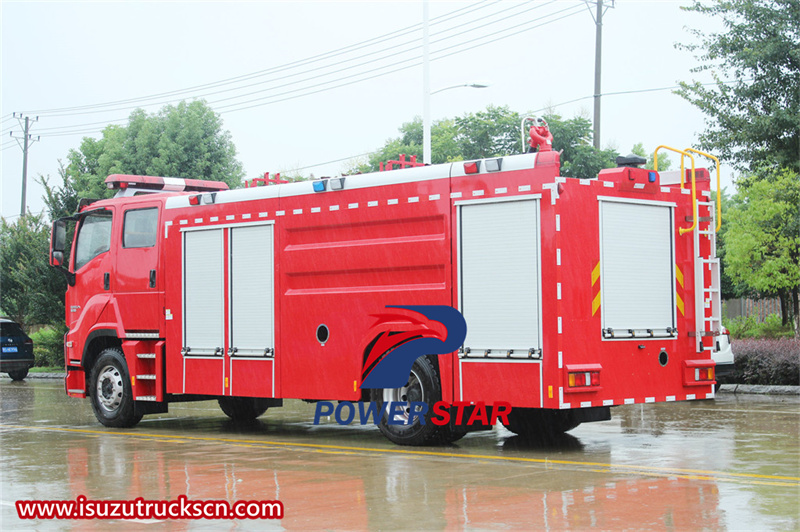

Isuzu GIGA 4WD water fire engine
★ water tank
The 8000L water tank of the Isuzu Giga 4x4 Airport Fire Truck is one of the cores of its powerful rescue system. This large water tank capacity provides firefighters with long-lasting firefighting support and ensures effective firefighting. The water tank is made of high-strength materials and can withstand extremely high pressure and harsh environmental conditions, ensuring stable and reliable performance at critical moments.
The water tank system is well designed and combined with an efficient pump system to quickly deliver water to the fire monitor. This ensures that the water monitor responds quickly at the fire scene, quickly covers the fire area and obtains effective control. Equipped with advanced control technology, firefighters can accurately control the intensity and direction of the water flow to maximize the success of the firefighting operation.

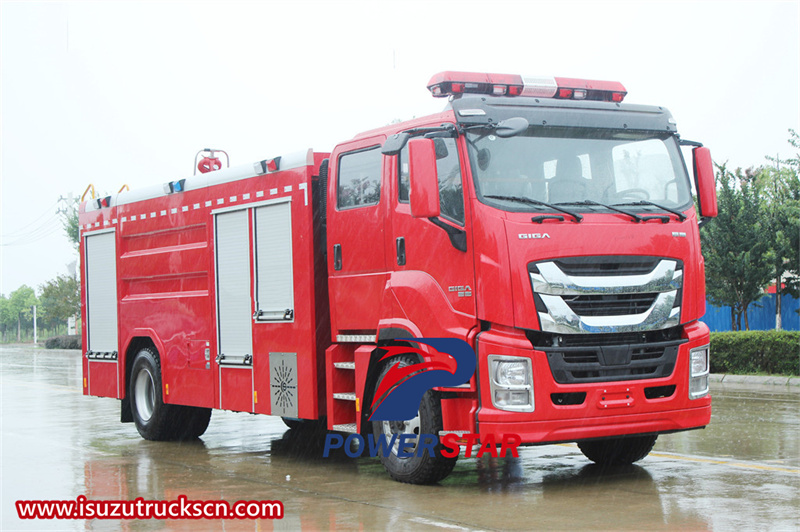

Isuzu GIGA 4x4 water tender fire truck

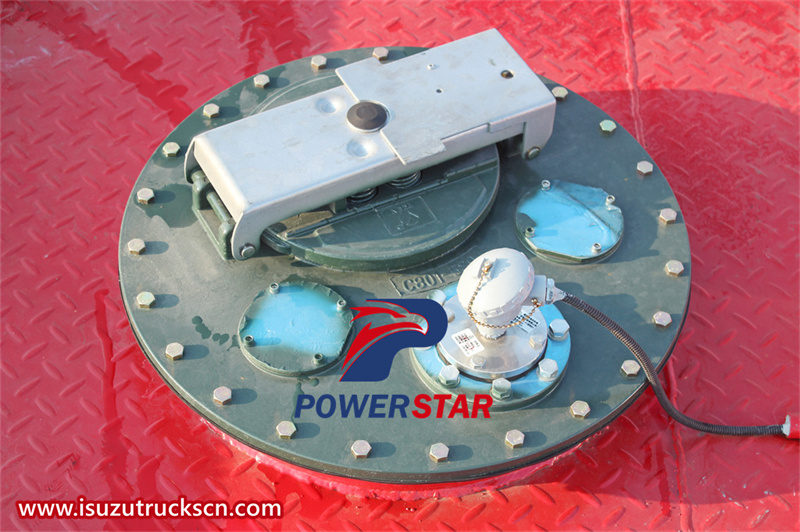

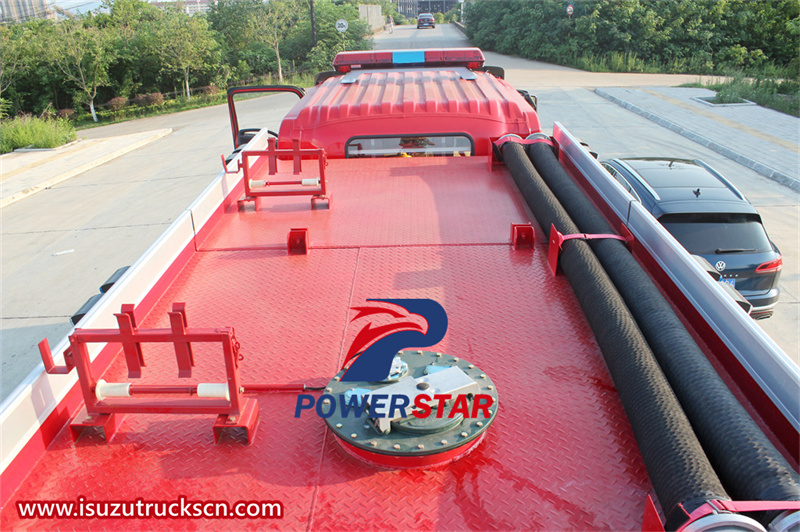

The top of the tank is equipped with a water inlet and exhaust port, which is convenient for rapid water addition and air discharge, while ensuring the stability of the internal pressure of the water tank during driving. The bottom of the tank is equipped with a water outlet, which is connected to the high-pressure water pump system, and the precise adjustment and distribution of the water flow is achieved through precise valve control.
The 8000L large-capacity water tank enables the Isuzu GIGA 4x4 airport fire truck to carry more water to the fire scene at one time, reducing the number and time of round trips to add water and improving firefighting efficiency. At the same time, the large-capacity water tank also enhances the vehicle's sustained combat capability, allowing firefighters to maintain high-intensity operations at the fire scene for a longer period of time.

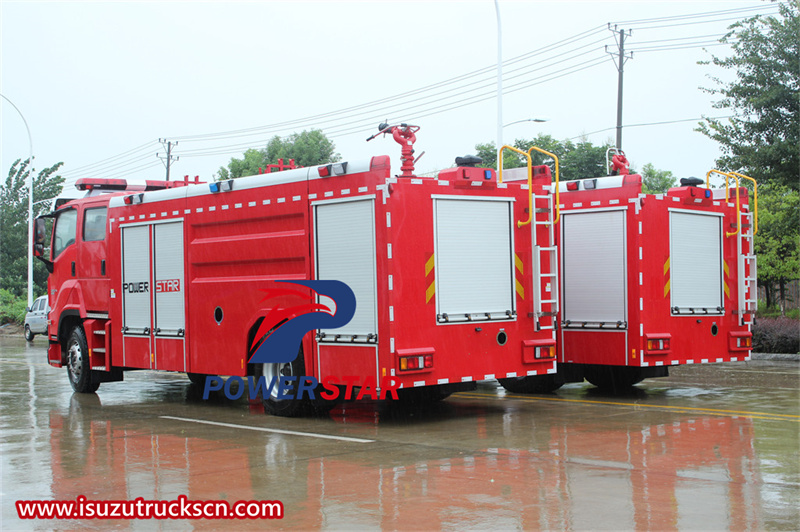

Isuzu GIGA 4x4 8000L water fire tender
★ CB10/60 fire pump and PS40W fire monitor

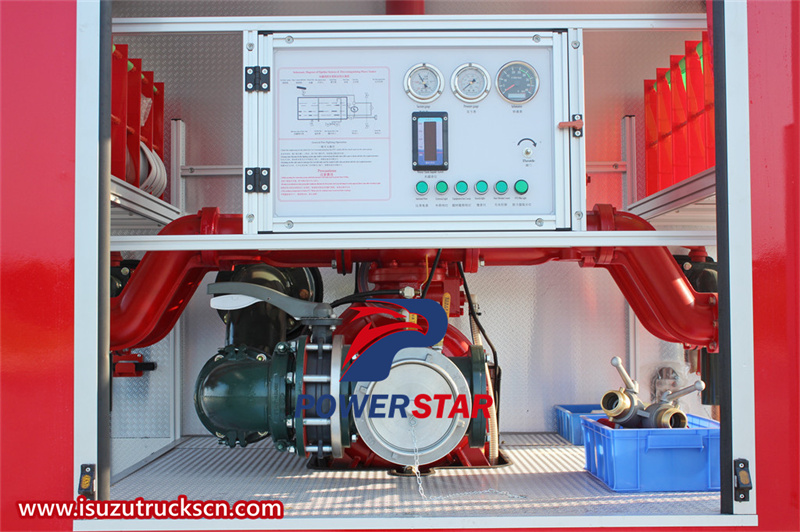

● CB10/60 fire pump
The CB10/60 fire pump has excellent pumping performance, can quickly fill water and provide high-pressure water to support firefighting operations. Its efficient operation ensures that firefighters get the water they need in the shortest time to deal with rapidly spreading fires.
The CB10/60 fire pump is a high-performance, large-flow fire-fighting special pump with a rated flow of up to 60L/s and a maximum pressure of up to 1.3MPa, providing powerful hydraulic support for airport fire trucks. The pump has a compact design and a sturdy structure, and can operate stably for a long time in harsh environments.

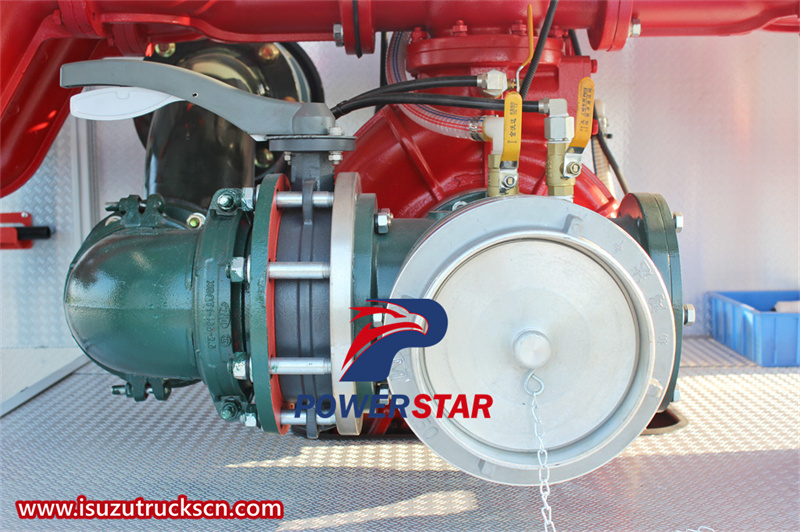

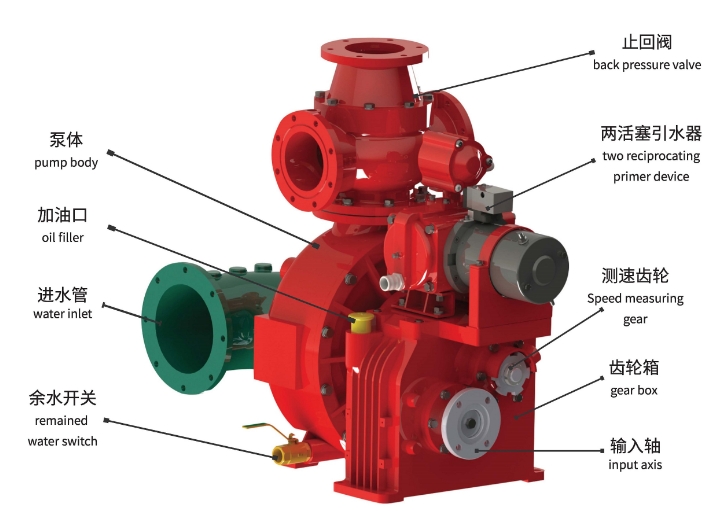

CB10/60 fire pump
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3520±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |
● PS40W Fire Water Monitor
The fire monitor is an important firefighting equipment for long-distance fire fighting. It can spray fire extinguishing agents such as water flow or foam to the fire scene in the form of high speed and high pressure to quickly control the fire and extinguish the fire.
The PS40W water monitor monitoring system is a high-performance water monitor with a wide range of rotation angles and ranges. This system can be remotely controlled by the operator, allowing firefighters to quickly adjust the direction and intensity of the water flow to ensure effective coverage of the fire range.
In the firefighting system, fire cannons are one of the important weapons for firefighting operations. When a fire occurs, firefighters will select appropriate fire cannons for firefighting operations according to the fire and firefighting needs. By operating the control system of the fire monitor, the spray direction and angle as well as the spray flow rate and pressure and other parameters can be precisely controlled to achieve efficient and accurate fire extinguishing effects.

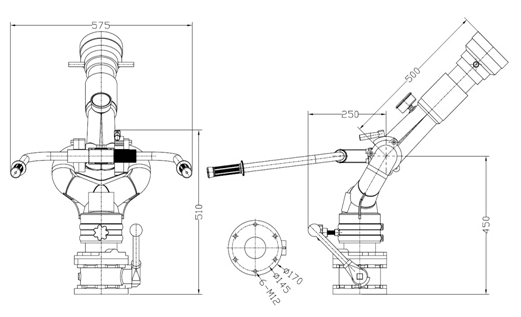

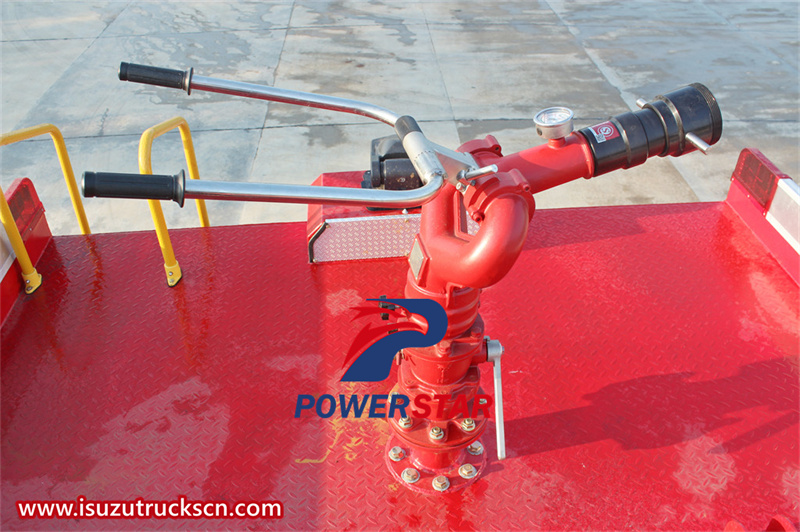

PS40W fire monitor
|
Model |
Flow （L/s） |
Water Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Length × Width × Height （mm） |
Weight （Kg） |
|
PS40W |
40 |
≥65 |
≤0.7 |
-30～+70 |
0～360 |
1000*340*600 |
≤50 |

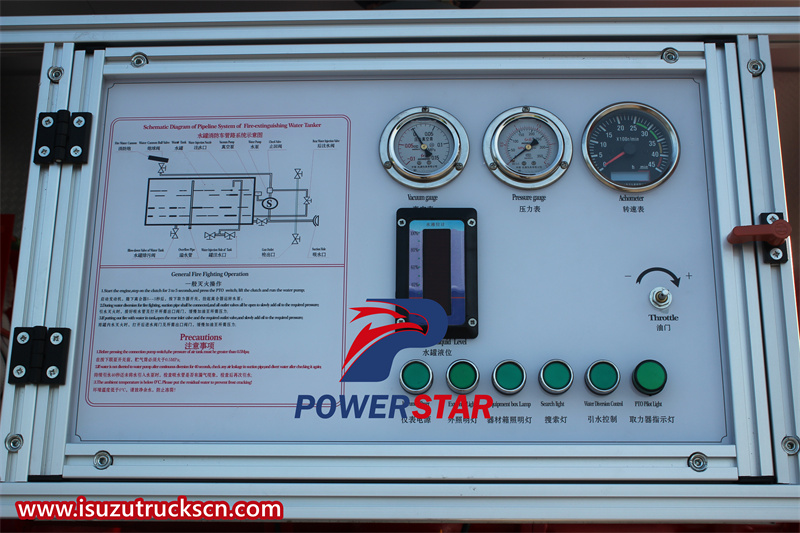

● Control panel
The control panel of the Isuzu Giga 4x4 Airport Fire Truck includes a vacuum gauge, a pressure gauge and a tachometer, which can display the vacuum, pressure and speed data of the fire pump system in real time, helping the operator understand the operating status of the pump and engine. The water tank level gauge is used to display the liquid level in the fire water tank to ensure that the fire truck can provide enough water at any time.
In addition, the control panel is also equipped with lighting to provide sufficient light for operating the vehicle at night or in low light conditions. The instrument power light is an important indicator to ensure that the instrument system is powered on and working properly. The power take-off indicator indicates the status of the vehicle's power take-off, helping the operator understand the working status of the power take-off device.
