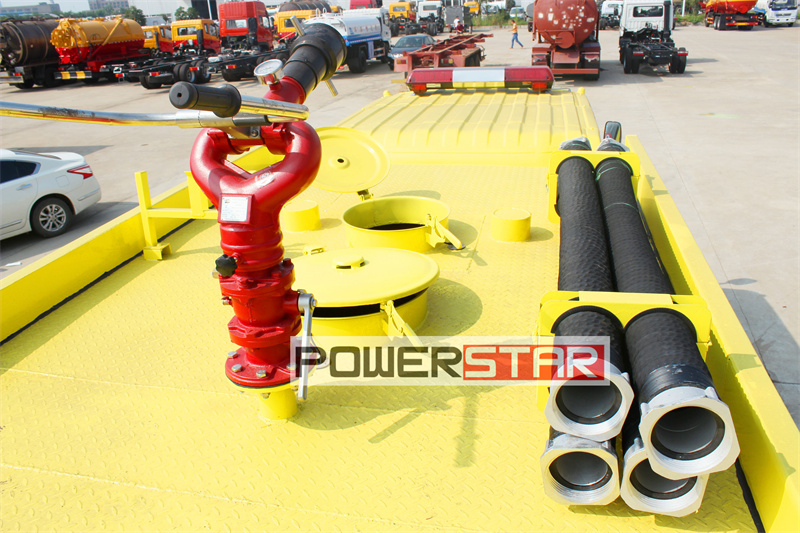

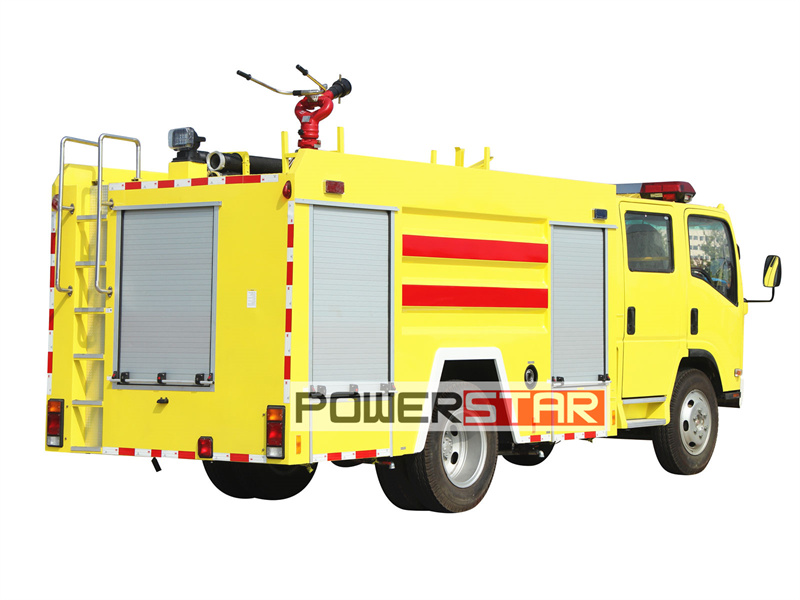

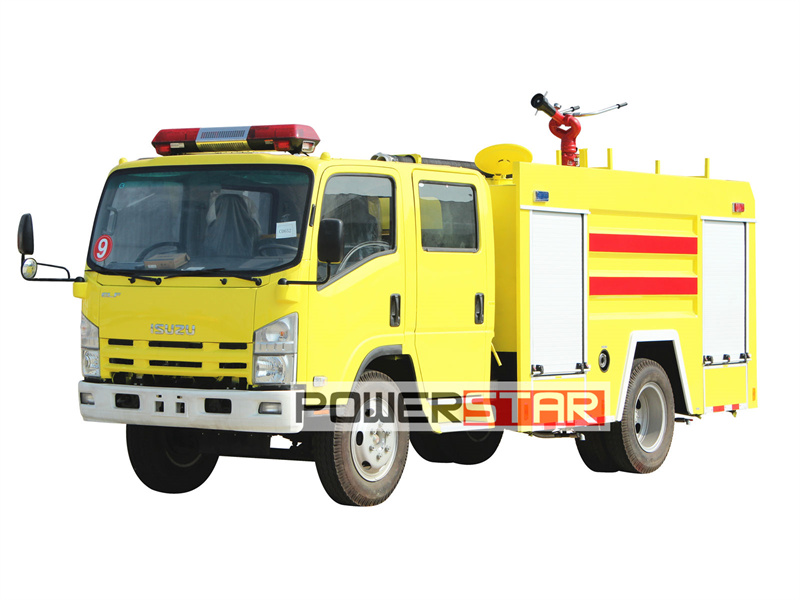

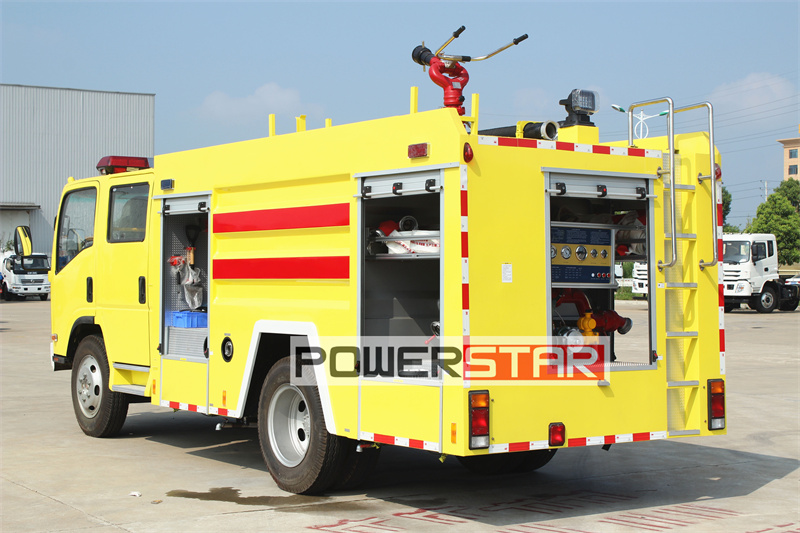

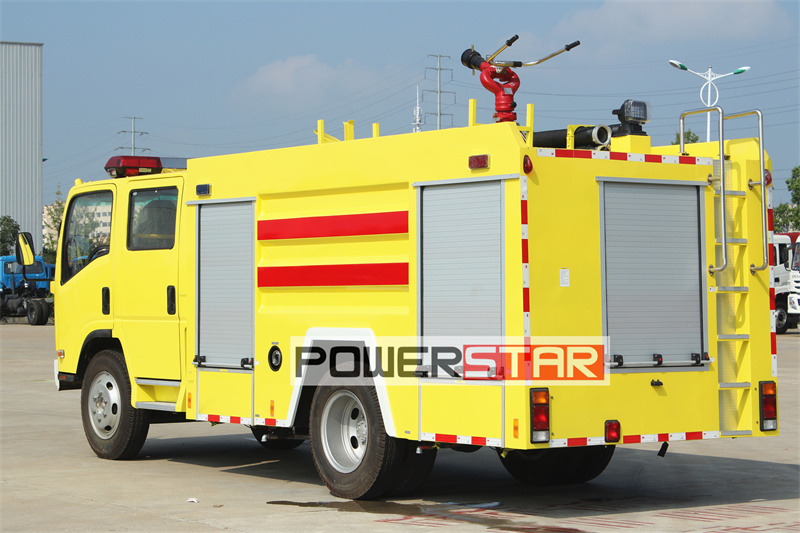

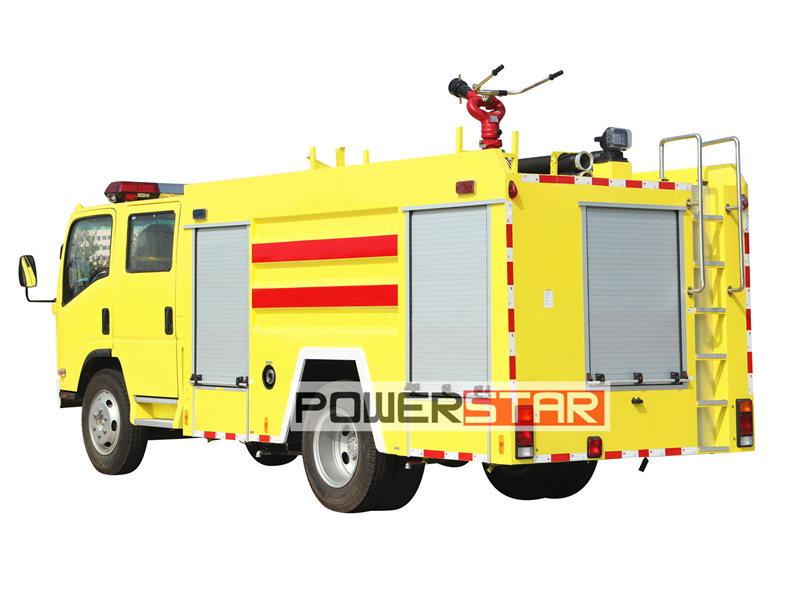

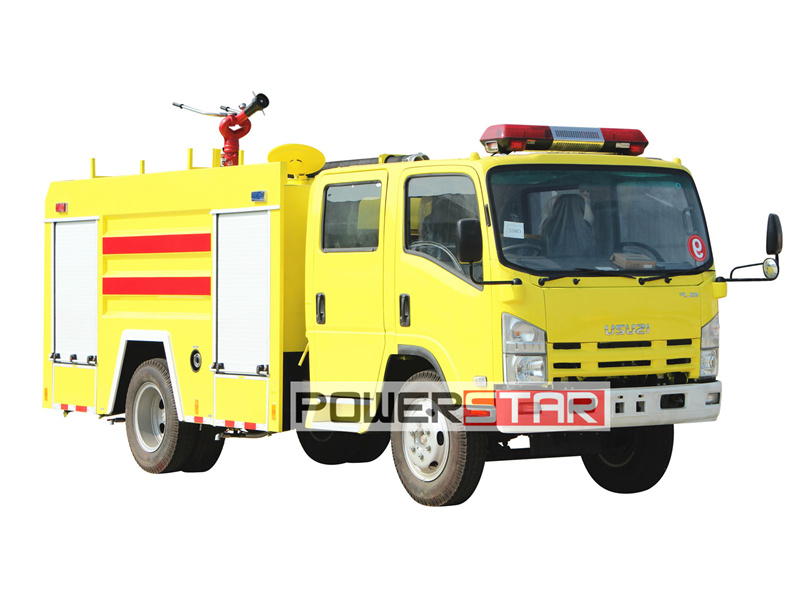

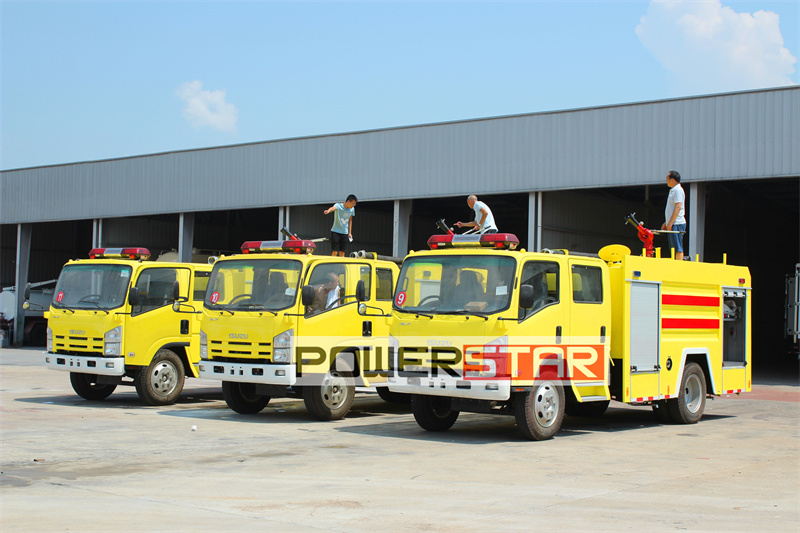

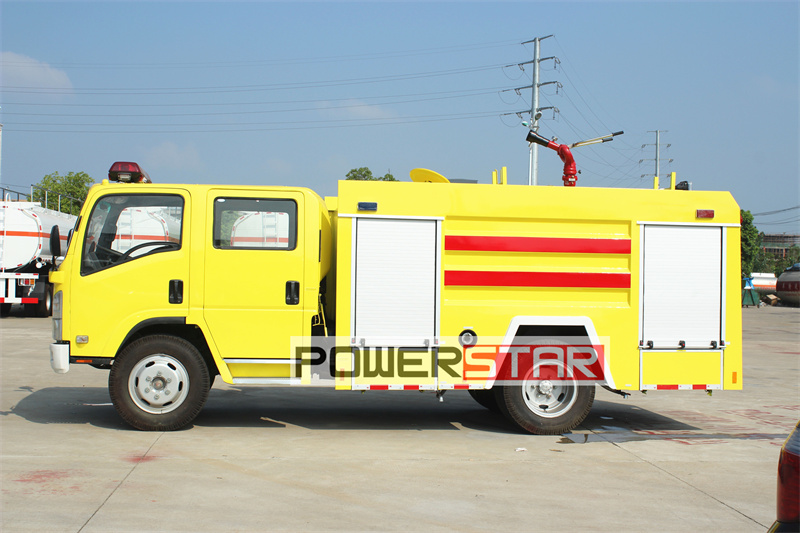

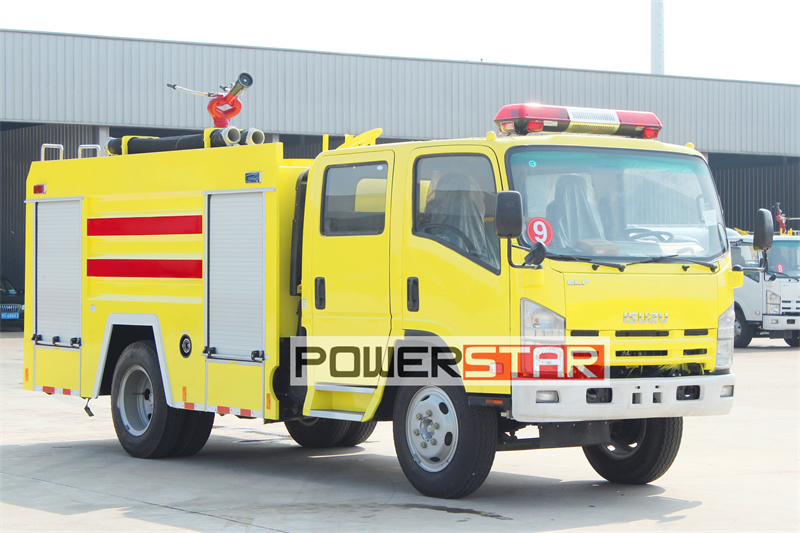

This ISUZU NPR fire water tander is an excellent ISUZU middile-duty fire truck that perfectly balances mobility and functionality. Equipped with a 190-horsepower ISUZU 4HK1-TCG60 engine, it is both environmentally friendly and powerful. The 4X2 drive with a 6-speed gearbox ensures the truck's excellent performance in various terrains. The combination design of a 4000L water tank and a 1000L foam tank meets the diverse needs of firefighting. Equipped with a top-quality brand fire pump, a pressure range of 1.3-2.5 MPa and a flow rate of 40L/s, it can easily cope with various fire situations. The 360-degree rotating fire cannon has a range of up to 45-55 meters, which greatly improves the efficiency of firefighting.
Work capacity:
5000LTruck model:
PT5110YXGEngine power:
190HPEngine type:
4HK1-TCG60Axle drive:
4x2，LHDGear box:
ISUZU MLD 6-speed, with reverseRemarks:
4000L water tank+1000L foam tankThis ISUZU NPR fire water tander is an excellent ISUZU middile-duty fire truck that perfectly balances mobility and functionality. Equipped with a 190-horsepower ISUZU 4HK1-TCG60 engine, it is both environmentally friendly and powerful. The 4X2 drive with a 6-speed gearbox ensures the truck's excellent performance in various terrains. The combination design of a 4000L water tank and a 1000L foam tank meets the diverse needs of firefighting. Equipped with a top-quality brand fire pump, a pressure range of 1.3-2.5 MPa and a flow rate of 40L/s, it can easily cope with various fire situations. The 360-degree rotating fire cannon has a range of up to 45-55 meters, which greatly improves the efficiency of firefighting.

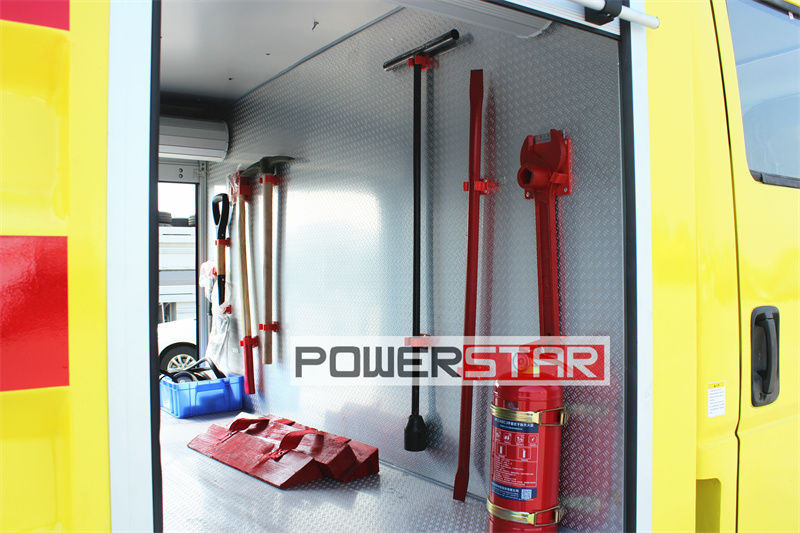

The ISUZU ELF 190HP fire truck adopts a high-strength steel chassis and an aluminum alloy superstructure, which is both lightweight and durable. A full range of LED lighting systems and warning lights ensure nighttime operation and driving safety. The 2+4-person cockpit design meets the needs of teamwork. This ISUZU fire truck is not only equipped with a full set of standard firefighting and rescue equipment, but also optional ladders and floodlights, which further enhance its versatility. Whether it is urban firefighting or industrial rescue, this ISUZU NPR fire truck is your ideal choice, bringing excellent performance and reliable protection to your firefighting team.
Specification:
|
ISUZU NPR fire water truck |
|||
|
General |
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
6500*2350*2650mm |
||
|
GWW/ Kerb Weight |
13,500kg/4,500kg |
||
|
Painting |
Yellow |
||
|
Cab |
Cab Capacity |
2+4 persons allowed |
|
|
Air Conditioner |
air conditioner |
||
|
Engine |
Fuel Type |
Diesel |
|
|
Engine Brand |
ISUZU engine ,4HK1-TCG60 |
||
|
Engine type |
Inline 4-cylinder, turbocharged, inter-cooled diesel engine |
||
|
Power |
190HP |
||
|
Displacement |
5.193L |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X2,left hand drive |
|
|
Transmission |
MLD 6-speed forward, 1 reverse |
||
|
Wheelbase/No.of axle |
3815 mm/2 |
||
|
Tyre Specification |
235/75R17.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
90km/h |
||
|
Fuel tank capacity |
100L |
||
|
PTO |
Full power sandwich type |
||
|
Superstructure |
Liquid Tank |
Capacity |
Water 4000L, Foam1000L |
|
Tank Material |
carbon steel (optional stainless steel) |
||
|
Standardized Sub-frame |
Material |
High-strength rectangular tube made of special steel |
|
|
Structure |

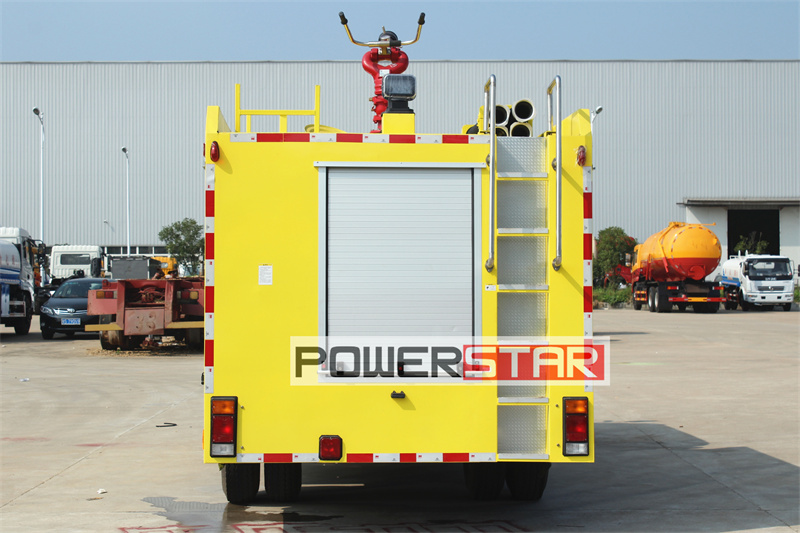

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear |
||
|
Fire Pump |
Brand |
China TOP brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.3-2.5 MPa |
||
|
Flow rate |
40 L/s |
||
|
Suction Height |
7m |
||
|

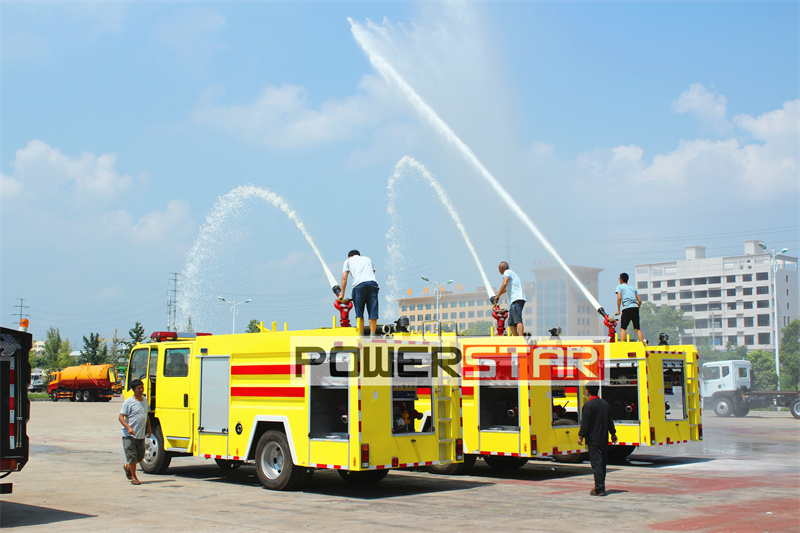

Fire Cannon |
Horizontal rotation angle |
360 º |
|
|
Range |
45-55 m |
||
|
Superstructure Electric Appliance |
Warning Light and Siren |
Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin. |
|
|
Strobe Light |
Mounted on the both sides of the compartment |
||
|
External Lighting |
LED lights are mounted on the both sides of the compartment |
||
|
Roof Lighting |
LED lights are mounted on the inside of the roof |
||
|
Side Indicator Light |
Inline yellow warning light is mounted on the side of the compartment and pedals |
||
|

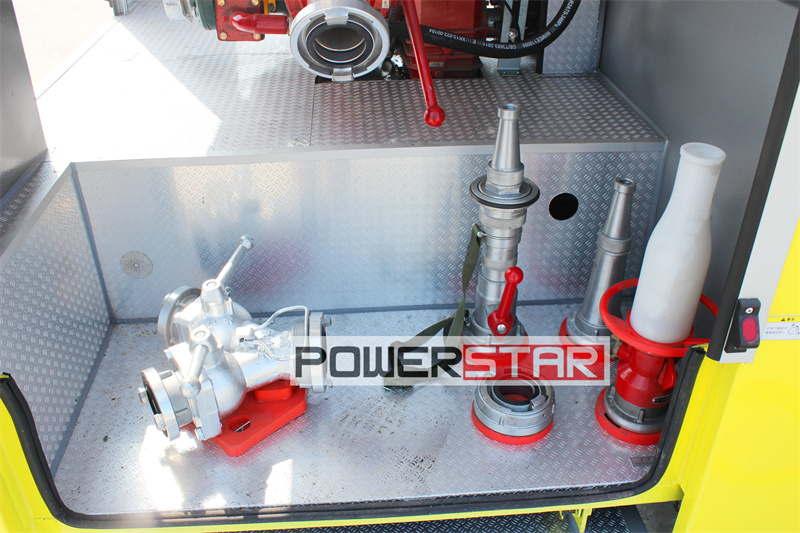

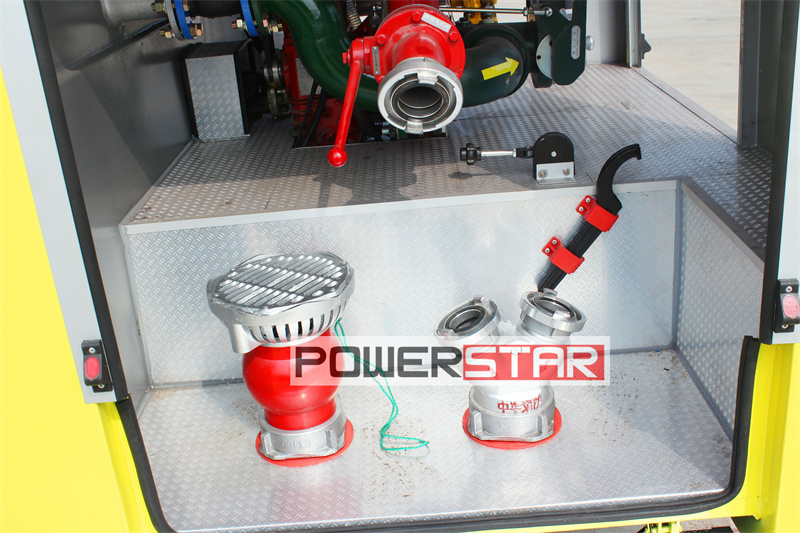

All standard accessories.Typical modern fire apparatu scarries equipment for a |
|||
|
Optional |
Ladders,floodlight |
||
Advantage:
This ISUZU middle-duty fire truck has demonstrated many outstanding advantages in actual rescue operations, fully demonstrating its key role in emergency situations:
1. Quick response, every second counts: With its powerful 190 horsepower and flexible 4X2 drive system, this ISUZU fire truck can reach the fire scene at the fastest speed. In narrow city streets or complex terrain, its excellent maneuverability allows firefighters to race against time and win precious time to save lives and property.
2. Diversified firefighting capabilities: Coping with various fire situations The perfect combination of 4000L water tank and 1000L foam tank gives this ISUZU NPR fire truck the ability to handle various types of fires. Whether it is an ordinary building fire or a tricky chemical fire, it can be handled calmly. The cooperation of high-pressure fire pumps and long-range fire cannons greatly improves the efficiency of firefighting.
3. All-weather operation, illuminating the hope of rescue: The all-round LED lighting system not only ensures night driving safety, but also provides key support for night rescue operations. Bright lighting allows firefighters to accurately locate the source of fire and trapped people in the thick smoke and darkness, greatly improving the success rate of rescue.
4. Teamwork to improve rescue efficiency The 2+4-person cockpit design reflects a deep understanding of teamwork. The six-person team can carry out multiple tasks such as firefighting, rescue, and medical treatment at the same time, giving full play to the team's advantages and improving the overall rescue efficiency. This design is particularly important in complex fires and large-scale disasters.
5. Modular design, flexible response to diverse needs: The standard configuration is already very comprehensive, and the optional ladders and floodlights are the icing on the cake. This modular design concept allows the fire department to customize vehicles according to the characteristics and specific needs of the jurisdiction, whether it is a city with high-rise buildings or an industrial area prone to special fires, it can find the most suitable configuration plan.
