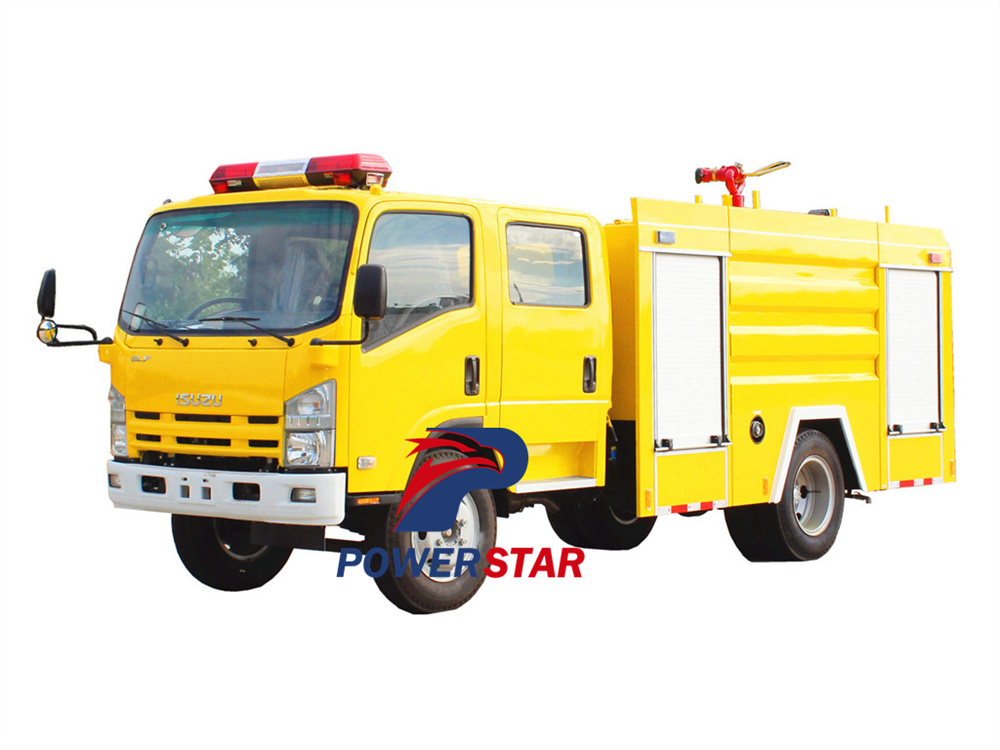

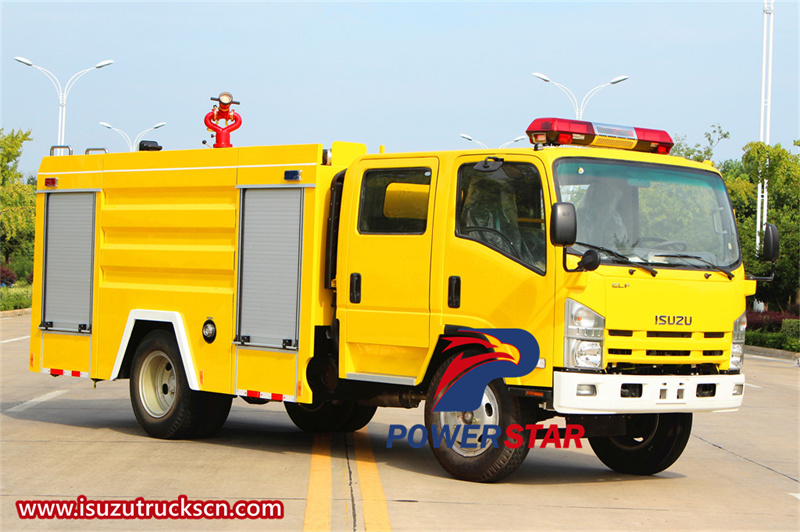

This Isuzu diesel engine police fire truck is an Isuzu 700P 5 cubic meter water tank fire truck. The interior of the car is fully equipped, with various firefighting equipment neatly arranged in an orderly manner, shining with a metallic luster. Police communication equipment and emergency tools are all available, ready to be put into rescue operations at any time. It is always ready to respond to fires and emergencies to protect the safety of society.
Work capacity:
5 tonsTruck model:
PT5110GZYEngine power:
190HPEngine type:
4KH1-TCG61Axle drive:
4x2，LHDGear box:
ISUZU MLD 6-speed, with reverseRemarks:
5 tons water tankIsuzu diesel engine police fire truck also called Isuzu ELF water tender fire truck,Isuzu ELF 700P water fire engine,Isuzu NPR water fire fighting truck,Isuzu 700P double row 5 tons fire pumper truck,Isuzu ELF fire department firefighting truck,Isuzu 700P 4x2 fire rescue tender truck.
This Isuzu diesel engine police fire truck is a heavy equipment designed for fire fighting and rescue. It is equipped with a high-performance CB10/30 fire pump and PS30W fire monitor, which can respond quickly and extinguish fires efficiently. The vehicle body is equipped with a full range of firefighting equipment, such as fire extinguishers, water distributors, water hoses, etc., as well as an intelligent control system to ensure easy operation. Its powerful off-road capability and stable performance enable it to cope with various complex terrains and harsh environments. In petrochemical fires, urban fires and natural disaster rescue, this fire truck plays an important role and is an indispensable assistant for fire rescue teams.
Key Features
★ ISUZU 700P chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
TECHNICAL SPECIFICATION |
|||
|
Main specification |
Chassis brand |
ISUZU |
|
|
Truck model |
PT5110GZY |
||
|
Overall dimension(L*W*H) |
7240x2270x3080mm |
||
|
GVW |
10550kg |
||
|
Curb Weight |
5000kg |
||
|
Water tank volume |
5000 litres |
||
|
Cabin |
double cabin,with Air conditioner, electronic windows, USB, |
||
|
Chassis |
Drive modle |
4x2, left hand drive |
|
|
Front axle loading |
4000kg |
||
|
Rear axle loading |
7000kg |
||
|
Wheel Base |
4175mm |
||
|
Front/rear suspension |
1110/1955mm |
||
|
Approach/departure angle |
20/17 (°) |
||
|
Tyre modle & number |
235/75R17.5, 6+1 |
||
|
Transmission |
ISUZU MLD 6-speed, with reverse |
||
|
Voltage |
Have 2 batteries , each 12 volts |
||
|
Color |
Yellow including tanker , standard |
||
|
Brake |
Air brake, With ABS |
||
|
Max speed |
110km/h |
||
|
Engine |
Brand |
ISUZU |
|
|
Model |
4KH1-TCG61 |
||
|
Engine Type |
Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
||
|
Horse power |
190HP/139kw |
||
|
Displacement |
5193ml |
||
|
Emission |
Euro VI |
||
|
TANK SPECIFICATION |
|||
|
Tank capacity |
5000 liters water tank |
||
|
Tank material |
All Tank made of carbon steel .Thickness:4mm, |
||
|
|
Model |
/ |
CB10/30 model ,low pressure pump |
|
Pressure |
Mpa |
1.0&1.3 |
|
|
Max flow |
L/s |
30 |
|
|
Max suction height |
m |
7 |
|
|
Rated speed |
r/min |
2600 |
|
|
Time of drawing water (s) |
s |
≤45 |
|
|
Input |
/ |
one nozzle , diameter : 100mm |
|
|
Outlet |
/ |
2 nozzles, diameter: 65mm |
|
|
Fire monitor |
Model |
/ |
PS30W,mounted on the tank,standard |
|
nozzle range |
Water (m) |
≥55 |
|
|
Rated discharge |
L/s |
30 |
|
|
Rated Working pressure |
Mpa |
≤0.7 |
|
|
Rotation angle |
(°) |
360 |
|
|
Standard configuration |
Have alarm rotating light and which is mounted on top of the cabin , have fire-fighting equipment, and vehicle tools. |
||

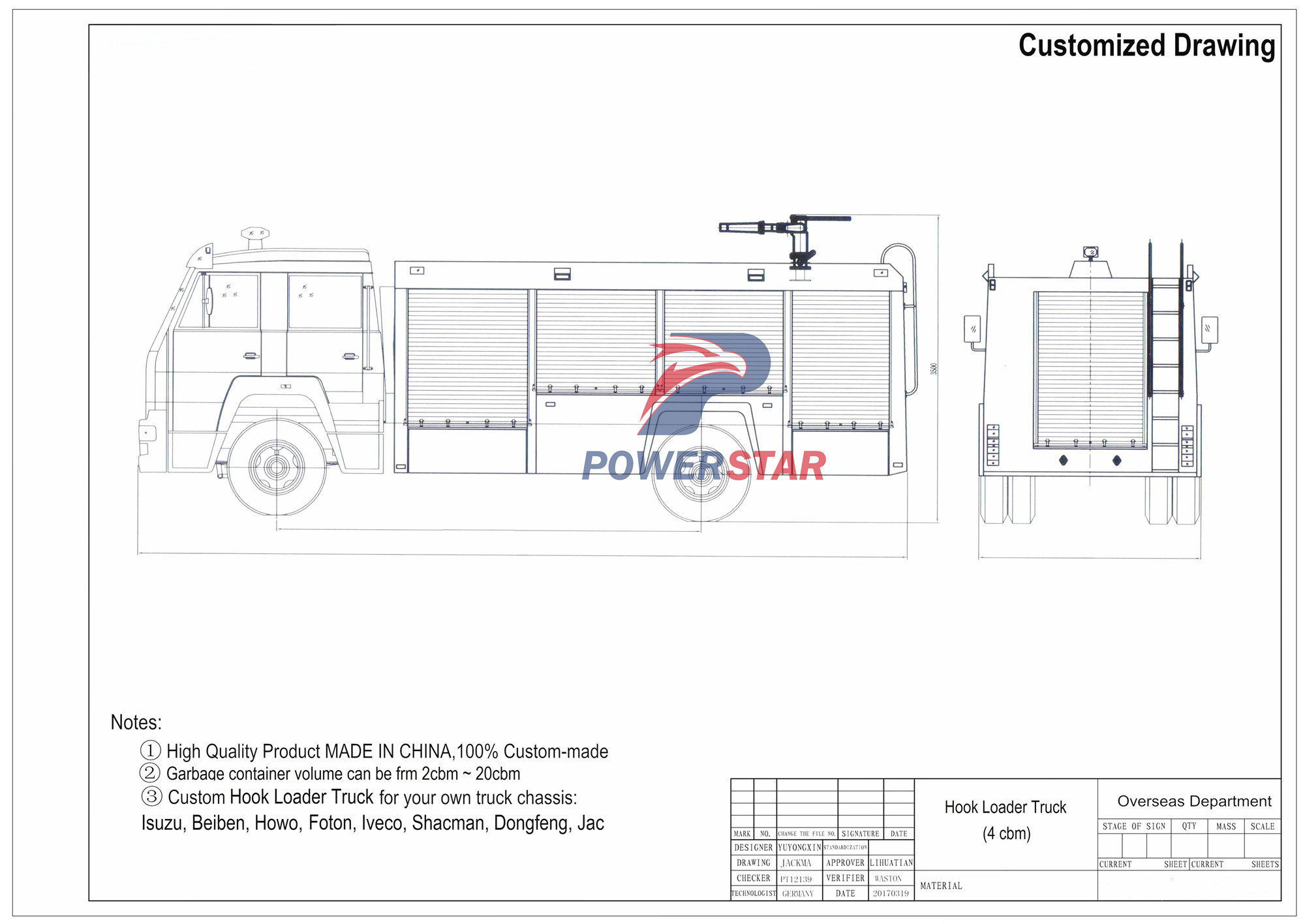

Technical drawing of Isuzu diesel engine police fire truck

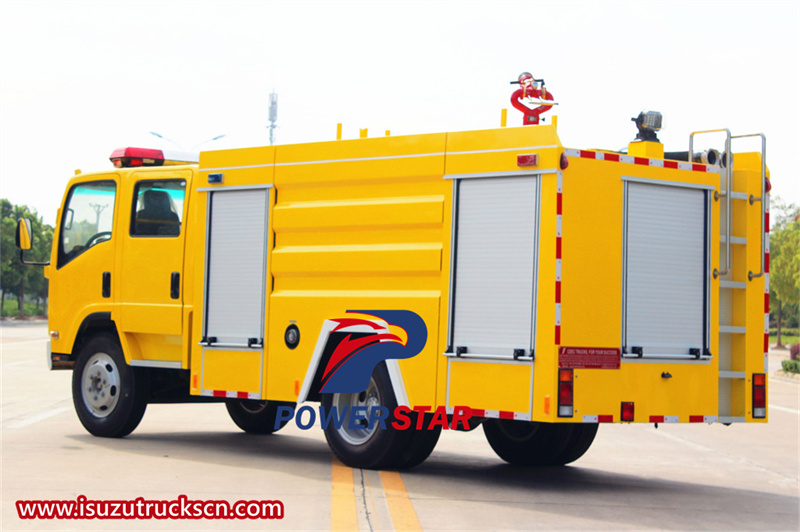

★ Chassis and body
The chassis of this Isuzu 700P fire truck is as solid and stable as the foundation of a battle-hardened warrior. It adopts a reinforced design to cope with the complex road conditions and heavy loads that may be encountered during firefighting. The clever use of high-strength steel not only ensures the rigidity of the chassis, but also takes into account the lightweight design, so that the whole vehicle can maintain excellent stability and controllability during high-speed driving and emergency braking.

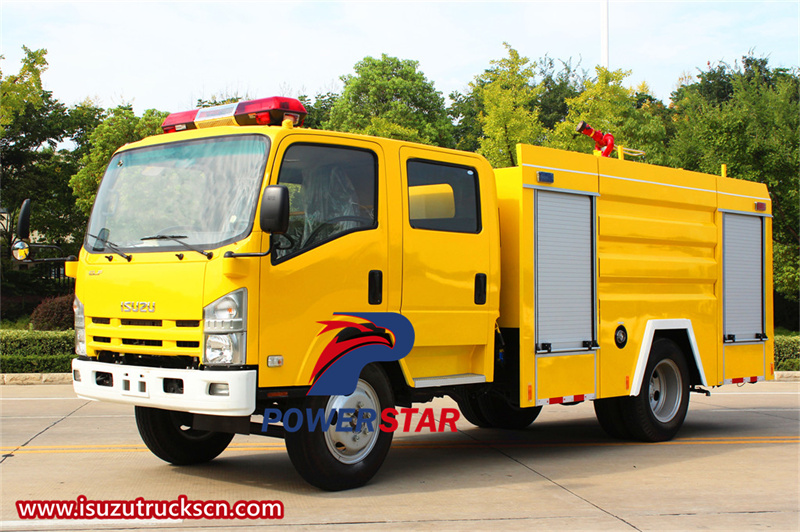

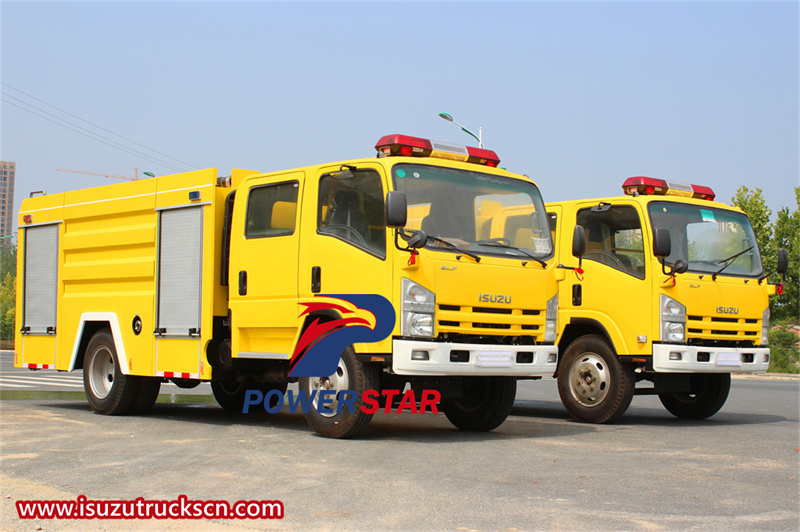

Isuzu diesel engine police fire truck

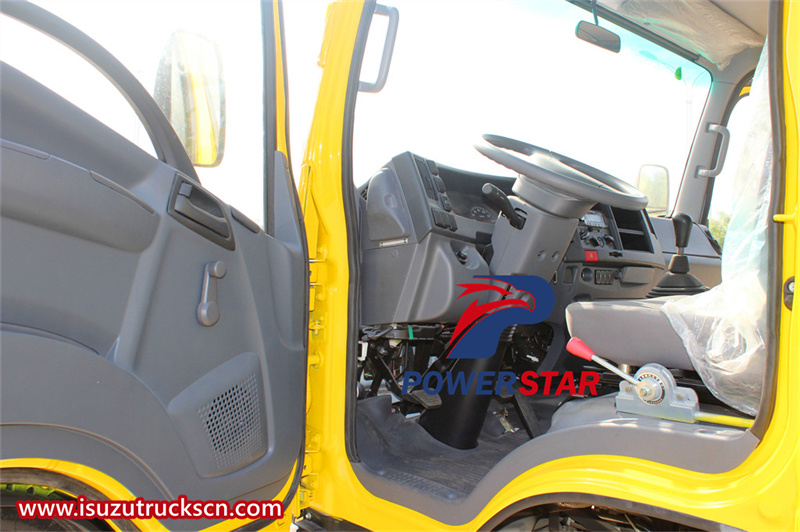

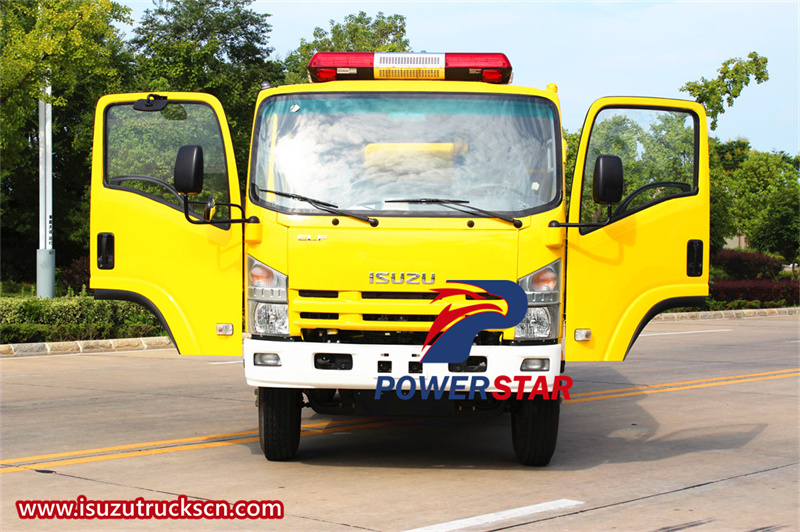

Cab
It is equipped with a 4HK1-TCG61 190HP National VI diesel engine, inline 4 cylinders, supercharged intercooler, maximum torque of 507 Nm, displacement of 5193ml, and Isuzu MLD 6-speed gearbox. This diesel engine, with its excellent durability and surging power, has injected inexhaustible vitality into this fire truck. At the moment of starting, the low and powerful roar breaks the silence, announcing that it is ready to devote itself to the front line of fire fighting and rescue at any time. In an emergency, it is like an awakened lion, bursting out amazing energy in an instant, pushing the heavy body out of the garage like an arrow from a string, and rushing straight to the fire scene.

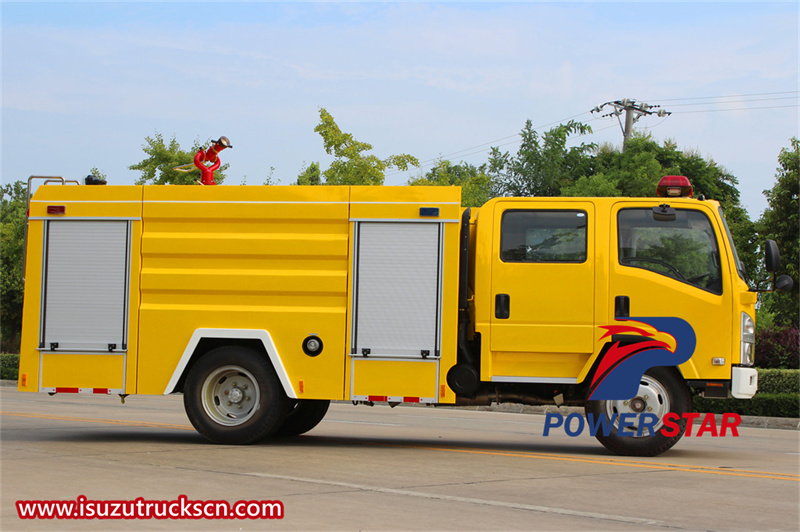

Isuzu ELF water tender fire truck
Isuzu ELF 700P water fire engine
★ 5-ton large-capacity water tank
The 5cbm large-capacity water tank in the middle of the vehicle body is a solid backing for firefighting.The water tank is well-made and made of durable materials. The 5-cubic-meter water tank has a huge water storage capacity. Through the precise pumping system, the water column is accurately sprayed into the raging flames, using the power of technology to protect the peace and tranquility of the city.

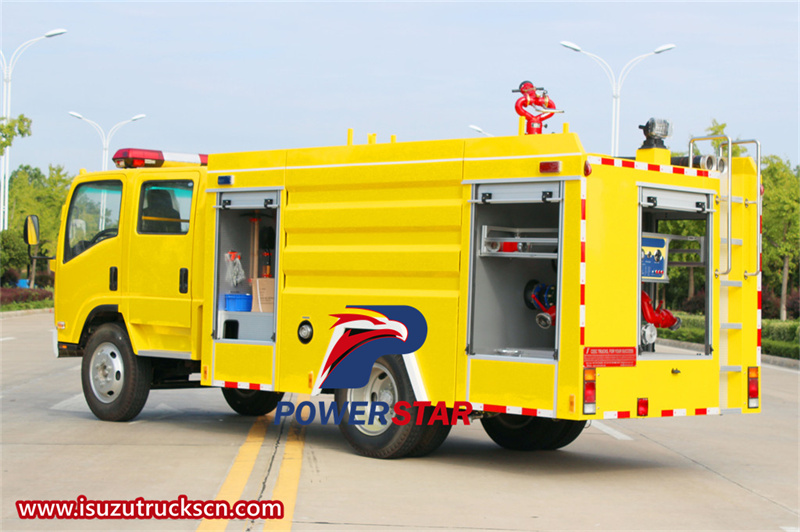

Isuzu NPR water fire fighting truck
Isuzu 700P double row 5 tons fire pumper truck

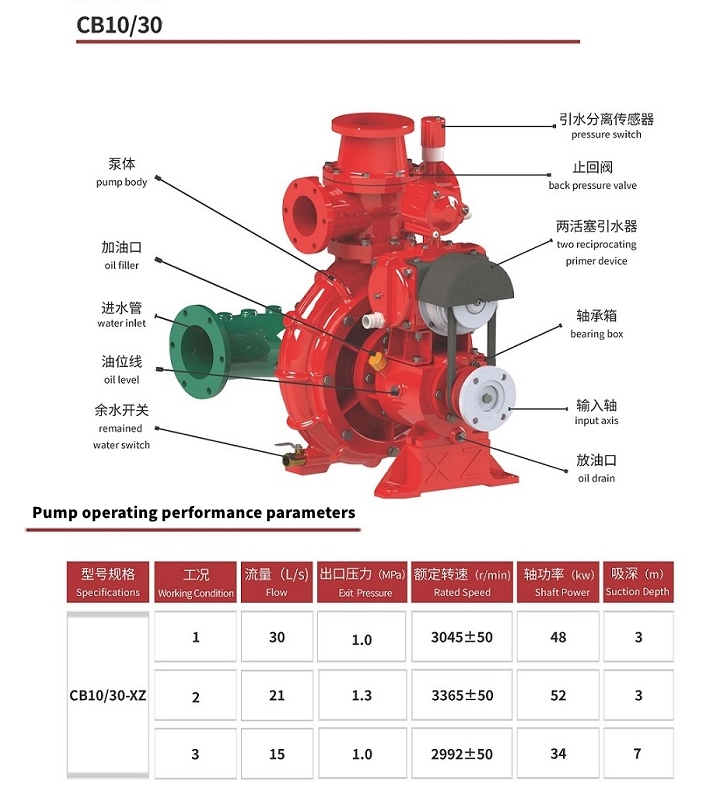

★ CB10/30 fire pump and PS30W fire cannon
The CB10/30 fire pump adopts single-stage centrifugal water pump and double plunger water diversion device. When the water pump rotates, it drives the water diversion device, and the water diversion device automatically disengages after the pressure is met.
The pump body is compact and sturdy, and each component has been carefully selected and strictly tested to ensure stable operation in extreme environments. With the rapid rotation of the pump wheel, the water flow is quickly sucked in and pressurized, and then accurately delivered to the required place through a complex pipeline system. The maximum flow of CB10/30 fire pump can reach 30 liters/second, and the pressure is as high as 1.0MPa. Such performance parameters are sufficient to meet most fire protection needs.

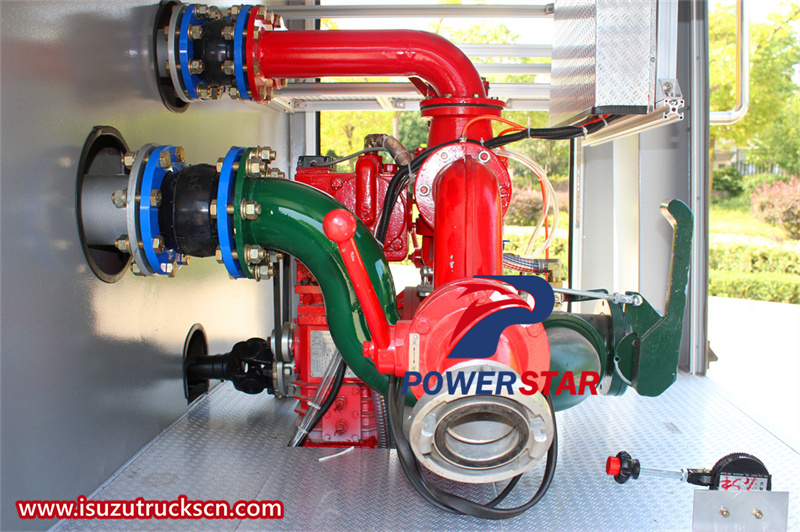

Fire pump
CB10/30 fire pump

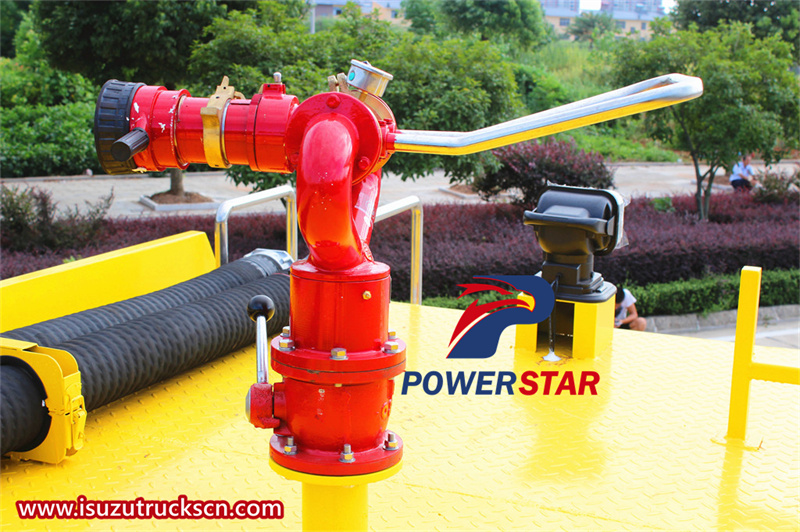

The PS30W fire cannon is like a precise sniper, able to accurately strike the source of fire from a long distance. The gun body adopts a streamlined design, which is beautiful and practical, and can effectively reduce wind resistance and improve shooting accuracy. The maximum range can reach more than 60 meters, which allows firefighters to carry out firefighting operations in a relatively safe position, greatly reducing the risk of casualties. At the same time, the fire cannon also has multiple spray modes such as DC spray and spray spray to meet the needs of different fire environments.
Fire monitor

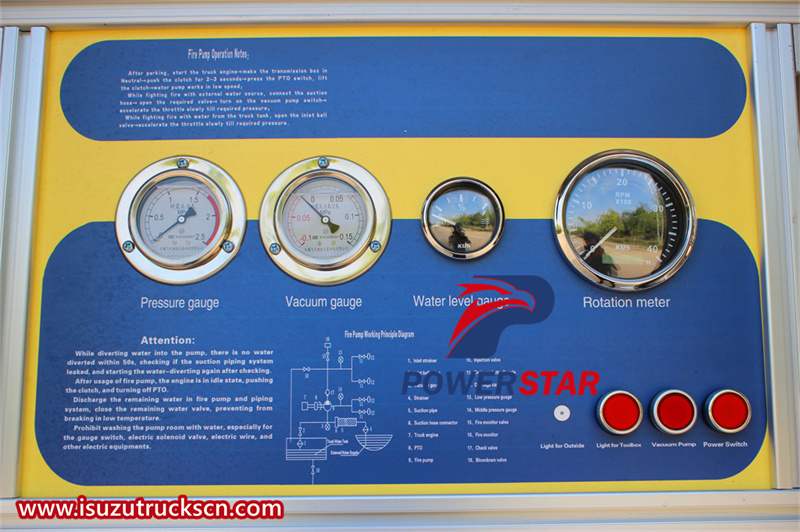

Control panel

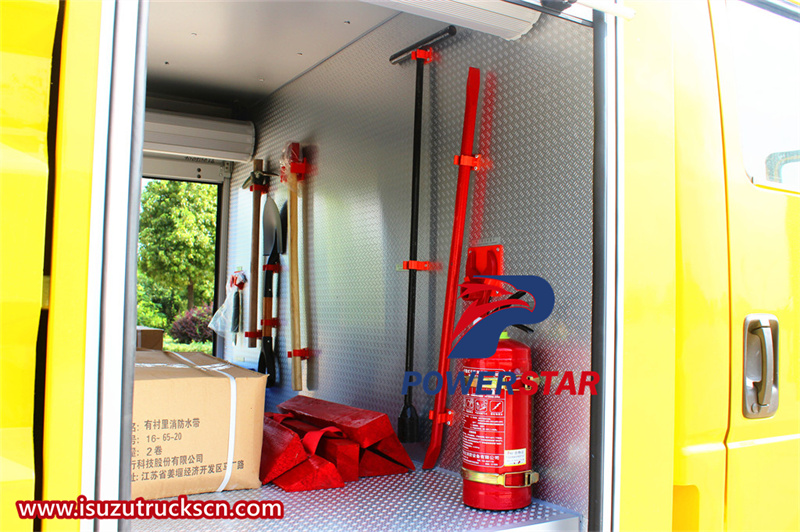

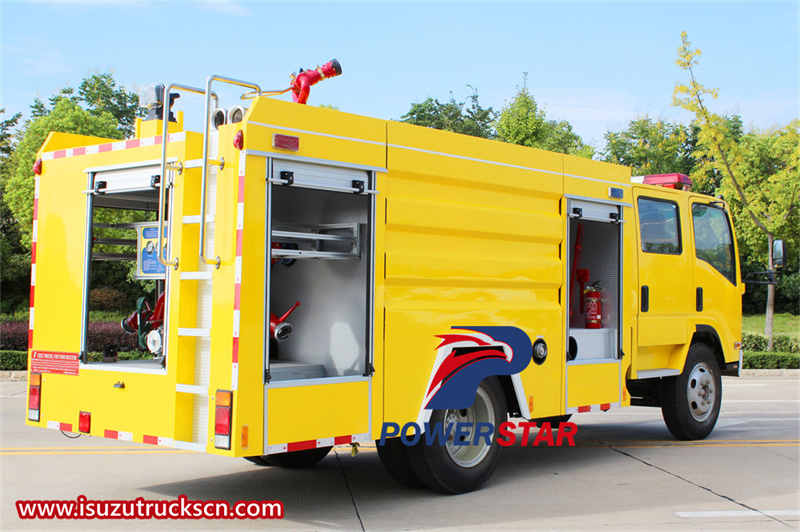

★ Firefighting equipment

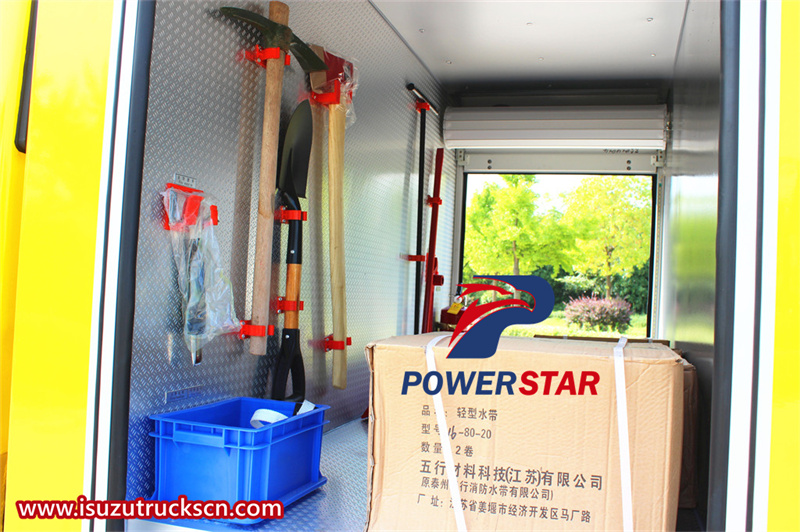

Fire extinguisher,fire axe,shovel,pickaxe

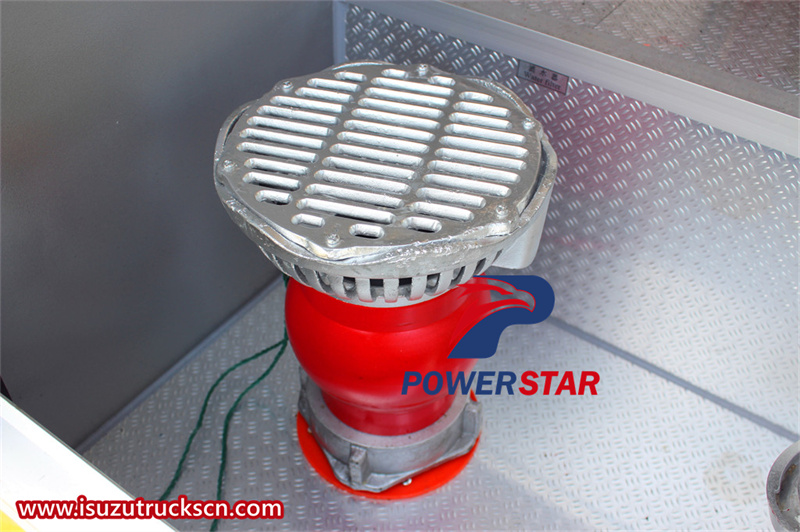

Water filter

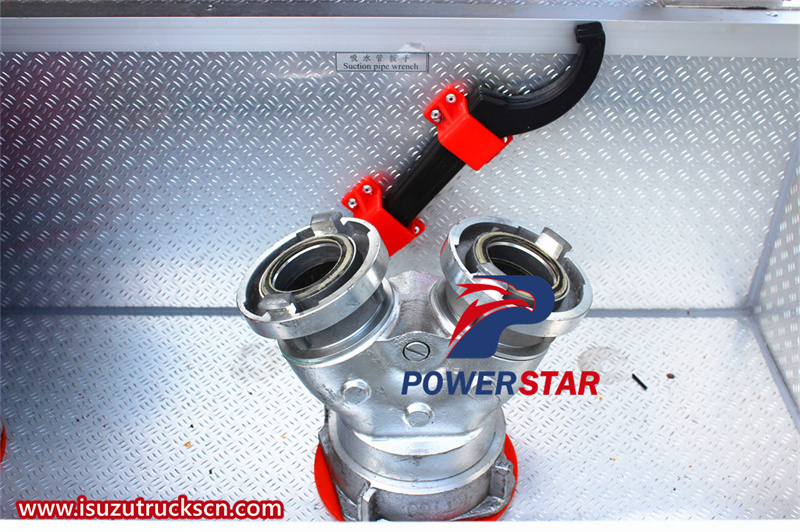

Water collector

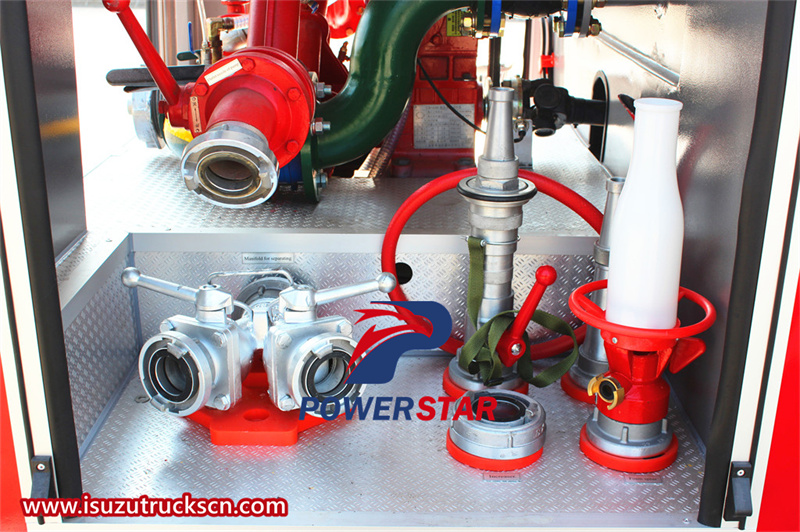

Water distributor&water gun
