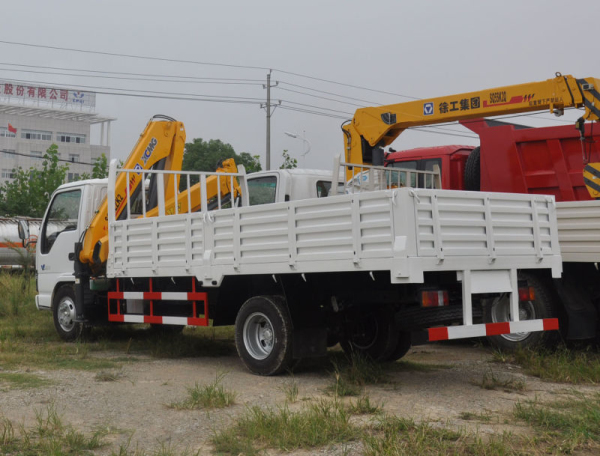

Isuzu Telescoping 3.2 Ton Truck Mounted Crane
Order(MOQ):
1Isuzu Telescoping 3.2 Ton Truck Mounted Crane
Durable Telescoping 3.2 Ton Truck Mounted Crane With 7m Lifting Height , 30 L Oil Tank
Description:
Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.
Telescopic boom crane SQ3.2SK1Q is lifting capacity is 3.2tons, moment is 6.72T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model |
SQ3.2SK1Q |
Unit |
Max Lifting Capacity |
3200 |
kg |
Max Lifting Moment |
6.72 |
T.M |
Recommend Power |
14 |
kw |
Max Oil Flow of Hydraulic System |
25 |
L/min |
Max Pressure of Hydraulic System |
20 |
MPa |
Oil Tank Capacity |
30 |
L |
Rotation Angle |
360°All Rotation |
|
Crane Weight |
1105 |
kg |
Installation Space |
850 |
mm |
Choice of Chassis |
ISUZU | |
SQ3.2SK1Q Lifting capability diagram |
|||
Working radius (m) |
2.1 |
3 |
5.35 |
Lifting capacity (kg) |
3200 |
1850 |
950 |
Optional parts:
1, Moment limited device
2, Remote control equipment
3, Anti-overwind magnet valve
4, High seat on column
5, Work light
6, Assistant stabilizer leg
Stabilizer leg |
Spread |
Fixed |
2179mm |
Single extension |
2256-3556mm |
Double extension |
2212-4752mm |
