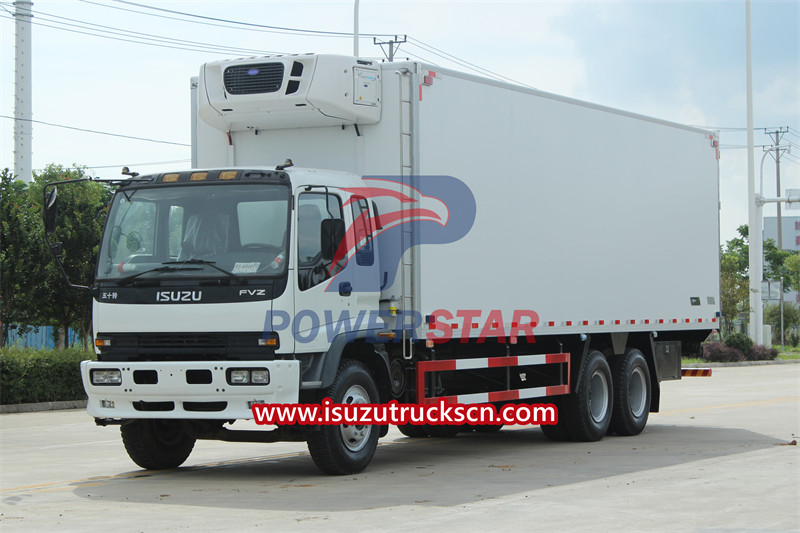

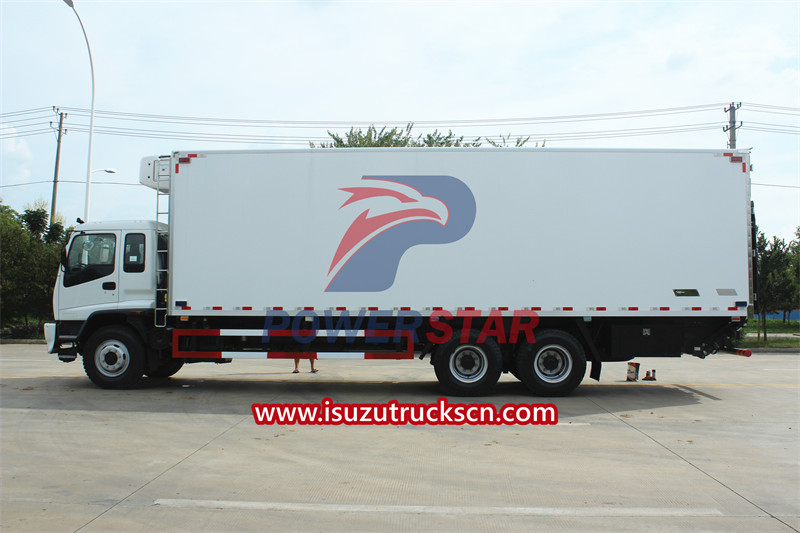

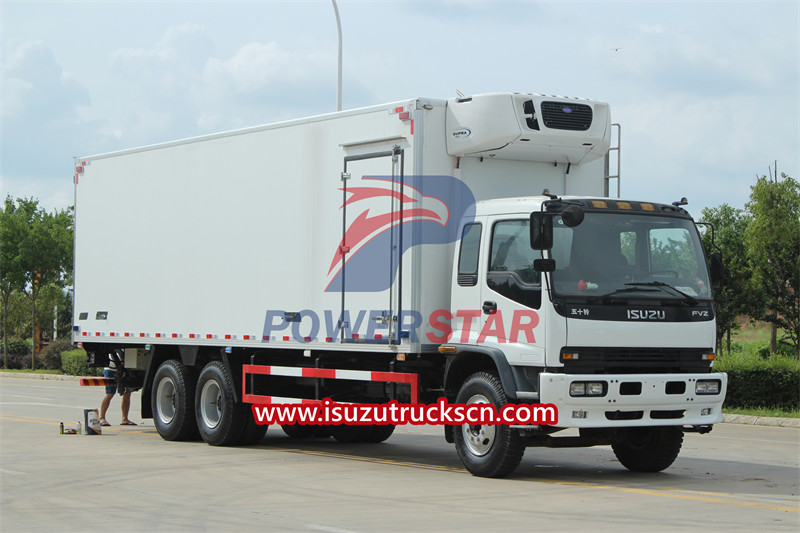

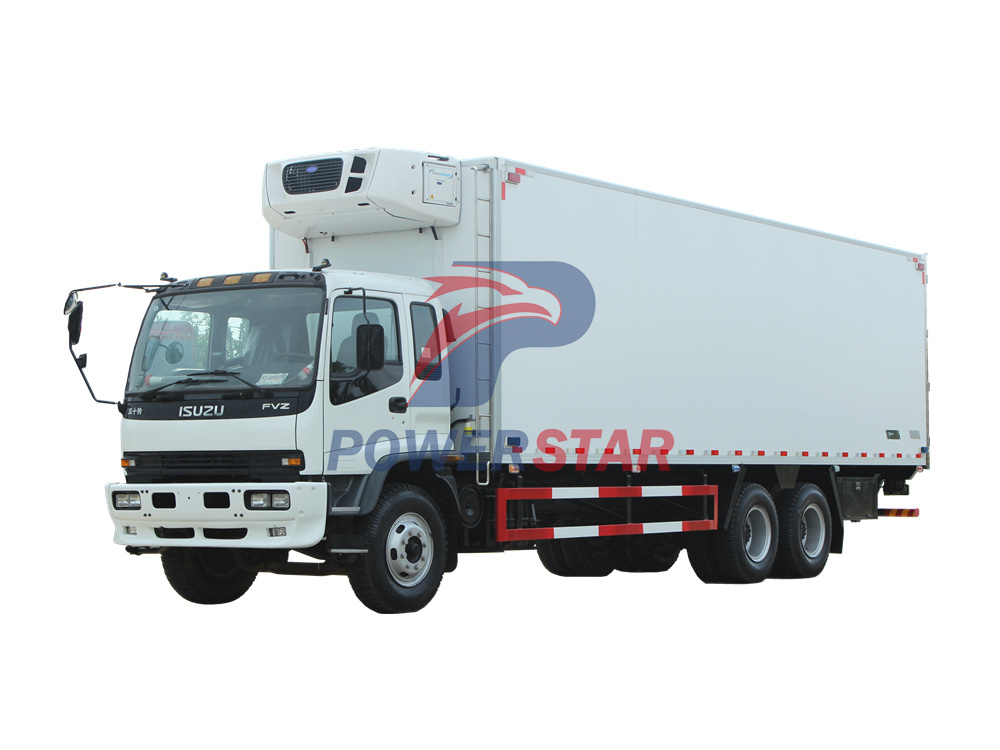

ISUZU FVZ refrigerator truck is a vehicle designed for long-distance, heavy-duty and efficient refrigerated transportation. Its sturdy frame structure and powerful engine provide excellent load-carrying capacity while maintaining stable driving performance. The vehicle is equipped with a CARRIER refrigeration unit, which can provide a stable low-temperature environment to ensure the freshness and quality of goods.
Work capacity:
25 tonsTruck model:
PT5250GLC25Engine power:
300HPEngine type:
6HK1-TCHAxle drive:
6×4Gear box:
FAST 9-speedRemarks:

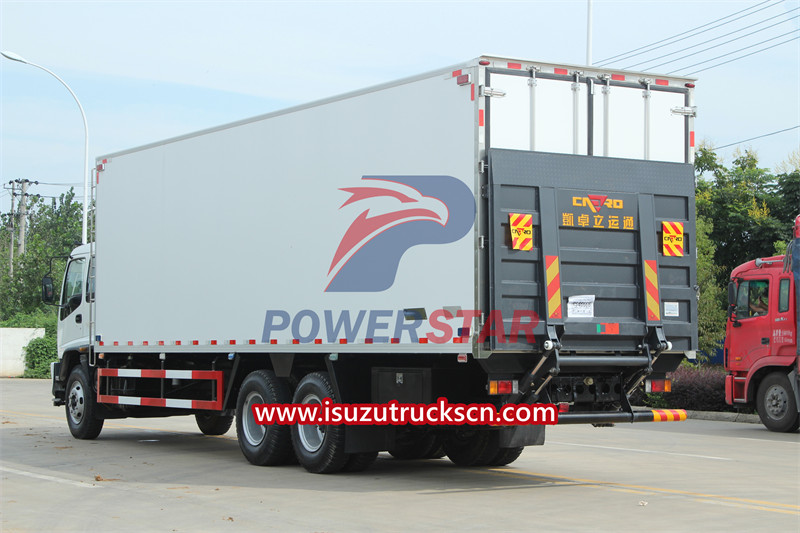

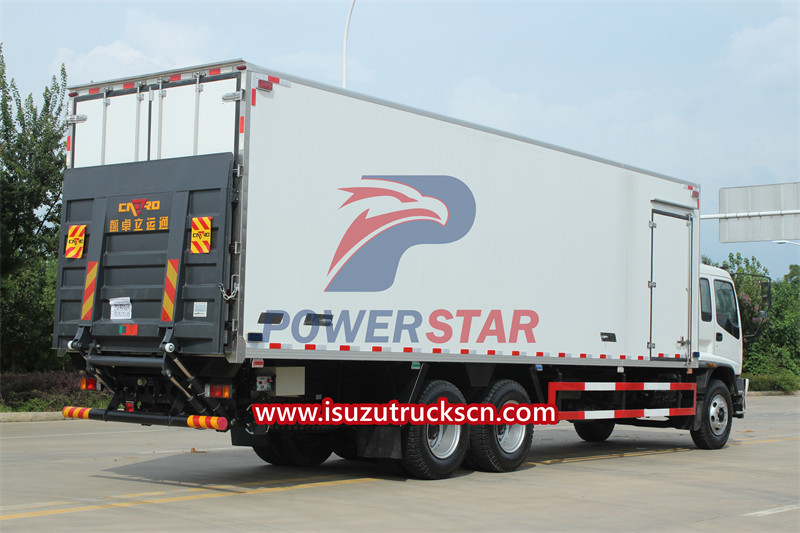

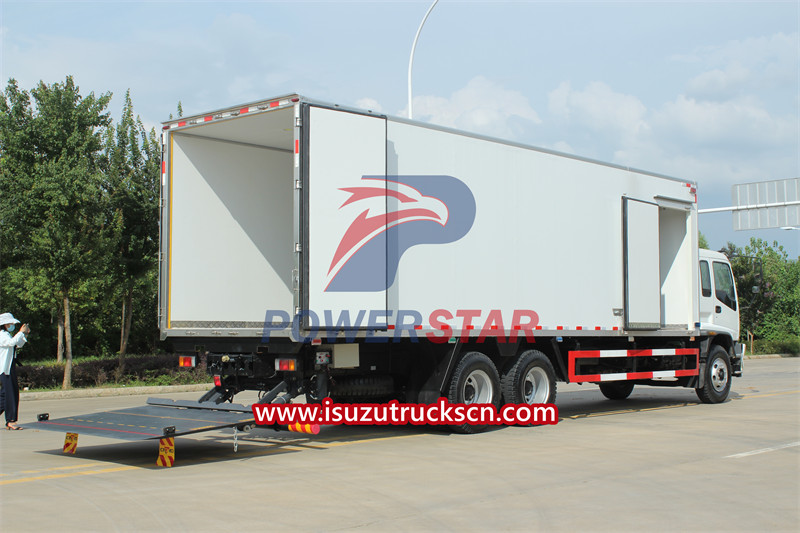

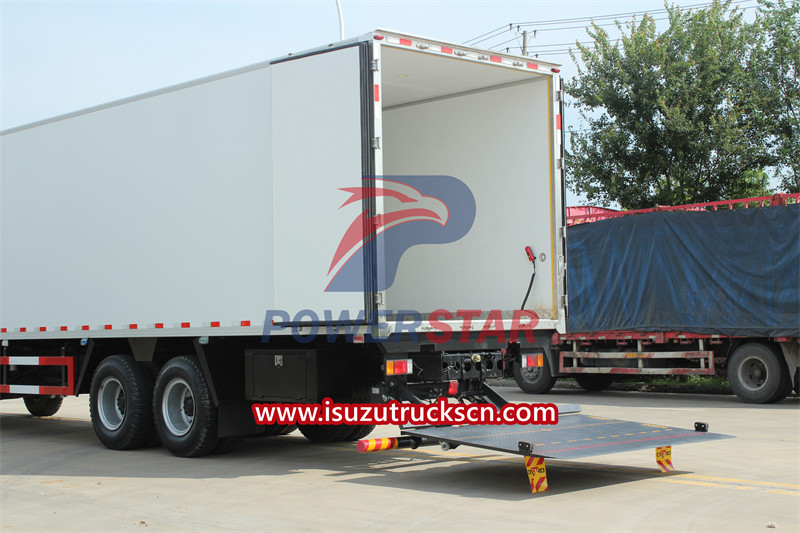

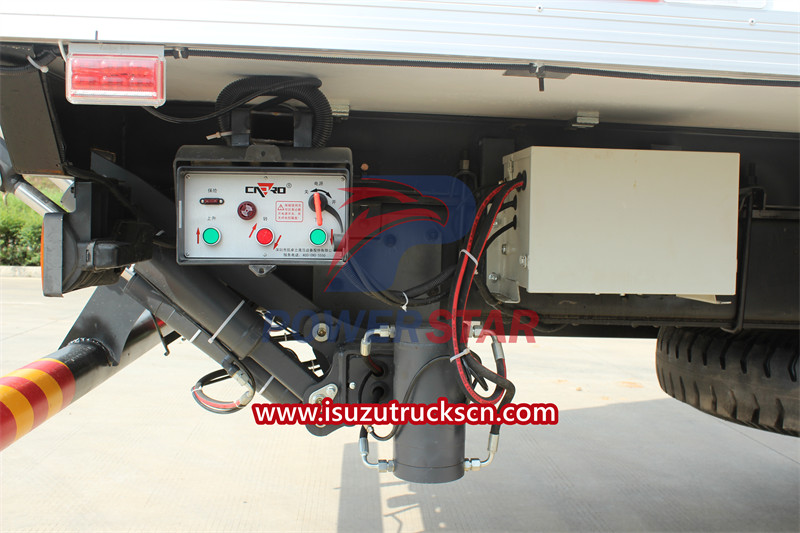

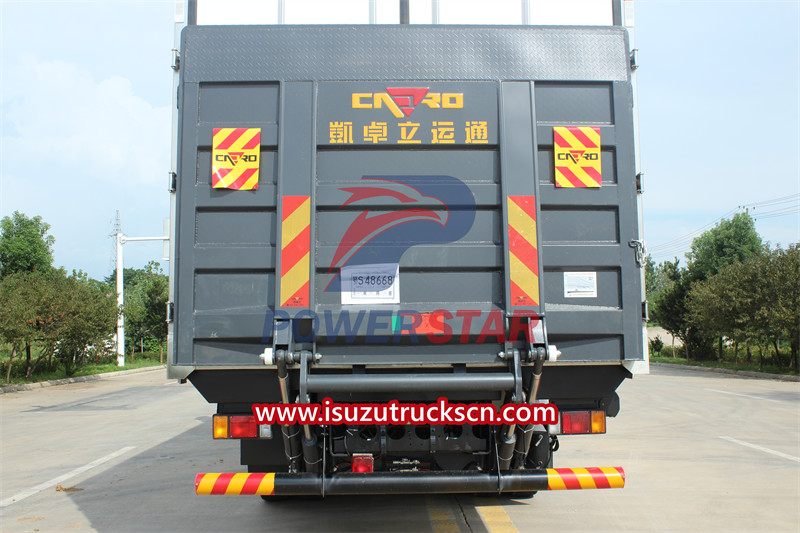

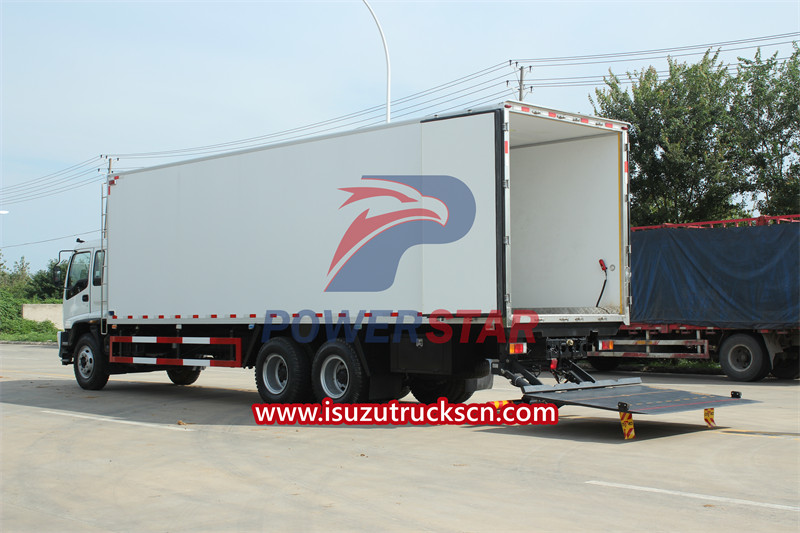

Carrier refrigeration unit, freezer van with power lift gate

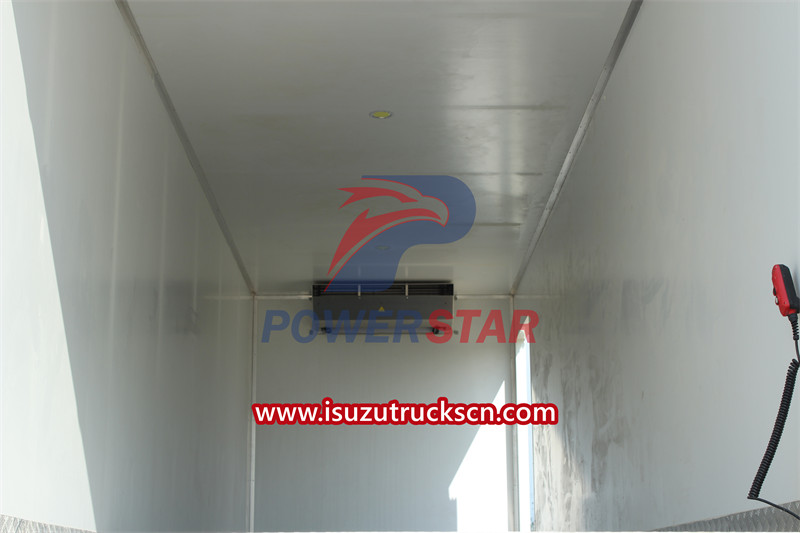

As a special transportation tool, refrigerated trucks play a vital role in the preservation of goods and transportation efficiency. The core of a refrigerated truck is its refrigeration system. Isuzu FVZ refrigerator truck is equipped with advanced CARRIER refrigeration units as their refrigeration systems. This system uses the action of the condenser and evaporator to absorb and release heat by utilizing the phase change of the liquid refrigerant (from liquid to gas, absorbing heat; from gas to liquid, releasing heat) to achieve the cooling effect. In a refrigerated truck, the refrigerant releases the absorbed heat in the condenser and then dissipates the heat to the external environment through the radiator. The refrigerant becomes a high-pressure liquid and then enters the evaporator. In the evaporator, the refrigerant absorbs heat from the air passing through the evaporator, causing the air temperature to drop.
In order to maintain the freshness of the goods and prevent the loss of cold air, the van body of the Isuzu refrigerator truck has a good air circulation design. During transportation, the air circulation system continuously introduces fresh air into the van while expelling stale air from the van. This circulation method ensures that the goods are always in the best fresh-keeping environment.
Product Specifications
|
Vehicle Description |
|||
|
Overall dimensions |
11500*2600*3850mm |
||
|
GVW |
25000kg |
||
|
Curb weight |
11500kg |
||
|
Chassis brand |
ISUZU |
||
|
Driving type |
LHD, 6*4 |
||
|
Chassis Description |
|||
|
Chassis model |
QL5250WT |
||
|
Cab |
One and half row, with A/C, ABS, central lock, |
||
|
Wheelbase |
5700+1370mm |
||
|
Tire specification |
11.00R20 |
||
|
Tire quantity |
10+1 units |
||
|
Engine |
Engine model |
6HK1-TCH |
|
|
Emission level |
Euro 5 |
||
|
Power |
221KW |
||
|
Displacement |
7791ml |
||
|
Horse power |
300hp |
||
|
Number of cylinders |
6 |
||
|
Gear box |
Model |
Fast |
|
|
Number of gears |
12-speed |
||
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake |
||
|
Axle |
Front |
7T |
|
|
Rear |
18T |
||
|
Suspension |
Front |
Leaf spring |
|
|
Rear |
Leaf spring |
||
|
Fuel |
Type |
Diesel |
|
|
Upper Body Description |
|||
|
Van dimension |
8000*2500*2500mm |
||
|
Van material |
Inner |
Fiberglass |
|
|
Outer |
Fiberglass |
||
|
Insulation layer |
Polyurethane foam |
||
|
Thickness |
80mm |
||
|
Cooling system |
Equipped |
||
|
Refrigeration unit |

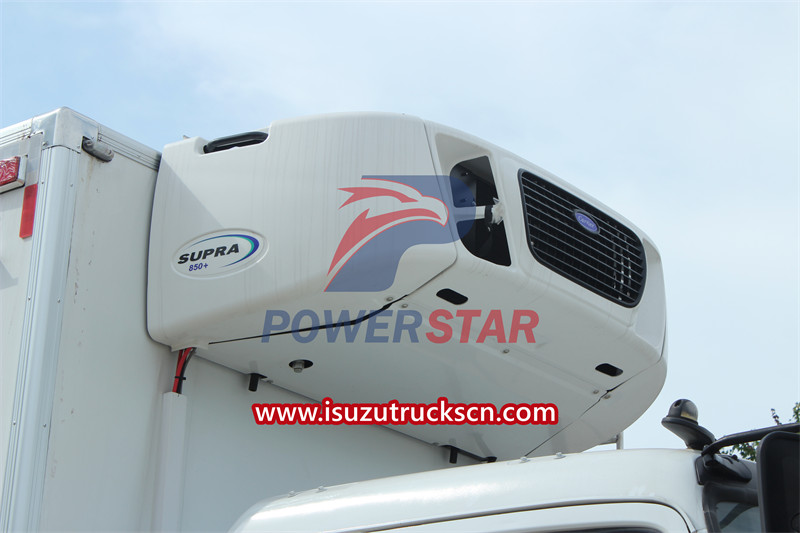

Carrier Supra850+ |
||
|
Lowest temperature |
-18°C |
||
|
Standard configuration |
Cooling system and rear door |
||
|
Optional configuration |
1.Box material: Aluminum alloy or Stainless steel. |
||
Isuzu refrigerator truck is a transportation tool specially used to transport and preserve frozen goods. Its working principle mainly includes the following aspects:
1. Refrigeration system: Isuzu refrigerator trucks are usually equipped with a refrigeration system, including components such as compressors, condensers, evaporators, and expansion valves. The refrigeration system works through a cycle, where the refrigerant absorbs heat from the low-temperature evaporator, undergoes compression and condensation, releases the heat, and reduces the pressure through the expansion valve. The entire cycle process is repeated to keep the temperature inside the cabin lower than the external environment.
2. Thermal insulation materials: The box of Isuzu refrigerated trucks are usually made of materials with good thermal insulation properties, such as polyurethane foam or foam glass. These thermal insulation materials have low thermal conductivity, which can effectively isolate the heat exchange inside and outside the freezer van, prevent external heat from entering the van, and thus maintain a low temperature environment inside the van.
3. Auxiliary equipment: Isuzu refrigerator trucks are also equipped with auxiliary equipment, such as temperature controllers, air circulation devices and fresh-keeping equipment. The temperature controller can monitor and adjust the temperature inside the van to ensure that the cargo remains within the required low temperature range. The air circulation device can provide uniform cold air circulation to ensure that the cargo is fully cooled throughout the van. Preservation equipment, such as dehumidifiers and sterilization systems, can extend the shelf life of goods.
