In today's fast-paced business environment, there is a growing demand for high-quality, efficient refrigerated transportation. Isuzu refrigerated trucks have become a leader in cold chain logistics due to their excellent performance, stability and reliability.
Work capacity:
8 tonsTruck model:
PT5100GLC8Engine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
MLD 6-speedRemarks:

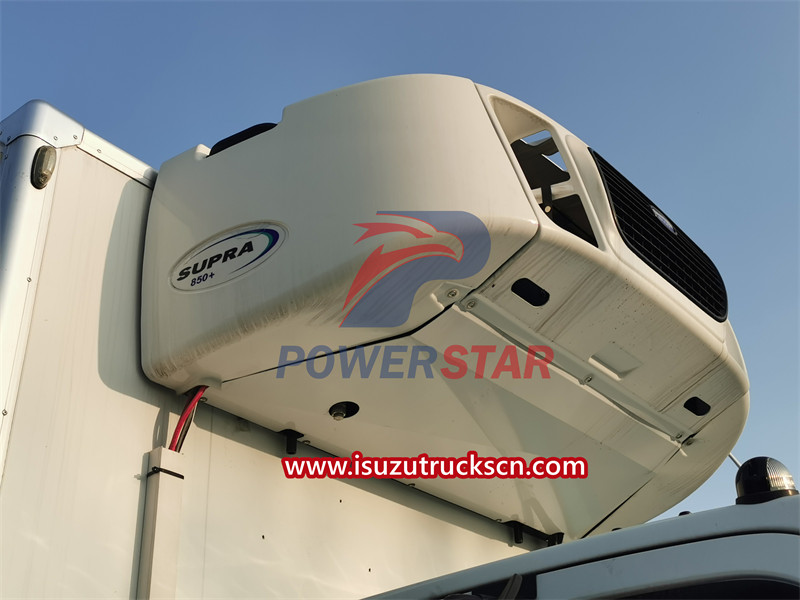

ISUZU NPR chassis, with CARRIER Supra 850 independent refrigeration unit

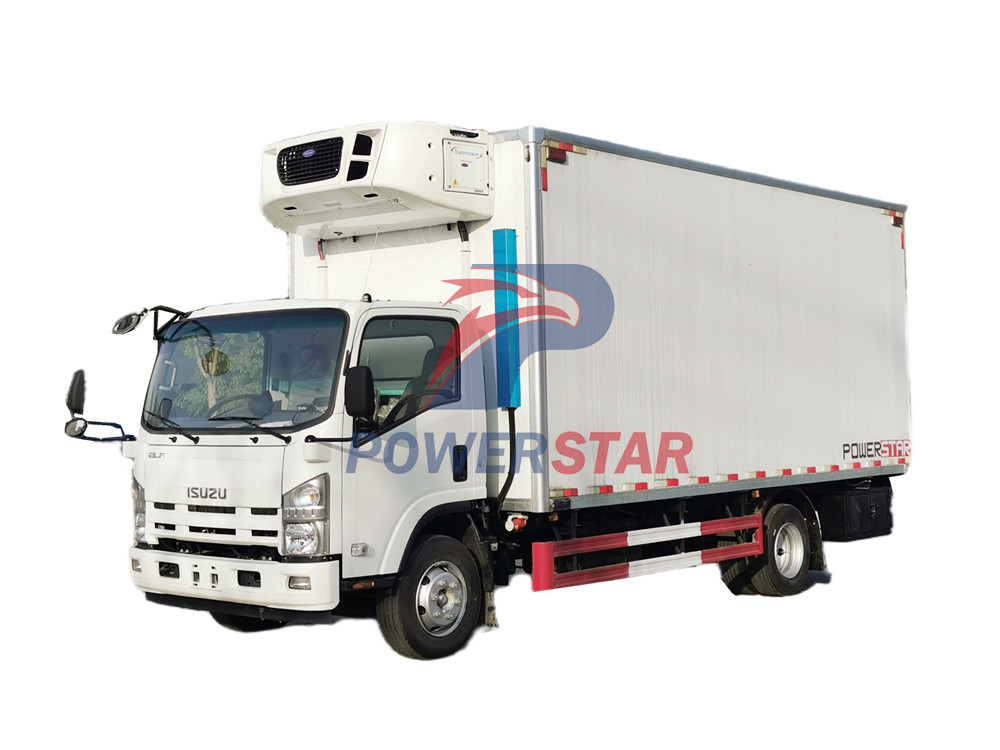

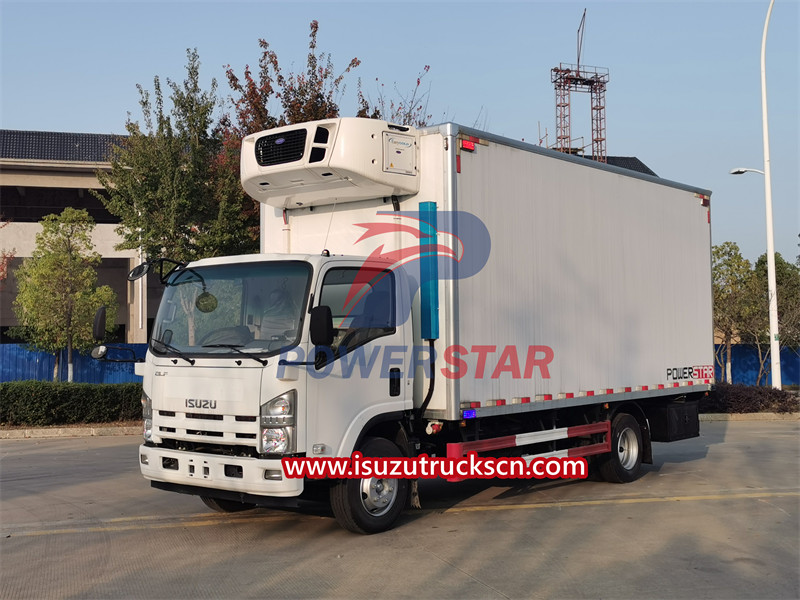

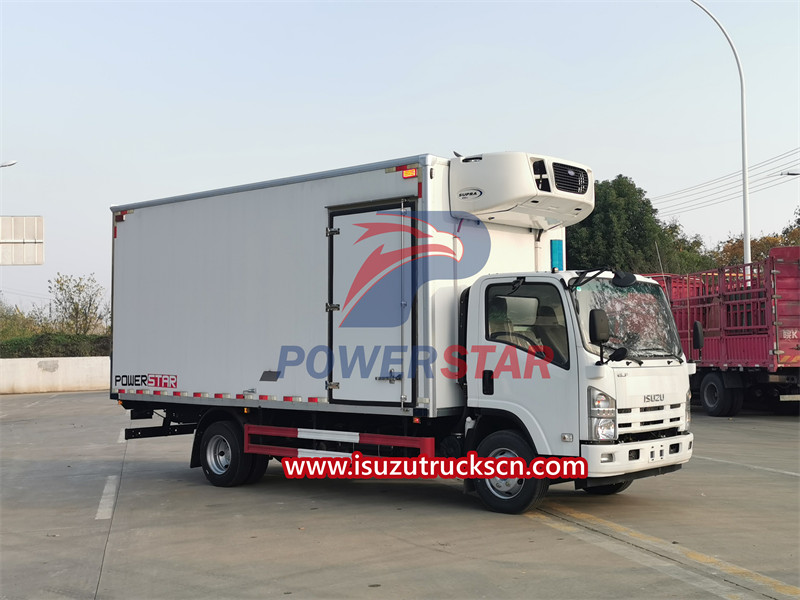

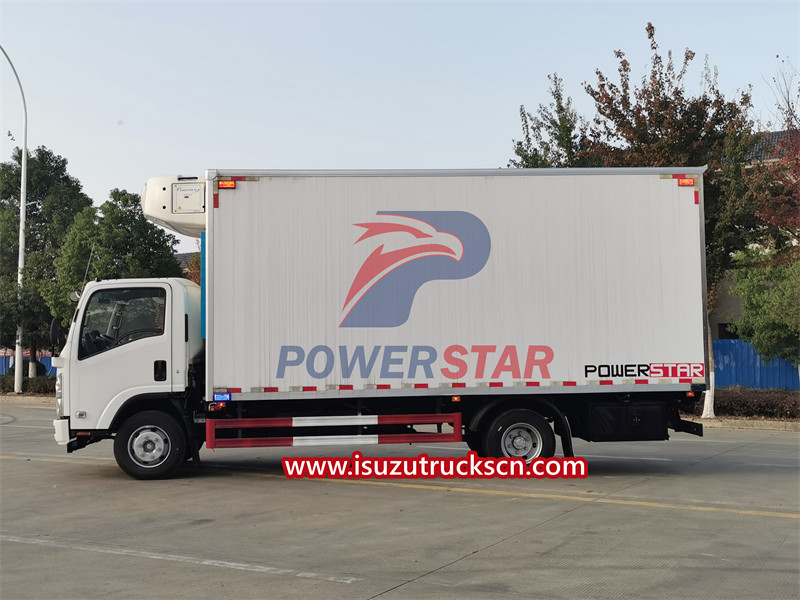

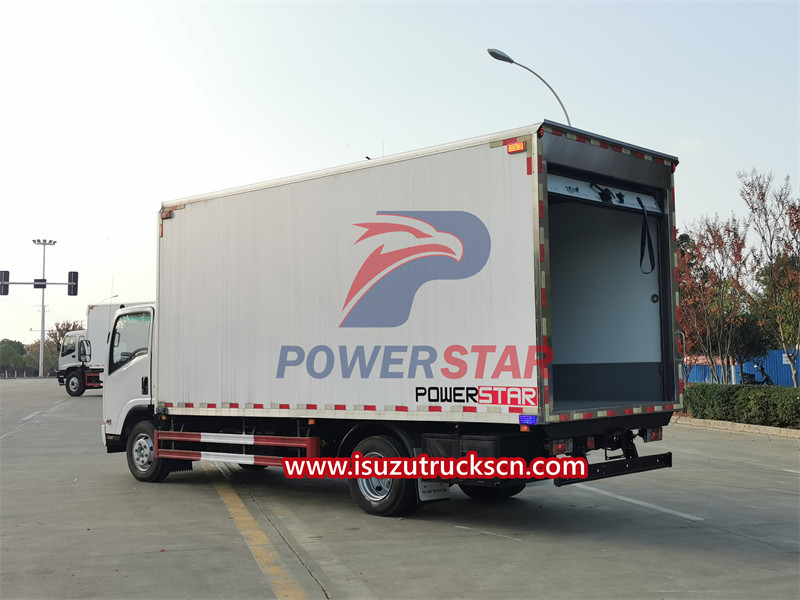

ISUZU NPR refrigerated box truck is a professional cold chain transport vehicle equipped with a CARRIER refrigeration unit, suitable for cold chain logistics transportation of food, medicine, flowers, etc. This refrigerated truck is popular for its high efficiency, energy saving, stability and reliability, and good heat preservation.
ISUZU NPR refrigerated box truck is manufactured using advanced technology and has a sturdy and durable structure that can adapt to various road conditions and environments. The vehicle is equipped with a CARRIER refrigeration unit, which has good refrigeration effects and stable operating performance, and can keep goods fresh for a long time. Furthermore, the overall design of the vehicle is user-friendly, comfortable to drive, and equipped with safety facilities to ensure the safety of goods and drivers.
Isuzu refrigerated trucks are widely used and are mainly used in cold chain logistics fields such as food distribution, refrigerated and refrigerated product transportation, pharmaceutical distribution, and flowers. Whether it is in the supermarket, catering industry or pharmaceutical field, ISUZU refrigerated trucks can provide reliable transportation solutions to ensure the quality of goods and meet customers' needs for freshness and quality.
Product Specifications
|
Chassis Parameters |
|
|
Cab |
Single cab with power steering, ABS, A/C |
|
Color |
Optional |
|
Allowable person in cab |
3 |
|
Wheel base (mm) |
4475 |
|
Number of axles |
2 |
|
Front axle |
4000 |
|
Rear axle |
7000 |
|
Driving type |
4×2, LHD |
|
Tire |
235/75R17.5 |
|
Tire quantity |
6+1 |
|
Engine Parameters |
|
|
Fuel Type |
Diesel |
|
Engine model |
4HK1-TC51 |
|
Emission standard |
Euro 5 |
|
Displacement |
5193ml |
|
Horse power |
190hp |
|
Upper Body Parameters |
|
|
Van box dimension(mm) |
5600×2200×2200 |
|
Material of van box |
Glass fiber reinforced plastics |
|
Insulation thickness(mm) |
80 |
|
Refrigeration unit |
CARRIER Supra 850+ |
|
Type |
Independent unit |
|
Temperature setting range |
-25ºC-+30ºC |
|
Refrigerant Type |
R404A |
|
Refrigerant Filling quantity (kg) |
6.8 |
|
Compressor Model |
05K4 |
|
Air volume (m3/h) |
2500 |
Product Features:

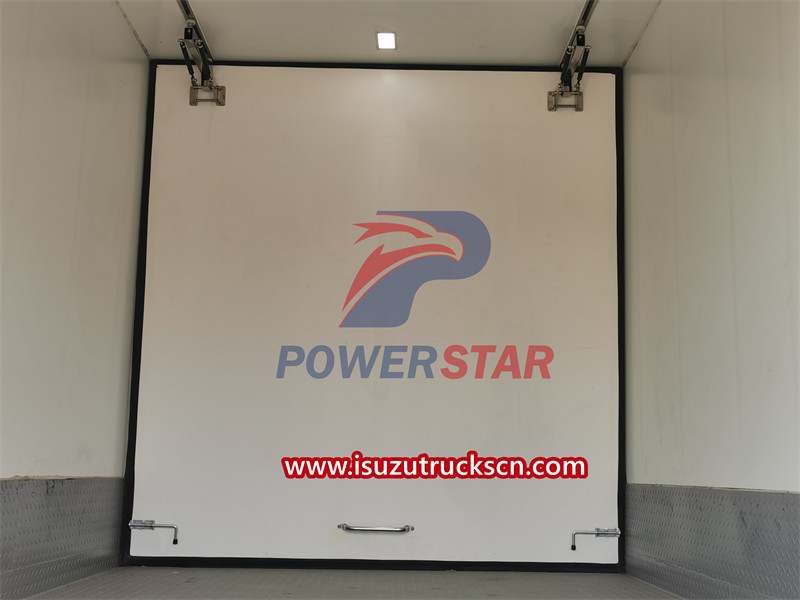

• Refrigerated box: Isuzu NPR refrigerated box truck is made of high-strength, corrosion-resistant high-quality materials, with good thermal insulation performance and lightweight design. The inner wall of the box is smooth, which effectively reduces frost and condensation and ensures the freshness of the goods.
• Powerful Isuzu engine: As the core power source, the Isuzu engine features high reliability, low fuel consumption and low maintenance costs. It provides stable power output for refrigerated trucks, ensuring efficient operation under various road conditions.
• High-efficiency refrigeration system: Use advanced refrigeration technology and high-efficiency refrigeration compressor to quickly reduce the temperature inside the box and keep the temperature constant. The refrigeration system has an excellent energy efficiency ratio, which greatly improves the refrigeration effect and operational efficiency.
• Stable chassis: Isuzu NPR refrigerated box truck adopts a specially reinforced chassis structure, which has excellent load-carrying capacity and anti-bump performance. Stable driving performance can reduce the risk of cargo damage and improve transportation safety.
• Excellent cost performance: With its high quality, high performance and high reliability, the Isuzu NPR refrigerated truck brings huge returns on your investment. Compared with similar products, it has higher cost performance.
Precautions for using Isuzu refrigerated trucks:
1. When using the vehicle on a daily basis, you should always check the outer surface of the Isuzu refrigerated box. Do not scratch the refrigerated box body. This will reduce the ability of the high-strength steel of the body to withstand pressure and make it easier for the vehicle to age and deform, thus causing the polyurethane filled inside leaks, affecting the insulation performance of the box body.
2. Frequent de-icing is also necessary to "reduce the load" on Isuzu refrigerated trucks. If there is a layer of ice on the inner surface of the carriage, remember to use a deicing shovel to remove it in time after each transport of goods. Otherwise, the ice layer will become thicker and thicker, which will not only affect the storage space of the box, but also increase the deadweight of the vehicle, increase fuel consumption.
3. Regularly inspect internal electrical equipment to prevent unexpected situations. Because the electrical equipment in the Isuzu refrigerated compartment is in an environment with relatively high humidity and low temperature, it is necessary to prevent the occurrence of various short circuits caused by the power cord, which will affect the refrigeration and preservation effect, and also to prevent the alternation of hot and cold from causing damage to the lighting equipment.
