The Isuzu refrigerated truck is a powerful cold chain transport tool designed for industries that need to keep their goods fresh. Known for its superior performance, reliability and efficiency, this Isuzu refrigerated truck is ideal for areas such as food distribution, medical transportation and cold chain logistics.
Work capacity:
4 tonsTruck model:
PT5070GLC4Engine power:
120HPEngine type:
4KH1CN6LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
ISUZU KV100 chassis, CARRIER refrigeration unit
Isuzu refrigerated truck is a closed van transport vehicle used to transport goods that need to be frozen or kept fresh. It is a special transport vehicle equipped with a refrigeration unit and a polyurethane insulated compartment. It is also called an ISUZU freezer truck, ISUZU reefer van, ISUZU chiller lorry.
Isuzu refrigerated trucks are mainly used by enterprises and logistics companies that produce or sell non-staple foods such as meat, cold drinks and aquatic products, and are mainly used to transport meat, aquatic products, poultry and egg products, vegetables and fruits. In the field of agriculture, animal husbandry and fishery, Isuzu freezer trucks are often used to transport meat, fish, eggs, milk, fruits and animal and plant breeding livestock and seedlings. In the medical and health sector, Isuzu refrigerated trucks are used to transport vaccines, pharmaceuticals and plasma products.
In recent years, with the continuous increase in the transportation volume of vegetables and fruits, and the development of quick-frozen and fresh-keeping food by various food companies and cold drink companies, the demand for Isuzu refrigerated vehicles has increased significantly.
Product Specifications
|
General Technical Parameters |
||||
|
Overall Dimension |
6000×2500×3300(mm) |
Gross Vehicle Weight |
7300(Kg) |
|
|
Curb Weight |
3800(Kg) |
Loading Weight |
4000(Kg) |
|
|
Chassis Specifications |
||||
|
Chassis parameters |
Chassis Brand |
ISUZU |
||
|
Cabin |
Single, Left Hand Drive, with A/C |
|||
|
Engine |
Model |
4KH1CN6LB |
||
|
No. of cylinders |
4 |
|||
|
Power |
88KW/120HP |
|||
|
Emission standard |
EURO 6 |
|||
|
Displacement |
2.999L |
|||
|
Fuel type |
Diesel |
|||
|
Gearbox |
MSB, 5 Forward & 1 Reverse Gear |
|||
|
Front and Rear Axle load |
2.5T/4.8T |
|||
|
Wheel base |
3360(mm) |
|||
|
Overhang (Front/Rear) |
1130/1505(mm) |
|||
|
Angle(Approach/departure) |
20/16(°) |
|||
|
Brake system |
Air brake |
|||
|
Steering |
Power Assistant |
|||
|
Tire |
7.00R16, 6 Pieces with 1 Spare Tire |
|||
|
Maximum speed |
105(km/h) |
|||
|
Superstructure |
||||
|
Van |
Box size |
4200×2100×2100(mm) |
||
|
Material |
Fiberglass |
|||
|
Insulating Layer |
8mm Polyurethane Foam |
|||
|

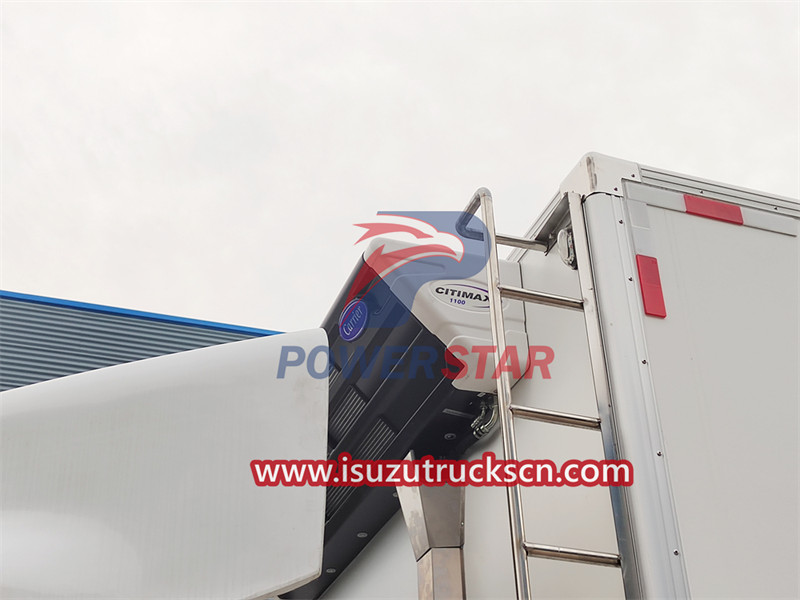

Refrigeration unit |
Brand |
CARRIER |
||
|
Model |
C1100 |
|||
|
Applicable temperature (ºC) |
-18~0 |
|||
|
Remarks |
Optional: Ventilation slot |
|||
Differences between Isuzu refrigerated trucks and ordinary cargo trucks
There are many differences in design and function between Isuzu freezer trucks and ordinary cargo trucks, which are mainly reflected in the following aspects:
1. Body structure: Ordinary cargo trucks usually only have space for cargo, while Isuzu refrigerated trucks need to be equipped with special refrigeration equipment and a sealed cargo box with insulation function to maintain the required temperature of the cargo.
2. Cargo box material: Isuzu freezer trucks need to have cargo boxes with good thermal insulation properties to maintain stable temperature. The box of an ordinary truck does not have such special requirements.
3. Function: Ordinary cargo trucks are mainly used to carry goods, while Isuzu freezer trucks are used to keep the temperature of the goods within a certain range.
4. Refrigeration method: Ordinary trucks do not have refrigeration equipment, while refrigerated trucks are equipped with special refrigeration units that can maintain a constant temperature during transportation.
5. Price: Since refrigerated trucks require additional refrigeration equipment and special cabin materials, their prices are usually higher than ordinary trucks.
6. Operating costs: The operating costs of Isuzu refrigerated trucks are also higher, including higher fuel consumption, repair costs and daily maintenance costs.
