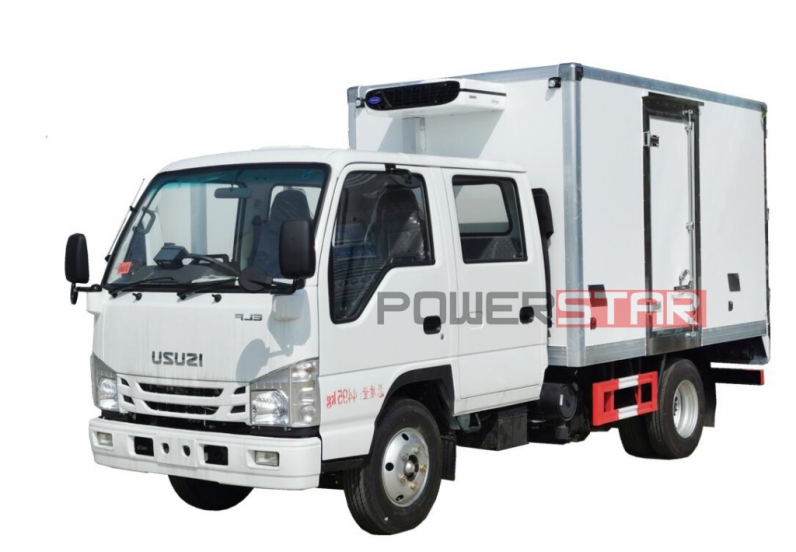

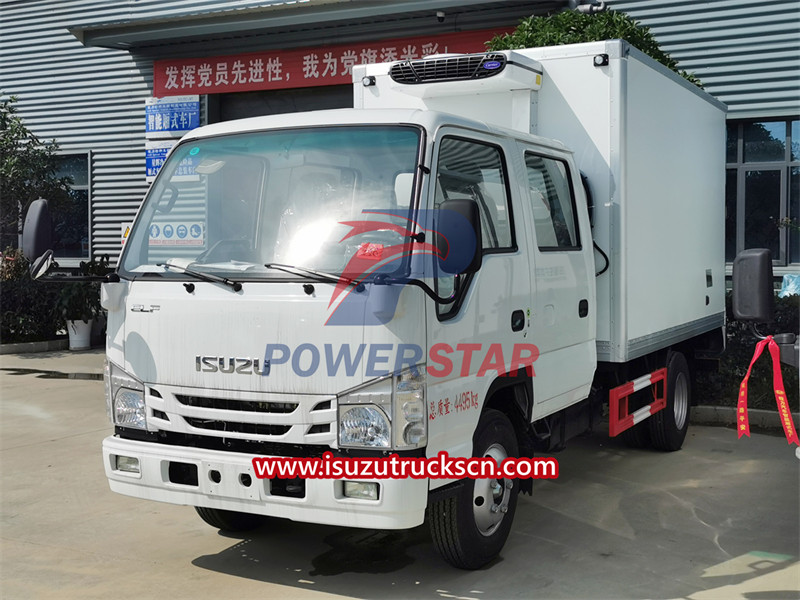

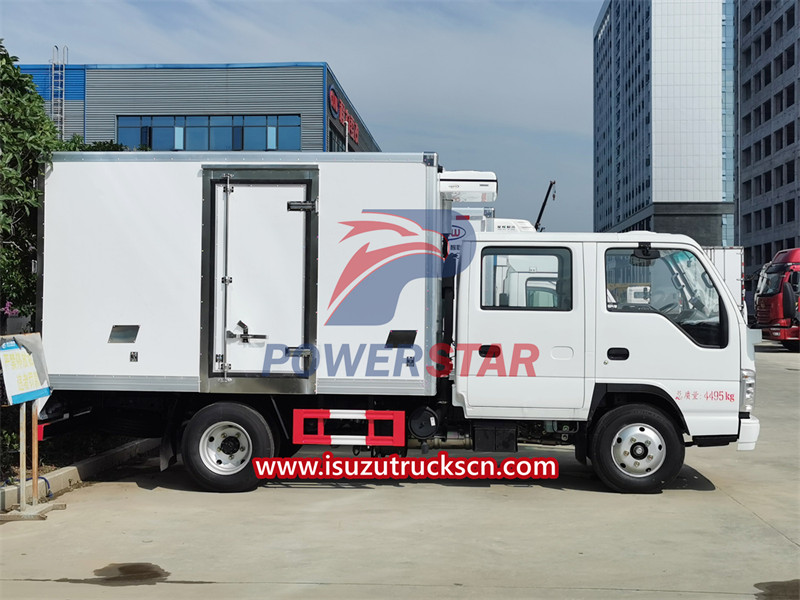

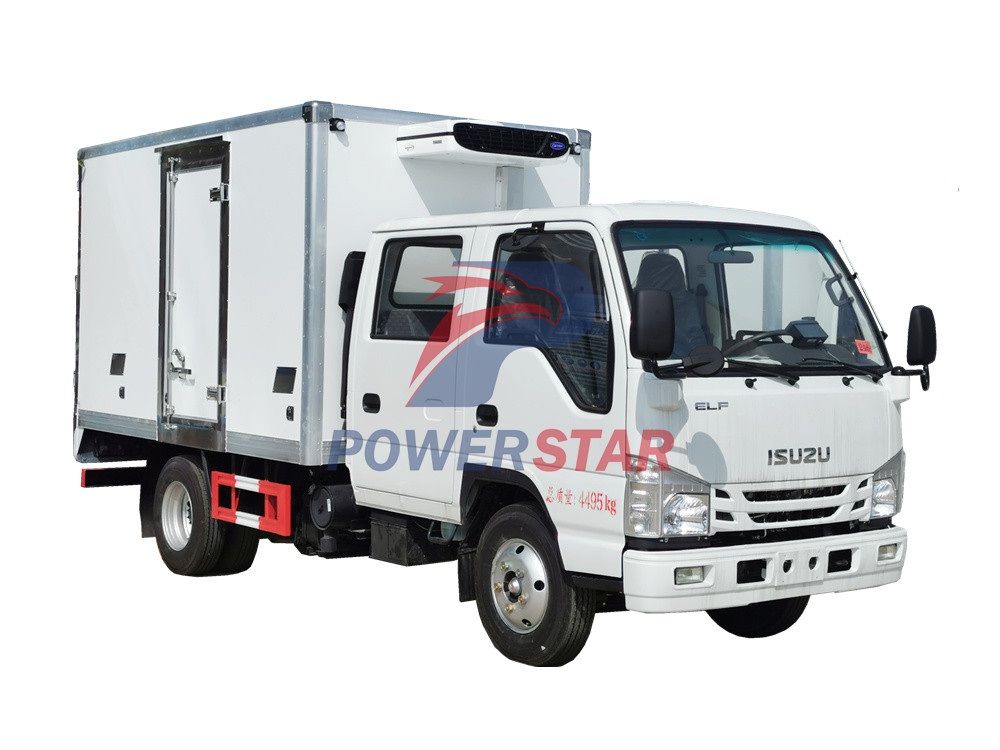

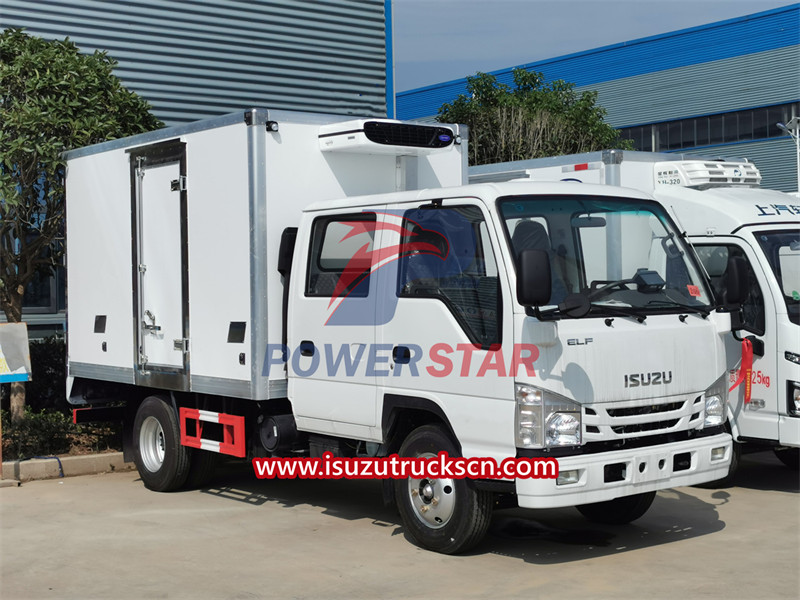

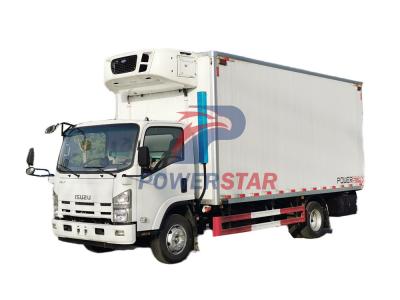

ISUZU mini refrigerated truck is a commercial vehicle specially designed for cold chain logistics. It has a compact and flexible appearance design and is suitable for urban distribution and short-distance transportation. It is equipped with a CARRIER refrigeration unit to provide a reliable fresh-keeping refrigeration environment for goods, making it an ideal choice for enterprises to carry out food transportation and cold chain logistics.
Work capacity:
1500 kgTruck model:
PT5040GLC2Engine power:
98HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
ISUZU NKR chiassis with double cabin, CARRIER refrigeration unit
ISUZU Mini refrigerated truck is a commercial vehicle specially designed for the transportation of refrigerated goods, with excellent refrigeration performance and professional transportation solutions. Its compact and flexible design makes it suitable for a variety of scenarios such as urban distribution and food transportation.

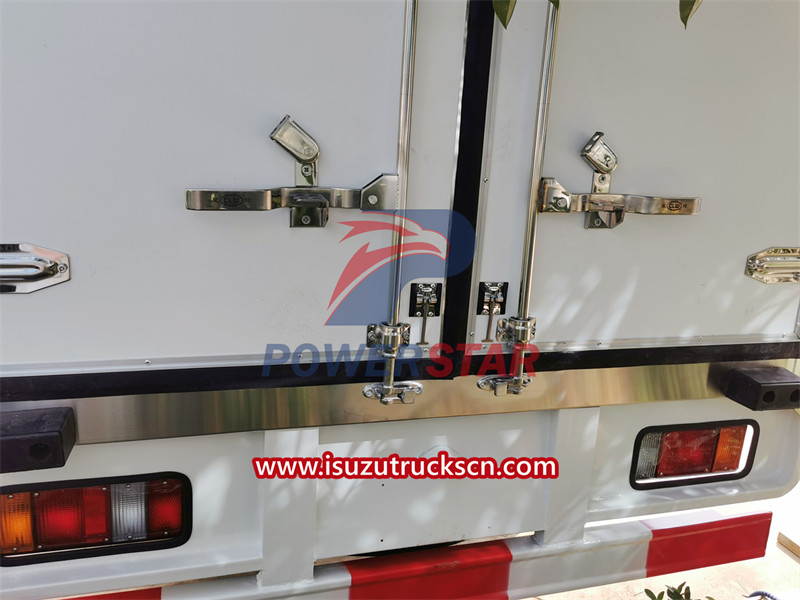

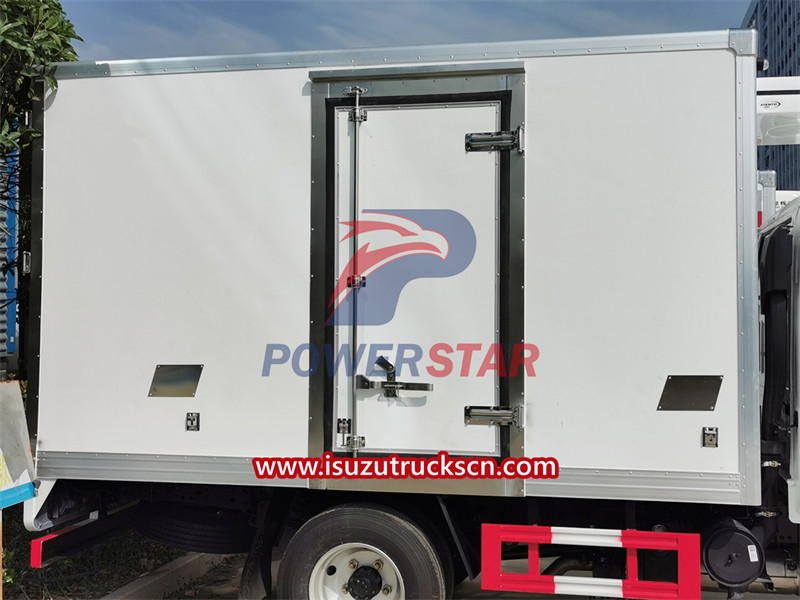

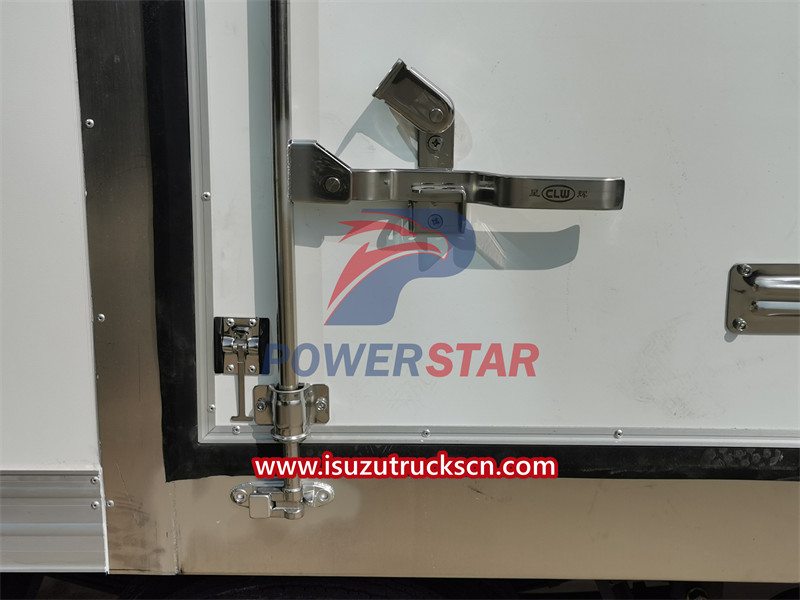

The body structure of the ISUZU freezer truck is sturdy and durable, and the freezer box is made of high-quality thermal insulation materials to ensure good thermal insulation performance. The box is equipped with partition boards and shelves to facilitate the classification and storage of goods and maximize the use of refrigerated space.

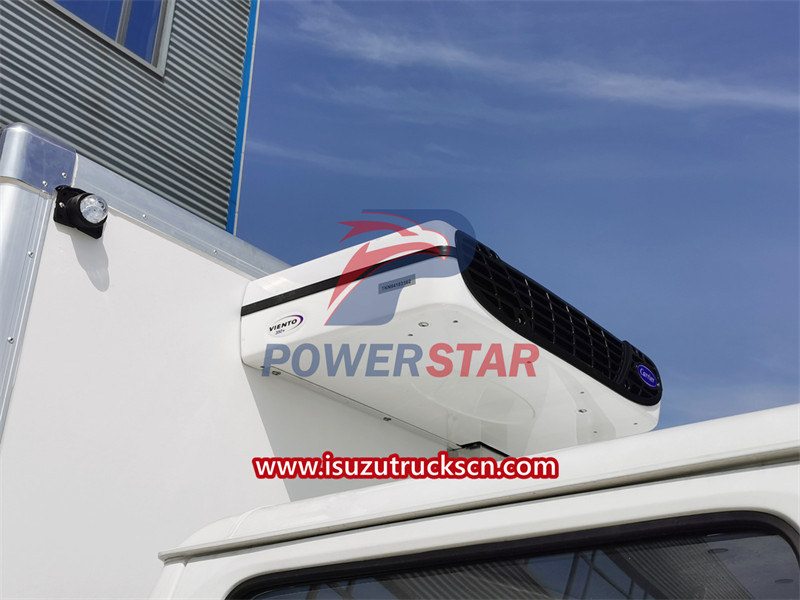

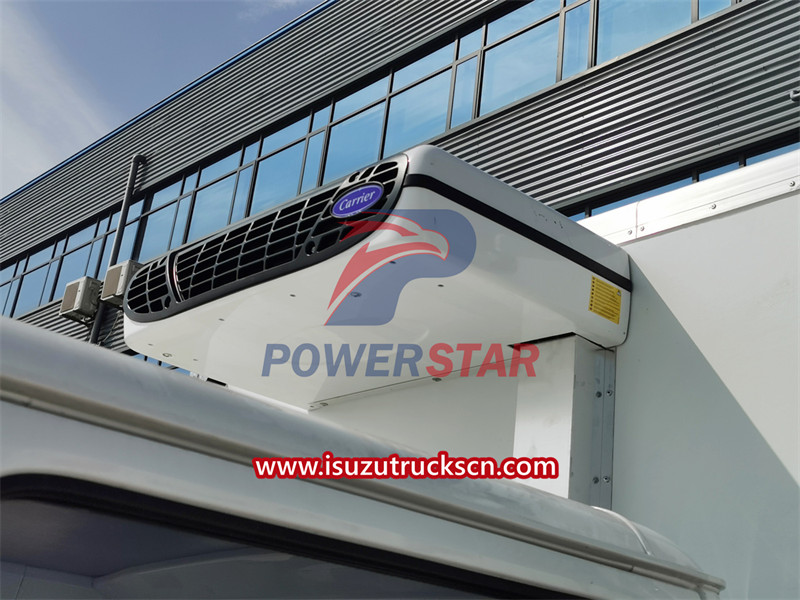

ISUZU mini refrigerated truck is equipped with CARRIER refrigeration unit with excellent quality and performance. As an industry-leading refrigeration equipment supplier, CARRIER is known for its reliability, efficiency and durability. Its refrigeration unit has the advantages of rapid refrigeration and good stability, which can ensure that the refrigerated truck always maintains a constant low temperature during transportation, providing the best guarantee for cargo transportation.
Product Specifications
|
General Technical Parameters |
||||
|
Overall Dimension |
5995*2130*2960(mm) |
Gross Vehicle Weight |
4495(Kg) |
|
|
Curb Weight |
2866(Kg) |
Loading Weight |
1499(Kg) |
|
|
Chassis Specification |
||||
|
Chassis parameters |
Chassis Brand |
ISUZU |
||
|
Cabin |
double row, Left Hand Driving, with A/C |
|||
|
Engine |
Model |
4KH1CN5LS |
||
|
Cylinders |
4 |
|||
|
Power |
98HP |
|||
|
Emission standard |
EURO V |
|||
|
Displacement |
2.999L |
|||
|
Fuel type |
Diesel |
|||
|
Gearbox |
MSB, 5 Forward & 1 Reverse Gear |
|||
|
Front and Rear Axle load |
2.5T/4.8T |
|||
|
Wheel base |
3360(mm) |
|||
|
Overhang (Front/Rear) |
1130/1505(mm) |
|||
|
Angle (Approach/departure) |
20/16(°) |
|||
|
Brake System |
Oil brake |
|||
|
Steering Gear |
Power Assistant |
|||
|
Tire |
7.00R16 8PR, 6 Pieces with 1 Spare Tire |
|||
|
Maximum speed |
105(km/h) |
|||
|
Superstructure |
||||
|
Van |
Box size |
3150*1750*1750(mm) |
||
|
Material |
Fiberglass |
|||
|
Insulating Layer |
8cm Polyurethane Foam |
|||
|
|
Brand |
THERMOKING/CARRIER/other chinese brand |
||
|
Applicable temperature (ºC) |
-18~0 |
|||
|
Optional |
Part Optional: Ventilation slot |
|||

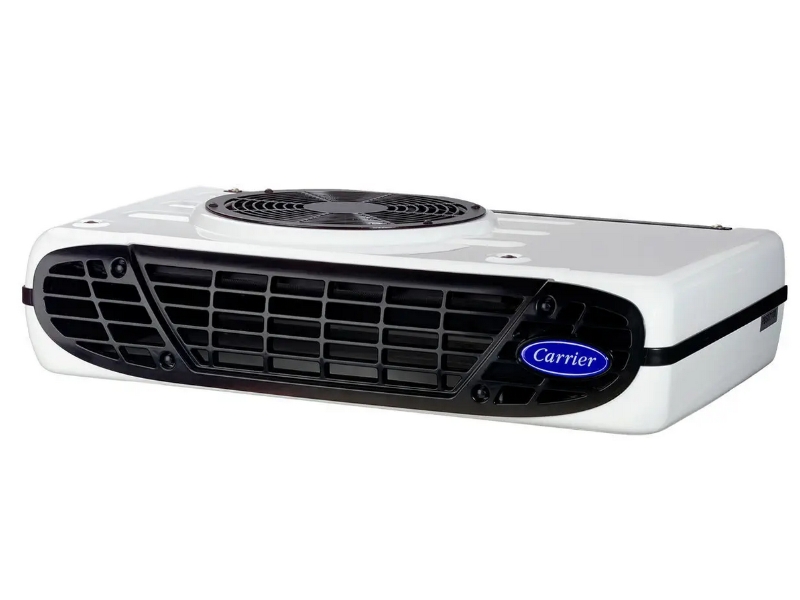

ISUZU mini freezer truck is equipped with CARRIER refrigeration unit, which has the following features and advantages:
1.High-efficiency refrigeration technology: Using advanced refrigeration technology, it has rapid refrigeration and stable temperature control capabilities, and can meet the needs of various refrigeration and freezing applications.
2.Energy saving and environmental protection: The use of efficient energy utilization design can reduce energy consumption, comply with environmental protection requirements, and save energy costs for users.
3.Reliable and stable: Using high-quality materials and components, and undergoing strict quality control and durability testing, the unit ensures long-term stable operation and high reliability and durability.
4.Intelligent control: Equipped with an intelligent control system, it can monitor and control the operating status of the unit in real time, realize remote monitoring and operation, and improve management efficiency and convenience.
5.Wide range of applications: suitable for food processing, catering, supermarkets, medical and other fields, and can meet the refrigeration and freezing needs of different industries.
6.Good user reputation: With a wide user base and good reputation in the market, it is a reliable choice for users for refrigeration and freezing applications.
Isuzu freezer trucks can ensure the safety of goods through the following aspects during transportation:
1. Correct operation and use: The operation and use of Isuzu freezer trucks need to follow certain specifications and requirements, including cargo loading, temperature control, equipment maintenance, etc. Only by using and operating refrigerated trucks correctly can the quality and safety of the goods be guaranteed.
2. Maintain a constant temperature: During transportation, it is necessary to keep the freezer box at a constant temperature to avoid adverse effects on the goods due to excessively high or low temperatures. At the same time, it is necessary to regularly check parameters such as temperature and humidity of the goods, and handle abnormal situations in a timely manner.
3. Stack goods reasonably: When loading goods, avoid mutual extrusion and collision of goods, and keep the integrity of goods and neat packaging. For fragile goods, appropriate reinforcement and protection measures are required to prevent damage or deterioration of the goods.
4. Regular maintenance and upkeep: Isuzu freezer trucks require regular maintenance and upkeep, including cleaning, inspection, replacement of parts, etc. This ensures the normal operation and service life of the equipment, while also allowing equipment faults or problems to be discovered and dealt with in a timely manner.
5. Choose the appropriate transportation route and time: During the transportation process, it is necessary to choose the appropriate transportation route and time to avoid long waiting and parking, reduce the number of vehicle starts and stops, and maintain the stability and freshness of the goods.
Isuzu Refrigerated Truck, Seafood trucks, Ice cream truck, Sandwich Panels Insulated Panel Refrigerated Truck, Freezer box truck, Refrigerated van
Learn More
Hot selling refrigerator truck Isuzu freezer truck for sale, Isuzu refrigerated truck with carrier freezer unit, ice craem delivery truck
Learn More

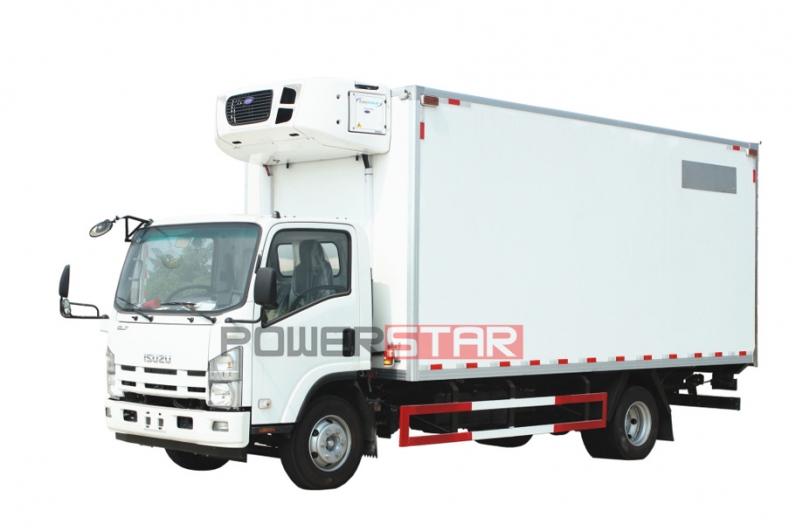

The Isuzu refrigerated truck is a powerful cold chain transport tool designed for industries that need to keep their goods fresh. Known for its superior performance, reliability and efficiency, this Isuzu refrigerated truck is ideal for areas such as food distribution, medical transportation and cold chain logistics.
Learn More

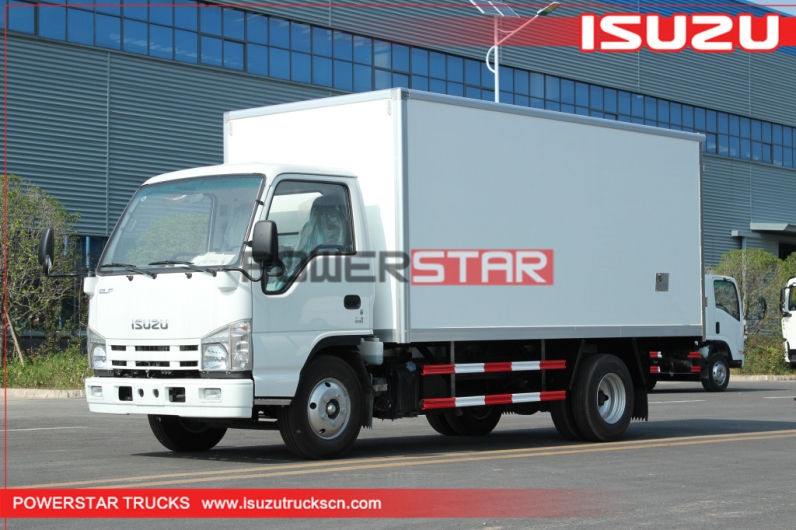

In today's fast-paced business environment, there is a growing demand for high-quality, efficient refrigerated transportation. Isuzu refrigerated trucks have become a leader in cold chain logistics due to their excellent performance, stability and reliability.
Learn More

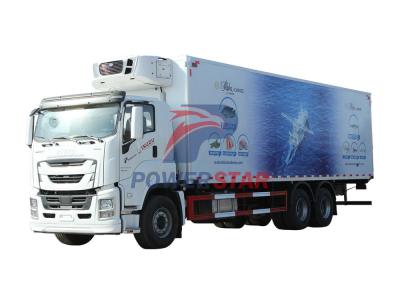

Isuzu GIGA freezer truck is a special transport vehicle mainly used to transport goods that need to be kept fresh under certain temperature conditions, such as vegetables, fruits, meat, dairy products, etc. Because the refrigerated truck has a temperature control function, it can ensure that the goods stay fresh during transportation and reduce losses.
