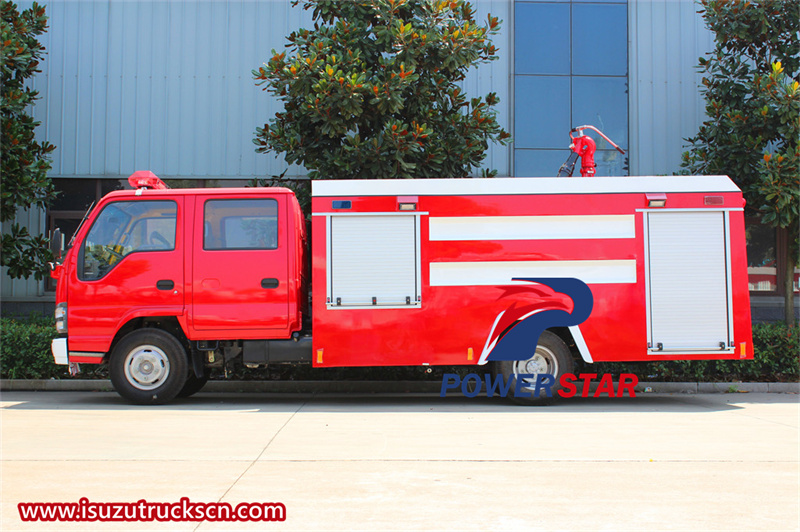

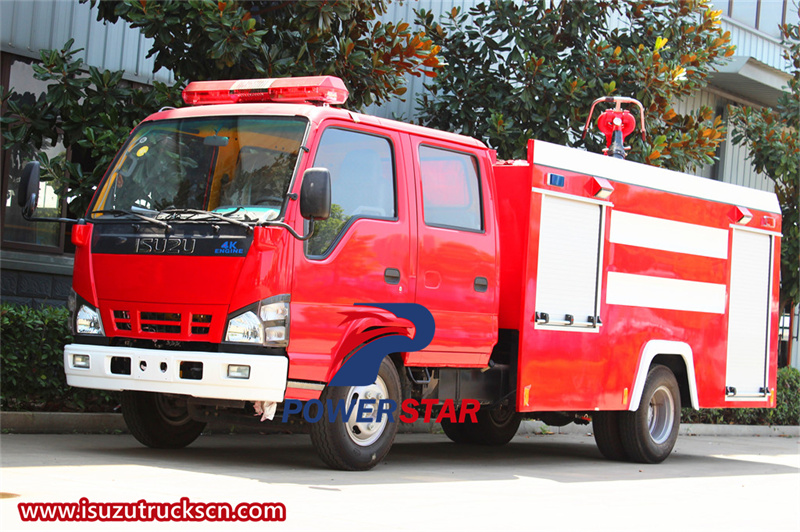

The Isuzu NQR 600P fire truck is a special vehicle designed for the fire fighting field, with excellent performance and multiple functions. The vehicle adopts the Isuzu NQR 600P chassis, which is powerful, solid and durable, and can cope with various complex road conditions. The vehicle is reasonably designed and divided into multiple parts, including the front equipment box, the middle tank (which can be loaded with water and foam mixture) and the rear pump room, which is convenient for firefighters to quickly access equipment and carry out fire fighting operations.
Work capacity:
3 tonsTruck model:
PT5070XRZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB 5 forward gears& 1 reverse,manualRemarks:
2000L water tank,1000L foam tankThe Isuzu NQR 600P fire fighting truck is a fire rescue vehicle designed for emergency fire incidents. The fire truck is equipped with advanced firefighting equipment, including a foam-water mixed injection system and a high-efficiency fire pump, which can provide a water flow of 30 liters/second at a pressure of 1MPa to effectively deliver fire-extinguishing liquid to the source of the fire.

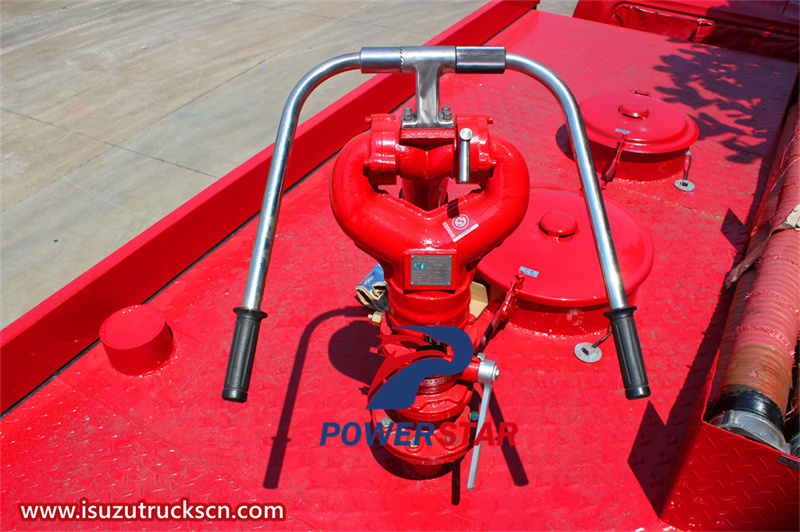

The fire truck is equipped with a PS30W fire cannon with a long-range injection function, a wide coverage area, and can control the spread of fire. In addition, the fire truck is equipped with air foam fire guns, fire extinguishers, suction pipes, fire hoses and other tools to deal with different fire situations. The fire truck is also equipped with rescue tools such as water filters, wrenches, fire axes, shovels, fire iron rings, hammer picks, ladders, etc., providing comprehensive support and protection.
Key Features
★ ISUZU 600P chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu NQR 600P fire fighting truck |
||
|
Vehicle description |
||
|
Overall dimension |
6250*2000*2950(mm) |
|
|
GVW |
7300kg |
|
|
Curb weight |
4285kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4*2,left hand drive |
|
|
Chassis description |
||
|
Cab |
Structure: flat-head, original double-row seat four-door passenger compartment. |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00R16 |
|
|
Tire quantity |
6+1 |
|
|
Max speed |
95km/h |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Displacement/output |
2999ml/88kw |
|
|
Horse power |
120HP |
|
|
Gear box |
Model |
ISUZU |
|
Number of gears |
MSB 5 forward gears& 1 reverse |
|
|
Brake system |
Type |
Oil brake |
|
Service brake |
Dual-circuit compressed air brake |
|
|
Park brake |
Power spring brake acting on rear wheel |
|
|
Auxiliary brake |
WEVB |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
7- Leaf spring with shock absorber |
|
Rear |
9+6-Leaf spring |
|
|
Overhang |
Front |
1110mm |
|
Rear |
1780mm |
|
|
Wheel track |
Front |
1504mm |
|
Rear |
1425mm |
|
|
Up-parts description |
||
|
Tanker capacity |
Water tanker |
2000L |
|
Foam tanker |
1000L |
|
|
Standard configuration |
1 set manhole with quick lock and open device; |
|
|
|
Model |
CB10/30, normal pressure pump |
|
Flow |
30L/s |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
7m |
|
|
Fire monitor |
Model |
PS30W |
|
Flow |
30L/S |
|
|
Pressure |
1.0MPa |
|
|
Range |
≥55m |
|
|
Rotation angle |
Horizontal 360° |
|
|
Other configuration |
Equipped with sandwich PTO, pipeline system; |
|
Isuzu NQR 600P double-row fire truck is like a brave warrior, ready to face the challenge of burning. Its appearance is sturdy and powerful, and the gleaming firefighting equipment reflects firm determination. The huge body is loaded with fire-fighting weapons, like a guardian in armor, swearing to protect people's safety.

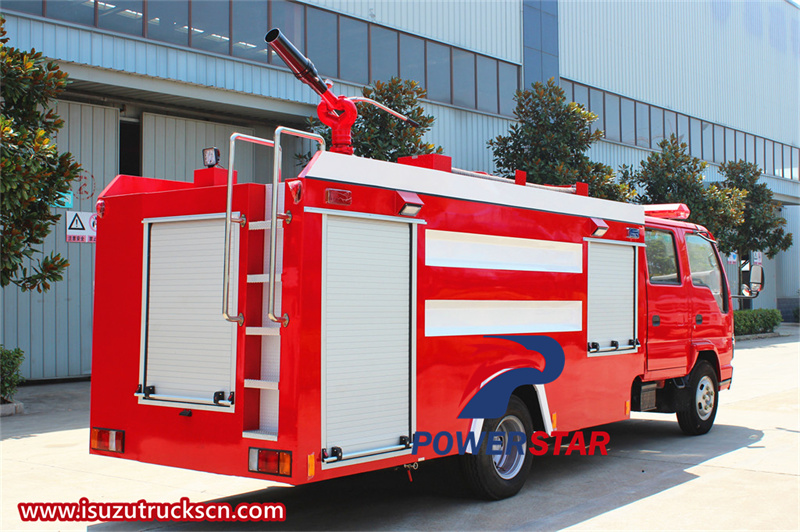

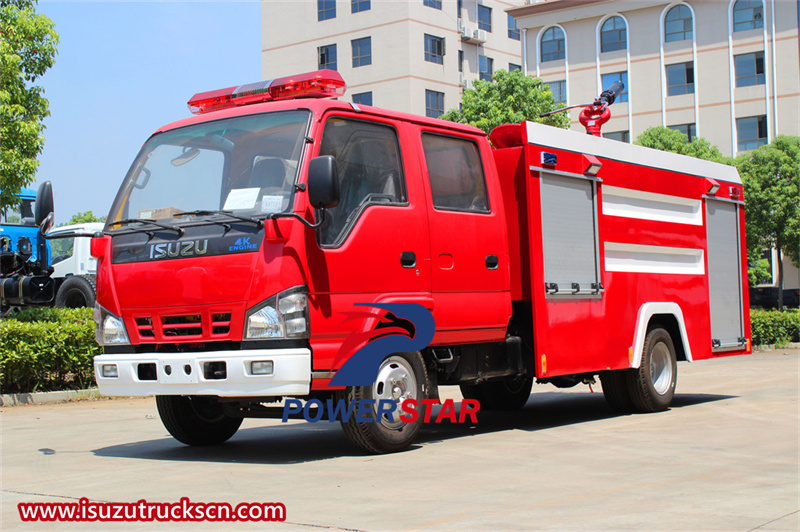

Isuzu NQR 600P fire truck
Powerful engine
Isuzu's 4KH1CN6LB engine has a maximum output power of 120 horsepower and a maximum torque of 290 Nm. The engine is matched with the Isuzu MSB 5-speed gearbox. The 4KH1CN6LB engine has a displacement of 2.99L and meets Euro VI emission standards.This advanced engine is the heart of these machines, providing the necessary vitality and endurance to overcome the most daunting challenges with unwavering efficiency.
Built with precision engineering and cutting-edge technology, the 4KH1CN6LB engine is designed to prioritize power, durability, and fuel efficiency. Its turbocharged intercooled configuration ensures optimal performance in high-stress situations, allowing the fire truck to respond to emergencies quickly and decisively without compromising power output.

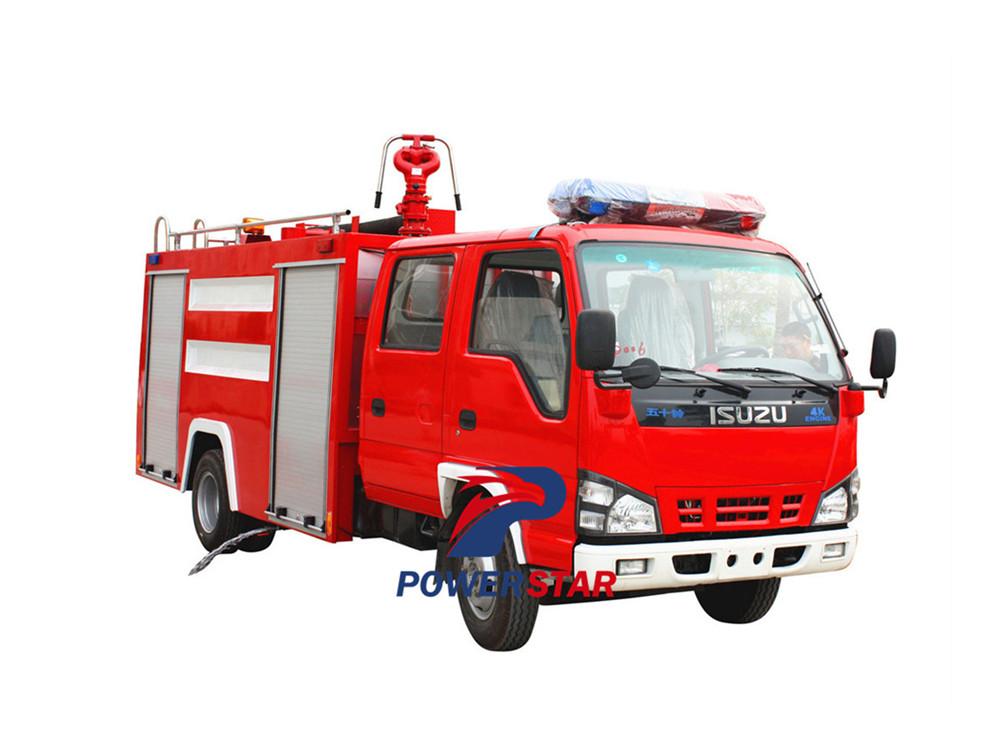

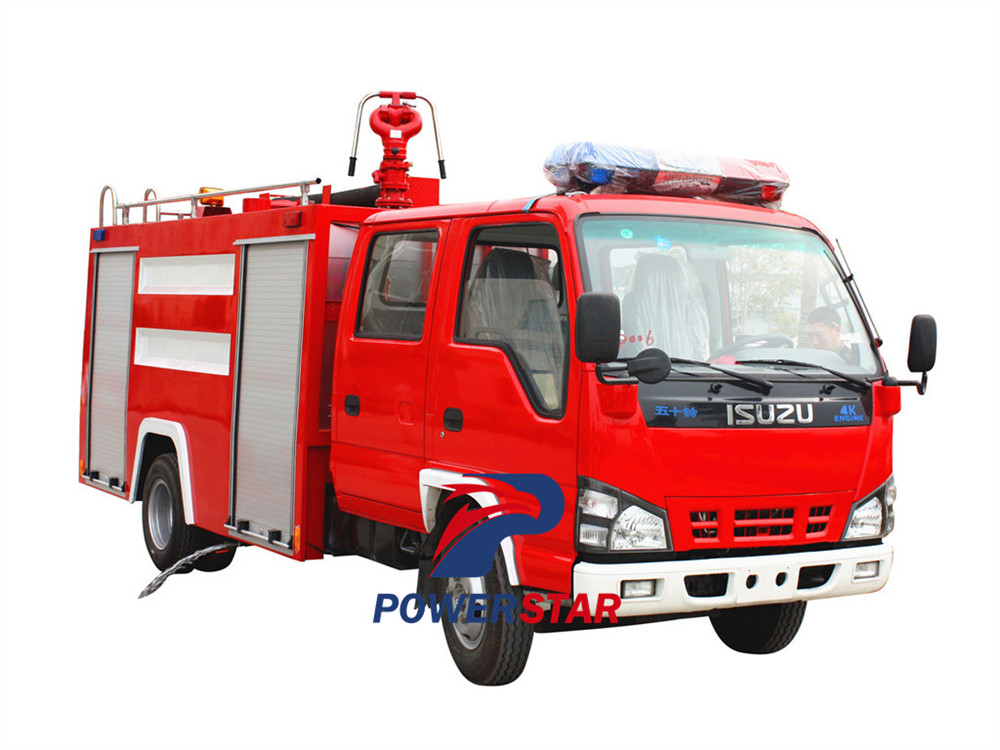

Isuzu 600P double row fire engine

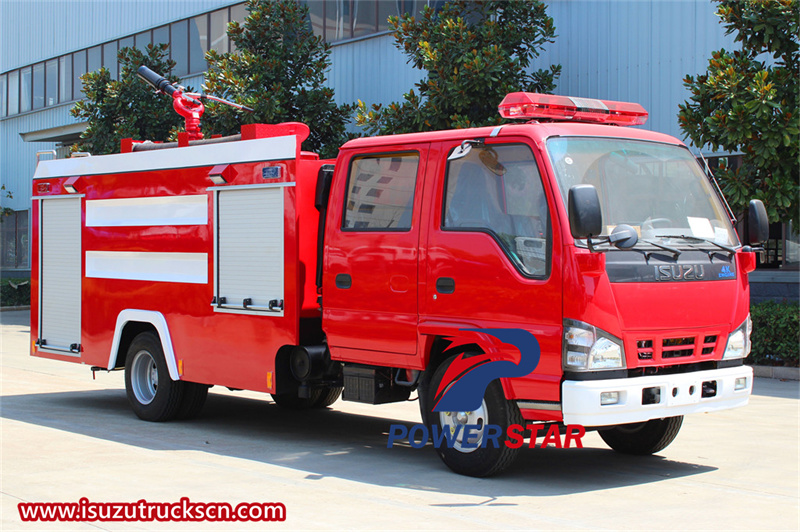

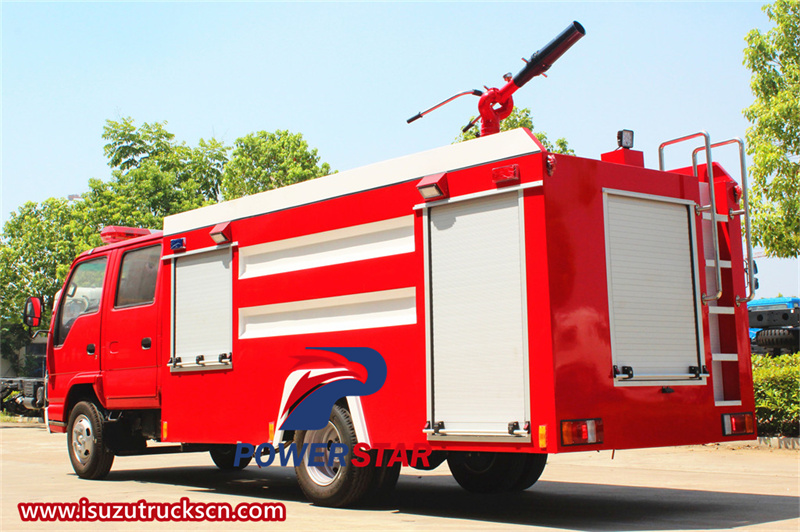

Isuzu NQR 3tons foam water fire truck
Water Tank + Foam Tank Joint Operation
The huge capacity water tank is the main storage for firefighting in these fire trucks. The large amount of water stored in the water tank ensures a continuous flow of liquid, allowing firefighters to extinguish flames with precision and power. This resource plays an important role in cooling strong heat sources, preventing the spread of fire, and ultimately controlling dangerous situations.
Complementing the water tank is the foam tank, a foam storage specifically for firefighting, designed to extinguish flames with amazing efficiency. Foam is a powerful suppressant that forms a thick coating on the burning surface to extinguish flames quickly and thoroughly. When used in conjunction with water, foam can enhance the firefighting process by suppressing flames, reducing the likelihood of re-ignition, and minimizing damage to buildings and assets.

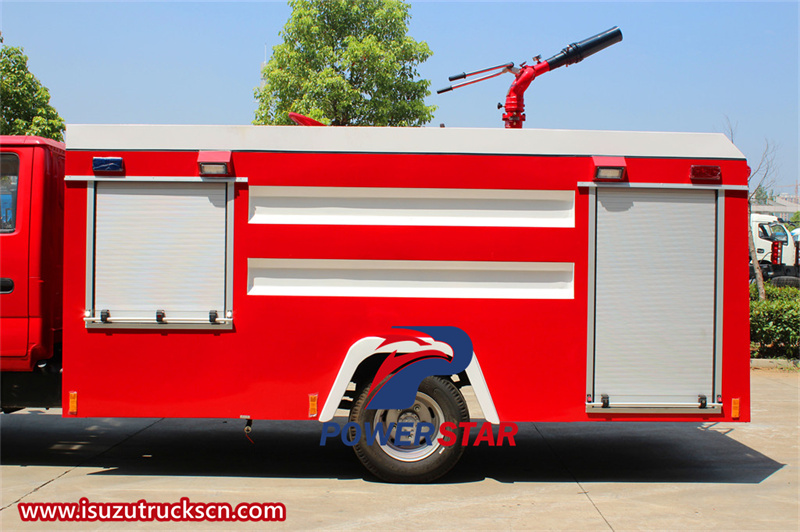

Fire truck tank
During firefighting operations, the synergy between the water tank and foam tank within these fire trucks is essential to effectively respond to a variety of fire situations. By combining the rapid cooling properties of water and the suffocating effect of foam, firefighters can tailor their firefighting methods to different types of fires, including those caused by flammable liquids or combustible materials. This dual capability ensures that the fire truck can handle a variety of emergency situations with precision and flexibility.

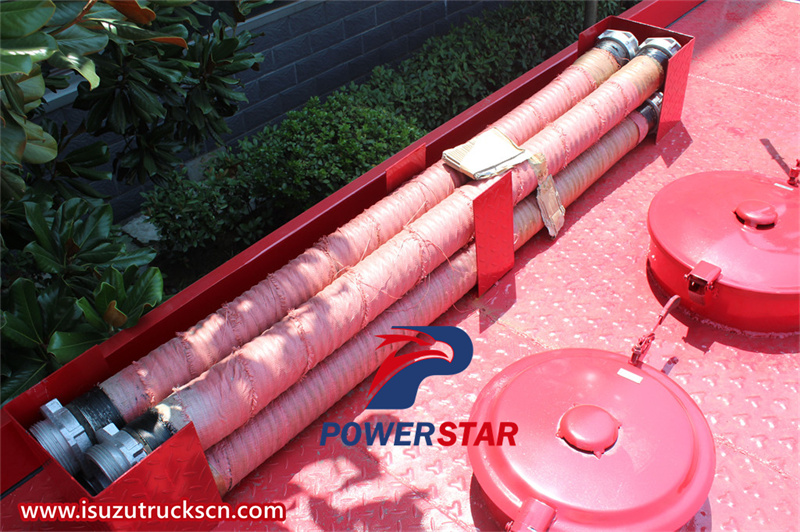

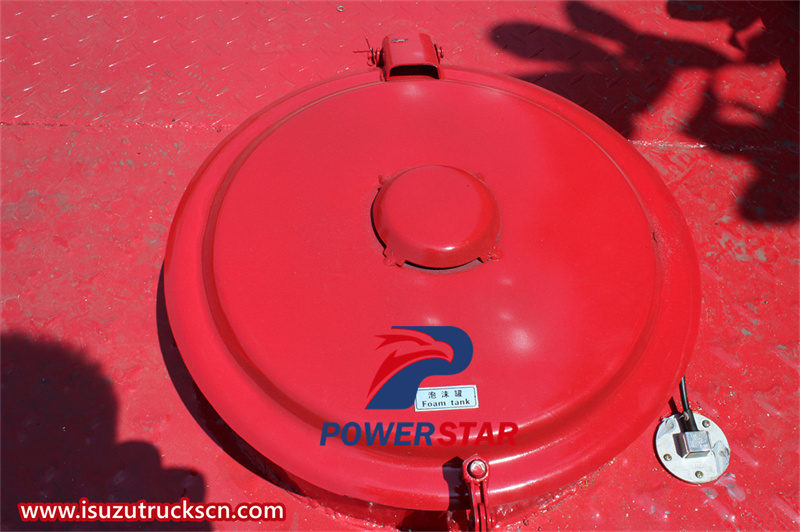

water tank and foam tank capping
Powerful Pumping System and Control Panel
Moving to the rear of the truck, the core of its firefighting capabilities is revealed. The powerful water pump is capable of delivering an impressive flow rate, ready to release a large flow of water at any time. The water pump is a CB10/30 onboard fire pump with a flow rate of 30L/s/1.0Mpa and a maximum suction depth of 7 meters. It is paired with a PS30W fire monitor, which greatly improves firefighting efficiency.
When firefighters activate the system, the fire pumps inside these trucks start working, pumping water from reserves and propelling it through high-pressure hoses with unwavering strength. The huge power and flow of the pumping system allow firefighters to precisely direct water and foam to easily reach even the most inaccessible fires.
In addition, the versatility of the pumping system allows firefighters to dynamically adjust flow and pressure to adapt to the changing needs of firefighting operations. Whether it is extinguishing a raging fire or a local hidden fire, the system provides firefighters with precise control, helping them adjust their firefighting methods to extinguish the fire with optimal efficiency.

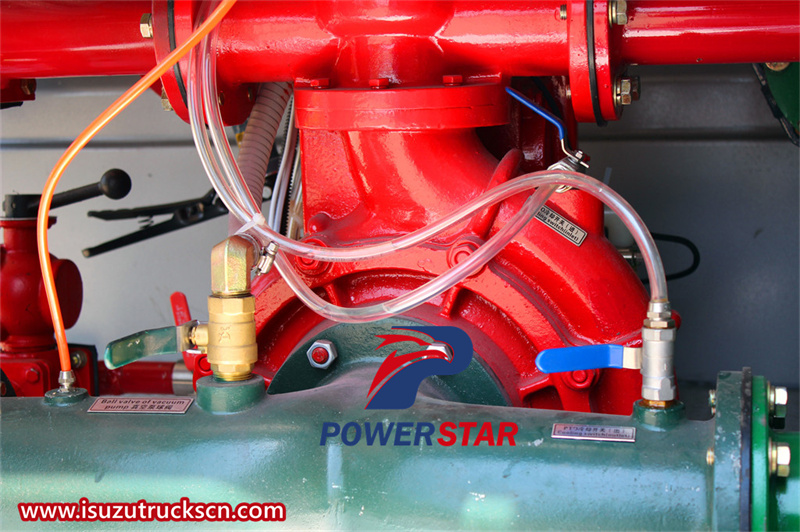

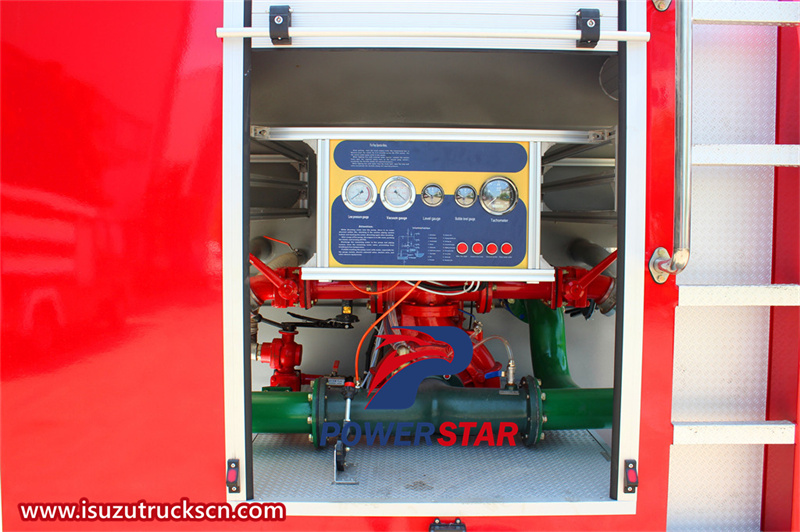

Fire pump
Comprehensive firefighting equipment

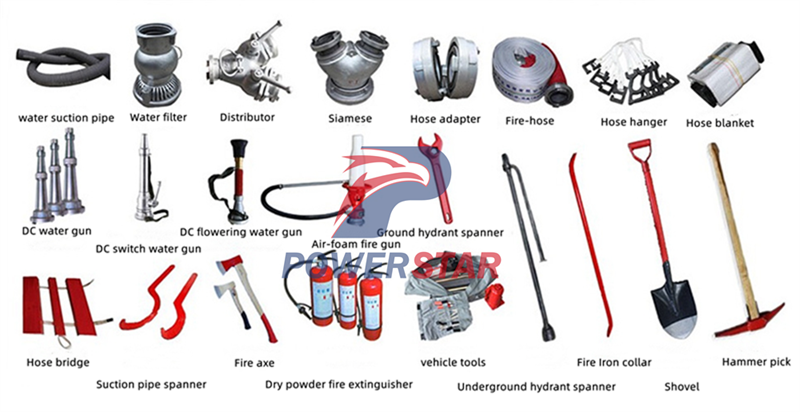

Fire equipment

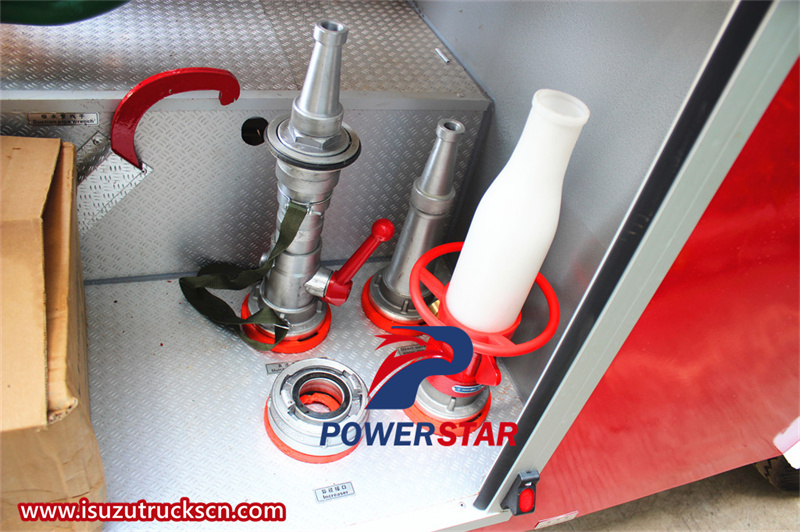

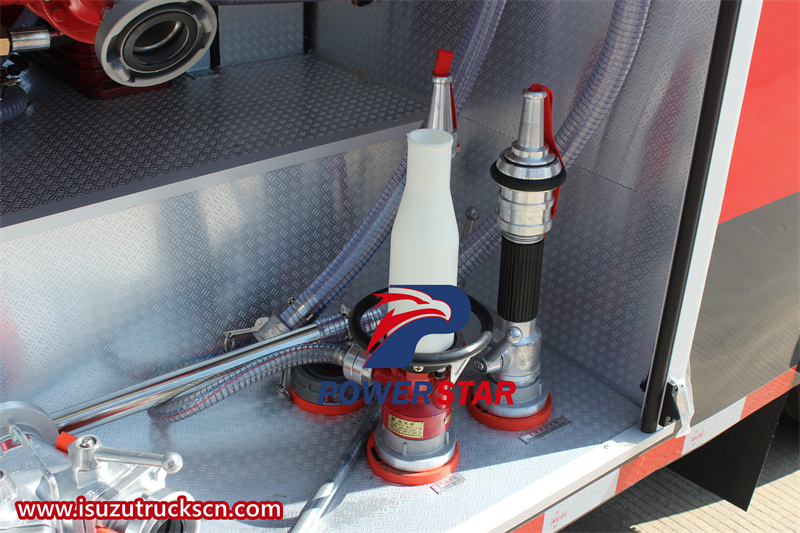

Water gun，fire gun

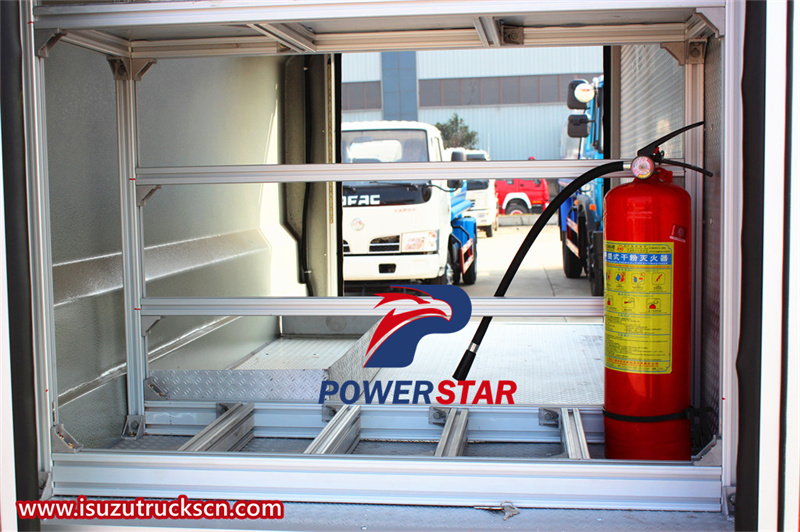

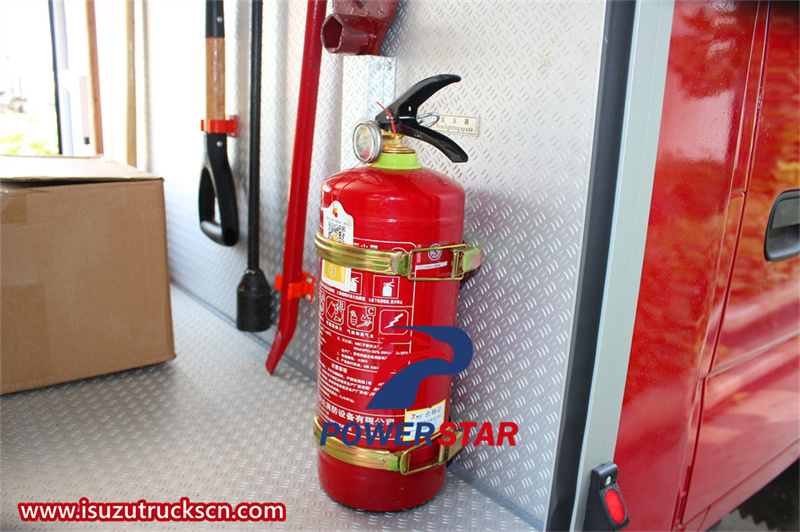

Fire extinguisher

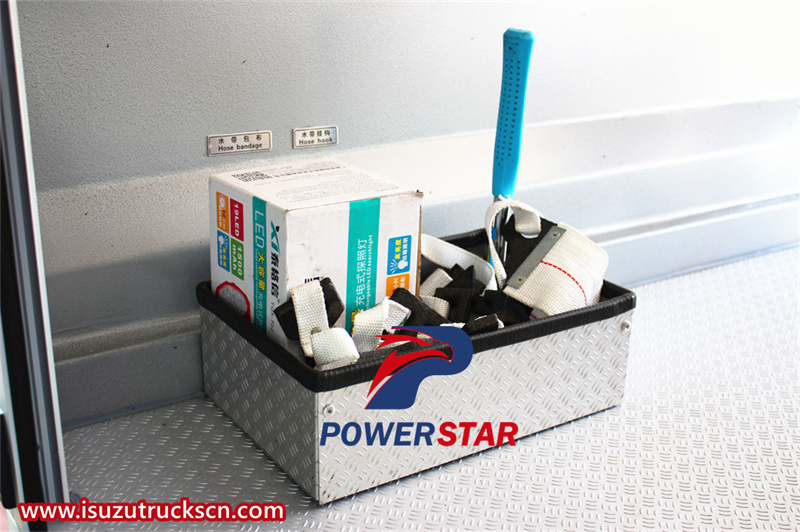

Hose wrap and hook
Water collector，Water filter

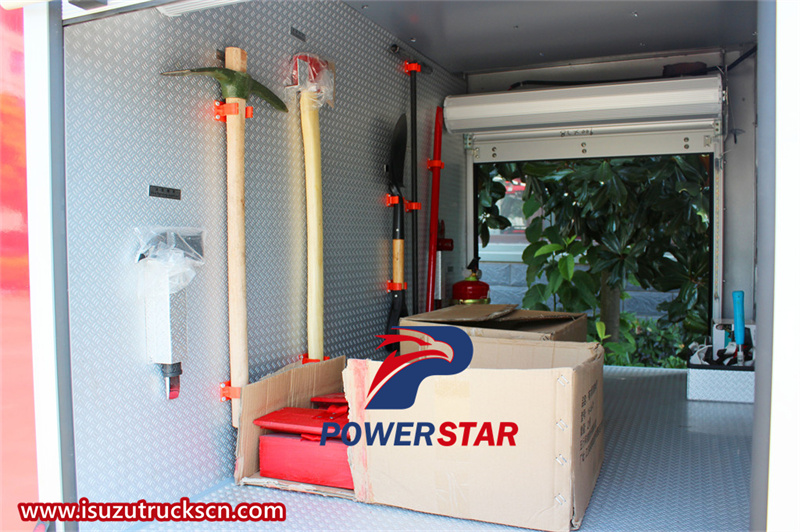

Wrench, fire axe, shovel, fire iron ring, hammer pick
