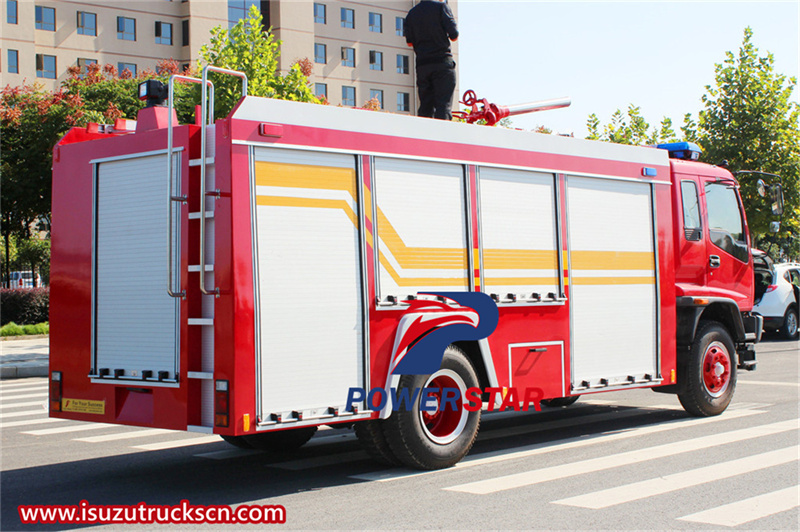

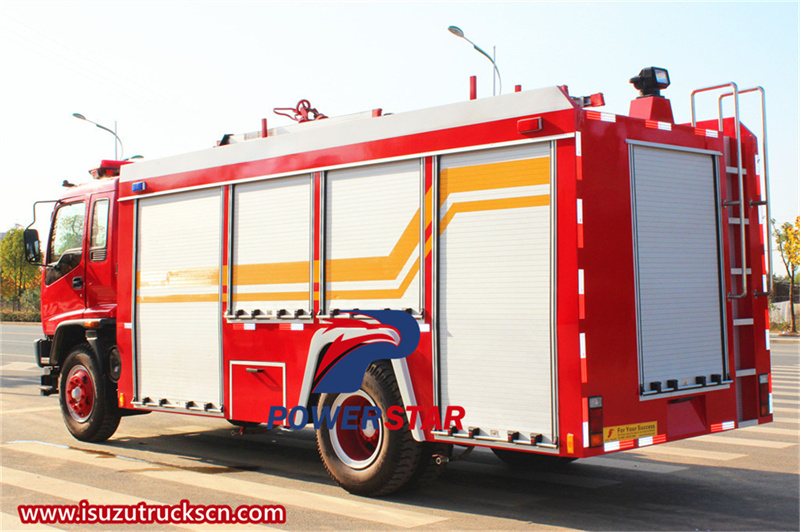

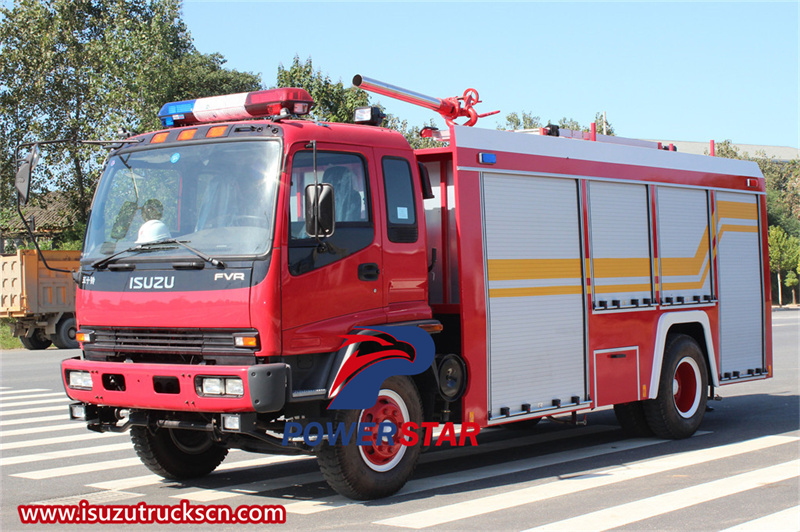

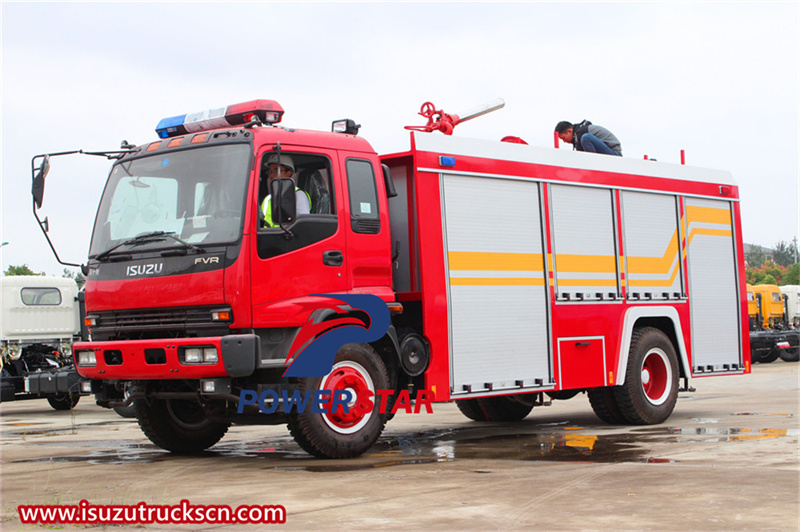

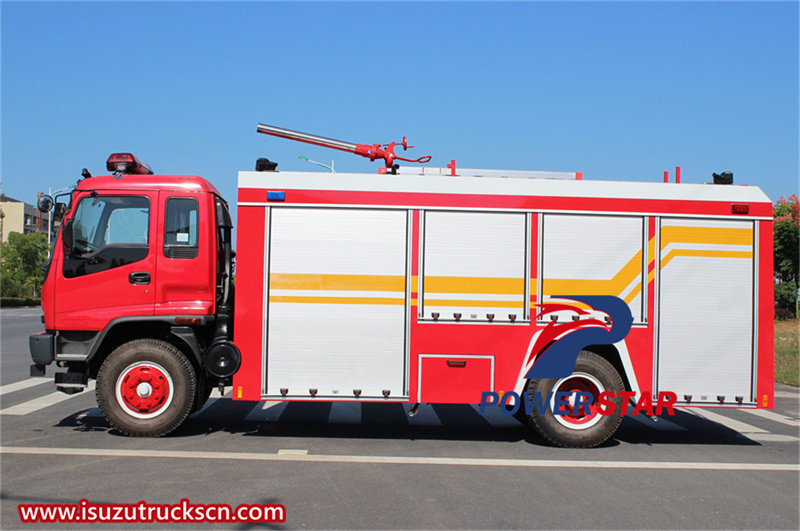

Isuzu FVR 8cbm foam water fire truck is a highly efficient firefighting vehicle designed for firefighting emergency tasks. Equipped with CB10/40 fire pump and PS40W water cannon, it can provide strong water pressure and flow to achieve fast and effective firefighting.In addition, the vehicle is equipped with a variety of firefighting equipment such as fire extinguishers, water filters, fire hoses, fire bridge guards, medical kits, etc., to ensure that firefighters can quickly launch rescue operations at the disaster site.
Work capacity:
8cbmTruck model:
PT5180GRZEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed,manualRemarks:
6cbm water tank and 2cbm foam tankThe Isuzu chassis Foam Water Rescue Fire Trucks have a 6cbm water tank capacity and a 2cbm foam tank. The vehicle can carry a large amount of water, which is essential for fighting fires of varying sizes and intensities. The water tanks are designed for optimal storage and flow, ensuring that water can be quickly and efficiently discharged through the truck's advanced pumping system. It is also equipped with a foam system. This system enables the truck to deliver a mixture of water and foam, creating a more effective and efficient way to extinguish fires. The foam is able to cover and suppress flames, reduce temperatures and deprive them of oxygen, while also helping to prevent re-ignition.
Key feature:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
|
ISUZU FVR 8 tons foam water fire truck |
||||||
|
Chassis |
||||||
|
Cabin |
Isuzu FVR double row cabin, 4x2 left hand drive |
|||||
|
with air conditioner, 2+4 seats, with USB,radio, loud speaker |
||||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) mm: |
8250*2500*3250 mm |
||||
|
Wheel base: |
4500 (mm) |
|||||
|
Overhang (front/rear): |
1430/2070(mm) |
|||||
|
|
GVW |
18000kg |
||||
|
Weight in KGS |
Curb Weight |
9855kg |
||||
|
Payload |
8tons |
|||||
|
Engine |
Brand |
ISUZU |
||||
|
Model |
6HK1-TCG61, EURO VI |
|||||
|
Emission |
7790 ml |
|||||
|
Horse power |
240HP/177Kw |
|||||
|
Power Type |
6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|||||
|
Gearbox |
FAST 8-speed，manual |
|||||
|
Tire |
295/80R22.5, 6 pcs+1 spare tire |
|||||
|
Brake |
Air brake |
|||||
|
Max speed |
90km/h |
|||||
|
Upper parameters |
||||||
|
Tank volume |
6cbm water tank and 2cbm foam tank |
|||||
|
Manhole in the tank |
DN450 |
|||||
|
Thickness |
5mm |
|||||
|
Material |
Carbon steel and high tensile steel |
|||||
|
Standard configuration of the tank |
Equipped with front, side and Sprinkler (Sprinkling width>14m) Equipped with fire fighting pump pump (Suction lift >7m) Equipped with fire valve, water valve, and filter gauze. Equipped with water cannon. rubber padding between tanker and chassis Equipped with water pump Equipped with fire brigade system, fire gun on top |
|||||
|
Fire fighting pump |
||||||
|
Type of pump |
CB10/40 Centrifugal pump |
|||||
|
Fire fighting pump flow |
40L/S |
|||||
|
Max working pressure |
1.251Mpa |
|||||
|
Flow (L/S) |
Outlet pressure(Mpa) |
Rated speed(r/min) |
Crank power (kw) |
Suction depth(m) |
||
|
40 |
1 |
3916±50 |
68.2 |
3 |
||
|
28 |
1.3 |
4163±50 |
69.4 |
3 |
||
|
20 |
1 |
3700±50 |
50 |
7 |
||
|
Fir fighting fixed water monitor in the top of truck |
||||||
|
Type of monitor |
PS40W |
|||||
|
Diameter (mm) |
φ100 |
|||||
|
Flow (L/S) |
40L/s |
|||||
|
Max range (m) |
≥ 65m |
|||||
|
Working pressure(Mpa) |
≤0.7 MPa |
|||||
|
Vertical rotation angle( degree) |
-30~70 |
|||||
|
Horizontal rotation angle (degree) |
360° |
|||||
|
Size(mm) |
1000*340*600 |
|||||
|
Weight (kg) |
≤ 50 |
|||||
|
Pipe system |
||||||
|
Pipe Line inlet |
2 inlet, φ125 inlet in the pump(our standard is 1 inlet) |
|||||
|
Pipe Line outlet |
2 outlet, φ65, in the back of pump |
|||||

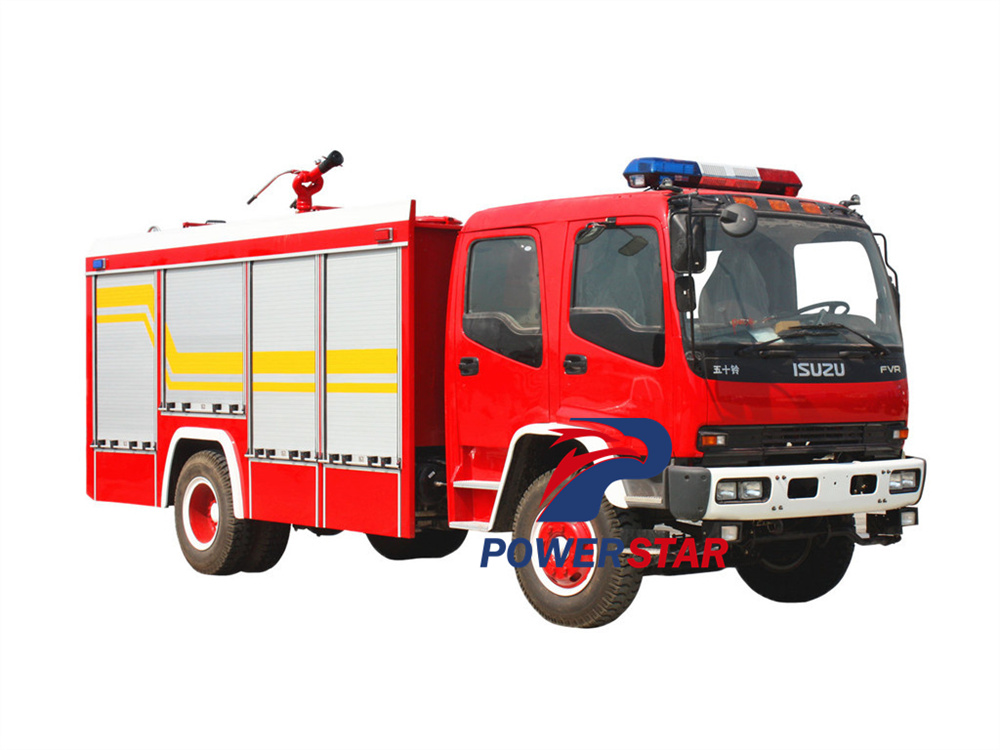

This advanced emergency response vehicle combines the durability and reliability of an Isuzu chassis with the versatility and efficiency of a water and foam firefighting system.
6cbm water tank and 2cbm foam tank
The 6cbm water tank serves as the reservoir of life-saving liquid that fuels the firefighting efforts of the Isuzu FVR fire truck. This substantial water capacity allows firefighters to tackle fires effectively, providing a sufficient volume of water to douse flames and cool hotspots with sustained efficiency. The water tank is strategically designed and integrated into the vehicle to optimize accessibility and quick deployment, ensuring that responders can rapidly deploy water when confronting emergencies.
In addition to the water tank, the foam tank on the Isuzu FVR fire truck is a game-changer in firefighting capabilities, offering a specialized solution for combating flammable liquid fires and other challenging scenarios. The foam tank houses a supply of firefighting foam that, when mixed with water, creates a powerful extinguishing agent that smothers flames and prevents reignition. This foam tank enables responders to address fires with increased effectiveness, particularly in situations where traditional water may not suffice.
CB10/40 fire pump and PS40W monitor

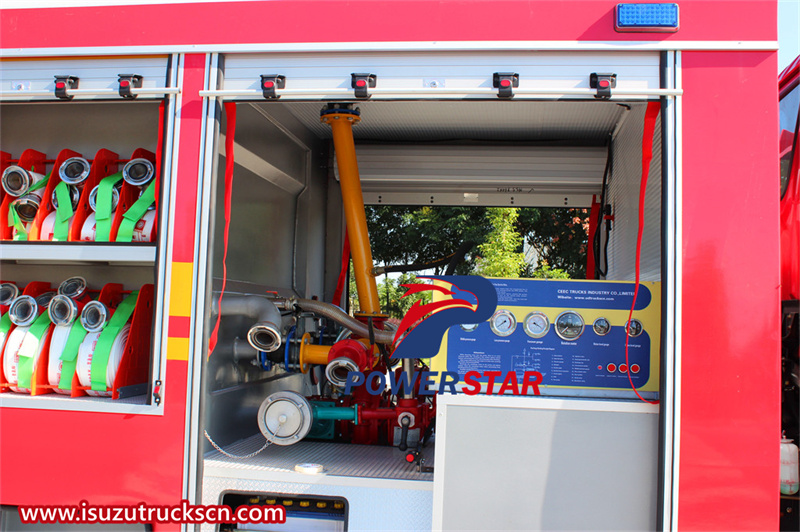

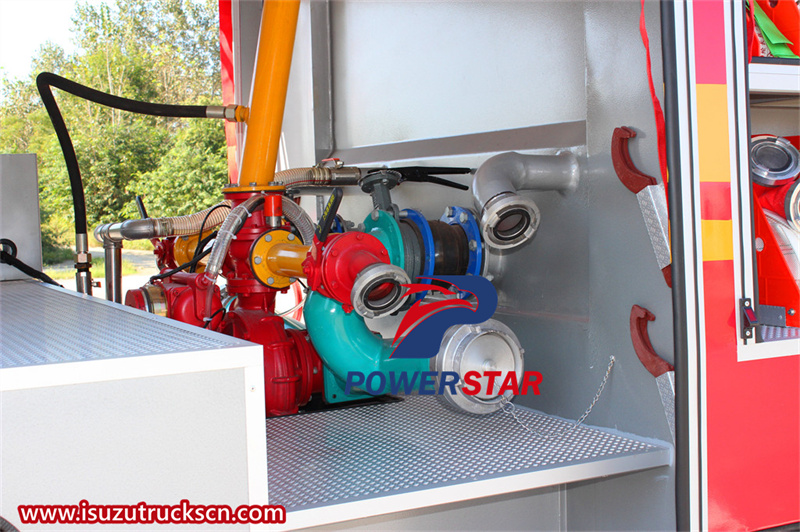

CB10/40 fire pump
The CB10/40 fire pump is a powerhouse of water delivery, capable of generating significant pressure and flow rates to facilitate effective firefighting operations. This pump is meticulously engineered to draw water from the onboard tanks or external water sources and propel it through hoses and nozzles with exceptional force, enabling firefighters to reach distant fires and supply a steady stream of water to extinguish flames rapidly. The CB10/40 fire pump is a cornerstone of the Isuzu FVR fire truck's firefighting system, providing the necessary water pressure and flow for responders to combat fires with agility and precision.

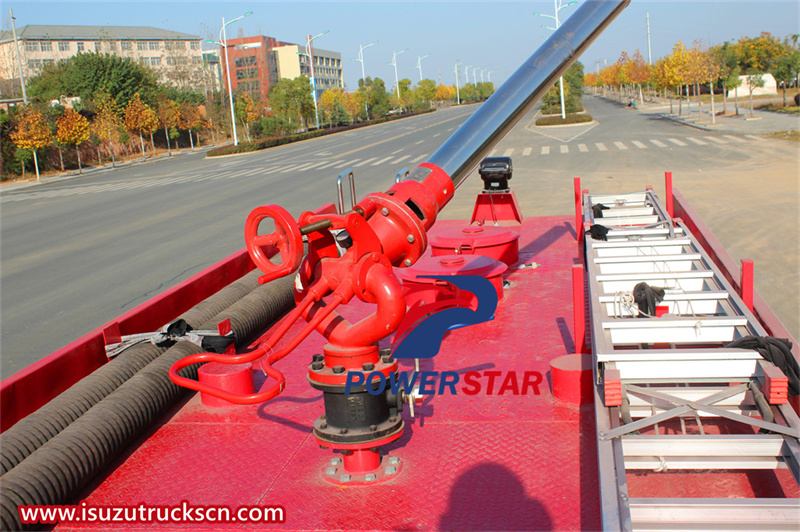

PS40W fire monitor
Complementing the capabilities of the fire pump, the PS40W monitor is a versatile firefighting tool that enhances the vehicle's firefighting reach and effectiveness. The monitor, or water cannon, is designed to deliver a concentrated, powerful stream of water or foam to target fires from a distance, allowing firefighters to suppress flames from a safe vantage point. The PS40W monitor's ability to provide adjustable flow rates and spraying patterns gives responders flexibility in suppressing fires, enabling them to adapt their tactics to varying firefighting scenarios with ease.

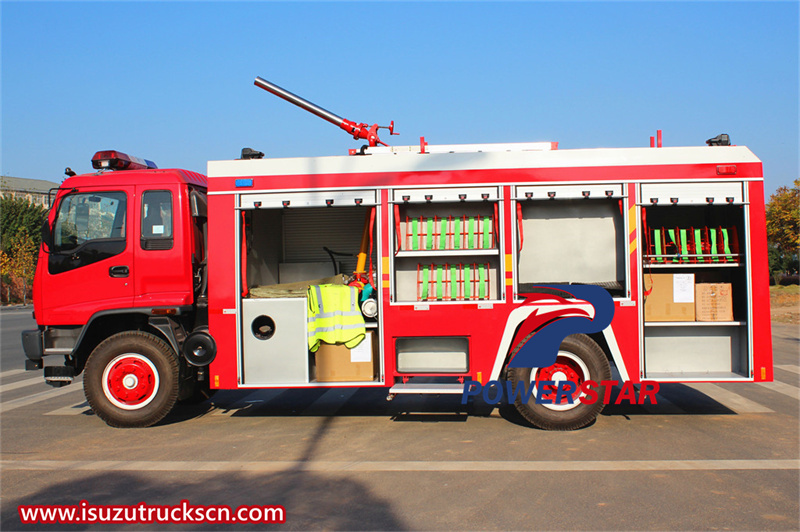

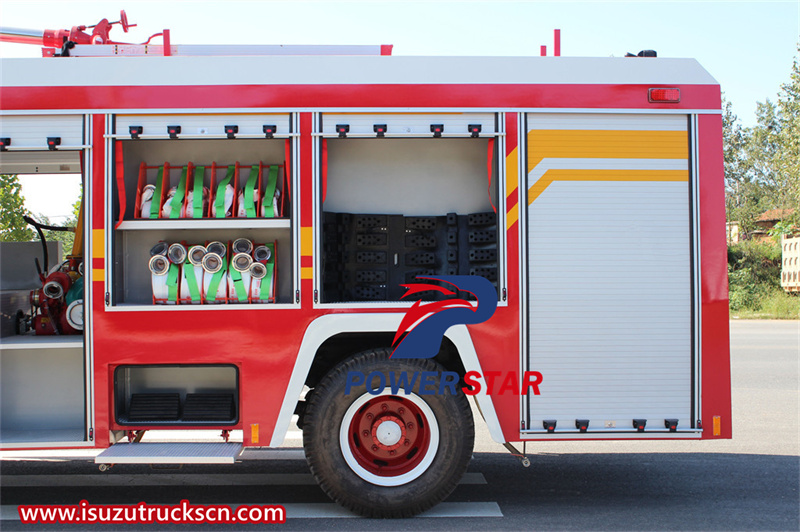

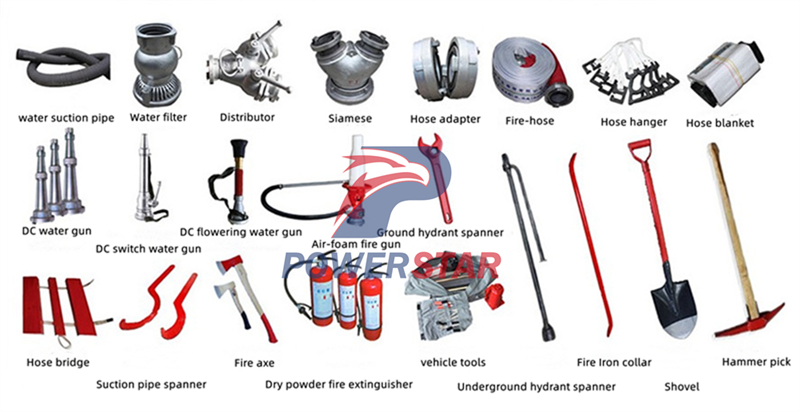

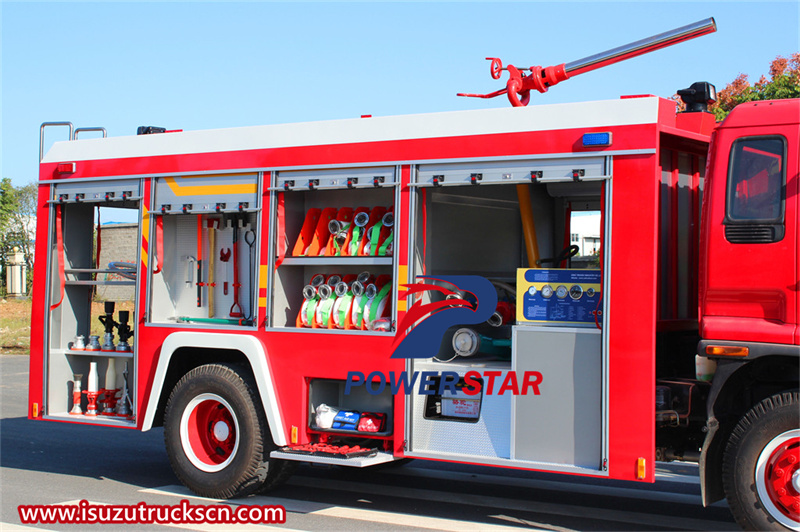

Firefighting equipment
The vehicle is equipped with firefighting equipment, which together with auxiliary equipment constitutes the powerful firefighting and rescue capabilities of the iSUZU FVR fire truck. They are designed with practicality and durability in mind to ensure rapid response and effective response to various challenges in emergency situations.
1. Fire extinguisher:
The vehicle is usually equipped with a variety of types of fire extinguishers, including dry powder fire extinguishers, carbon dioxide fire extinguishers and water-based fire extinguishers to deal with different types of fires. These fire extinguishers are placed in easy-to-access locations for drivers and operators to use quickly in emergency situations.
2. Water filter:
The water filter is one of the important equipment on the fire truck. It can extract and filter water from various water sources to ensure that the water quality supplied to the fire pump meets the use requirements. The water filter can effectively remove impurities and suspended matter in the water to prevent clogging the fire pump and affecting the fire extinguishing effect.
3. Water collector:
The water collector is used to collect and store water from different water sources, such as fire hydrants, ponds, rivers, etc. It usually has a large capacity and can quickly collect and supply a large amount of water to the fire pump. The design of the water collector takes into account portability and durability so that it can be used in various complex environments.
4. Water distributor:
The water distributor is one of the key equipment on the fire truck. It can distribute the high-pressure water flow from the fire pump to multiple water outlets or fire hoses. In this way, firefighters can operate multiple fire extinguishing points at the same time to improve the efficiency of fire extinguishing. The water distributor usually has an adjustable flow control function to adapt to different fire extinguishing needs.

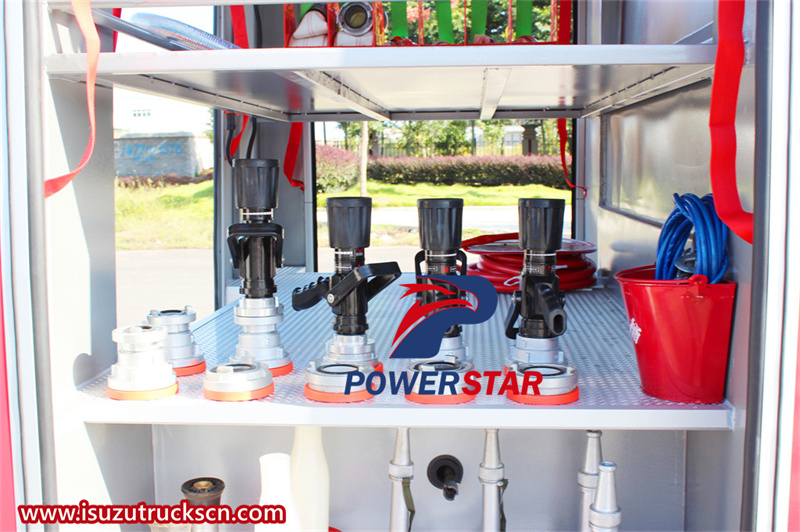

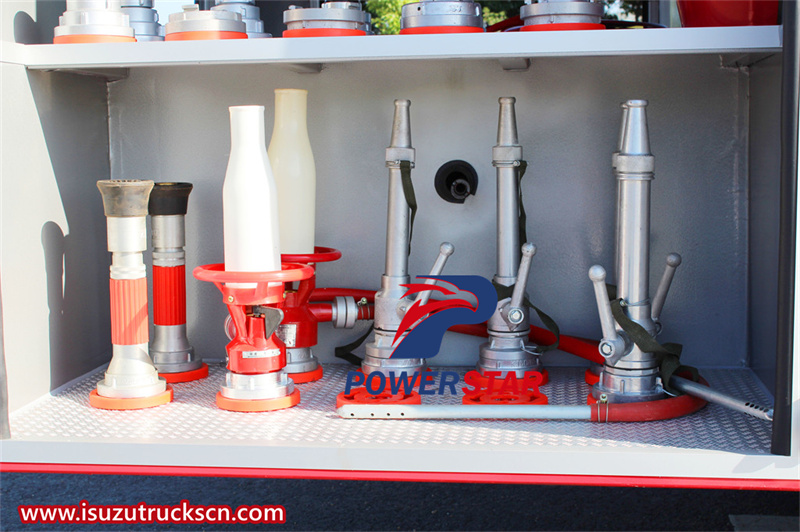

DC spray water gun
Foam fire gun, DC switch water gun, DC flowering water gun
5. Fire hose:
The fire hose is an important pipe connecting the fire pump and the fire extinguishing point. It is made of high-strength, wear-resistant materials and can withstand the impact of high-pressure water flow. The car will be equipped with fire hoses of various lengths and specifications to meet the fire extinguishing needs of different distances and terrains. The hose interface usually adopts a quick connection design for quick assembly and disassembly.
6. Fire bridge:
The fire bridge is a portable device used to cross gullies, rivers or other obstacles. It is usually made of lightweight materials and is easy to carry and assemble. During the firefighting process, if the water source or fire extinguishing point is located in a difficult-to-reach place, firefighters can use fire protection bridges to build temporary passages to ensure that fire trucks or firefighters can approach the target smoothly.
Fire hose
7. Fire axe, shovel, pickaxe:
These are hand tools commonly used by firefighters during firefighting and rescue. Fire axes are used to break down obstacles such as doors, windows, and wooden boards; shovels and pickaxes are used for digging, cleaning, and opening up passages. These tools are usually made of high-strength materials and are durable and practical.
8. Fire wrench:
Fire wrench is a tool specially used to remove and install various bolts, nuts and other fasteners in firefighting equipment. It usually has a variety of specifications and sizes to meet the disassembly needs of different equipment. The design of the fire wrench takes into account portability and ease of use so that firefighters can operate quickly in an emergency.
Fire axe, shovel, pickaxe
9. Fire suit:
Fire suit is a protective equipment that firefighters must wear during firefighting and rescue. It is usually made of flame-retardant materials and has functions such as heat insulation, fire resistance, and waterproofing. Fire suits are also equipped with accessories such as reflective strips and respirators to improve the visibility and respiratory protection of firefighters in complex environments.

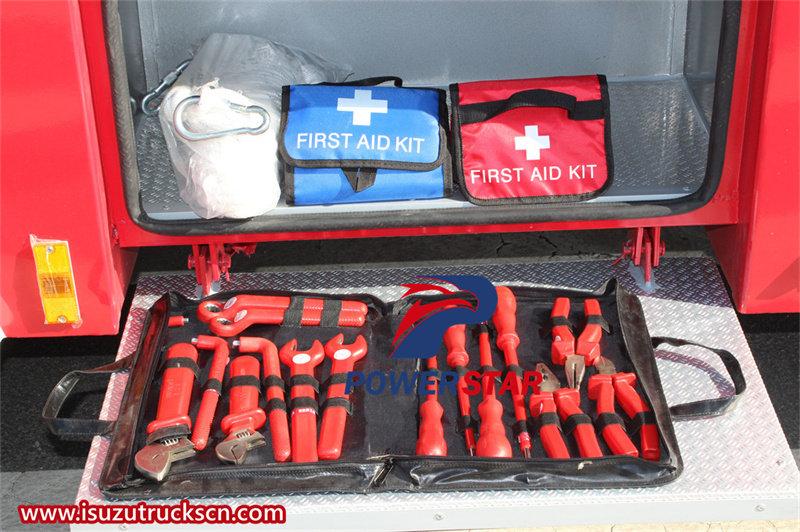

10 First AID Kit:
The first aid kit is one of the essential first aid equipment on the fire truck. It contains a variety of commonly used medical supplies and medicines, such as bandages, tourniquets, disinfectants, painkillers, etc. During the fire fighting and rescue process, if firefighters or injured people need emergency medical assistance, the medical kit can provide timely initial treatment measures.
First AID Kit
