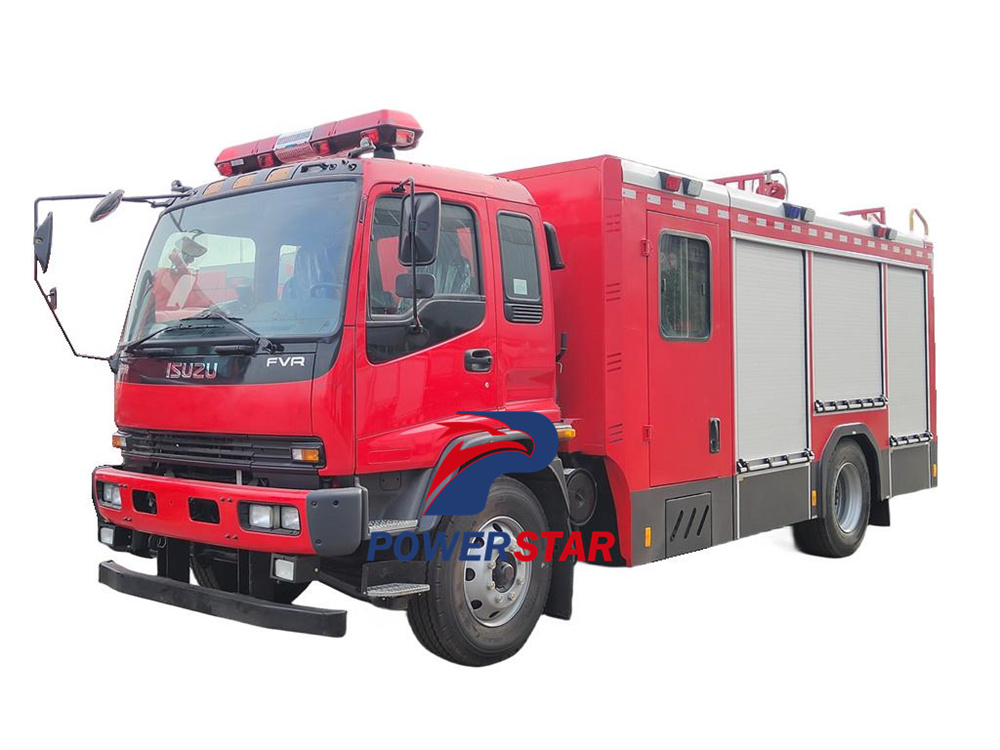

The Isuzu FVR 10-ton Pumper Tanker Fire Truck is a versatile and powerful addition to any firefighting fleet, designed to tackle a wide range of emergency situations with efficiency and precision. This robust vehicle seamlessly blends the capabilities of a water pumper and a foam tanker, offering a comprehensive solution for combating fires of varying intensity and nature.
Work capacity:
10 tonsTruck model:
PT5180GXZEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed, manualRemarks:
7cbm water tank and 3cbm foam tankIsuzu FVR pumper tanker fire truck also called Isuzu FVR foam water fire fighting truck,Isuzu FVR 4x2 10tons fire engine,Isuzu heavy rescue fire truck,Isuzu FVR fire rescue pumper truck,Isuzu 10tons foam fire tender.The Isuzu FVR pumper tanker fire truck stands as a formidable guardian against blazing infernos, a robust titan designed to combat the most intense fires with unwavering efficacy. At its core, this powerful firefighting machine embodies a fusion of strength, precision, and reliability, seamlessly integrated into a singular purpose - to protect lives and property in the face of relentless flames.
The heart of this vigilant sentinel lies in its 7-cbm water tank, storing a copious supply of life-saving water to extinguish fires swiftly and decisively. Complementing this reservoir of liquid salvation is a 3-cubic-meter foam tank, unleashing a potent blanket of foam to smother even the most voracious flames with remarkable efficiency. Together, these dual tanks form an unparalleled reservoir of firefighting prowess, ensuring that no fire remains unchallenged in its path.
Key feature:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
|
ISUZU FVR 10tons foam water fire rescue truck |
|||
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5180GXZ |
||
|
Chassis parameters |
Overall dimensions |
mm |
8250*2500*3400 |
|
Gross weight |
kg |
18000 |
|
|
Curb weight |
8000 |
||
|
Rated payload |
10000 |
||
|
Wheel track F/R |
mm |
2060/1855 |
|
|
Wheel base |
4,500 |
||
|
Driving type |
4*2 |
||
|
Chiassis model |
ISUZU FVR |
||
|
Number of axles |
2 |
||
|
Tire specification |
295/80R22.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers |
3+4 |
||
|
Engine |
Engine model |
6HK1-TCG61 |
|
|
Gear box |
FAST 8-speed, manual |
||
|
Type of fuel |
Diesel |
||
|
power |
HP |
240HP/177Kw |
|
|
Max speed |
Km/h |
95 |
|
|
Displacement |
7790ml |
||
|
Emission standard(TAS) |
EURO 6 |
||
|
Fire performance |
Tank capacity |
water tank capacity:7cbm |
|
|
foam tank capacity:3cbm |
|||
|
Fire pump |
Brand: Shanghai RongShen |
||
|
Model: CB10/40 |
|||
|
Low-pressure:40L/S |
|||
|
Fire monitor |
Brand: ChengDU West |
||
|
Model:PL8/32 |
|||
|
Flow:32L/S |
|||
|
Water jet distance:≥60m |
|||
|
Foam jet distance:≥48m |
|||
|
Electronic alarm |
LY CJB-100-C24 |
||
|
Alarm lamp |
LY TBD-XF-168LED |
||
Built on the sturdy Isuzu FVR platform, renowned for its durability and reliability, this fire truck exudes a sense of strength and readiness from the moment it rolls into action. The FVR chassis, known for its robust construction and excellent maneuverability, ensures that the truck can navigate through tight city streets as well as traverse rugged terrain with ease, making it an ideal choice for diverse firefighting environments.

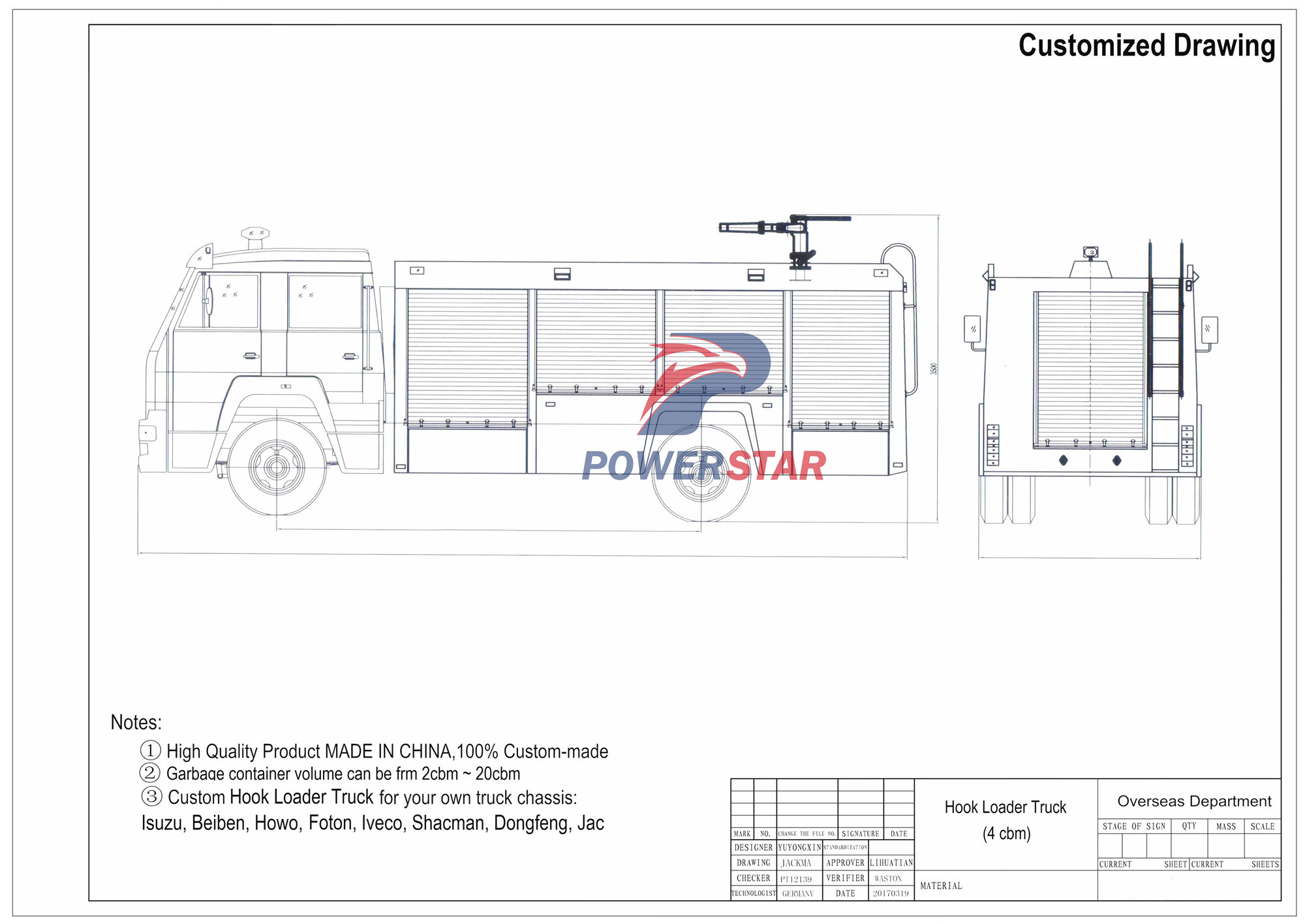

Technical drawing of Isuzu FVR pumper tanker fire truck
★ 7cbm water tank and 3cbm of foam tank
● 7cbm water tank
The 7cbm water tank located at the rear of the vehicle body has become a solid backing in the firefighting operation with its huge capacity. This water tank is made of high-strength and corrosion-resistant materials to ensure that the water quality is not affected during long-term storage and transportation. Its design fully considers the balance and stability of the vehicle, and it can remain stable even when driving at high speed or on rough roads.
The water tank is equipped with an efficient water supply system, including a high-pressure water pump, water pipes, valves, etc., which can quickly transport the stored water to the fire extinguishing device. There are water filling ports and exhaust holes on the top of the water tank for quick filling and exhaust, ensuring easy and fast operation.
Safety protection devices such as overflow prevention devices, pressure relief valves, etc. are installed inside and outside the water tank to prevent safety problems caused by overpressure or overvolume. The surface of the tank is coated with anti-corrosion paint to increase its service life and reduce maintenance costs.

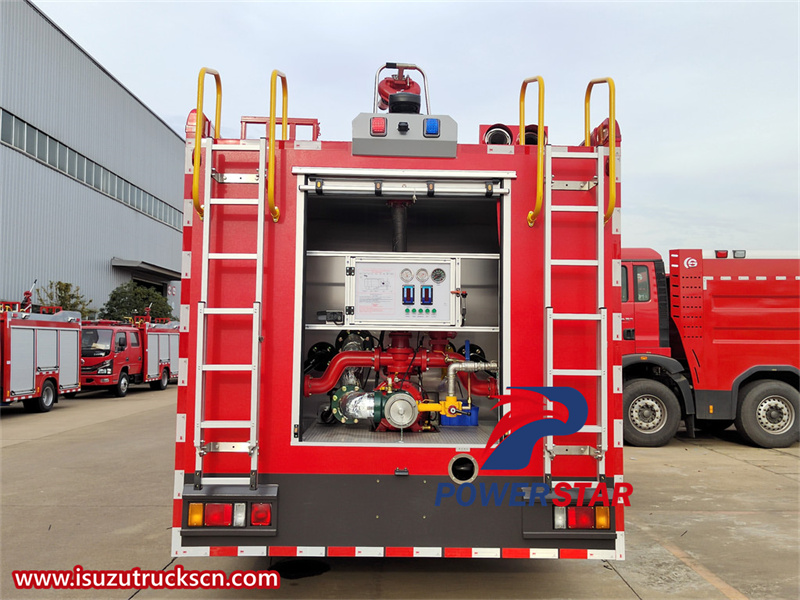

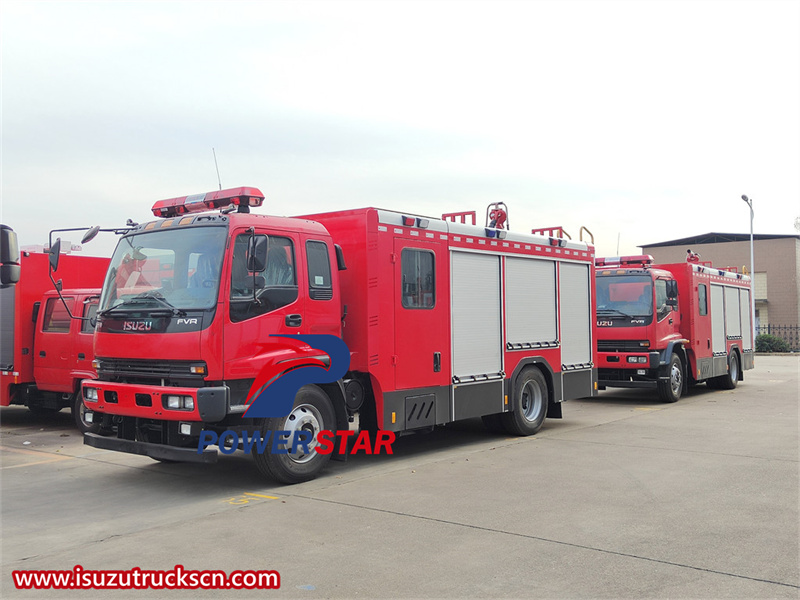

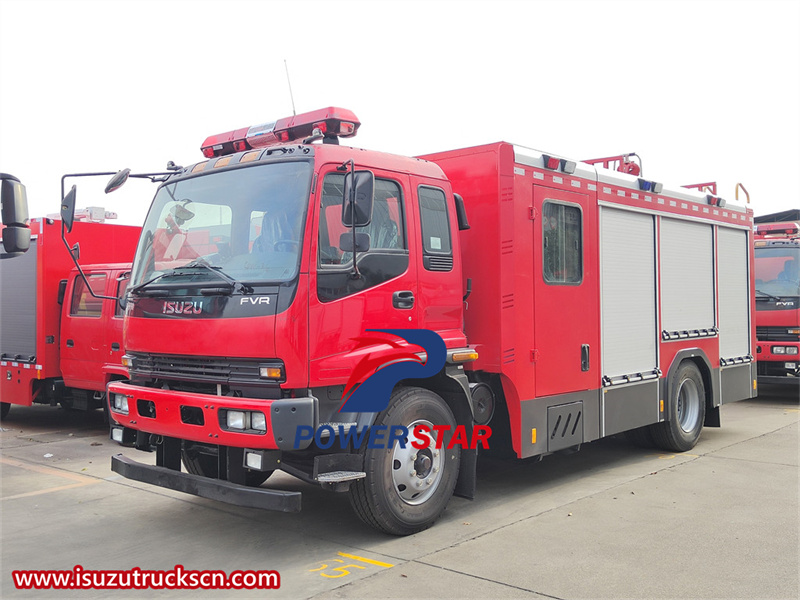

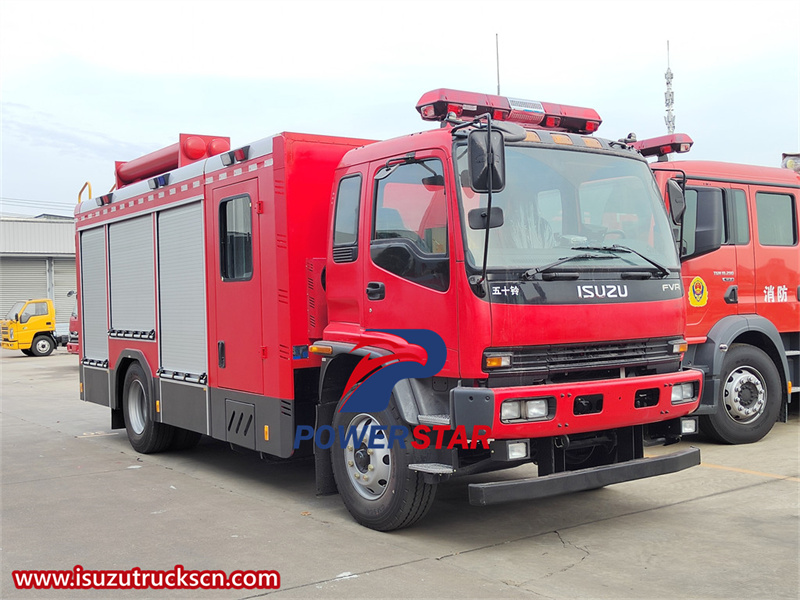

Isuzu FVR pumper tanker fire truck

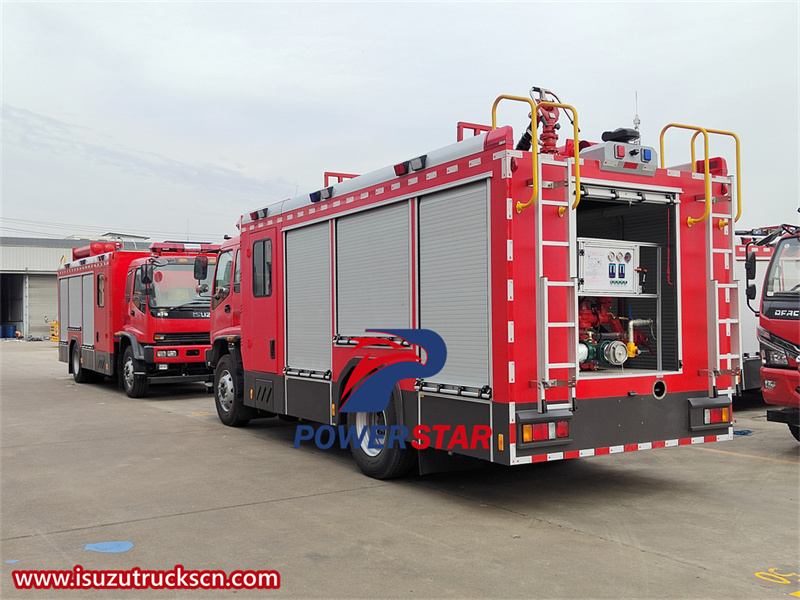

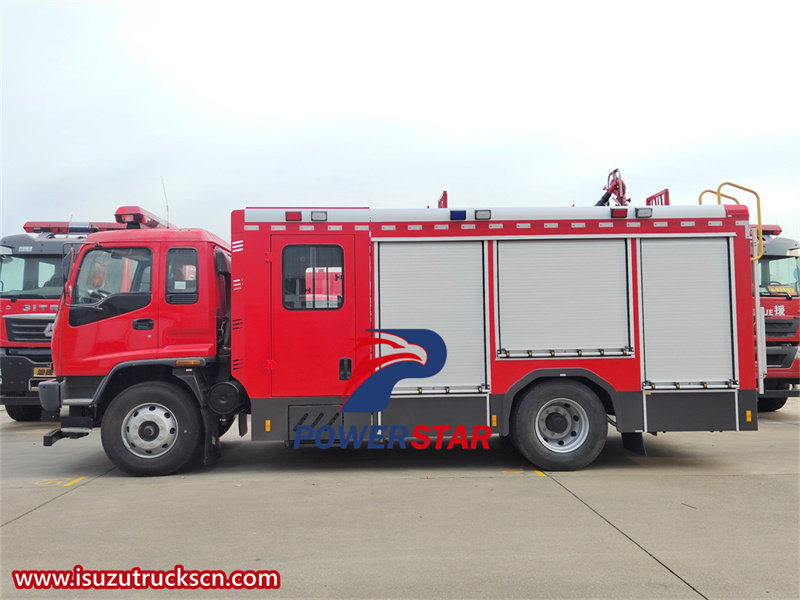

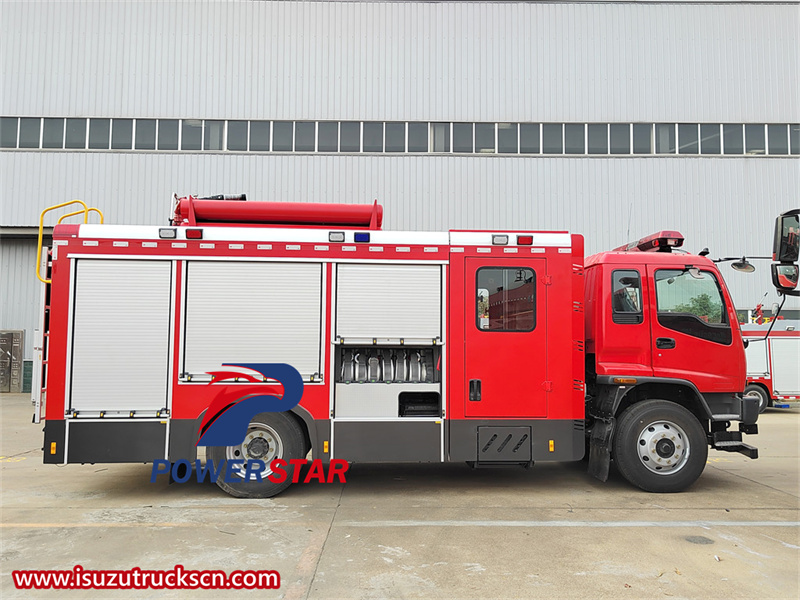

Isuzu heavy rescue fire truck
● 3cbm Foam Tank
The 3 cbm foam tank next to the water tank is a powerful assistant for specific fire situations. Compared with the powerful power of the water tank, the 3 cbm foam tank installed in the Isuzu FVR 10-ton pump tank fire truck adds additional versatility and power to its firefighting arsenal. Foam, known for its suffocating properties and enhanced fire-extinguishing efficacy, has become a professional tool in the hands of firefighters, allowing them to extinguish particularly stubborn fires with unparalleled efficiency.
The foam tank is connected to the water supply system and the foam liquid is mixed with water in a certain proportion through the foam proportioner and then transported to the fire extinguishing device. After the foam liquid stored in the foam tank is mixed with water, it can quickly form a layer of foam covering the surface of the burning object, effectively isolating the air and achieving the purpose of rapid fire extinguishing.
The foam tank is also made of high-quality materials and equipped with an advanced mixing system to ensure that the foam liquid and water can be mixed accurately and efficiently.

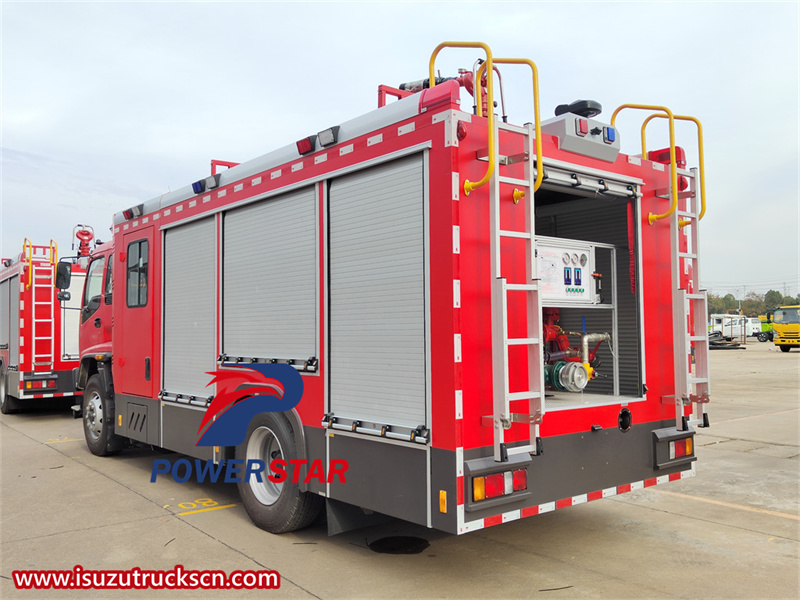

Isuzu 10tons foam fire tender

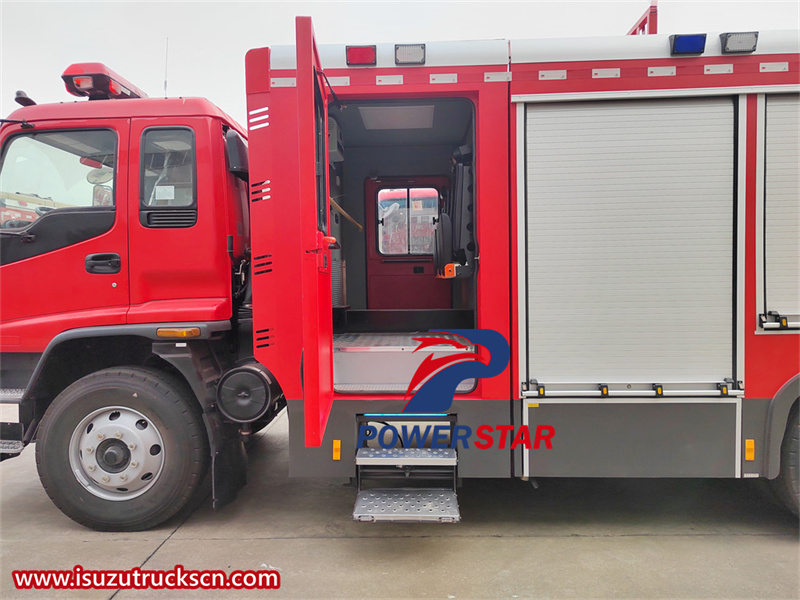

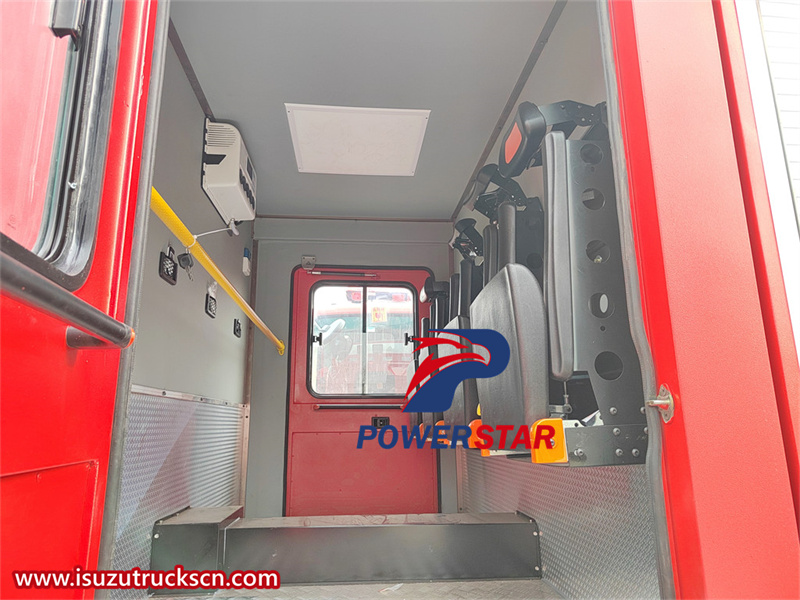

Additional firefighter room
★ CB10/40 fire pump and PL8/32 fire monitor

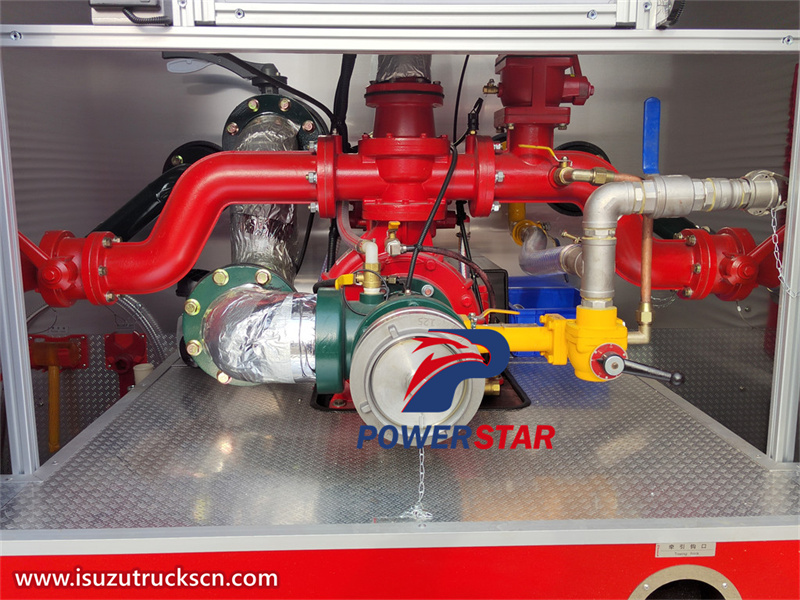

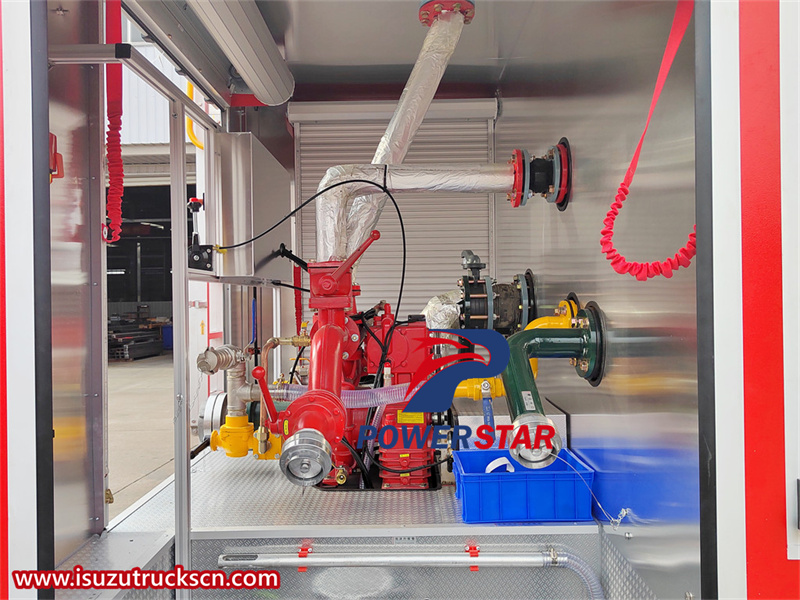

● CB10/40 fire pump
CB10/40 fire pump
|
Flow (L/S) |
Outlet pressure(Mpa) |
Rated speed(r/min) |
Crank power (kw) |
Suction depth(m) |
|
40 |
1 |
3916±50 |
68.2 |
3 |
|
28 |
1.3 |
4163±50 |
69.4 |
3 |
|
20 |
1 |
3700±50 |
50 |
7 |

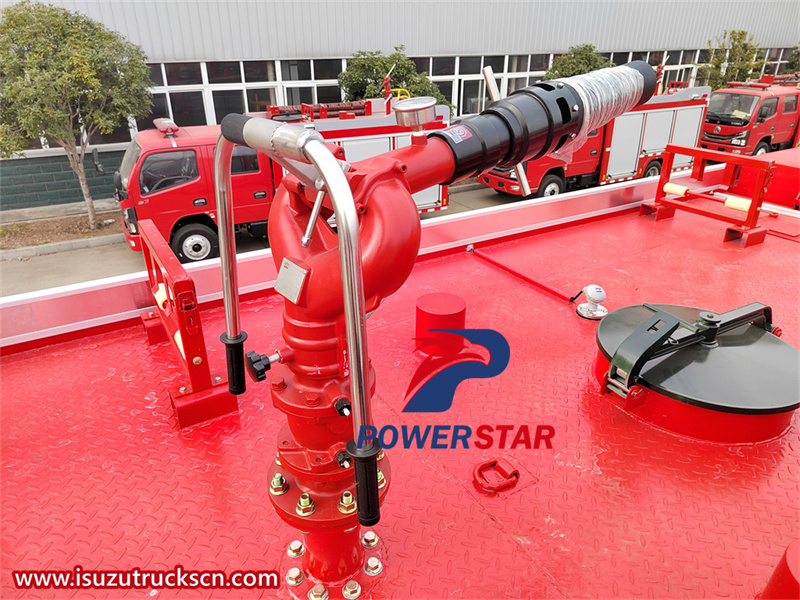

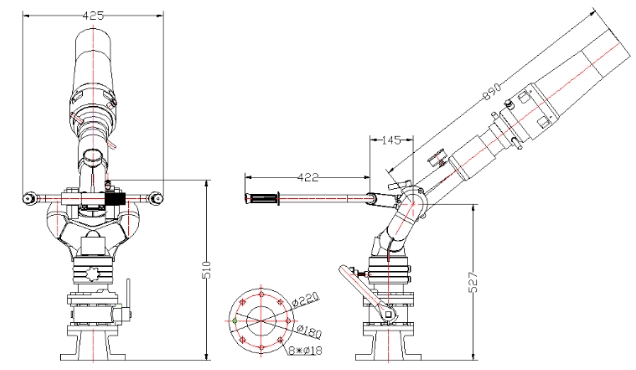

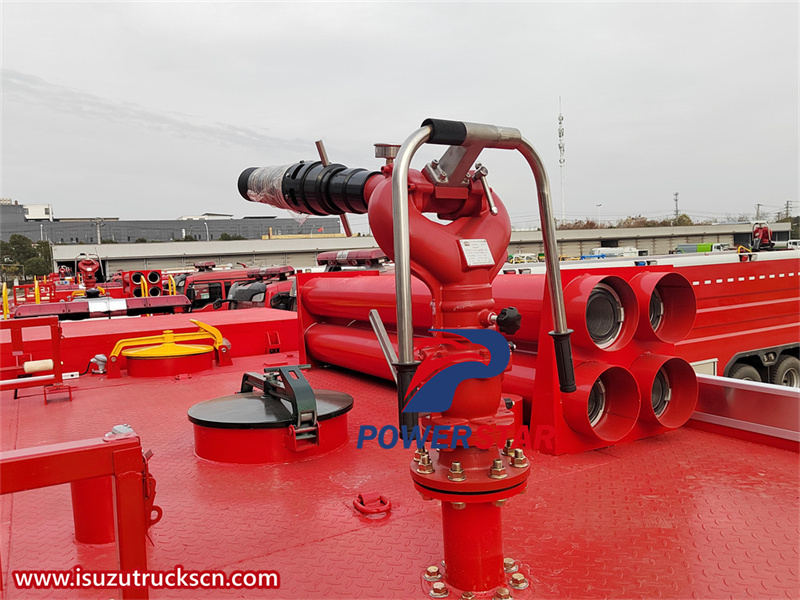

● PL8/32 Fire Cannon
PL8/32 fire monitor
|
Model |
Flow |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation |
Horizontal rotation |
Length × Width × Height |
Weight |
|
|
Water |
Foam |
|||||||
|
PL8/32 |
32 |
≥60 |
≥48 |
0.80 |
-45～+70 |
0～360 |
1400*425*660 |
23 |

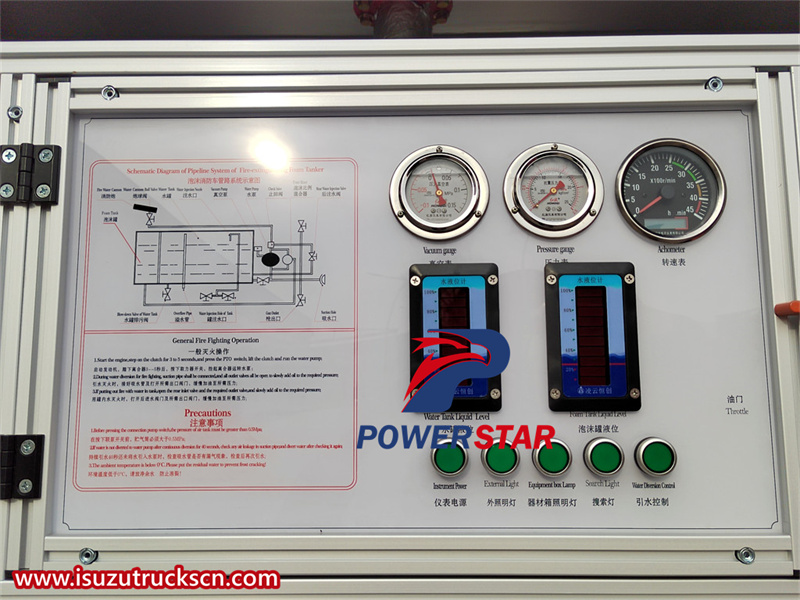

● Control Panel

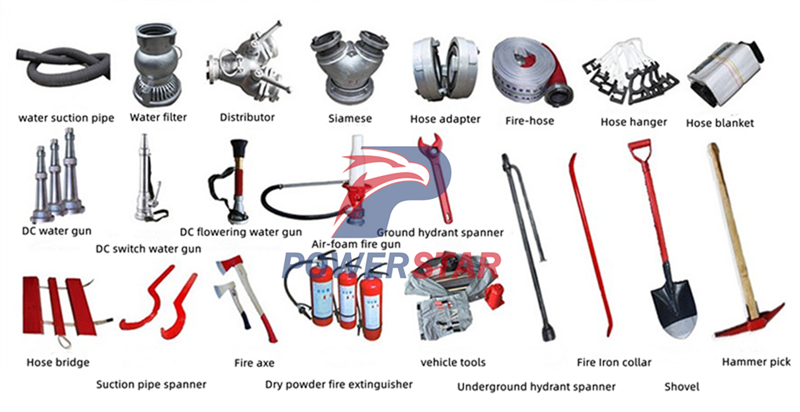

★ Firefighting equipment
Firefighting equipment

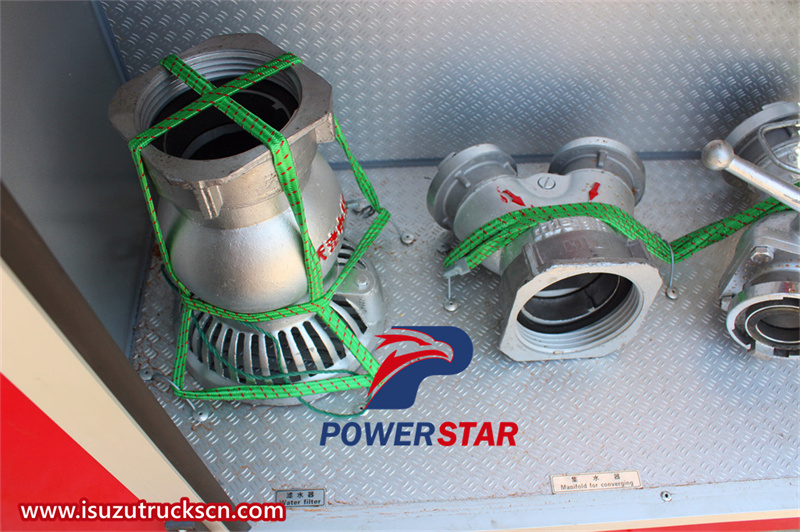

Water collector,water distributor,water filter

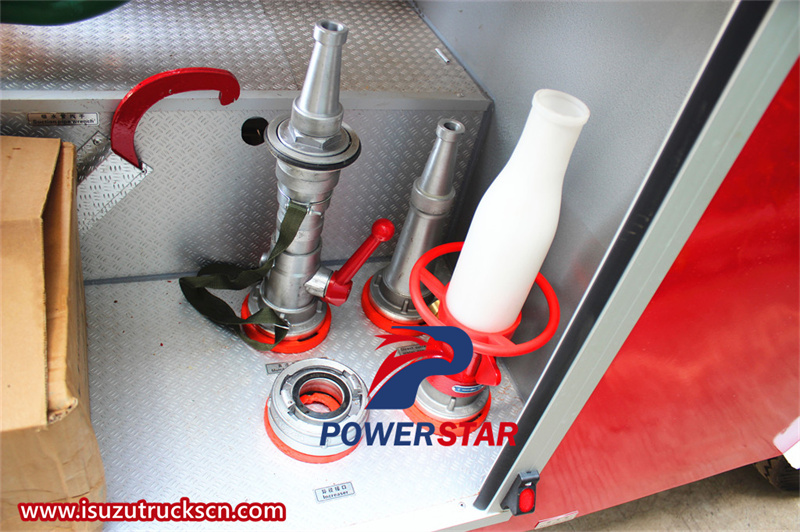

Water gun and foam gun
Fire shovel, axe, pickaxe

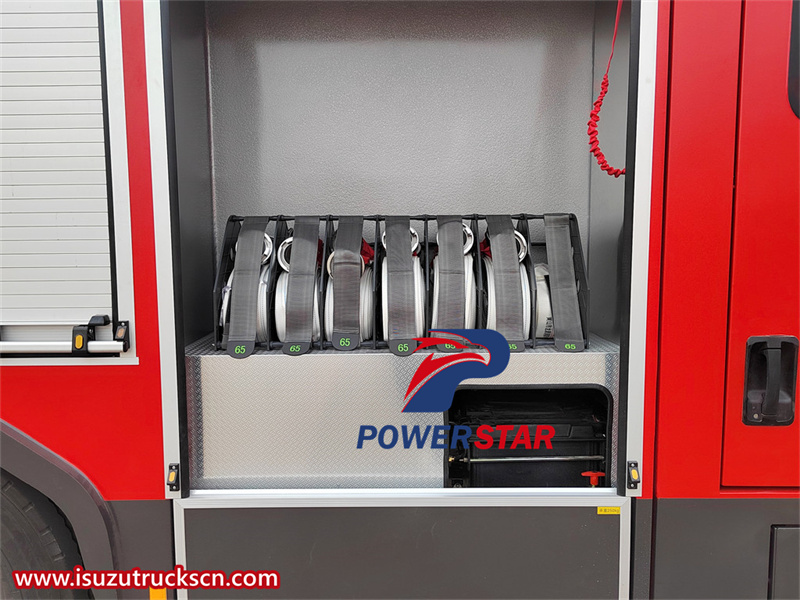

Fire hose
