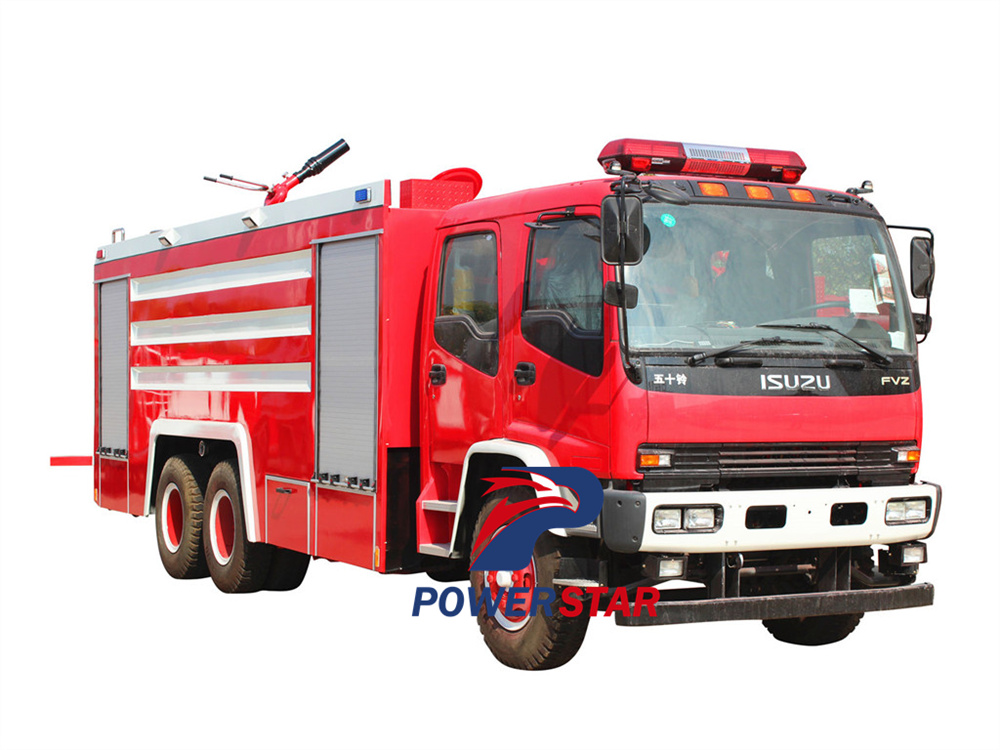

Isuzu FVZ foam water fire truck is an efficient and professional vehicle produced by POWERSTAR, which is widely used in various fire fighting and rescue scenarios. The vehicle has an exterior size of 9550 * 2540 * 3500 mm, equipped with a 6HK1-TCG60 engine with a maximum horsepower of 300HP, a water tank capacity of 10000L, a foam tank capacity of 2000L, and uses advanced high-quality CB10/60 fire pumps and PL8/48 fire monitors, which can efficiently and effectively handle various firefighting situations.
Work capacity:
12000LTruck model:
PT5250GXZEngine power:
300HPEngine type:
6HK1-TCG60Axle drive:
6X4,LHDGear box:
FAST 9-speed,manualRemarks:
10000L water tank and 2000L foam tankIsuzu FVZ foam pumper fire truck also called Isuzu FVZ 6x4 foam water fire truck,Isuzu FVZ 12000L foam fire fighting truck,Isuzu FVZ foam rescue fire engine,Isuzu 12cbm water foam fire tender truck.The Isuzu FVZ foam pumper fire truck is a formidable and highly specialized vehicle designed to meet the demanding needs of modern firefighting operations. With its impressive capacity, featuring a 10000L water tank and a 2000L foam tank, this truck is equipped to handle a wide range of fire-fighting scenarios efficiently and effectively.
Key Features

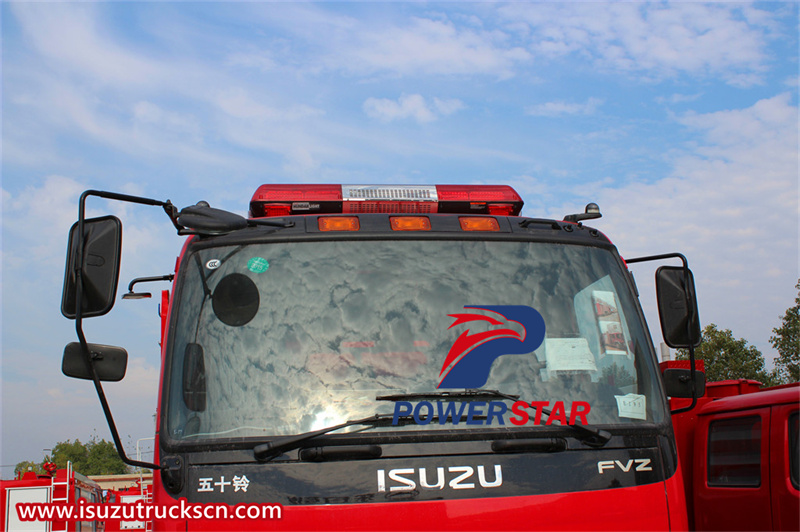

★ ISUZU GIGA chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
ISUZU FVZ Foam Pumper Fire Truck |
|||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
9550 * 2540 * 3500 mm |
||
|
GVW / Kerb Weight |
25,000kg / 12,900kg |
||
|

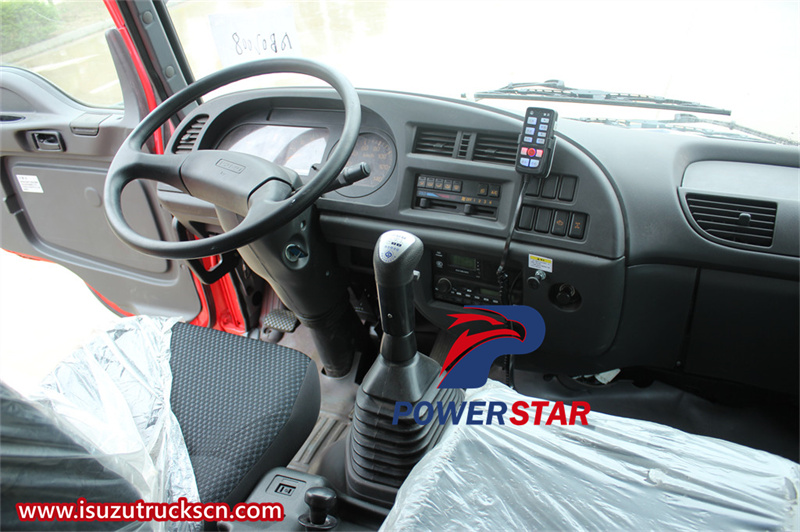

Cab |
Cab Capacity |
3+3 persons allowed |
|
|
Air Conditioner |
Heating/cooling air conditioner |
||
|
Engine |
Engine Brand |
ISUZU |
|
|
Engine Type |
6HK1-TCG60 |
||
|
Power |
300 HP (220 KW) |
||
|
Displacement |
7790 ml |
||
|
Emission Standard |
Euro 6 |
||
|
Fuel Type |
Diesel |
||
|
Fuel Capacity |
400L |
||
|
Chassis |
Drive Type |
6X4 (left hand drive) |
|
|
Transmission |
FAST 9-speed levers with 1 reverse |
||
|
Wheelbase/No. of axle |
4650+1300 mm / 3 |
||
|
Tire Specification |
295/80R22.5 |
||
|
Tire Number |
10 tires and 1 spare tire |
||
|
Max Speed |
90 km/h |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank Capacity |
10,000L water+2,000L foam |
|
|
Tanker Material |
Carbon Steel |
||
|
Fire pump
|
Type |
Normal pressure fire pump |
|
|
Model |
CB10/60 |
||
|
Flux |
60L/S |
||
|
Pressure |
1.0Mpa |
||
|
Fire Monitor |
Type |
For water and foam |
|
|
Model |
PL8/48 |
||
|
Flux |
48L/S |
||
|
Pressure |
1.0Mpa |
||
|
Electronic alarm |
1.2 m long |
||
|

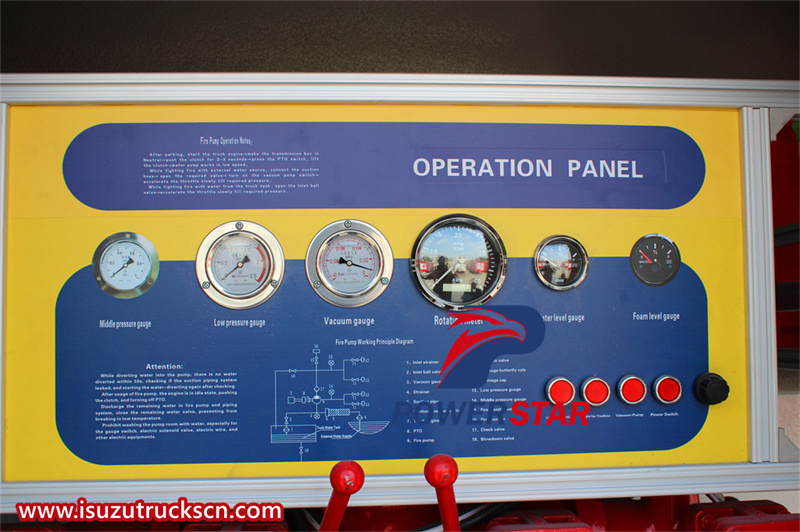

Control panel |
English or Your language |
||
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
|||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional |
||
The impressive 10,000-liter water tank integrated into the Isuzu FVZ 12000L provides firefighters with a generous water supply essential for extinguishing fires effectively. This substantial capacity ensures sustained firefighting operations, allowing firefighters to combat blazes without the need for frequent refills, thereby enhancing operational efficiency during critical situations.
Complementing the water tank is a dedicated 2,000-liter foam tank that enables the vehicle to dispense firefighting foam with precision and efficacy. The foam tank plays a crucial role in combating chemical, flammable liquid, and Class B fires, enhancing the versatility and effectiveness of the fire truck in addressing a wide range of fire scenarios.
At the heart of the Isuzu FVZ 12000L lies a robust and reliable engine that delivers the power needed for swift responses and efficient firefighting operations. The engine's performance ensures rapid mobilization, enabling firefighters to reach the scene promptly and initiate firefighting efforts without delay, thereby minimizing the spread of fires and reducing overall damage.
Designed for maneuverability and resilience, the Isuzu FVZ 12000L features a sturdy construction that enables it to navigate challenging terrains and urban environments with ease. Its agile handling and durable build empower firefighters to access and combat fires in diverse settings, ensuring effective firefighting responses in various scenarios.

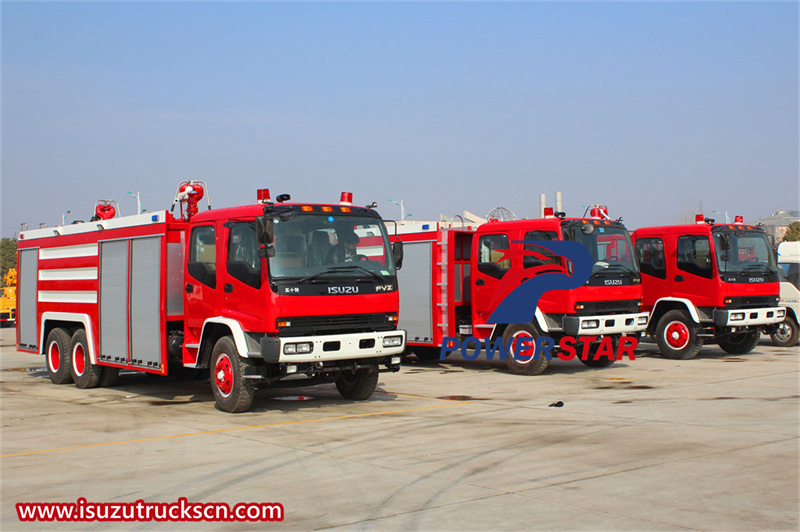

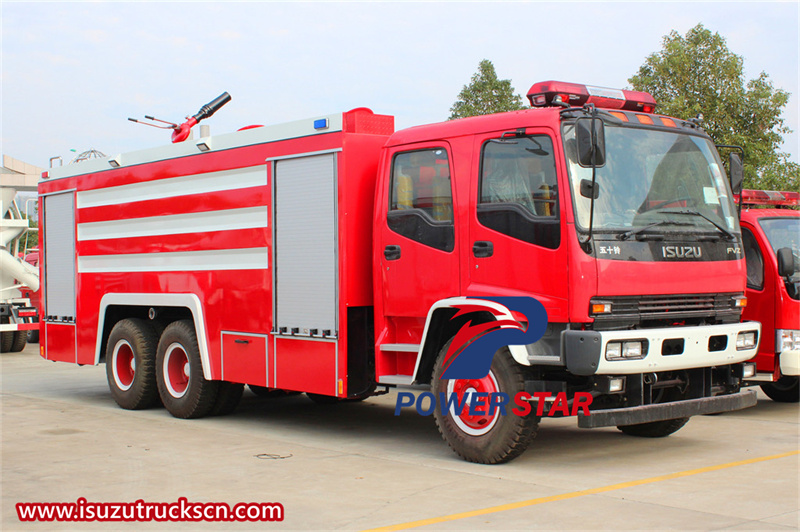

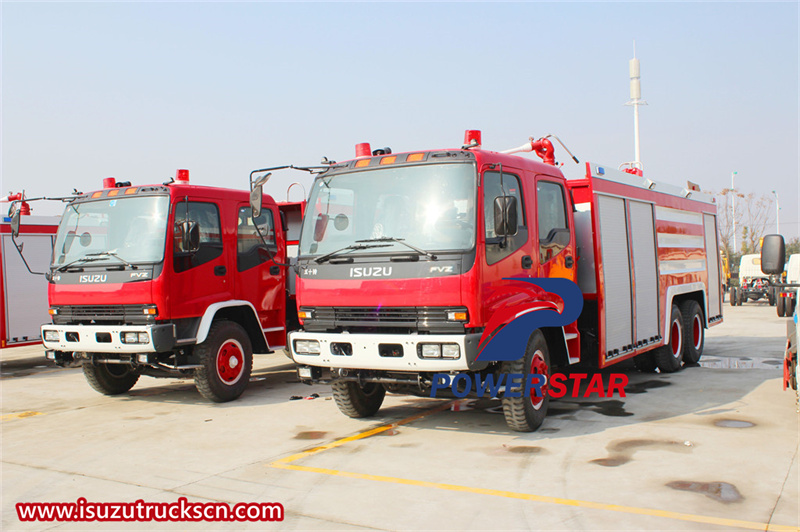

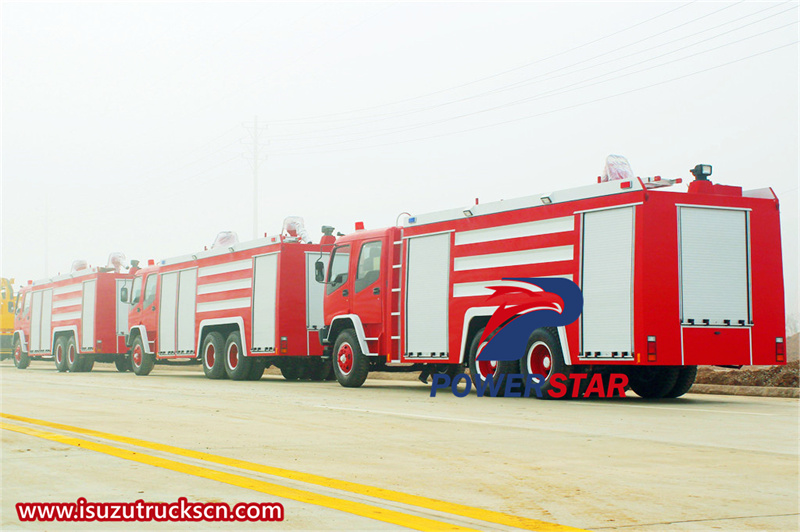

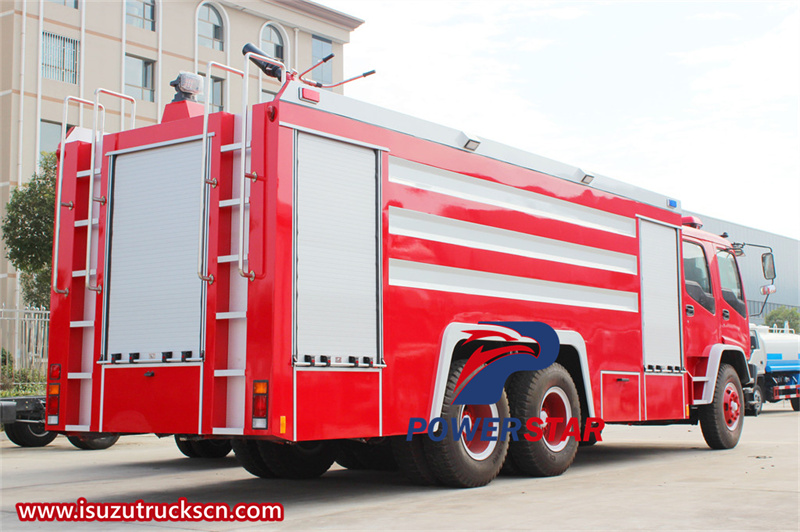

Isuzu FVZ foam pumper fire truck
Isuzu FVZ foam rescue fire engine
Isuzu 12cbm water foam fire tender truck
★ CB10/60 fire pump and fire monitor

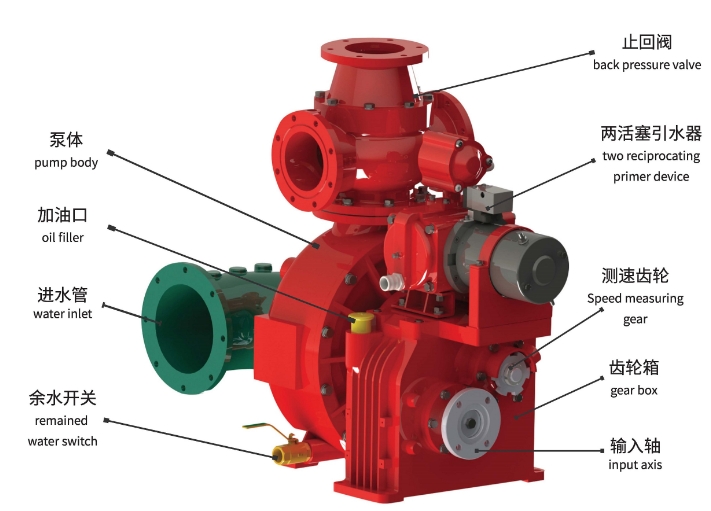

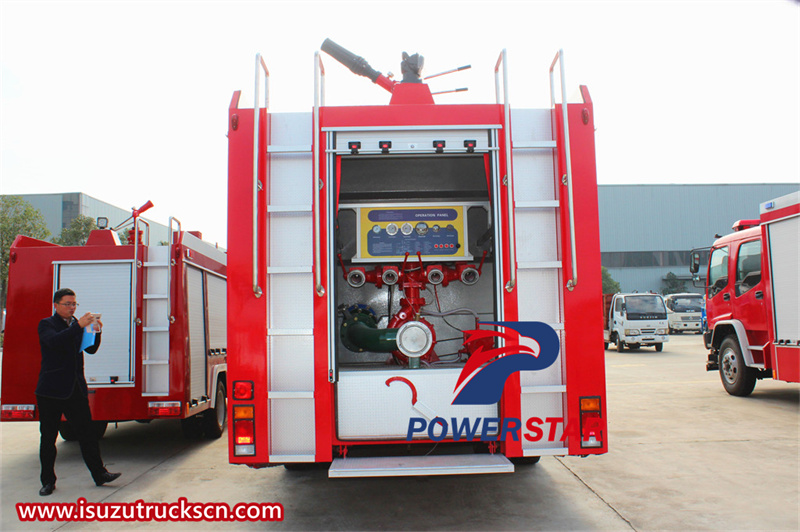

CB10/60 fire pump
The Isuzu FVZ 12000L foam pump fire truck is equipped with a high-performance, reliable pump system that plays a vital role in efficiently delivering water and foam during firefighting operations. The CB10/60 fire pump installed on this vehicle is known for its ruggedness and efficiency, and is able to generate the necessary water and foam pressure for firefighting activities.
The CB10/60 fire pump adopts a powerful centrifugal design, which can deliver water at high flow and high pressure to ensure fast and effective firefighting. The pump system enables firefighters to deploy large amounts of water and foam to the fire scene, quickly and effectively extinguish the flames, and effectively alleviate fire hazards.
The maximum flow rate of the CB10/60 fire pump is 60L/min. The fire pump is driven by the engine of the fire truck through the power take-off device, ensuring stable power output when the vehicle is moving or stationary.
CB10/60 fire pump
CB10/60 fire pump
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3520±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |

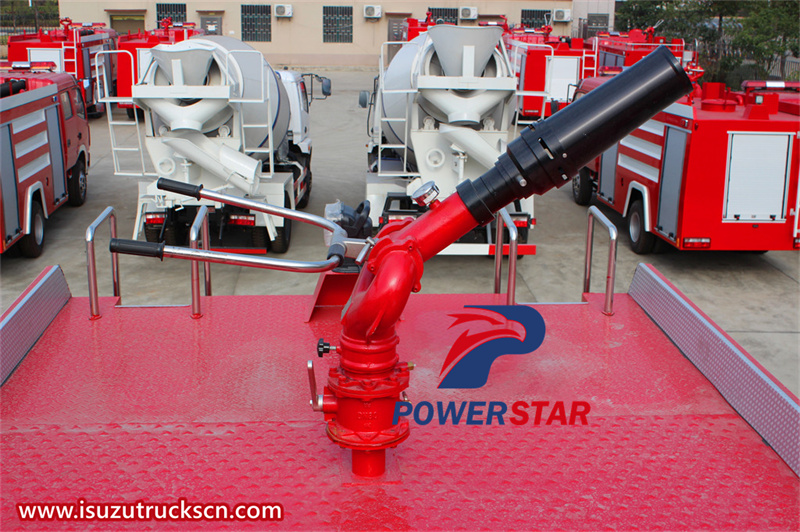

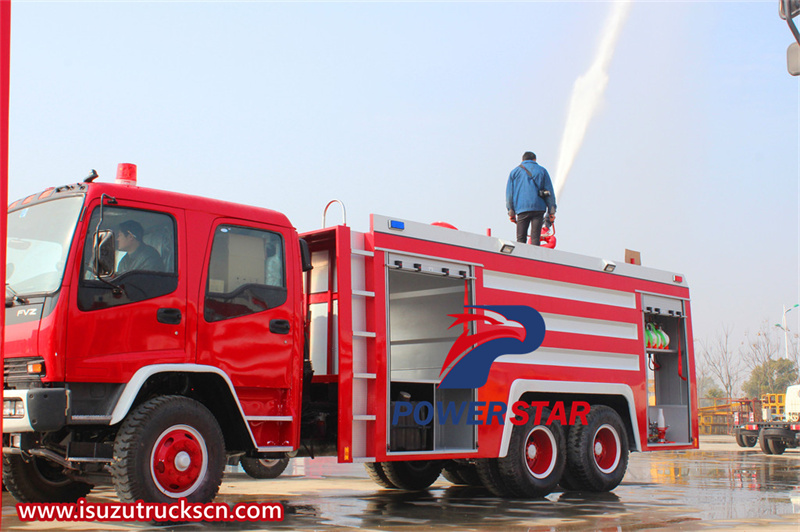

PL8/48 fire monitor
PL8/48 fire monitor is a supplement to the fire pump system. It is a versatile and adjustable nozzle device that can accurately and controllably spray water and foam onto the fire. The PL8/48 fire monitor can be remotely or manually operated to accurately guide the water and foam flow, allowing firefighters to target specific areas of the fire and improve firefighting efficiency.
PL8/48 fire monitor has a flow rate of 48L/s and a range of ≥70m. The fire monitor has horizontal and vertical rotation and pitch functions, and can flexibly adjust the spray direction and angle to cope with fire sources of different positions and shapes.
PL8/48 fire monitor
|
Model |
Flow （L/s） |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Length × Width × Height （mm） |
Weight （Kg） |
|
|
Water |
Foam |
|||||||
|
PL8/48 |
48 |
≥70 |
≥60 |
0.80 |
-45～+70 |
0～360 |
1440*425*600 |
27 |

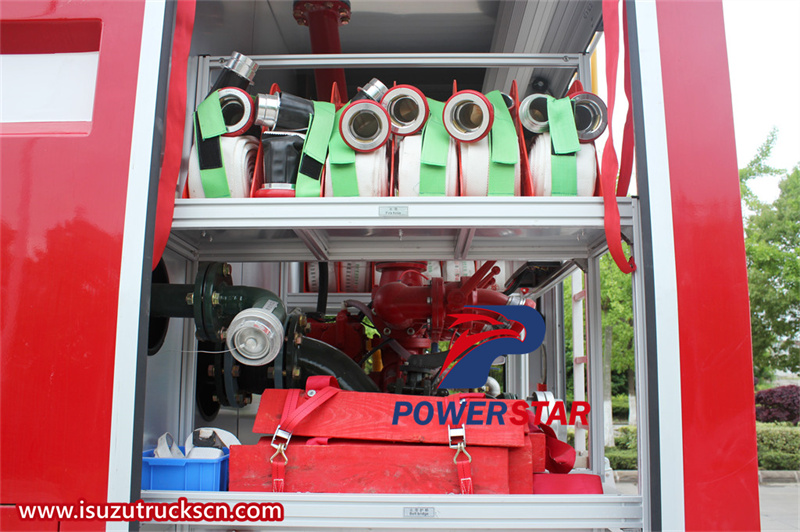

★ Fire equipment

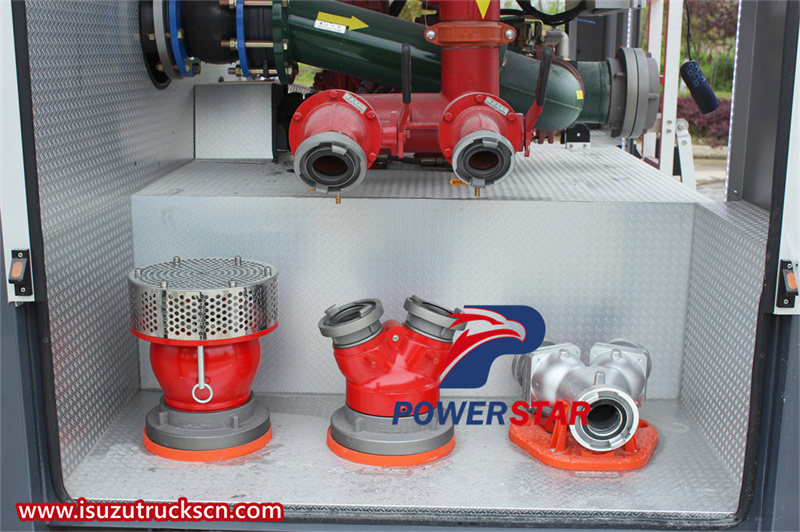

Water collector Water distributor Water filter

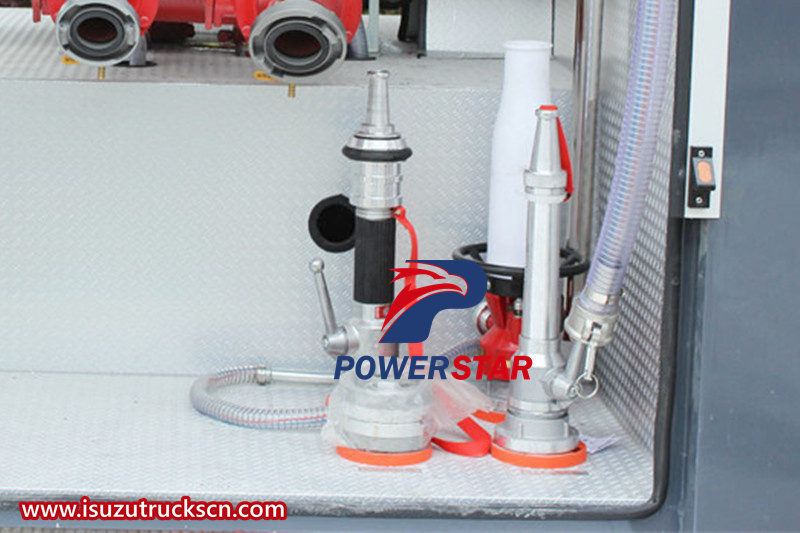

Water gun and foam gun
Fire horse
