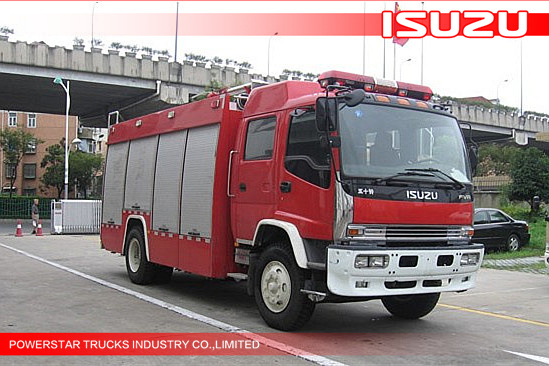

8000L Four doors FVR ISUZU 4x2 Water/Foam Fire Vehicle
Order(MOQ):
18000L FVR ISUZU 4x2 four doors Water/Foam Fire Vehicle
| PT5150GXFPMF Fire Truck | |||
| Main Parameter |
Driving type | 4*2 | |
| cab | four doors Left hand drive(seat 6 persons) | ||
| air condition | with | ||
| Overall Dimension(mm) | 8241*2450*3360 | ||
| Gross Weight(kg) | 9300 | ||
| Rated Weight(kg) | 6000 | ||
| Total Weight(kg) | 15750 | ||
| Approach/Departure angle | 25/13 | ||
| Axle Load(kg) | 5900/9850 (Dual Axle) | ||
| Front/ rear overhang(mm) | 1335/2280 | ||
| Max Speed(km/h) | 90 | ||
| Chassis parameter | |||
| Chassis Model | FVZ34Q | ||
| Engine | Model | 6HK1-TC | |
| Power(kw) | 191 | ||
| Displacement(ml) | 7790 | ||
| manufacturer | Qingling Motors Co. Limited | ||
| Fuel Type | Diesel | ||
| Emission standard | Europe III | ||
| F/R Tread(mm) | 1960/1855 | ||
| No.of Leaf Spring | 9/14 | ||
| Tire Size | 10.00-20-16PR,10.00R20-16PR,11.00-20-18PR | ||
| Number of Tires | 6 | ||
| Wheelbase(mm) | 4500 | ||
| Number of Axles | 2 | ||
| special function | |||
| Tank | Material: high quality carbon stell plate, anti-rust treatment. Structure: welding, there is clapboard inner. the tank capacity according your inquiry and the chasiss capacity. |
||
| Water Tank | Capacity:8,000L | ||
| or water and foam tank | Water tank:6,500L foam tank:1,500L | ||
| Special Parameter |
Fire Pump | choose normal pressure fire pump or middle-low pressure fire pump |
|
| CB10/40 | CB20.10/20.40 | ||
| Fire Monitor | PS32 or PS48,PP32 or PP48 choose Manual or Electric |
||
| PTO | use sandwich PTO, splashing-type lubricate, can put out fire when driving. | ||
| carriage | Carriage is made of high quality stell and Aluminum embossed sheet | ||
| Pump room | or on the rear or central of truck, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch. |
||
| Equipment box |
Equipment box: at the back of carriage, there are two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box. Structure: whole frame is welded to ensure intension and rigidity. Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed. |
||
| Rolling shutter door |
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock. |
||
| color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
||
| Technical requirement |
1.the fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle. 2.tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle. 3.the outside is very beauty, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle. 4.All operating switch and meter is accord with standard nameplate. |
||
