In the realm of firefighting and emergency response, profound significance rests within the design and functionality of fire trucks, serving as crucial tools in battling blazes and mitigating disasters. Among these essential vehicles, the Isuzu Mini Pumper Fire Truck emerges as a beacon of efficient emergency response, blending compact design with potent firefighting capabilities.
Work capacity:
2 tonsTruck model:
PT5020GXYEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
MSB 5-speed,manualRemarks:
1500L water tank and 500L foam tankIsuzu Mini Pumper Fire Truck also called Isuzu 100P mini fire truck,Isuzu ELF 100P double row fire engine,Isuzu ELF 4X2 2 tons firefighting truck,Isuzu 100P mini fire tender.The Isuzu Mini Pumper Fire Truck blends a compact design with powerful firefighting capabilities, making it a versatile and indispensable asset in emergency response scenarios. Built on the Isuzu 100P double cab chassis, this specialized vehicle embodies the perfect balance of flexibility, functionality, and resilience.
The Isuzu Mini Pumper Fire Truck is a powerful and versatile emergency vehicle that is ideal for use in both urban and suburban environments. Equipped with a 1.5 cubic meter water tank and a 0.5 cubic meter foam tank, this truck provides firefighters with the resources they need to respond to a variety of fire and rescue scenarios. Its compact design, excellent maneuverability, and a host of features make it a valuable asset to any fire department or emergency response team.
Key Features
★ ISUZU 100P chassis, perfect performance
★ lSUZU engine, super powerful, no overhaul within 100.000 km
★ Water tank and capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
★ Easy operation and easy maintenance
★ Various types of fire equipment are available
★ Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu mini pumper fire truck |
||
|
Main specification |
Truck brand |
POWERSTAR |
|
Chassis model |
PT5020GXY |
|
|
Overall dimension(L*W*H) |
6390*2000*2750 |
|
|
Water tank volume |
1500L |
|
|
Foam tank volume |
500L |
|
|
Cabin |
Double row cabin,2+3 seats,with Air conditioner, electronic windows, USB, |
|
|
Chassis |
Drive modle |
4x2,LHD |
|
Front axle loading |
2500kg |
|
|
Rear axle loading |
4800kg |
|
|
Wheel Base |
3360mm |
|
|
Front/rear suspension |
1110/1920mm |
|
|
Tyre size & number |
700R16,6+1 |
|
|
Transmission |
MSB 5-speed,manual |
|
|
Color |
Red and white |
|
|
Brake |
Oil brake |
|
|
Max speed |
100km/h |
|
|
Engine |
Brand |
Isuzu |
|
Model |
4KH1CN6LB |
|
|
Engine Type |
4-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling |
|
|
Horse power |
120HP/88Kw |
|
|
Displacement |
2999ml |
|
|
Emission |
EURO 6 |
|
|
Fire SPECIFICATION |
||
|
Tank capacity |
1500L water tank and 500L foam tank |
|
|
Tank material |
All Tank made of carbon steel. Thickness:4mm, The foam tank inside is painted with Anticorrosion material |
|
|
Fire pump |
Model |
CB10/20,Normal pressure pump |
|
Pressure |
≥1.0 Mpa |
|
|
Max suction height |
7 m |
|
|
Flux |
20 (L/S) |
|
|
Rated speed |
3060 (r/min) |
|
|
Time of drawing water |
≤35 (s) |
|
|
Fire monitor |
Model |
SP20 |
|
Flux |
20 (L/S) |
|
|
Rated Working pressure |
1 Mpa |
|
|
Rotation angle |
360 (°) |
|
|
Fire fighting nozzle range（water） |
≥50 m |
|
|
Fire fighting nozzle range（foam） |
≥45m |
|

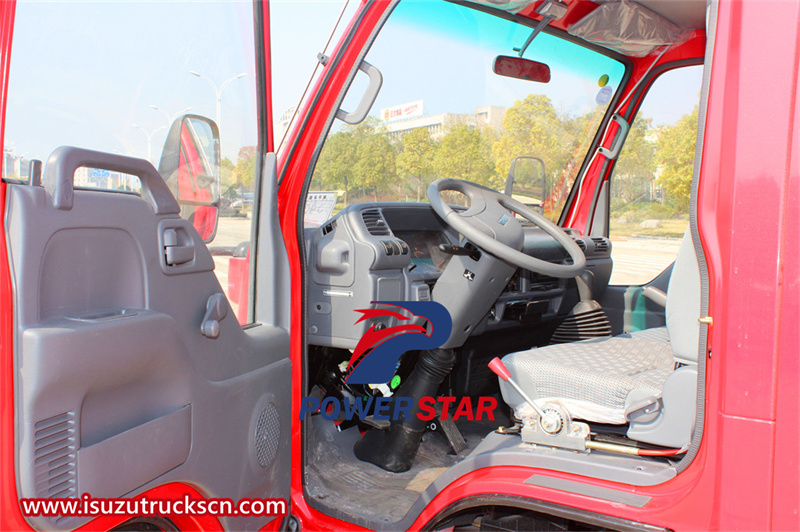

★ Isuzu 100P double-row cab chassis
The Isuzu mini pumper fire truck is modified on the basis of the Isuzu 100P double-row cab chassis. The vehicle has a double-row cab and can carry a total of 5 firefighters, which greatly increases the load of firefighters, can effectively transport firefighters to the fire scene, and greatly improves efficiency.
The Isuzu 100P double-row cab is equipped with an Isuzu brand engine with a displacement of 2.99L, which meets the National VI b stage emission standards, with a maximum output power of 120 horsepower and a maximum torque of 290 Nm. The engine is matched with the Isuzu MSB 5-speed gearbox. The Isuzu 100P double-row cab is equipped with a 2.5-ton steering front axle and a 4.8-ton drive rear axle. The rear axle main reduction ratio is moderate, ensuring good load-bearing capacity and stability. The vehicle uses 700R16 tires, which are not only reliable and durable, but also can further help the vehicle save fuel.

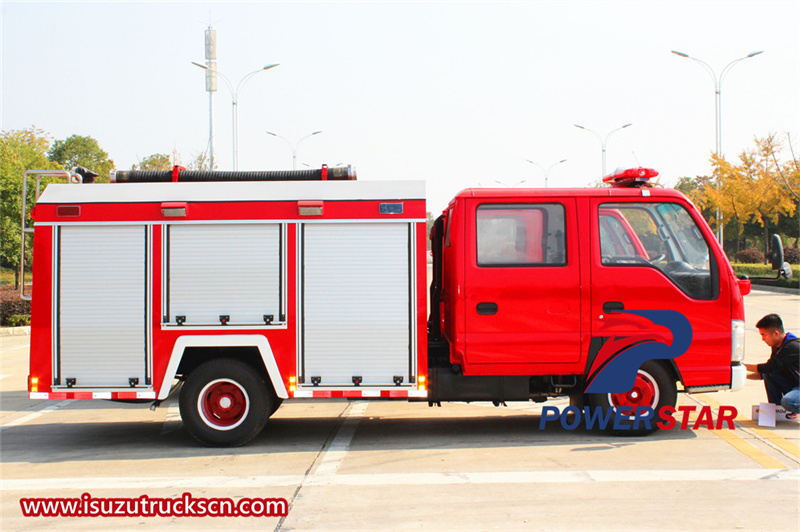

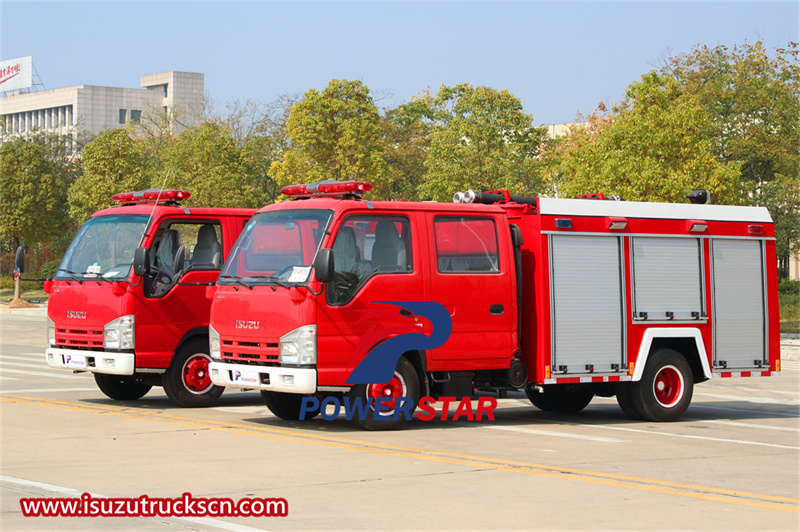

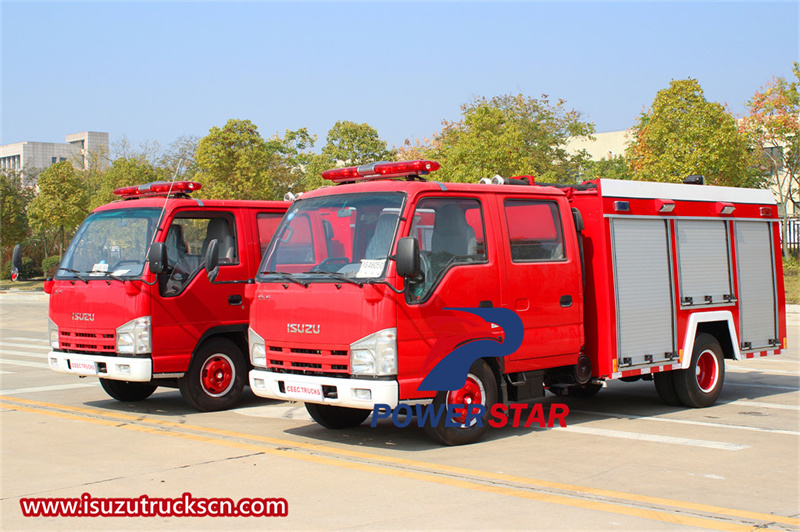

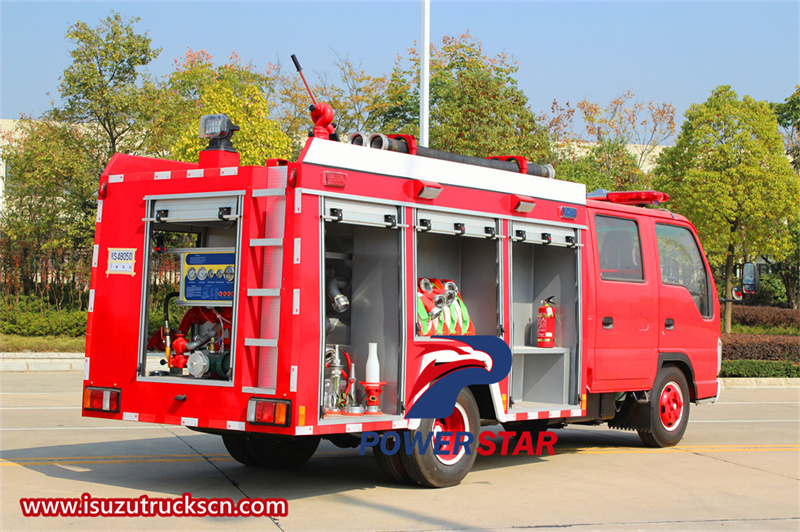

Isuzu mini pumper fire truck
★ Fire truck tank
At its core, the Isuzu ELF Mini Fire Truck features a 1.5 cubic meter (cbm) water tank and a 0.5cbm foam tank, which provide the truck with the resources it needs to extinguish fires and protect lives.
The 1.5cbm water tank is the backbone of the Isuzu mini pumper's firefighting capabilities. This ample capacity ensures that the truck can carry enough water to extinguish small-to-medium-sized fires, allowing firefighters to respond swiftly and effectively to incidents. The water tank is designed for easy access and refilling, minimizing downtime and ensuring that firefighting efforts can continue uninterrupted.

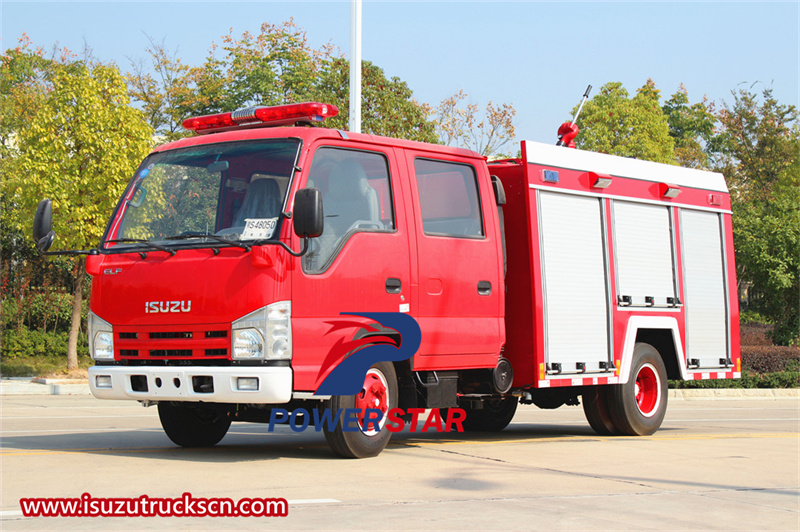

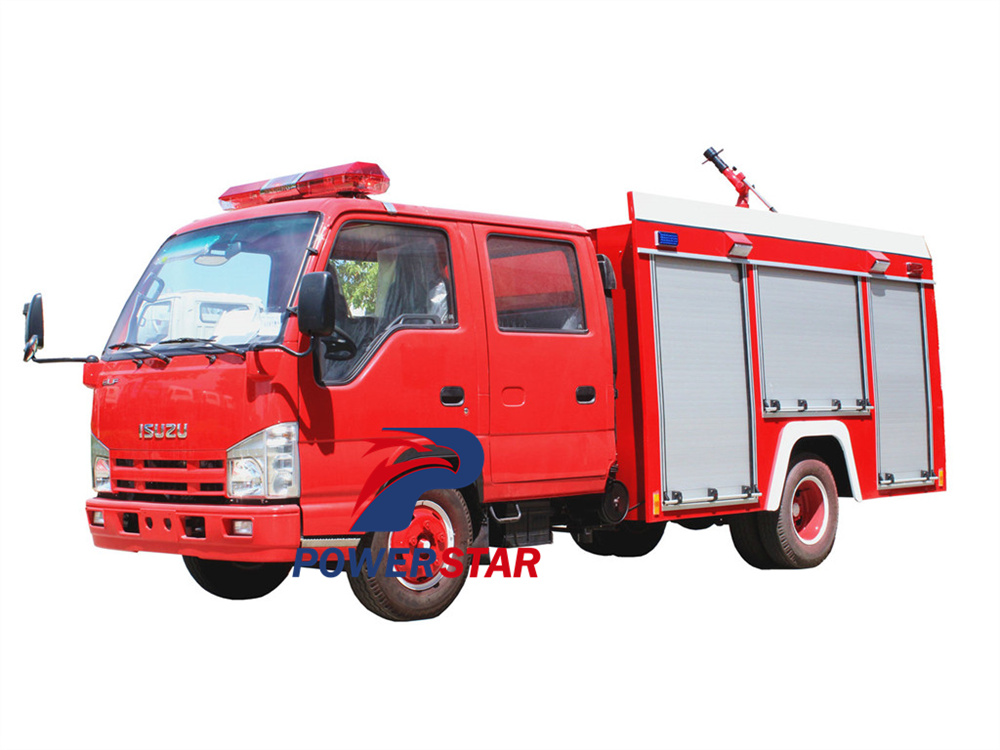

Isuzu ELF 100P double row fire engine
Complementing the water tank is a 0.5 cubic metre foam tank, which adds an extra layer of protection and enhances the truck’s firefighting capabilities. Foam is a key tool in firefighting as it forms a barrier between the fuel and the flames, reducing the risk of re-ignition and allowing firefighters to gain control of the situation more quickly.

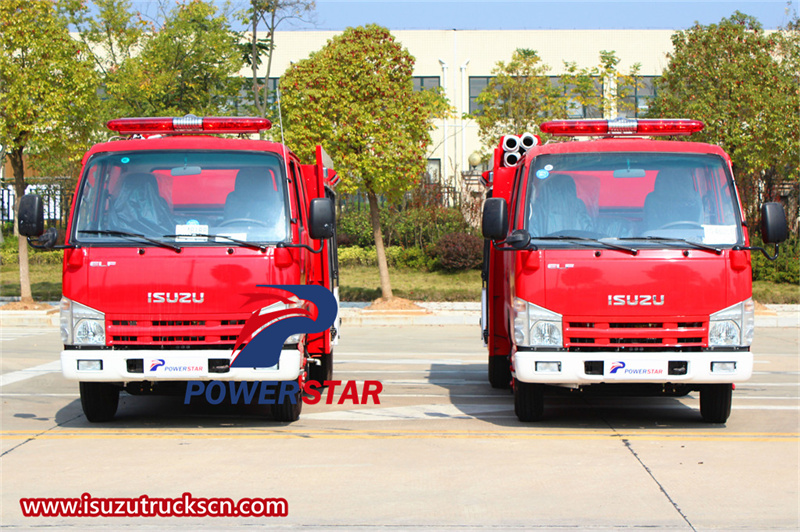

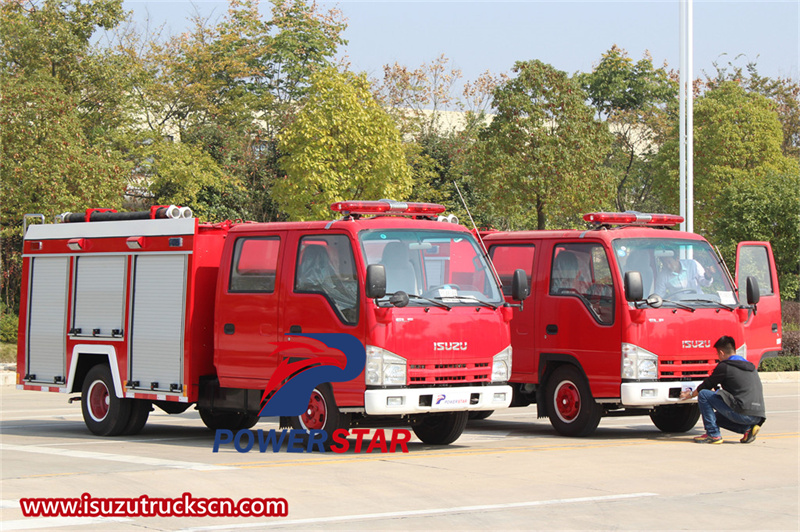

Isuzu 100P 2tons fire tender
★ Fire pump and control panel
At the heart of the Isuzu Mini Fire Truck’s firefighting capabilities lies the powerful CB10/20 atmospheric pump, a key component that ensures efficient and precise delivery of water and foam during firefighting operations.
Carefully integrated into the design of the fire truck, the CB10/20 atmospheric pump enables rapid, controlled distribution of water and foam. Whether responding to a structural fire or a flammable liquid incident, the pump system facilitates strategic deployment of firefighting agents, allowing firefighters to quickly adjust tactics as the emergency develops.
CB10/20 fire pump

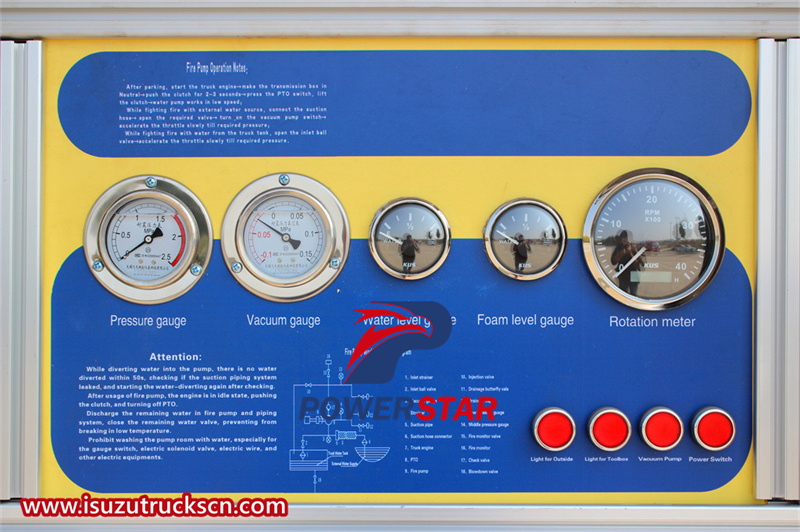

The control panel of the fire monitor equipped with a CB10/20 pump is the central hub for monitoring and controlling the operation of the pump, providing firefighters with unparalleled precision and control over the water and foam discharge rate. The intuitive interface of the control panel allows operators to easily adjust flow, monitor pressure levels and adjust operating parameters to ensure optimal firefighting performance in dynamic emergency situations.

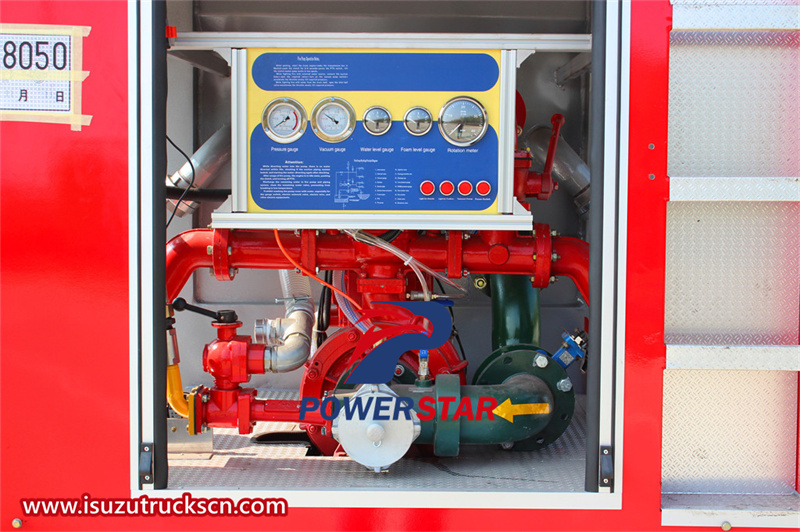

Control panel

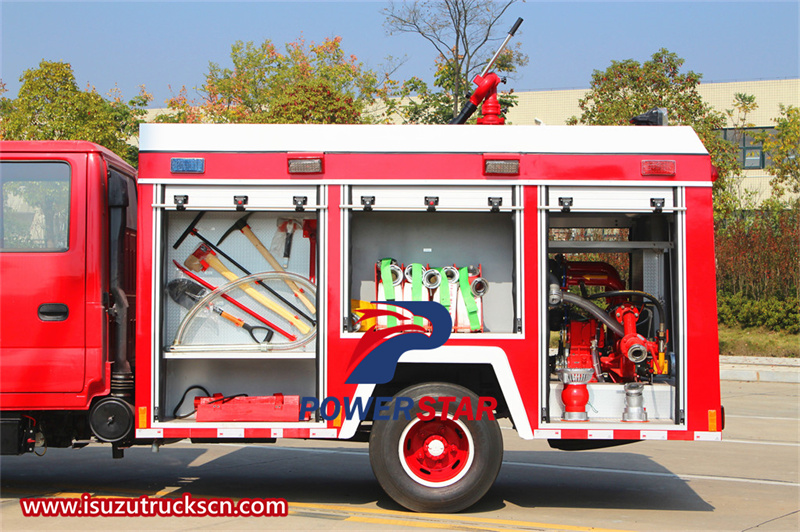

★ Fire equipment
Isuzu fire trucks are equipped with comprehensive equipment design, covering all aspects from firefighting to rescue, designed to cope with various fire and rescue scenarios, ensuring that firefighters can perform tasks quickly and effectively.
Fir equipment

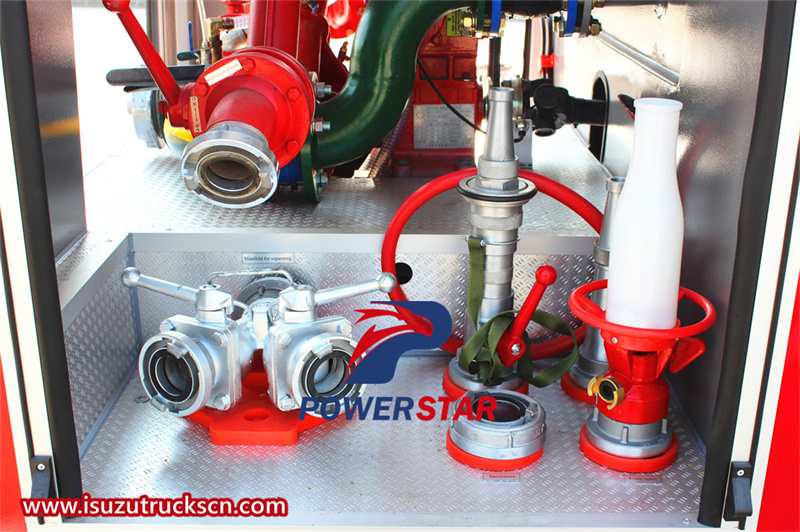

Water filter，Two-way distributor

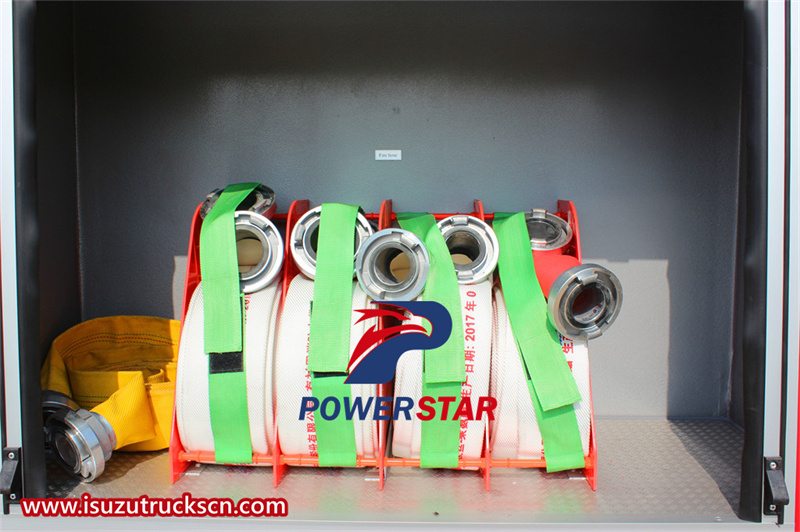

Fire Hose

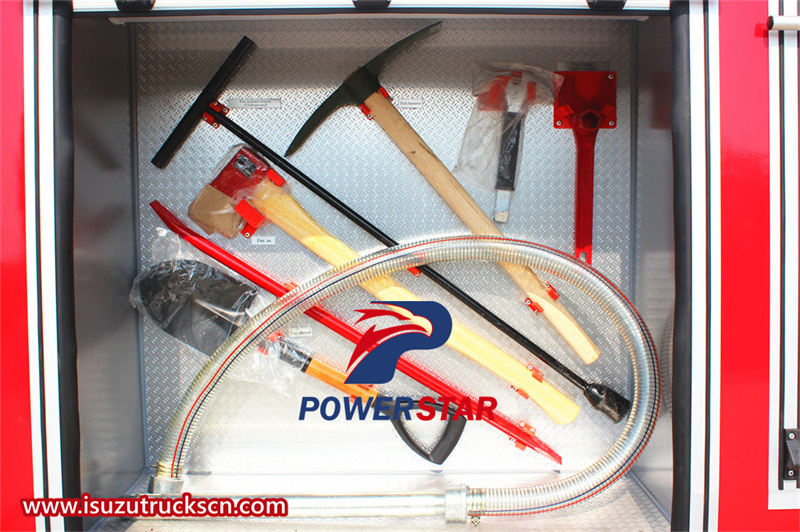

Fire axe, shovel, fire iron ring, hammer pick

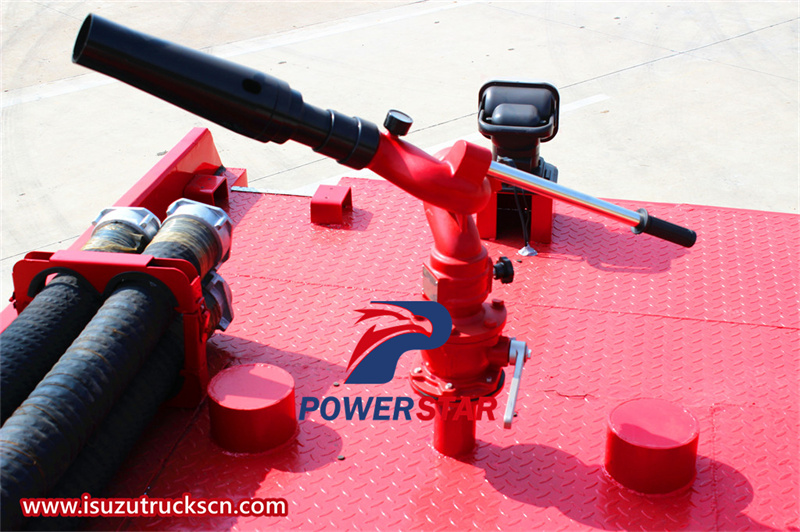

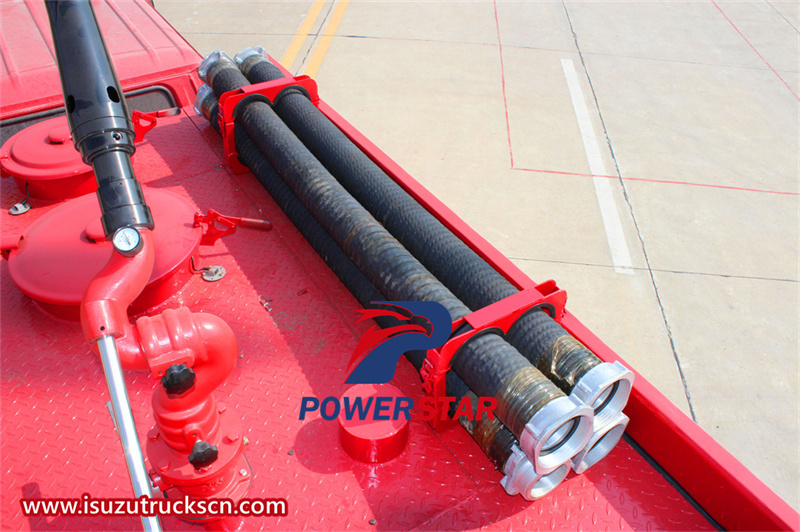

Fire monitor

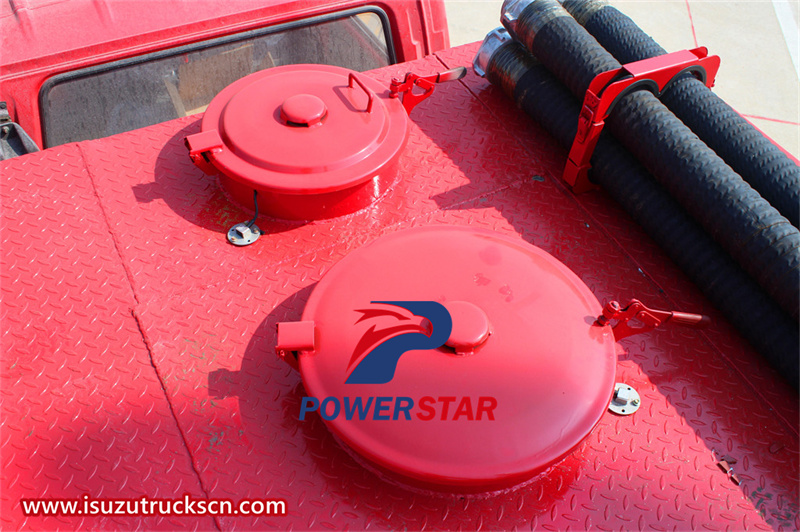

Water and foam tank capping
