The Isuzu FVR foam fire truck is a special vehicle mainly designed for firefighting operations. It can effectively extinguish fires, prevent the spread of fires, and minimize the losses caused by fires. With superior performance, it is the first choice fire truck for professional fire brigades such as oil fields, petrochemical enterprises, oil depots, and oil terminals, and for public security fire brigades in large and medium-sized cities.
Work capacity:
6tonsTruck model:
PT5110GXFPMQEngine power:
240HPEngine type:
6HK1-TCLAxle drive:
4x2Gear box:
MLD 6-speed, manualRemarks:
ISUZU FVR foam fire truck for sale, water tank and foam tank capacity can be optional.| Products Description |
Isuzu FVR foam fire truck, also called Isuzu fire tender, Isuzu fire engine, Isuzu fire fighting tanker, Isuzu water foam tank fire truck, Isuzu fire appliance, Isuzu fire fighting equipment, Isuzu fire-extinguishing rescue truck, Isuzu fire service truck,Isuzu emergency rescue fire vehicle, The Isuzu FVR foam fire trucks are essential vehicles for urban professional fire brigades and are also the mainstream combat fire trucks nowadays. It is a necessary fire-fighting vehicle for petrochemical enterprises, oil terminals, airports and urban professional fire brigades.
I. Description of ISUZU FVR Foam Fire Truck
Key Features:
--- ISUZU chassis, perfect performance
---- ISUZU FVR engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
---- Extended model: water fire truck, Foam fire truck, Dry powder fire truck, Forest fire truck, water tower fire truck, Emergency rescue fire truck, Lighting tower fire truck,ect.
| Technical Parameter |
II. Specification of ISUZU FVR Foam Fire Truck
|
4*2 ISUZU FVR 6tons foam fire rescue truck |
|||
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO.,LIMITED |
||
|
Product Name |
FVR 6tons foam fire truck ISUZU |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PT5110GXFPMQ |
||
|
Chassis parameters |
Overall dimensions |
mm |
8260*2500*3400 |
|
Gross weight |
kg |
15400 |
|
|
Curb weight |
10275 |
||
|
Rated payload |
4600 |
||
|
Suspension F/R |
mm |
1335/2425 |
|
|
Wheel base |
4,500 |
||
|
Driving type |
4*2 |
||
|
Chiassis model |
ISUZU FVR |
||
|
Number of axles |
2 |
||
|
Tire specification |
295/80R22.5 16PR |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3+3 |
||
|
Engine |
Engine model |
6HK1-TCL |
|
|
Gear box |
MLD 6-speed, manual |
||
|
Type of fuel |
Diesel |
||
|
power |
HP |
240HP |
|
|
Max speed |
Km/h |
95 |
|
|
Emission standard(TAS) |
EURO 5/6 |
||
|
Fire performance |
Tank capacity |
water tank capacity:5000L |
|
|
foam tank capacity:1cbm |
|||
|

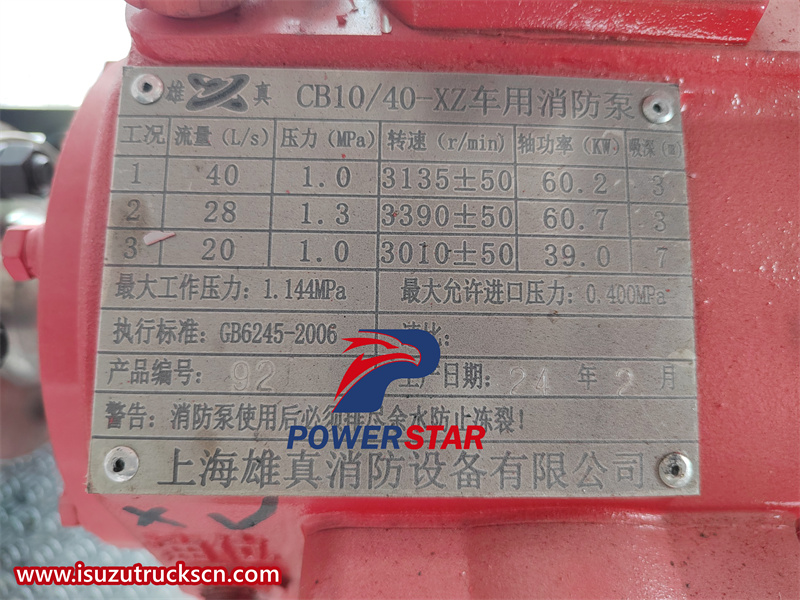

Fire pump |
Brand: Shanghai Xiongzhen |
||
|
Model: CB10/40 |
|||
|
Low-pressure:40L/S |
|||
|
Fire monitor |
Brand: ChengDU West |
||
|
Model:PL32 |
|||
|
Flow:48L/S |
|||
|
Water jet distance:≥60m |
|||
|
Foam jet distance:≥55m |
|||
|
Electronic alarm |
LY CJB-100-C24 |
||
|
Alarm lamp |
|
||
1.We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR,NKR,NQR, ELF, VC66 levels, etc. all available.
2.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
3.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .
4.Water, foam ,powder together type, Customized.
| Isuzu 100P fire truck | Isuzu ELF/NPR fire tender | Isuzu FTR fire engine | Isuzu 700P fire truck | Isuzu FVR/FVZ fire truck | Isuzu VC66 levels fire truck |
| 4x2 | 4x2 | 4x2 | 4x2 | 4x2.6x4.8x4 | 4x2.4x4.6x4.8x4 |
| 98HP | 190HP | 205HP | 190-205HP | 240-300HP | 350HP.380HP.420HP.460HP.520HP |
III. ISUZU FVR Foam Fire Truck Details

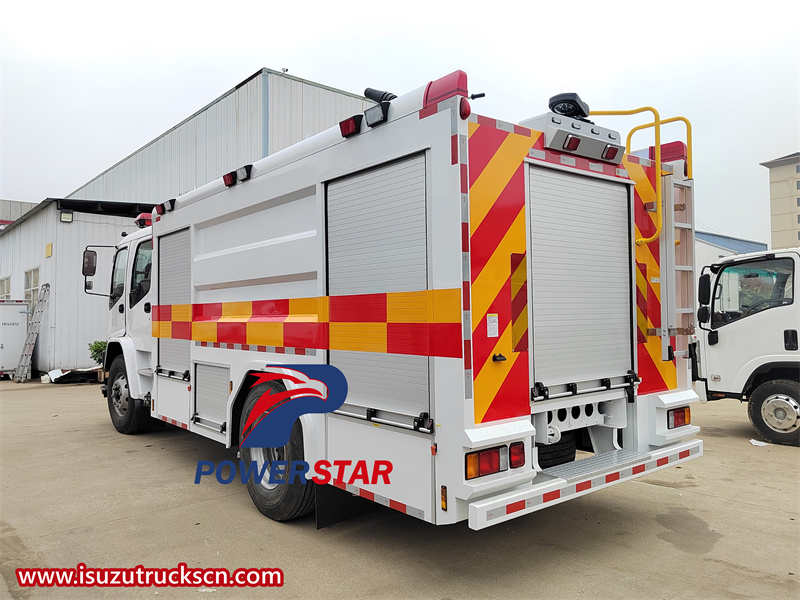

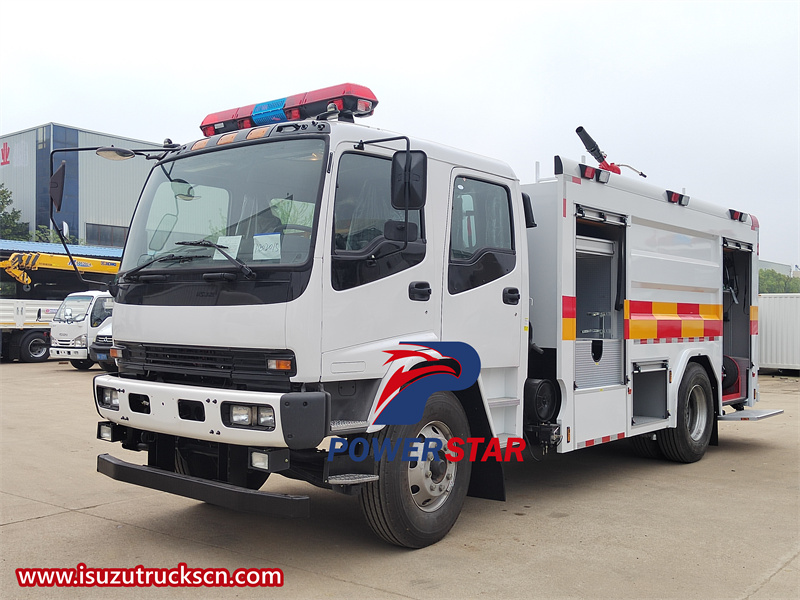

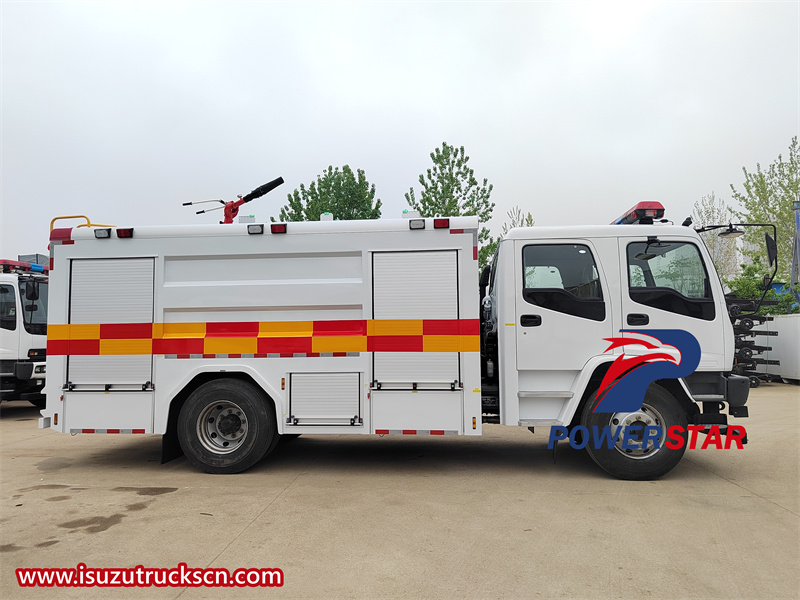

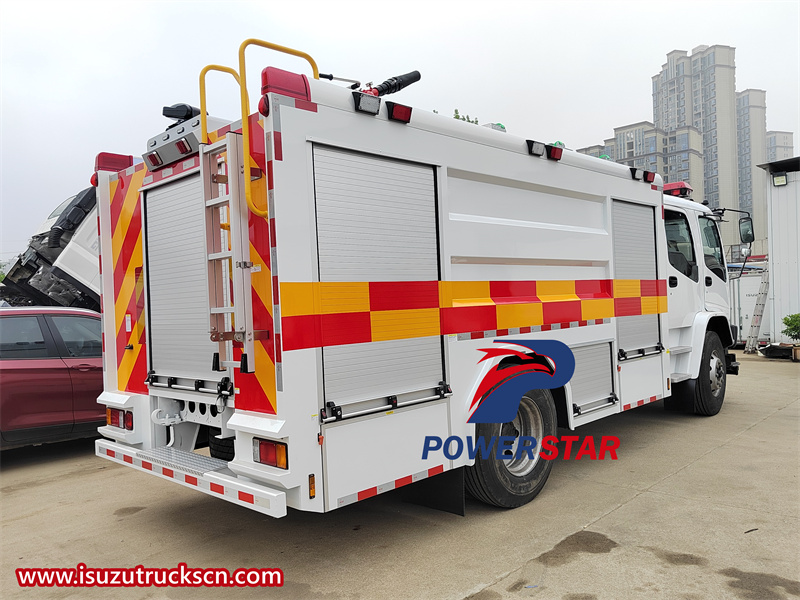

● Isuzu FVR foam fire truck photos for reference
Isuzu FVR 6-ton foam fire truck has a complete range of vehicle configurations and various specifications to meet various operational requirements. Able to quickly approach the fire scene to start a fire-fighting battle and extinguish various fires. Because foam fire trucks have natural advantages in fire extinguishing, they have strong adhesion, long durability, excellent heat insulation and heat radiation, and can effectively control the re-ignition of solid combustibles. Its special performance determines that most of the working environments of this kind of fire truck are particularly dangerous fire scenes such as petrochemical industry.
The Isuzu FVR 6-ton foam fire truck is a special vehicle designed and manufactured according to the needs of firefighting forces for fire extinguishing and rescue. It is a special vehicle suitable for firefighters to ride and equipped with various firefighting equipment or fire extinguishing agents. It can not only put out general material fires, but also can be used to put out urban fires and flammable and flammable liquid fires.
Isuzu FVR foam fire truck for sale
Isuzu FVR 6-ton foam fire truck superstructure configuration:

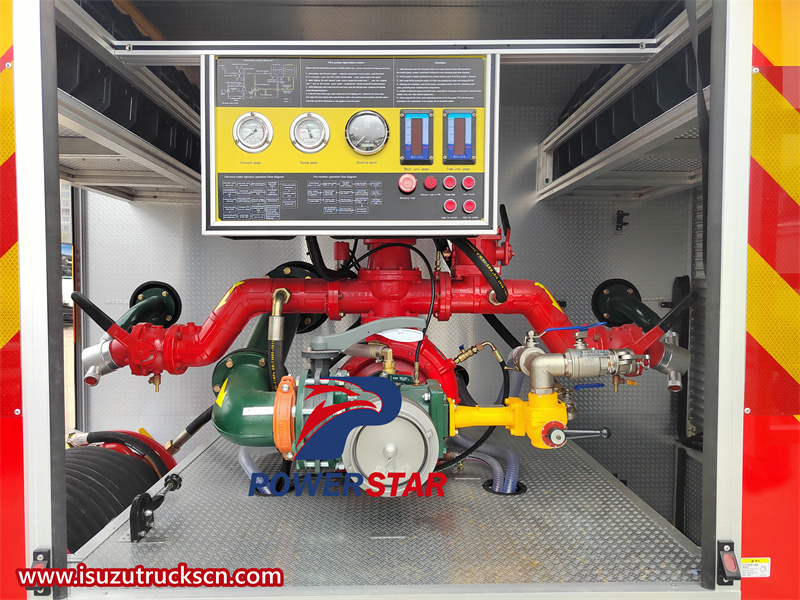

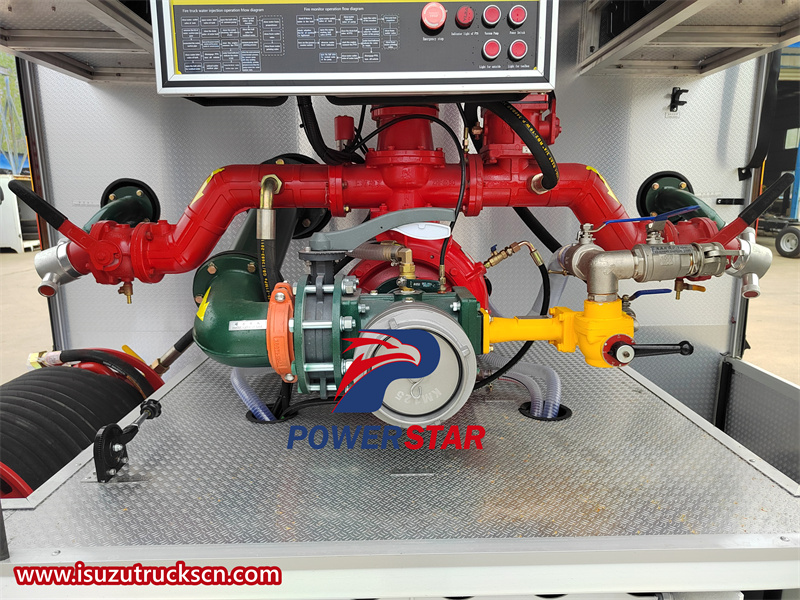

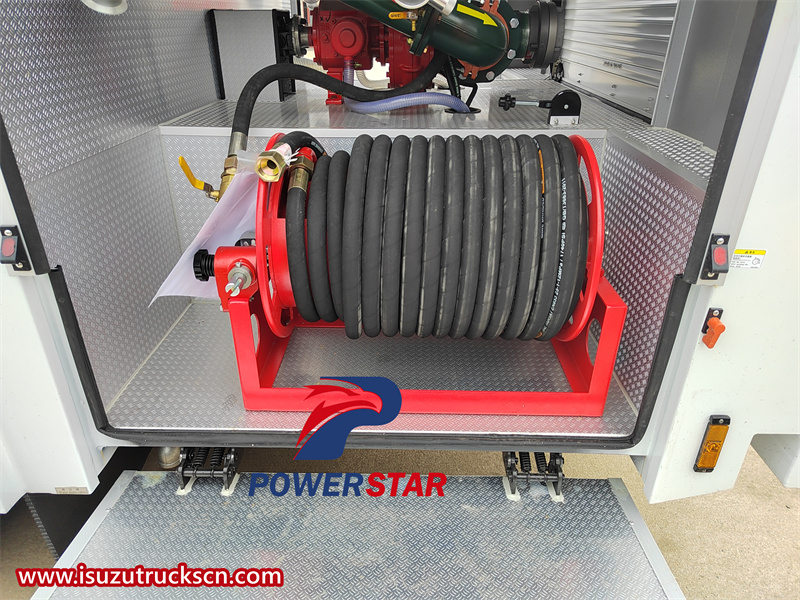

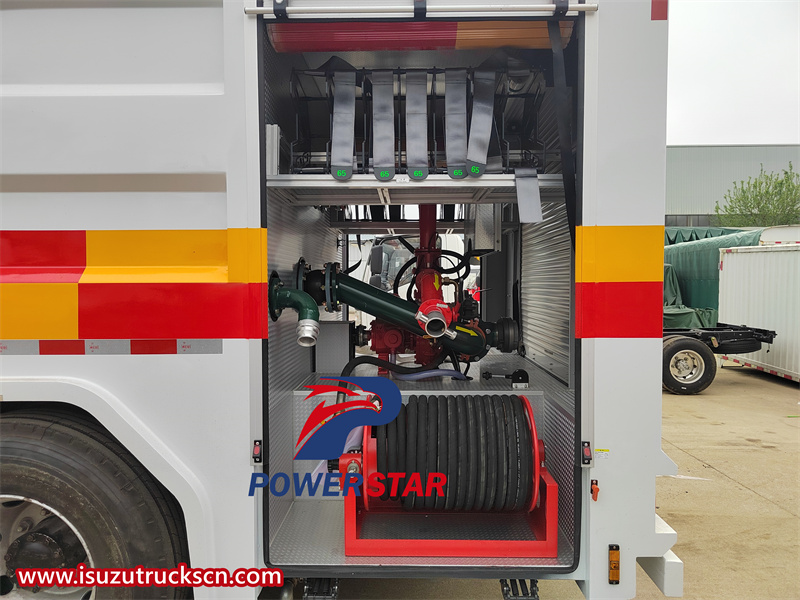

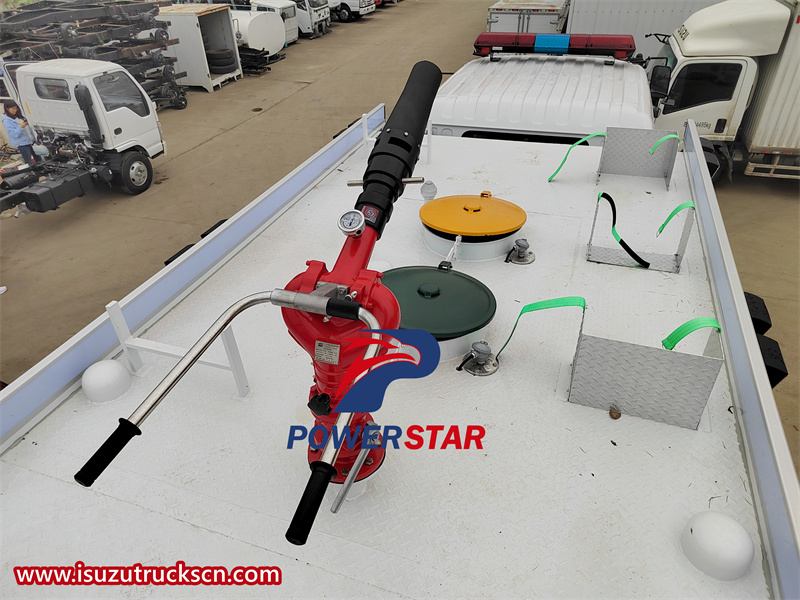

water tank capacity 5 tons, carbon steel material (anti-corrosion treatment), foam volume 1 cubic meter, 304 stainless steel material. The main frame structure is welded with high-quality square tubes and the exterior decorative panels are welded with carbon steel plates. The structure is stable and reliable, and the roof is anti-slip and can be walked on. Equipped with Shanghai Xiongzhen CB10/40 low-pressure fire pump and Chengdu West PL32 water-foam dual-purpose fire cannon. The pump room is equipped with a 30-meter medium-pressure reel. The front equipment box is a through-silo with an aluminum alloy equipment rack. The front equipment box and the pump room are covered with aluminum alloy pattern plates.

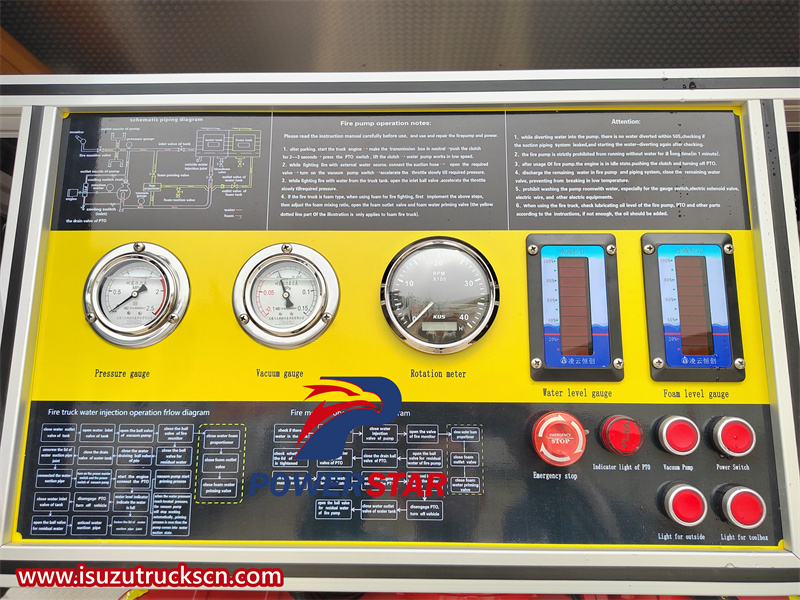

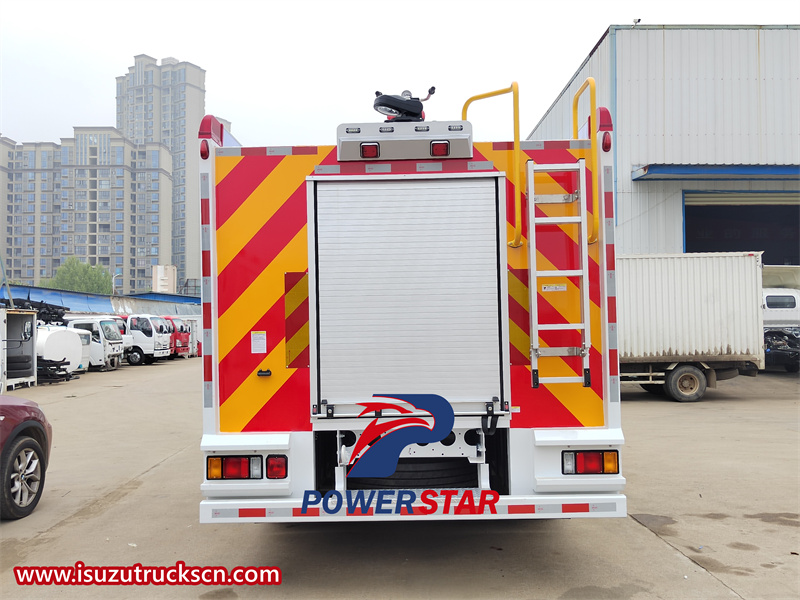

The English control panel (cylindrical liquid level on the panel indicator and emergency stop switch), equipped with hand throttle. There are aluminum alloy rolling shutter doors on the left and right sides of the pump room and the left and right sides of the equipment box. The whole vehicle has an English logo. The whole vehicle does not have any New Dongri logo (including the water hose rack). It has red warning lights and all-red flashing lights. The rear of the vehicle is equipped with a 360-degree rotating light. The color of the vehicle is white, and the rear is red. The left and right And the tail yellow tie bar, black fenders are installed, the bottom of the equipment box at the rear of the body is tilted upward about 18 degrees, the police lights/fire cannons/ladders are detachable, and the whole vehicle has British interfaces.
Isuzu FVR 6-ton foam fire truck chassis configuration:
double-row cab, using Qingling Isuzu 6HK1-TCL engine, National VI emission 240HP177KW, strong strength, Isuzu MLD 6-speed, 4500mm wheelbase. The tire length, width and height are 295/80R22.5 16PR. It has air conditioning, steering assist, multi-function LCD instrument panel, front axle 6.3 tons, rear axle 13 tons, with ABS, air brake.

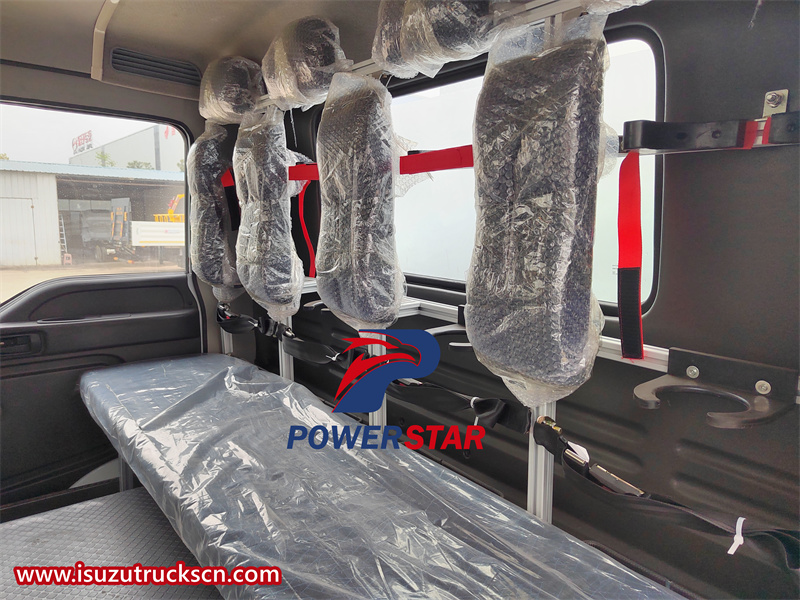

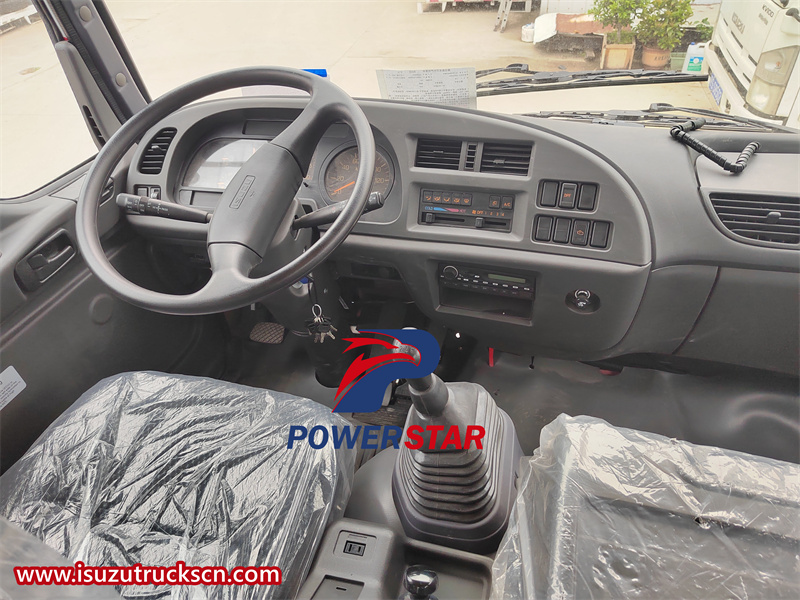

Isuzu FVR 6-ton foam fire truck interior configuration:
young and fashionable interior design. The layout adopts a sedan-like design style, making the ride very comfortable. Comfortable without losing security. It is both fashionable and trendy, adapting to the aesthetics of young people. The cab adopts a new flat-top double-row cab, which can accommodate about 6 firefighters. The cab is very designed.

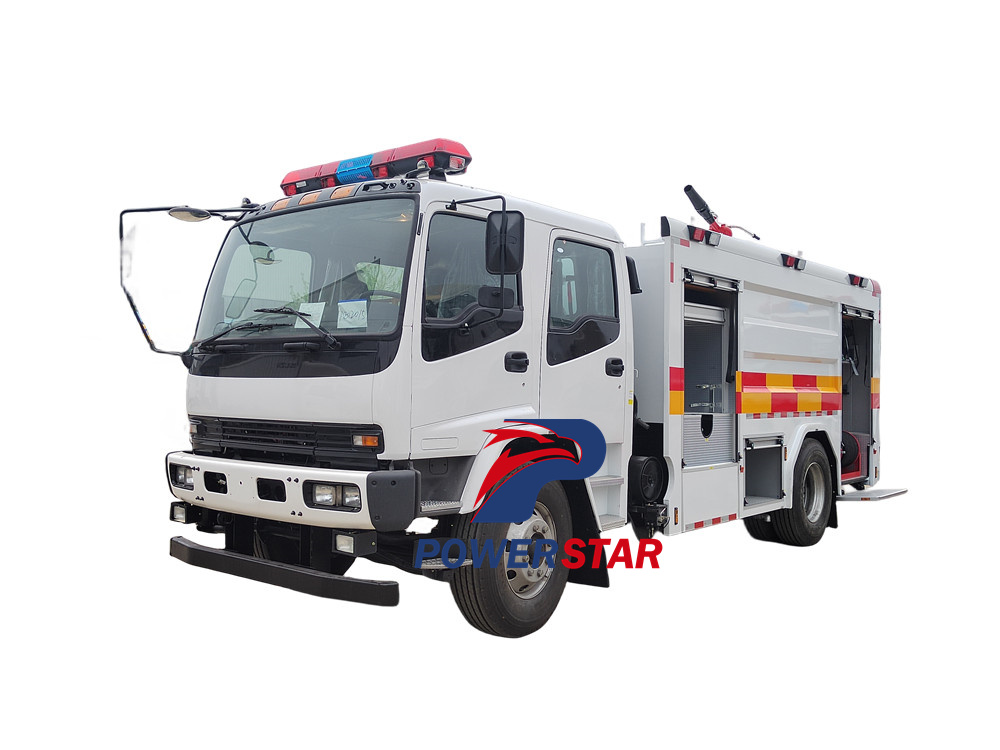

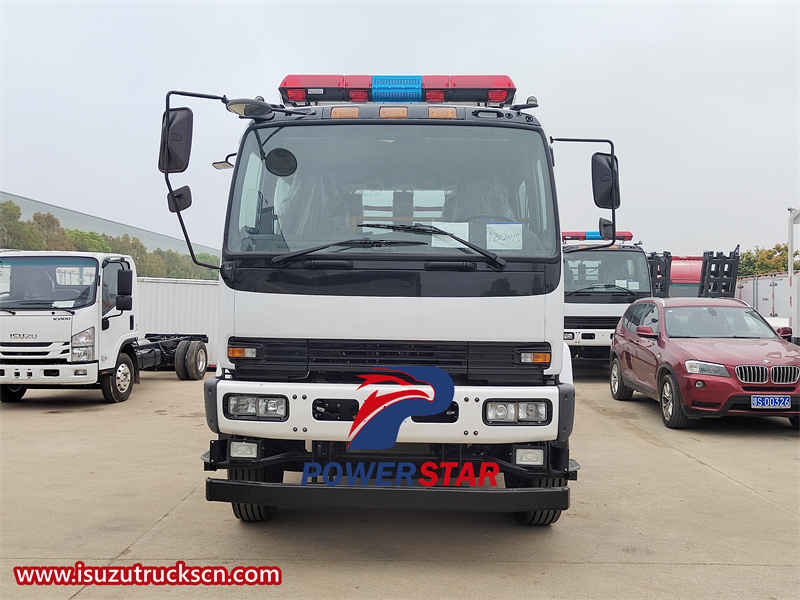

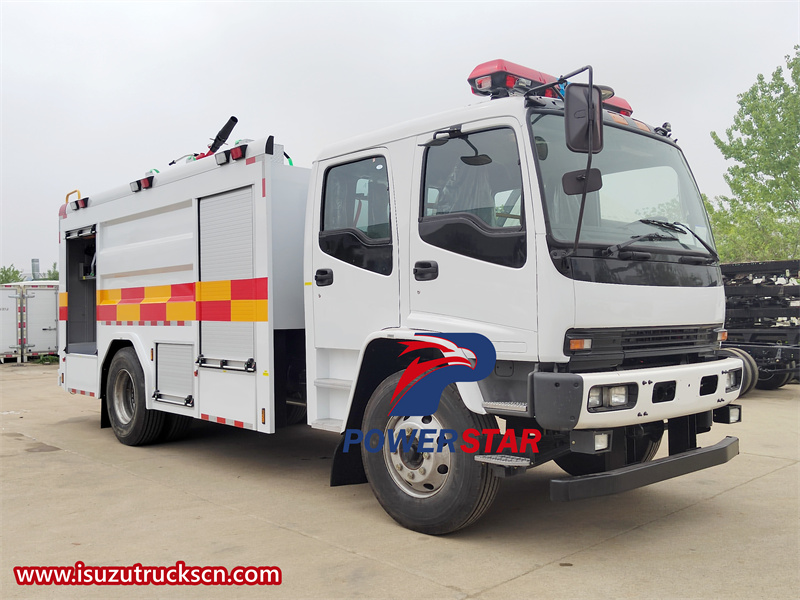

Isuzu 4x2 FVR foam fire engine
| Our Advantage |
● Isuzu FVR foam fire truck details

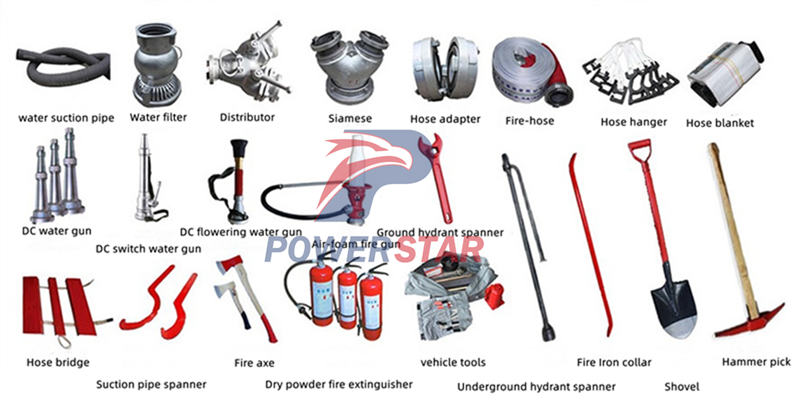

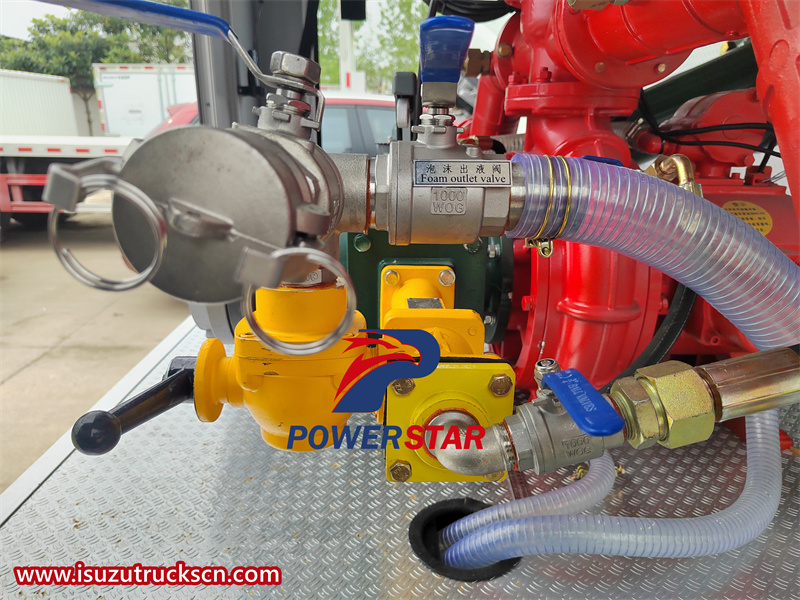

● Isuzu FVR foam fire truck fire equipment

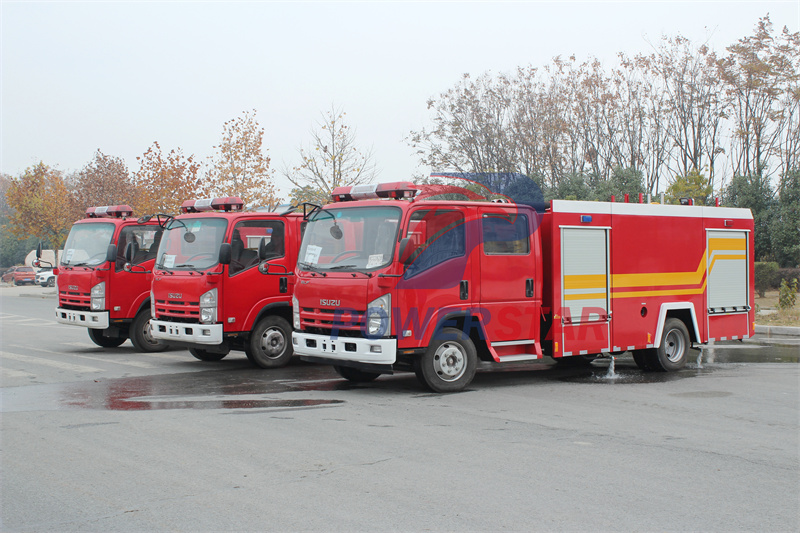

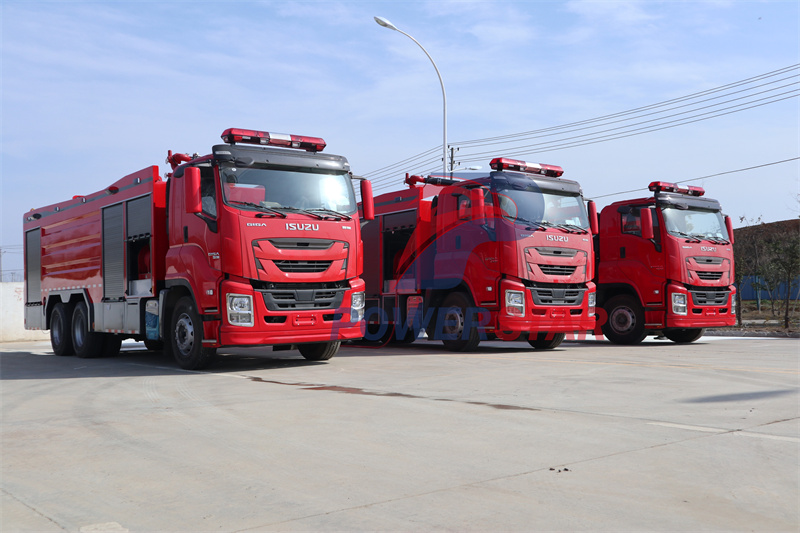

● Various Isuzu fire truck exported to overseas
