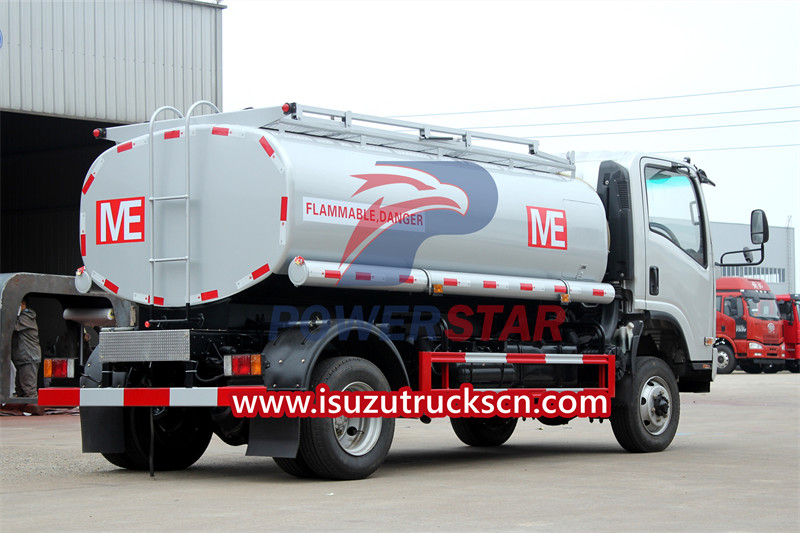

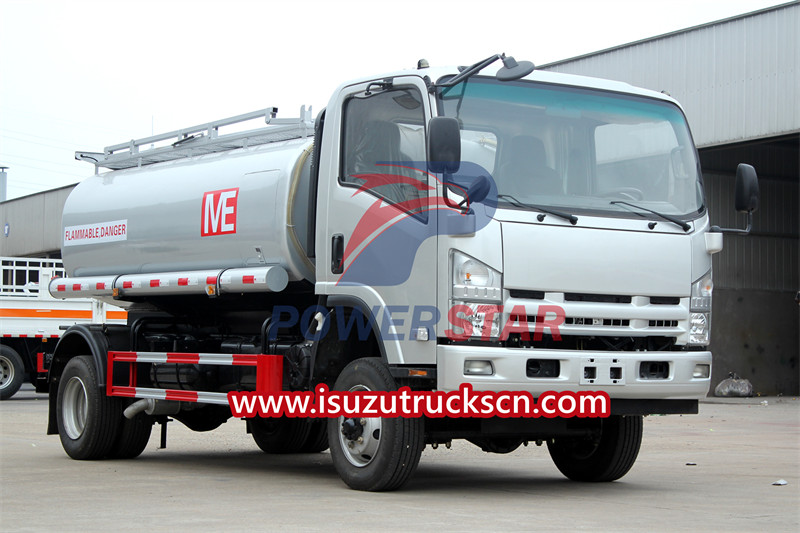

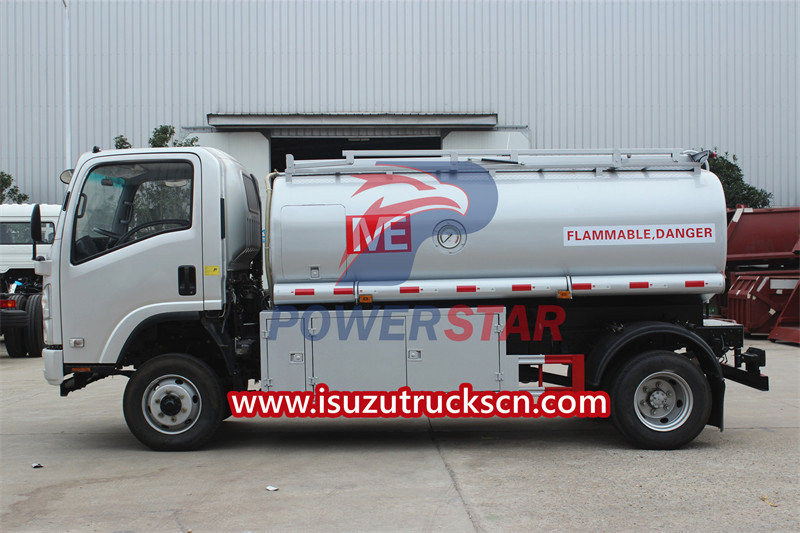

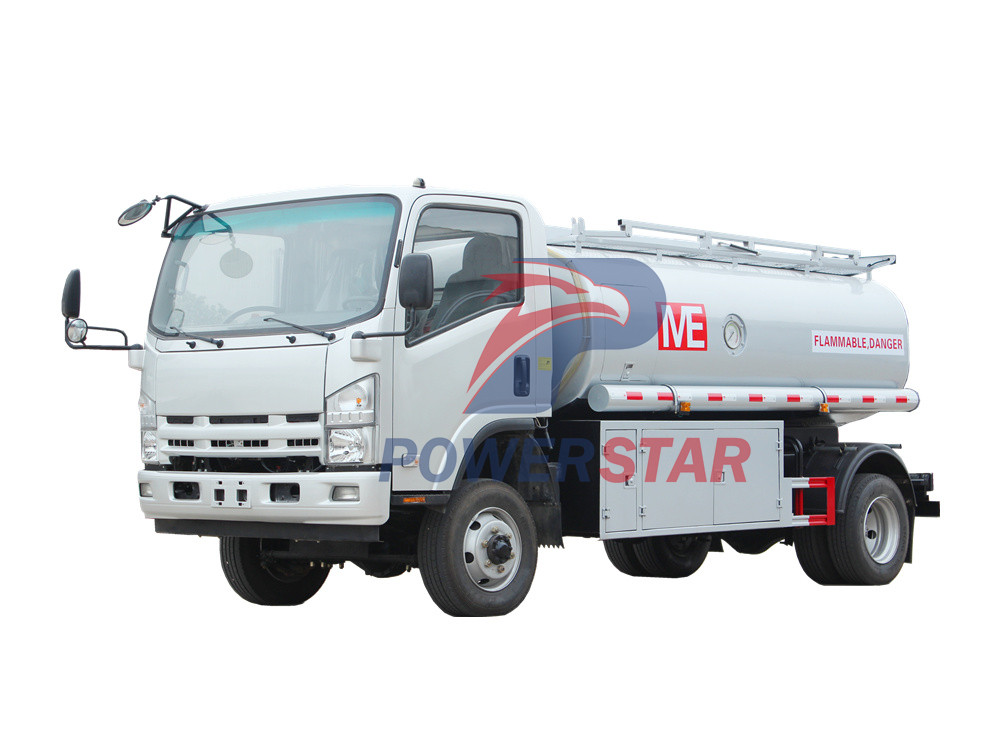

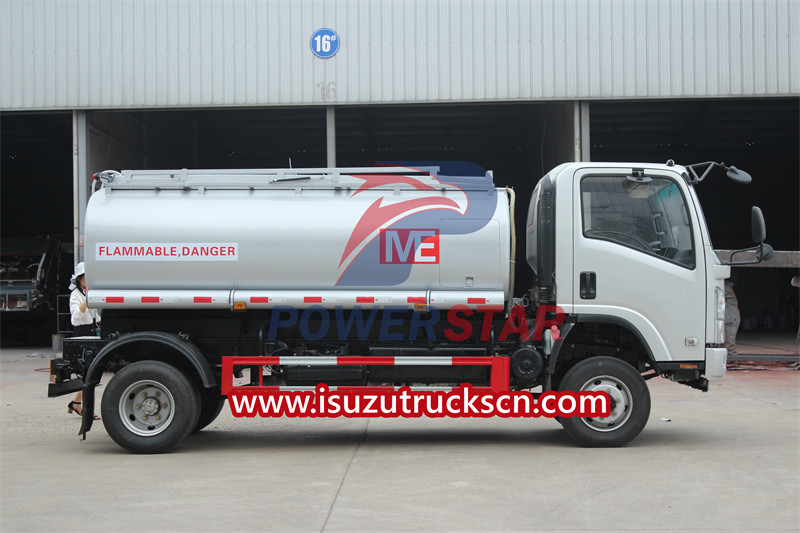

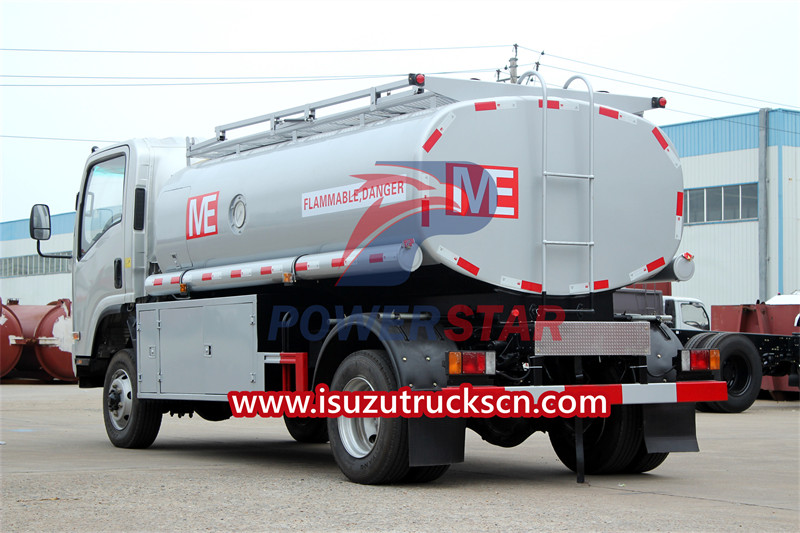

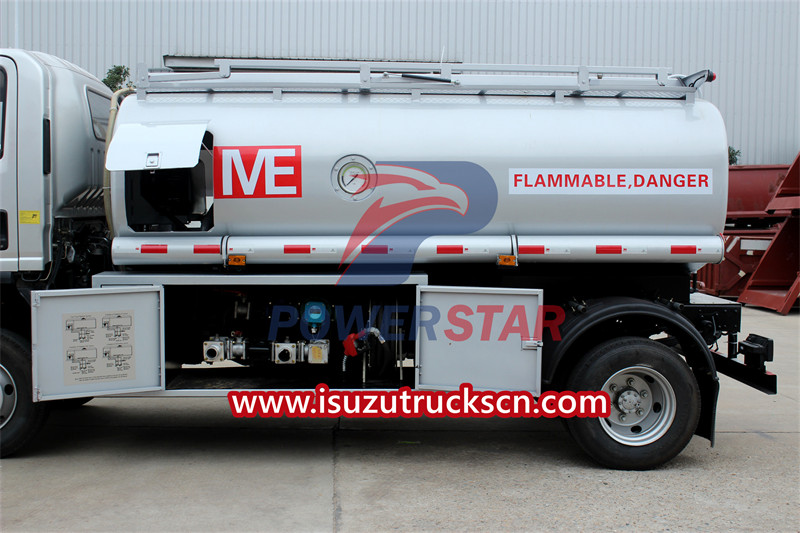

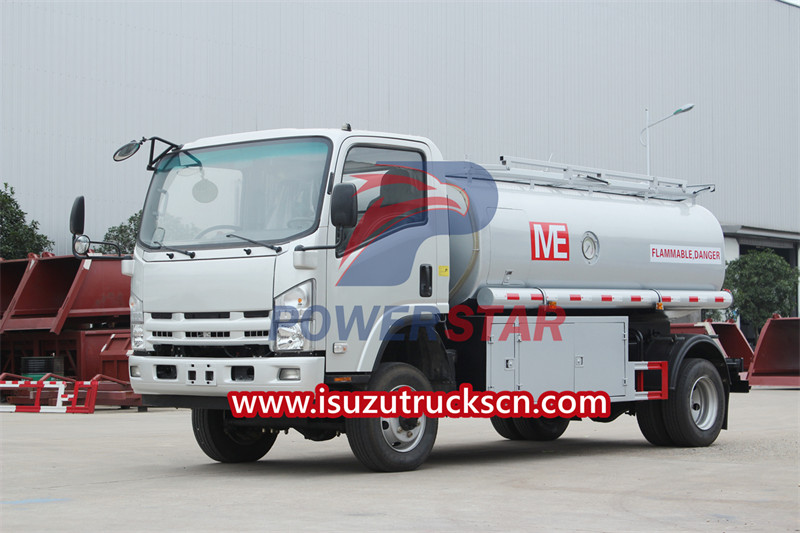

The Isuzu 700P diesel tanker truck realizes the dual functions of refueling and transportation through its powerful storage, transportation and refueling capabilities, as well as various intelligent control systems. Whether on urban highways or in remote areas, the Isuzu 700P fuel tanker can provide great convenience to our lives and work with its excellent performance and stability.
Work capacity:
8000 litersTruck model:
PT5080GJYEngine power:
190 HPEngine type:
4HK1-TC51Axle drive:
4×4Gear box:
MLD 6-speed manualRemarks:
ISUZU AWD chassis, fuel dispenser with large flow
ISUZU NPR fuel pump bowser is a special vehicle designed for refueling and transportation. It achieves the dual functions of refueling and transportation through a series of complex and sophisticated systems and equipment.

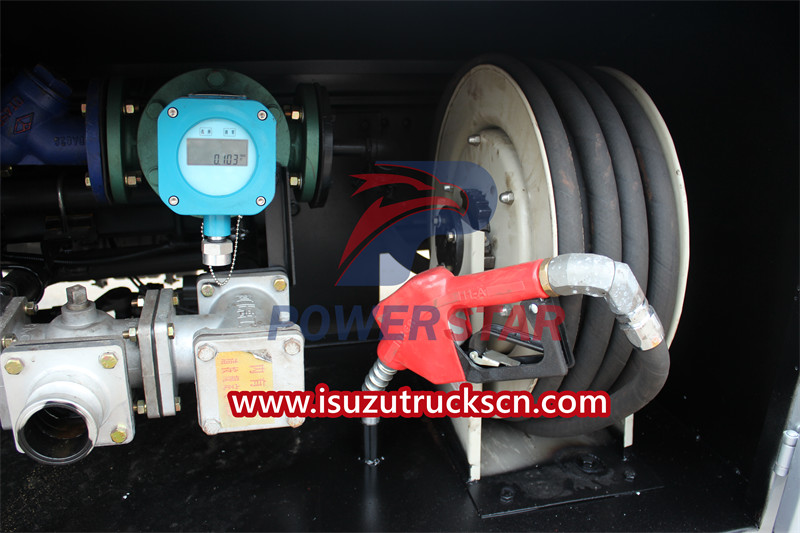

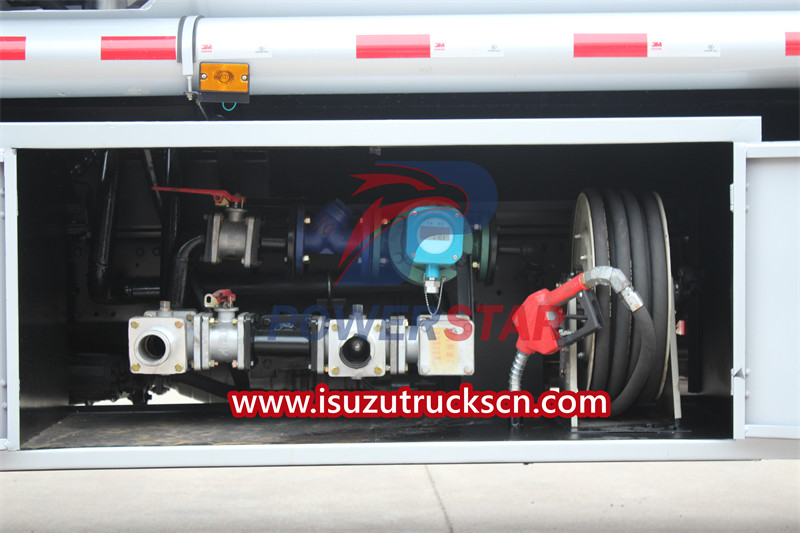

The core parts of the ISUZU fuel truck are the fuel tank and fuel pump. The oil tank is designed to be large enough to store a large amount of oil. At the same time, in order to ensure the cleanliness and safety of the oil, the oil tank is also equipped with filters and disinfection equipment. The oil pump is used to pump oil from the oil tank and transport it to the equipment or vehicles that need to be refueled through high pressure.

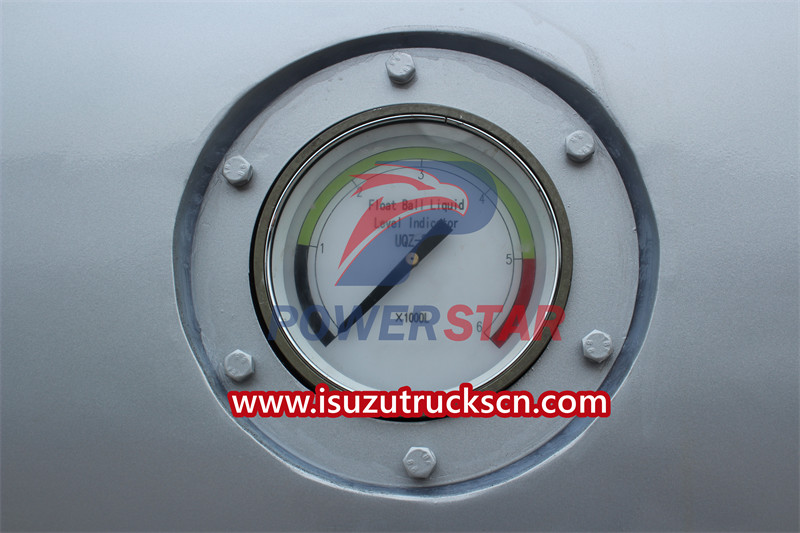

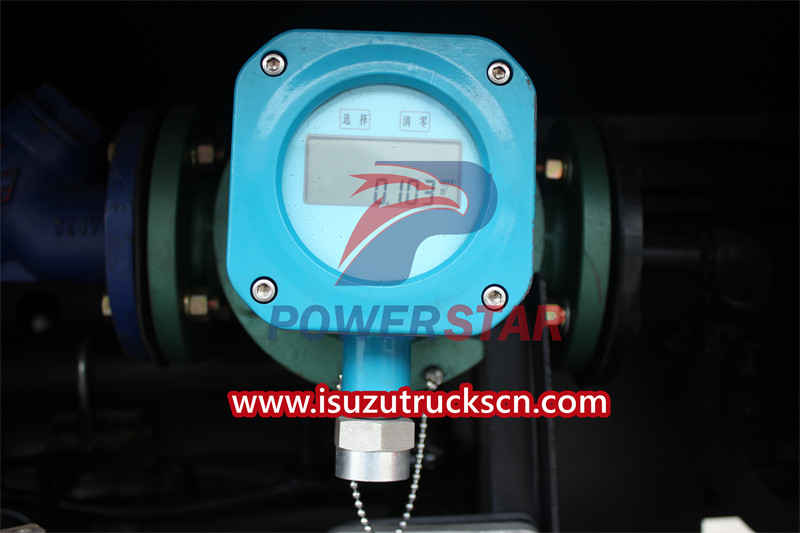

The ISUZU NPR refueling truck is also equipped with a variety of intelligent control systems, which can carry out refueling operations efficiently and safely. For example, the oil quantity control system can accurately control the amount of oil to prevent oil from overflowing; the pressure control system can ensure that the oil can be stably and safely transported to the destination under various circumstances; and the temperature control system can ensure that the oil Always maintain proper temperatures during transportation and refueling.
The chassis configuration of this fuel bowser is also excellent. It is equipped with a high-power engine and advanced suspension system to ensure that the vehicle can drive stably and quickly under various road conditions. In addition, the vehicle's carrying capacity is also very strong and can transport large amounts of fuel and other materials.
Product Specifications
|
ISUZU NPR Fuel Pump Bowser Specifications |
|
|
Chassis brand |
ISUZU |
|
Driving type |
LHD or RHD optional |
|
Gross vehicle weight |
11000 kg |
|
Curb weight |
4800 kg |
|
Payload |
7000 kg |
|
Wheelbase |
4175 mm |
|
Drive form |
4×4 |
|
Max speed |
80km/h |
|
Cabin |
3 seats, with A/C, ABS |
|

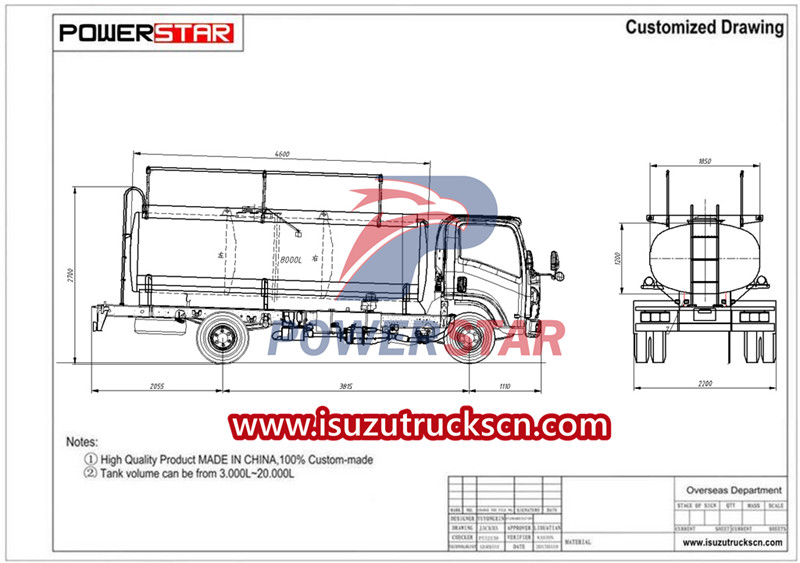

Overall dimension |
6980×2200×2700mm |
|
Tanker dimension |
4600×1850×1200mm |
|
Tanker material |
Carbon steel, Aluminum alloy ,Stainless steel is optional |
|
Engine brand |
ISUZU |
|
Engine model |
4HK1-TC51 |
|
Horsepower |
190HP |
|
Fuel type |
Diesel |
|
Displacement |
5193 ml |
|
Emission standard |
Euro 5 |
|
Gearbox |
MLD 6-speed, manual |
|
Tyres |
235/75R17.5 |
|
Tyre number |
6+1 pcs |
|
Braking system |
Air brake |
|
Electrical system |
24 voltage,7 wire harness, LED lights. |
|
Transport medium |
Gasoline, diesel ,oil, fuel |
|
Fuel tanker volume |
8000 liters |
|
Tanker material |
Carbon steel, 4mm thick |
|
Fuel pump |
China famous brand, 80YHCB-60 |
|
Flow |
60 m3/h |
|
Transported medium |
Gasoline, diesel ,oil, fuel |
|
Fuel dispenser |
China famous brand |
|
Painting |
With shot blasting and 4 layers painting, color is as required. |
ISUZU Fuel Tanker Material
When choosing the material of ISUZU fuel truck tank, you need to consider the following factors:
1. Corrosion resistance: The tank needs to be able to withstand the corrosion of oil, so it is necessary to choose a material with good corrosion resistance.
2. Strength and stability: The tank needs to bear the weight of the oil as well as the vibration and impact of the vehicle when driving, so it is necessary to choose a material with good strength and stability.
3. Sealing performance: The sealing performance of the tank directly affects the possibility of oil leakage, so it is necessary to choose materials with good sealing performance.
4. Cost: The prices of different materials vary greatly, so cost factors need to be considered when selecting tank materials.
5. Installation and maintenance: Tank installation and maintenance also need to be considered, as tanks made of some materials may be easier to install and maintain.
Isuzu portable fuel bowser is a special vehicle equipped with oil tank, oil pump, pipelines, refueling device, ancillary accessories and safety protection devices. This ISUZU tank truck is generally used to load flammable and explosive chemical dangerous goods, such as gasoline, diesel or kerosene and other light fuels.
