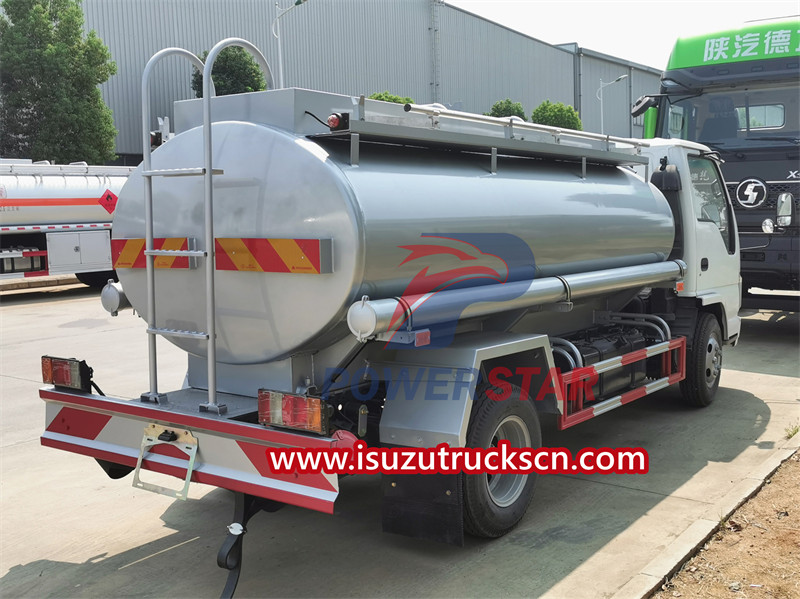

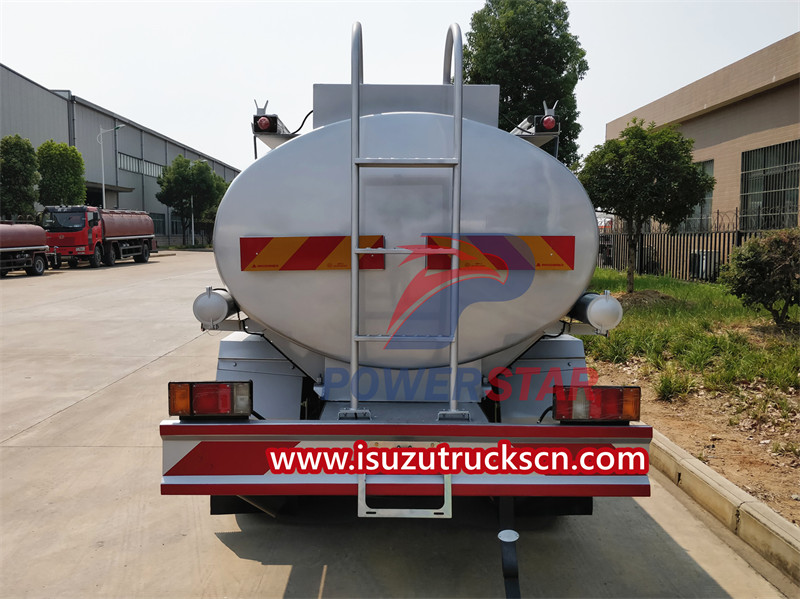

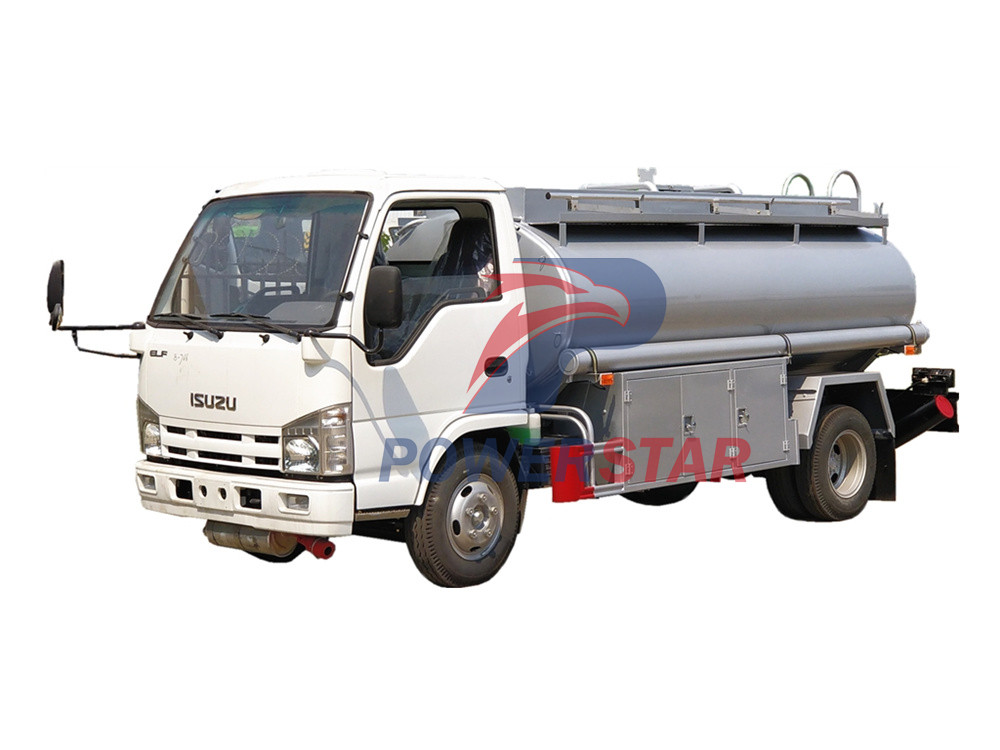

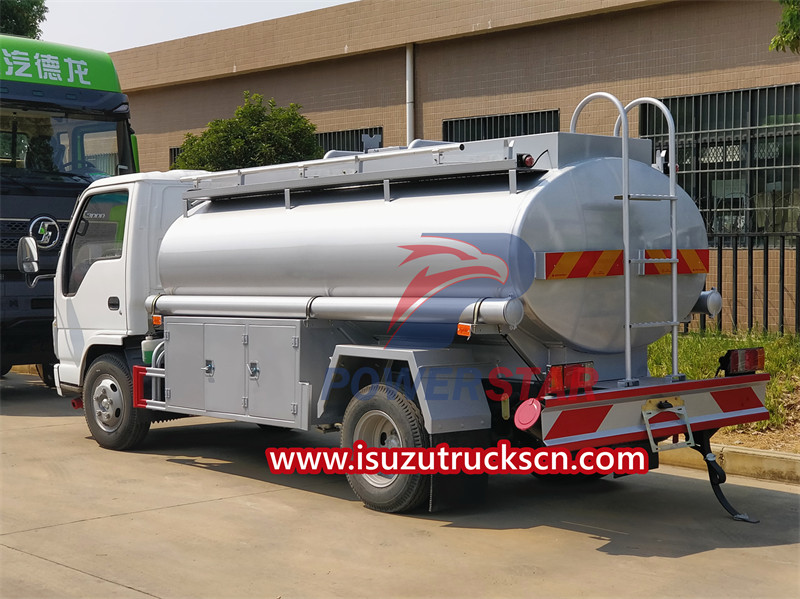

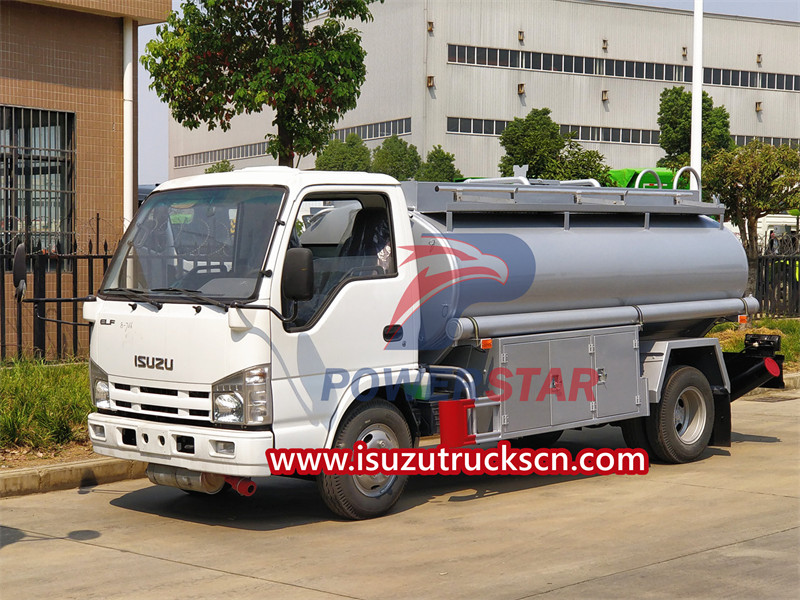

The Isuzu NKR fuel tanker truck is a small refueling equipment with powerful functions and excellent performance, designed to meet users' needs for high-quality, high-efficiency refueling trucks. It uses advanced technology and reliable design to ensure excellent performance while also paying attention to details and user experience. The small refueling truck has excellent fuel economy, which can effectively reduce users’ refueling costs and save users money. Excellent pump performance and advanced control system make the refueling process more convenient and efficient for users.
Work capacity:
4000 litersTruck model:
PT5040GJYEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
Compact structure, RHD model is optional
Isuzu small refueling truck is full of innovative thinking in design and configuration, aiming to provide users with an efficient and reliable small refueling equipment. This model adopts a sturdy and durable body structure, which is made of high-strength steel and has excellent rigidity and impact resistance, improving the safety and stability of the ride.
The ISUZU NKR mobile fuel tanker has a moderate body size and is suitable for operation in narrow road environments, allowing the driver to perform precise driving control. In terms of core components, the power system of the 100P small fuel truck uses an efficient engine. This engine has the characteristics of high efficiency, low noise and low emissions, and can provide stable power output and driving performance for the vehicle. The vehicle is also equipped with reliable suspension and braking systems to ensure smooth travel and safe driving in various road conditions.

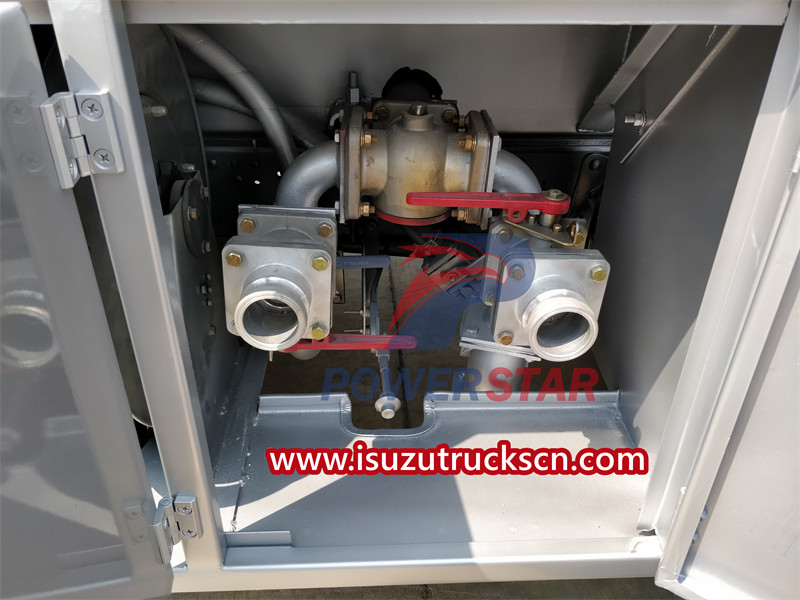

The ISUZU refueler truck is equipped with an advanced refueling system. Including core components such as oil tanks, pumps, and metering equipment to ensure that vehicles can complete refueling operations efficiently and accurately. The oil tank capacity is moderate and can meet the refueling needs of small vehicles. The pump performance is excellent and the refueling operation can be completed quickly. The vehicle is also equipped with an advanced refueling control system to ensure the safety and accuracy of the refueling process. The durability, safety and efficiency of this model have been fully considered, aiming to provide users with a convenient and efficient refueling service.
Product Specifications
|
ISUZU NKR Mobile Fuel Tanker Technical Parameters |
|
|
Gross Vehicle Weight (kg) |
7300 |
|
Curb Weight (kg) |
3800 |
|

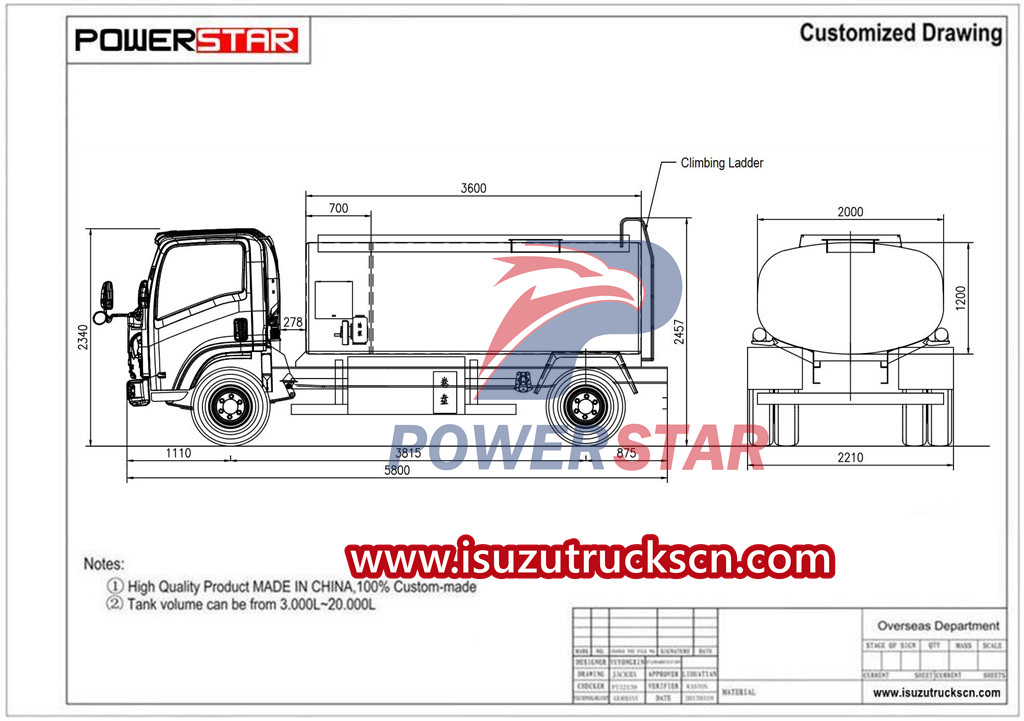

Overall Dimensions (mm) |
5900×2000×2400 |
|
Tank Volume(L) |
4000L |
|
Tank Thickness(mm) |
4 |
|
Tank Body Material |
Q235 Carbon Steel |
|
Anti-wave plate |
Factory standard |
|
Operating Ambient Temperature(°C) |
-20~45 |
|
Manhole cover |
European standard |
|
Emergency shutoff valve |
Factory standard |
|
Oil gas recovery unit |
Factory standard |
|
Anti-overflow alarm device |
Factory standard |
|
Fuel loading method |
Top filling, bottom filling is optional |
|
Fuel pump brand |
China famous |
|
Fuel pump flow(m³/h) |
30 |
|

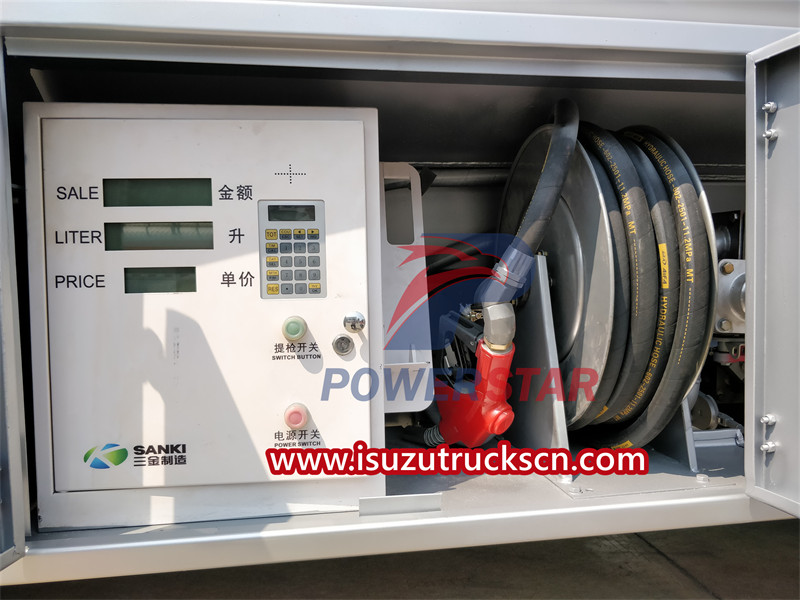

Dispenser |
China famous brand |
|

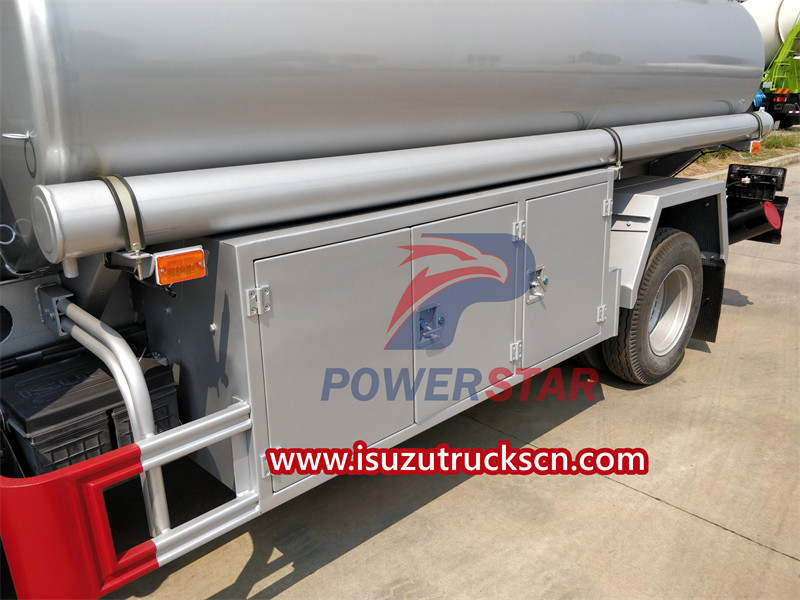

Toolbox |
Factory standard |
|
Maximum Speed(km/h) |
80 |
|
Chassis Technical Parameters |
|
|
Brand |
ISUZU |
|
Type of fuel |
Diesel |
|
Engine model |
4KH1CN5LS |
|
Engine power(KW/HP) |
72 KW/98HP |
|
Displacement (ml) |
2999 |
|
Emission standard |
Euro 5 |
|
Brake |
oil brake |
|
Front Axle/Rear Axle(kg) |
2500/4800 |
|
Gearbox |
5 Speed, Manual Transmission |
|
Front/rear wheel track (mm) |
1504/1425 |
|
Number of Axles |
3 |
|
Wheelbase (mm) |
3360 |
|
Number of Tires |
6+1 |
|
Tyre Specification |
7.00R16 |
What is the European standard manhole cover of fuel tanker truck?
The European standard manhole cover of ISUZU fuel truck is a configuration whose function is to ensure the safety and reliability of the tank truck during transportation and refueling. The European standard cover has a variety of functions and characteristics. The following is a detailed explanation of its main functions:
1. Breathing function: It can be set to different pressure parameters as needed to ensure reliable breathing function. When the pressure inside the tank is higher than the external pressure within a certain range, the breathing valve will automatically open to allow the gas inside and outside the tank to pass through to reduce the excessive pressure difference between the inside and outside. On the contrary, when the pressure inside the tank is lower than the external pressure within a certain range, the breathing valve is closed to maintain appropriate pressure in the tank to avoid volatilization and waste of oil.
2. Emergency ventilation and overflow prevention: When an oil tank truck has an accident and is in a high-temperature environment, the emergency ventilation function of the European standard manhole cover can effectively release the pressure inside the tank, thereby preventing the tank from exploding. In addition, when the pressure inside the tank exceeds a certain range of the external pressure, the emergency exhaust device starts working, and its maximum exhaust volume reaches a certain amount, which helps to prevent the occurrence of oil tanker explosion accidents. The anti-overflow and dumping design ensures that when the tanker truck overturns, the anti-overflow stopper in the breathing valve automatically seals the channel to prevent danger caused by oil leakage.
3. Two-stage opening: After the tank lid is fully opened, the cover can first release the pressure inside the tank, making refueling safer.
4. Auxiliary openings: The European standard manhole cover has three auxiliary openings, which can be used to install oil measuring holes, anti-overflow probes, oil and gas recovery valves, etc.
5. High safety: The design and manufacturing of the cover comply with relevant safety standards, ensuring that sealing and safety performance can be maintained under various circumstances.
Isuzu portable fuel bowser is a special vehicle equipped with oil tank, oil pump, pipelines, refueling device, ancillary accessories and safety protection devices. This ISUZU tank truck is generally used to load flammable and explosive chemical dangerous goods, such as gasoline, diesel or kerosene and other light fuels.
