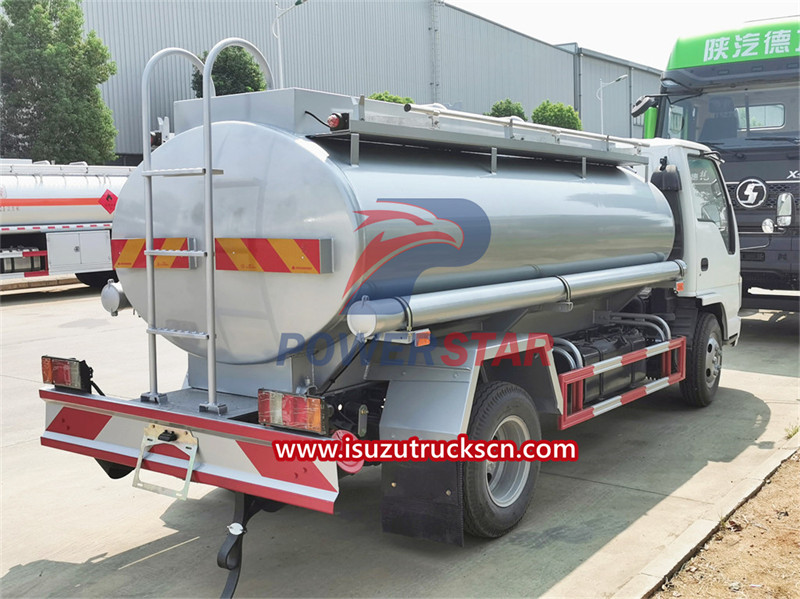

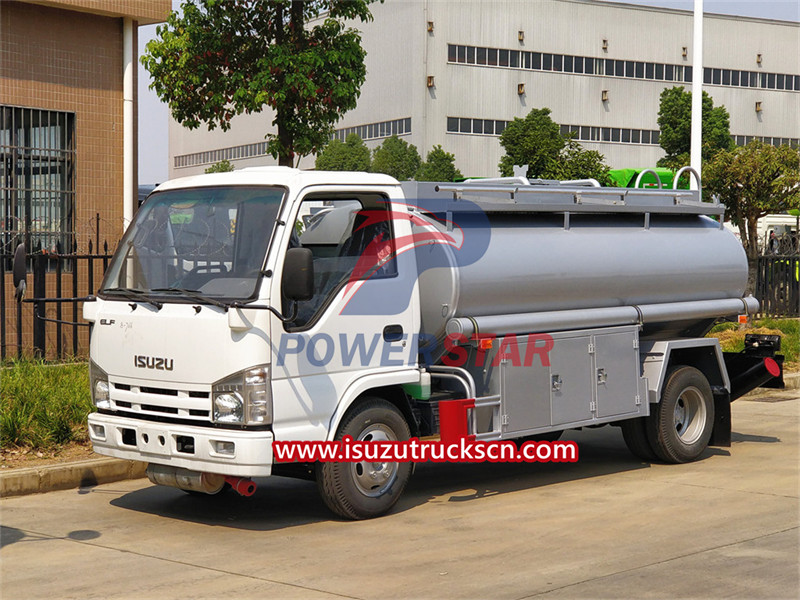

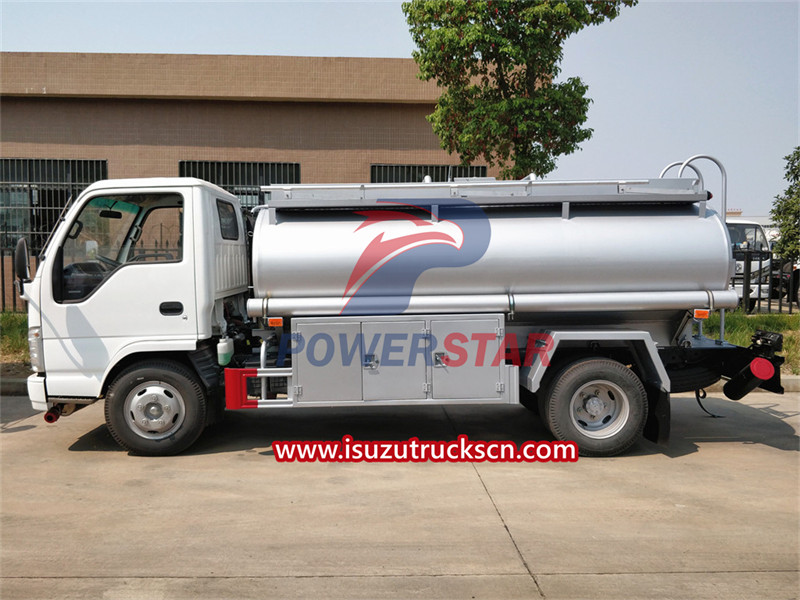

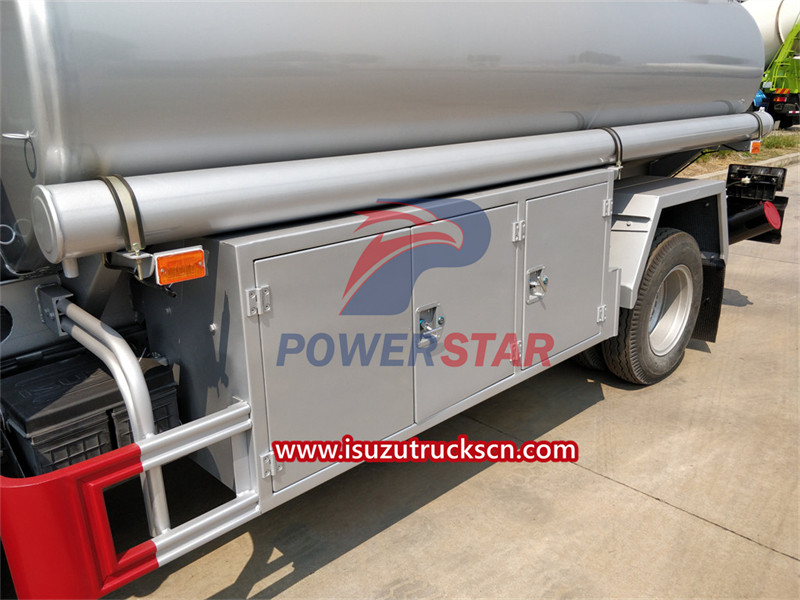

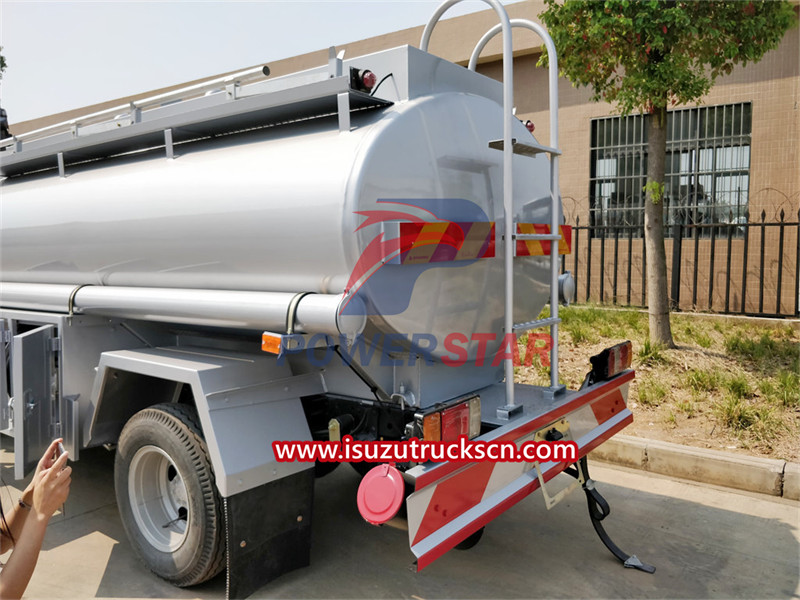

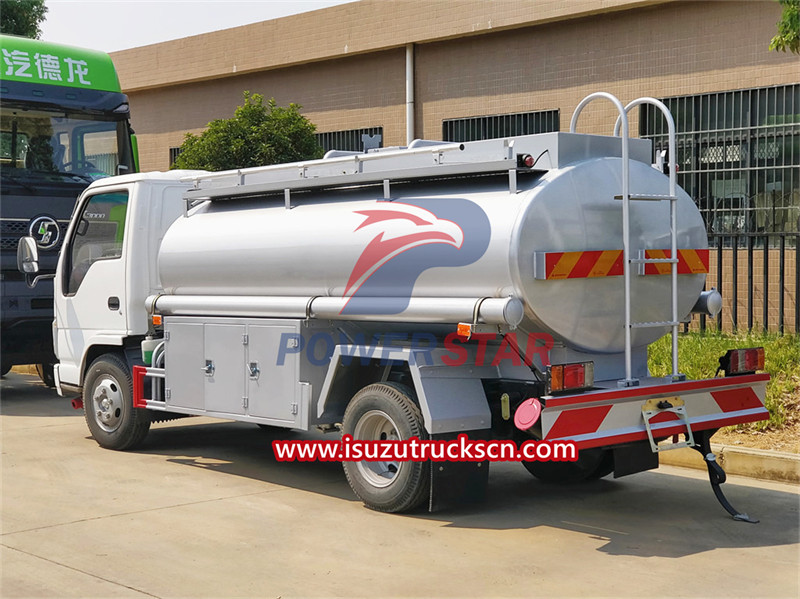

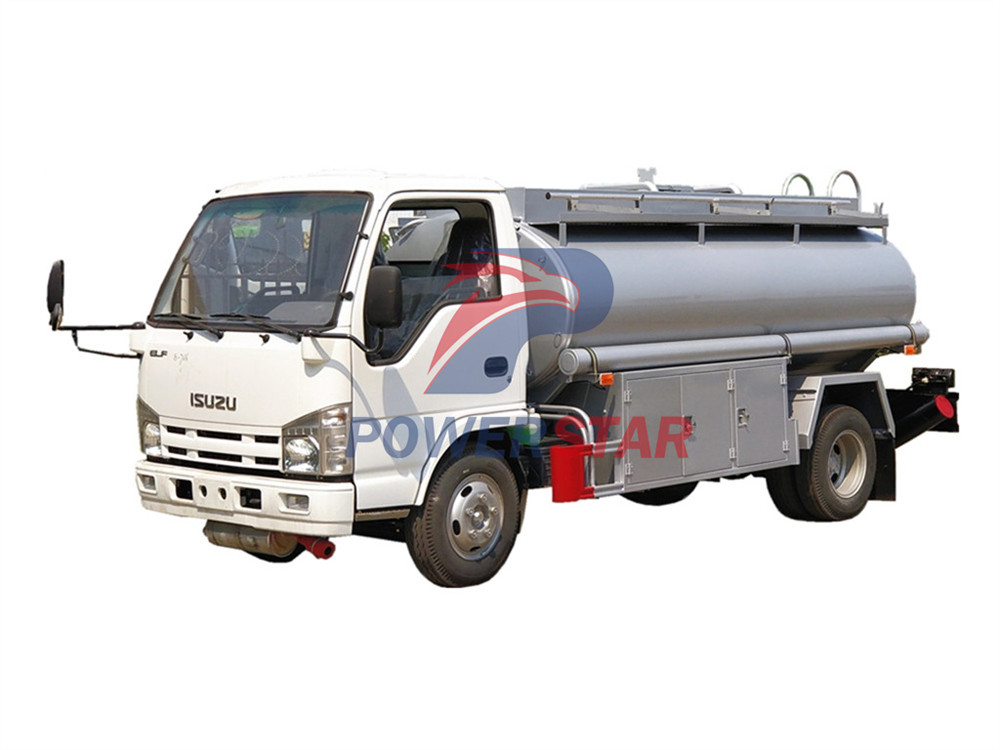

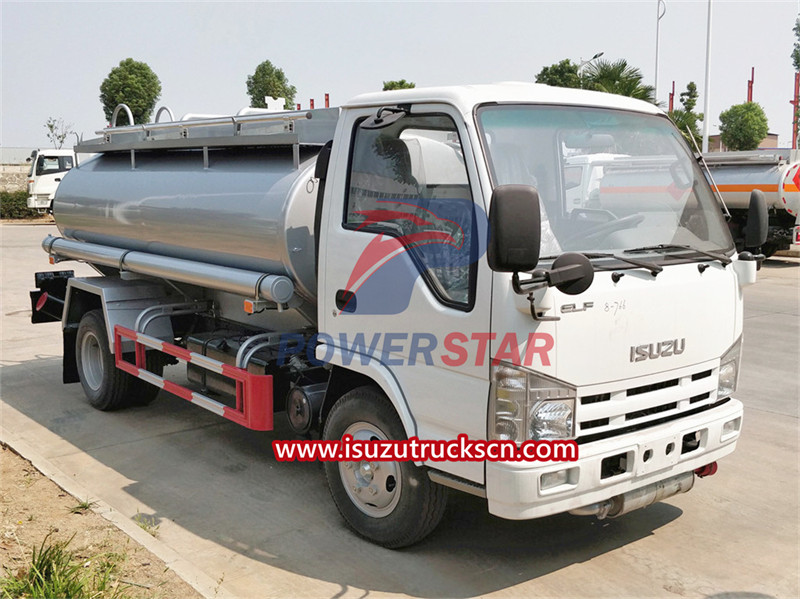

The Isuzu NKR refueling tanker truck is an efficient and reliable vehicle specially designed for fuel transportation. It is equipped with Isuzu 4KH1 diesel engine, which has excellent power and fuel economy. The overall size of the vehicle is compact, making it suitable for flexible operation on urban roads and narrow construction sites.
Work capacity:
5000 LTruck model:
PT5730GJY5Engine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speedRemarks:
ISUZU mobile fuel truck with dispenser
The Isuzu NKR refueling tanker truck is a light truck specially designed for fuel transportation. This vehicle is based on the Isuzu ELF 100P (NKR) chassis and has been specially modified and optimized to meet the needs of fuel trucks. Isuzu fuel truck has the following features:
Large-capacity fuel tank design: The Isuzu NKR refueling tanker truck is equipped with a 5000L fuel tank, which can store a large amount of fuel, providing sufficient fuel security for long-distance transportation or construction site operations. The fuel tank is reasonably designed to ensure stability and safety during transportation.

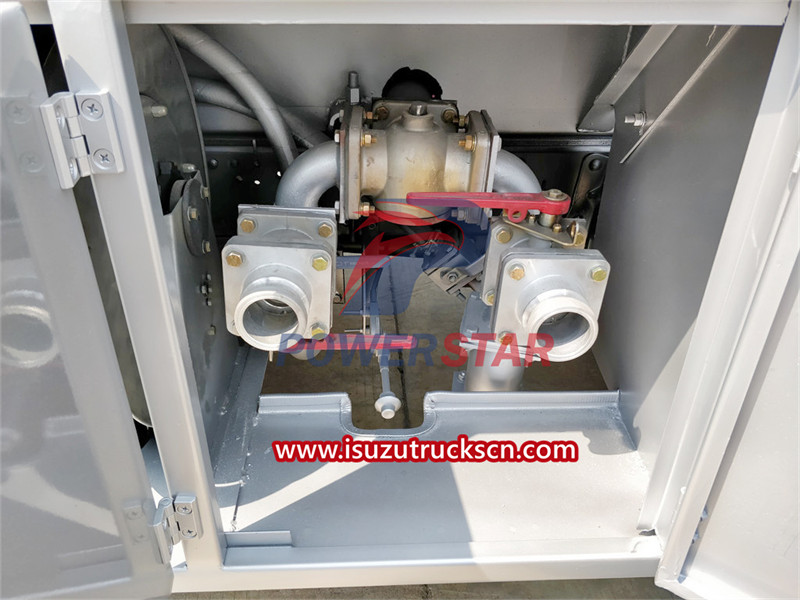

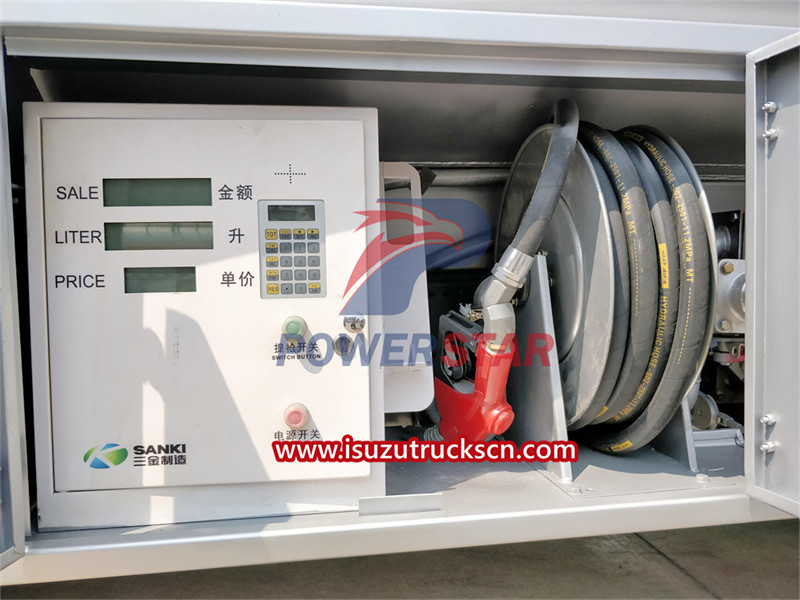

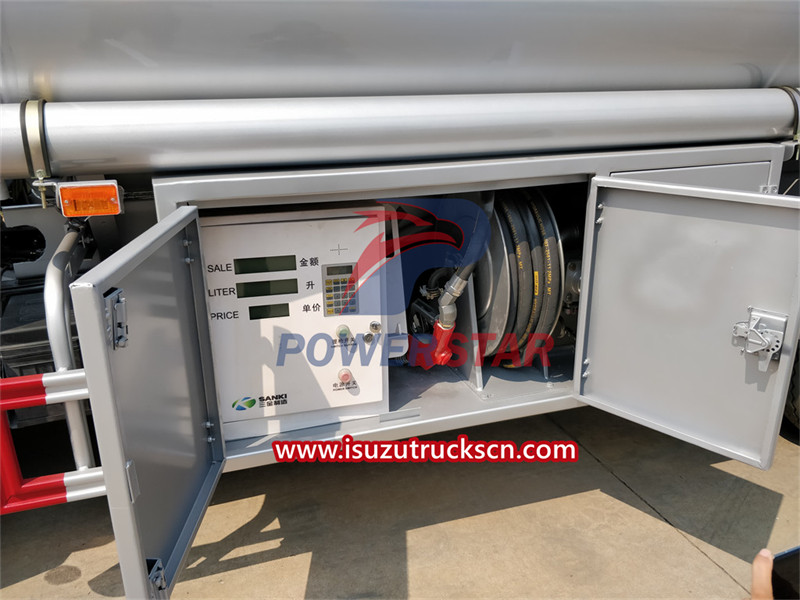

Advanced refueling system: This model adopts an advanced refueling system that can quickly and accurately refuel the vehicle or equipment. The refueling nozzle is reasonably designed and easy to operate, and can meet the refueling needs of different models.
Powerful power system: Isuzu NKR refueling bowser is equipped with a powerful ISUZU engine that can provide sufficient power and torque to ensure smoothness and efficiency during transportation and refueling.

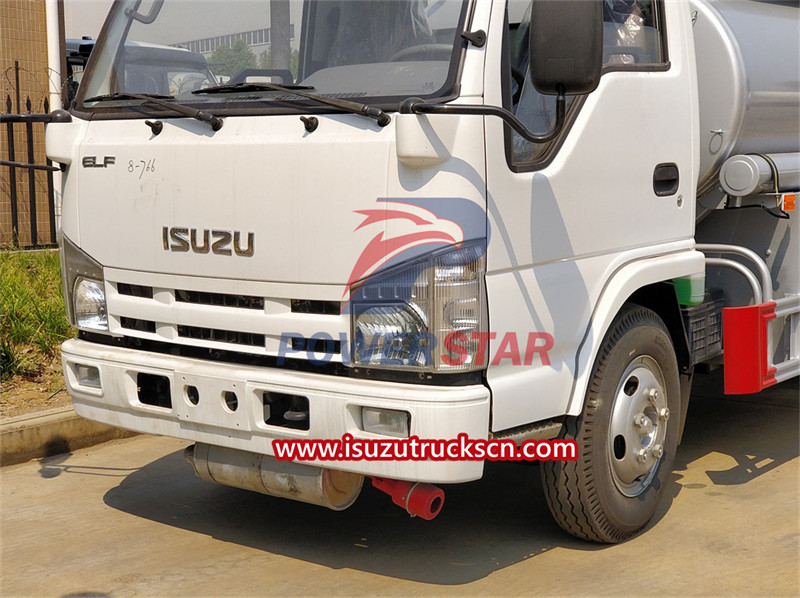

Comfort and safety: The cab design of Isuzu NKR trucks have been widely recognized, with excellent comfort and space. On this basis, Isuzu NKR fuel tank truck has also added a variety of safety configurations, such as ABS anti-lock braking system, EBD electronic brake force distribution system, etc., to provide drivers and passengers with more comprehensive safety protection.
Flexibility and convenience: The Isuzu NKR fuel truck has a small body size and light weight, making it excellent on urban roads and narrow construction sites. At the same time, it also has good passability and can adapt to various complex road conditions and operating environments.
Product Specifications
|
Items |
Descriptions |
Specifications |
|
General |
Vehicle Name |
ISUZU NKR fuel truck |
|
Vehicle Brand |
POWERSTAR |
|
|
Vehicle Model |
PT5160GJY |
|
|
Drive Type |
4X2 |
|
|
Gross Vehicle Weight(kg) |
7300 |
|
|
Curb Weight (kg) |
3450 |
|
|
Overall Dimensions L*W*H(mm) |
5995*1995*2450 |
|
|
Engine |
Engine Model |
4KH1CN5LS |
|
Engine Brand |
ISUZU |
|
|
Fuel Type |
Diesel |
|
|
Power |
98 hp |
|
|
Displacement |
2999 ml |
|
|
Emission Standard |
Euro V |
|
|
Engine Type |
4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
|
|
Chassis |
Chassis Brand |
ISUZU |
|
Chassis Model |
QL1070 |
|
|
Tire No. |
6 |
|
|
Tire Specification |
7.00R16 |
|
|
Wheel Base |
3360 |
|
|
Axle No. |
2 |
|
|
Gear Box |
5 speed forward, manual |
|
|
Steering Type |
Left hand drive with power-assisted |
|
|
Tank Specification |
Tank Volume |
5000L |
|
Tank Material |
High Tensile Carbon Steel |
|
|
Tank Shape |
Elliptic |
|
|
Thickness of tank body |
5 mm |
|
|
Thickness of tank cover |
5 mm |
|
|
Thickness of baffle |
4.5 mm |
|
|
Compartment number |
1 |
|
|

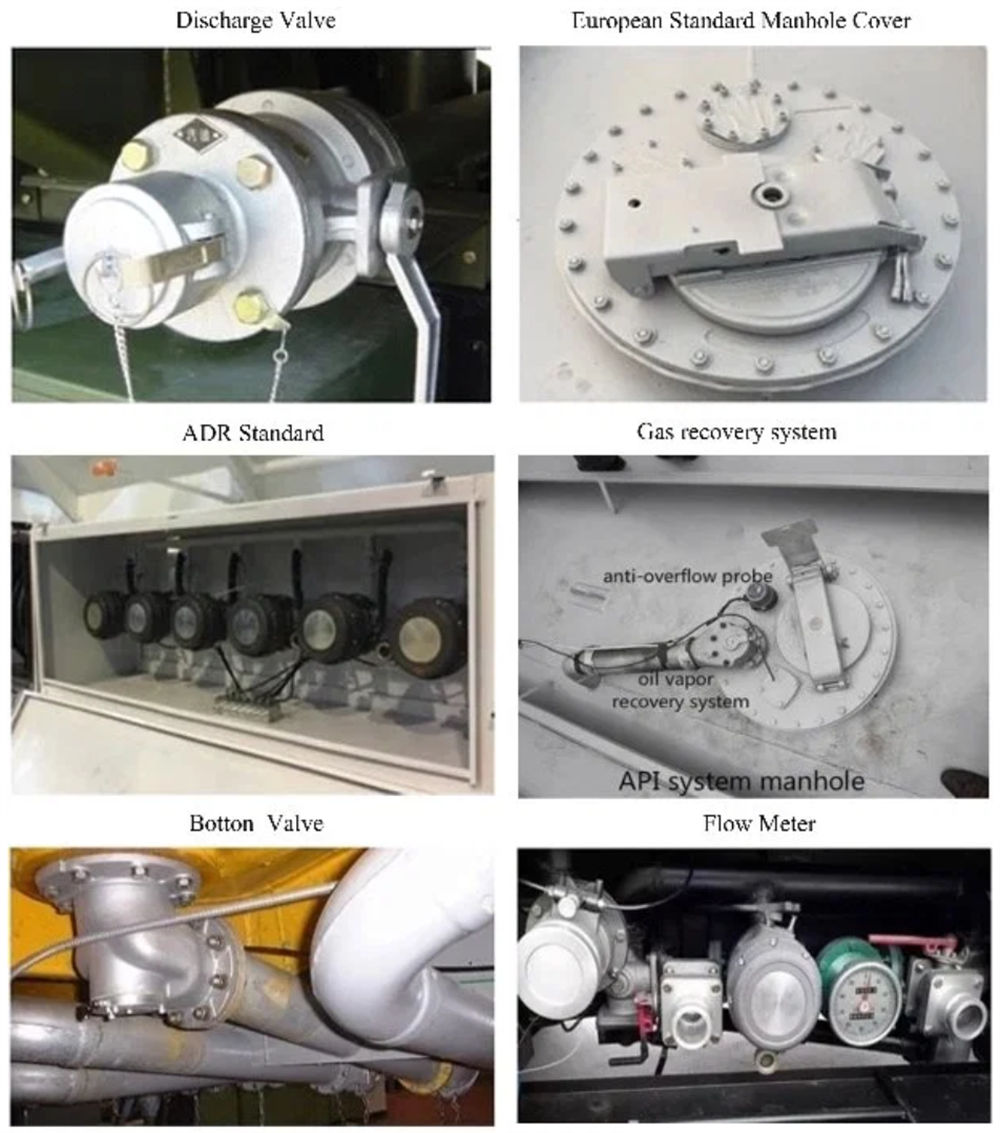

Manhole |
European Standard Aluminum Manhole |
|
|
Other Specification |
Air Conditioner |
Standard |
|
Discharge hose |
2 units |
|
|
Ladder |
1 unit |
|
|
Fire extinguisher |
2 units |
|
|
Flow Meter |
Hefei #50 |
|
|
Pump |
SANJIANG YOJE 60/30 Aluminium alloy pump |
Product Advantages
With its excellent performance and advanced technology, the Isuzu 100P small fuel truck shows the following significant advantages:
1. Efficient fuel delivery capability: Isuzu NKR fuel trucks have excellent fuel delivery capabilities and can quickly and accurately replenish fuel for all types of vehicles. They are suitable for a variety of application scenarios, such as construction sites, farms, logistics centers, etc.
2. Compact and flexible body design: This model adopts a compact body design, which makes it easy to operate in small spaces and is suitable for busy streets and restricted areas in cities.
3. Excellent driving experience: The Isuzu 100P small fuel truck is equipped with a comfortable driving seat and a humanized operation interface, providing drivers with an excellent driving experience, allowing them to stay comfortable and focused even during long hours of work.
4. Reliable durability: The Isuzu brand is famous for its excellent durability, and the 100P small fuel truck also inherits this advantage. After strict quality control and durability testing, the vehicle is able to operate stably in harsh working environments and is durable.
5. High fuel efficiency: This model adopts advanced fuel system and energy-saving technology to effectively reduce fuel consumption and operating costs, and meets the requirements of modern society for energy conservation and emission reduction.
6. Multiple safety protection measures: Isuzu 100P small fuel truck is equipped with multiple safety protection measures, such as anti-skid braking system, collision protection device, etc., designed to protect the safety of the driver and passengers to the greatest extent.
 |
 |
 |
 |
Isuzu portable fuel bowser is a special vehicle equipped with oil tank, oil pump, pipelines, refueling device, ancillary accessories and safety protection devices. This ISUZU tank truck is generally used to load flammable and explosive chemical dangerous goods, such as gasoline, diesel or kerosene and other light fuels.
