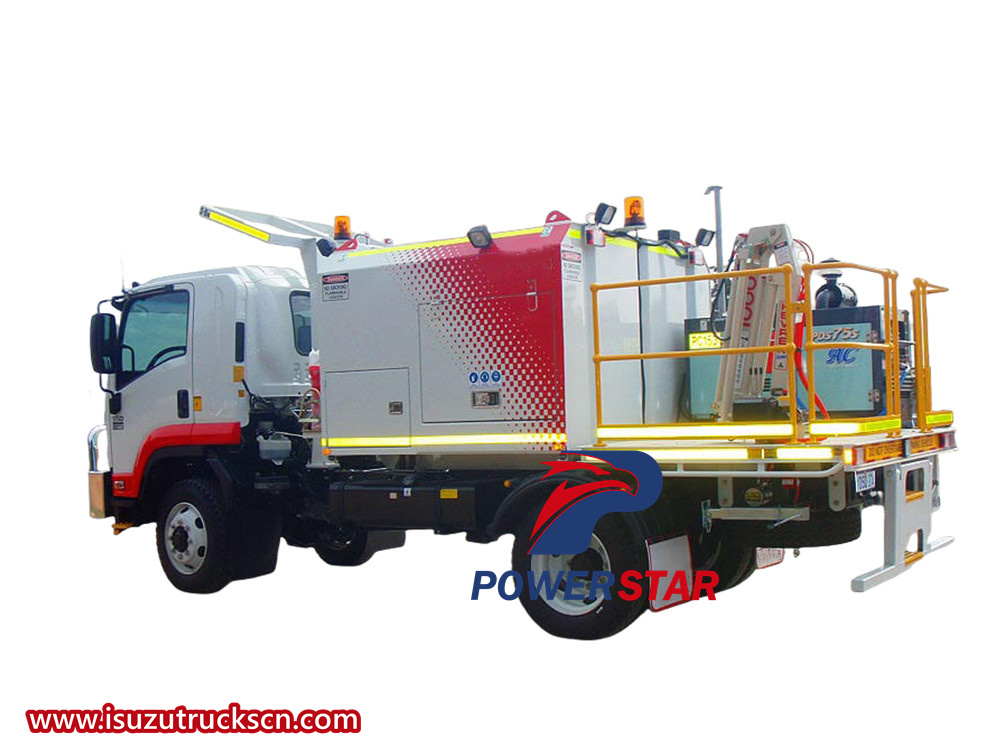

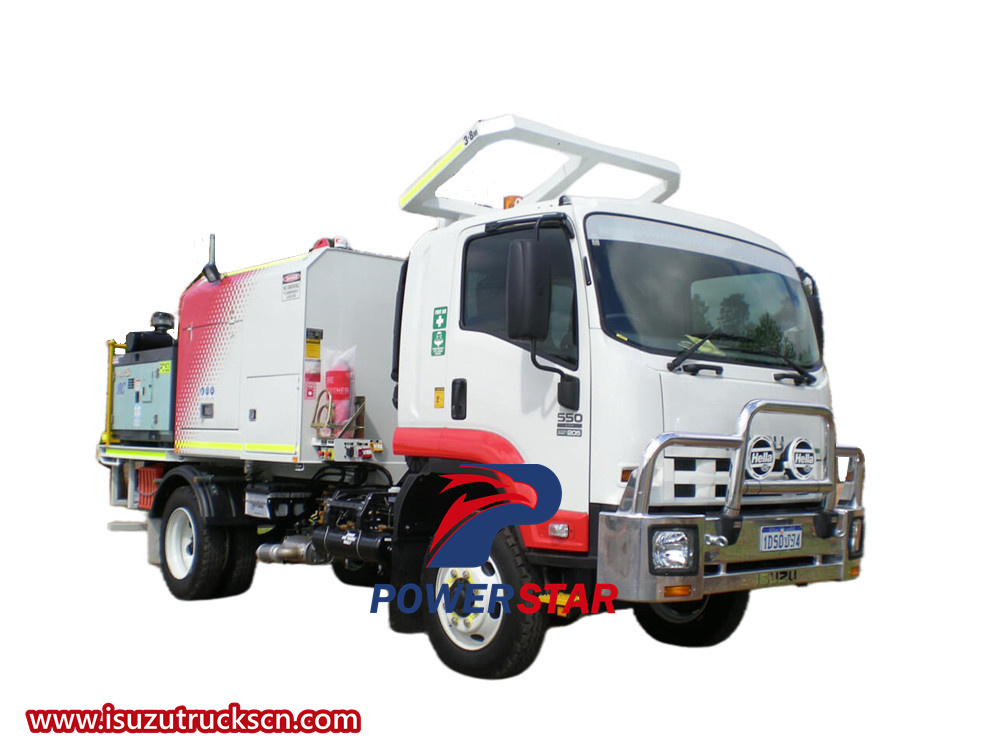

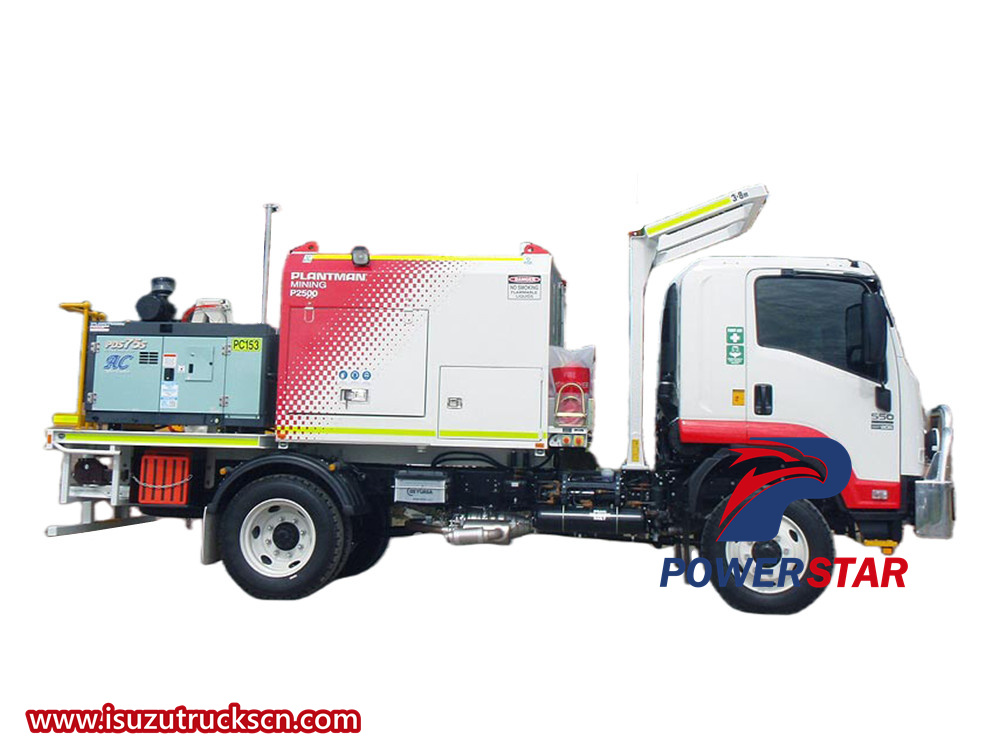

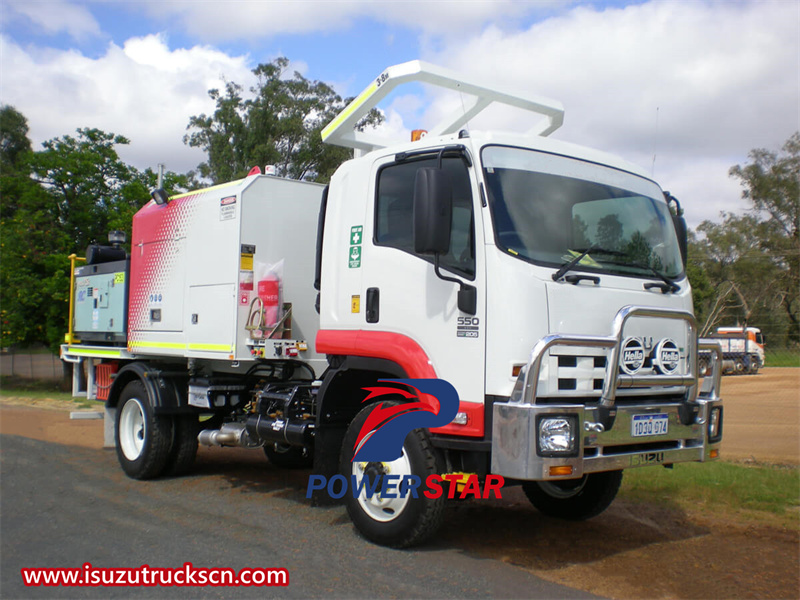

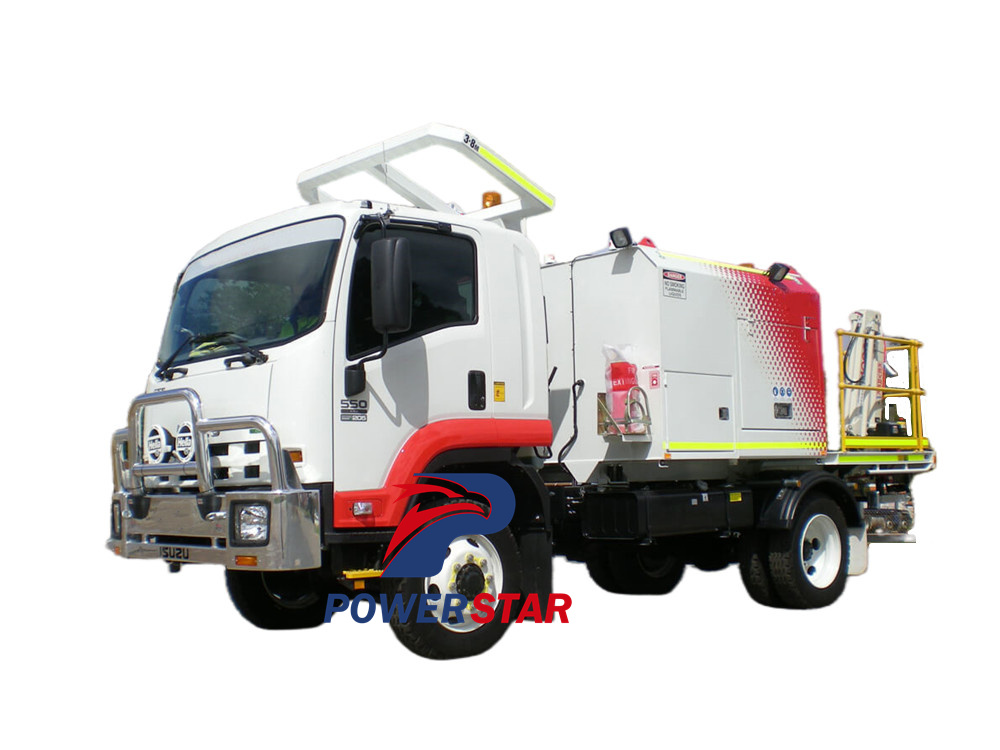

The Isuzu NPR 5CBM fuel and lubrication service vehicle is equipped with a large-capacity fuel tank and lubricant storage system, which can meet the fuel and lubricant needs of various vehicles and equipment. The vehicle has flexible configuration and can be customized according to customer needs to meet the needs of different industries and application scenarios. Its powerful power and convenient filling system enable the fuel and lubricant filling tasks to be completed quickly and accurately at various service sites, improving service efficiency and quality.
Work capacity:
5CBMTruck model:
PT5110GZYEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X2,LHDGear box:
MLD 6-speed,manualRemarks:
5000L fuel tank for serviceIsuzu NPR 5CBM fuel lube service truck also called ISUZU NPR 5cbm service truck fuel and lubrication,Isuzu 5cbm lubrication service truck,Isuzu fuel lubrication oil supply service truck,Isuzu 5cbm fuel and lubrication service truck,Isuzu 5cbm lube maintenance lubrication oil service truck.
The Isuzu NPR 5CBM fuel lube service truck is a versatile and reliable vehicle designed specifically for the demanding needs of the automotive and industrial sectors. It embodies a perfect blend of power, durability, and functionality, making it an indispensable asset for any fleet or workshop that requires efficient fuel and lubricant delivery services.
Features：
★ lsuzu chassis, sturdy and durable, perfect performance
★ lsuzu engine, powerful power, reliable performance, no overhaul for 100.000 kilometers.
★ Efficient lubrication system
★ Tank capacity is customizable
|
Isuzu 5 cbm fuel lubrication service truck |
|||
|
General |
Brand |
Isuzu |
|
|
GVW(kg) |
10550 |
||
|
Curb weight(kg) |
5500 |
||
|
Wheelbase(mm) |
3815mm |
||
|
Dimensions(mm) |
6980X2460X2750 mm |
||
|
Front/Rear Axle loading(kg) |
4000/7000 kg |
||
|
Wheel track (front/rear) (mm) |
1680/1650 mm |
||
|
Front/Rear overhang(mm) |
1110/2055 mm |
||
|
Max. driving speed(km/h) |
110 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
235/75R17.5 |
||
|
Transmission |
Manual type,MLD 6-speed |
||
|
Cab |
It can accommodate three people. With Air Conditioner |
||
|
|
Brand |
Isuzu |
|
|
Model |
4HK1-TCG61 |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
5193 ml |
||
|
Power(kw) |
140kw |
||
|
Horsepower(HP) |
190HP |
||
|
Cylinder type |
Inline 4 cylinder |
||
|
Emission standard |
Euro VI |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(cbm) |
5cbm |
|
|
Tank material |
Tank material:Q235 high tensile strength steel. |
||
|
Thickness(mm) |
Side 5 Bottom 6 |
||
|
Baffle |
1 No,4 mm carbon steel |
||
|
Manhole cover |
1 manhole cover, ∮500mm 1 set with breather valve |
||
|
Bottom Valve |
1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set ∮ discharging valve |
||
|
Handrail |
Two sides |
||
|
Ladder |
At rear of tank |
||
|
Painting |
Color and design as customer's requirement |
||
The Isuzu NPR 5CBM fuel lube service truck is a highly capable and reliable vehicle that offers a wide range of benefits to operators in the automotive and industrial sectors. Its sturdy construction, powerful engine, and spacious cargo area make it an ideal choice for fuel and lubricant delivery services, while its safety features and low maintenance requirements ensure that it remains a reliable and cost-effective asset for years to come. Whether you're looking to improve the efficiency of your workshop or expand your fleet of service vehicles, the Isuzu NPR 5CBM is definitely worth considering.
Design and Construction
At the heart of the Isuzu NPR 5CBM lies its rugged construction, built to withstand the rigors of daily use and the challenges of all terrains. The truck body is constructed from premium materials to ensure durability and longevity, and the design prioritizes safety and functionality.
The exterior design of the Isuzu NPR 5CBM is sleek and functional, with clean lines and an aerodynamic profile that helps improve fuel efficiency. The truck’s size and weight distribution are carefully calibrated to optimize handling and maneuverability, making it easy to navigate tight spaces and crowded work environments. Additionally, the truck’s cab is designed for operator comfort, with ergonomic controls and ample legroom, ensuring drivers can stay focused and productive during long shifts.
Power and Performance
Powering the Isuzu NPR 5CBM is a reliable and efficient diesel engine that provides ample torque and horsepower for various fuel and lube delivery tasks. This engine is renowned for its durability and low maintenance requirements, ensuring that the truck remains operational for extended periods without interruption. The engine is mated to a smooth-shifting transmission that allows for seamless acceleration and deceleration, further enhancing the truck's overall driving experience.
When it comes to fuel economy, the Isuzu NPR 5CBM excels, thanks to its advanced engine technology and aerodynamic design. This allows the truck to travel longer distances on a single tank of fuel, reducing operational costs and minimizing the environmental impact of frequent fuel stops.
Fuel Storage and Transfer System
Equipped with a capacious fuel tank, the ISUZU NPR 5cbm service truck fuel and lubrication facilitates extended onsite operations without the need for frequent refueling. The tank's design prioritizes safety, ensuring secure storage and efficient distribution of fuel. The integrated transfer system delivers fuel with precision, minimizing wastage and maximizing operational efficiency.

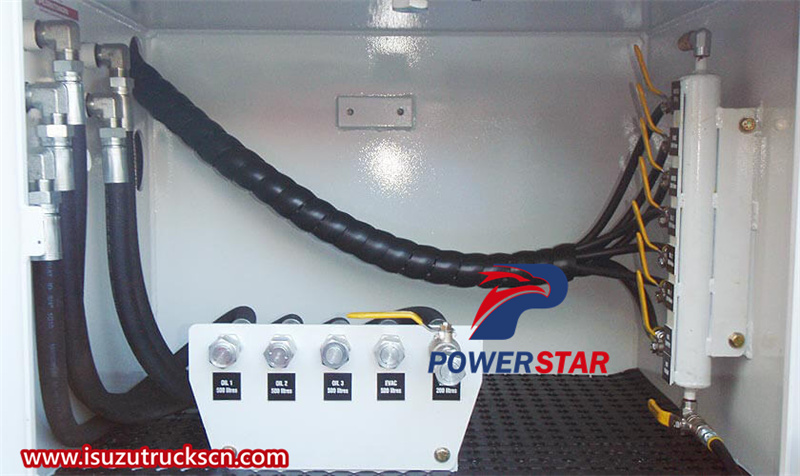

Lube Service Compartment
The lube service compartment within the truck is ingeniously crafted to accommodate a diverse array of lubricants and tools essential for equipment maintenance. Strategically organized storage spaces ensure easy access to lubricants, grease guns, and other service essentials, streamlining maintenance procedures and minimizing downtime. The compartment's layout is ergonomically optimized, enhancing the workflow of service technicians and promoting operational efficiency.
Dispensing Systems
The NPR 5CBM Service Truck features cutting-edge dispensing systems tailored for precise and controlled lubricant distribution. These systems are engineered to deliver specific volumes of lubricants with accuracy, ensuring optimal equipment performance and longevity. The dispensing units are user-friendly, incorporating intuitive controls that enable service technicians to efficiently carry out maintenance tasks with precision.
Monitoring and Control Mechanisms
Advanced monitoring and control mechanisms are integrated into the service truck to empower operators with real-time insights into fuel and lubricant levels. Digital displays provide clear and accurate information, enabling prompt decision-making and facilitating proactive maintenance interventions. The system's diagnostics capabilities enhance operational efficiency by identifying issues preemptively, thereby minimizing downtime and optimizing service delivery.
Versatility and Customization
One of the key strengths of the Isuzu 5CBM fuel lubrication service truck is its versatility. The truck's modular design allows for easy customization to meet the specific needs of different operators and industries. Whether it's adding additional fuel tanks, upgrading the pumping system, or integrating specialized equipment for specific fluids, the NPR 5CBM can be tailored to suit a wide range of applications.
This versatility is particularly useful for operators who need to deliver multiple types of fluids or serve multiple customers with varying requirements. By customizing the truck to meet these specific needs, operators can improve their efficiency, reduce downtime, and ultimately increase their profitability.

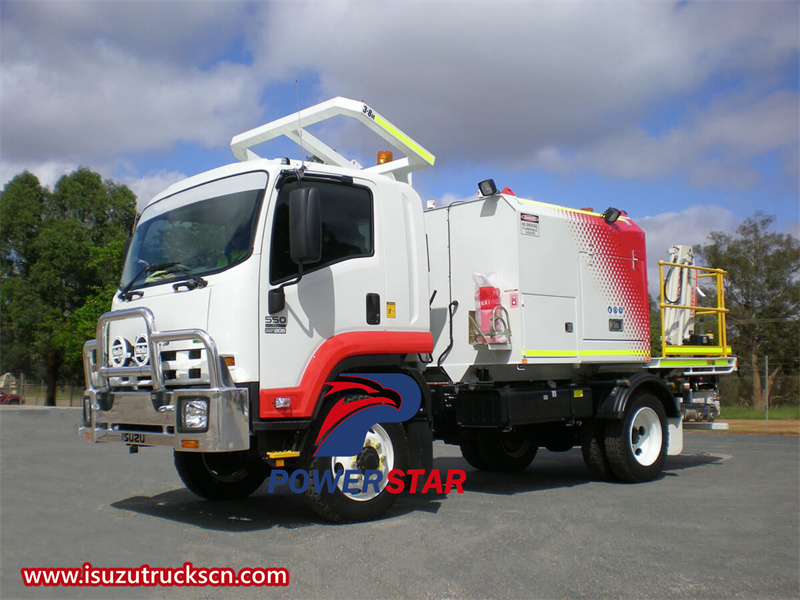

Isuzu 5cbm lube maintenance lubrication oil service truck
Fuel tank

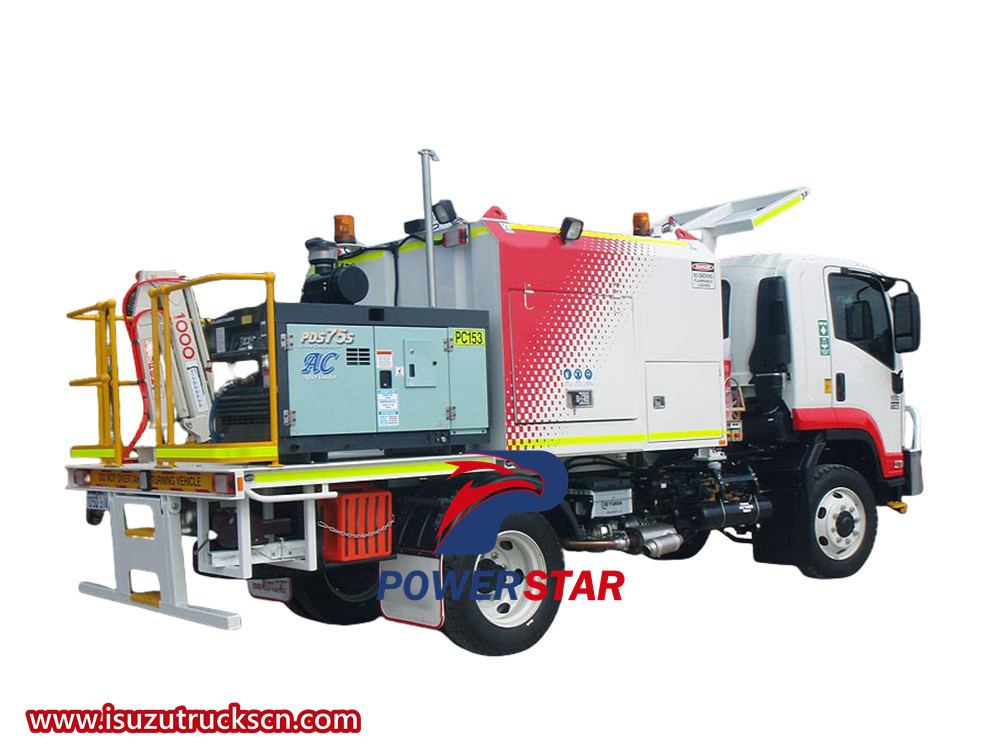

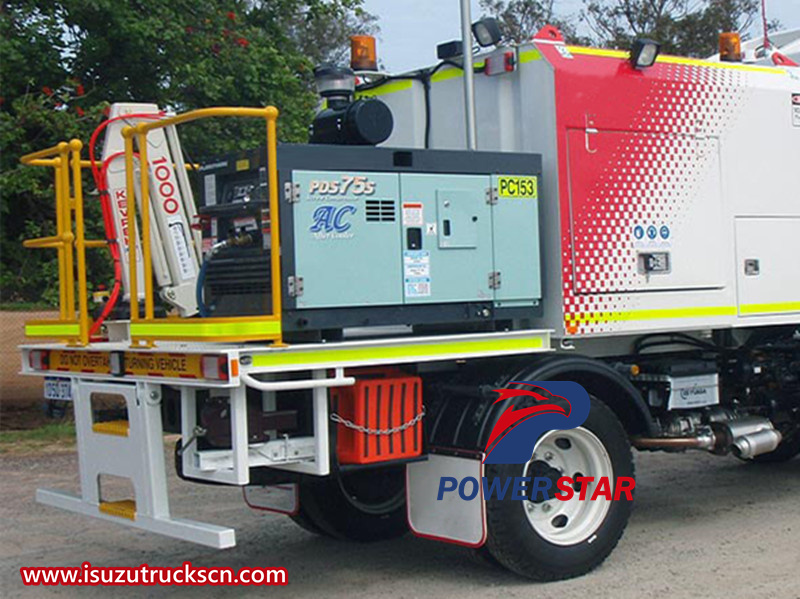

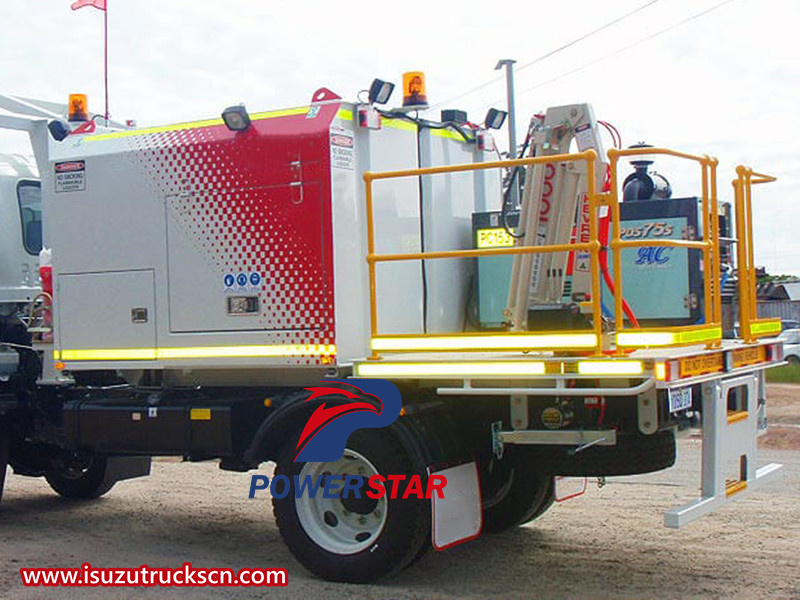

Tail platform

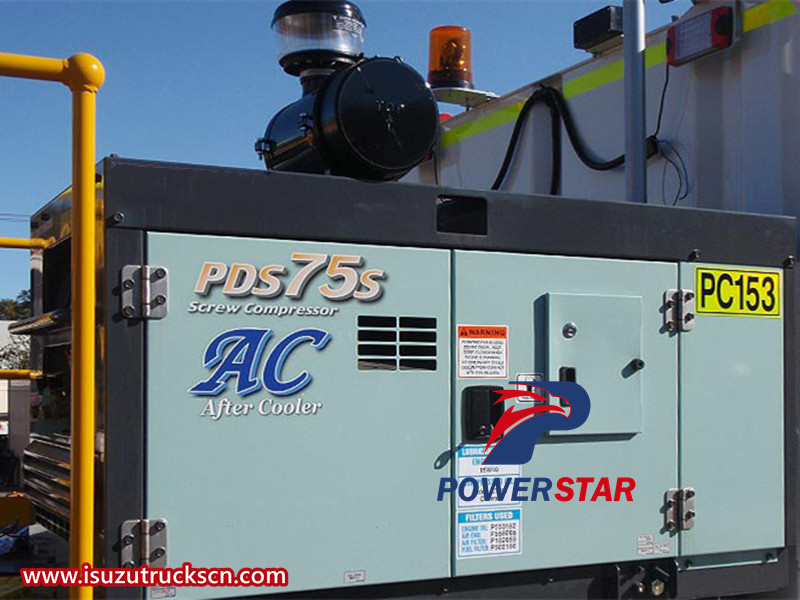

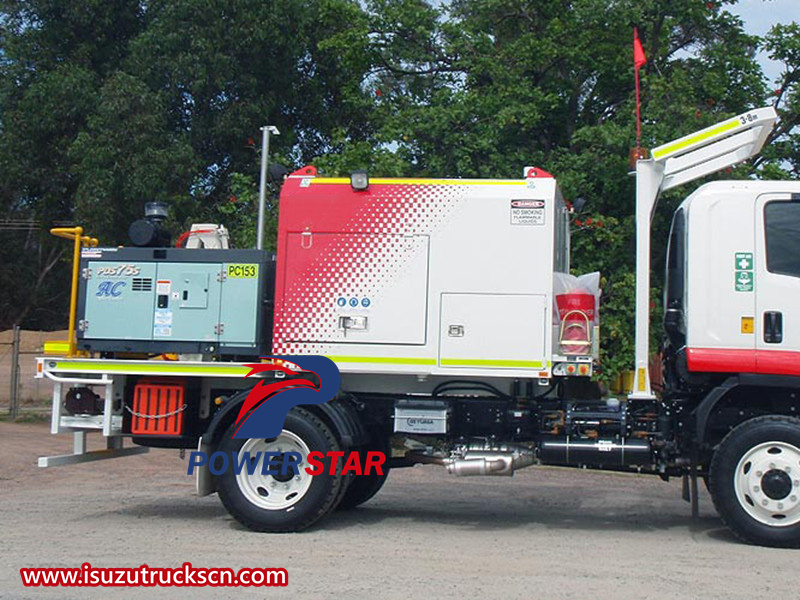

Air Compressor
