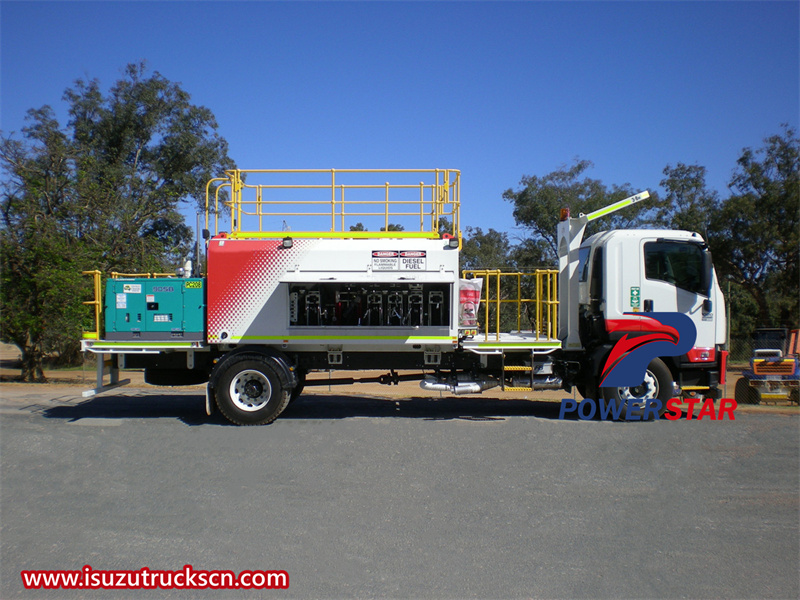

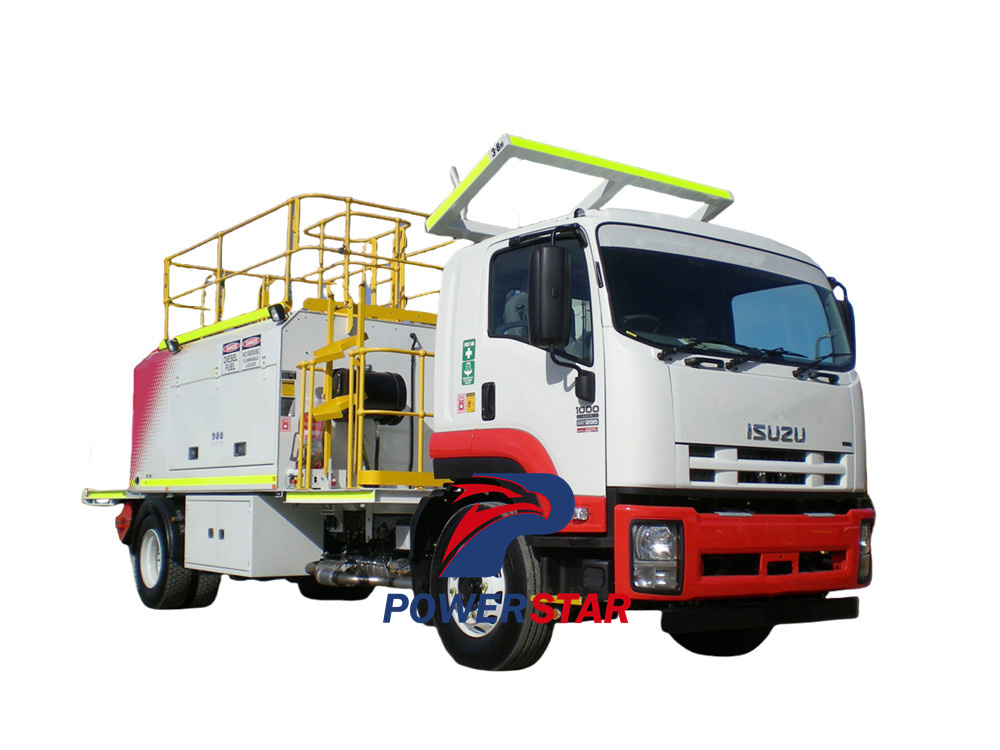

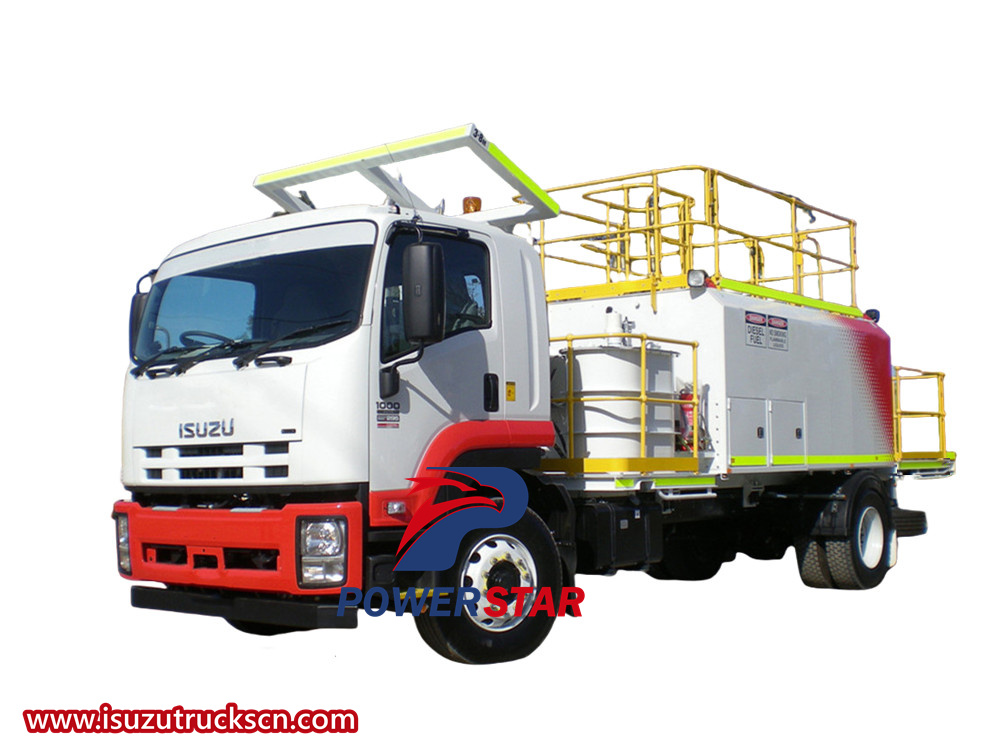

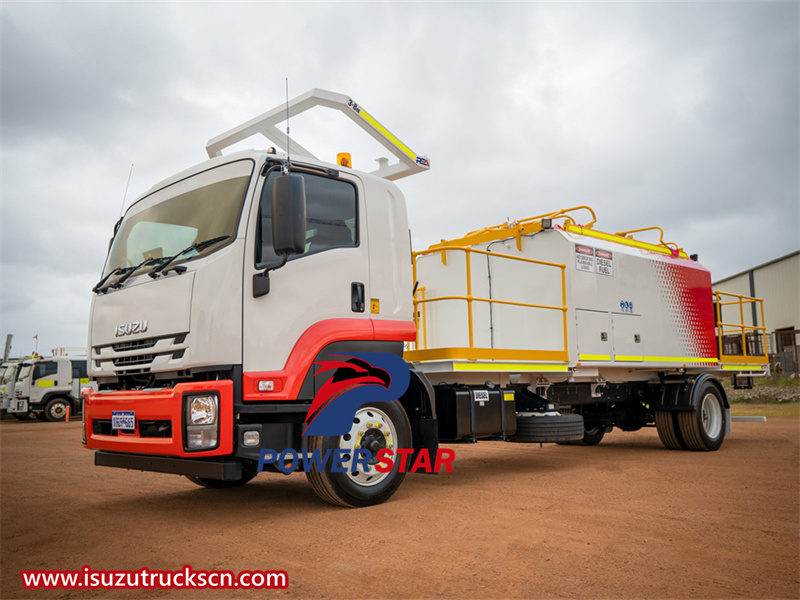

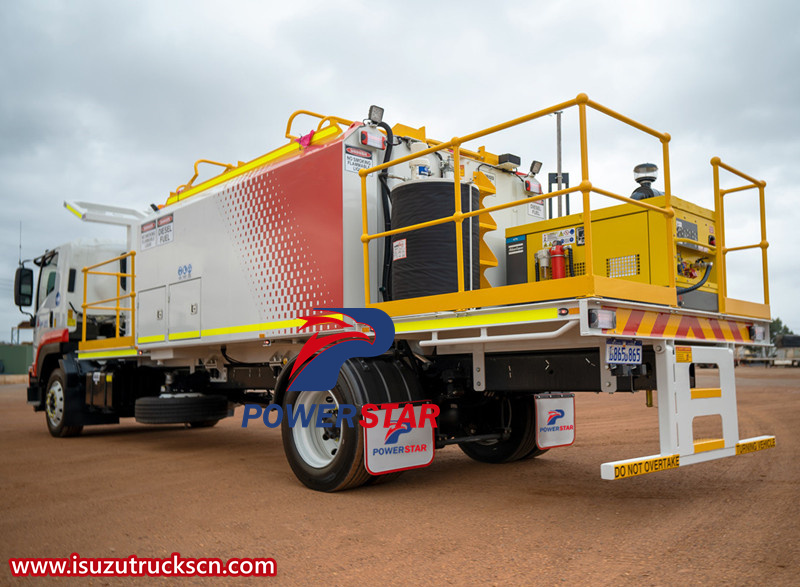

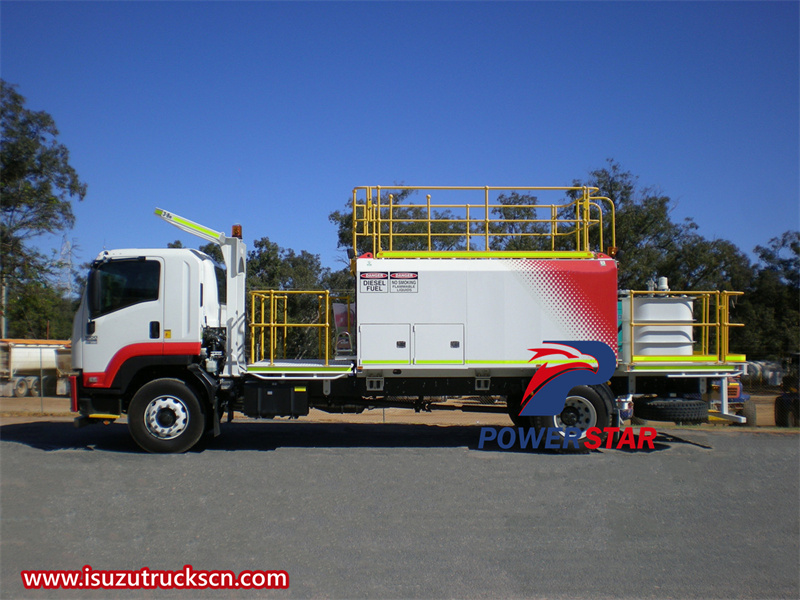

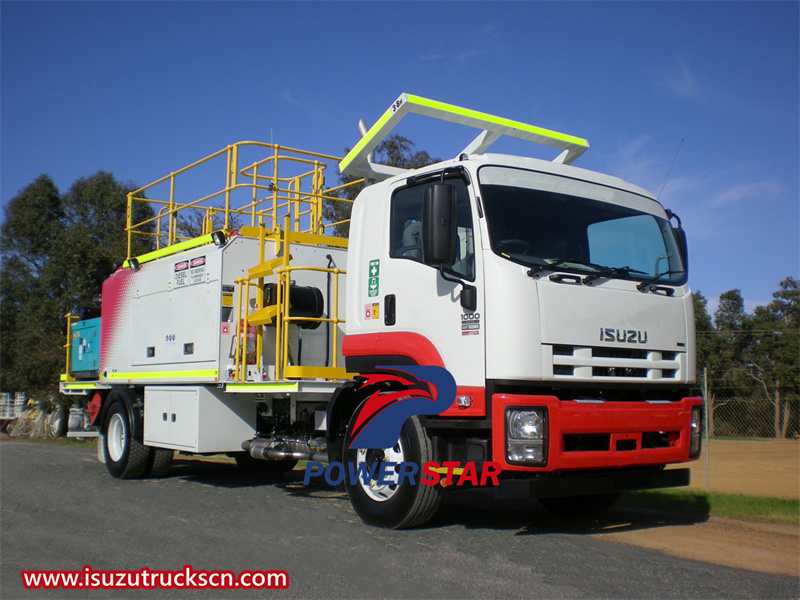

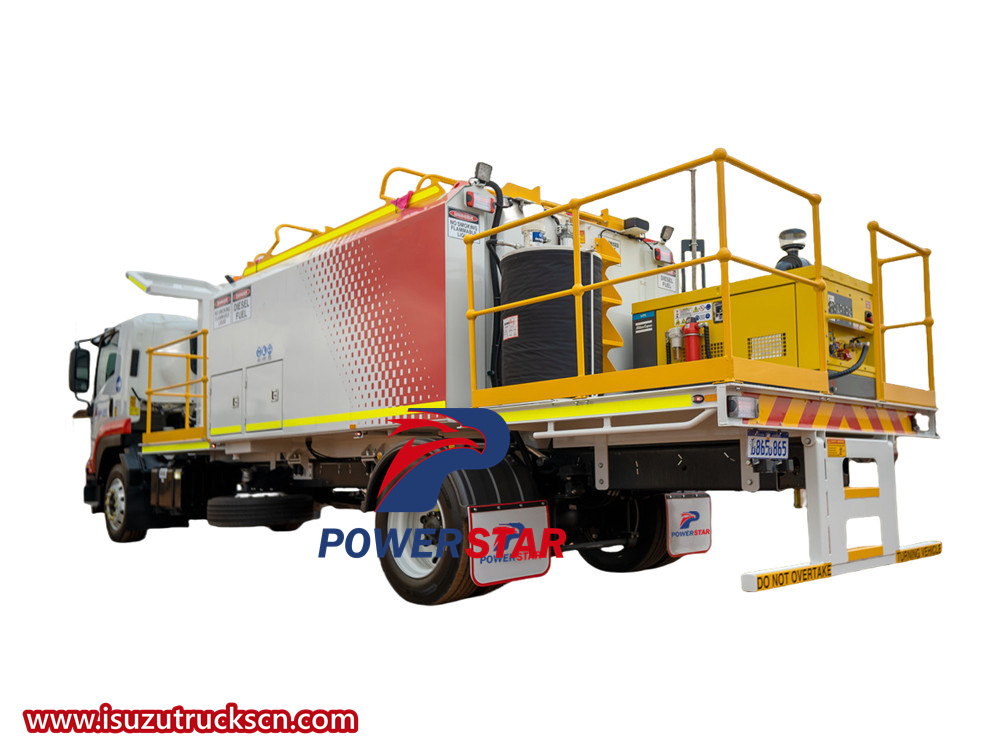

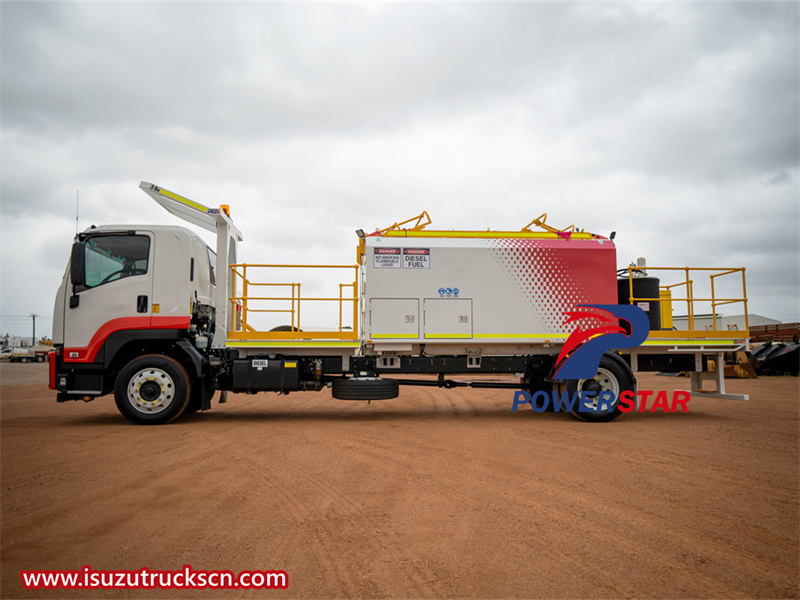

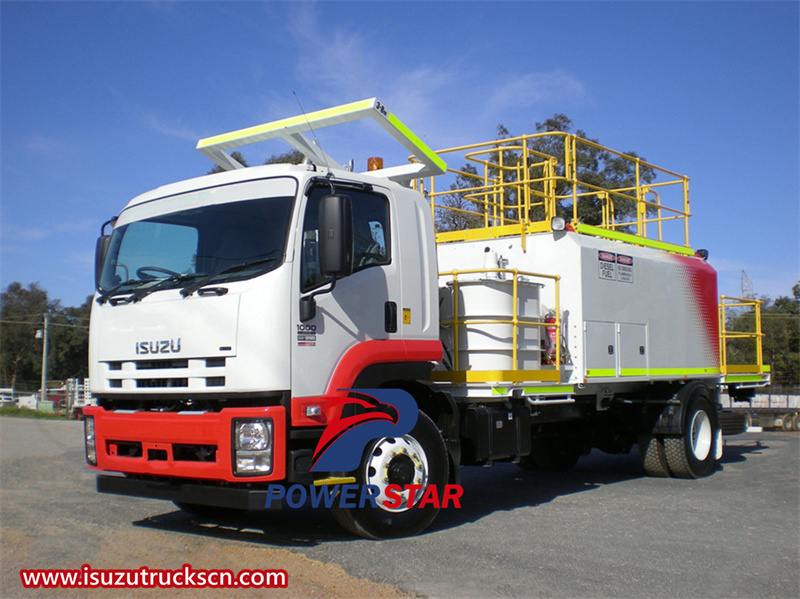

Isuzu 8 cbm fuel lubrication service truck
The Isuzu 8 cbm Fuel Lubrication Service Truck is a service truck with a solid structure and detailed design. It has an efficient fuel and lubrication system, including an 8 cubic meter fuel storage capacity and precision lubrication delivery function. This vehicle is highly adaptable and suitable for different industries and environments, and meets strict environmental and safety standards. The Isuzu truck demonstrates its commitment to performance and reliability through a comprehensive maintenance support and service plan, providing users with an excellent partner.
Work capacity:
8cbmTruck model:
PT5160GXZEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed,manualRemarks:
Isuzu fuel lubrication service truckIsuzu 8 cbm fuel lubrication service truck also called Isuzu lubricant oil supply service truck,Isuzu fuel Lube service truck,Isuzu 8cbm lubricant oil supply fuel lube service truck,Isuzu 240HP fuel and lubrication service trucks on sale,Isuzu Lube maitenance lubrication oil service truck.
The Isuzu 8 cbm fuel lubrication service truck is a service truck that combines advanced technology with rugged construction. The steel-constructed chassis ensures stability and houses advanced fuel and lubrication systems. Its 8 cubic meter fuel storage capacity ensures continuous operation, while the precision-engineered lubrication system helps maintain equipment performance. Equipped with a real-time monitoring system and a user-friendly control panel, it provides the critical data and operational convenience that operators need. With a comprehensive support framework including maintenance services and technical support, the Isuzu 8 cbm Fuel Lubrication Service Truck demonstrates its excellence and commitment to service.
Features：
★. High flexibility: It can be flexibly moved to various places where services are needed, without being restricted by fixed gas stations or maintenance stations.
★. High efficiency: Provide fuel and lubrication services on-site to reduce the downtime of equipment due to lack of oil or wear.
★. Versatility: Not only provides fuel services, but also can perform lubrication and simple maintenance to meet a variety of on-site needs.
★. Economical: Reduce the cost and time consumption caused by transporting fuel or equipment over long distances to fixed service stations.
|
Isuzu 8 cbm fuel lubrication service truck |
|||
|
Chassis |
Brand |
Isuzu |
|
|
GVW(kg) |
16000 |
||
|
Curb weight(kg) |
9000 |
||
|
Wheelbase(mm) |
4500 mm |
||
|
Dimensions(mm) |
8400X2460X3100 mm |
||
|
Front/Rear Axle loading(kg) |
6000/10000 kg |
||
|
Wheel track (front/rear) (mm) |
1880/1800 mm |
||
|
Front/Rear overhang(mm) |
1430/2470 mm |
||
|
Max. driving speed(km/h) |
105 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
|
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
295/80R22.5 |
||
|
Transmission |
Manual type, FAST 8-speed |
||
|
Cab |
It can accommodate three people. With Air Conditioner |
||
|
|
Brand |
Isuzu |
|
|
Model |
6HK1-TCG61 |
||
|
Fuel type |
Diesel |
||
|
Displacement(ml) |
7790 ml |
||
|
Power(kw) |
177kw |
||
|
Horsepower(HP) |
240HP |
||
|
Cylinder type |
Inline 6 cylinder |
||
|
Emission standard |
Euro VI |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(cbm) |
8cbm |
|
|
Tank material |
Tank material:Q235 high tensile strength steel. |
||
|
Thickness(mm) |
Side 5 Bottom 6 |
||
|
Baffle |
1 No,4 mm carbon steel |
||
|
Manhole cover |
1 manhole cover, ∮500mm 1 set with breather valve |
||
|
Bottom Valve |
1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set ∮ discharging valve |
||
|
Handrail |
Two sides |
||
|
Ladder |
At rear of tank |
||
|
Painting |
Color and design as customer's requirement |
||
The Isuzu 8m3 Fuel & Lubrication Service Truck is a strong asset in the service vehicle segment, meticulously built to provide comprehensive fuel and lubrication solutions for a wide range of industries. Combining rugged construction with advanced technology, this versatile truck is designed to improve operational efficiency, minimize downtime and ensure optimal performance in different working environments.
Fuel Delivery System:
The Isuzu lubricant oil supply service truck features an advanced fuel delivery system designed for efficiency and safety. The truck is equipped with multiple fuel tanks, each with a large capacity, allowing for extended operating range without frequent refueling. The tanks are made of durable materials and feature an advanced leak detection system to minimize the risk of environmental contamination.
The fuel delivery system uses a high-pressure pump and precision metering device to ensure accurate and efficient fuel dispensing. This allows technicians to quickly and accurately refill vehicles or equipment with the required amount of fuel, minimizing waste and maximizing productivity. In addition, the system is designed to be compatible with a variety of fuel types, including diesel, gasoline and even specialty lubricants, making the truck a versatile solution for a variety of applications.
Lubrication Capabilities:
In addition to its fuel delivery capabilities, the Isuzu 8 CBM Fuel Lubrication Service Truck also excels in lubrication services. The truck is equipped with a comprehensive lubrication system, including a range of pumps, hoses and dispensing devices designed to apply various types of lubricants. The system enables technicians to quickly and easily lubricate moving parts, bearings and other components, reducing friction, wear and the risk of failure.
The lubrication system is designed to be user-friendly, with intuitive controls and clear labeling, making it easy for technicians to select the correct lubricant and apply it accurately. The system also incorporates safety features such as a pressure relief valve and an automatic shut-off mechanism to minimize the risk of accidents or leaks.
Isuzu 8cbm lubricant oil supply fuel lube service truck
Isuzu 8 cbm fuel lubrication service truck is a multi-functional service vehicle designed for on-site fuel supply, lubrication service and emergency repair. It has high flexibility, efficiency and versatility, and is suitable for various industrial occasions that require on-site services. Its use mainly revolves around the provision of fuel and lubrication services, especially for occasions that require on-site refueling, lubrication and maintenance. The following is a detailed description of the vehicle's use:
Ⅰ. Main uses
●. Fuel supply:
★. The vehicle is equipped with an 8 cubic meter fuel storage tank, which can store and transport fuel (such as diesel, gasoline, etc.) to provide on-site refueling services for various equipment, vehicles or machinery.
★. It is suitable for places such as construction sites, mines, oil fields, ports, etc. that are far away from fixed gas stations, and occasions where frequent mobile refueling is required.
●. Lubrication service:
★. The vehicle may also be equipped with a lubrication system, such as a lubricating grease pump, a grease dispenser, etc., to provide on-site lubrication services for various mechanical equipment.
★. This helps reduce equipment wear, improve operating efficiency and extend service life.
●. Mobile maintenance:
★. As a service vehicle, it can also carry necessary maintenance tools and spare parts to provide emergency maintenance services for on-site equipment.
★. When equipment fails, it can respond quickly and solve the problem to reduce downtime.
Ⅱ. Applicable scenarios
★. Construction site: Provide fuel and lubrication services for construction machinery (such as excavators, loaders, rollers, etc.).
★. Mining operations: Provide on-site refueling and lubrication services for mining equipment (such as mine cars, excavators, crushers, etc.).
★. Oilfield development: Provide fuel and necessary maintenance services for drilling equipment, oil production equipment, etc.
★. Port logistics: Provide fuel supply and lubrication maintenance for port machinery and equipment (such as cranes, forklifts, transport vehicles, etc.).

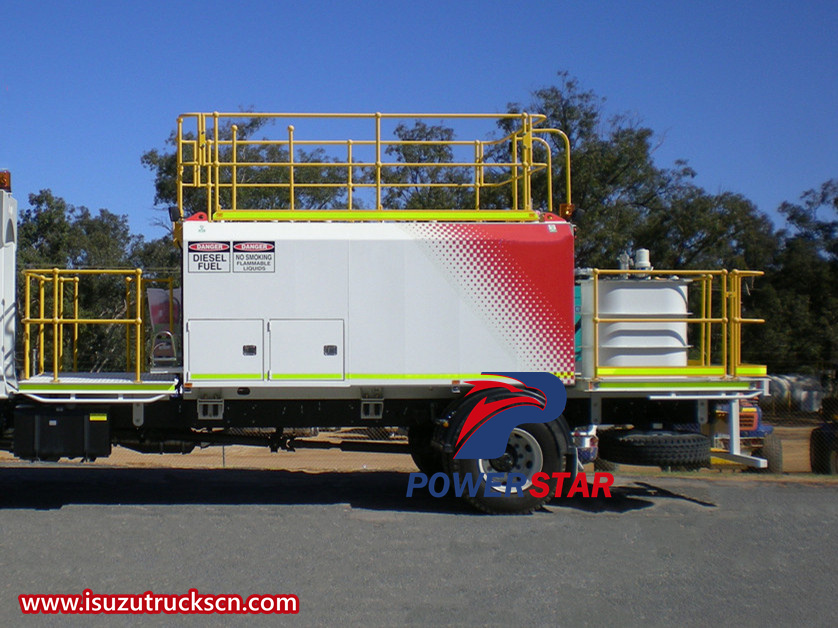

Ladder and guardrail

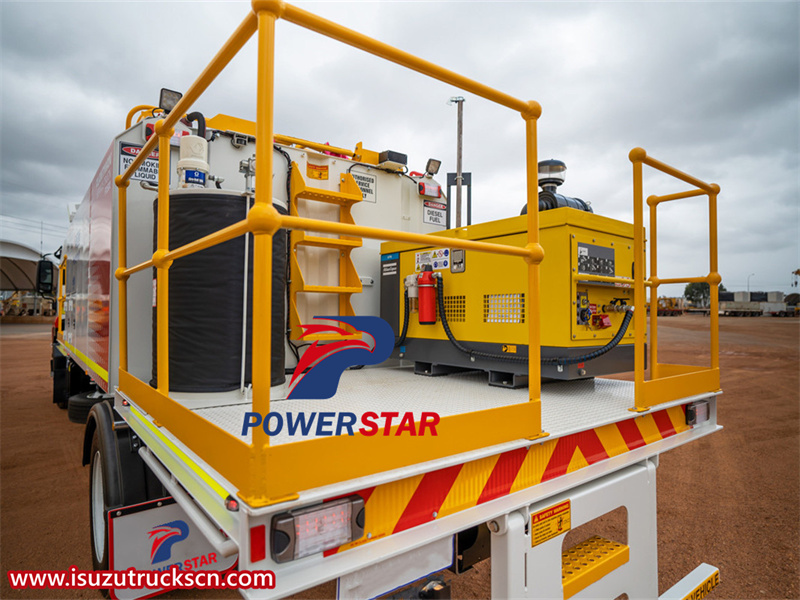

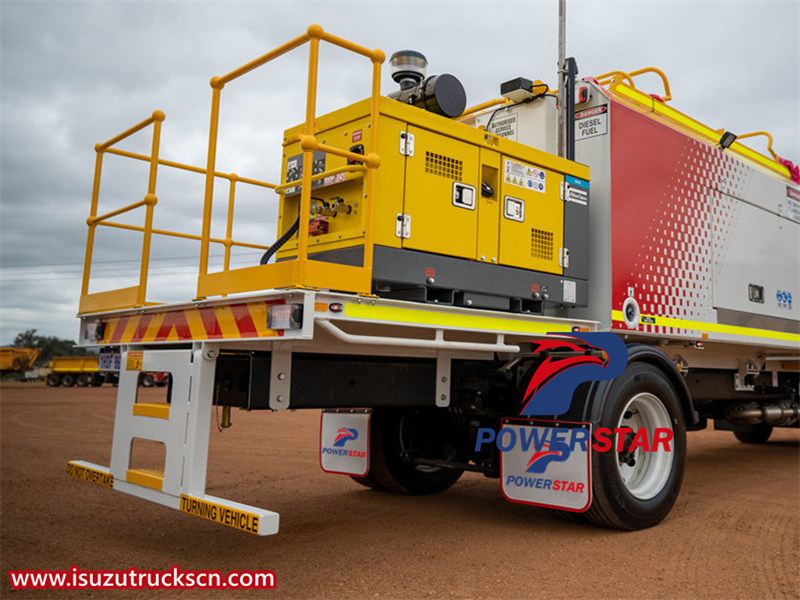

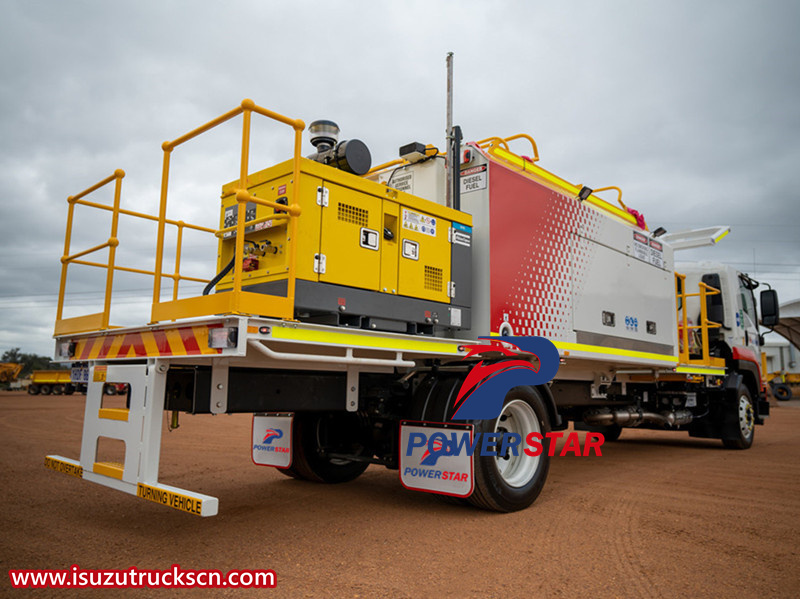

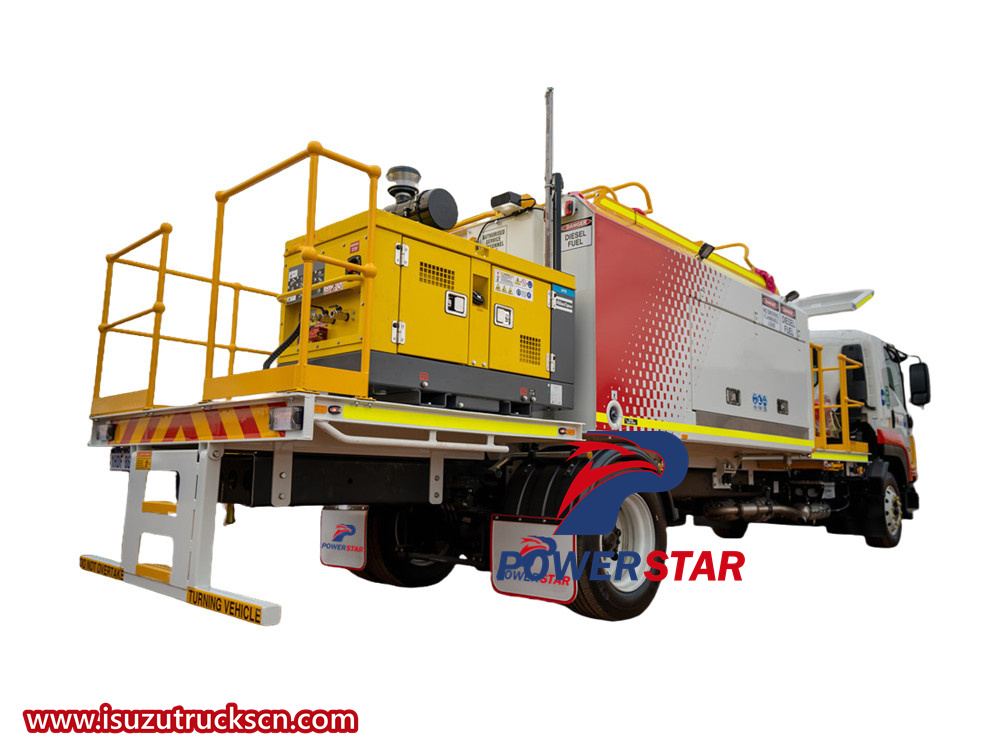

Dynamotor

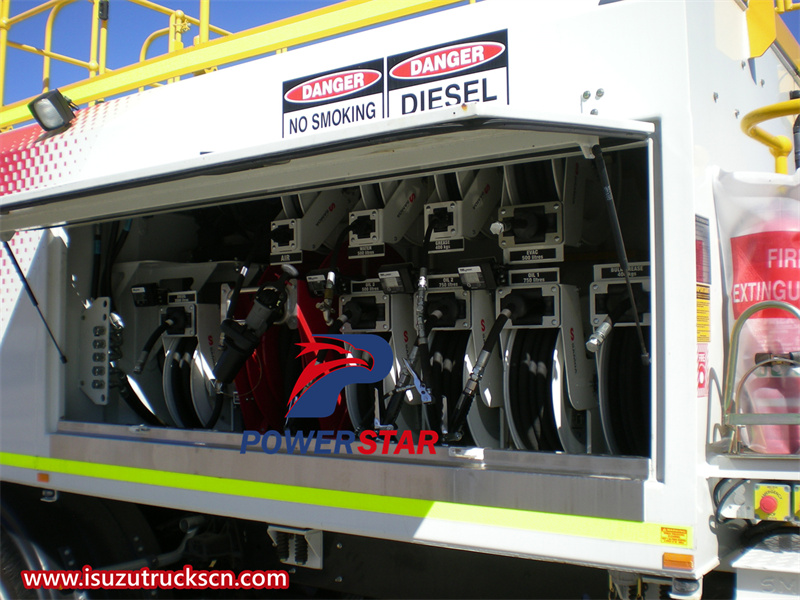

Lubricating oil reel
