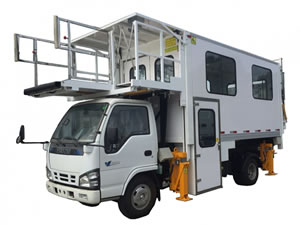

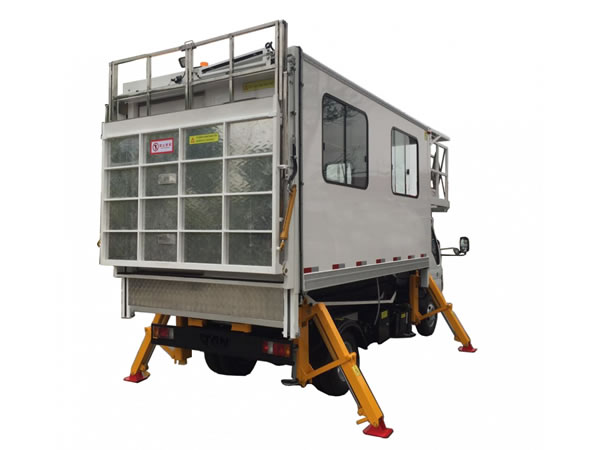

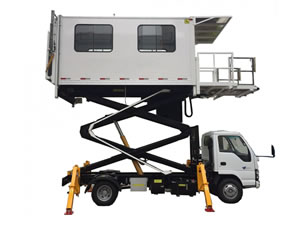

Isuzu disabled passenger lift truck Airport Manlifter vehicle

brand new Isuzu disabled passenger lift truck for sale
brand new Isuzu disabled passenger lift truck for sale
brand new Isuzu disabled passenger lift truck for sale
brand new Isuzu disabled passenger lift truck for sale

Isuzu disabled passenger lift truck Airport Manlifter vehicle

ISUZU disabled passenger lift Truck (also called Airpot passenger manlifter truck, Isuzu airpot aerial platform truck) suitable for assist disabled passengers on and off the planes. It is often used with Boeing B737, B747, B757, B767, B777, Airbus A320, A300, A330, A340 and other aircrafts.

  • Order(MOQ):

    1
Inquire Now

Brand new Isuzu Airport Manlifter vehicle Disabled Passenger Lift truck

Brand new Isuzu Airport Manlifter vehicle disabled=

Brand new Isuzu Airport Manlifter vehicle disabled=

Brand new Isuzu Airport Manlifter vehicle disabled=



Introduction


ISUZU disabled passenger lift Truck (also called Airpot passenger manlifter truck, Isuzu airpot aerial platform truck) suitable for assist disabled passengers on and off the planes. It is often used with Boeing B737, B747, B757, B767, B777, Airbus A320, A300, A330, A340 and other aircrafts.



Advantages




High Strength Material & High Resilience.

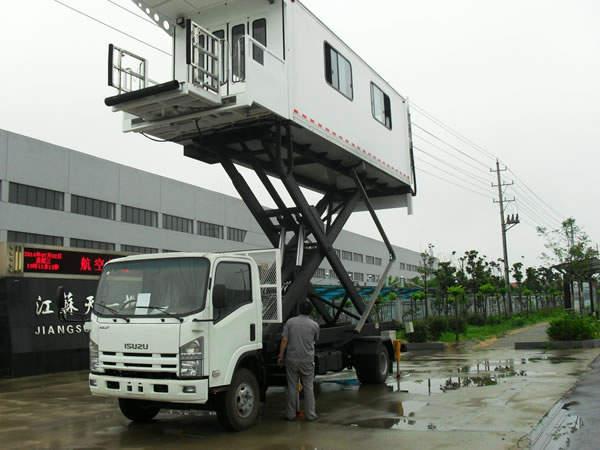

The lifting fork is available in two types: double scissor fork and single scissor fork. The 600P chassis truck traditionally uses a double scissor fork, while the 700P uses a single scissor fork. The longitudinal fork beam is made using a high strength, corrosion resistant seamless square tube. Movement of the double hydraulic cylinder drives the carriage lifting performance.
  • Emergency measures for mechanical devices, electrical installations and hydraulic devices are all complete. Emergency system ensures the safety of aircraft passenger lift truck. Users can choose between an electric emergency system or a manual emergency system.
  • The disabled passenger lift truck uses an advanced and reliable integrated circuit board and relay combination control.
Long Operating Life
  • The hydraulic parts and electrical parts are all imported from Western brands, ensuring the stable performance and long service life.
  • All operating switches, plugs, and circuit boards have a long service life, because they are all water resistant.
Complete Carriage Functions
  • The inner and outer surfaces of the carriage are made of a white fiberglass clad plate, which features an outstanding sound absorption, thermal, acoustic, environmentally friendly and flame retardant performance.
  • The front and rear doors of the carriage are flexible and light folded doors.
  • Both sides in the carriage are equipped with LED lights for carriage illumination.
  • The external upper edges of the carriage’s front and back doors are equipped with working lights for working at night.
  • The carriage floor is easy to clean, thanks to the use of a skid resistant floorboard adhesive.



Main Parameters




Technical Specifications
Carriage Rated Load: 1500kg
Rear Lift Platform Rated Load : 400kg
Platform Left-to-Right Adjustment Range: 0～600mm
Platform Scale Adjustment Range : 0～500mm
Fixed Platform Dimension (Length * Width): 1200*2280mm
Mobile Platform Dimension(Length* Width): 900*1300mm
Rear Lift Platform Dimension(Length *Width): 1480*2190mm



Project
AT6A Configuration 1 (600P/ MT/EURO 4)
AT6B Configuration 2 (700P/ MT/EURO 4)
AT6C Configuration 3 (700P/ MT/EURO 5)
AT6D Configuration 4 (700P /AT/EURO 5)
Engine Manufacturer/Model
ISUZU /4HK1-TCG40
ISUZU/4HK1-TCG40
ISUZU/4HK1-TC51
ISUZU/4HK1-TC51
Engine Power
88KW
139KW
141KW
141KW
Wheel Base
3815mm
5200mm
5200mm
5200mm
Platform Working Height
2400～5845mm
2600～5700mm
2500～5800mm
2500～5800mm
Front Platform Rated Load
1000kg
1000kg
1200kg
1200kg
Rear Lifting Platform Range
0-1400mm
0-1500mm
0-1500mm
0-1500mm
Curb Weight
7200kg
11500kg
11300kg
11300kg
Boundary Dimension (Length *Width * Height)
6900×2400×3800mm
8990×2450×3880mm
8990×2450×3880mm
8990×2450×3880mm
Chassis
(Manufacturer /Model)
ISUZU Motor Co., LTD/QL1070A1ARY
ISUZU Motor Co., LTD/QL11009PARY
ISUZU Motor Co., LTD /QL1100A8PAY
ISUZU Motor Co., LTD/QL1100A8PAY
Engine Emission
GB 4
GB 4
GB 5
GB 5
Carriage Dimensions (Length * Width* Height)
4600*2300*2150mm
6350×2200×2150mm
6350×2200×2100mm
6350×2200×2100mm
Gearbox (Manufacturer /Model)
ISUZU Motor Co., LTD/MSB(Five-Speed)
ISUZU Motor Co., LTD /MLD-6Q(Five-Speed)
ISUZU Motor Co., LTD /MLD-6Q(Five-Speed)
ISUZU Transmission Co., LTD /ALLISON2500
