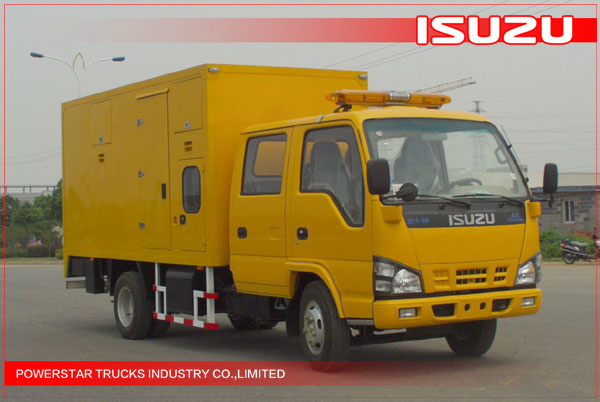

NKR77 ISUZU Isuzu 4X2 Emergency Power Supply Vehicle
Order(MOQ):
1NKR77 ISUZU Isuzu 4X2 Emergency Power Supply Vehicle
ISUZU POWER SUPPLY VEHICILE Standard:
1) Complete imported / Chinese Made Diesel power generator set (With control screen)Genset |
||||
| Prime power | 600KW/750KVA | |||
| Standby power | 700KW/875KVA | |||
| Rated speed | 1500 rpm | |||
| Output frequency | 50 Hz | |||
| Rated voltage | 220V/380V | |||
| Starting model | Electric start | |||
| Fuel consumption of 100% load | 195 g/kw.h | |||
| Steady voltage regulation rate | ≤±1% | |||
| Steady frequency regulation rate | ≤5% | |||
| Engine | ||||
| Engine brand | Yuchai | |||
| Engine model | YC6C1020L-D20 | |||
| Cylinder arrangement | 6 in-line | |||
| Cycle | Four stroke | |||
| Bore×Stroke | 200*210 mm | |||
| Displacement | 39.58 L | |||
| Prime power on rated speed | 680 kw | |||
| Standby power on rated speed | 748 kw | |||
| Speed governor | Electronic speed governor | |||
| Alternator | ||||
| Alternator brand | Henjo | |||
| Exciter type | Brushless, Self-exciting, with AVR |
|||
Frequrncy and speed |
50hz/1500rpm | |||
| Phase connecting way | Three phase four wires, "Y" type connecting | |||
| Power factor | 0.8 | |||
| Alternator efficiencies | 95.00% | |||
| Insulation grade | H | |||
| Protection grade | IP23 | |||
