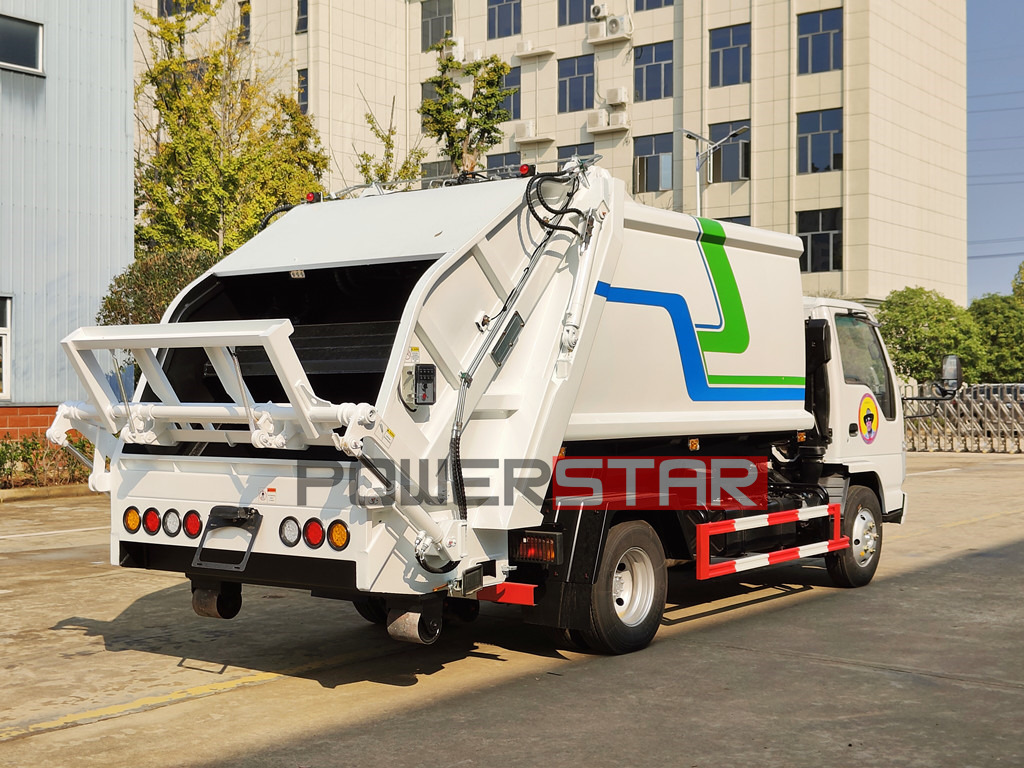

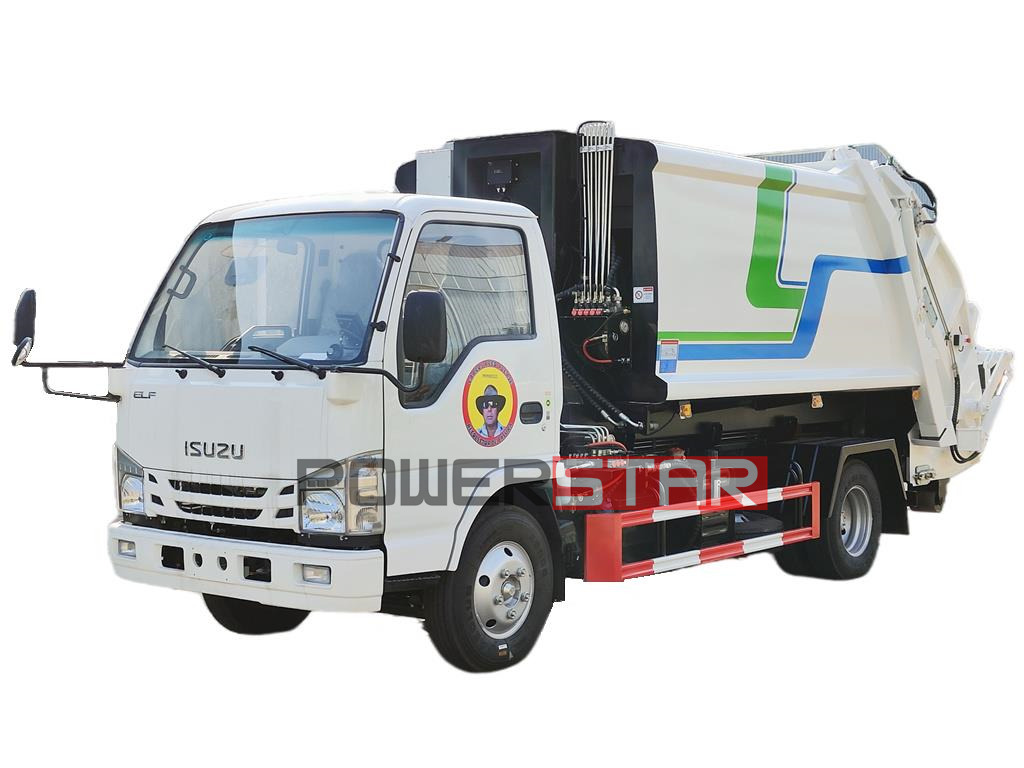

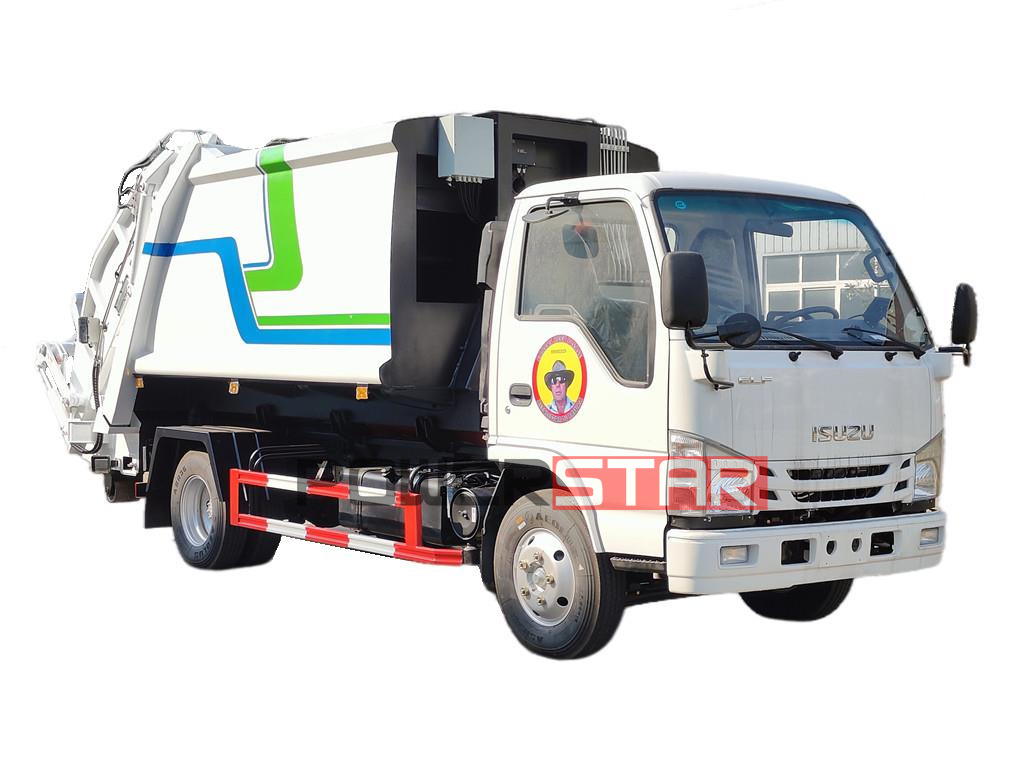

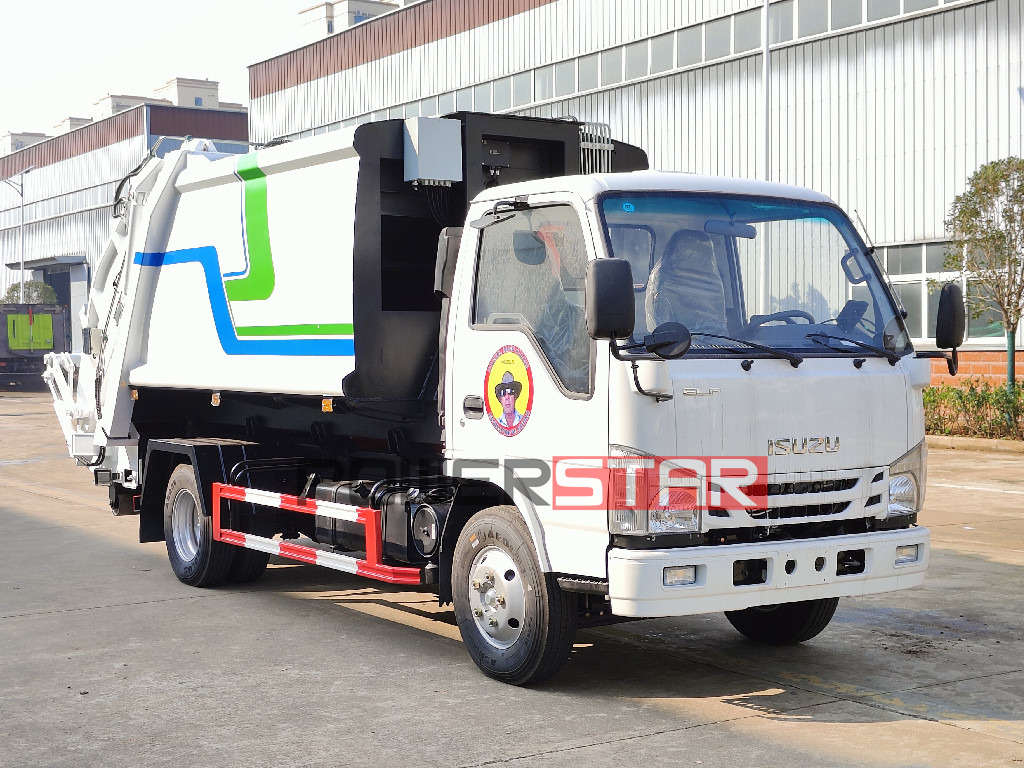

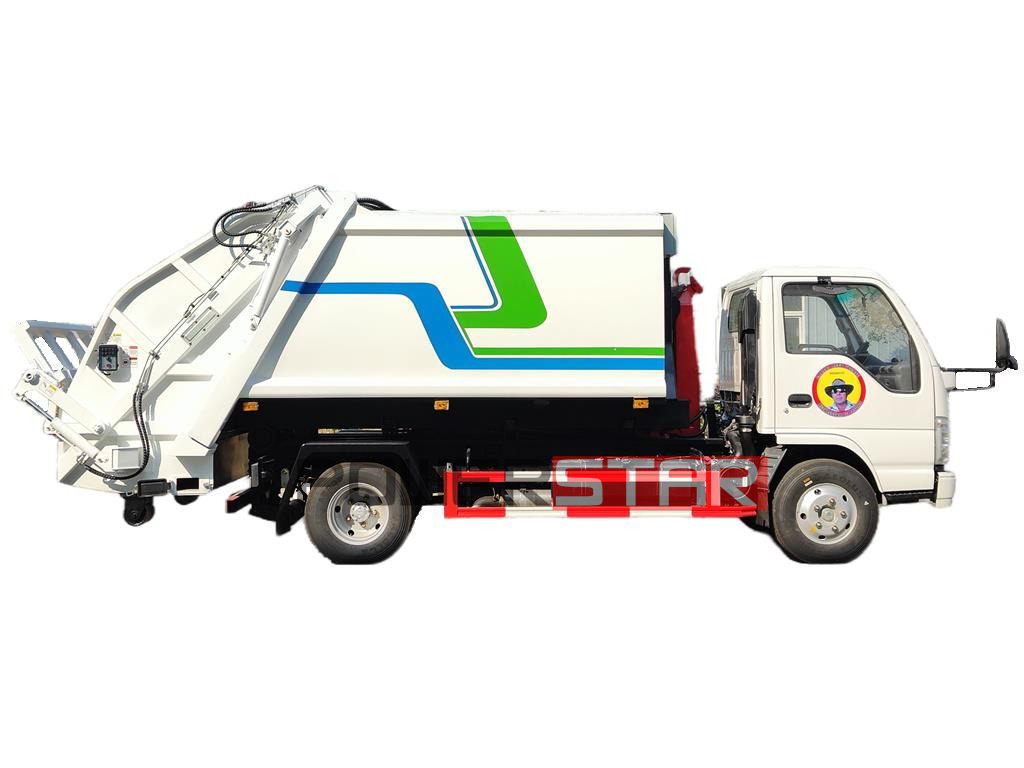

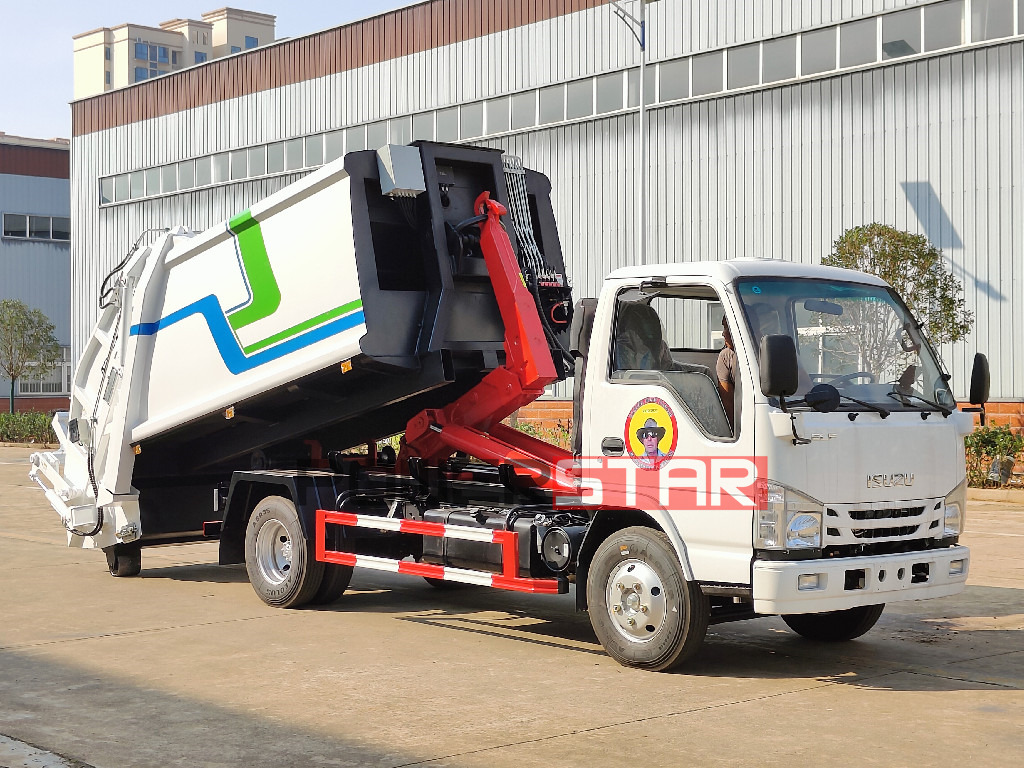

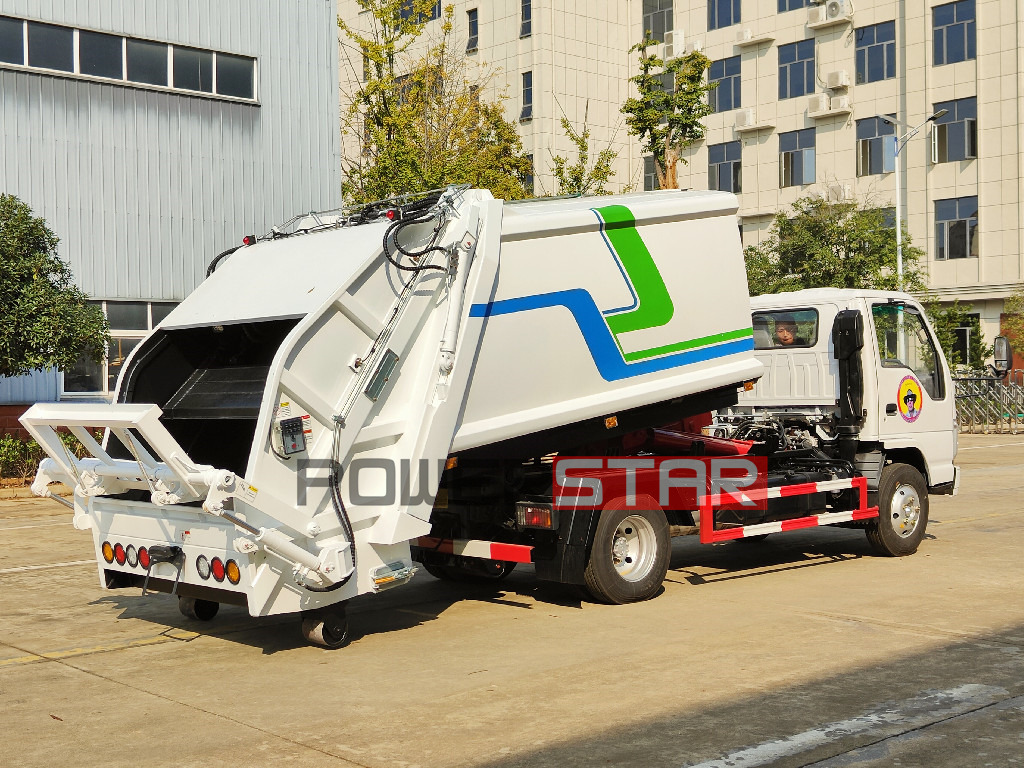

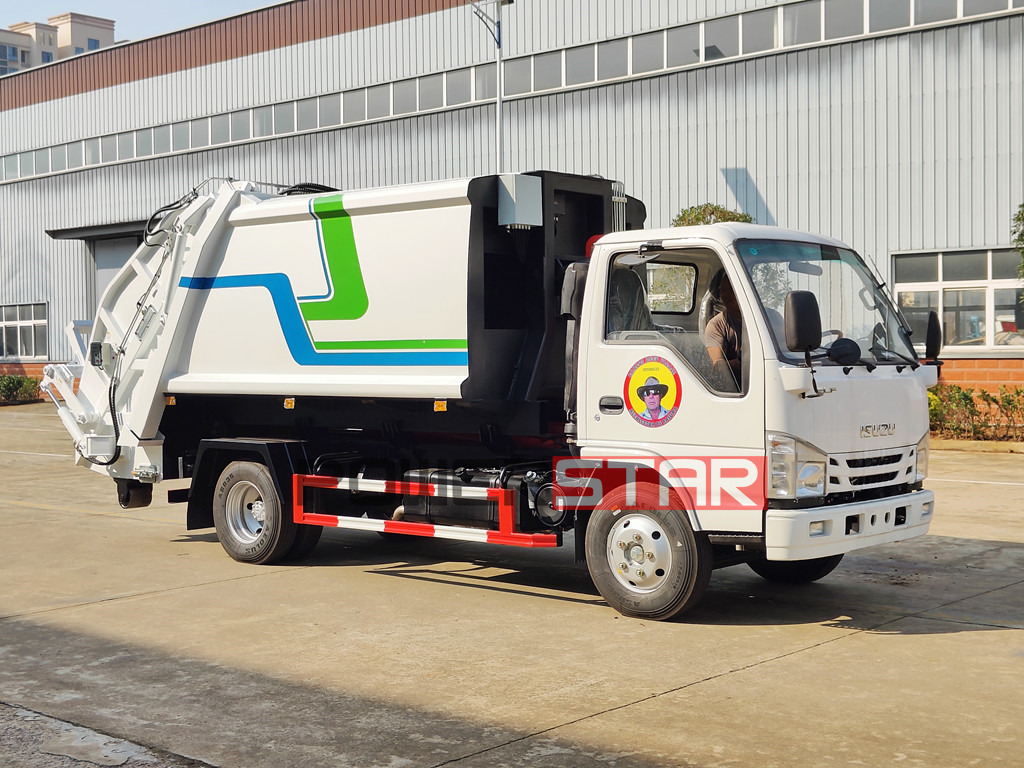

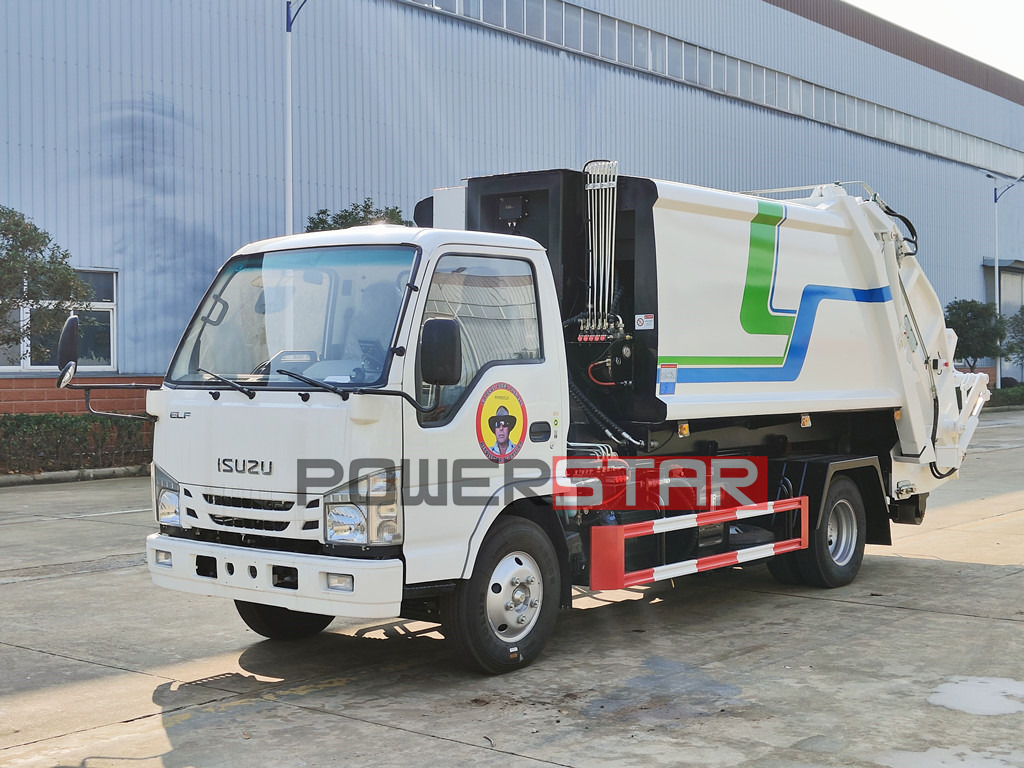

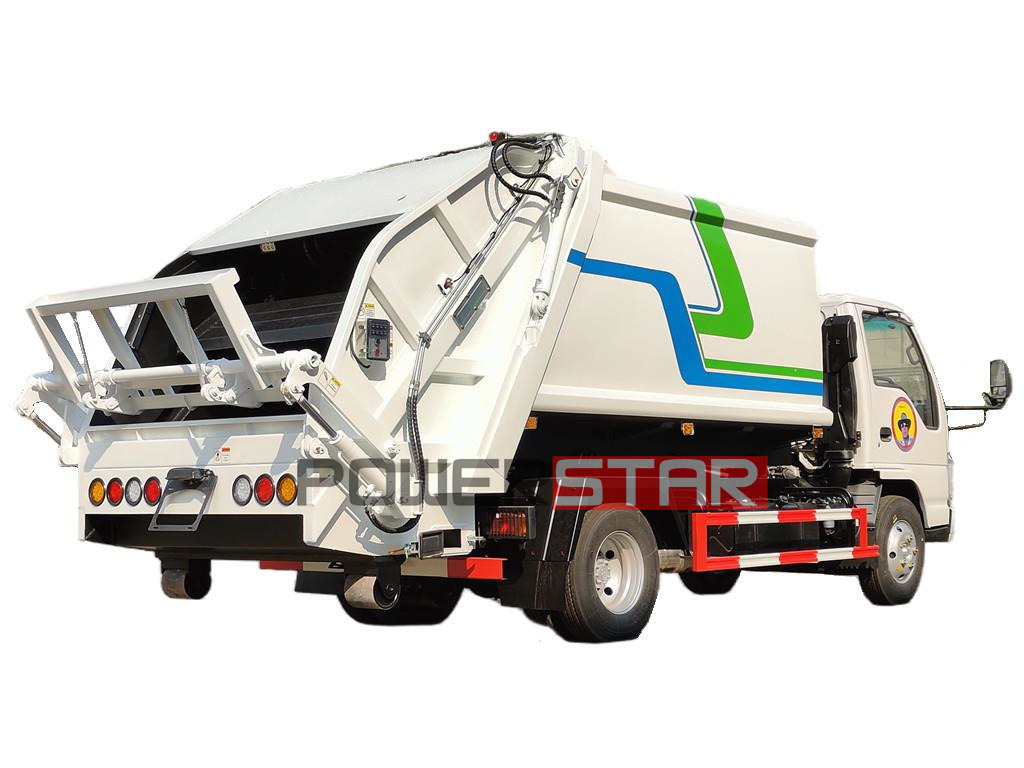

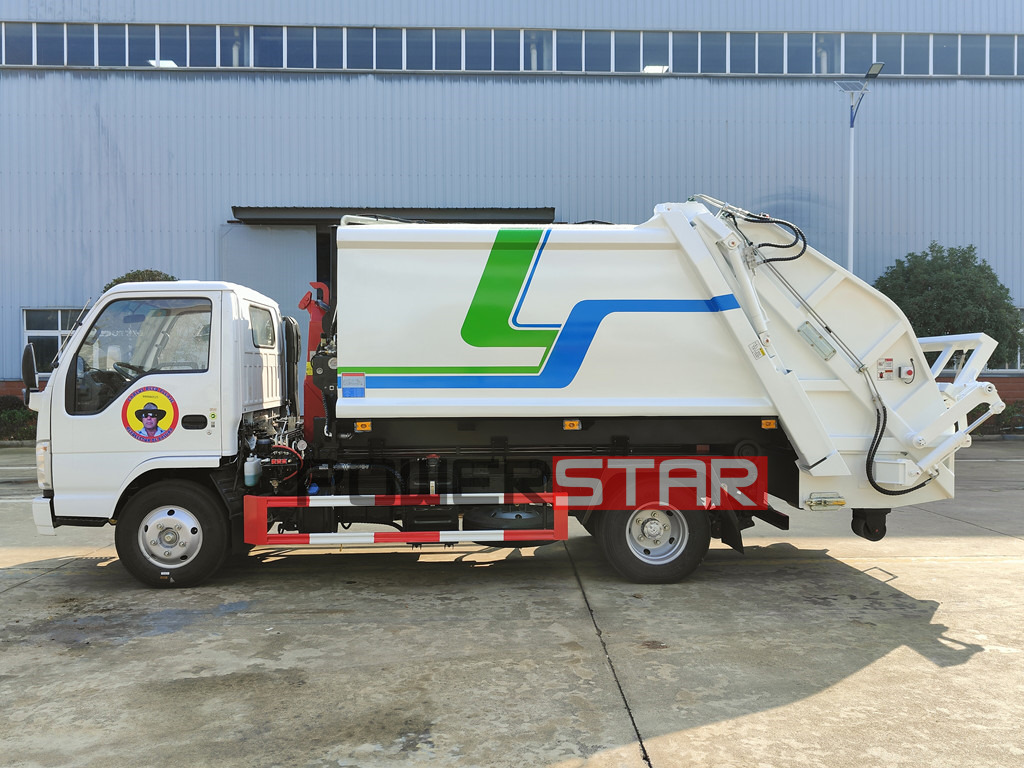

Isuzu hook loader truck mounted garbage compactor
ISUZU hook loader garbage truck with compactor box is a specially designed garbage collection and transportation vehicle, which combines the original Japanese ISUZU truck chassis and build 4tons hook loader lifting device, matched with one 4CBM garbage compactor truck truck body and one 4cbm open top garbage bin, technology to achieve more efficient and environmentally friendly garbage disposal.
Work capacity:
4CBMTruck model:
PT5070ZXXEngine power:
120HP/88kwEngine type:
Isuzu 4KH1CN6LBAxle drive:
4×2, LHDGear box:
Isuzu MSB 5 speed,manualRemarks:
Compactor body and garbage binIsuzu Hook Loader Truck mounted Garbage Compactor Box Brief Introduction:
ISUZU hook loader garbage compactor truck is a garbage truck special designed by POWERSTAR, which manufactured based on original Japanese ISUZU truck chassis. Isuzu hook loader mounted garbage compactor mounted with Japanese technology ISUZU diesel engine 4KH1CN6LB, horse power 120HP with 2999cc emission, MSB 5 shift manual gearbox for 5 forward and 1 reverse, mounted with 4tons hook lifter device, with strong carrying capacity and good handling performance. The characteristic of the Isuzu hook lifter compactor truck is its unique roll on roll off mechanism, which can easily lift up and falling down the garbage bin to achieve quick collection and transportation of garbage. The special designed matched compactor body is the core part of this type multifunctional garbage truck. It uses advanced compression technology to compress the garbage to a higher density, thereby increasing the loading capacity and reducing the number of transportation times. The refuse compactor box is usually made of high-strength steel plate, which is corrosion-resistant and wear-resistant. During the compression process, the pushing mechanism inside the box will gradually push the garbage to the rear of the box to form a tight compression block. So the Isuzu hook loader truck mounted garbage compactor known for its high-quality commercial vehicles and engine technology.
Isuzu Hook Loader Compactor Truck introduction for Hook Loader Device:

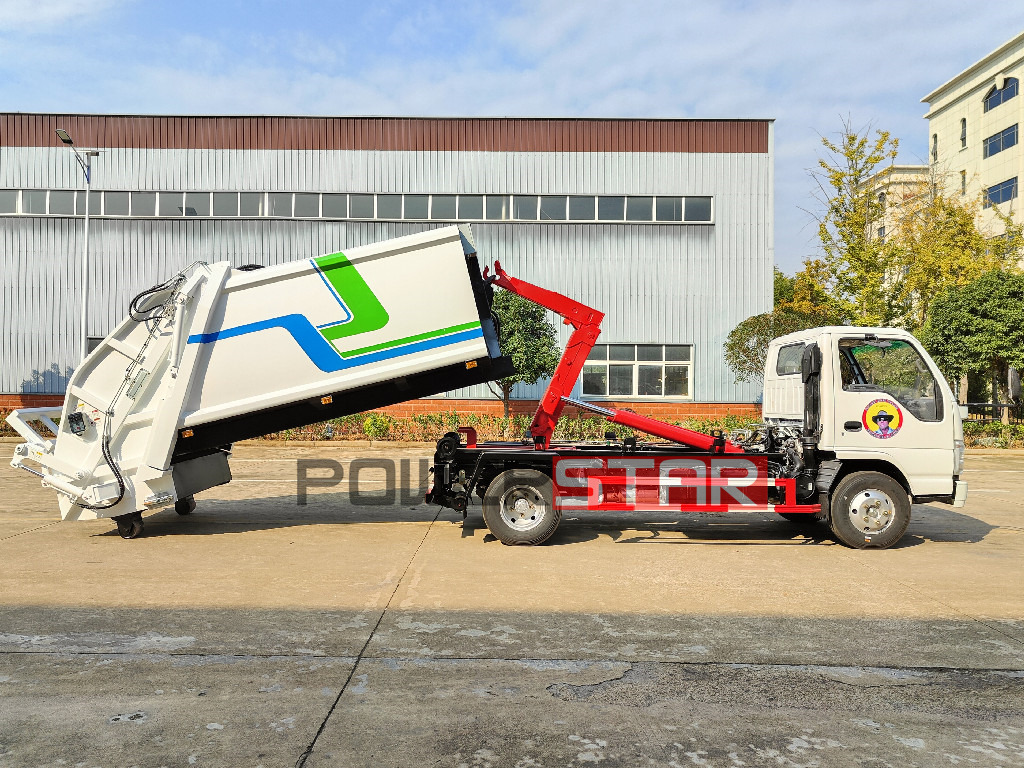

Isuzu hook loader truck also can be named as Isuzu Cabin removable garbage truck, also known as roll-arm garbage truck, is a kind of high-tech design with retractable hook arm, to achieve the second lifting of the garbage compartment, since the hanging down, dumping garbage on their own. The hook lifter structure is simple, stable and convenient operation, handling efficiency, high degree of mechanization, saving manpower. A car can take more than a large car, loading and unloading in the transport process can effectively avoid secondary pollution.
Main features: Garbage collection method is simple, efficient, environmentally friendly (no secondary pollution), reliable quality, low failure rate, easy maintenance, low operating costs and so on. Widely used in municipal sanitation, municipal services, factories and mines, residential property, garbage and more concentrated residential areas, urban street garbage disposal.
As Internetional ISUZU roll on roll off garbage truck manufacturer, we POWERSTAR can design and produce different type garbage trucks. The newly produced Isuzu hook loader truck is a special garbage collection and transportation vehicle. The core feature of this vehicle is its unique arm lifting mechanism, which allows the vehicle to lift and lower the garbage bin by hydraulic or mechanical means. ISUZU hook loader garbage truck is a special garbage collection and transportation vehicle equipped with an arm lifting mechanism that can use the mechanism to quickly load and unload garbage bins and is based on the chassis of original ISUZU vehicles.

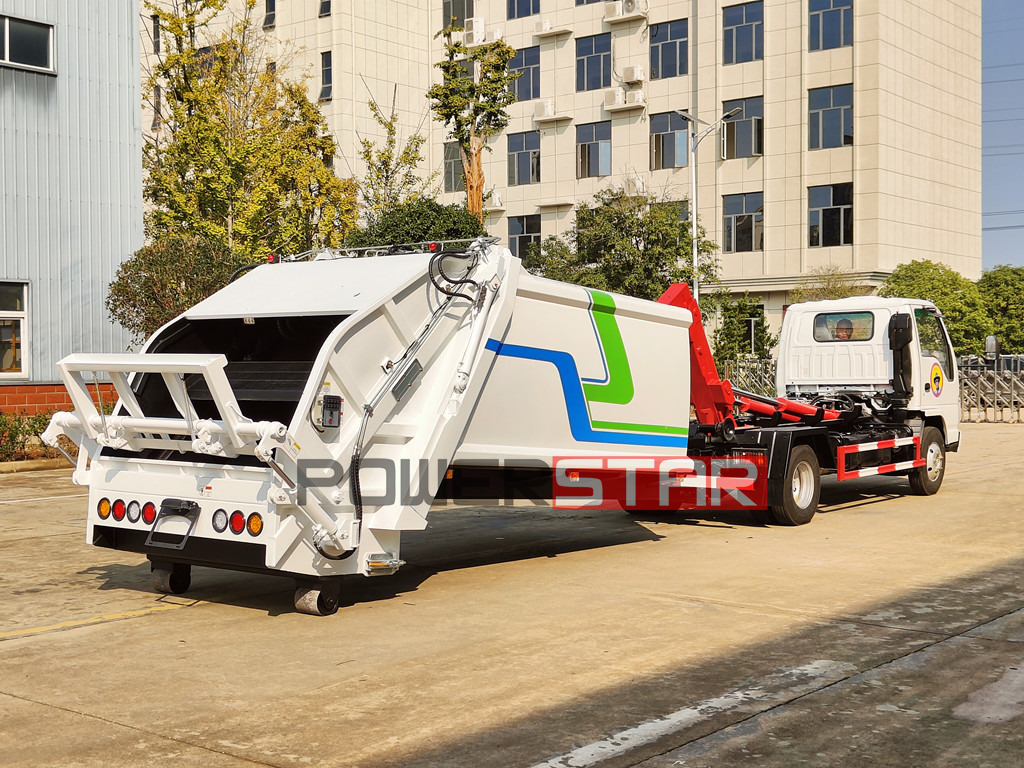

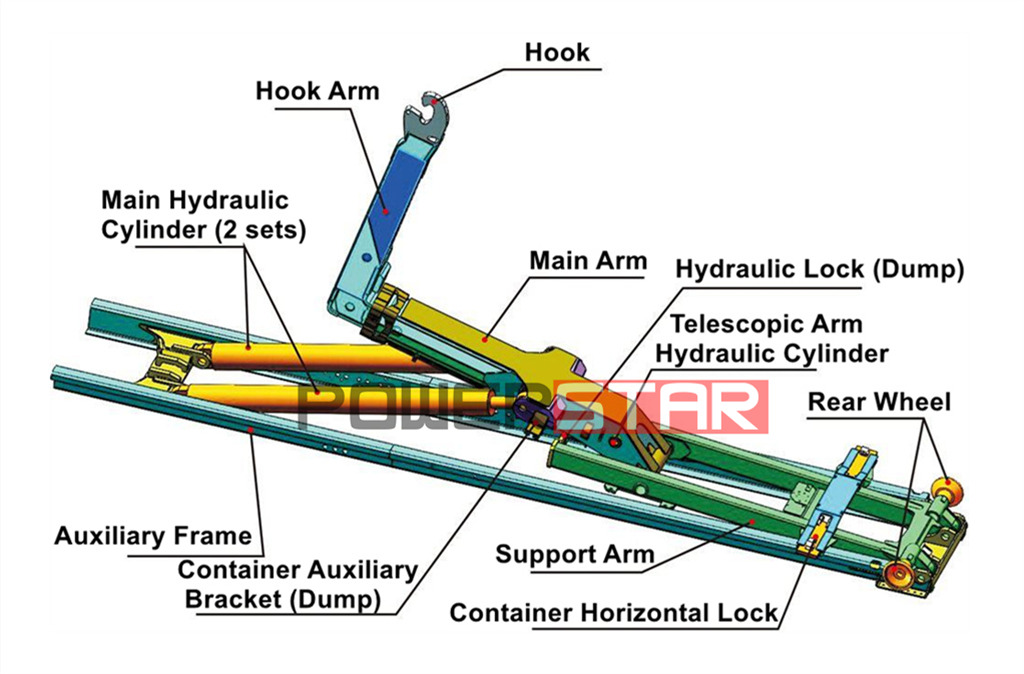

Hook Lifting mechanism: The unique arm design allows the Isuzu hook loader truck to easily lift and lower the trash bin by hydraulic or mechanical means. The hook lifting mechanism is easy to operate and can quickly complete the loading and unloading of the trash bin, improving work efficiency.
Garbage bins: Normal garbage bin and special garbage compactor body both available. Trash bins are usually made of high-strength, corrosion-resistant materials to ensure durability and reliability in long-term use. The trash bin is reasonably designed to facilitate garbage loading and unloading while keeping the vehicle clean and hygienic.
Speciality: The Isuzu refuse compactor truck with hook loader is designed specifically for garbage collection and transportation, suitable for a variety of environments such as cities and villages. It can handle different types of garbage, such as domestic garbage, construction waste, etc.
Efficiency: The efficiency of garbage collection and transportation is improved through the rapid loading and unloading of the arm mechanism. Equipped with advanced garbage handling systems (such as compression mechanisms), the loading capacity is further increased and the number of transportation times is reduced.
Environmental protection: The design of the hook loader truck mounted with garbage compactor body meets environmental protection standards and can reduce garbage scattering and odor emission. The noise and emissions generated by the vehicle during driving meet the requirements of relevant regulations.
Isuzu Hook Loader Compactor Truck introduction for Garbage Compactor Device:

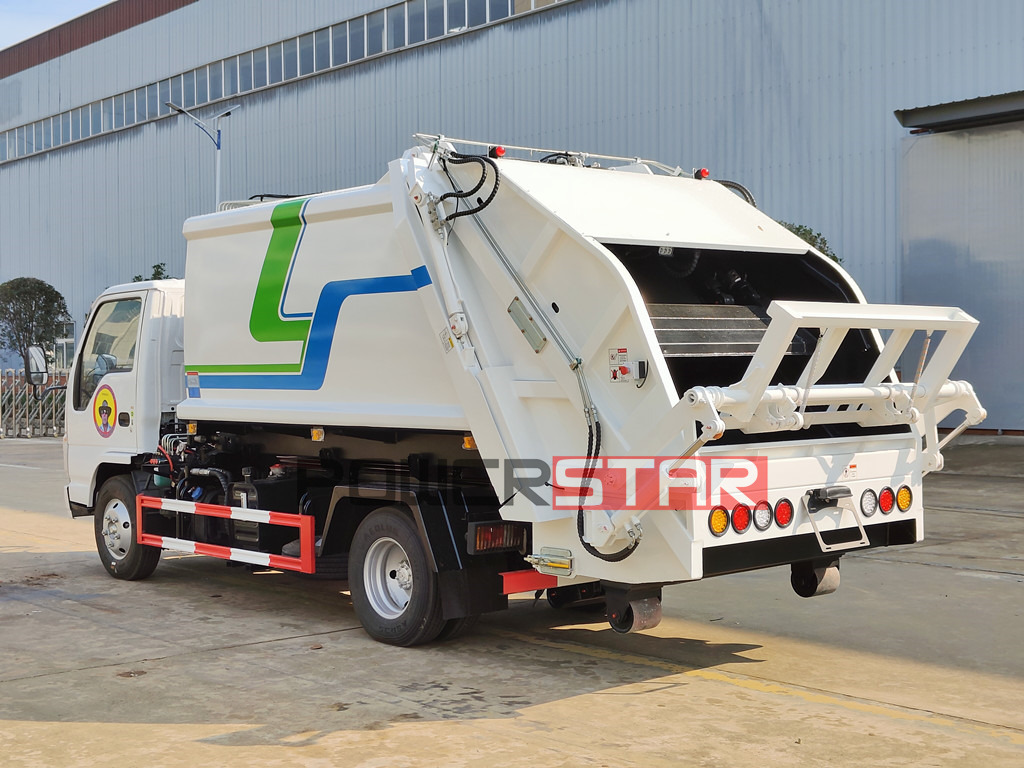

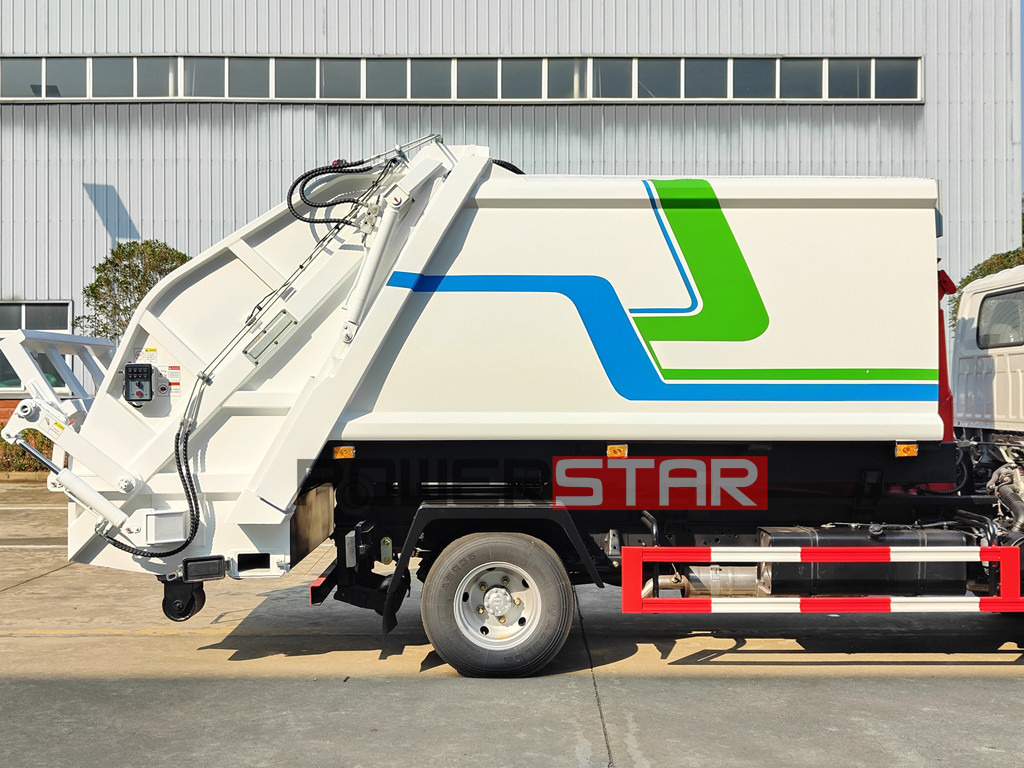

Garbage Compactor Vehicle, also called Compressed Garbage Vehicle, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor. The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.

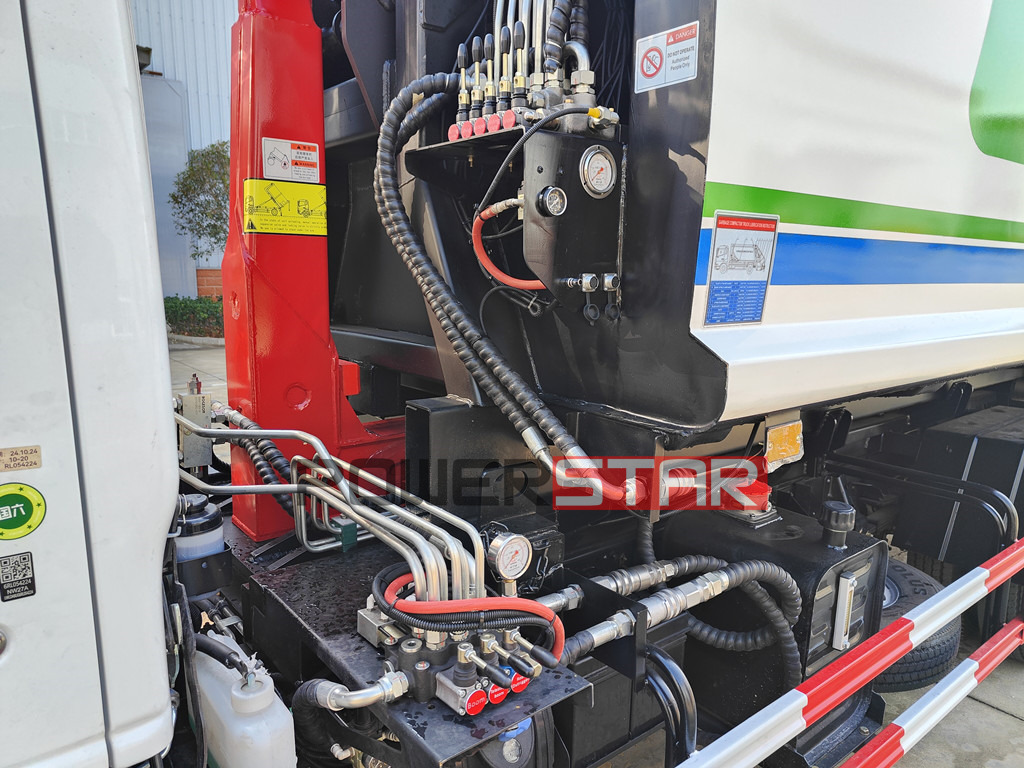

Multifunctional Control System
Upper part control device is used to operate the garbage compactor device, which need to connect the air cable and electric cable, also hydraulic system by pump in and pump out hydraulic oil pipeline. Then can make the system connected on truck chassis and start working.
Lower part control device is used to operate the hook oader device, which can control the upper garbage compactor body or standard garbage bin lifting up and falling down. Also equipped with rear support device to make truck loading process safety.
Compared with traditional Isuzu garbage compactor truck, this newly designed Isuzu hook loader truck mounted refuse compactor body is specially designed for multiple functional working. The Isuzu roll on roll off truck mounted refuse compactor body is mainly used for the collection and transportation of a one-time non-recyclable municipal solid waste, commercial waste, and also used for non-toxic, non-corrosive and non-radioactive industrial garbage.The compactor garbage truck is produced with Germany technology, with the function of high automatic degrees, quick loading speed, convenient, safe and reliable operation, and preventing re-pollution.
Refuse Garbage Compactor body is a type of municipal refuse vehicle that is specially designed by POWERSTAR, with customized capacity range from 3cbm to maximum 25cbm, which is to compress or compact trash into a more manageable size. They can be equipped with a crusher and screens, which help them ensure the garbage is the right size before being compacted. These trucks are usually outfitted with a large, sloped conveyor belt that ejects the waste from the back of the truck. POWERSTAR Rear Loader Garbage Collection Trucks or Body are designed to load municipal solid wastes and compact the waste within the vehicle superstructure thus avoiding long-range travel for little wastes and transporting them to waste treatment facilities.
ISUZU hook arm garbage compactor truck with compression box is an efficient, environmentally friendly, easy-to-operate and highly adaptable garbage collection and transportation vehicle, which is of great significance to improving urban garbage treatment capacity and improving environmental sanitation.
Efficient collection: By mounted with a compressing box, the garbage can be compressed to a higher density, so that more garbage can be loaded in one collection process, improving the collection efficiency.
Environmental protection and energy saving: Compression technology can reduce the volume and weight of garbage, reduce energy consumption and emissions during transportation. At the same time, the compactor box adopts a fully sealed design to effectively prevent garbage from scattering and odor emission, protecting the environment.
Easy operation: The arm mechanism of the ISUZU hook loader garbage truck can easily lift and lower the garbage bin, reducing the labor intensity of the operator. At the same time, the operation of the compression box also adopts automatic control, making the operation easier and faster.
Strong adaptability: This garbage compactor vehicle can adapt to different types of garbage collection needs, including bagged, barreled and bulk garbage. At the same time, its strong carrying capacity and good handling performance also make it suitable for various complex roads and working environments.

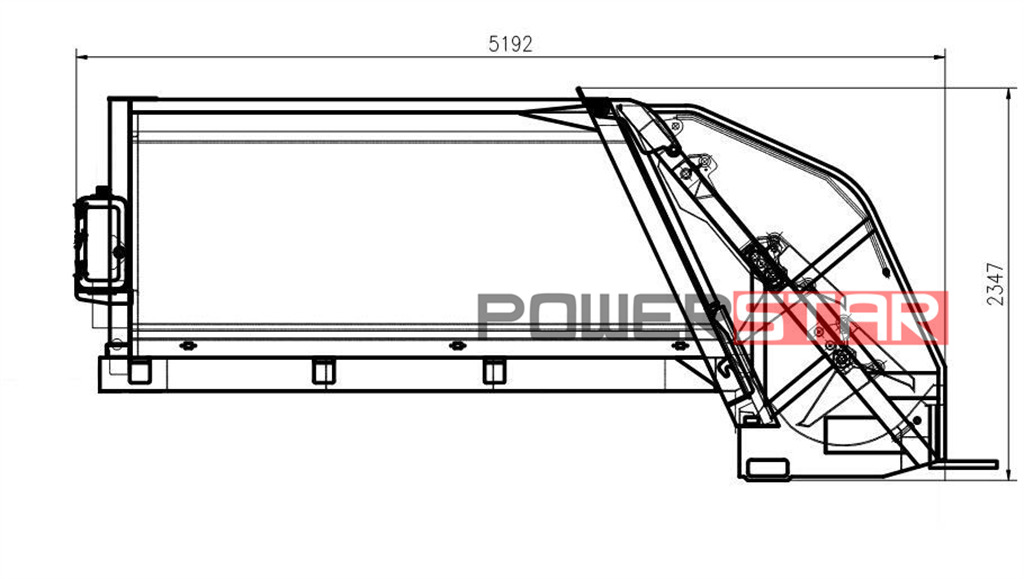

| Waste Compactor Upper-Body Specification | ||
| Tank | Tank Capacity | 4CBM/ 4000L |
| Material | Carbon steel Q355 | |
| Body Floor | 5 mm | |
| Side Plate | 4 mm | |
| Hydraulic Pump | 1 set | |
| Multi-way Valve | 1 set | |
| Flap Cylinder | 2 set | |
| Lifting Cylinder | 2 set | |
| Scraper Cylinder | 2 set | |
| Skateboard Cylinder | 2 set | |
| Push plate Cylinder | 1 set | |
| The Electromagnetic Valve | 2 set | |
| Dirty Tank Volume | 200L | |
| Filter Volume | 500L | |
| Discharge Type | Flat-pushing and Dumping | |
| Hydraulic Pressure | 16Mpa | |
| Controlling Way | Manually and electrical control | |
| Garbage Compactor Truck Specification | ||
| Truck Model | PT5070ZXX | |
| Cabin | ISUZU mini ELF one single row seats | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | Appro. 95 | |
| Overall Dimension (mm) | Appro. 6500*2200*2950 | |
| Max Payload Weight (kg) | Appro. 7300 | |
| Curb Weight( kg) | Appro. 4900 | |
| Wheelbase (mm) | 3360 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Gearbox | Model | ISUZU MSB 5 shift |
| Type | Manual | |
| Forward Speed | 5 | |
| Reverse Speed | 1 | |
| Tire | Type | 7.00R16 |
| Nos | Total 7 no, including 1 spare tire | |
| Bridge | Axle Nos | 2 |
| Front axle loading capacity (kg) | 2500 | |
| Rear axle loading capacity (kg) | 4800 | |
| Engine | Brand | ISUZU 4KH1CN6LB |
| Output Power (kw) | 120HP Diesel | |
| Braking System | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Auxiliary brake | Engine exhaust brake | |
| Electric system | 12V | |
| Hook Loader system |
Standard customzied 4tons hook arm with roll on roll off function |
|
