The Isuzu FVR GIGA 14cbm compression garbage truck produced by POWERSTAR,modified on the Isuzu new FVR VC61 GIGA chassis,4500mm wheelbase.Design with powerful 6HK1 240HP diesel engine,4-stroke direct injection,6-cylinder in-line with water cooling, turbo-charging and inter-cooling;equipped with FAST 8 shift gearbox.The cabin type is new FVR cabin,one and half row,with 3 passengers, air conditioner,USB,AC,direction assistance.
Work capacity:
14cbmTruck model:
PT5180GSYEngine power:
240HP/177KWEngine type:
6HK1-TCG61Axle drive:
4x2，LHDGear box:
FAST 8-speed,manualRemarks:
Isuzu new FVR chassis,large capacity garbage boxIsuzu FVR GIGA truck with compactors is an efficient compression garbage truck designed for urban cleaning. It is built on Isuzu's new FVR GIGA chassis, with a body size of 9070*2500*3300mm and a wheelbase of 4500mm. It is equipped with a 6HK1-TCG61 240HP engine and a FAST 8-speed gearbox, providing strong power and smooth control. The 14-cubic-meter compression garbage bin volume greatly improves the garbage handling capacity. Advanced control systems such as the electric control box in the cab, the hydraulic control lever on the driver's side, the electric control box of the tailgate and the manual control box ensure convenient, safe and reliable operation.
Key Features:
★ Various size body from 3cbm to 20cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide

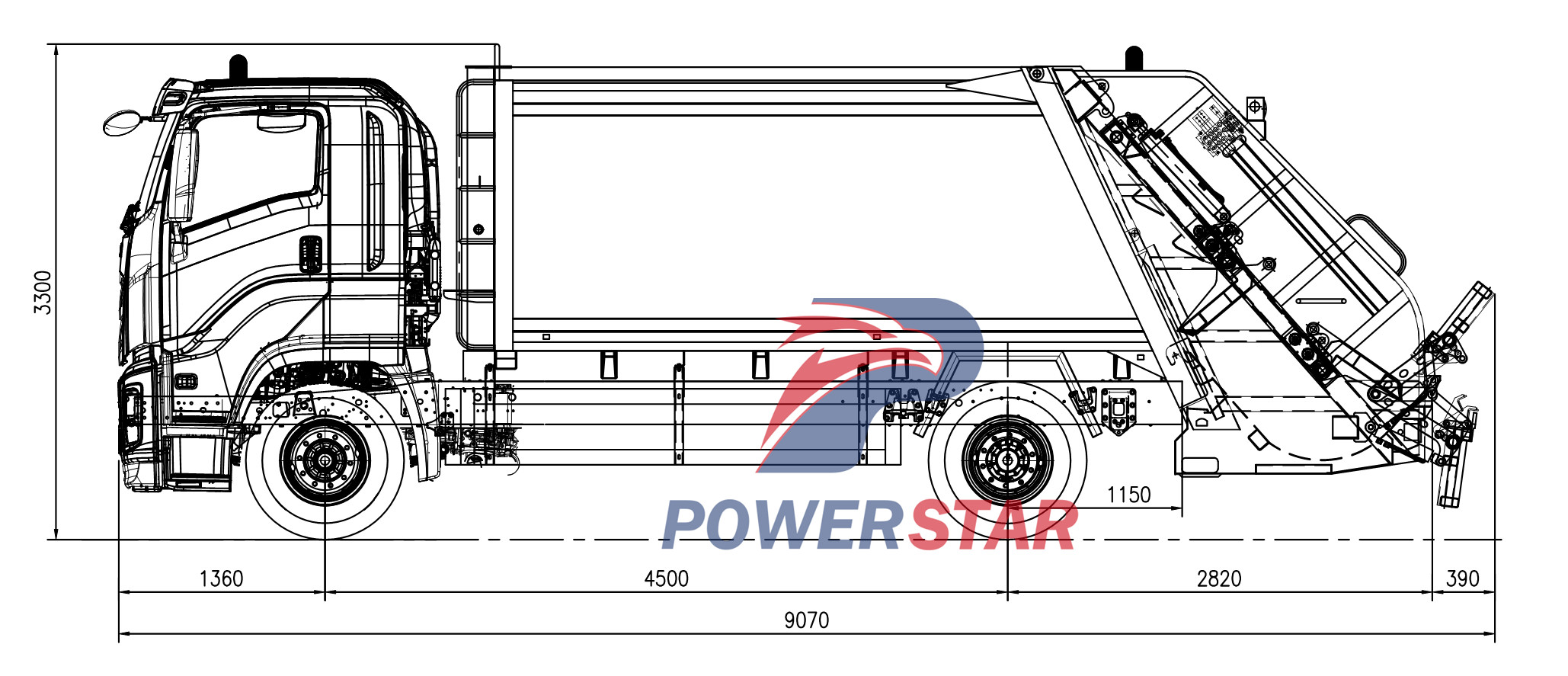

Technical drawing of Isuzu FVR GIGA truck with compactors
Technical drawing of Isuzu FVR GIGA truck with compactors
Specifications of Isuzu FVR GIGA truck with compactors
|
Manufacturer |
POWERSTAR Trucks Industry Co.,Limited |
|
Product Name |
Isuzu FVR GIGA truck with compactors |
|
Main Technology Parameter |
|
|
Product Model |
PT5180GSY |
|
Driving Type |
4×2,left hand drive |
|
Color |
White,or your choose |
|
Weights |
|
|
GVW(KG) |
18000 |
|
Curb weight(kg) |
8600 |
|
Dimensions |
|
|
Wheelbase(mm) |
4500 |
|
Overall Dimension(mm) |
9070×2500×3300 |
|
Box capacity |
14m3 |
|
Max speed(km/h) |
95 |
|
Engine |
|
|
Engine model |
6HK1-TCG61(240HP) |
|
Engine type |
4 stroke water-cooled,inter-cooling |
|
No. of cylinders |
straight-6 cylinders |
|
Displacement(L) |
7790ml |
|
Max. output (kw) |
177kw |
|
Emissions standard |
Euro 6 |
|
Drive Line |
|
|
Transmission |
FAST 8 speeds,manual operation |
|
Steering |
Power steering |
|
Brake |
Air brake with vacuum pump |
|
Cab |
|
|
Passengers in cab |
One and half row,3 passengers |
|
Air container |
Have |
|
Standard configuration |
Sound,parking sensors |
|
Axle |
|
|
Front axle |
6.3 tons |
|
Rear axle |
13 tons |
|
Tire specification |
|
|
Tire specification |
295/80R22.5 standard tire,6 tires+1 spare tire |
|
14m3 garbage compactor truck |
|
|
Box volume |
14m3 |
|
Box material |
Side 4mm,bottom 5mm |
|

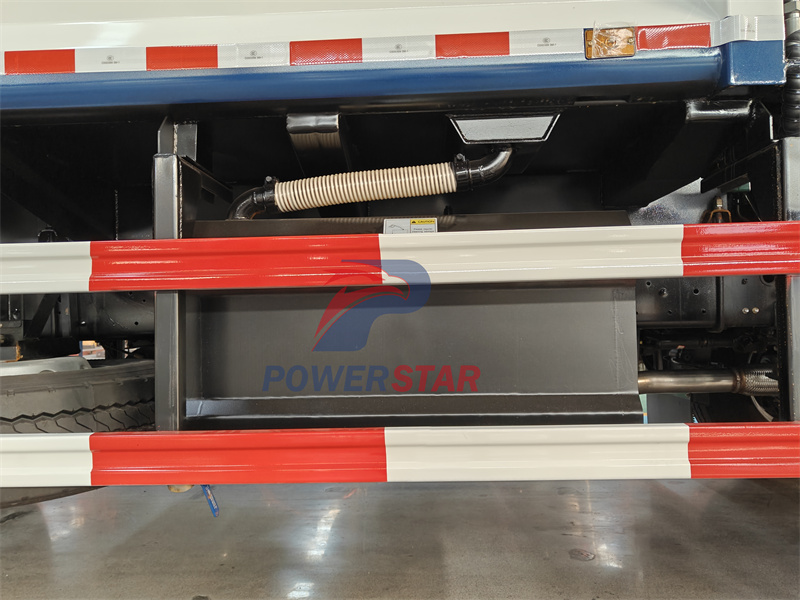

Sewage tanker |
200L |
|
Compression ration |
≥1:3.4 |
|
Loading time |
8-10S |
|
The cycle time of the loading |
50-60S/per turn |
|
Unloading model |
Dump |
|
Unloading time |
≤60S |
|
Discharge model |
Horizontal Ejection |
The core advantage of the Isuzu FVR GIGA 14cbm waste collection truck lies in its efficient garbage compression capability. The vehicle is equipped with a sealed garbage compartment with a volume of 14 cubic meters. This garbage compartment is automatically welded and formed with high-quality Wu carbon steel plates. It has good sealing performance and can effectively prevent secondary pollution of garbage during transportation.
The compartment is equipped with a built-in compression push plate, which realizes two-way compression through the back pressure function, greatly improving the compression ratio and loading capacity of the garbage. The maximum crushing pressure of the vehicle can reach 12 tons, and the loading capacity is equivalent to two and a half times of the same-ton non-compressed garbage, which undoubtedly brings great convenience to the city's garbage disposal.

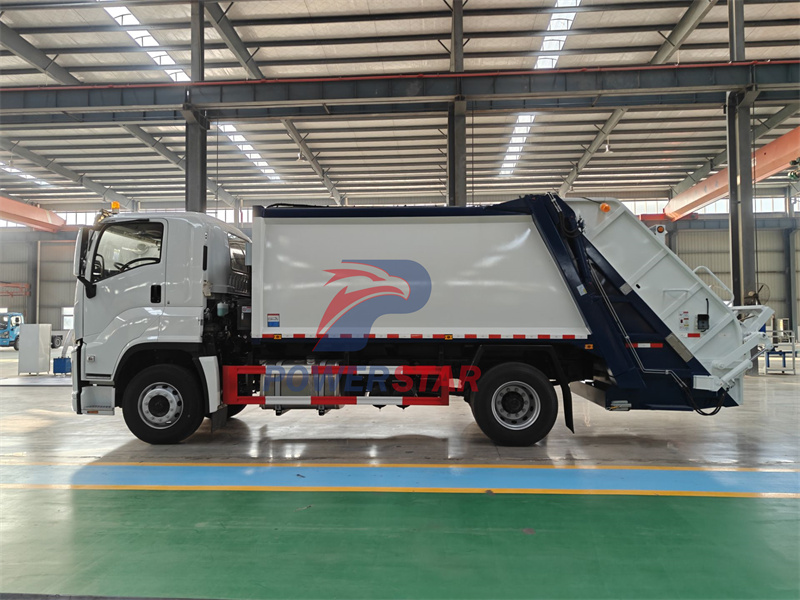

Truck photos

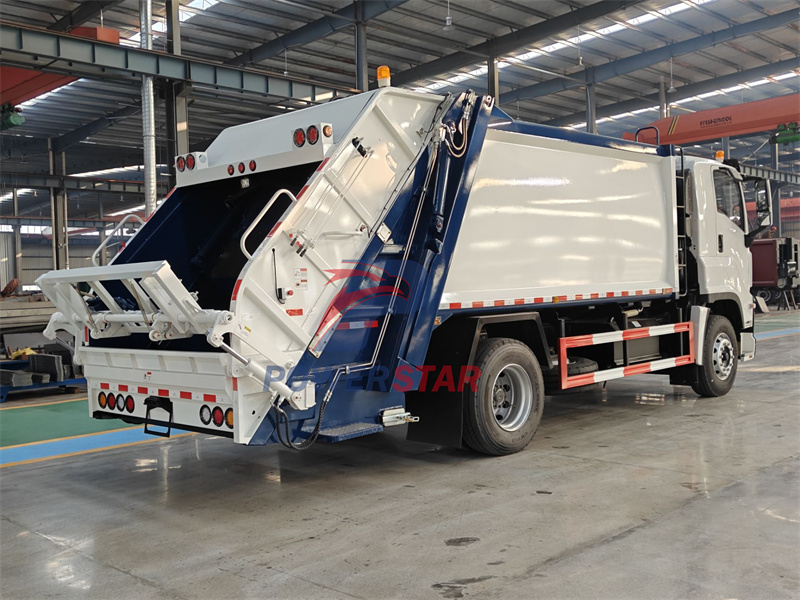

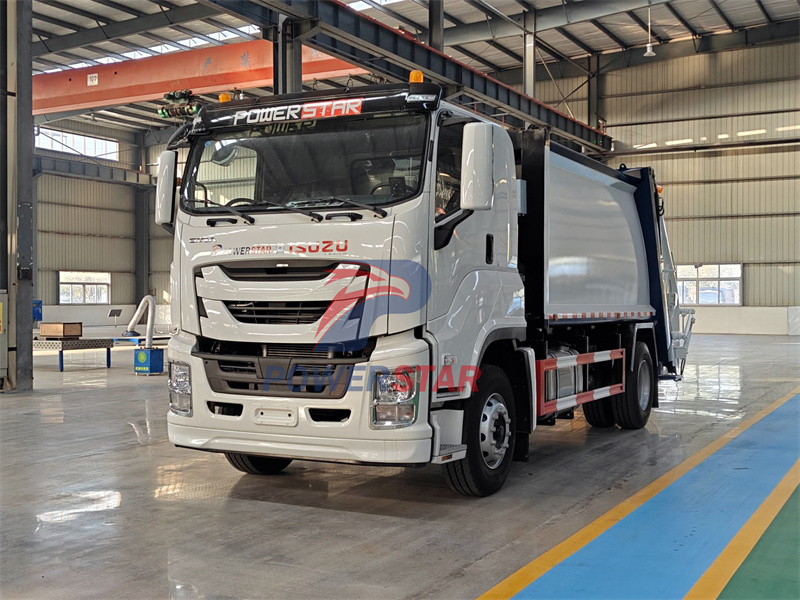

Isuzu FVR GIGA compression garbage truck

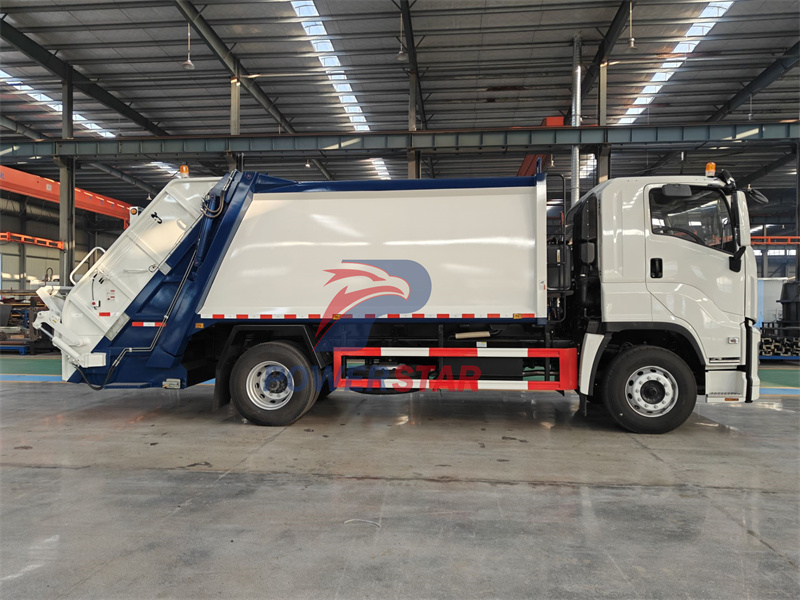

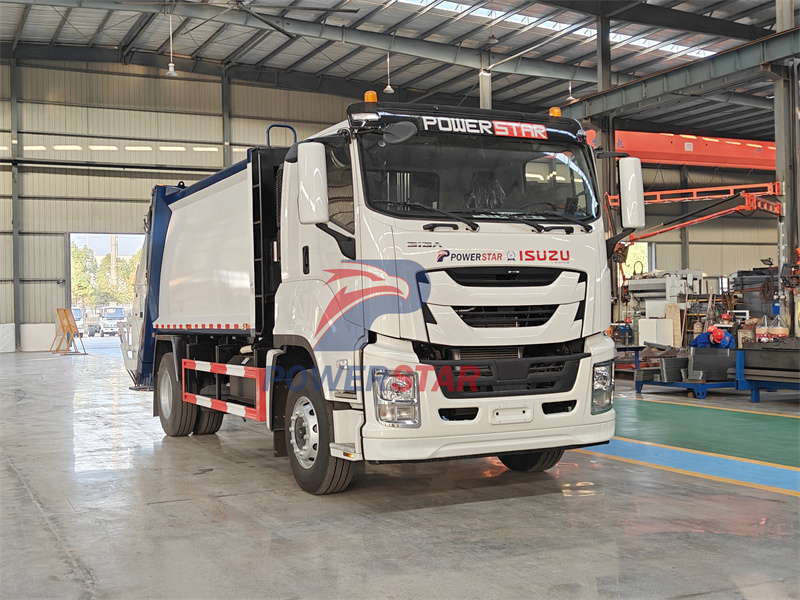

Isuzu GIGA 4x2 14cbm waste collection truck

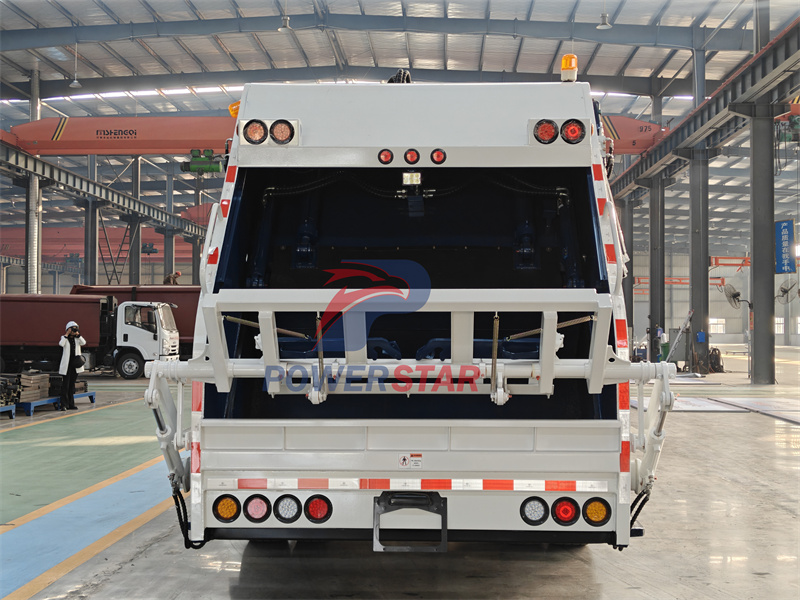

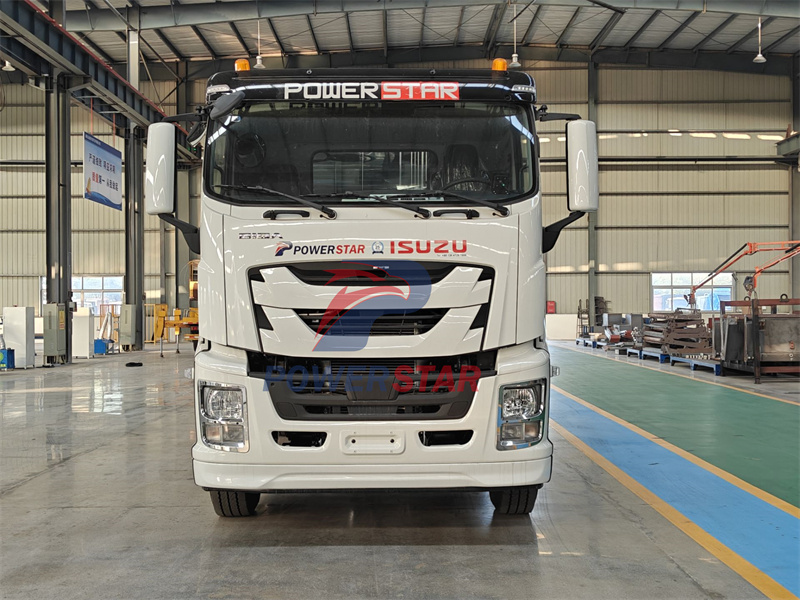

Isuzu 14cbm rear loader compactor

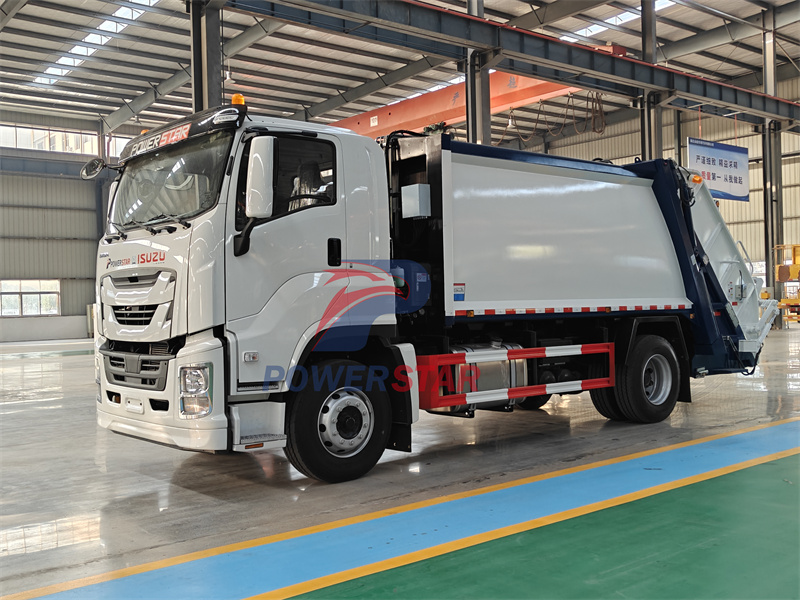

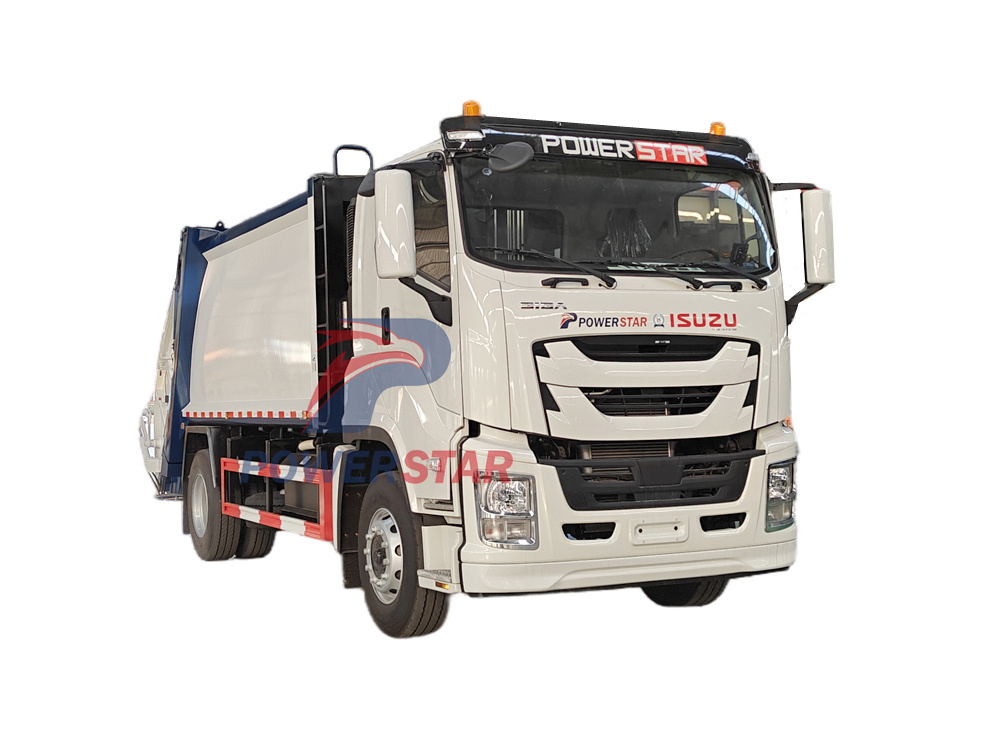

Isuzu new FVR refuse compaction truck
Isuzu FVR GIGA Compactor Truck not only performs well in power, transmission, garbage bin volume, compression efficiency, etc., but its advanced control system makes this model unique in the field of urban garbage disposal. The following will introduce in detail the key control components of this garbage truck, such as Electric Control Box (In cabin), Hydraulic Control Joysticks (At drive side), Electric Control Box (In tailgate), and Manual Control Box (In tailgate).

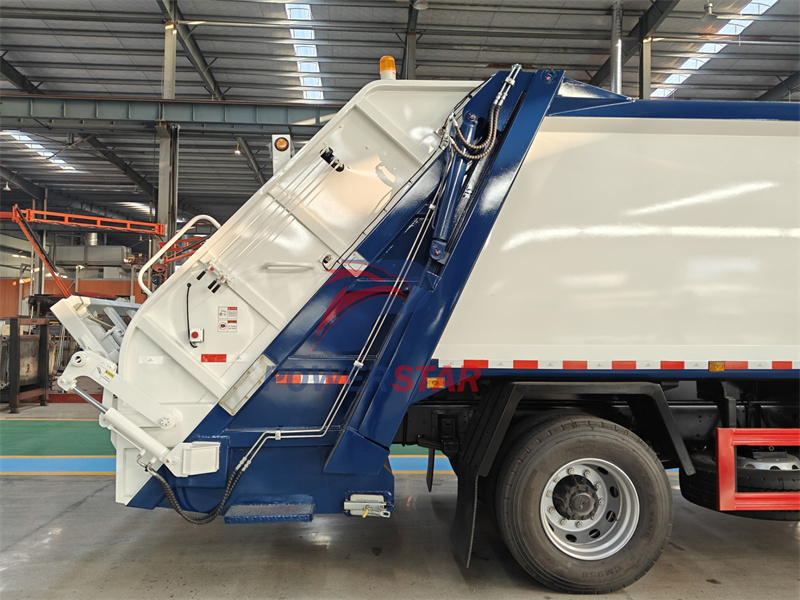

Slide plate, scraper assembly, flip mechanism

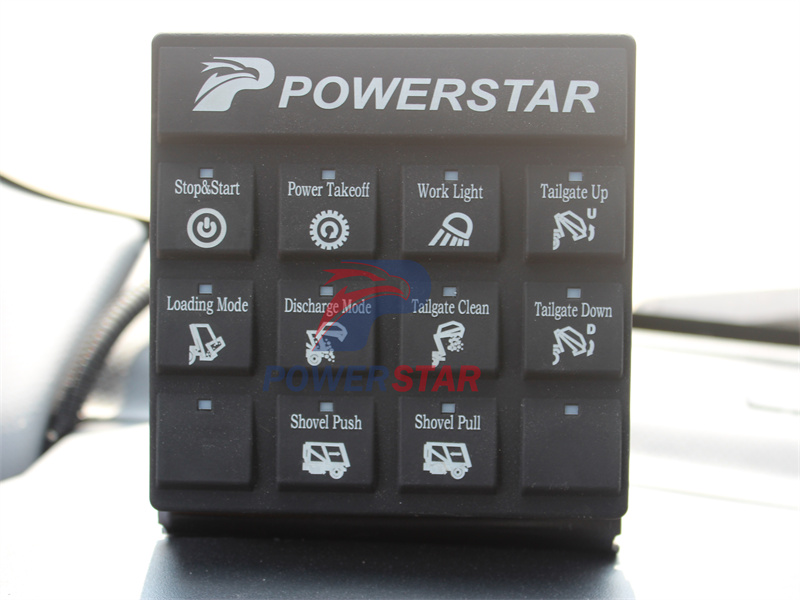

Electric Control Box (In cabin)
The electric control box in the cab is one of the core control components of Isuzu FVR GIGA compact garbage truck. It integrates multiple control functions of the vehicle, including engine start, shutdown, acceleration, deceleration, etc. The electric control box adopts advanced electronic control technology to achieve precise control of various systems of the vehicle. The driver can easily achieve comprehensive control of the vehicle through simple button operation. At the same time, the electric control box is also equipped with an LCD display, which can display the vehicle's operating status, fault information, etc. in real time, providing the driver with a more intuitive and convenient control experience.
Electric Control Box (In cabin)

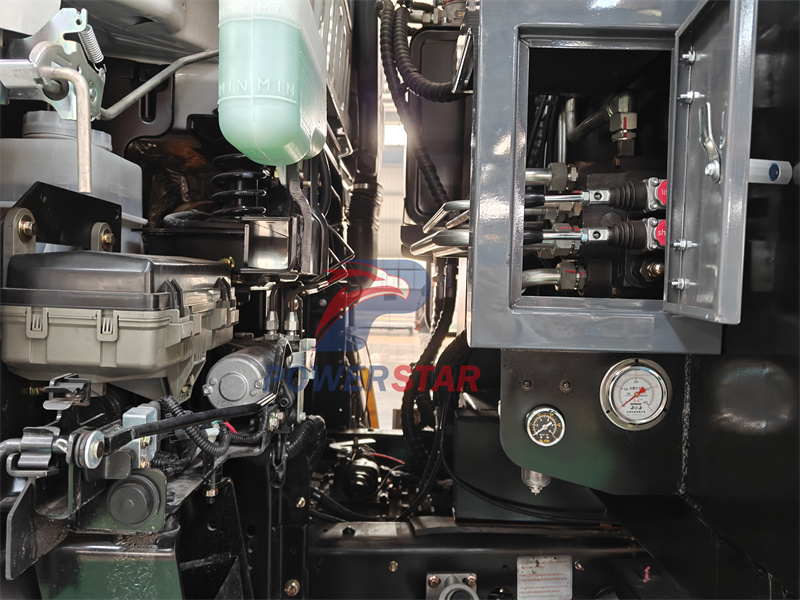

Hydraulic Control Joysticks (At drive side)
The hydraulic joystick on the driver's side is another important control component of the Isuzu FVR GIGA compression garbage truck. It is mainly used to control the compression mechanism and lifting mechanism of the garbage bin. The hydraulic joystick adopts ergonomic design, and the operation feels comfortable and flexible. The driver can use different buttons and joysticks on the joystick to achieve precise control of the compression, lifting and tilting of the garbage bin. This design not only improves the operating efficiency, but also reduces the driver's labor intensity.
Hydraulic Control Joysticks (At drive side)

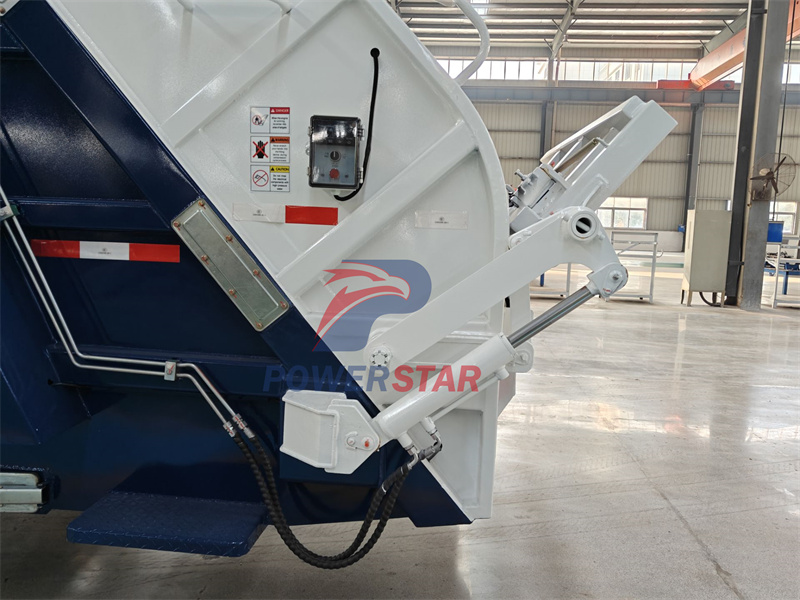

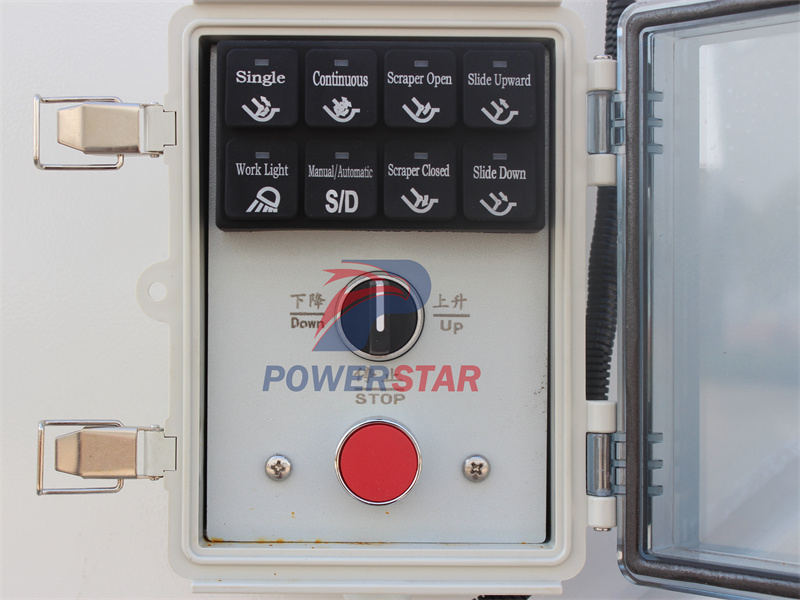

Electric Control Box (Tailgate left side)
The electric control box on the left side of the tailgate is a key component of the rear control of the Isuzu FVR GIGA compression garbage truck. It is mainly used to control the opening and closing of the tailgate. The tailgate electric control box also uses advanced electronic control technology, which can achieve fast and precise control of the tailgate. The driver can easily achieve remote control of the tailgate through the electric control box in the cab or the electric control box button at the tailgate. This design not only improves the convenience of operation, but also ensures the safety and stability of the tailgate during opening and closing.
Electric Control Box (Tailgate left side)
Manual Control Box (Tailgate right side)
In addition to the electric control box, the tailgate right side of the Isuzu FVR GIGA compression garbage truck is also equipped with a manual control box. The manual control box is mainly used as a backup control method when the electric control system fails. It adopts a simple and reliable manual operation mechanism, and the driver can open and close the tailgate by manually rotating or pushing and pulling the control lever. This design not only improves the reliability and safety of the vehicle, but also provides the driver with more flexible control options.
The control system of the Isuzu FVR GIGA compression garbage truck is advanced, convenient and reliable. Whether it is the electric control box in the cab, the hydraulic control lever on the driver's side, or the electric control box and manual control box at the tail, they all provide the driver with a comprehensive and precise control experience. The design of these control components not only improves the operating efficiency of the vehicle, but also reduces the labor intensity of the driver, providing strong support for urban cleaning work.
Manual Control Box (Tailgate right side)
