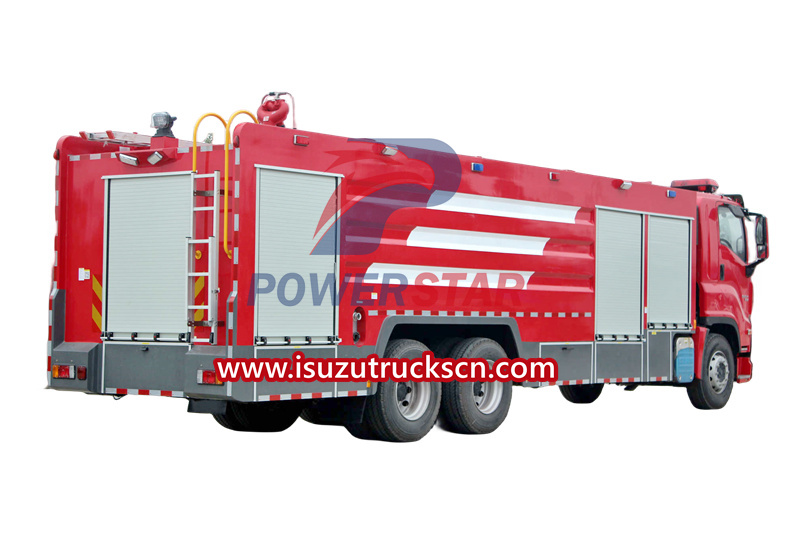

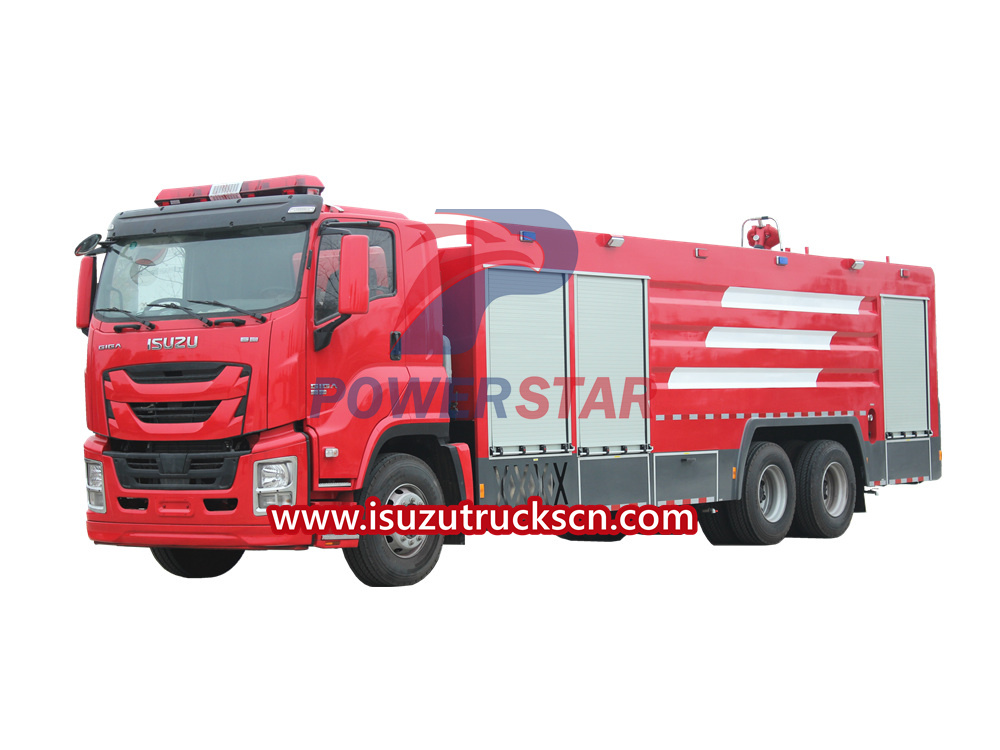

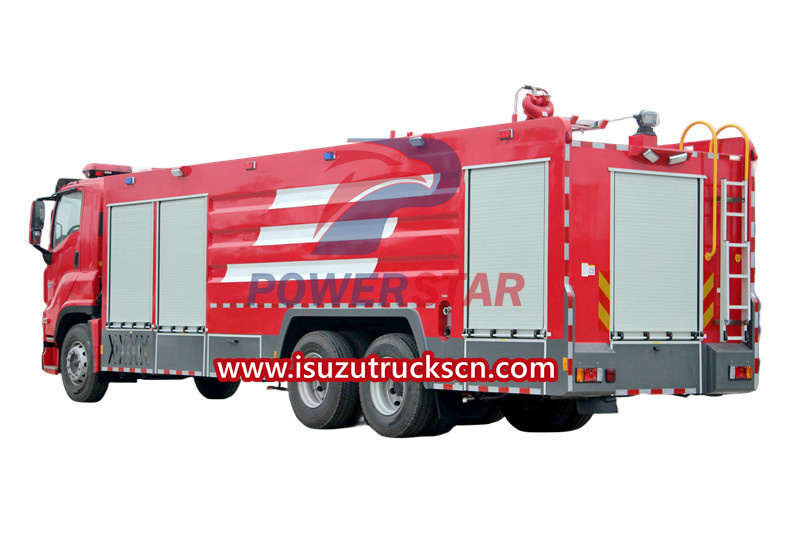

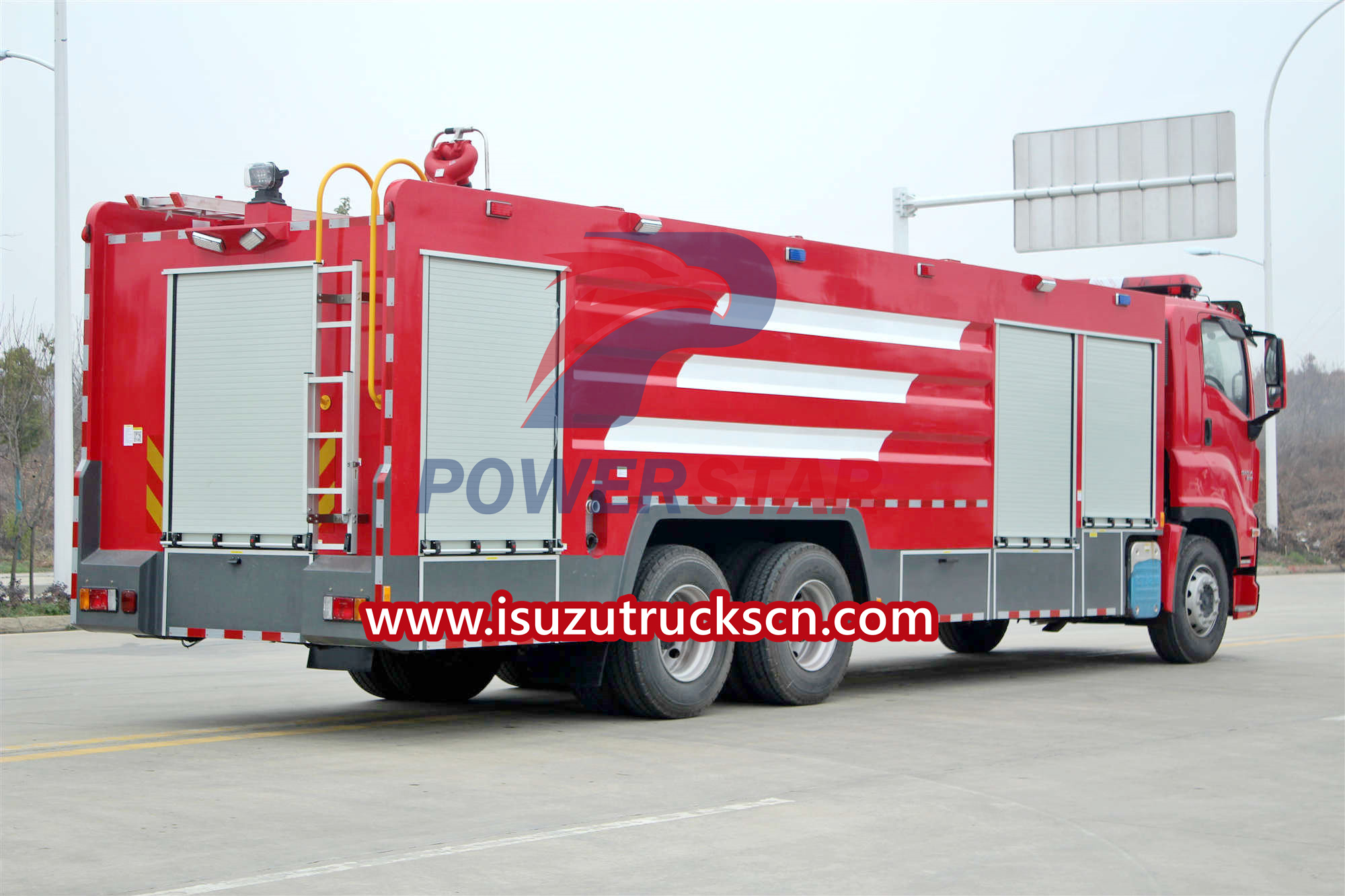

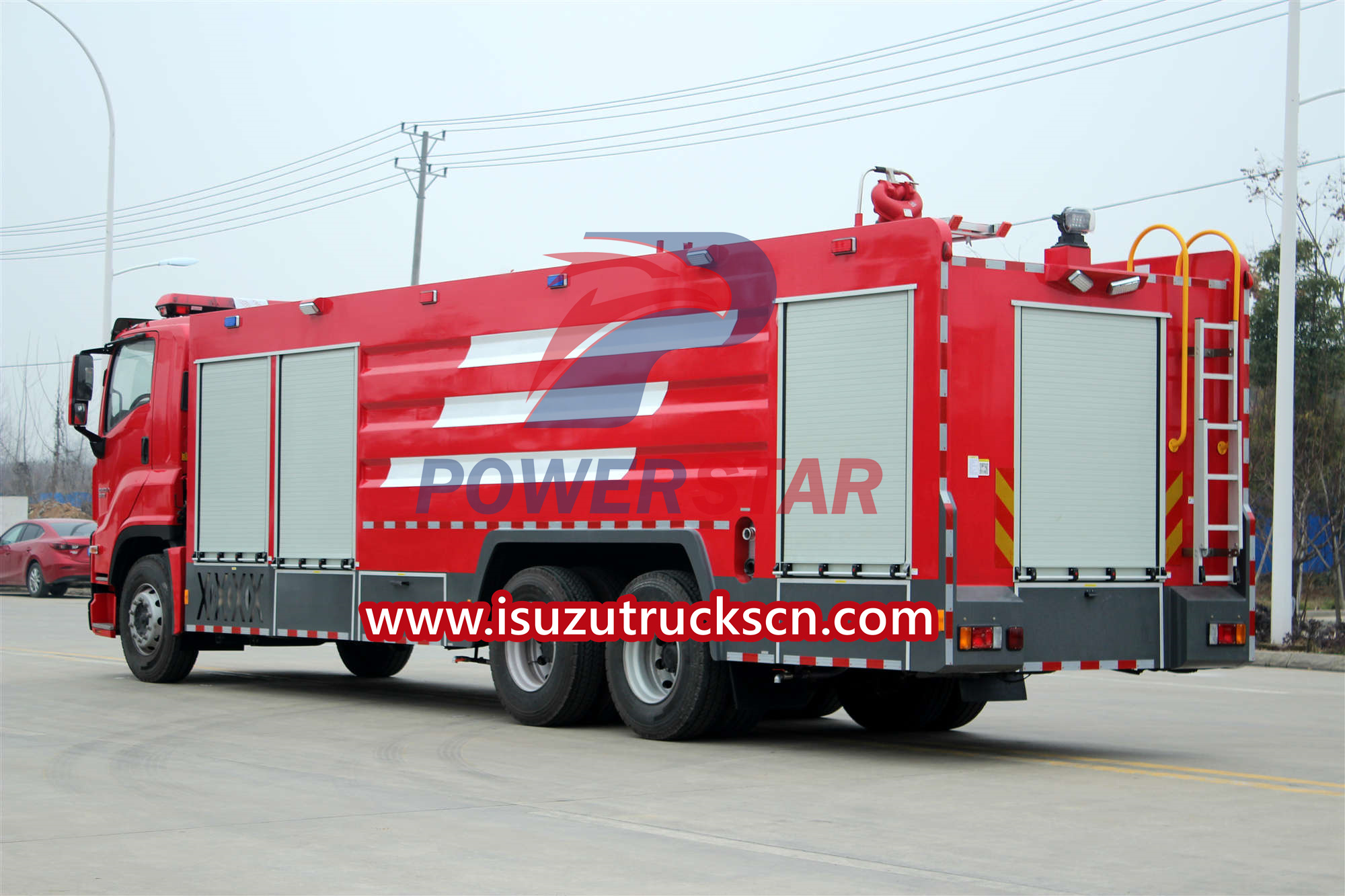

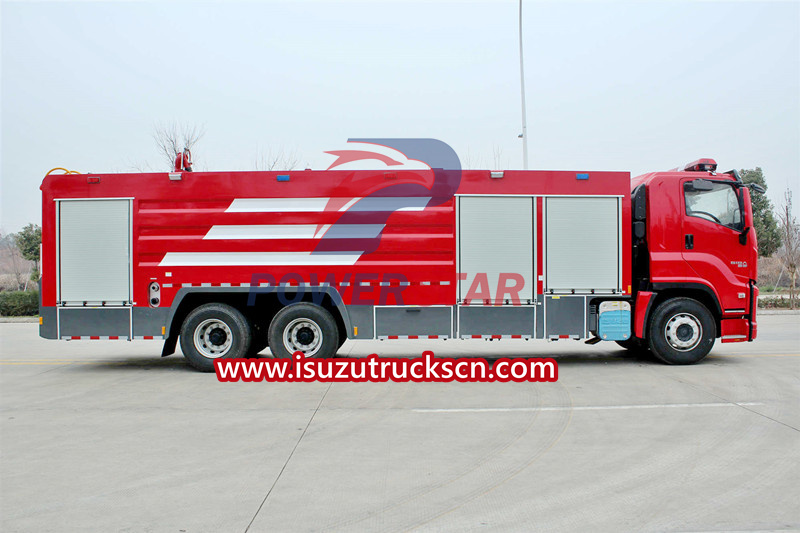

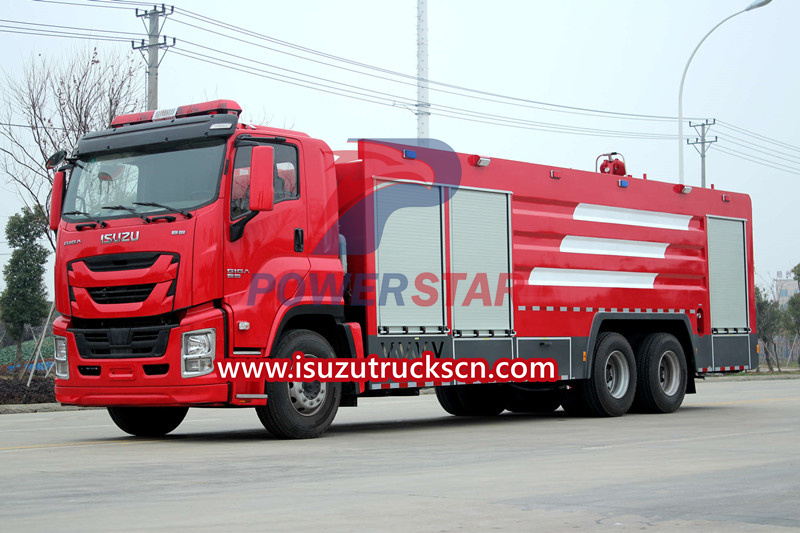

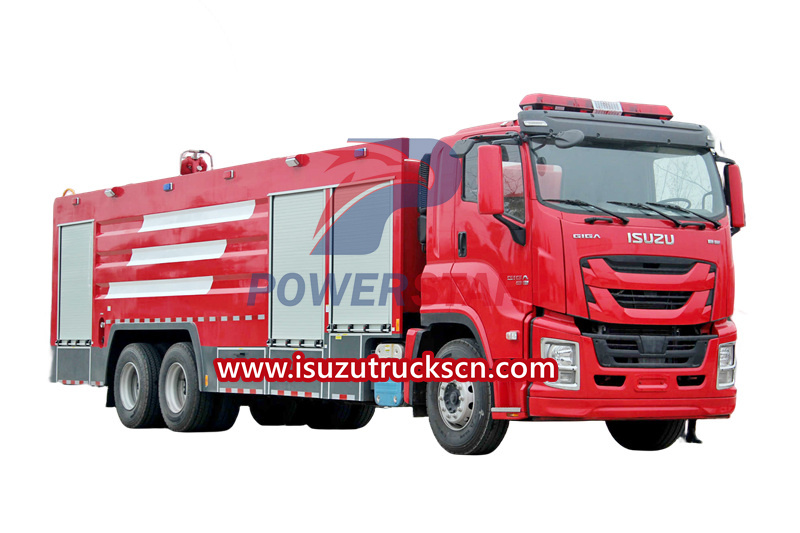

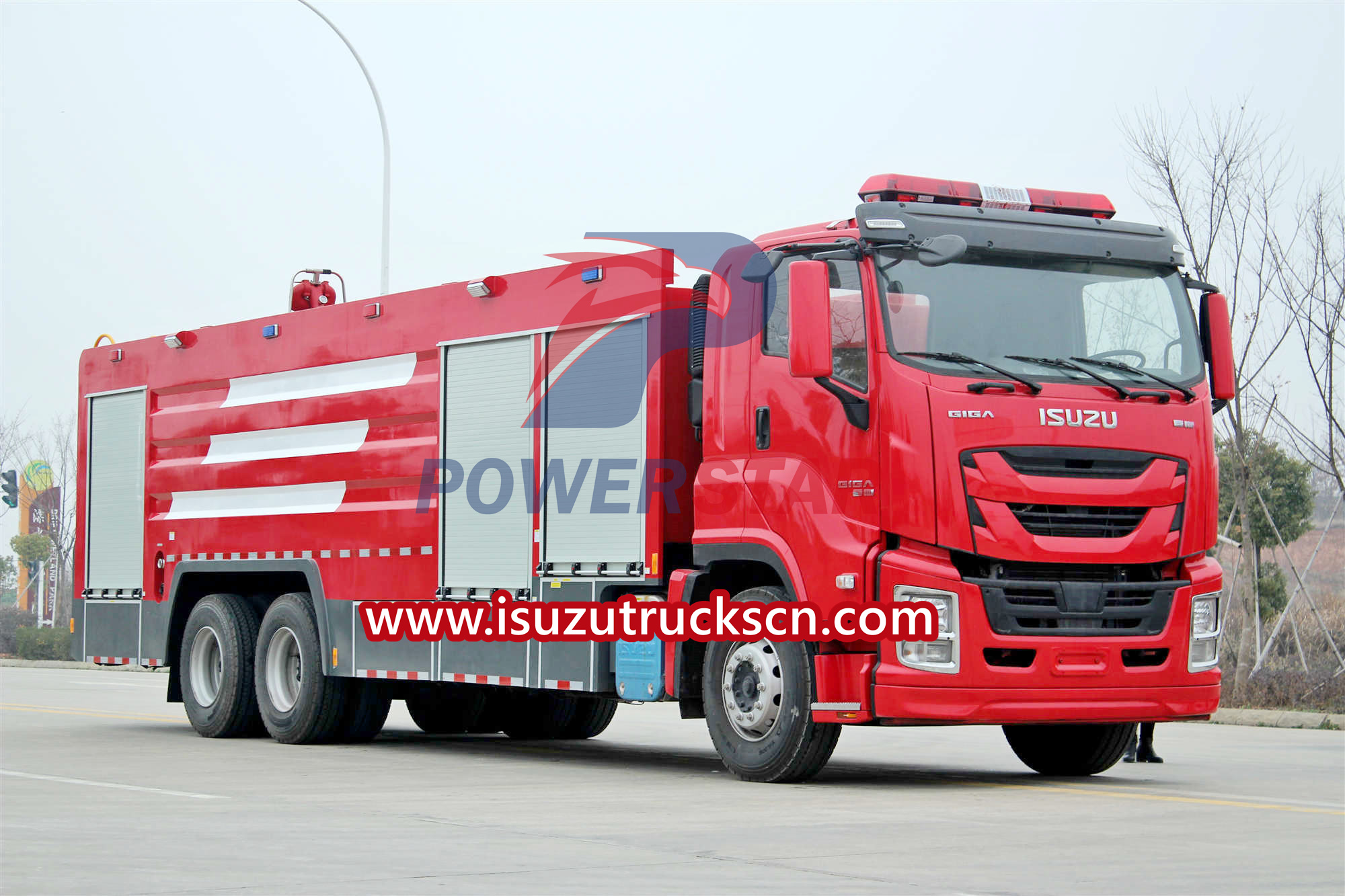

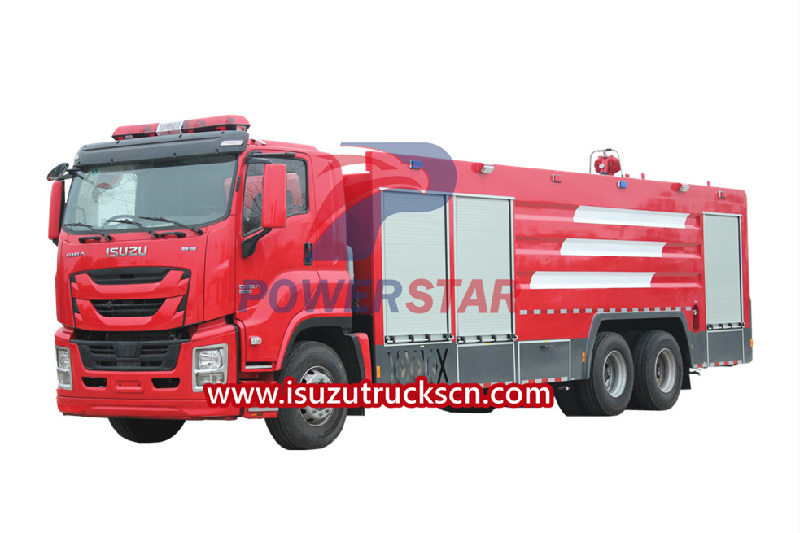

lSUZU Water and Foam Fire Truck is adopted lSUZU GIGA 6x4 truck chassis, equipped with a 12000L water tank and 3000L foam tank, as well as standard fire fighting equipment, such as fire extinguished equipment, forcible entry rescue tool and so on. The vehicle has crew cab and max 6 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement. Mounted with CB10/100 fire pump and flow rate 100L/s, water foam fire monitor is PL80 with flow rate 80L/s. The Isuzu GIGA red fire truck is an ideal fire engine for all kinds of fire rescue work.
Work capacity:
12000 + 3000 LitersTruck model:
PT5250GXF15GEngine power:
380 hpEngine type:
6UZ1-TCG61Axle drive:
6x4Gear box:
FAST 12-shift manualRemarks:
SS304 tanker system, super CB10/100 fire pump and PL80 fire monitor
POWERSTAR company, is the leading Chinese manufacturer of custom fire apparatus. Products include custom and commercial pumpers, aerials, rescue trucks, wildland trucks, mini pumpers, elliptical tankers, and homeland security apparatus. In addition, Powerstar designs its own foam systems and was the first company to introduce frontal airbags and the Side Roll Protection system to fire apparatus. To learn more about PST, call me now.
The GCC / CCC Hot sale equipped ISUZU Giga truck chassis mounted Heavy-duty multi-function fire engine firefighting rescue fire truck:
1. It is equipped with Isuzu GIGA series heavy-duty chassis. It consists of two parts: the crew room and the tank body. The cab is double-row, with 6 passengers. The front part of the car is the equipment box, the middle part is the tank body, and the tail part is the pump room.
2. The tank material is made of high quality stainless steel 304, which is elastically connected with the chassis, water, foam, dry powder also available.

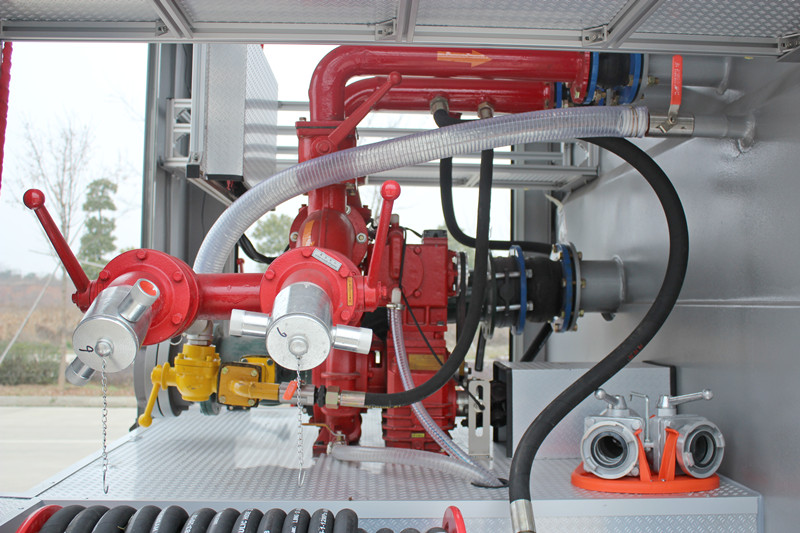

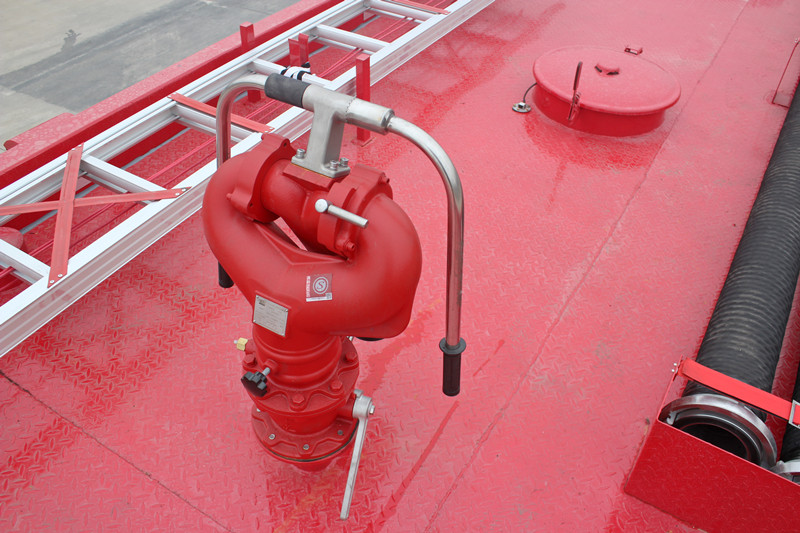

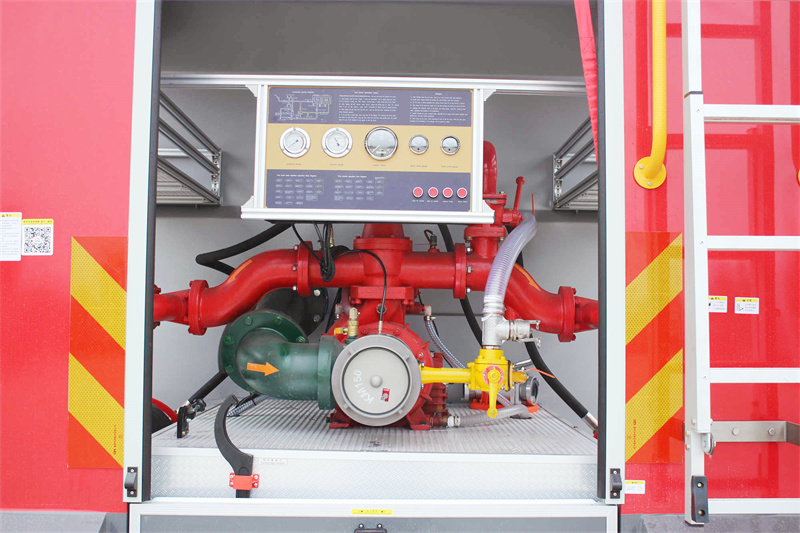

3. Equipped with CB10/100 low-pressure fire pump with rated flow of 100L/S. The PL80W model water foam fire water monitor is installed on the roof, and the range can reach 65m.
4. Applied to public security fire brigade; chemical plant; mining enterprise and terminal.

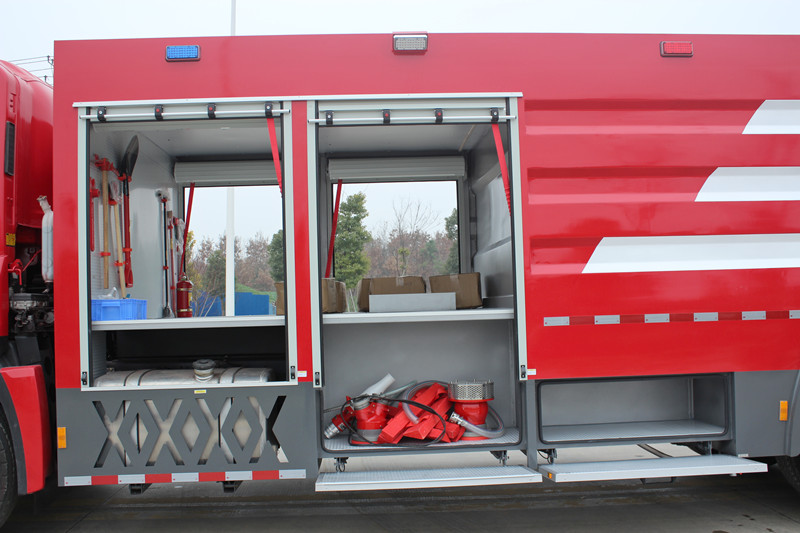

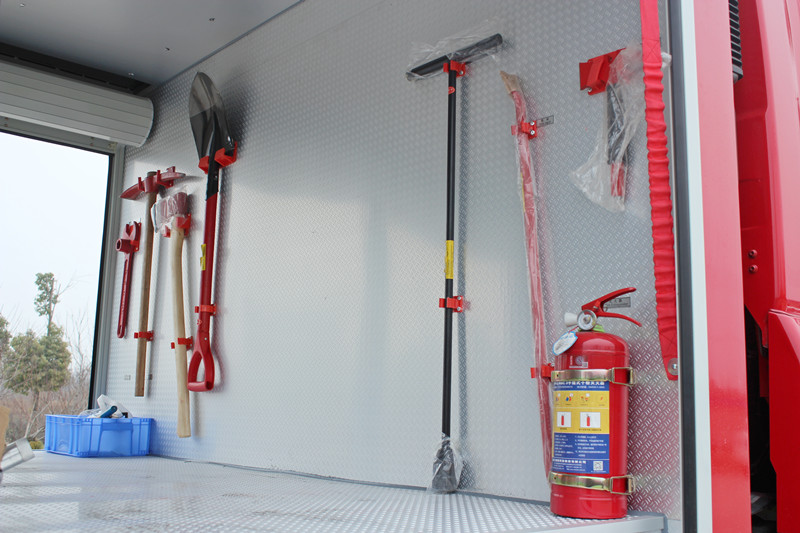

5. All standard fire rescue equipment and tools are mounted on the truck cargo box, easy usage.
Products Parameters
ISUZU GIGA 6x4 fire fighting truck is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly, which is also called fire truck, fire fighting vehicle, water tank fire truck, fire appliance, fire engine, fire-extinguishing water truck, fire tender, fire service truck, fire water tanker. Customized Isuzu fire trucks can be mounted on different Isuzu truck chassis:100P, 600P, 700P, ELF, NKR, NPR, NQR, FTR, FRR, FSR, FVR, FVZ, GIGA 4x2, GIGA 6x4, GIGA 8x4, etc.
ISUZU GIGA 6x4 15Ton water foam combined fire fighting vehicle 5,000 gallons fire truck on sale
General
Vehicle Brand
PT5250GXF15G
Chassis Brand
ISUZU GIGA
Overall Dimension
10500*2500*3670mm
GWW/ Kerb Weight
25,000kg/14,500kg
Cab
Cab Capacity
2+4 persons allowed
Air Conditioner
Air conditioner equipped
Engine
Fuel Type
Diesel
Engine Brand
ISUZU engine, 6UZ1-TCG61
Power
380PS (280KW)
Displacement
9839 mI
Emission Standard
Euro 6
Chassis
DriveType
6X4,left hand drive
Transmission
FAST 12-speed forward, 2 reverse
Wheelbase/No.of axle
4600+1370mm/3
Tyre Specification
315/80R22.5
Tyre Number
10 tyres and 1 spare tyre
Max Speed
90km/h
Paint
Metallic painting and customized LOGOs
Superstructure
Water Tank Capacity
12,000Litres (About 3,200gallons)
Foam Tank Capacity
3,000litres (About 800gallons)
Tank Material
Water tank:Stainless steel 304, with thickness 5mm
Foam tank:Stainless steel 304, with thickness 5mm
Fire Pump
Flow speed
CB10/100 model with flow rate 100L/s
Pressure
1.0 MPa
Fire Cannon
Flow speed
PL80W model with floa rate 80L/s
Shot
Water
70m
Foam
65m
Suction Head
6 m
Hose
High quality ,wire strength end hose,with cooper wire, anti-static
All standard accessories.Typical modern fire apparatus carries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles, axes and cutting equipment, halligan bars...
Optional
Aluminum Ladders, floodlight, Breathing apparatus
ISUZU GIGA 6x4 15Ton water foam combined fire fighting vehicle 4,000 gallons fire truck on sale：
Fire water gun: A high-pressure water gun is always available on fire trucks, which is used to spray water to extinguish fires. The shape and range of the water flow can be adjusted.

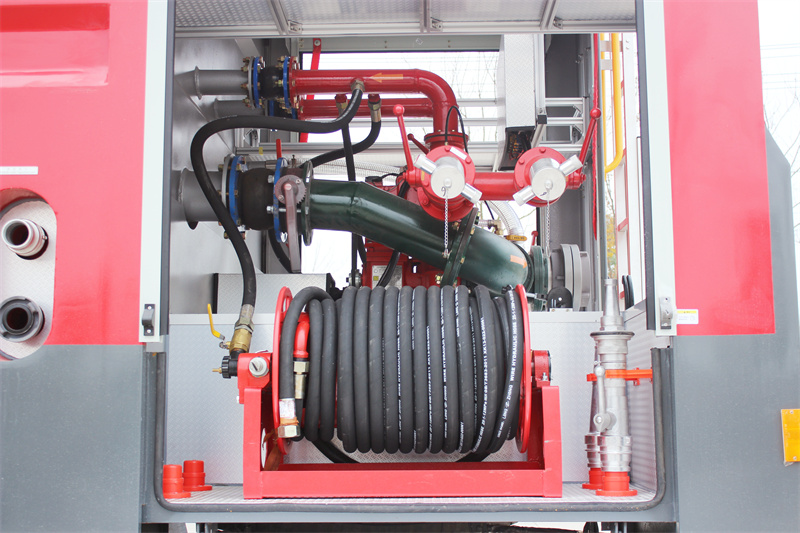

Fire hose: used to transport water to the fire scene. Firefighters can use the hose to carry out fire-fighting operations.
Firefighting foam injector: used to spray foam agent to form foam with wide coverage and high density, used to extinguish oil and chemical fires.
Fire-fighting foam agent: Foam agent is a special fire-fighting liquid on fire trucks. It is used to form the foam needed to fight fires and effectively control the fire.
Firefighting lifeline: Fire trucks are equipped with lifeline ropes of different specifications, which are used to rescue trapped people or rescue in high-rise buildings.
Fire hammer: Fire trucks carry emergency rescue tools that can break glass, pry open doors and windows, etc.
Breathing Apparatus: used by firefighters to breathe pure air in toxic smoke and harmful gas environments to ensure their own safety.
Fire extinguishers: Fire trucks are equipped with common fire extinguishers, such as carbon dioxide fire extinguishers, dry powder fire extinguishers, etc., for early stage fire extinguishing.
Fire blanket: Used to cover the fire source when extinguishing a fire and cut off the oxygen supply to prevent the fire from expanding.
Ropes for high-altitude operations: For the safety of high-altitude rescue or fire-fighting operations, fire trucks are equipped with special ropes and knots.
Water pump system: Fire trucks are equipped with a water pump system to extract water and supply water to fire extinguishing equipment.
Air compressor: used to provide compressed air to the fire foam spray system.
Side expander injector: A nozzle located on the side of a vehicle that sprays a fine mist of water over a large fire area.
Fire axe: Used to rescue and destroy building materials to facilitate firefighters in rescue work.
Flame detector: used to detect fire and smoke and provide early warning of fire.
Flame retardants: Used to form a protective barrier that stops the spread of flames.
Special fire-fighting equipment: such as chemical protective clothing, special gas filter masks, etc., used to deal with dangerous and special fires.
Lighting equipment: Fire trucks are equipped with various lighting equipment to ensure the visibility of fire-fighting operations at night.
Rescue tool box: The fire truck is equipped with various emergency rescue tools, such as car cutters, hydraulic jacks, etc.
Digital communication equipment: Fire trucks may be equipped with communication equipment to enable firefighters to communicate and coordinate quickly with the command center and other rescue forces.
