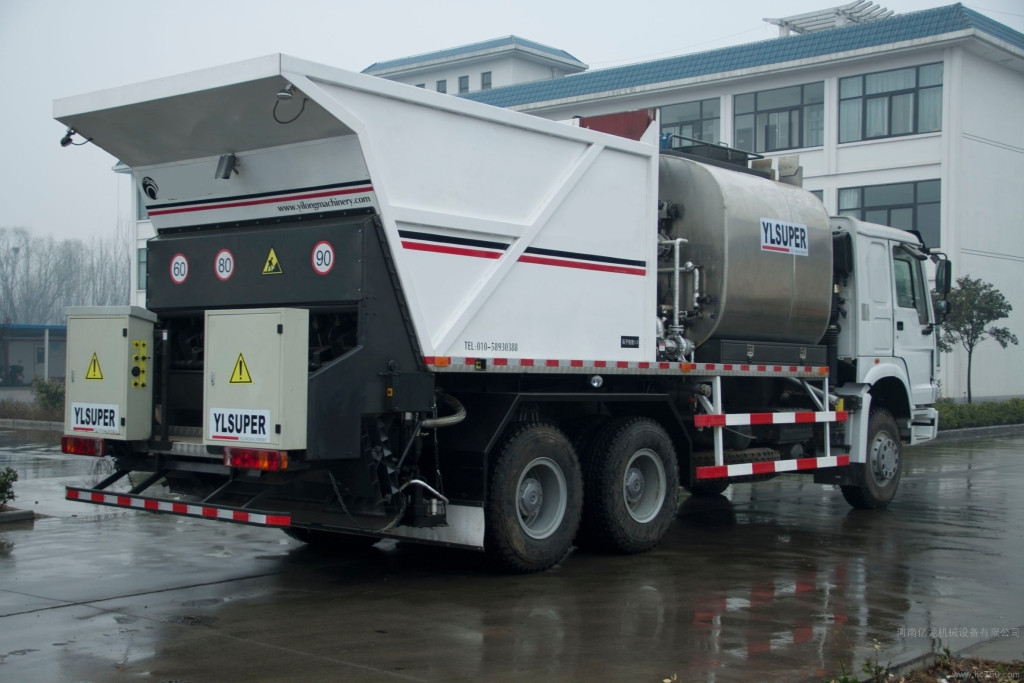

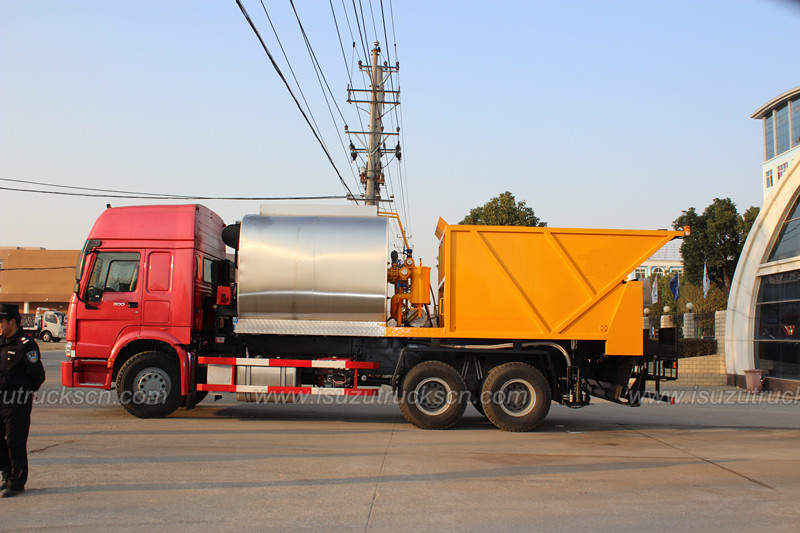

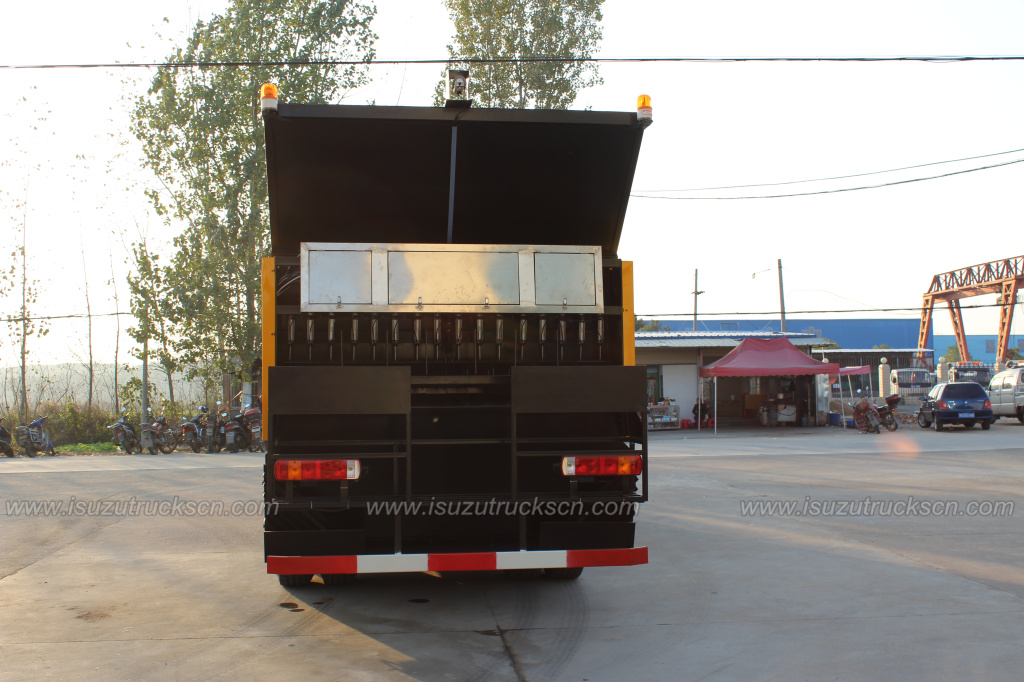

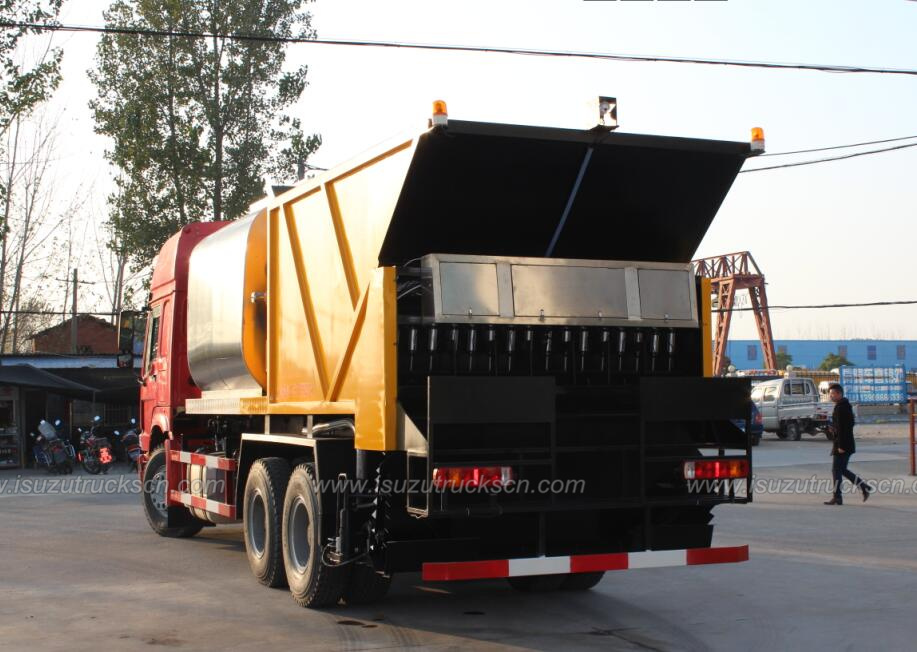

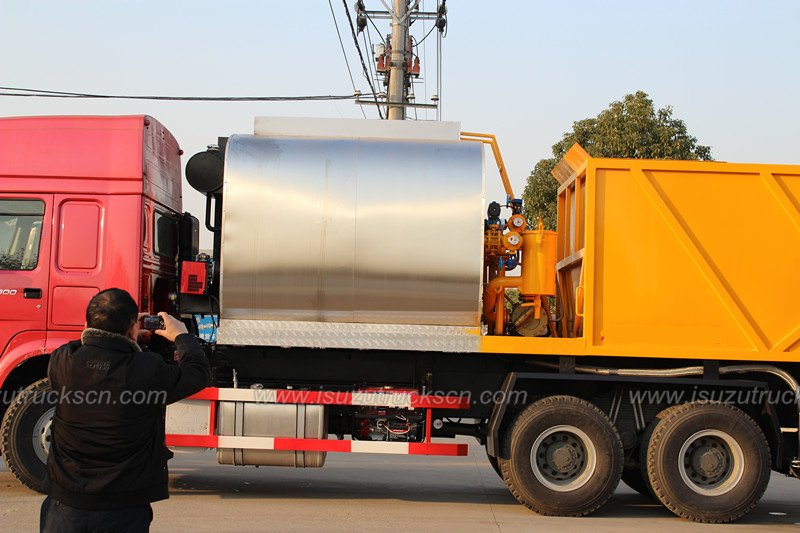

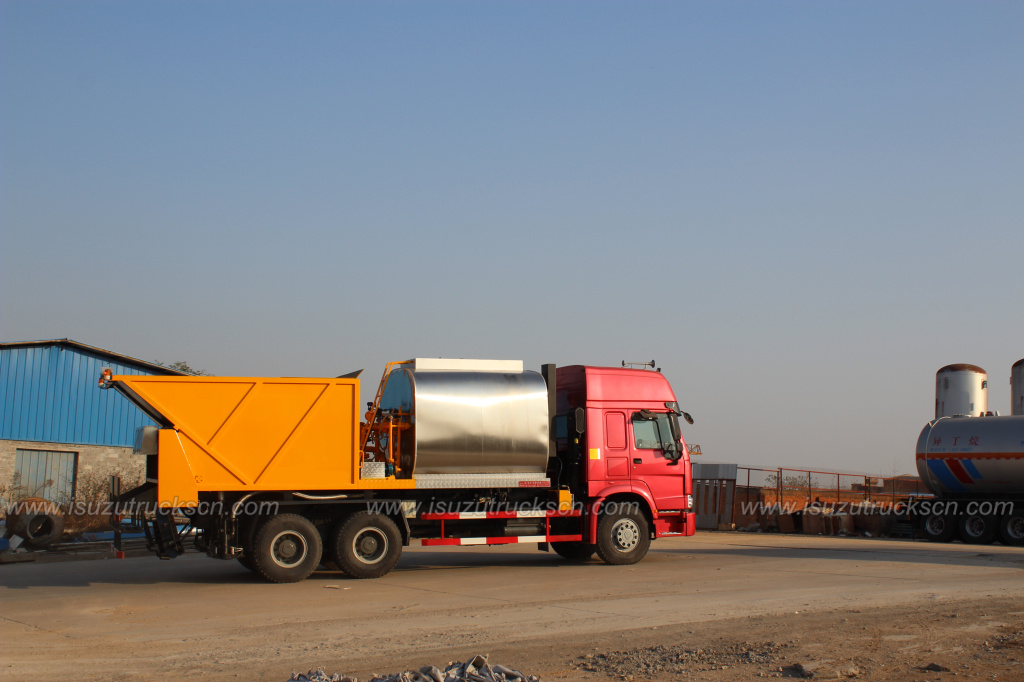

ISUZU FVZ FXZ Synchronous Chip Sealer Truck with 8m3 Aggregate Bin
Order(MOQ):
1ISUZU FVZ FXZ Synchronous Chip Sealer Truck with 8m3 Aggregate Bin
Brief Introduction
ISUZU brand synchronous chip sealer developed by our company is the special
machinery for asphalt pavement construction and can be widely applied into the
highway operation work of fast synchronous spraying. It features cost-saving,
surface wear-resistant, anti-skidding and waterproof. The normal traffic could
be resumed soon after the construction. It applies to the construction of the
highways at different levels.
Advantages
1. The accurate spraying volume promised the perfect realization of asphalt
spraying threefold with good evenness.
2. The complete computer touch screen with video monitoring system makes it
possible for us to observe the whole working process.
3. The intense spray system and asphalt aggregate stone collinear spraying
system ensure that the asphalt and the building stones will be simultaneously
sprayed.
4. ISUZU synchronous chip sealer has the most effective heating and circulating
thermal system to smooth the pipelines and nozzles. Thus, there is no need to
clean them.

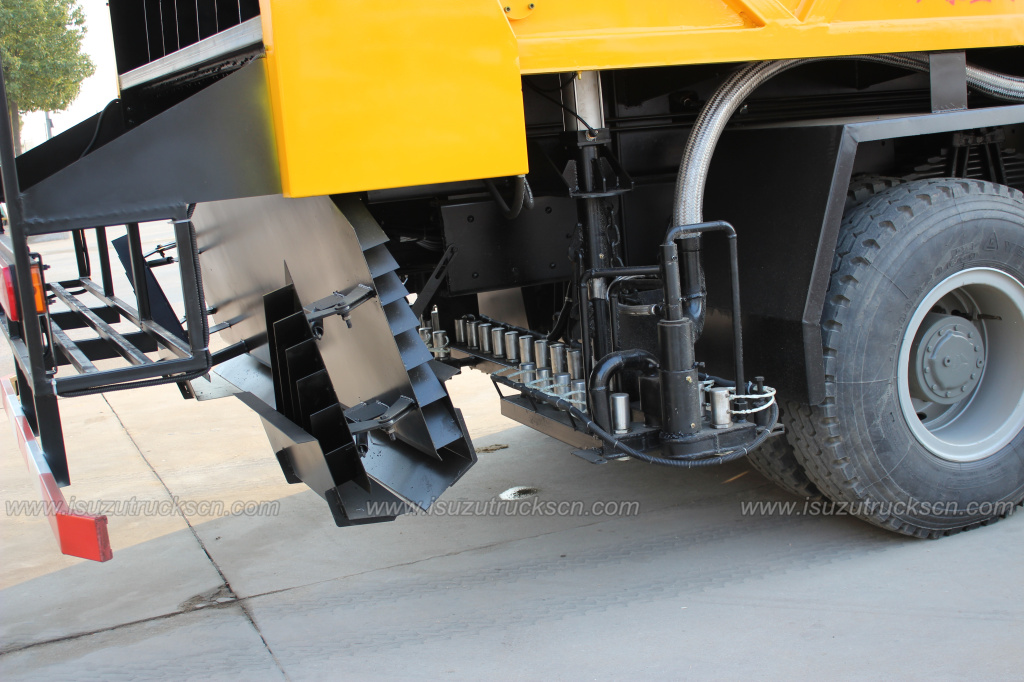

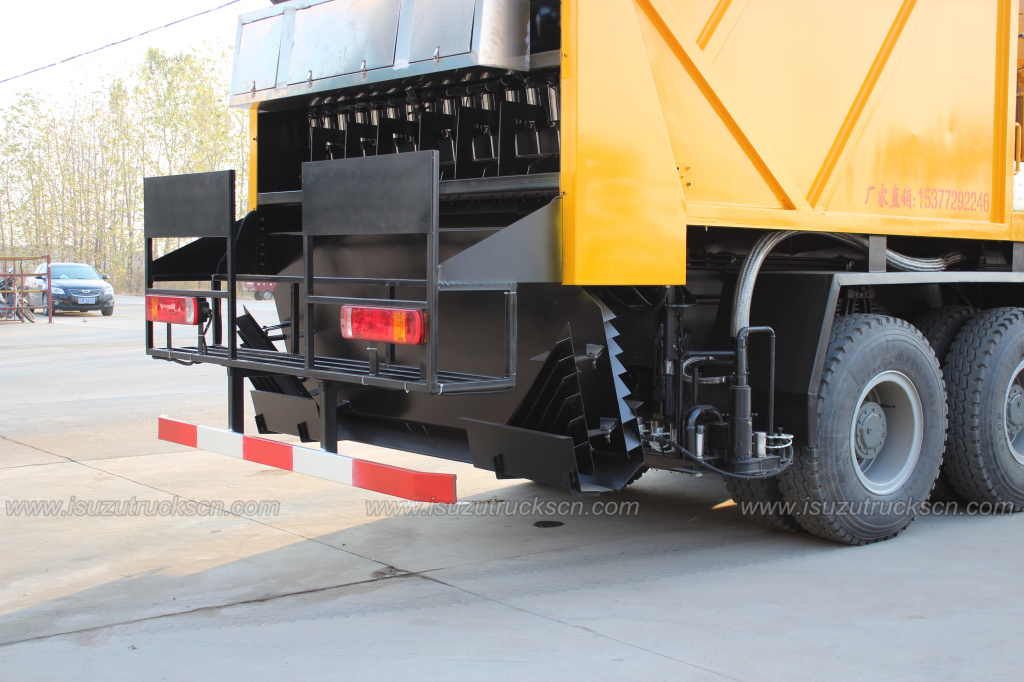

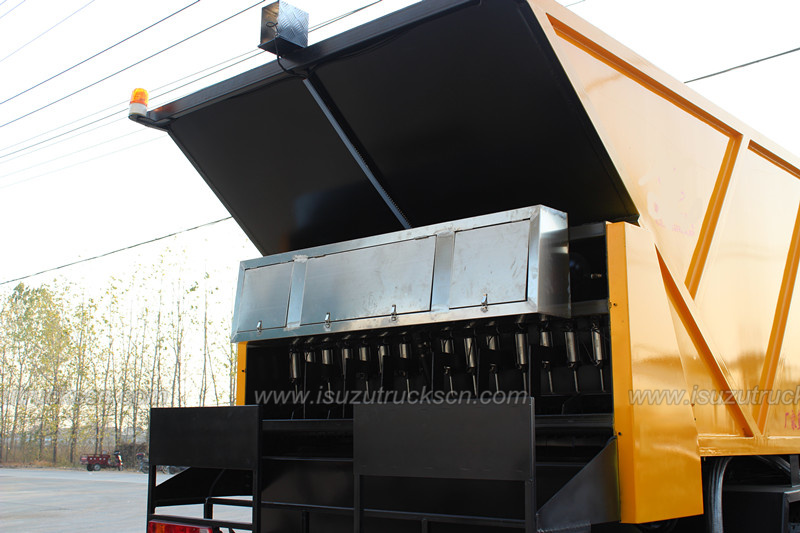

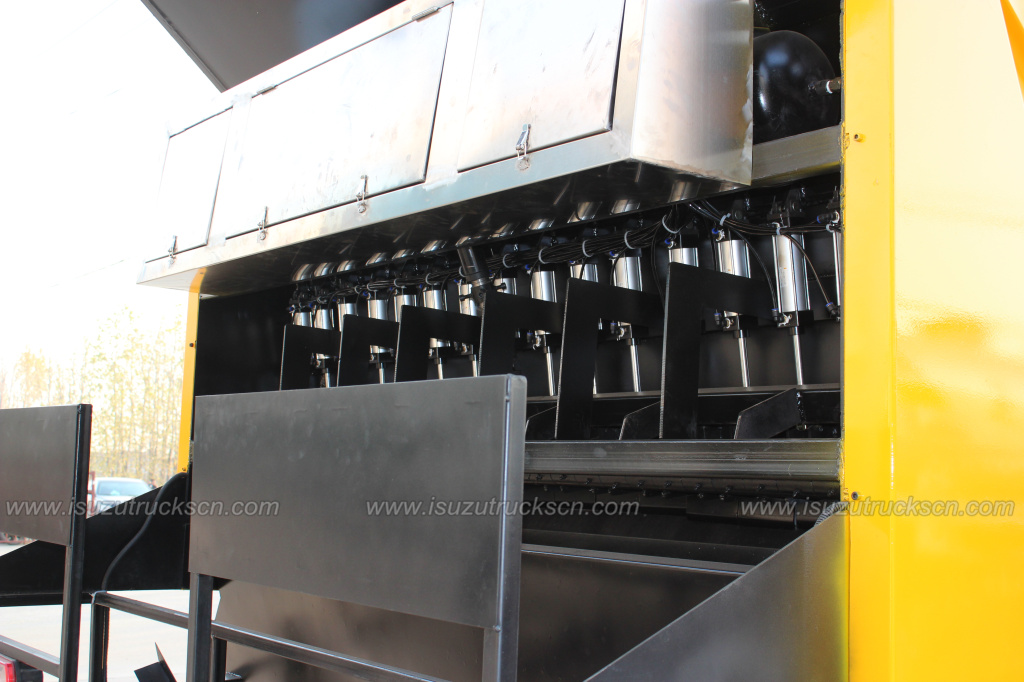

5. The nozzles and aggregate doors are controlled by pneumatic system. Each
aggregate door and nozzle could be independently controlled by the computer.
6. ISUZU synchronous chip sealer could automatically feed and discharge asphalt
to improve its working efficiency.
7. It is characterized by its compact size and good-looking appearance.
Technical Parameters
|
Item |
Parameter |
|
Model |
PT5250TFC |
|
Chassis Model |
FVZ / FXZ |
|
Pattern |
Flathead, 6×4 rear drive |
|
Power (HP) |
240HP or 350HP |
|
Seating Capacity |
2 persons |
|
Outline Dimension (mm) |
10200×2490×3430 |
|
Curb Weight of Complete Vehicle (kg) |
15540 |
|
Max. Total Weight (kg) |
25000 |
|
Wheelbase (mm) |
4350+1300 |
|
Front Overhang (mm) |
1525 |
|
Rear Overhang (mm) |
3000 |
|
Top Speed (km/h) |
90 |
|
Fuel Consumption for one hundred kilometers (L) |
<19 |
|
Working Speed (km/h) |
1.2~6.5 |
| Rated Capacity for Asphalt Tank (L) |
5000 |
|
Capacity of Aggregate Bin (m3) |
8 |
|
Stone Diameter (mm) |
5-25 |
|
Spray Width (m) |
≤3.5 |
|
Asphalt Spray Volume (L/m2) |
0.6~2.5 |
HOT sale Isuzu Trucks
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
ISUZU trucks synchronous chip sealer truck for road construction,New Isuzu 10m3 Factory new asphalt synchronous chip sealer truck for sale, Synchronous fiber asphalt chip sealer ISUZU truck for sales,Isuzu bitumen tanker synchronous chip sealer truck
Learn More

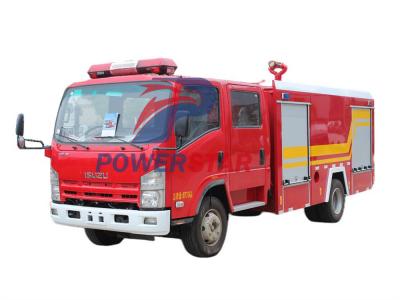

Isuzu 4X4 NPR fire fighting truck, built on the solid Isuzu chassis, combines excellent power and environmentally friendly emissions, has 4X4 all-wheel drive capability, is equipped with a 4000-liter large-capacity water tank and a professional fire pump, has a long spray distance, and the control panel language is selectable. It also provides A variety of optional configurations to meet different needs. This Isuzu 4X4 airport fire fighting truck provides a solid guarantee for airport security, showing excellent performance and flexibility.
Learn More
Isuzu GIGA dump truck is a powerful heavy-duty truck equipped with a high-performance engine that provides reliable power output. With excellent load capacity and unloading efficiency, it is suitable for heavy-duty work scenarios. GIGA dump truck has a flexible unloading mechanism and a structure that is easy to maintain, while focusing on the comfort and safety of the driver. The overall design is designed to achieve high-efficiency transportation, provide users with reliability and operational convenience, and become an ideal choice for the logistics and construction industries.
Learn More

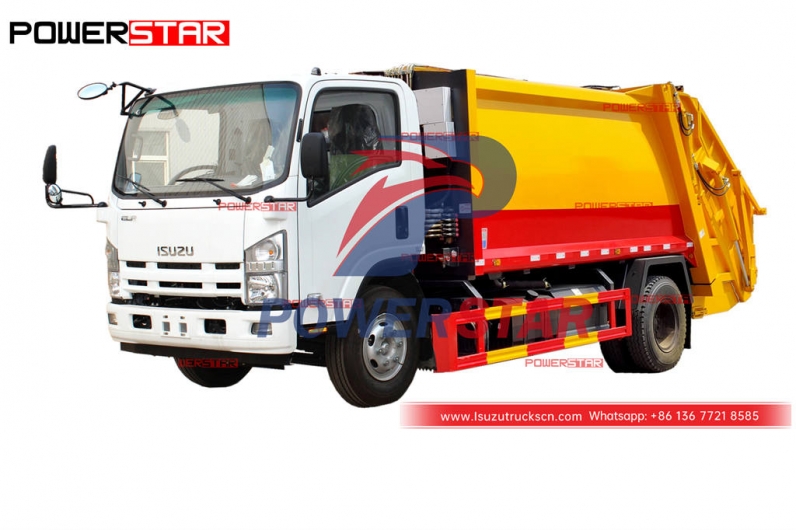

Good price ISUZU ELF 700P 8CBM rear loading waste collection truck, durable ISUZU 6 wheeler 8CBM garbage compactor trucks, ISUZU refuse compactor manufacturer.
Learn More

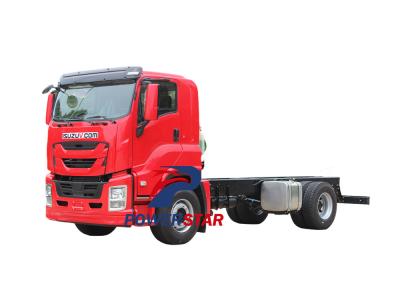

Isuzu famous GIGA chassis for Philippines police fire fighting,it is equipped 6WG1-TCG60 engine with 420HP ,5550mm wheelbase,4x2 drive type and 6 wheels.It has simple design, lightweight, and fuel-efficient as quality,powerful and stable performance.
Learn More

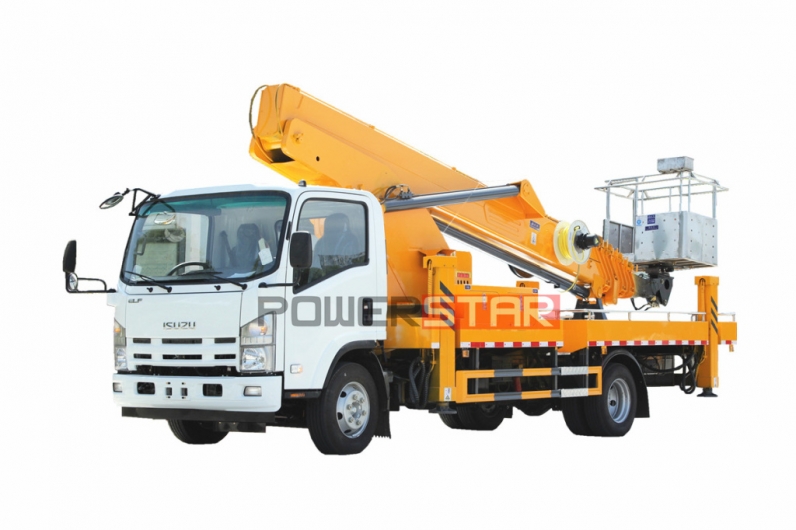

isuzu Aerial bucket truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation
Learn More

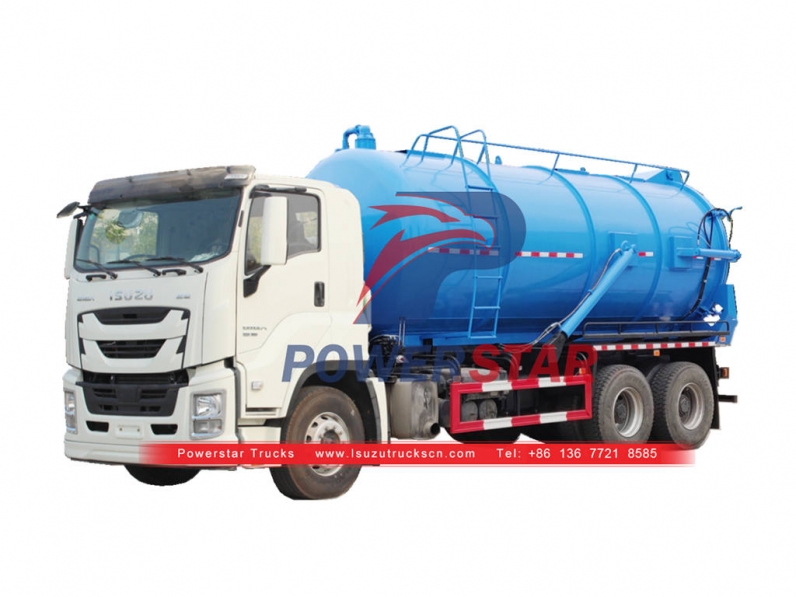

ISUZU GIGA sewage suction truck, ISUZU 6×4 wheeler 22CBM vacuum cleaner truck ISUZU fecal suction truck supplier
