Top quality ISUZU Truck mounted spreader spraying/Synchronous Chip Sealer for Road
Order(MOQ):
1Top quality ISUZU Truck mounted spreader spraying/Synchronous Chip Sealer for Road
Brief Introduction

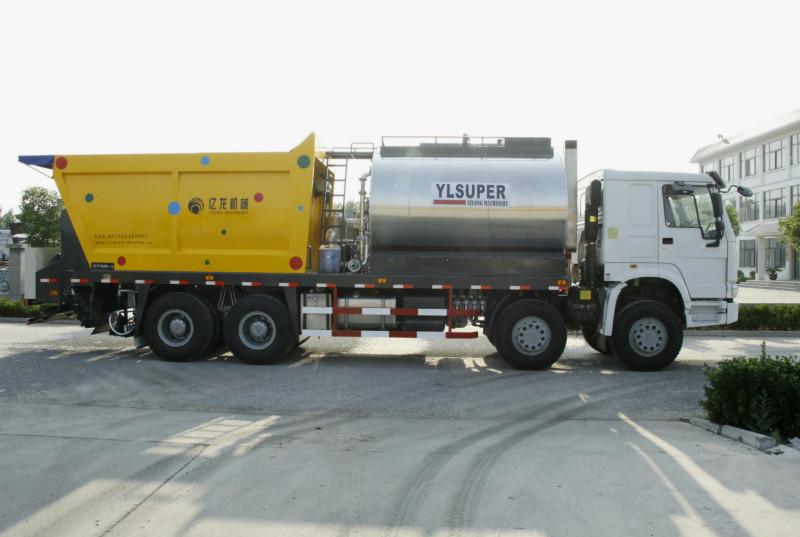

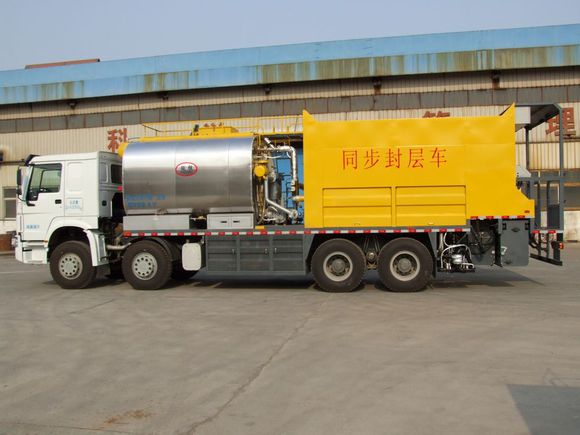

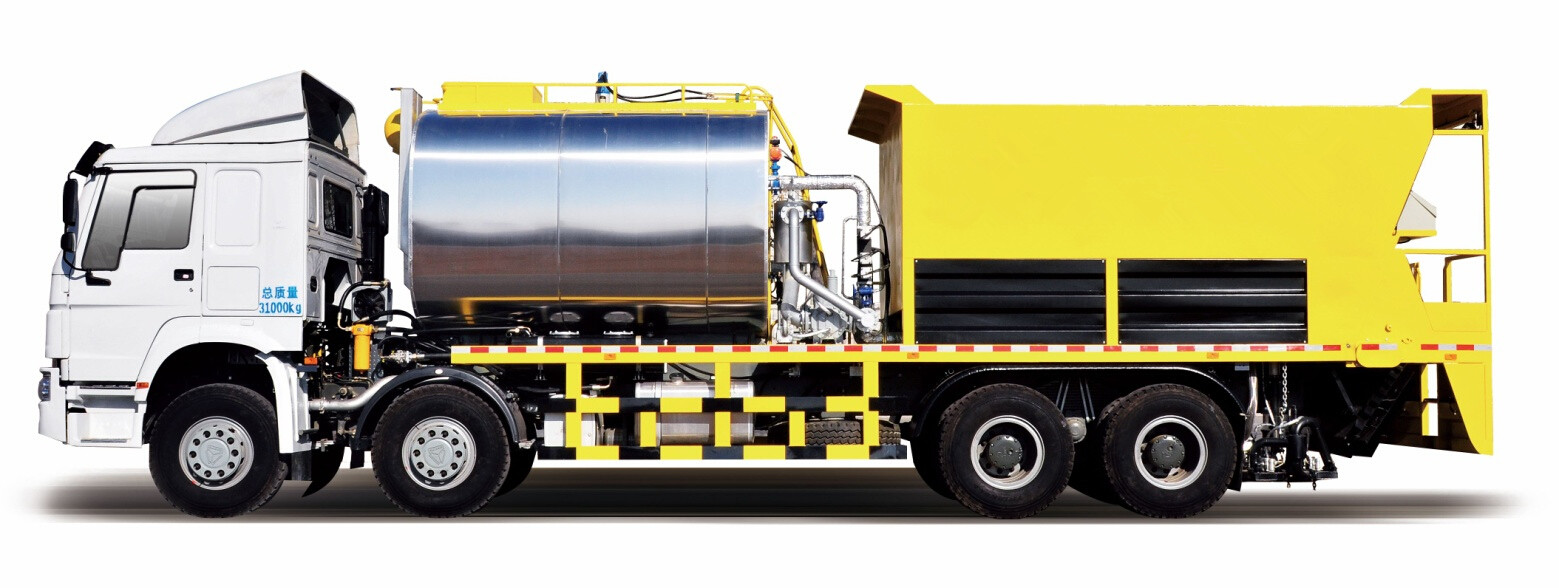

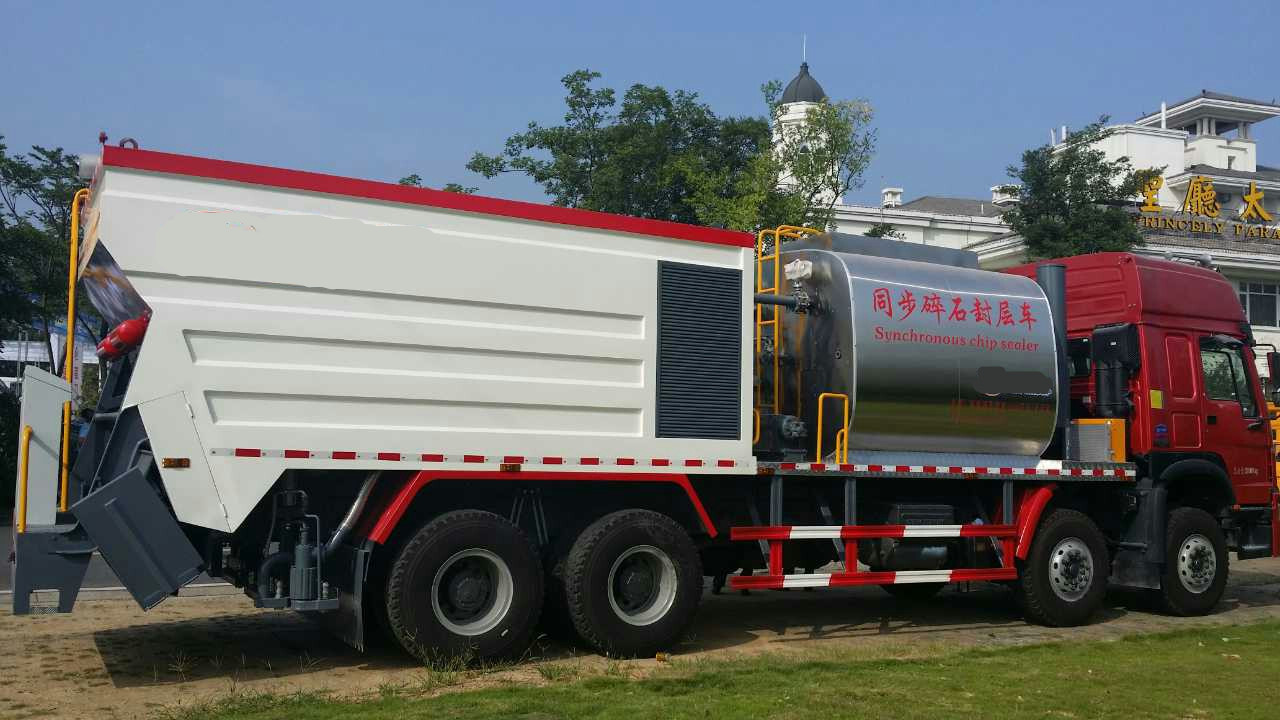

ISUZU Bitumen Crush Stone Paver Truck also called as Asphalt Penetration
Macadam Chip Sealer, developed by our company is the special machinery for
asphalt pavement construction and can be widely applied into the highway
operation work of fast synchronous spraying. It features cost-saving, surface
wear-resistant, anti-skidding and waterproof. The normal traffic could be
resumed soon after the construction. It applies to the construction of the
highways at different levels.
Advantages
1. The accurate spraying volume promised the perfect realization of asphalt
spraying threefold with good evenness.
2. The complete computer touch screen with video monitoring system makes it
possible for us to observe the whole working process.
3. The intense spray system and asphalt aggregate stone collinear spraying
system ensure that the asphalt and the building stones will be simultaneously
sprayed.
4. ISUZU synchronous chip sealer has the most effective heating and circulating
thermal system to smooth the pipelines and nozzles. Thus, there is no need to
clean them.
5. The nozzles and aggregate doors are controlled by pneumatic system. Each
aggregate door and nozzle could be independently controlled by the computer.
6. ISUZU synchronous chip sealer could automatically feed and discharge asphalt
to improve its working efficiency.
7. It is characterized by its compact size and good-looking appearance.
Technical Parameters
|
Item |
Parameter |
|
Name |
ISUZU Synchronous Chip Sealer |
|
Model |
PT5311TFC |
|
Outline Dimension of the Whole Vehicle (L×W×H, mm) |
12000×2490×3630 |
|
Tank Capacity (m3) |
8 |
|
Aggregate Bin Capacity (m3) |
12 |
|
Chassis Model |
ISUZU FYH |
|
Vehicle Pattern |
Flathead, 8×4 rear drive |
|
Tire Specification |
12.00R20 |
|
Approach Angle /Departure Angle |
16°/14° |
|
Engine Rated Power/ Rotation Speed(kw/r/min) |
257/2200 |
|
Fuel Type |
Diesel |
|
Seating Capacity (including the driver) |
2 |
|
Top Speed(km/h) |
90 |
|
Complete Vehicle Weight (kg) |
31000 |
|
Load Rating Weight (kg) |
11470 |
|
Working Speed (km/h) |
3.0-6.5 |
|
Max. Spray Width (m) |
4 |
|
Asphalt Spray Volume (L/m2) |
0.5~3.0 |
|
Max. Speed of Stone Chips Roller (r/min) |
130 |
|
Max. Spray Width of Stone Chips (m) |
4 |
|
Max. Pressure of Hydraulic System (MPa) |
20 |
HOT sale Isuzu Trucks
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Japanese ISUZU Synchronous chip sealer truck,Road Machines Synchronous Chip sealer truck with ISUZU truck chassis,6x4 drive ISUZU pavement maintenance truck,asphalt synchronous chip sealer,Road ISUZU bitumen synchronous chip sealer
Learn More
Rear loader Garbage compactor truck Isuzu, 4x2 5m3 Isuzu garbage trucks compactors from japan,3-5 tons ISUZU garbage compactor truck for sale
Learn More
Customized ISUZU garbage compactor export to Gambia, high performance ISUZU ELF 100P 6CBM refuse compression trucks, ISUZU trash compactor truck manufacturer.
Learn More

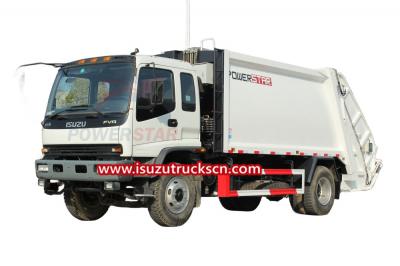

Original 12cbm 8tons 10tons compactor garbage truck FVR Isuzu for sale, the FVR chassis 6HK1 engine compactor garbage truck Isuzu 12cbm by Manila City Cleansing & Sanitation Company showcases their dedication to adopting innovative solutions and technology-driven approaches to waste management. With this latest addition to their fleet, Manila is set to achieve higher standards of cleanliness, efficiency, and sustainability in waste collection and disposal operations.
Learn More
10000 liters 11000 liters asphalt distributor for sale,12-14T ISUZU intelligent asphalt distributor truck, automatic asphalt distributors,2500L Automatic Asphalt Distributor,Asphaltdistributor,Asphalt truck ISUZU Brand New road maintenance truck,intelligent asphaltdistributor,asphalt mixer truck 8cbm Truck Isuzu asphalt distributor 5000L hot sale smart asphalt distributor Isuzu chassis,road construction machine,Isuzu bitumen sprayer asphalt distributor with truck for sale,5000L intelligent asphalt distributor/ bitumen sprayer truck
Learn More
Brand new Dongfeng 6×4 LHD dump truck, equipped with YUCHAI 380HP diesel engine, FAST 12-speed gearbox. Payload can be up to 20 tons.
Learn More

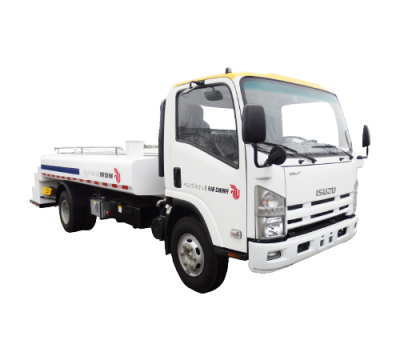

QINGLING ISUZU NPR Electric Lavatory Service Truck is designed to remove the waste from the Aircraft Lavatory and to provide clean water for flushing and refilling. This unit consists of a suitable chassis, stainless steel, waste tank, water tank and a clean water supply and waste system, can be used to service narrow body and wide body commercial aircraft. It is strongly built to withstand the airport environment, simple to operate and easy to maintain. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
