Isuzu famous GIGA chassis for Philippines police fire fighting,it is equipped 6WG1-TCG60 engine with 420HP ,5550mm wheelbase,4x2 drive type and 6 wheels.It has simple design, lightweight, and fuel-efficient as quality,powerful and stable performance.
Work capacity:
15～20 tonsTruck model:
PT5220GXWEngine power:
420HPEngine type:
6WG1-TCG60Axle drive:
4x2,LHDGear box:
FAST 12-speedRemarks:
Isuzu GIGA heavy-duty chassis for Philippine police fire fighting.
The Isuzu GIGA police department fire fighting truck also called Isuzu GIGA police fire truck chassis,Isuzu GIGA 420HP police fire tender chassis,Isuzu GIGA police fire engine chassis,is a high-performance chassis designed for the public safety field. It is made of high-strength materials and advanced processes, and has excellent structural strength and durability. The Isuzu GIGA police department fire fighting truck chassis is equipped with a powerful engine and an advanced drive system, providing strong power support and stable handling performance, ensuring rapid response and efficient operation in various complex environments and road conditions. At the same time, it is also highly customizable and expandable, and can be personalized according to different firefighting needs to meet the needs of various firefighting scenarios. The excellent performance and reliability of the GIGA chassis make it a powerful assistant in the firefighting field and play an important role in ensuring public safety.
|
Chassis Brand |
Isuzu |
|
|
Vehicle Dimensions and Parameters |
Overall Dimension(L x W x H) |
9100×2540×3750mm |
|
Wheelbase: |
5550mm |
|
|
Front/ Rear Wheel Distance: |
2065/1875mm |
|
|
Front/Rear Suspension |
1370/2180mm |
|
|
Weights and Capacities |
Curb Weight: |
9850kg |
|
GVW: |
22000kg |
|
|
Axle Loads: |
7000/14000kg (Two-Axis Group) |
|
|
Engine |
Engine Model: |
6WG1-TCG60 |
|
Max output: |
309Kw |
|
|
Displacement: |
15681ml |
|
|
Horsepower: |
420HP |
|
|
Exhaust Gas Treatment Technology： |
SCR |
|
|
Cabin |
Number of Seats: |
2 |
|
Cabin type |
Single row and standard roof 1 berth |
|
|
Chassis |
Drive Type: |
4x2,LHD |
|
Tires: |
7(Including Spare Tire） |
|
|
Tire Model |
295/80R22.5 |
|
|
|
Max Speed |
90Km/h |
|
Fuel tank |
Capacity |
600L |
|
Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Central Lock |
|
|
4 |
Power Window |
|
|
5 |
ABS |
|
|
6 |
Driving Data Recorder |
|
|
7 |
Tubeless Tire |
|
|
8 |
Free Maintenance Battery |
|
|
9 |
Aluminum Alloy Gas Tank |
|
|
10 |
Air Suspension Cabin |
|
|
11 |
Air Suspension Seat |
|
|
12 |
Widened Bumper |
|
Isuzu GIGA police fire truck chassis, as a special vehicle chassis built for the public safety field, has won wide acclaim in the industry for its excellent performance and sophisticated craftsmanship. This chassis not only inherits the reliability and durability of the Isuzu brand, but also shows its unique design concept and manufacturing process in the details.

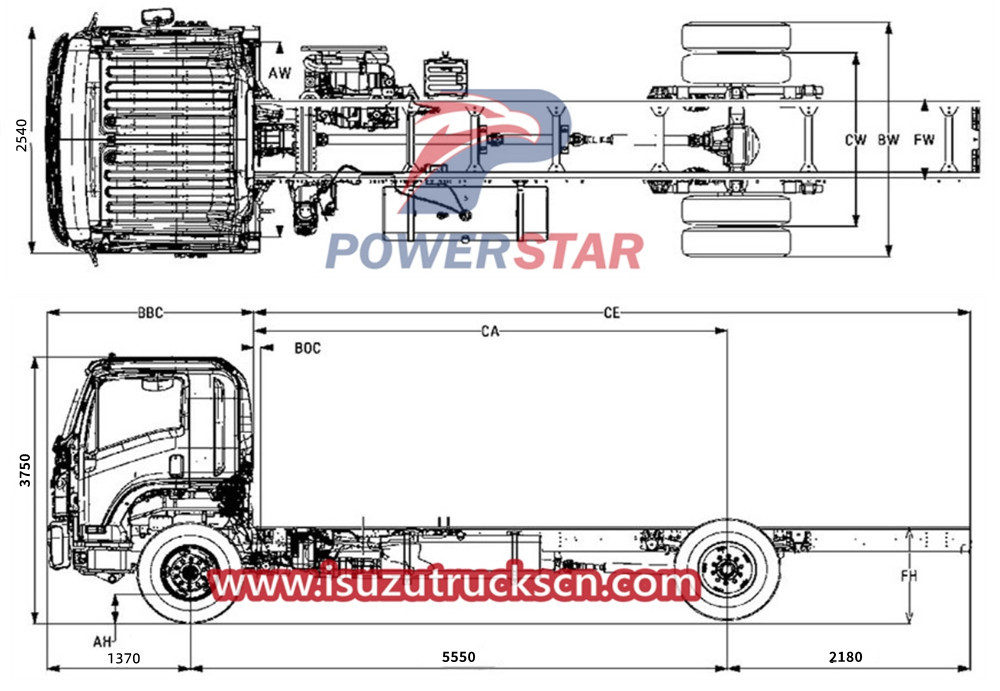

Techical drawing of Isuzu GIGA police deparment fire fighting truck
First of all, from the appearance, the GIGA police fire tender chassis has smooth lines, simple and elegant design, and shows a strong sense of power. Its body structure is sturdy and can withstand various impacts and vibrations in firefighting operations, ensuring stable and reliable operation in emergency situations.
In terms of chassis configuration, th Isuzu GIGA police fire tender chassis adopts advanced suspension system and drive technology. Its suspension system has been carefully adjusted to provide excellent handling and comfort, and can maintain the stability and safety of the vehicle even in complex road conditions. At the same time, its drive system adopts efficient transmission mechanism and advanced control technology to ensure that the vehicle can perform at its best under various working conditions.
In terms of firefighting operations, the Isuzu GIGA police fire fighting truck chassis has demonstrated its excellent performance. It is equipped with a powerful fire pump and fire extinguishing system, which can quickly and effectively carry out fire extinguishing operations. At the same time, it is also equipped with advanced communication equipment and command systems, which can grasp the fire scene in real time and provide accurate command and dispatch for firefighters.
In terms of safety, the chassis of the Isuzu GIGA police fire truck also performs well. It uses high-strength steel plates and advanced welding technology to make the body structure more sturdy and durable. At the same time, it is also equipped with advanced safety configurations such as ABS anti-lock braking system and ESP body stability system, which can provide effective protection for the driver in an emergency.
In addition, the chassis of the Isuzu GIGA 420HP police fire truck also focuses on environmental protection and energy saving. It uses advanced emission control technology and fuel economy optimization technology, so that the vehicle meets the performance requirements while also meeting the requirements of environmental protection and energy saving.

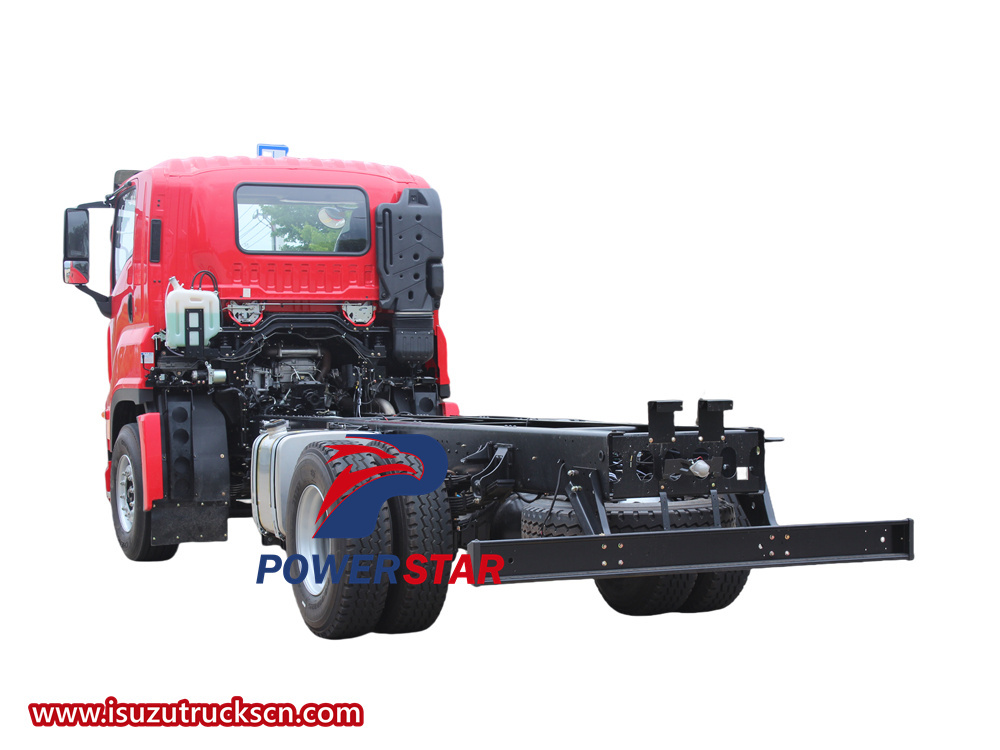

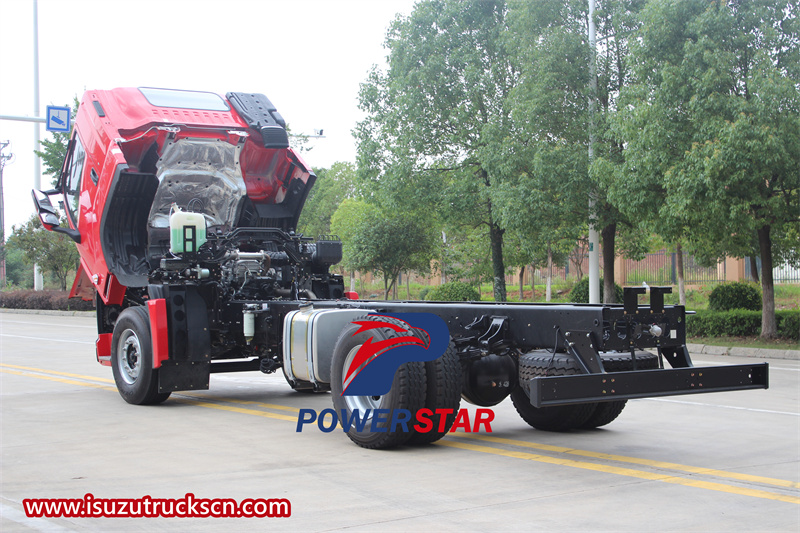

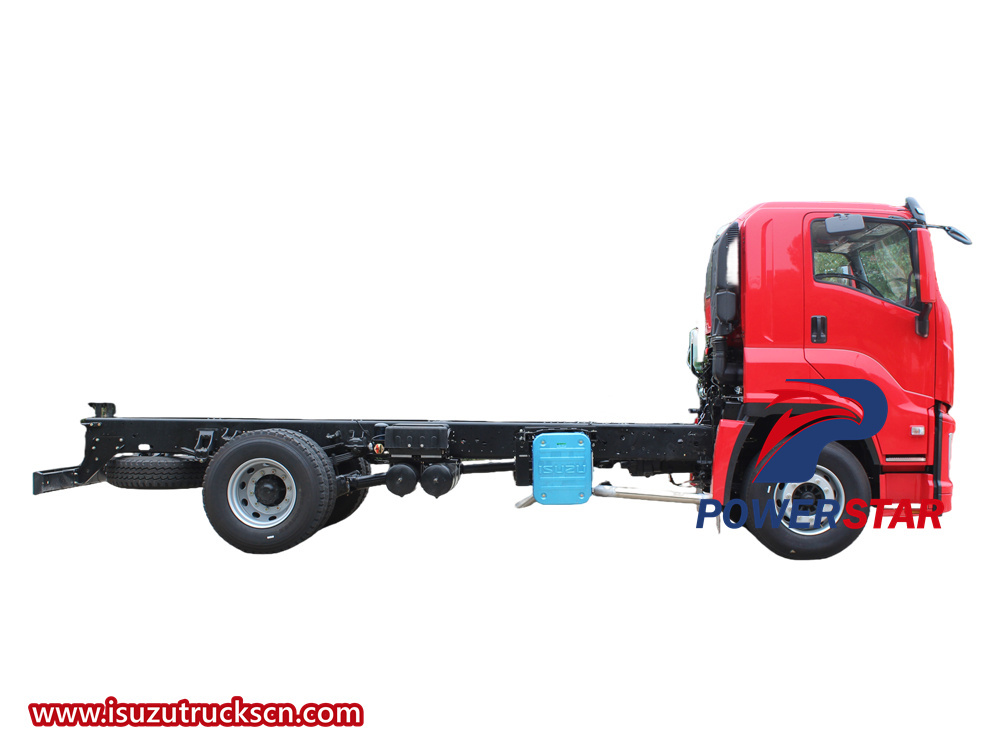

Isuzu GIGA police fire truck chassis
Isuzu GIGA police fire truck chassis plays a vital role in the Philippines, which is reflected in the following aspects:
Improving fire response speed:
● The strong power and excellent handling of the GIGA chassis enable fire trucks to respond to fire alarms quickly, especially in cities and complex terrains in the Philippines. Its high adaptability ensures that fire trucks can quickly reach the fire scene.
● The Philippines has diverse geographical environments and climatic conditions. The excellent performance of the GIGA chassis ensures that fire trucks can operate stably in various environments, providing strong guarantees for rapid rescue.
Enhancing firefighting efficiency:
● The GIGA chassis can carry large-capacity fire pumps and fire extinguishing systems, which is particularly important for the Philippines as the country often faces various fire challenges, including forest fires and urban fires.
● The chassis' efficient fire extinguishing system can quickly control the fire and reduce the harm of fire to people's lives and property, which is of great significance to protecting public safety in the Philippines.
Ensuring the safety of firefighters:
● The advanced safety configurations equipped with the GIGA chassis, such as ABS anti-lock braking system and ESP body stability system, can provide effective protection for firefighters in emergency situations and reduce the possibility of accidents.
● Under the harsh climate conditions of the Philippines, such as high temperature and heavy rain, the comfort and stability of the GIGA chassis can provide firefighters with a relatively safe and comfortable working environment and reduce their work pressure.
Promote the development of firefighting:
● The widespread use of the GIGA chassis in the Philippines has not only improved the country's firefighting equipment level, but also promoted the rapid development of the firefighting industry.
● By introducing advanced firefighting technology and equipment, the Philippines can better cope with various fire challenges and improve the overall fire safety level.

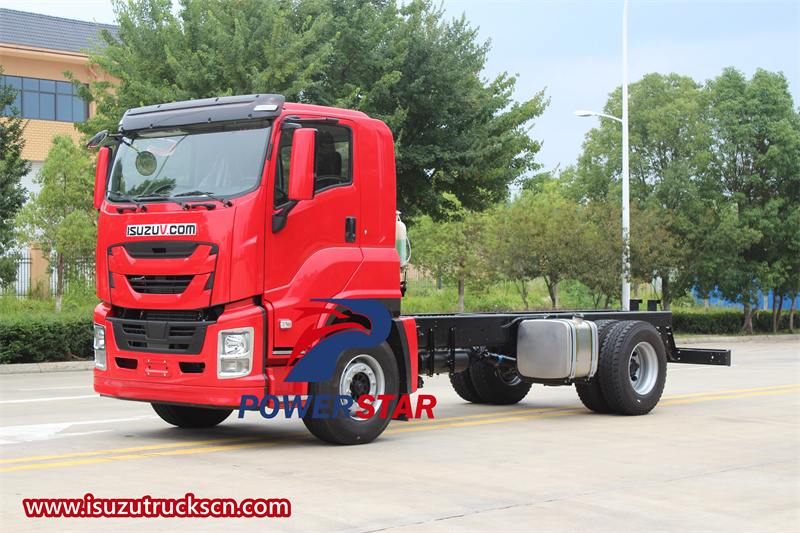

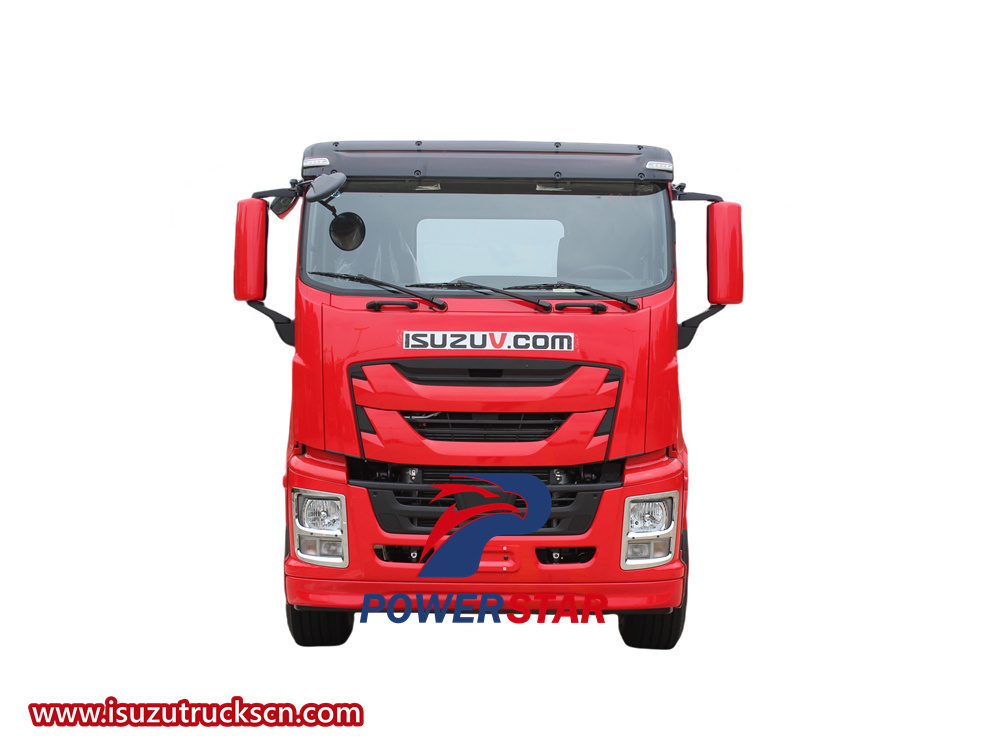

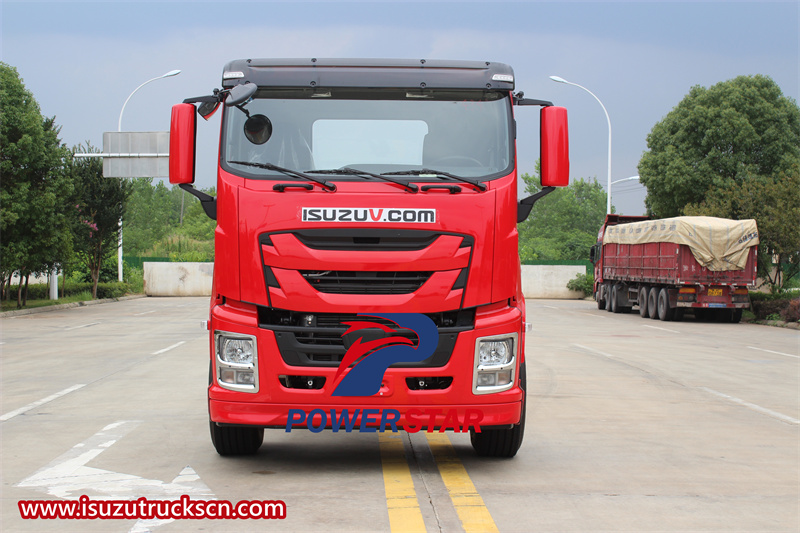

Isuzu GIGA police department fire fighting truck front view

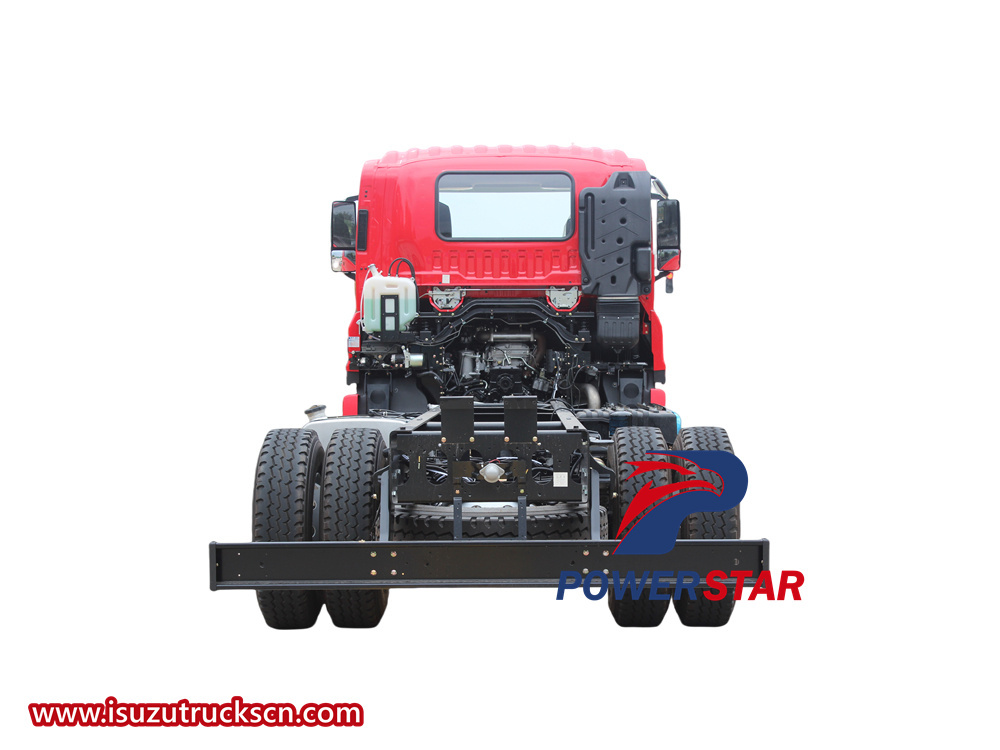

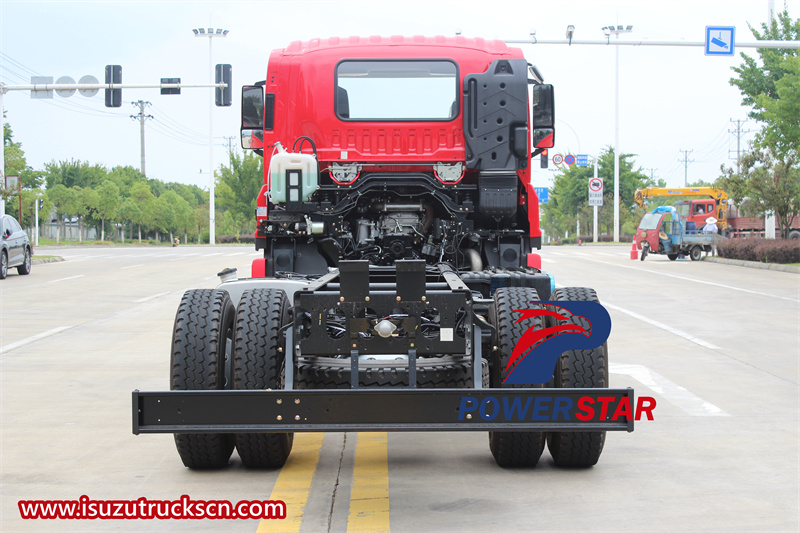

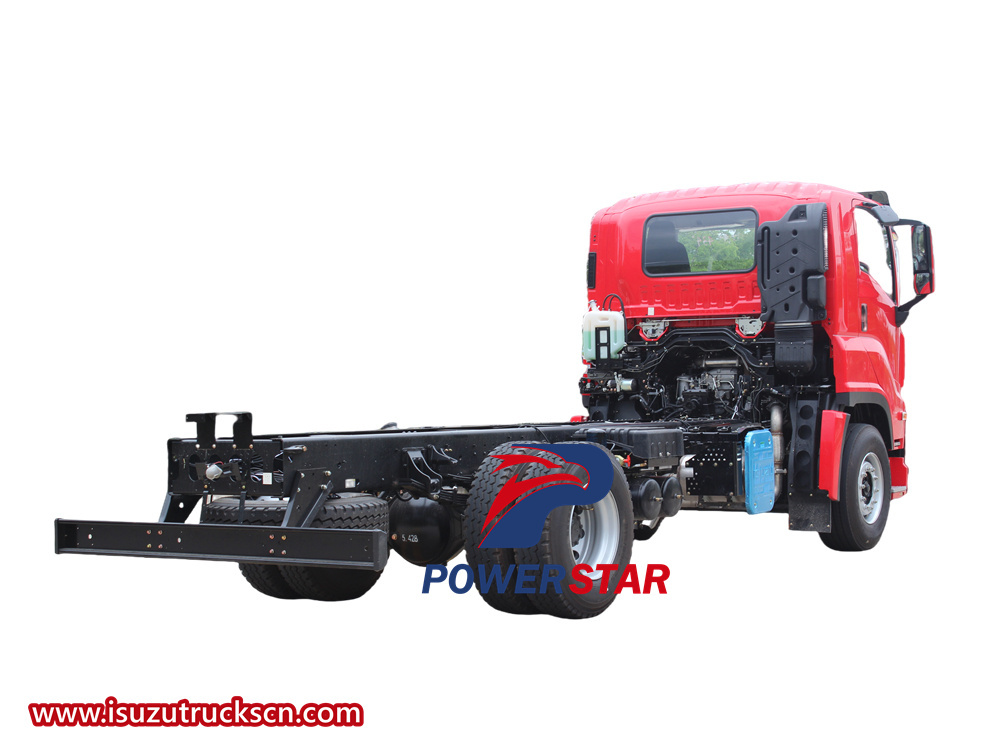

Isuzu GIGA police department fire fighting truck rear view

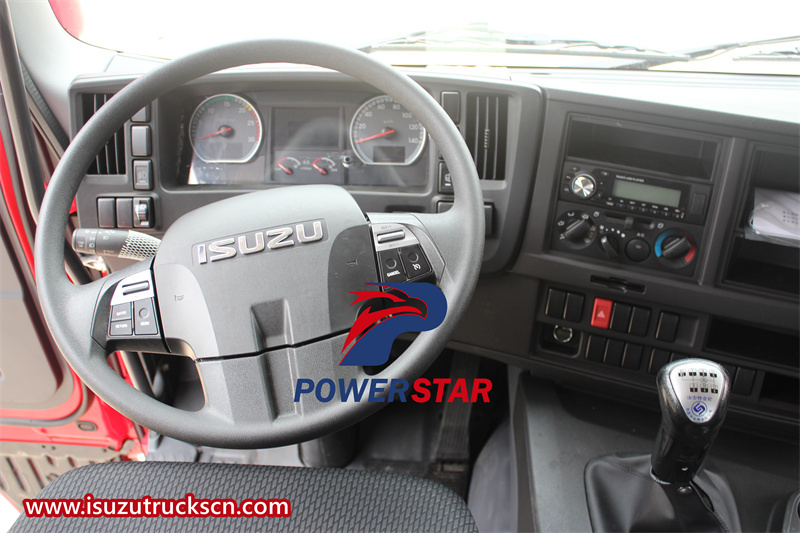

Isuzu GIGA police department fire fighting truck steering wheel

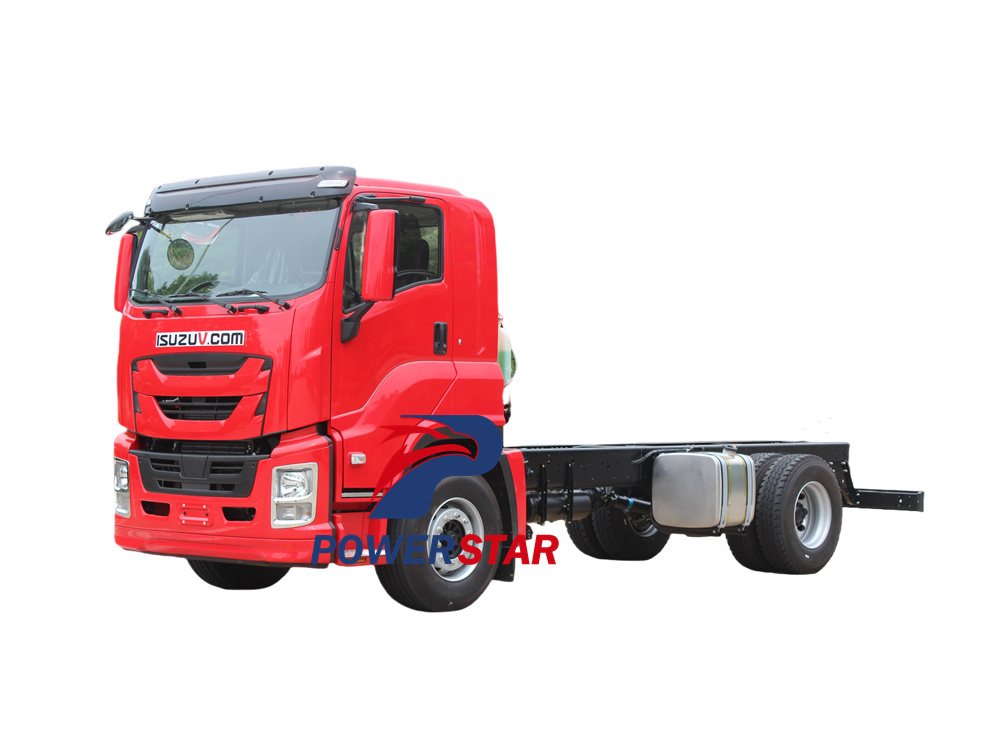

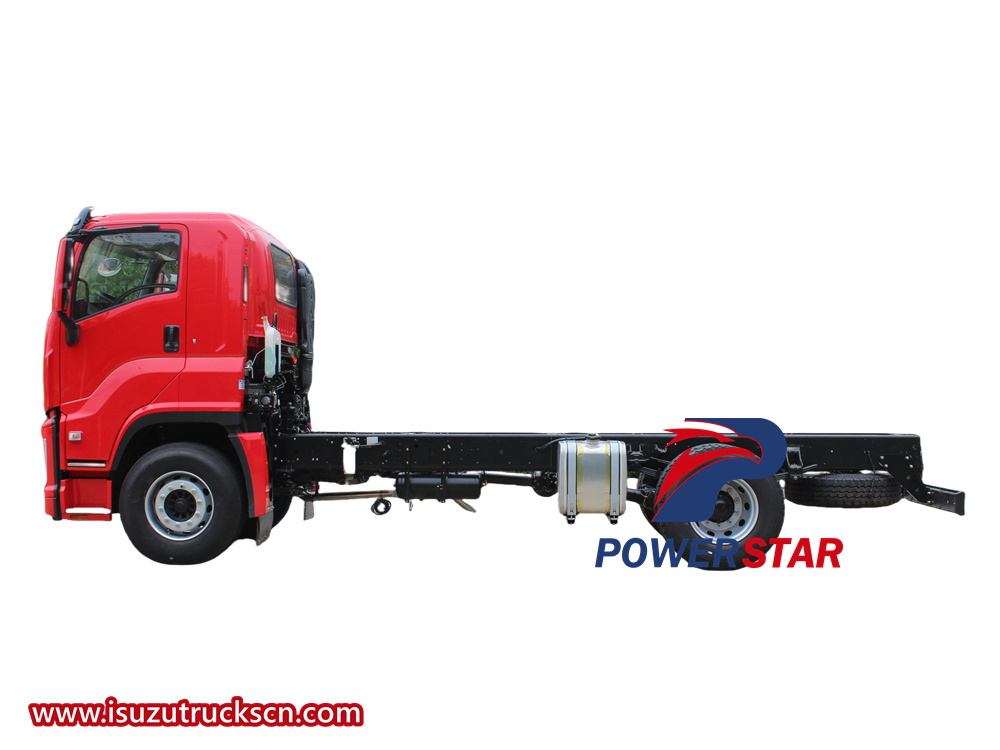

Isuzu GIGA police fire engine chassis for Philippines

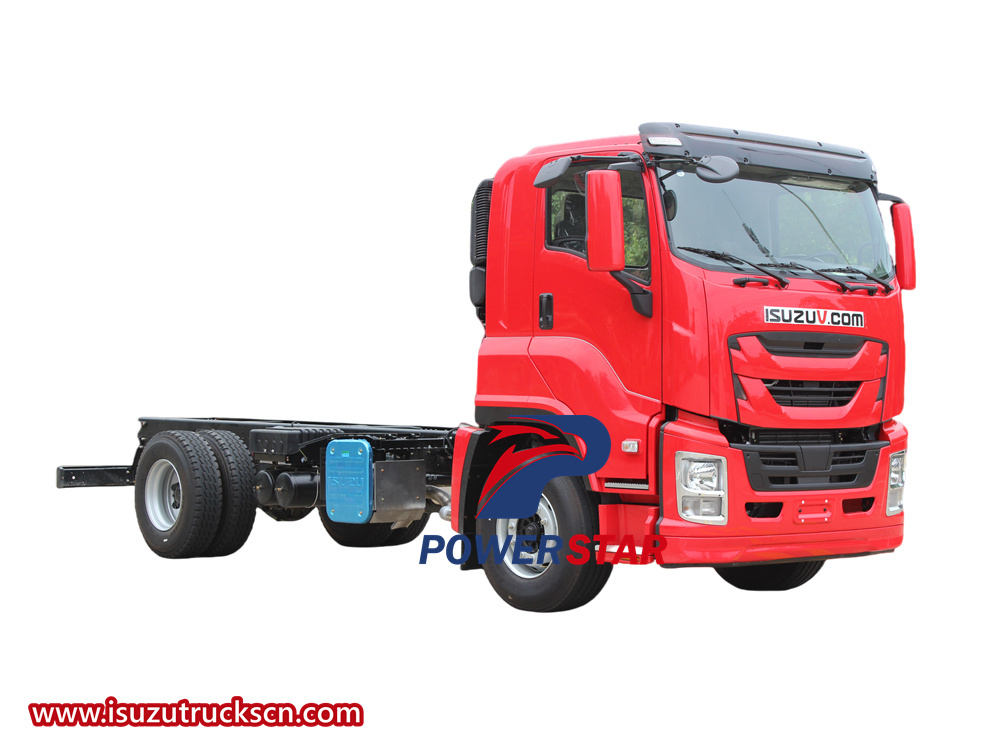

Isuzu GIGA 420HP police fire tender chassis
Isuzu VC61 GIGA 4x2 police fire fighting truck chassis
POWERSTAR's Isuzu GIGA 8x4 chassis uses an Isuzu VC66 6x-level cab, air conditioning, power steering, central locking, electric doors and windows, multi-function steering wheel, multi-function LCD instrument, ABS, and air brake. It has a 4-axle design, a wheelbase of 1850+4575+1370mm, and is equipped with a 6WG1-TCG62 520HP inline six-cylinder diesel engine with a displacement of up to 15.681 liters, a maximum output power of 382 kilowatts (520 horsepower), and a maximum torque of 2250 Nm in the speed range of 900 to 1300 rpm. It is matched with a FAST 12-speed gearbox to improve the transmission accuracy and carrying capacity.
Learn More
Isuzu Giga 8x4 12 wheels Cargo Tank Fire Truck chassis cab, Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Isuzu Giga 8x4 12 wheels truck chassis cab 6UZ1 6WG1 diesel engine Condition New Steering Left Emission Standard Euro 5/6 Brand Name ISUZU GIGA Place of Origin China SUIZHOU Segement Heavy truck Market Segement Logistics transportation Engine Brand ISUZU Fuel Type Diesel Engine Capacity > 15.6L Cylinders 6 Horsepower 350hp, 420hp, 460hp, 520hp Gear Box Brand FAST 12-shift Transmission Type Manual Forward Shift Number 10 Reverse Shift Number 2 Maximum Torque(Nm) 1500-2000Nm Size 11182*2496*3215 Cargo Tank Dimension 8600*2400*500mm Cargo Tank length ≥8m Cargo Tank Type Chassis Gross Vehicle Weight 15001-20000 kg Capacity (Load) 31 - 40T Fuel Tank Capacity 300-400L Drive Wheel 8X4 Passengers 3 Driver's Seat Normal Seat Rows Half a row Rear Camera None Cruise Control Normal ABS(Antilock Braking System) Yes ESC(Electronic Stability Control System) Yes Touch Screen None Multimedia System Yes Window Manual Air Conditioner Manual Tire Number 12 After-sales Service Provided Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service Product name Heavy Duty Cargo Truck Chassis Brand ISUZU GIGA Engine 6WG1-TCG52 Color Customer's Request
Learn More
Official manufacturer ISUZU FVZ water foam military fire truck fire fighting truck for sale, Isuzu FVZ cabin truck chassis widely used in the public security fire brigade, the petroleum chemical industry, factories and mines enterprises and ports, terminals and other places to save the large of oil fire and general material fire in large and medium-sized cities.It is the ideal large fire-fighting equipment.
Learn More
Garbage compactor body kit (also called as Garbage truck bodies, Rear Loader Garbage Body, refuse compactor body kit, Waste compactor up-structure, Rear loader super structure, Bin lorry hydraulic system, Compression garbage truck body kit, Hydraulic rear compactor up structure)
Learn More
10-12ton DongFeng truck mounted crane, 16ton 25ton 50 ton Xcmg Truck Mounted Crane/Used Truck Crane, Mobile Isuzu 12T Knuckle Boom Truck Mounted Crane For Landscrape Jobs
Learn More

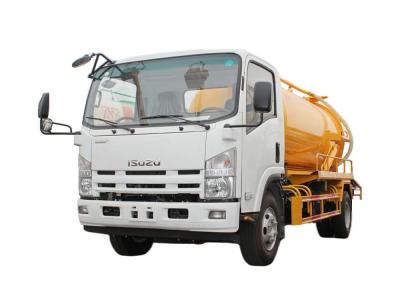

The Isuzu 10,000 liters sewage suction truck is a powerful and high-performance cleaning device. The Isuzu NPR sewage suction truck's efficient cleaning capabilities and flexible configuration make it an important tool for urban cleaning and maintenance. Whether it is city streets, parks or industrial areas, the Isuzu ELF sewage suction truck can provide reliable support for environmental cleaning.
