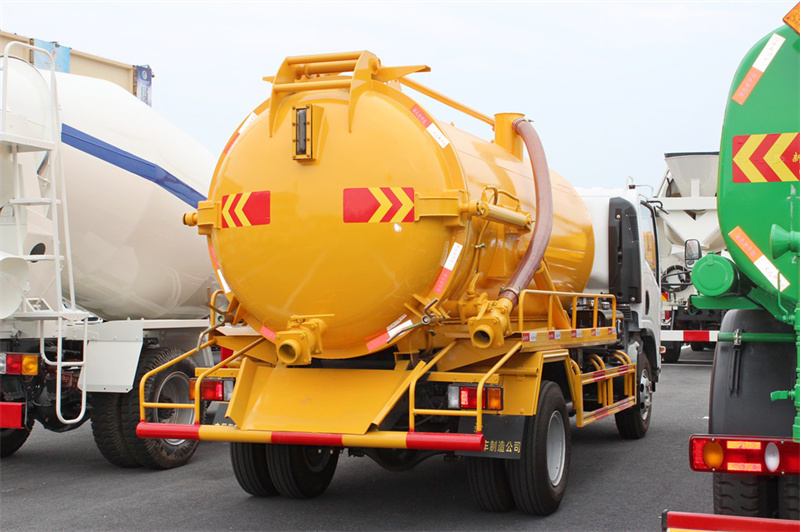

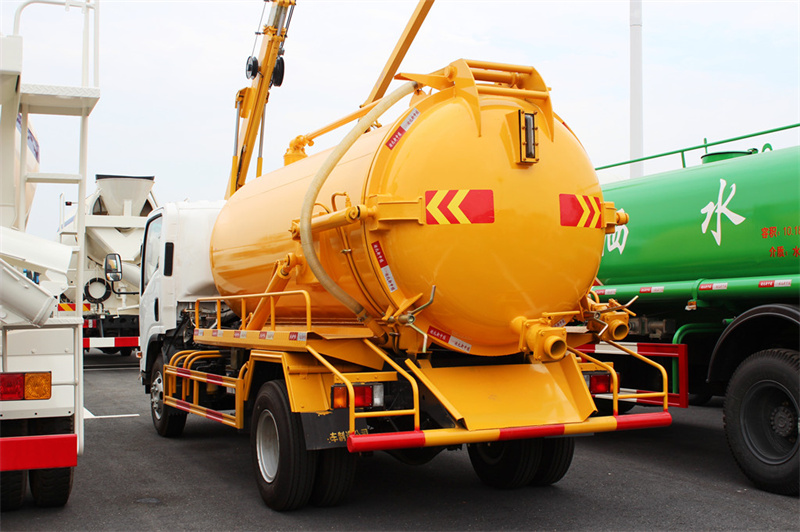

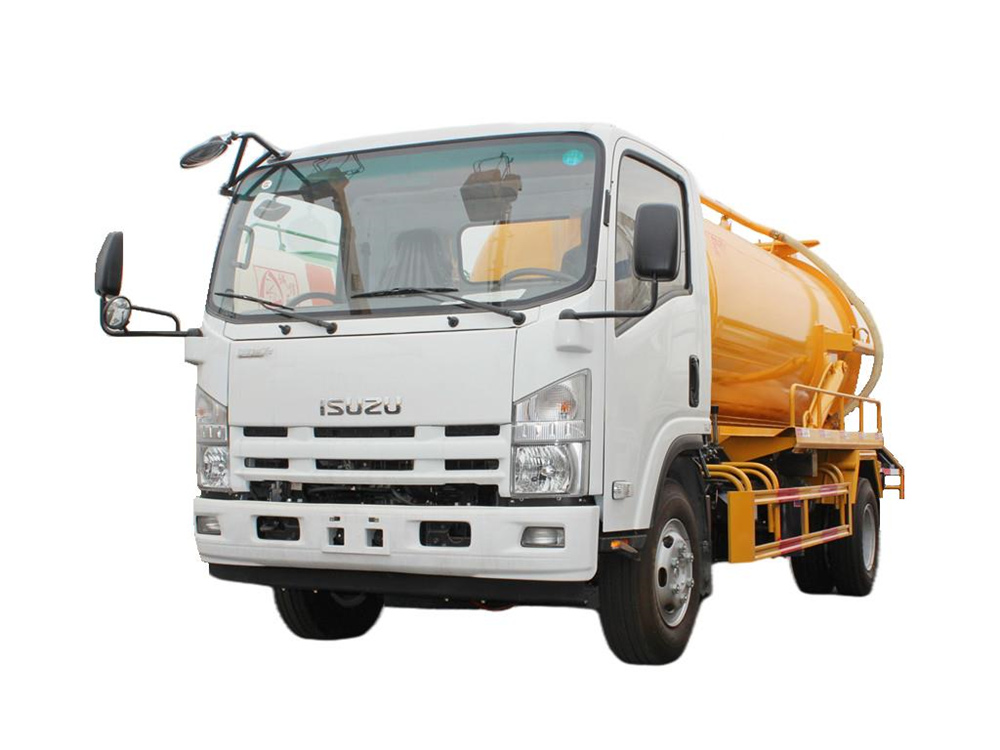

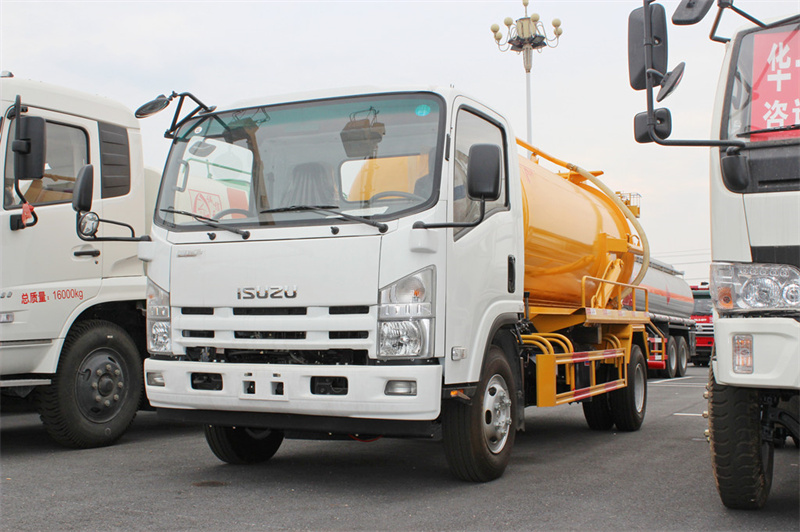

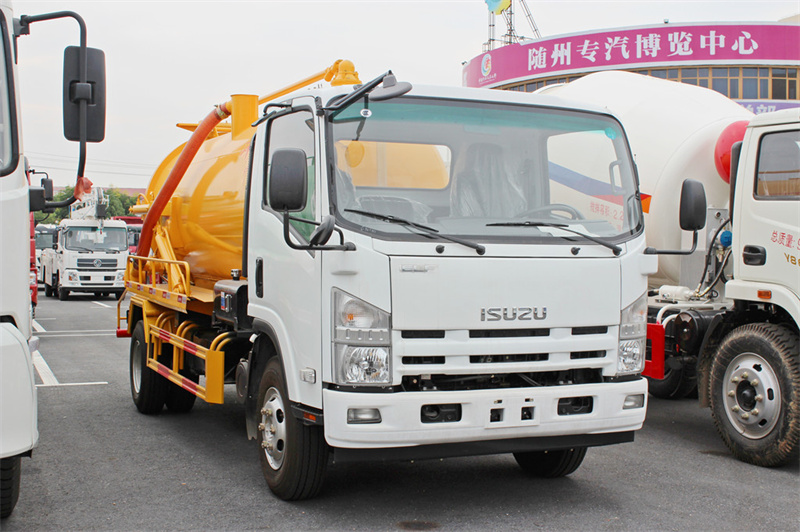

The Isuzu 10,000 liters sewage suction truck is a powerful and high-performance cleaning device. The Isuzu NPR sewage suction truck's efficient cleaning capabilities and flexible configuration make it an important tool for urban cleaning and maintenance. Whether it is city streets, parks or industrial areas, the Isuzu ELF sewage suction truck can provide reliable support for environmental cleaning.
Work capacity:
10000LTruck model:
PST5130XWEngine power:
190 HPEngine type:
ISUZU 4HK1Axle drive:
4x2Gear box:
Isuzu MLD6 SpeedRemarks:
Jurop, Moro PumpApplications:
ISUZU ELF Vacuum Sucation Truck (also called isuzu elf sewage tanker truck, ISUZU NPR 10000L vacuum tank truck, ISUZU 6 wheel vacuum suction truck, ISUZU ELF sewer sucker, ISUZU hydro-vac, China vacuum truck manufacturer) is used for suctioning and transporting various types of liquids, sludge, or solids. The vacuum system on the truck creates negative pressure inside the tank, allowing it to suck up and store materials such as sewage, wastewater, grease, septic waste, industrial byproducts, and hazardous or non-hazardous materials.environment and sanitation field.
ISUZU Vacuum truck which use Italy MORO or BP vacuum pump, for 10CBM or more recommend Double Pump for efficiently working.
The septic pump truck can be equipped with cabin Pneumatic Control for easy operation.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.
---- Vacuum Tanker body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Discription:
The Isuzu 10,000 liters sewage suction truck is a sewage suction truck based on the Isuzu lgiht-duty NPR chassis, which has excellent performance and efficient cleaning capabilities. The internal volume reaches 8000L, allowing it to accommodate a large amount of sewage and waste. In terms of performance, this Isuzu ELF sewage suction truck uses a four-wheel drive 4×2 and a six-speed transmission with overdrive, giving it excellent traction and driving performance. The maximum speed can reach 90km/h, which is suitable for various road conditions.

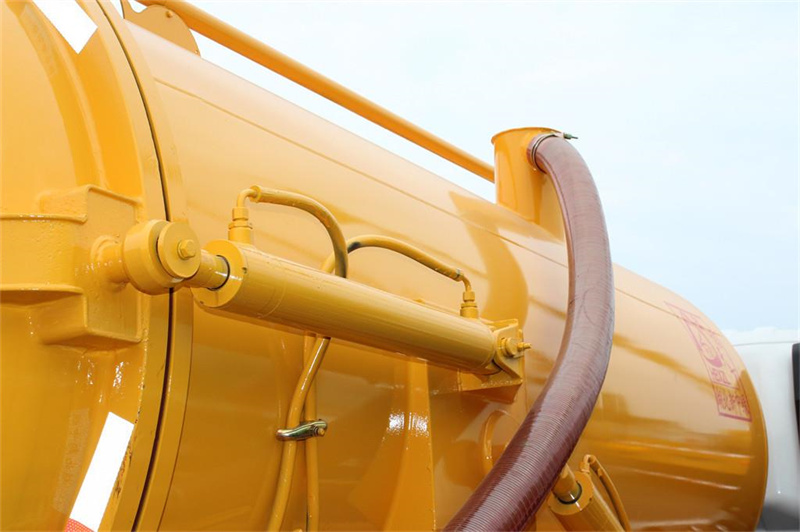

The Isuzu NPR sewage suction truck is equipped with a dedicated vacuum pump with a rated speed of 1400r/m and a minimum speed of greater than 800r/m. The maximum suction height exceeds 6m, the vacuum degree is greater than 500mmHg, and it adopts clockwise rotation. These parameters ensure the efficient cleaning capabilities of the sewage suction truck. The Isuzu NPR sewage suction truck is also equipped with power output, drive shaft, high-pressure sewage tank, pipe network, observation sewage pipe and cleaning equipment, making the entire cleaning process more convenient and efficient.
Specification Data:
|
Item |
parameter |
||
|
Vehicle model |
PST5130XW Sewage Suction Truck |
||
|
Chassis model |
Isuzu light-duty NPR |
||
|
Overall dimensions（mm） |
8050*2450*2550 |
||
|
Factual cubage（L） |
8000 |
||
|
GVW |
Appro×16000 |
||
|
Rated loading capacity （kg） |
Appro×12000 |
||
|
Mass in working order （kg） |
Appro×14000 |
||
|
Body internal dimensions（mm） |
4500*2200*1370 |
||
|
Wheel base（mm） |
3815 |
||
|
F/R track base（mm） |
1250/2450 |
||
|
Approach/departure angle（°） |
34/18 |
||
|
Exhaust/hp（ml/kw） |
9726/221 |
||
|
Max speed（km/h） |
90 |
||
|
Tire specification（235/75R17.5） |
Engine type |
Isuzu 4HK1-TCG61 |
|
|
Traction system（4×2） |
transmission |
6-speed with over drive |
|
|
Number of axles（2） |
Electric system |
24v |
|
|
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
|
Equipment |
Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) |
||
|

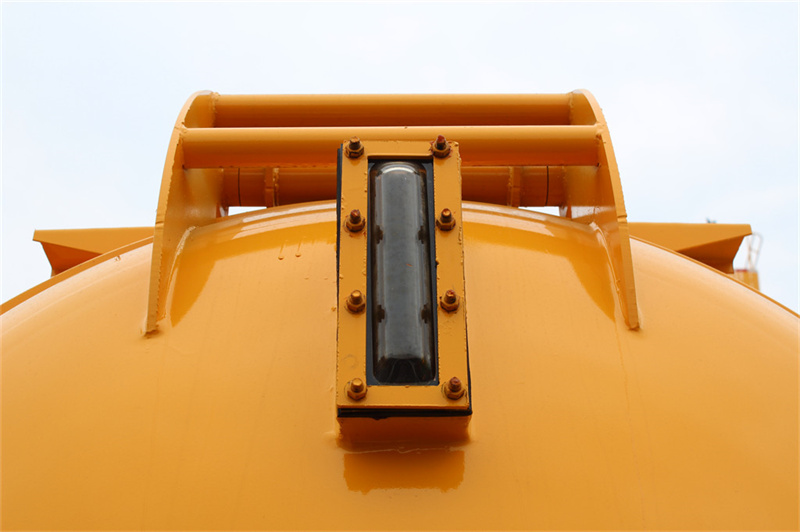

Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment |
|||
|
Time for full sucktion<5min |
|||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional |
||
The following are the main uses of this sewage suction truck, summarized in four points:
1. City street cleaning: In urban management, keeping streets clean is crucial. Isuzu ELF sewage suction truck can effectively clean up water, oil stains and other waste on the road, restoring the cleanliness and tidiness of the streets. Through its efficient sewage suction capacity, it can quickly clean up large amounts of sewage and waste, reducing its impact on the environment.
2. Cleaning of industrial areas: Industrial areas usually contain large amounts of oil, wastewater and other pollutants. Isuzu ELF sewage suction truck can quickly respond to these challenges, effectively clean sewage and waste in industrial areas, and keep industrial areas clean and hygienic. This is of great significance for maintaining the environment and production safety of industrial areas.
3. Parks and scenic spots are clean: Parks and scenic spots are important places for people to relax and entertain. Keeping them clean and hygienic is crucial to improving visitor experience and protecting the natural environment. Isuzu ELF sewage suction truck can efficiently clean sewage and waste in parks and scenic spots, keeping the environment clean and beautiful.
4. Special event response: When faced with natural disasters, accidents or other emergencies, the Isuzu ELF sewage suction truck can respond quickly, clean up large amounts of sewage and waste, and reduce the impact on the environment. In addition, its flexible configuration and efficient cleaning capabilities make it an important tool for special events.
