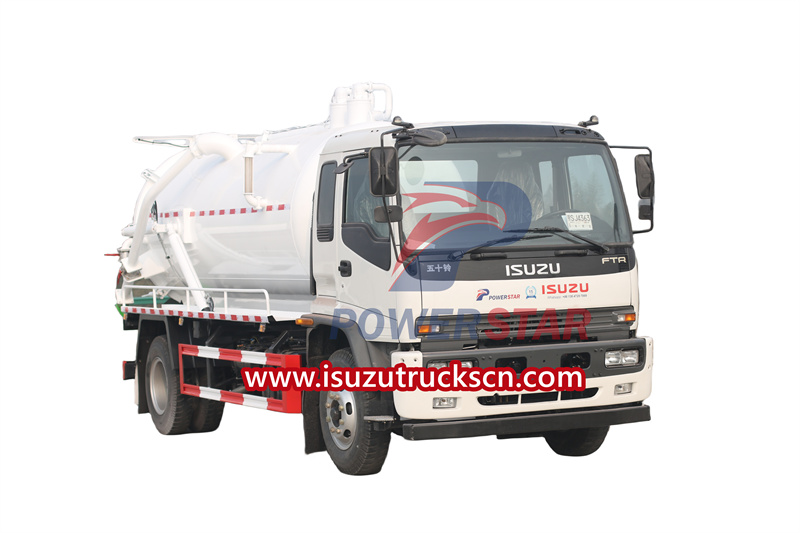

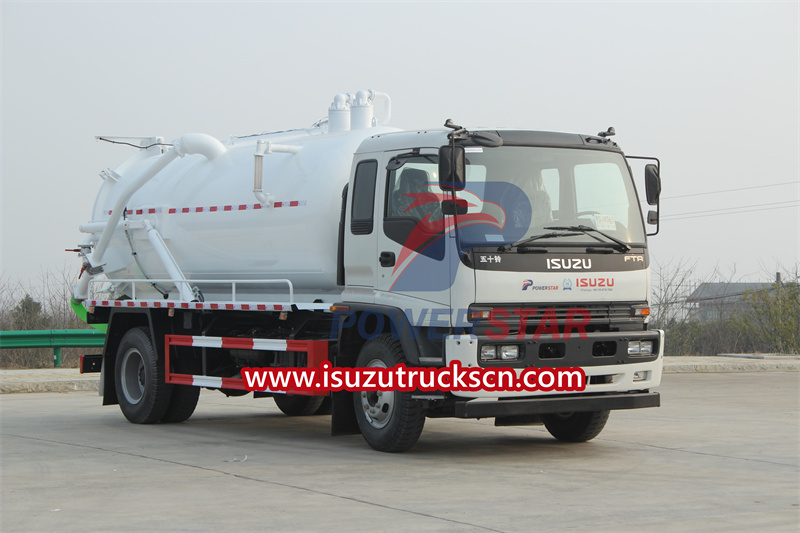

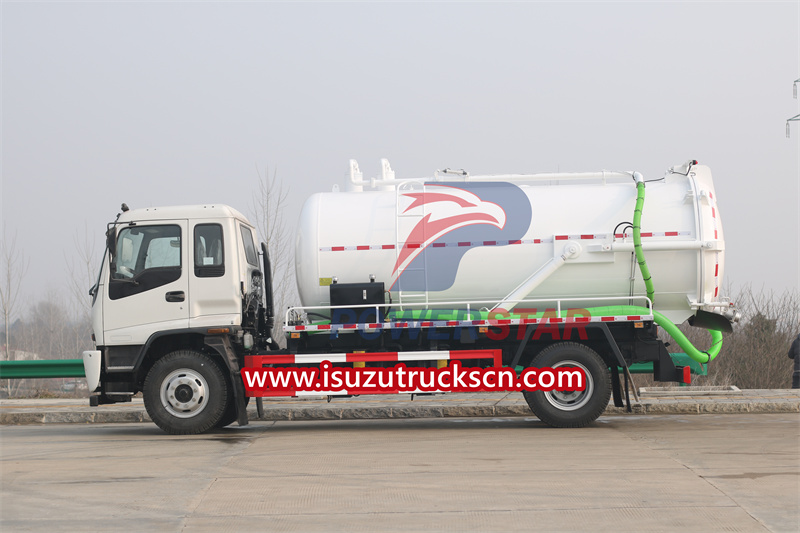

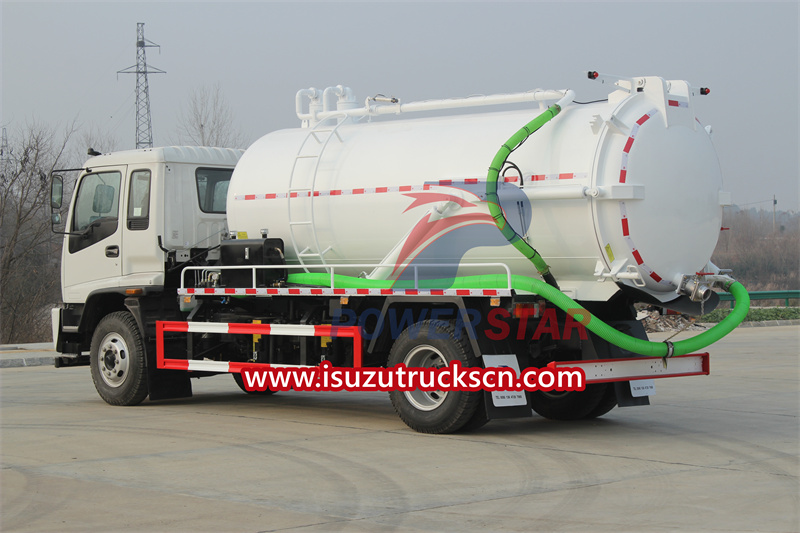

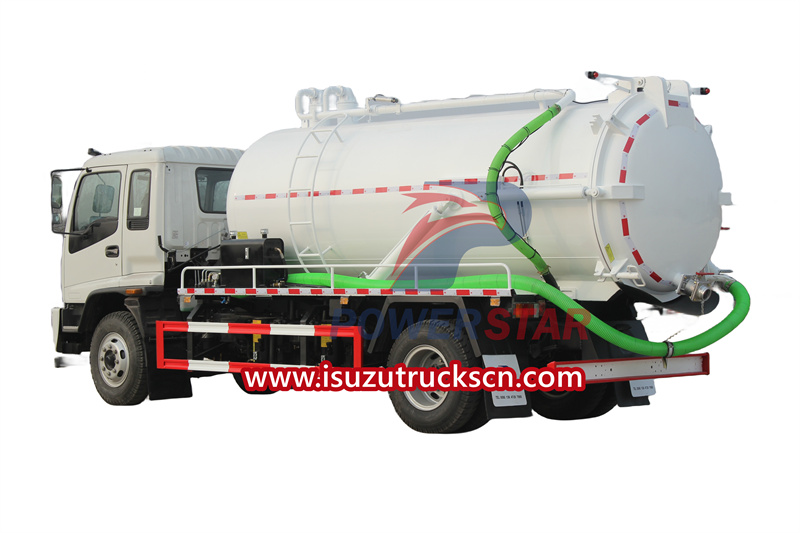

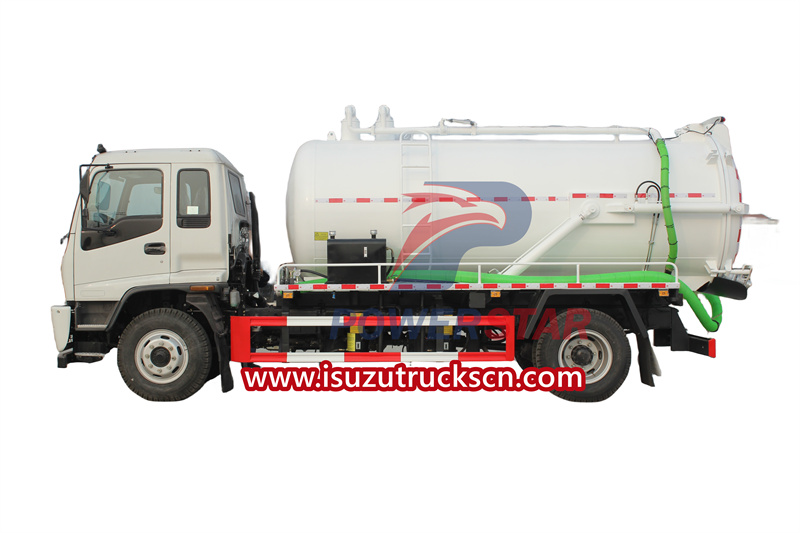

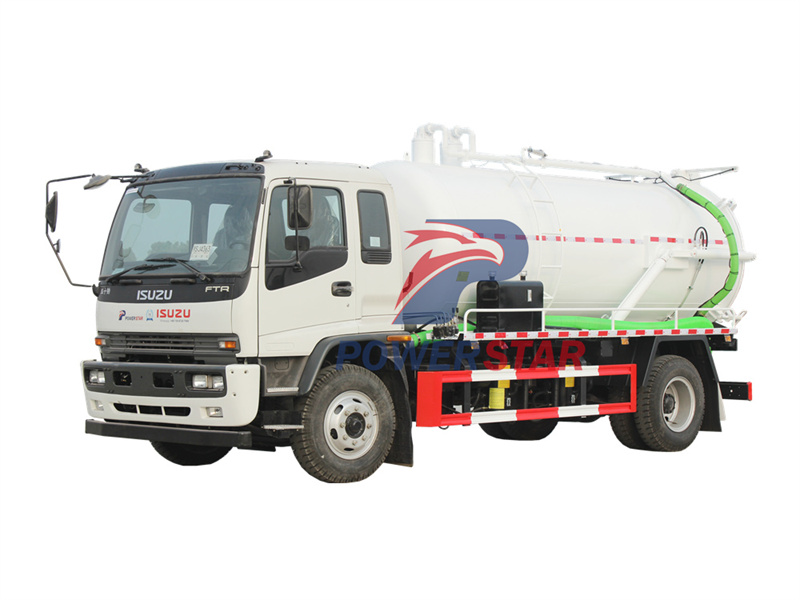

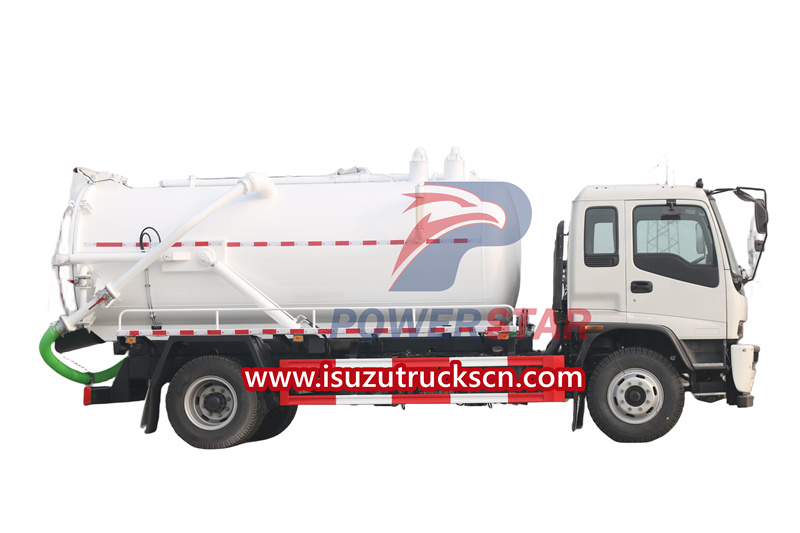

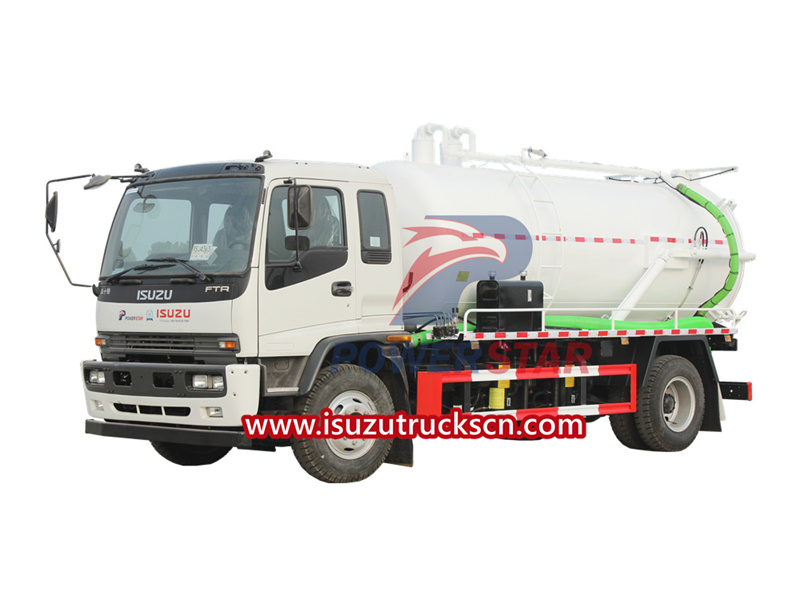

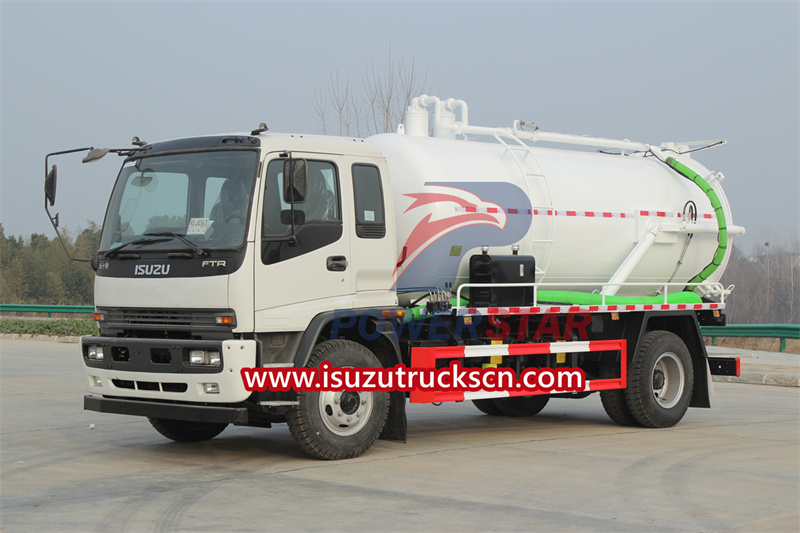

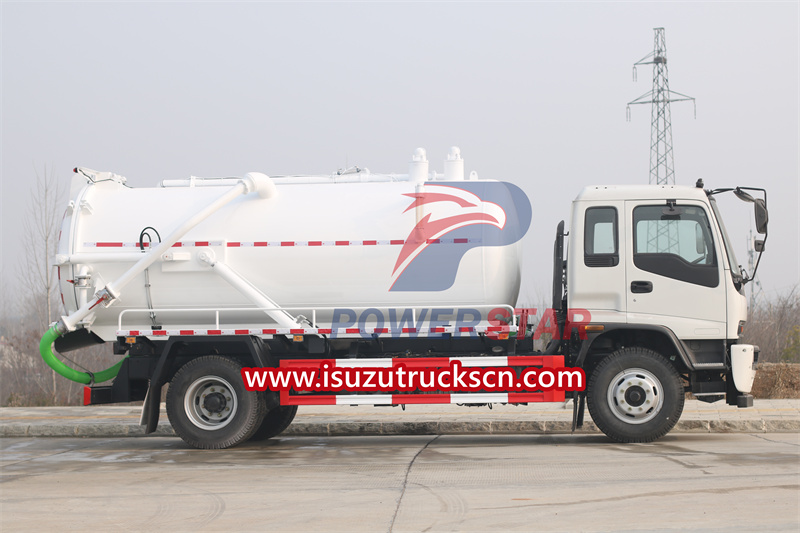

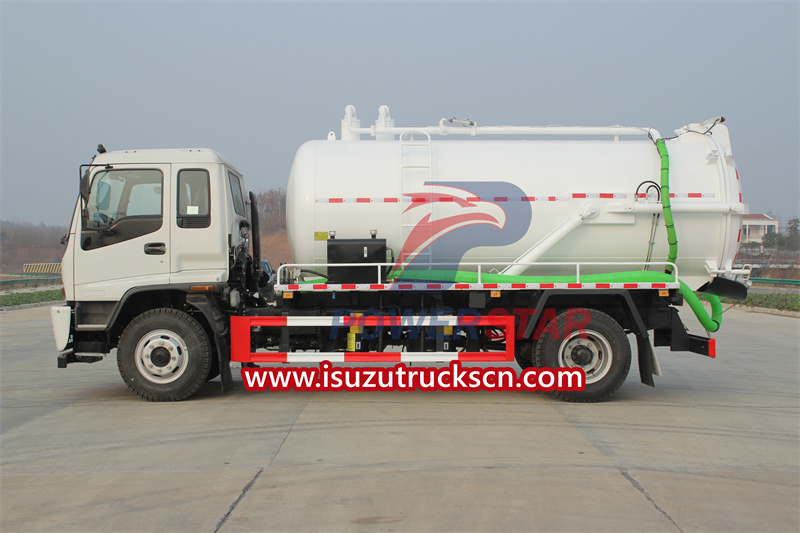

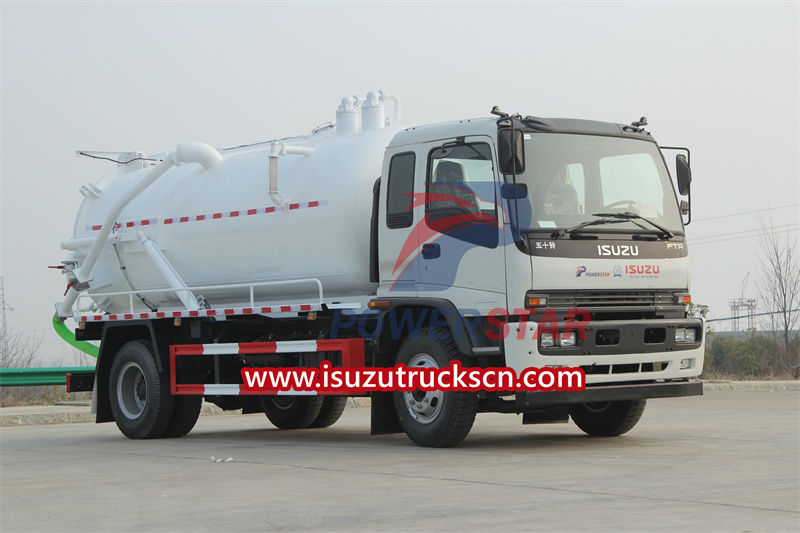

Isuzu FTR septic tank lorry is a specialized vehicle designed for the transportation and disposal of sewage and waste materials. This lorry is manufactured by Isuzu, a well-known Japanese automobile manufacturer.
The Isuzu FTR septic tank lorry is equipped with a large steel tank that can hold a significant amount of sewage or waste. The tank is specially designed to be leak-proof and durable to ensure the safe and efficient transport of waste materials. It is usually mounted on the chassis of a truck for easy maneuverability and transportation.
Work capacity:
10,000 LitersTruck model:
PT5110GXWEngine power:
204HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
ISUZU MLD 6-speedRemarks:
Moro pump, PM70A
Isuzu septic tank lorry is a reliable and versatile vehicle designed specifically for the purpose of transporting and disposing of sewage and waste materials. This specialized truck is manufactured by Isuzu Motors, a renowned Japanese automobile manufacturer known for producing high-quality commercial vehicles.
The Isuzu septic tank lorry is equipped with a durable chassis and a powerful engine, providing it with the necessary strength and endurance to handle heavy loads. Its spacious and well-designed tank is made of reinforced materials to ensure durability and prevent leakage during transportation.
One of the standout features of the Isuzu septic tank lorry is its efficient and environmentally friendly waste disposal system. The vehicle is equipped with a powerful vacuum pump that can effectively suck out liquid waste from septic tanks with ease. The collected waste is then stored in the tank on-board until it can be safely disposed of in designated waste treatment facilities.
Isuzu septic tank lorry is a specialized vehicle designed for the transportation and disposal of waste collected from septic tanks. It is commonly used by sanitation companies and in urban areas where sewer connections are not available.
This septic tank lorry is manufactured by Isuzu, a reputable Japanese automotive company. It is known for its durable construction, efficient performance, and reliable functionality. The lorry is equipped with a powerful engine that provides sufficient power for its operation.
Isuzu FTR septic vacuum truck is primarily composed of four main components.
1. Chassis: The chassis forms the foundation of the truck and provides structural support. It is typically manufactured using high-quality steel that ensures durability and strength. The Isuzu septic vacuum truck is equipped with a robust and reliable Isuzu chassis that offers excellent load-bearing capabilities, making it capable of carrying the weight of the septic tank and the vacuum system.
2. Septic Tank: The septic tank is a crucial component of the truck, designed to store and transport wastewater, sludge, and other substances extracted from septic systems. It is made of durable materials that can withstand the corrosive nature of sewage and is carefully sealed to prevent leakage during transportation. The tank is equipped with various valves and fittings, allowing for easy loading, unloading, and disposal of its contents.
3. Vacuum System: The vacuum system is responsible for extracting waste from septic systems. It includes a powerful suction pump, vacuum hoses, and a filtration system. The pump creates a vacuum that draws in the waste material from the septic tank, while the hoses transport the waste to the tank for storage. The filtration system ensures that large debris and contaminants are separated from the liquid waste, preventing them from causing damage to the pump or clogging the system.
4. Control Panel and Plumbing Connections: The septic vacuum truck is equipped with a control panel that allows the operator to manage and regulate the vacuum system. It includes controls for starting and stopping the pump, adjusting suction power, and monitoring the tank's capacity. Plumbing connections enable the truck to connect to the septic systems, allowing the seamless extraction of waste.
Product Specifications
10,000 Liters Sewage Vacuum Suction Truck For City Sewage Cleaning
| ISUZU FTR vacuum sewage truck specifications | |
| Vehicle | ISUZU FTR vacuum sewage truck |
| Overall dimension (mm) | 8500×2470×3000 |
| Sewage tank (m3) | 10 m3 / 5000L |
| Gross vehicle weight (kg) | Appro×18500 |
| Curb weight (kg) | Appro×7100 |
| Payload (kg) | Appro×11400 |
| Chassis brand | ISUZU brand |
| Wheel base (mm) | 3900 |
| Max speed (km/h) | 95 |
| Chassis Parameters | |

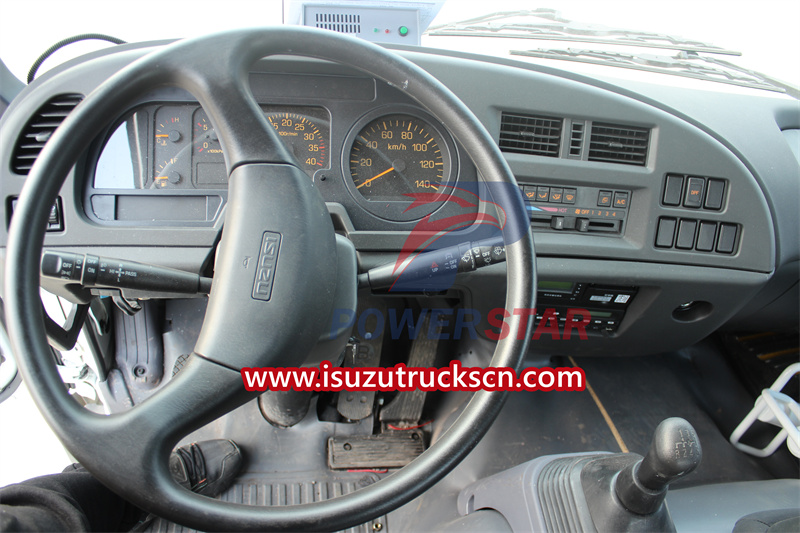

| Cabin | Flat top roof cabin, single row, power steering, with air conditioner, 3 passengers,left hand drive, tilting cabin |
| Drive form | 4×2 |
| Engine | Brand: ISUZU |
| Model: 4HK1-TC51, 205 hp | |
| Type: diesel, turbocharged, 6 cylinders. | |
| Displacement: 5193ml | |
| Emission standard: Euro 4, euro 5 | |
| Transmission | 6 forward,1 reverse, manual operated |
| Tire model | 235/75R17.5 |
| No.of tires | 6pcs, with 1pc spare tire |
| Superstructure Parameters | |
| Characteristic | 1. Sewage tank volume 5000 liters. |
| 2. Sewage tank material is high quality carbon steel, wall & head thickness 6mm. | |

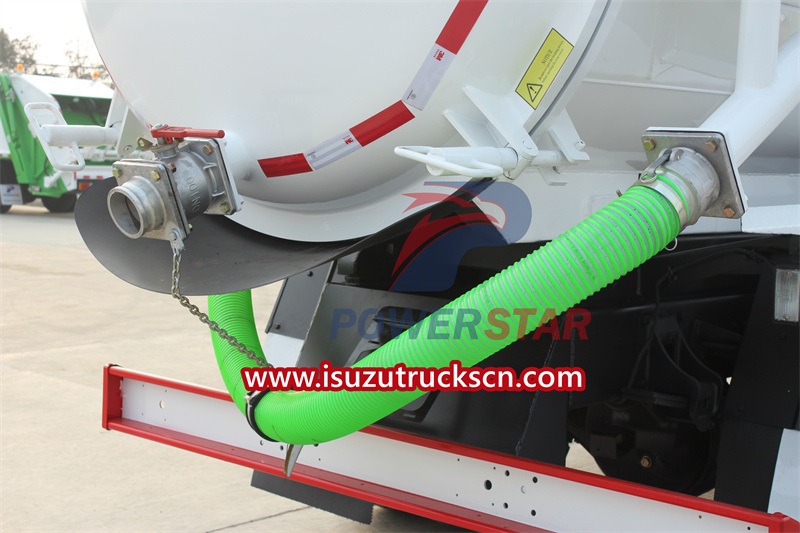

| 3. Sewage suction pipe 1pcs, length 7m. Suction and discharge pipe. | |
| 4. Hydraulic lifting sewage tank,rear cover can open. | |
| 5. Equipped with PTO. | |
| 6. Equipped with vacuum pump. | |
| 7. Equipped with oil water separator, overflow valve, Inspect window, looking sewage window, discharge valve, self flow exit, discharge valve, hand washing device, etc. | |
| 8. Sewage tank shape: Cylindricle | |
| Performance | (1) Vertical suction ≥ 7m. |
| (2) Pumping speed : 68L/s. | |
| (3) Intake and exhaust diameter: 50mm. | |
| (4) Full tank pumping time ≤ 5min. | |
| (5) Sewage tank emptying time ≤ 4min. | |
| (6) Sewage tank emptying time ≤ 4min. | |
| Features | (6) Cylinder vacuum tank can be lifted hydraulically to ≥ 45 degree. Rear door can be opened and closed hydraulically. |
| Optional configuration | Optional configuration |
| Vacuum pump : Italy or Spain vacuum pumps. | |
| Anti-rust coating inside tank | |
Isuzu FTR Septic Tank Lorry is a specialized vehicle designed for the transportation and disposal of sewage and waste materials. It offers several features and functions that make it suitable for this purpose.
1. Efficient Waste Transportation: The Isuzu FTR Septic Tank Lorry is equipped with a large capacity tank specifically designed to hold sewage and waste materials. This allows for the efficient transportation of large quantities of waste from residential, commercial, and industrial areas to treatment or disposal facilities.
2. Vacuum Suction System: The lorry is fitted with a powerful vacuum suction system that enables it to effectively extract and collect the waste. The system is capable of generating high levels of suction, allowing for the efficient extraction of liquid and solid waste from septic tanks, grease traps, and other waste containers.
3. Sealed and Leak-Proof Structure: The septic tank on the Isuzu FTR Lorry is designed to be completely sealed and leak-proof. This ensures that there is no spillover or contamination during transport, reducing the risk of public health hazards and environmental pollution.
4. Versatile and Maneuverable: The Isuzu FTR Septic Tank Lorry is built on a versatile and maneuverable chassis, making it suitable for navigating urban areas, narrow streets, and other tight spaces. The compact size and tight turning radius allow the lorry to access remote or challenging locations where waste removal is required.
Isuzu FTR Septic Tank Lorry is a specialized vehicle designed for the transportation and disposal of sewage and waste materials. It offers several features and functions that make it suitable for this purpose.
1. Efficient Waste Transportation: The Isuzu FTR Septic Tank Lorry is equipped with a large capacity tank specifically designed to hold sewage and waste materials. This allows for the efficient transportation of large quantities of waste from residential, commercial, and industrial areas to treatment or disposal facilities.
2. Vacuum Suction System: The lorry is fitted with a powerful vacuum suction system that enables it to effectively extract and collect the waste. The system is capable of generating high levels of suction, allowing for the efficient extraction of liquid and solid waste from septic tanks, grease traps, and other waste containers.
3. Sealed and Leak-Proof Structure: The septic tank on the Isuzu NPR Lorry is designed to be completely sealed and leak-proof. This ensures that there is no spillover or contamination during transport, reducing the risk of public health hazards and environmental pollution.
4. Versatile and Maneuverable: The Isuzu FTR Septic Tank Lorry is built on a versatile and maneuverable chassis, making it suitable for navigating urban areas, narrow streets, and other tight spaces. The compact size and tight turning radius allow the lorry to access remote or challenging locations where waste removal is required.

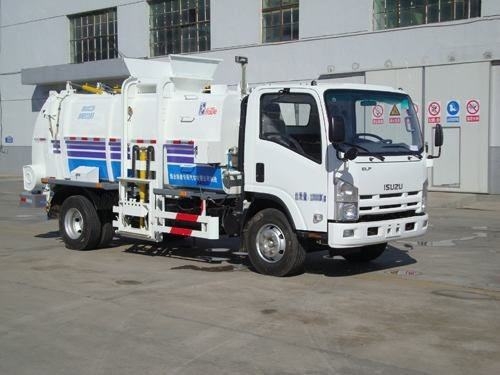

2015 new products Euro4 4*2 Light truck food kitchen garbage truck price,garbage truck dimensions,6000L High Quality Kitchen Garbage Truck,ELF ISUZU Kitchen garbage truck
Learn More

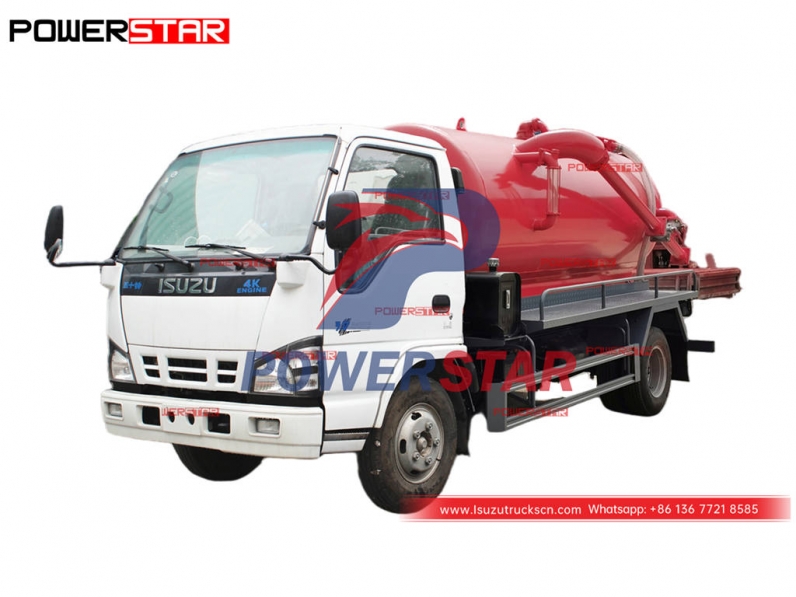

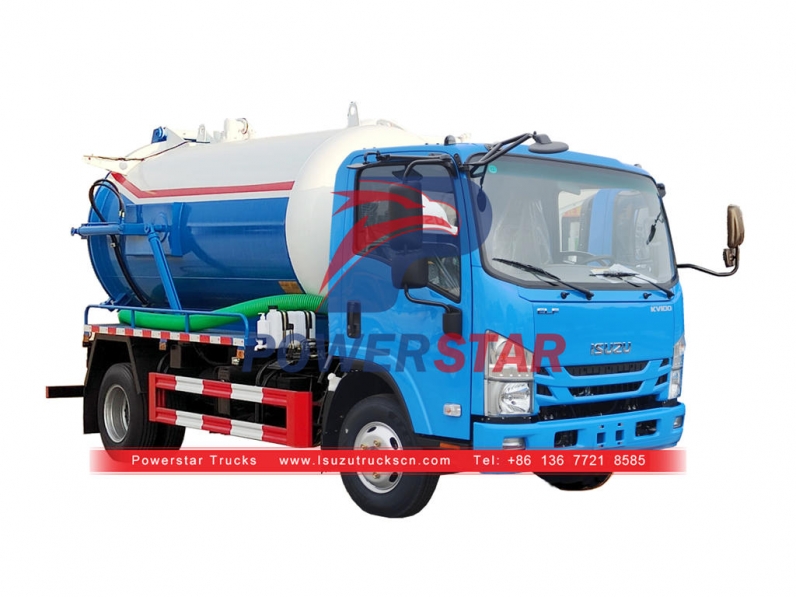

ISUZU 600P vacuum sewage suction truck, ISUZU NKR 130HP 5000 liters vacuum pump truck ISUZU septic tank truck supplier
