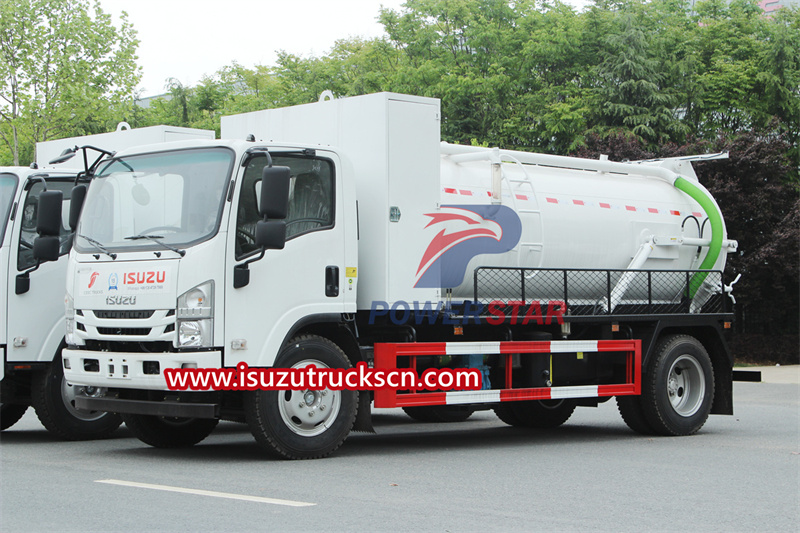

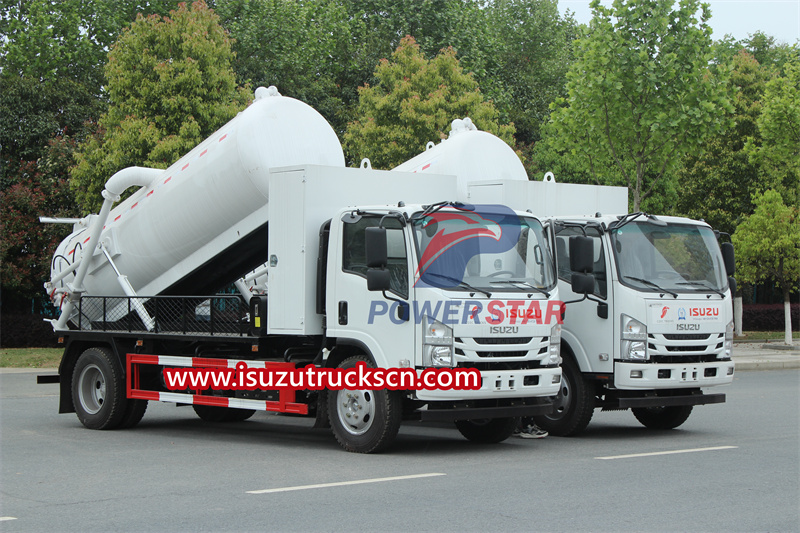

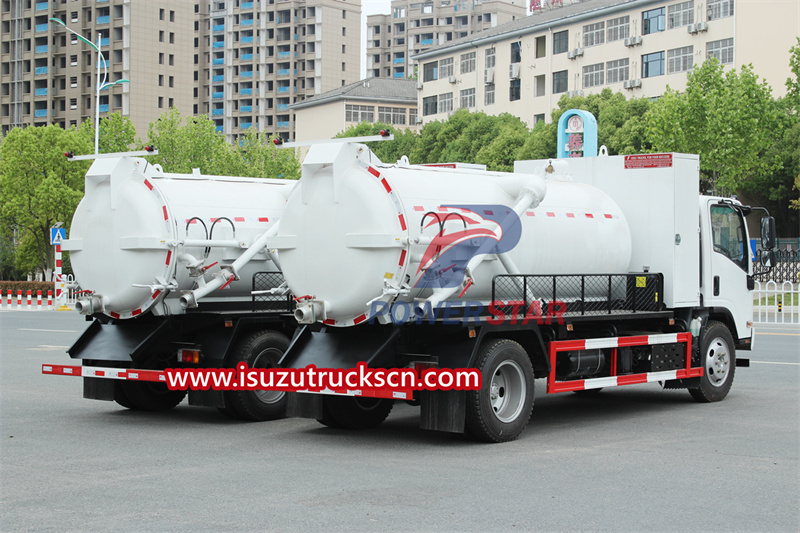

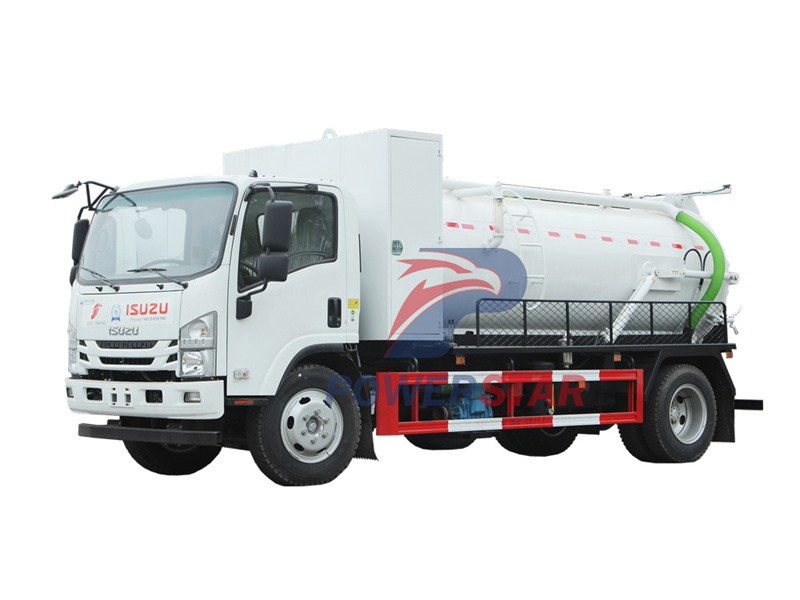

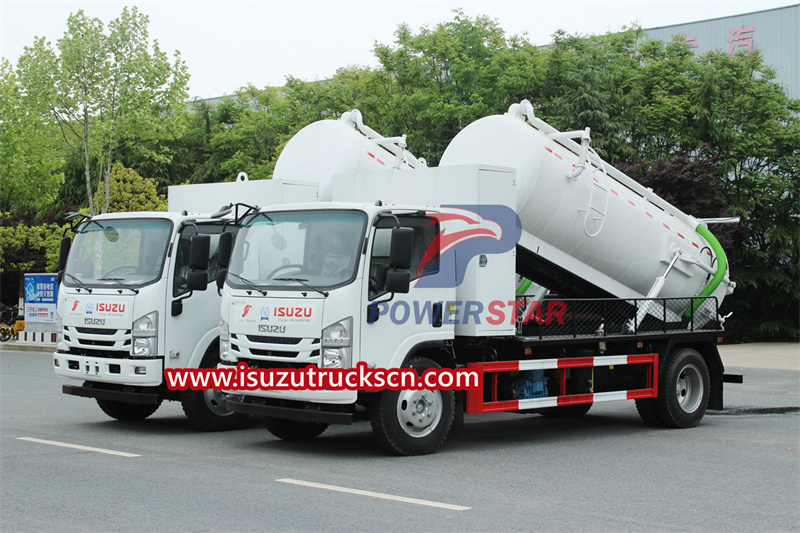

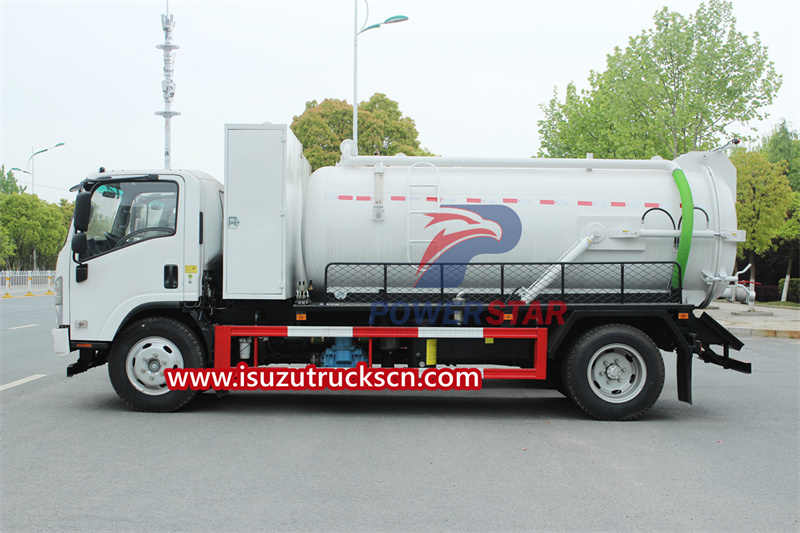

Isuzu Truck Mounted Vacuum Tanker is a specialized vehicle designed for the transportation and disposal of liquid waste materials. It is equipped with a vacuum system that creates a negative pressure, allowing it to suction and store various types of liquids, including sewage, sludge, and industrial waste.
The truck is built on an Isuzu chassis, known for its durability and reliability. It is designed to be compact and maneuverable, making it suitable for both urban and rural environments. The vehicle is equipped with a powerful vacuum pump system that creates a strong suction force, enabling it to efficiently gather and transport large volumes of liquid waste.
Work capacity:
7,000 LitersTruck model:
PT5070GXWEngine power:
190HPEngine type:
4HK1-TC51Axle drive:
4×2Gear box:
ISUZU MLD 6-speedRemarks:
Moro pump, PM70A
Isuzu 700P vacuum tanker is fitted with a large-capacity storage tank, usually made of steel or aluminum, to contain the collected waste materials. The vacuum tank is sealed to prevent any leakage or spillage during transportation. It is also equipped with safety features, such as overflow protection and pressure relief valves, to ensure proper handling and discharge of the waste.Isuzu NPR 700P Truck Mounted Vacuum Tanker plays a vital role in waste management and environmental protection. It is commonly used in municipal operations, industrial sites, and construction projects. Its efficient and reliable performance helps to mitigate the risks associated with liquid waste transportation and disposal, promoting hygiene and sanitation standards.
One of the main features of Isuzu Septic Vacuum Truck is its large tank capacity, which allows for the collection and transportation of a significant amount of waste in a single trip. This helps to optimize operational efficiency and reduce the need for multiple trips, saving time and resources. The tank is made of durable materials that are resistant to corrosion and leaks, ensuring the longevity of the truck.Isuzu Septic Vacuum Truck also prides itself on its advanced filtration system. The truck is equipped with a multi-stage filtration system that effectively separates solid materials from the collected waste, ensuring that only liquid waste is stored in the tank. This ensures proper disposal and prevents clogging or damage to the truck's components. The filtration system can be easily cleaned and maintained, further enhancing the longevity and efficiency of the truck.
Isuzu NPR septic vacuum truck is primarily composed of four main components.
1. Chassis: The chassis forms the foundation of the truck and provides structural support. It is typically manufactured using high-quality steel that ensures durability and strength. The Isuzu septic vacuum truck is equipped with a robust and reliable Isuzu chassis that offers excellent load-bearing capabilities, making it capable of carrying the weight of the septic tank and the vacuum system.
2. Septic Tank: The septic tank is a crucial component of the truck, designed to store and transport wastewater, sludge, and other substances extracted from septic systems. It is made of durable materials that can withstand the corrosive nature of sewage and is carefully sealed to prevent leakage during transportation. The tank is equipped with various valves and fittings, allowing for easy loading, unloading, and disposal of its contents.
3. Vacuum System: The vacuum system is responsible for extracting waste from septic systems. It includes a powerful suction pump, vacuum hoses, and a filtration system. The pump creates a vacuum that draws in the waste material from the septic tank, while the hoses transport the waste to the tank for storage. The filtration system ensures that large debris and contaminants are separated from the liquid waste, preventing them from causing damage to the pump or clogging the system.
4. Control Panel and Plumbing Connections: The septic vacuum truck is equipped with a control panel that allows the operator to manage and regulate the vacuum system. It includes controls for starting and stopping the pump, adjusting suction power, and monitoring the tank's capacity. Plumbing connections enable the truck to connect to the septic systems, allowing the seamless extraction of waste.
Product Specifications
Truck Specification
truck model
ISUZU NPR
Cab
Isuzu NPR single row cab, with power steering. Electronic flameout, A/C
Driving Type
4x2 Left hand driving
Max Speed (km/h)
90
Overall dimension(mm)
7850×2470×3200
GVW( kg)
15000
Mass in working order ( kg)
8,000
Wheelbase(mm)
4175
F/R track base (mm)
2022/1830
F/R overhang (mm)
1500/2380
Approach/Departure Angel
16/14
Tire
295/80R22.5 (10+1)
Clutch
Single-plate dry diaphragm spring clutch
Steering
Hydraulic steering with power assistance
Gear box
10-speed
Bridge
Front axle
5T
Rear axle
10 T
Enging
Model
4HK1-TCG60, 190hp
Fuel Type
Diesel fuel
Type
Water-cooled six-stroke,, direct injection, turbocharged
Exhaust(ml)
5193ml
Max output power/rotate speed (hp /rpm )
190 /2200
Max torque/rotate speed(N.m/rpm)
1350/1100~1600
Braking system
Service Brake
Compressed air brake
Park Brake
Spring energy
Auxiliary brake
engine exhaust brake
Eletric system
24v
Upper-Body specification
Volume of tank
6 m³ /7 m3
Color
Painted in the corporation's colours with logo on both front doors as specified by the client
Material of tanker
5mm Carbon stell (Q235)
Special function
Suction height
≥9(m)
Suction time
250(S)
Maximum Inclination Angle
≥45°
maximum vacuum
≥11 MPa
Lifting time
≤45 S
the Cover opening Angle
≥75°
The cover opening time
≤25 S
Suction pipe
3m length and 100 mm in diameter
Hose Racks
Fitted on both sides of tank, to accommodate a minimum of seven hoses each
Fittings
Four-way change valve fitted to pump
Drain separator
vacuum pump
Fully opening rear door
Sight glasses at top and bottom of tank
Ladder: For access to top of tank complete with cat walk on top of tank

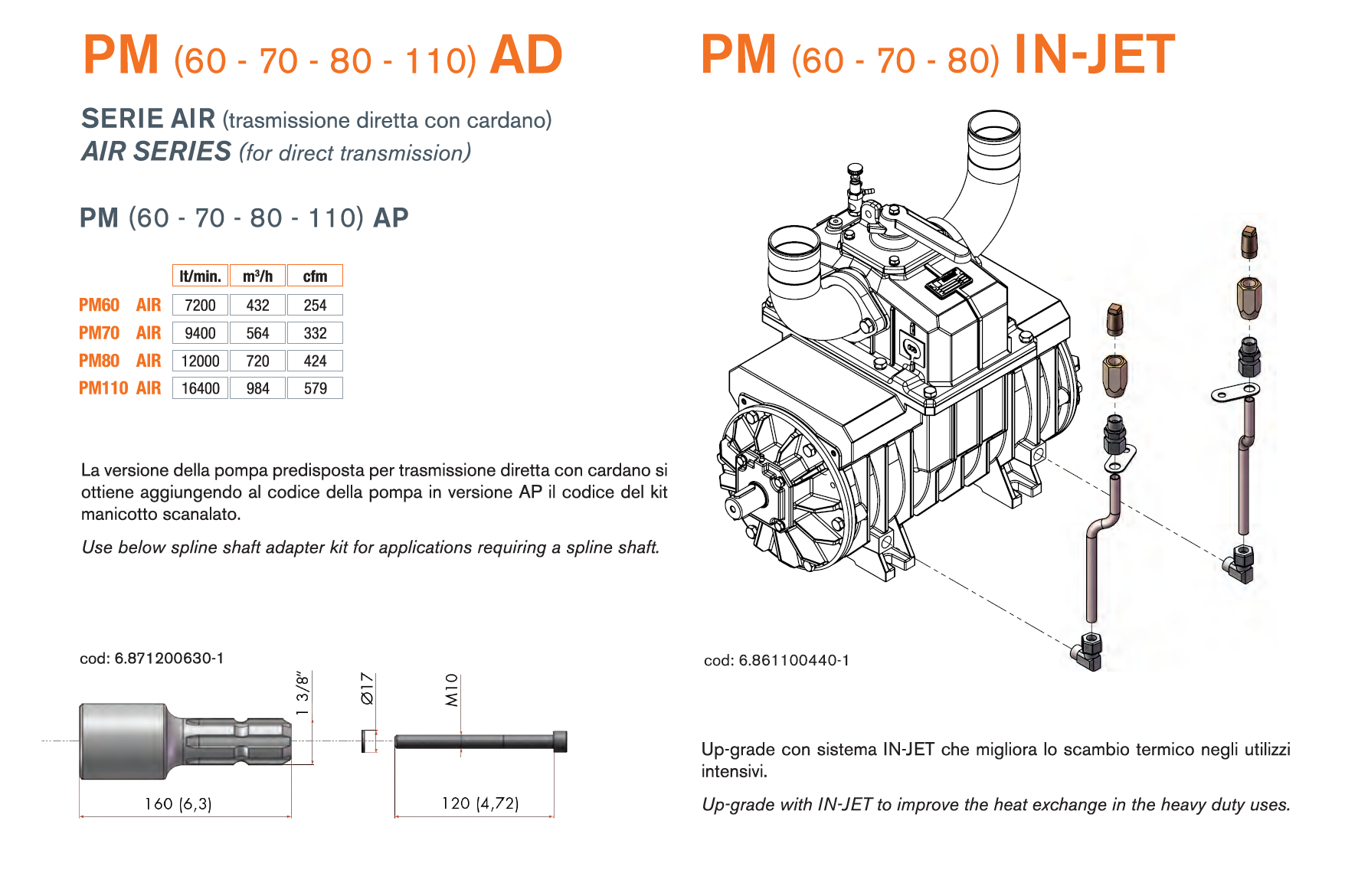

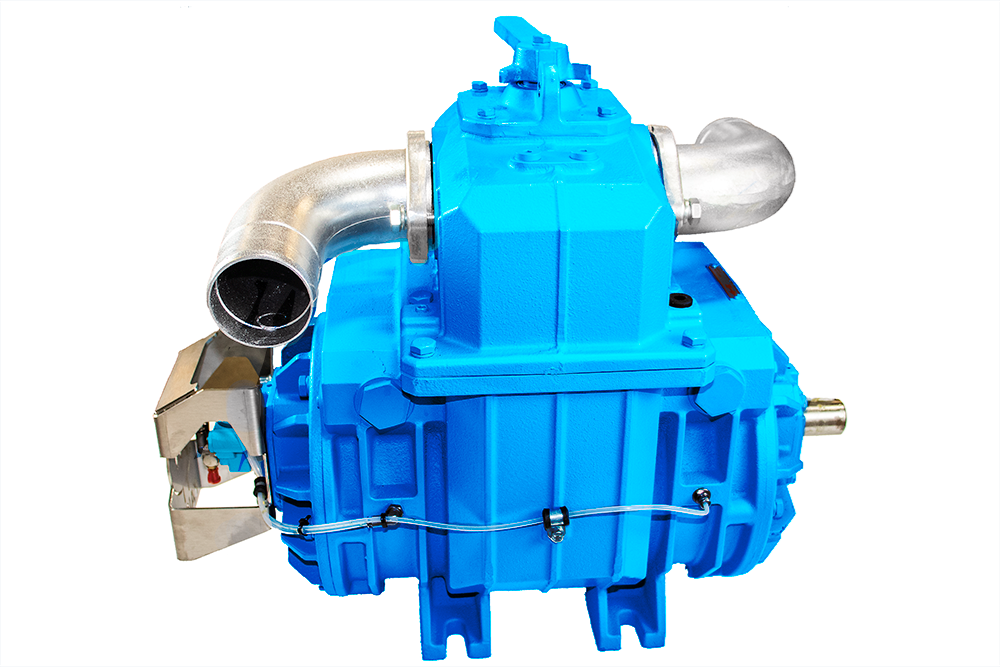

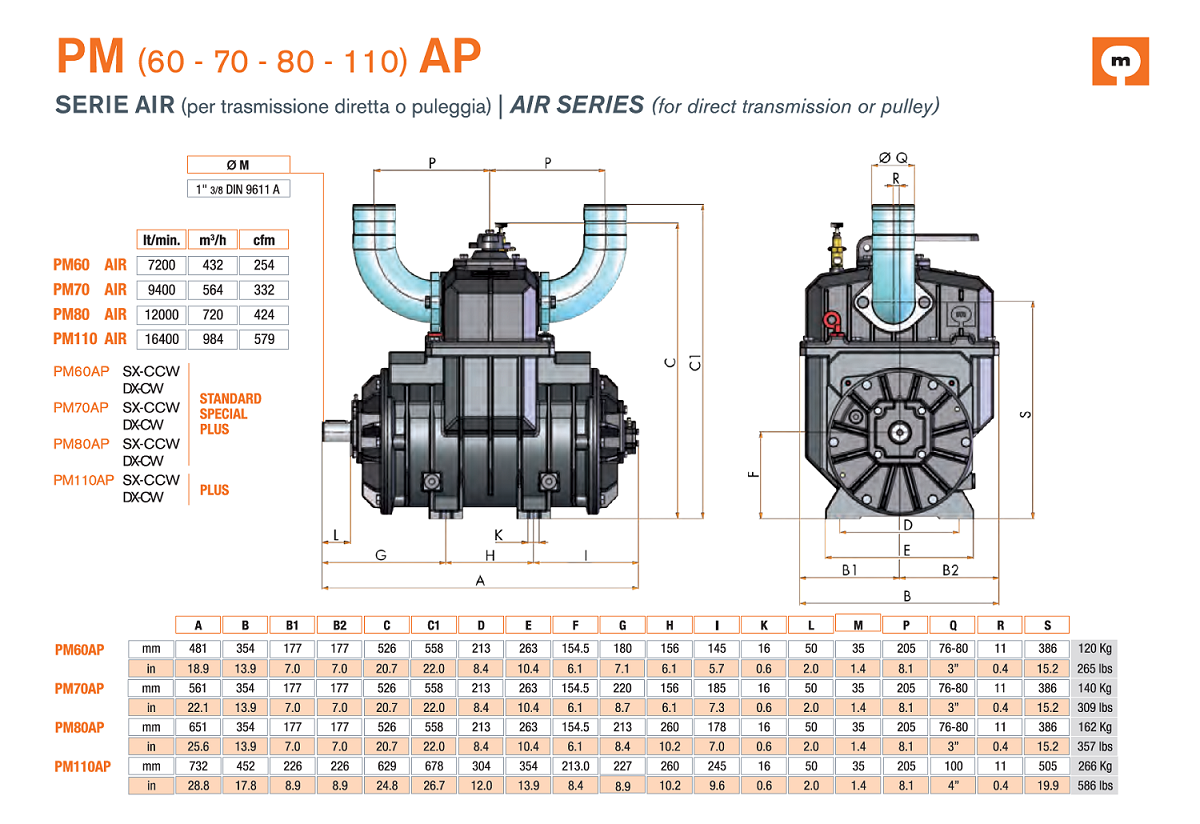

vacuum pump
pump type
MORO PM70A
motor power (kW)
11
weight (Kg)
340
pump speed (r.p.m)
1440
suction pressure (MPa)
5.4
diameter (mm)
80
Brief introduction of function
It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system.
Isuzu Truck Mounted Vacuum Tanker is a truck-mounted vacuum suction truck specially designed for cleaning and transporting liquid waste. It has four main purposes:
1. Environmental sanitation cleaning: This vacuum sewage suction truck can be used for environmental sanitation cleaning of urban streets, roads and public areas. It can clean up trash, trash and other liquid waste. For example, during street sweeping, it can clear sewage, waste trapped in gutters and mud blocking roads. It can also be used to clean up wastewater and sludge at construction sites, parking lots and parks.
2. Industrial waste treatment: This vehicle can also be used for industrial waste treatment in industrial parks and factories. It can absorb and transport various chemicals, paint wastewater, petroleum impurities and other toxic and hazardous wastes. This helps protect the environment and comply with waste disposal regulations.
3. Wastewater discharge treatment: Vacuum sewage suction trucks can also be used to treat wastewater discharge. It can absorb and transport wastewater, such as from sewers, public toilets and construction sites. It can take wastewater to designated treatment plants or treatment facilities, including sewage treatment plants and reclaimed water treatment facilities. This helps ensure that wastewater is properly treated before discharge.
4. Pipe and Tank Cleaning: This vehicle can also be used for pipe and tank cleaning work. It can vacuum and clean containers such as sewer lines, septic tanks, wells and storage tanks. This is important in maintaining the appearance and functionality of public facilities. In addition, it can also be used for cleaning and maintenance of industrial equipment to ensure its normal operation.
By using the Isuzu Truck Mounted Vacuum Tanker, various liquid wastes can be handled efficiently and safely while reducing environmental pollution. Its versatility and efficiency make it an essential cleaning tool on construction sites, urban and industrial areas.
