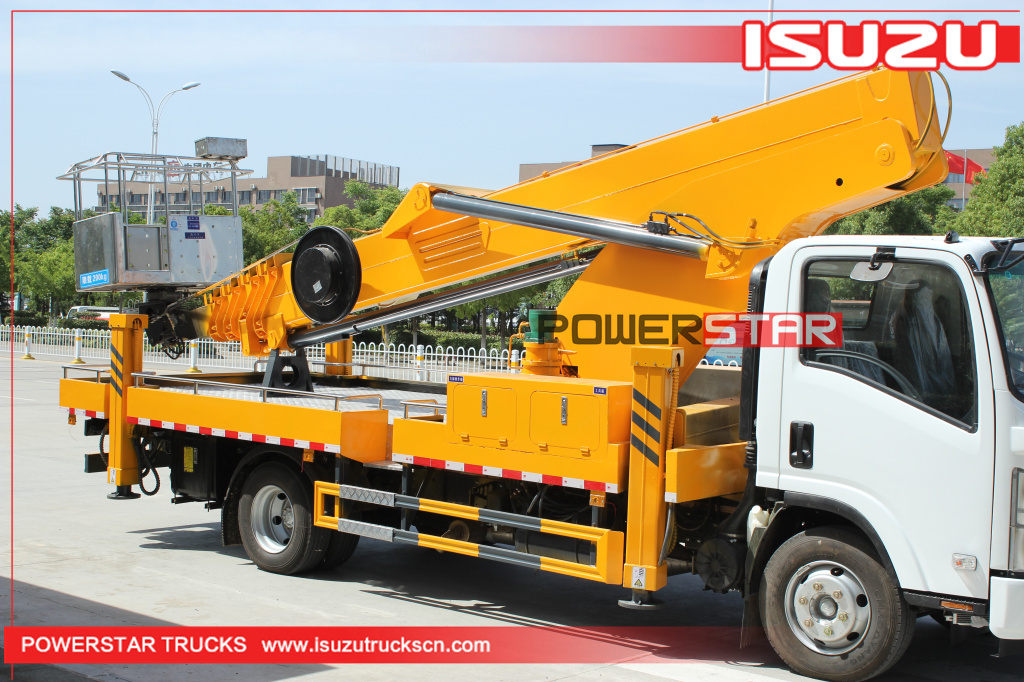

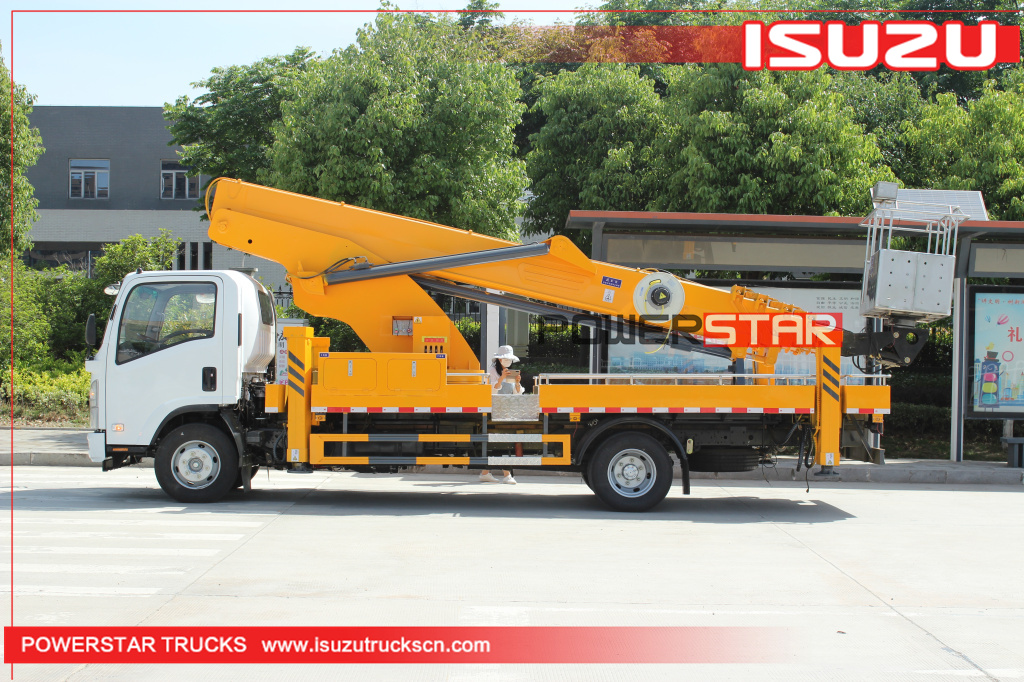

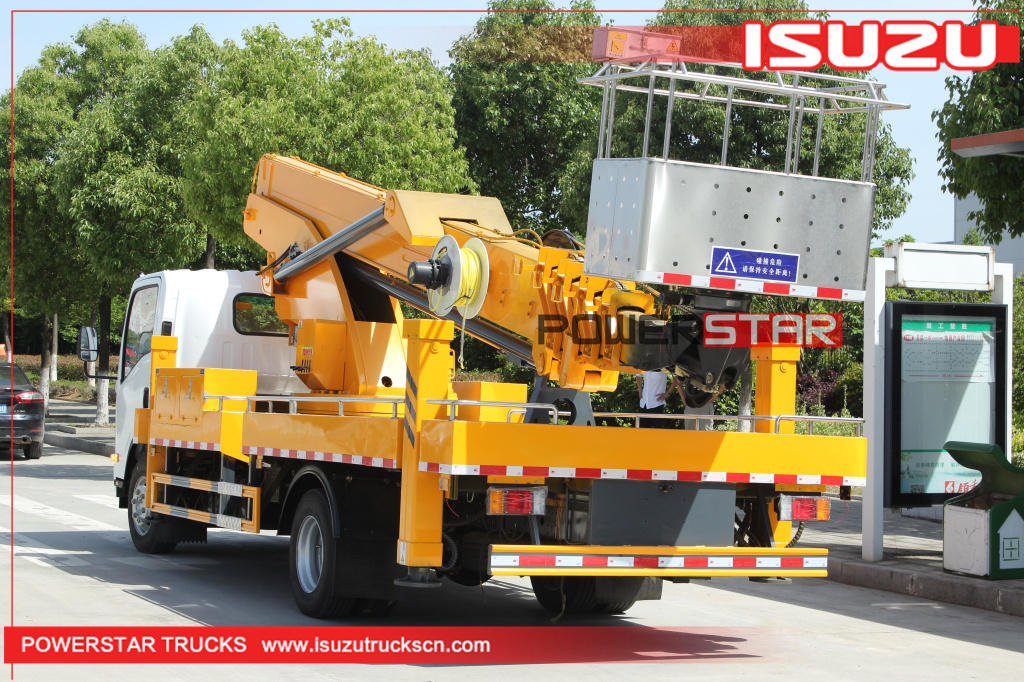

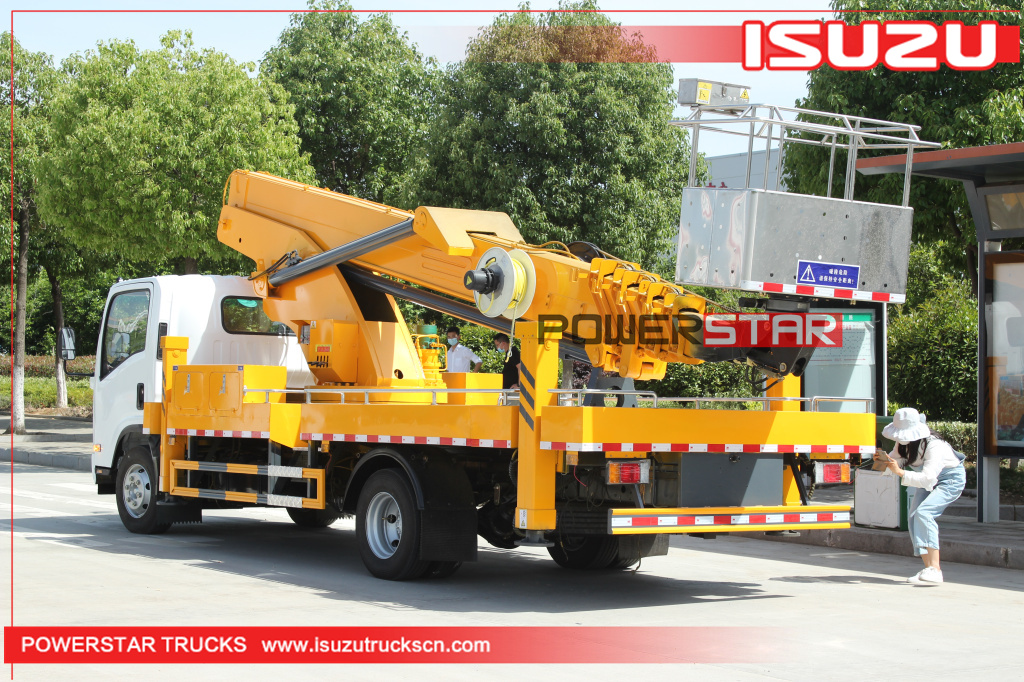

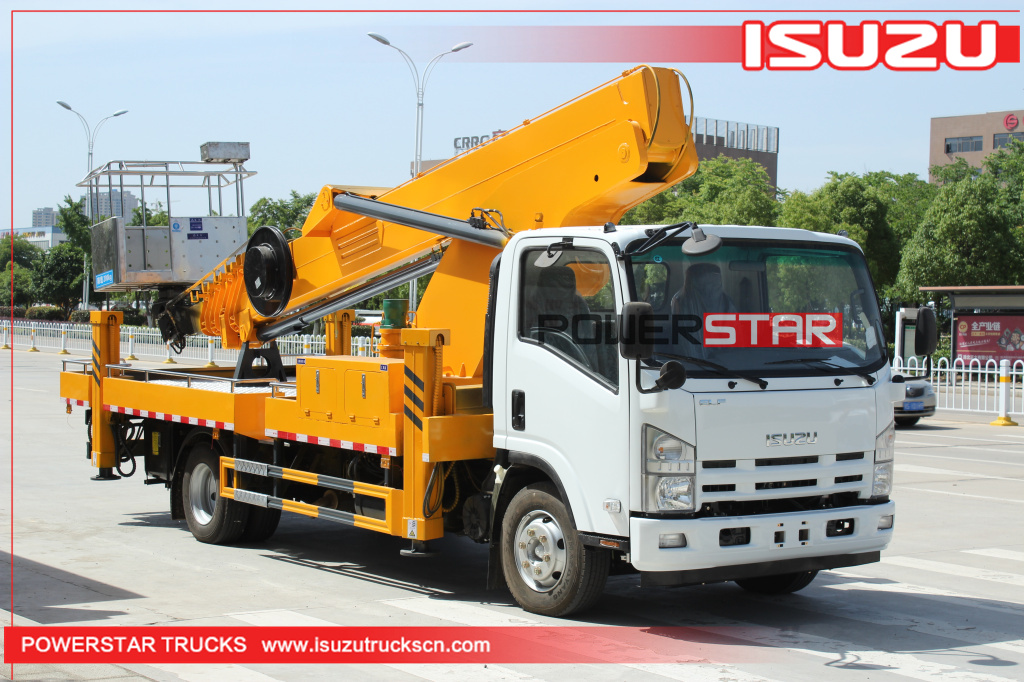

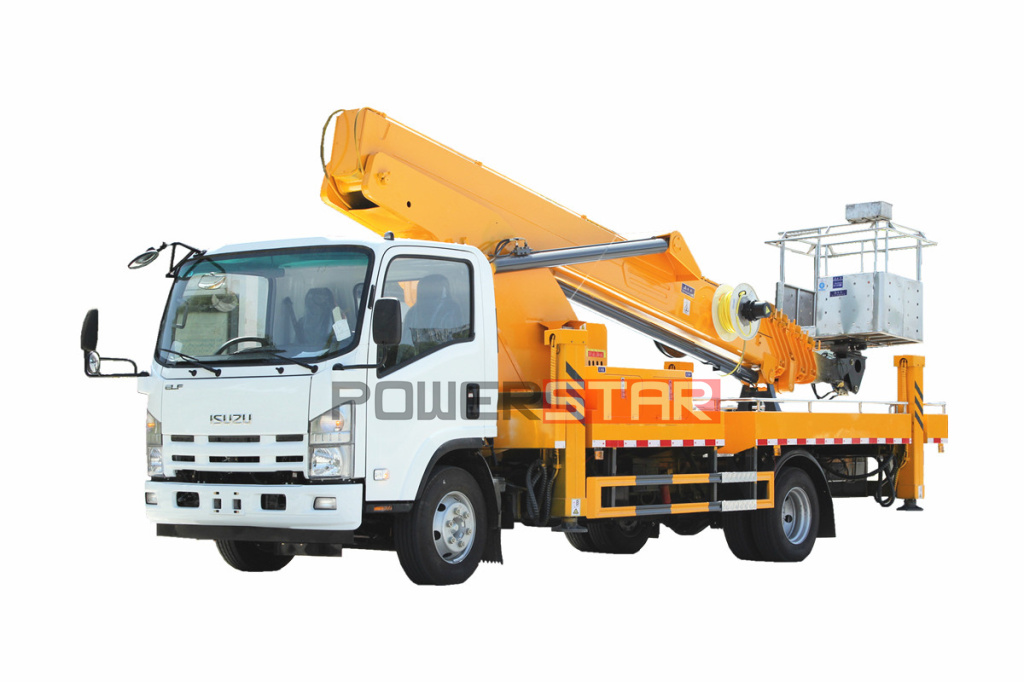

ISUZU Telescopic Bucket Truck Man Lifter Aerial Working Platform 220Kg
Order(MOQ):

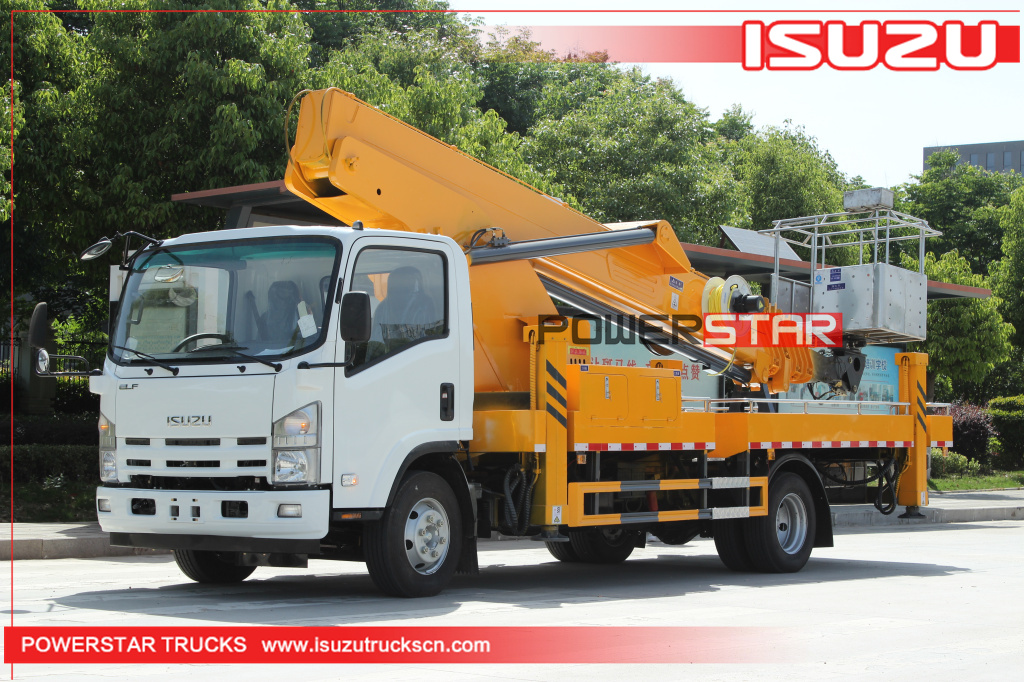

124m ManLifter Isuzu ELF 700P high altitude Operation Aerial working platform truck
ISUZU Manlifter Aerial Platform Truck (also called Aerial bucket truck, High altitude operation truck, Aerial working platform vehicle) suitable for aerial working or operation, such as repairing road lights, maintain high buildings, windows, hanging AD boards, power grid maintenance, etc.
  |
100% custom-made
|
|
Working height from 10M to 32M available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU Aerial Platform Trucks |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5110GK |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
7860*2300*3200 |
|
Gross weight |
kg |
11,000 |
|
|
Kerb weight |
8,600 |
||
|
Wheelbase |
mm |
4,500 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF/700P |
||
|
Tire size |
235/75R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
110 |
|
|
Emission standard |
EURO 4,5,6 |
||
|
Operation performance |
Working height |
24 m |
|
|

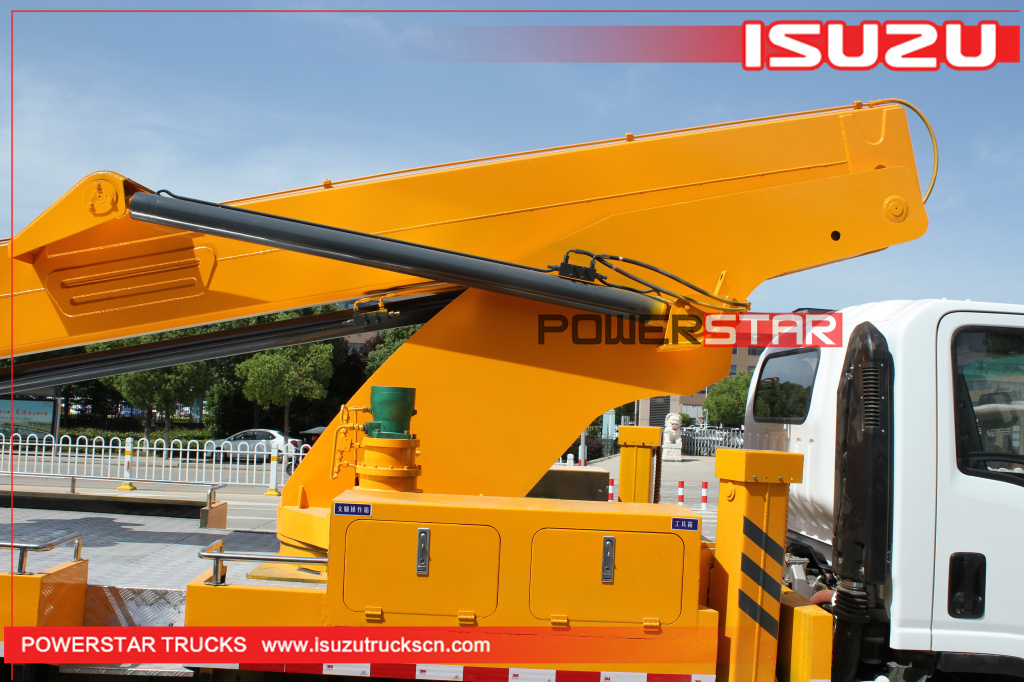

Boom Type |
Telescopic boom |
||
|

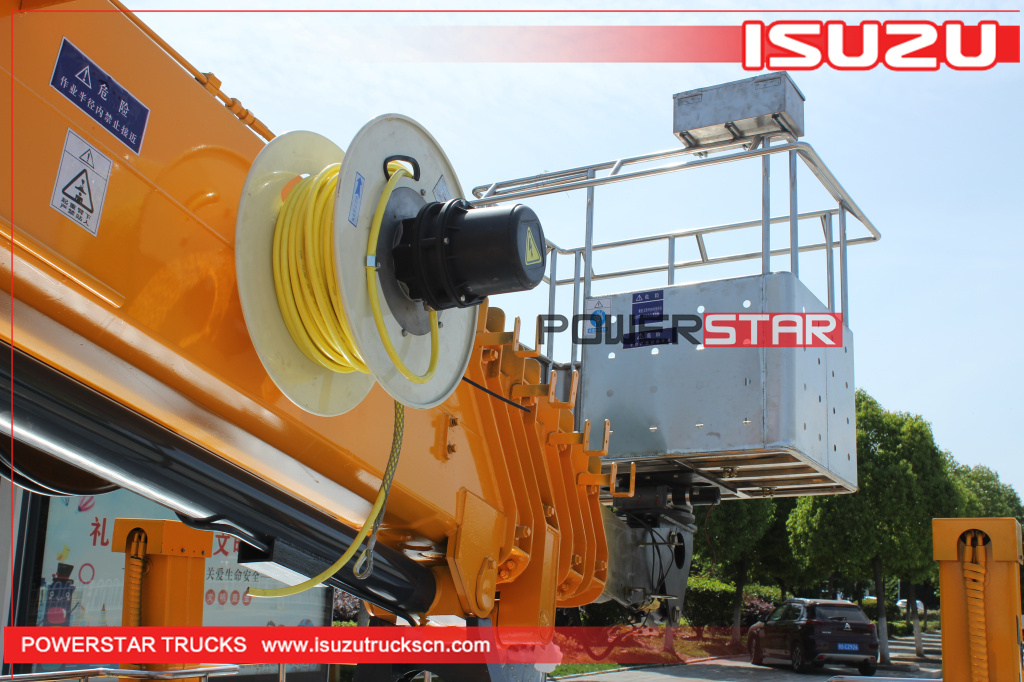

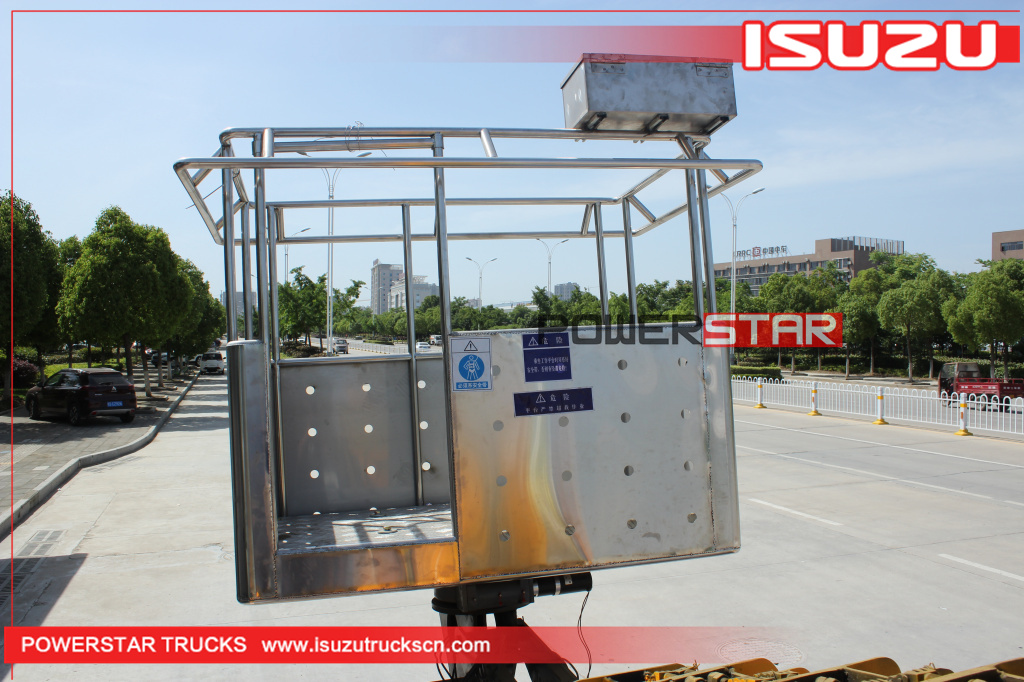

Basket payloading |
220 kg |
||
|
Automatic interlock device |
Basket and ground control lock |
||
|
Can't operation at same time. |
|||
|
Emergency pump |
Equipped |
||
|
Engine ON/OFF in basket |
Equipped |
||
|
Emergency stop |
Equipped |
||
|

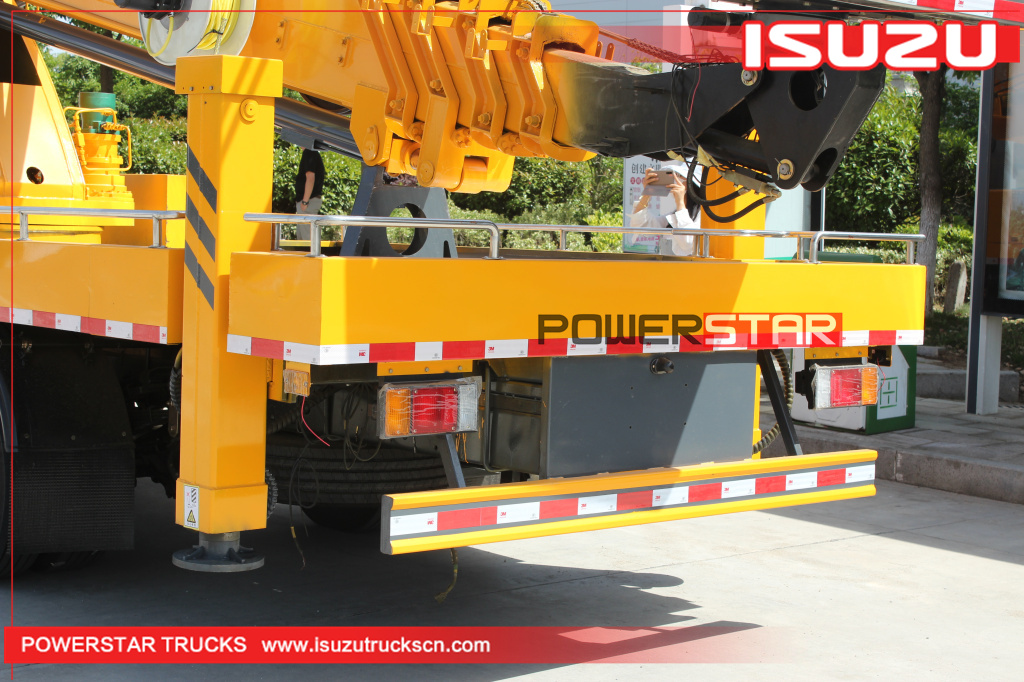

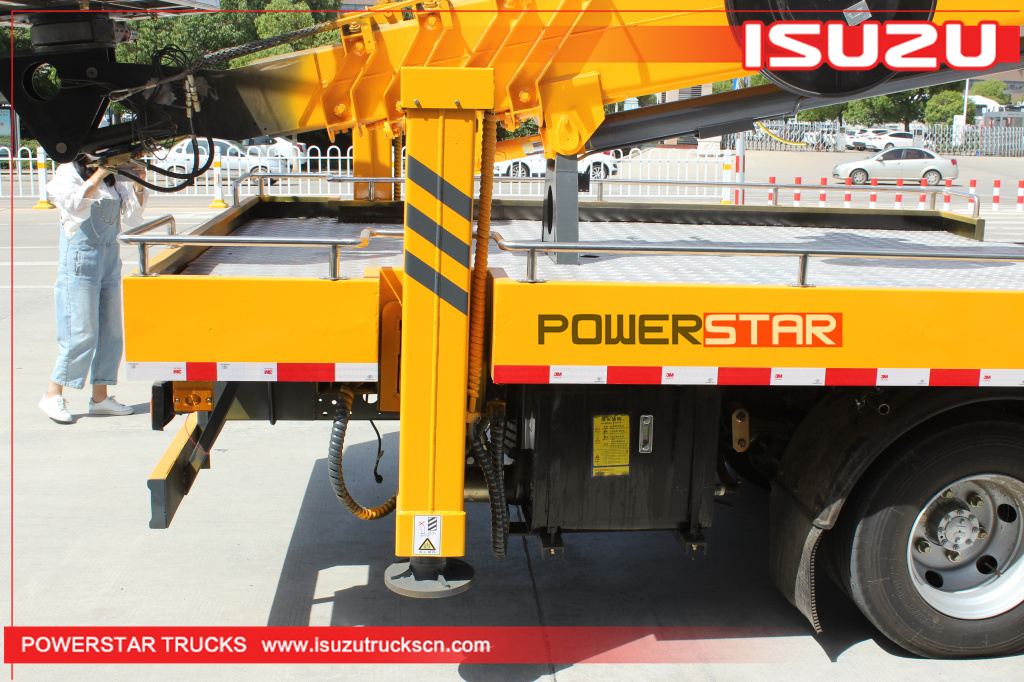

Outrigger |
4 pcs |
||
|
Operation |
Hydraulic control |
||
|
Hook lift capacity |
1000 kg |
||
|

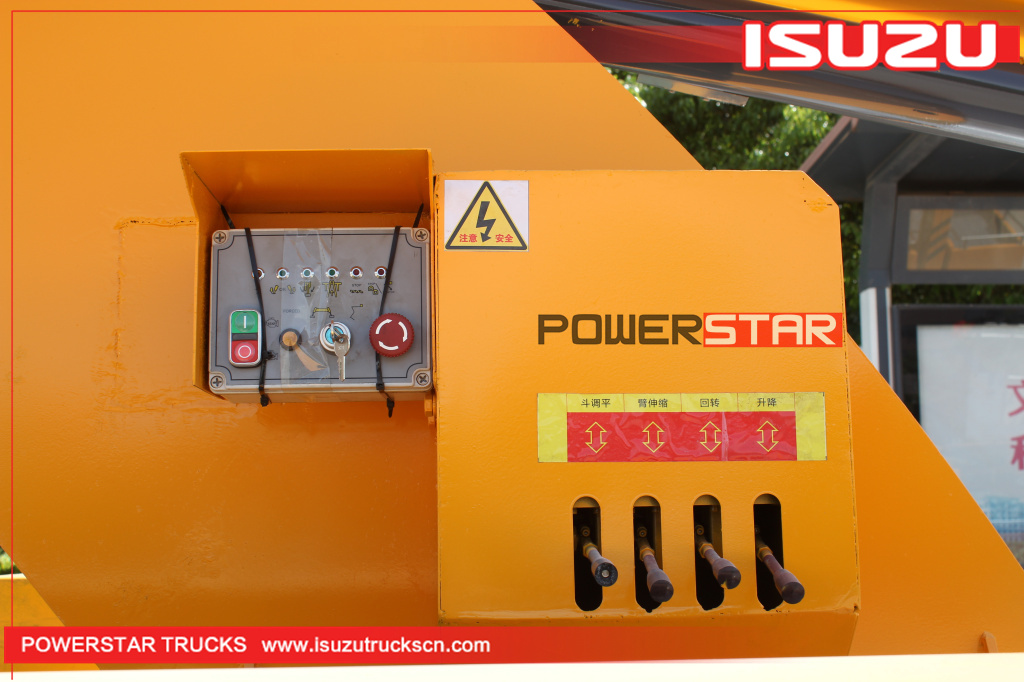

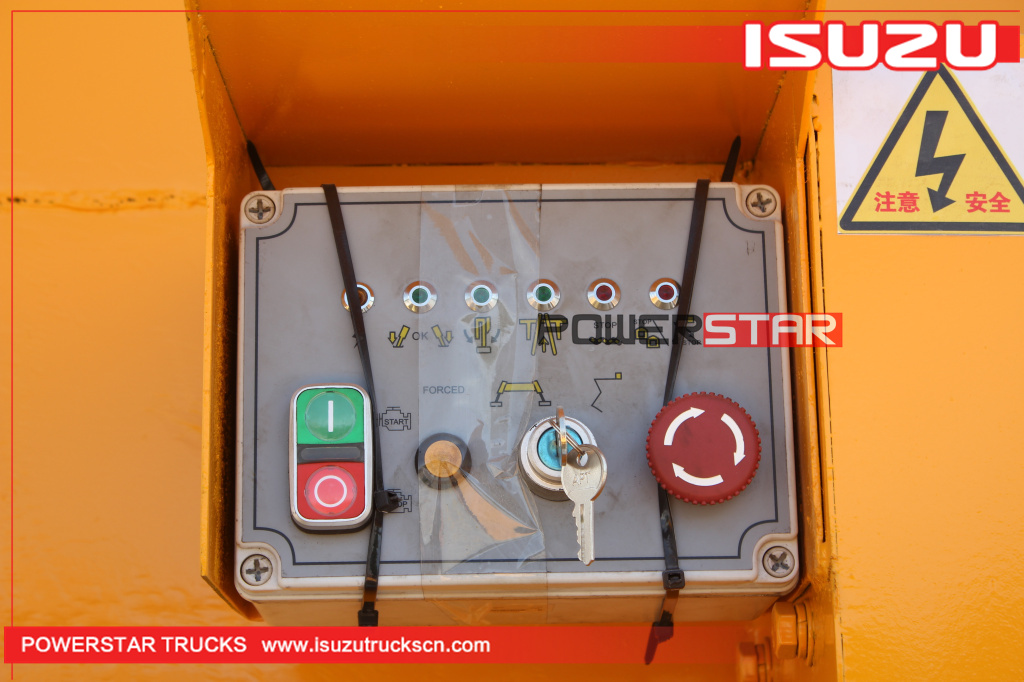

Control Panel |
English |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |

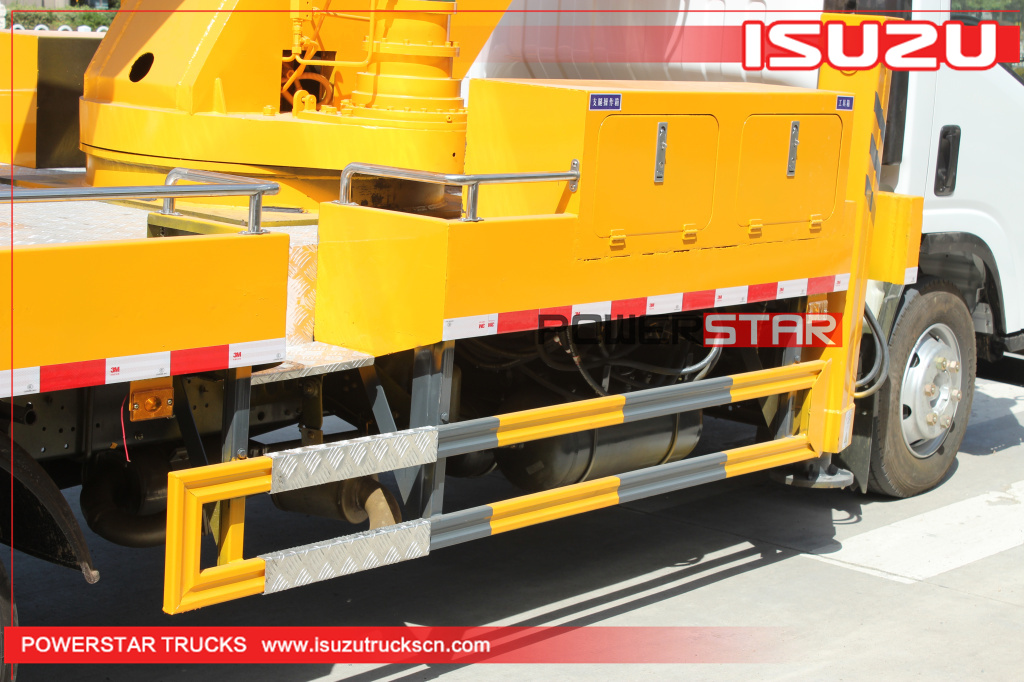

“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, 50M Wireless Remote control 2, Fiber-glass working bucket 3, Italy imported multi-way valve 4, Optional aluminum alloy body |
||
