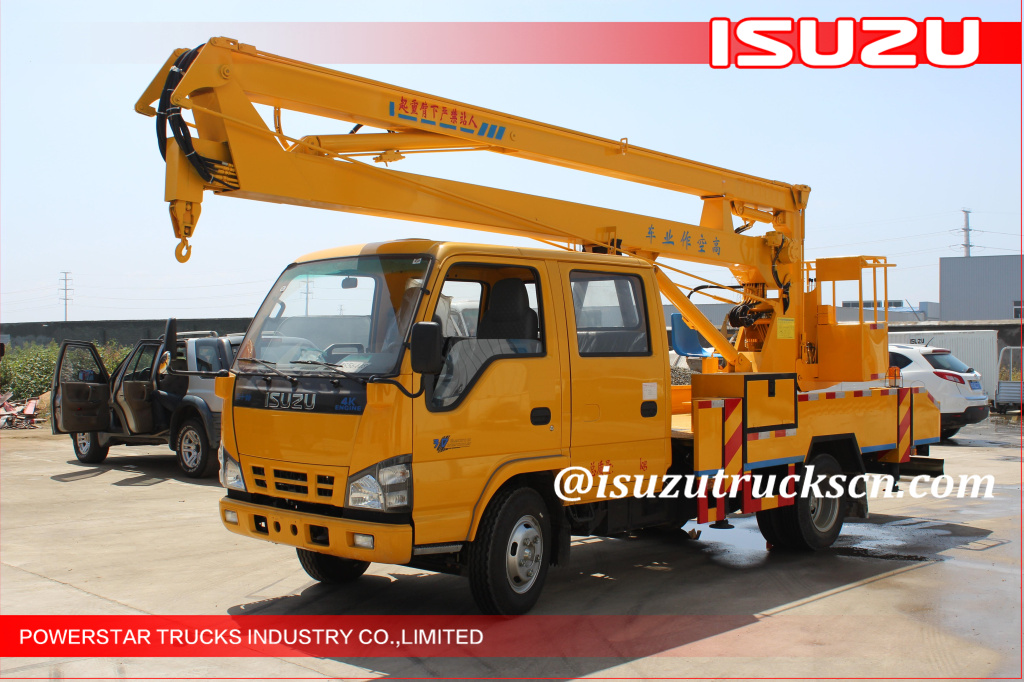

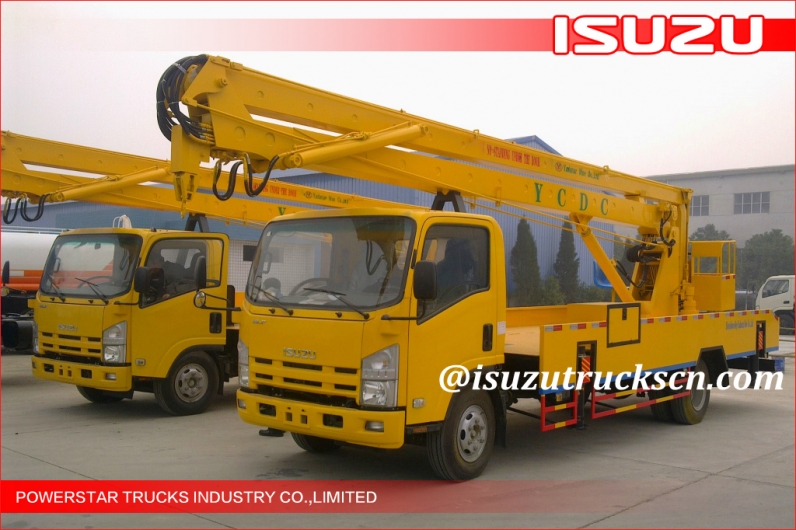

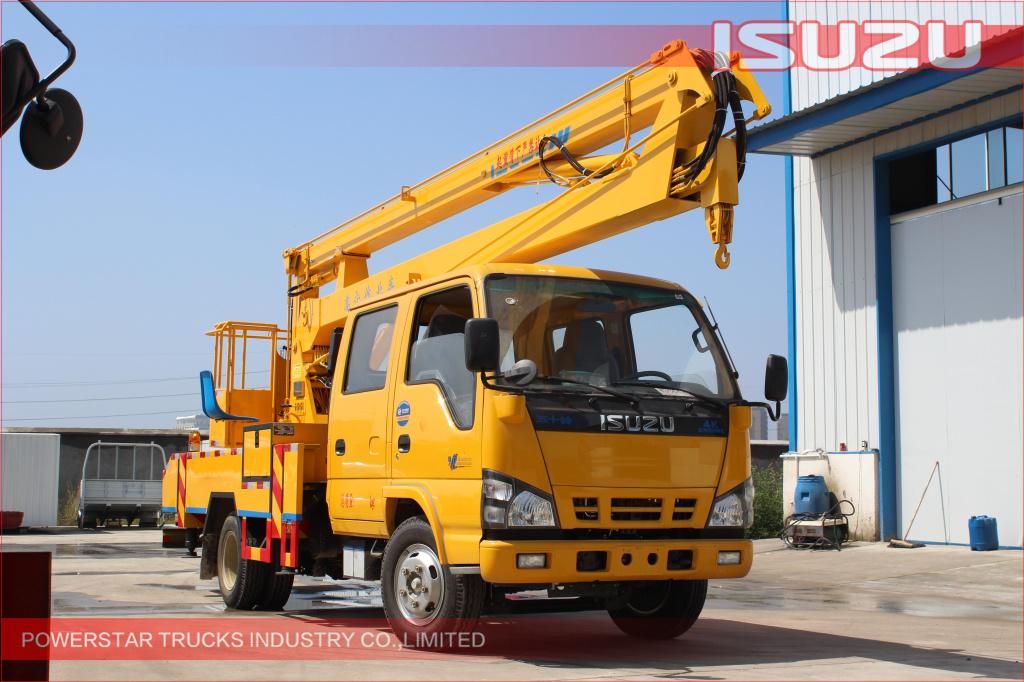

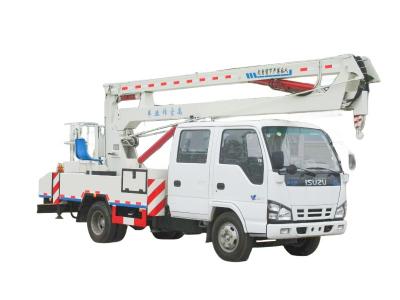

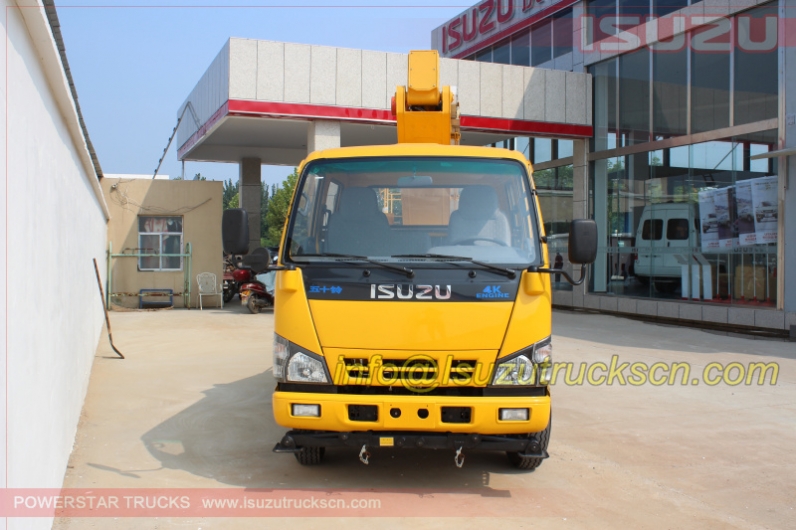

116m Vietnam quality Isuzu Hydraulic Working Platform Vehicle
Isuzu Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
Key Features:

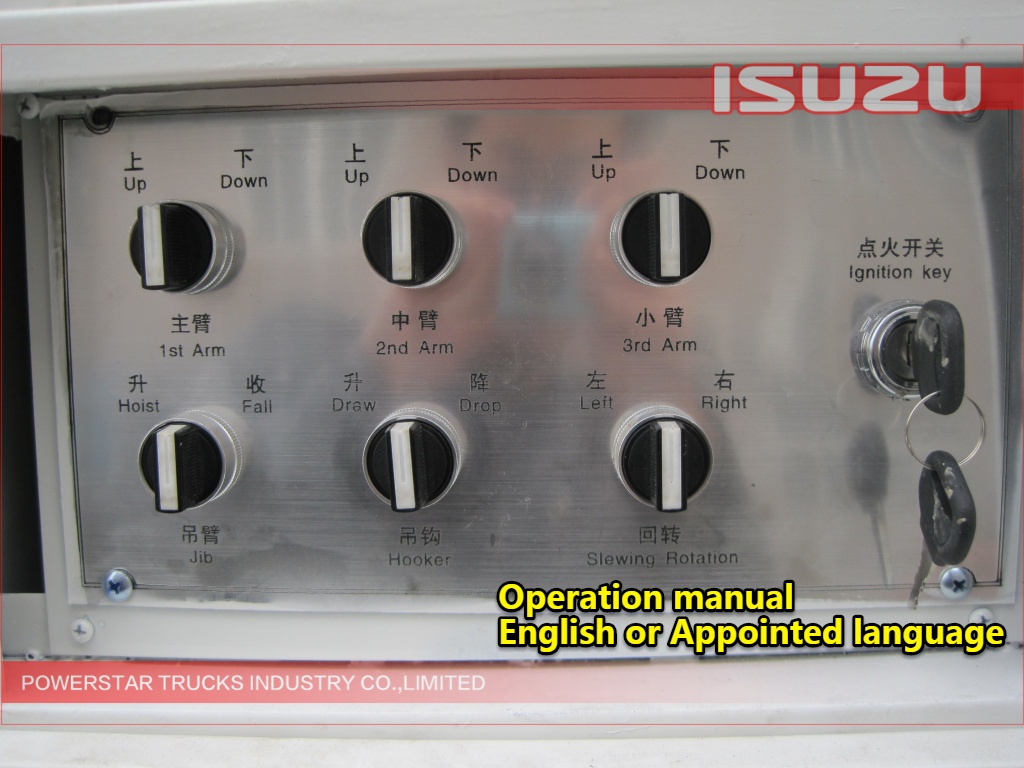

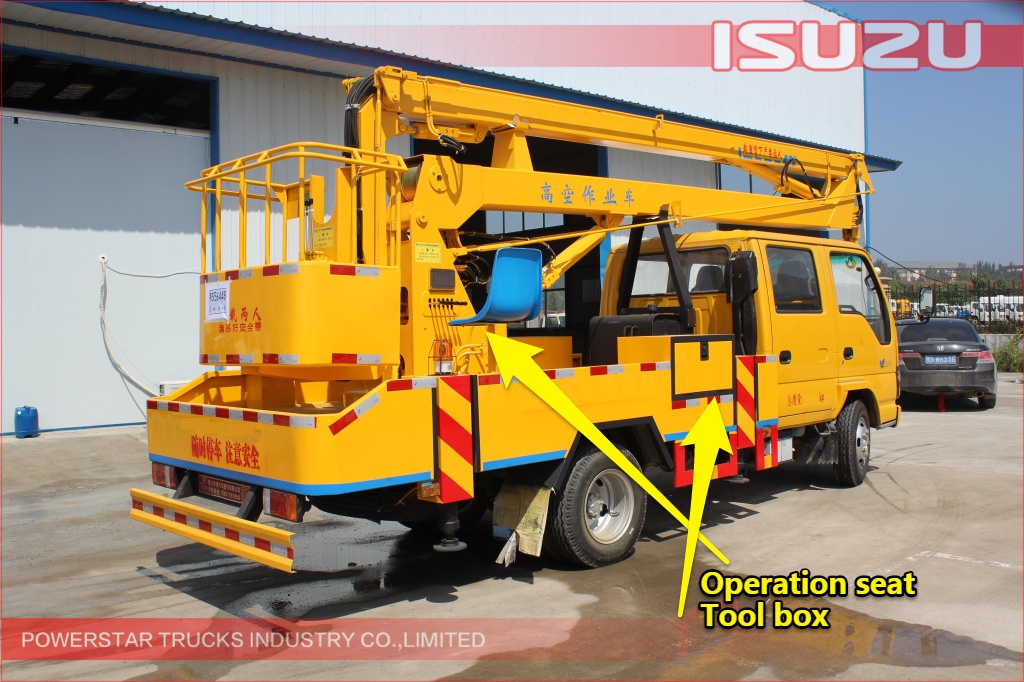

◆ Can be operated at both turret and platform
◆ Step less speed regulation
◆ Imported key components, higher reliability, excellent property and long life-span.
◆ Larger span of trigger, higher stability
◆ Urgent power for emergency
◆ Operation height : 12M, 14M, 16M, 18M, 20M, 22M
Main specifications:
|
PT5070JGK |
||
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
3360 mm |
|
|

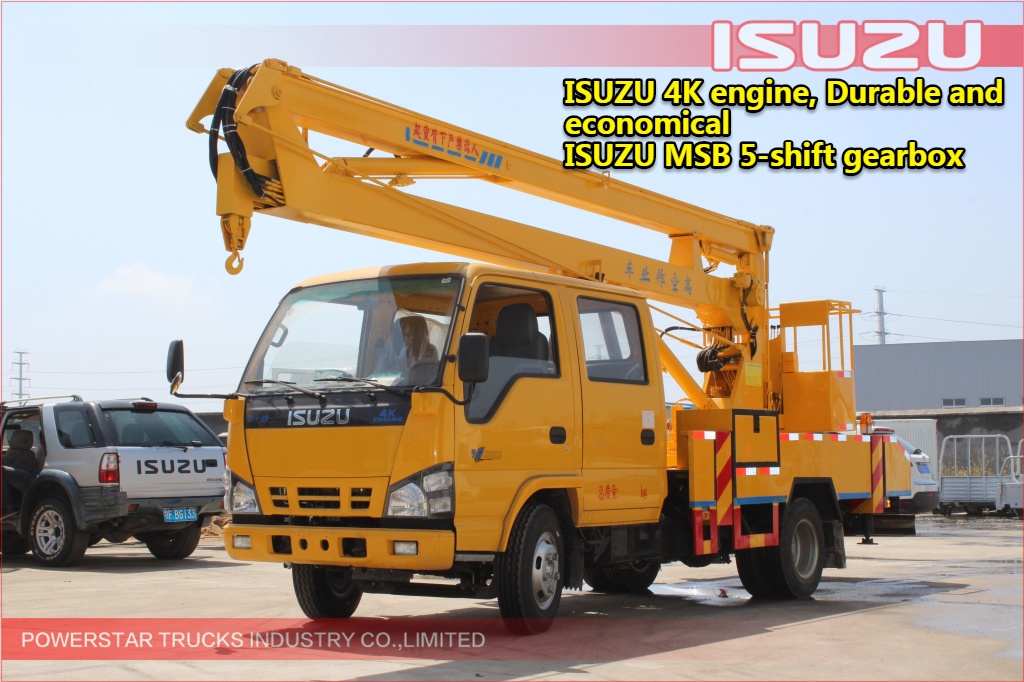

Engine |
88 kw (120hp) |
|
|

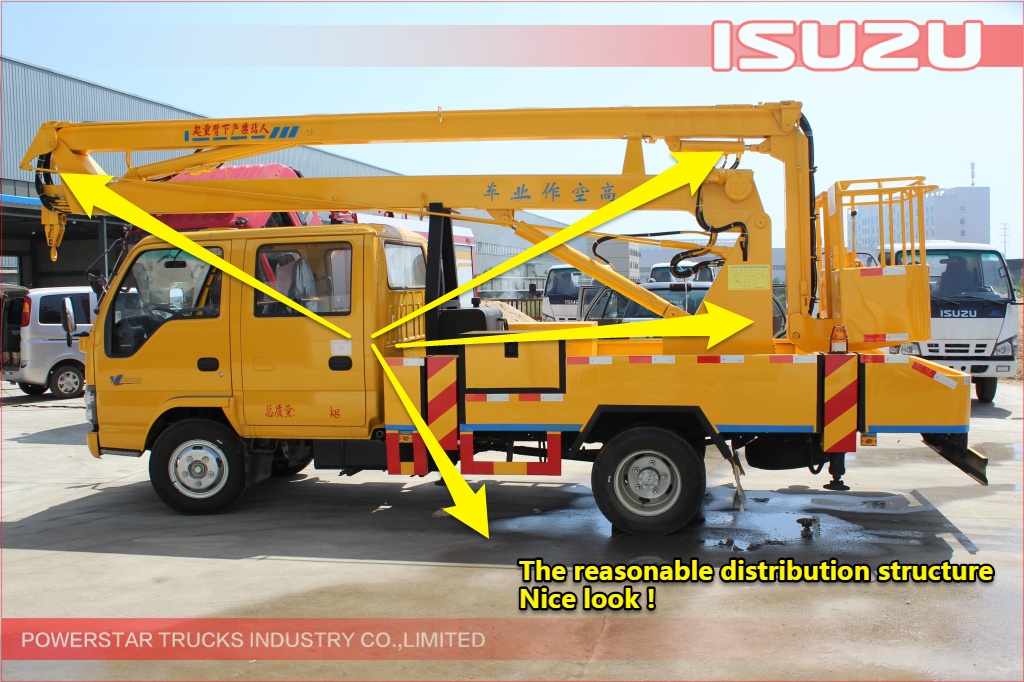

Structure type |
Three-section articulated boom |
|
|
Working Platform |
Internal size |
1100×600×1100 mm |
|

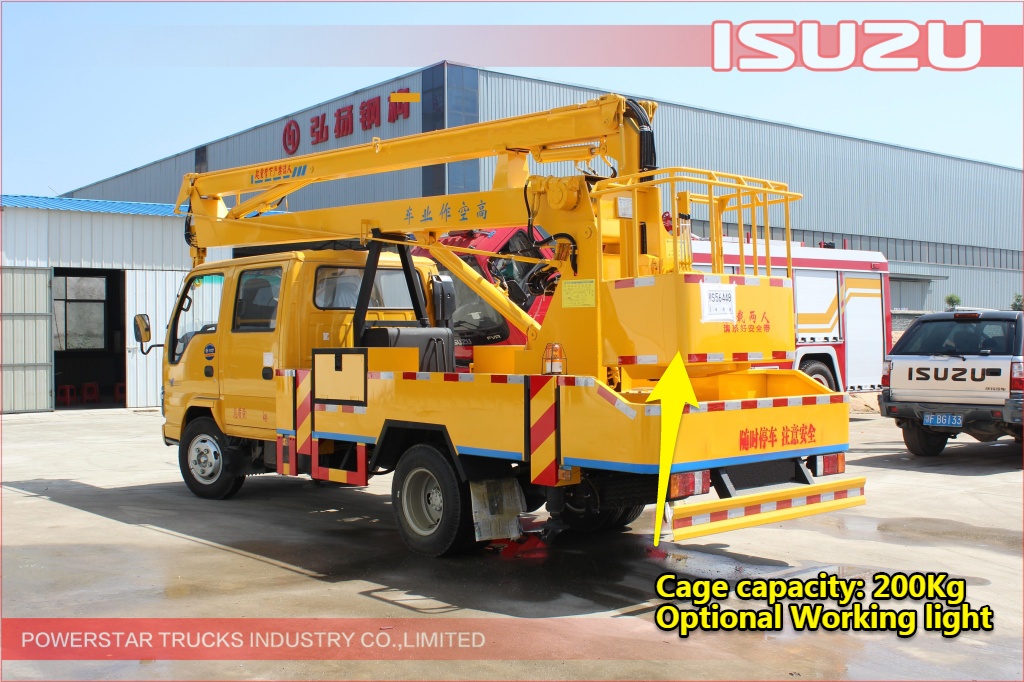

Rated loading |
200kg (or 2 persons) |
|
|

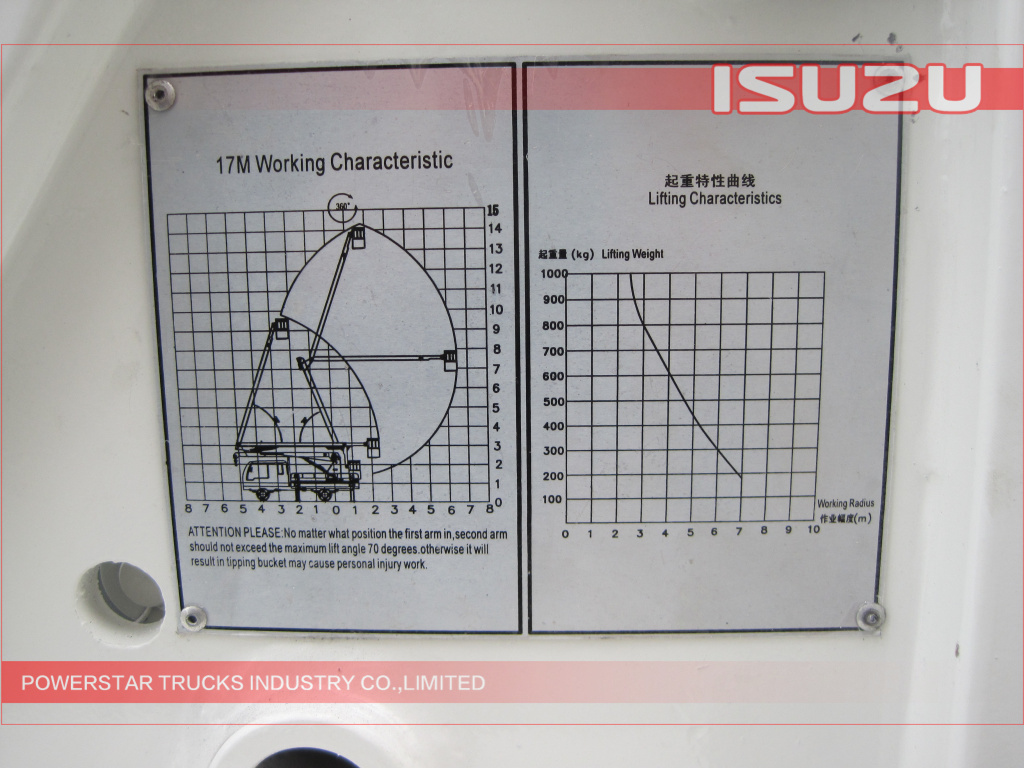

Max. Working height |
16 M |
|
|
Max. Height from ground |
12300 mm |
|
|
Max. Working radius |
7700 mm |
|
|
Working radius when doing the highest height |
2950 mm |
|
|
Working Boom |

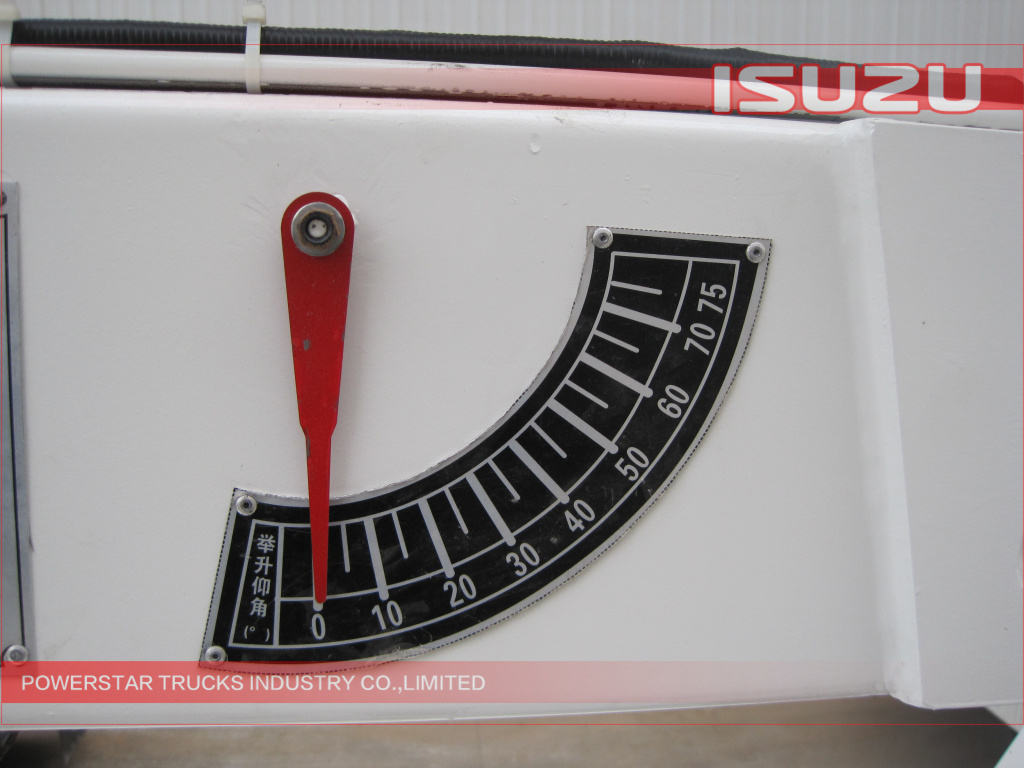

Max. Raising angle of lower boom |
70 º |
|
Max. Raising angle of upper boom |
70 º |
|
|
Max. Raising angle of jib |
||
|
Boom rack ration angle |
360 º |
|
|

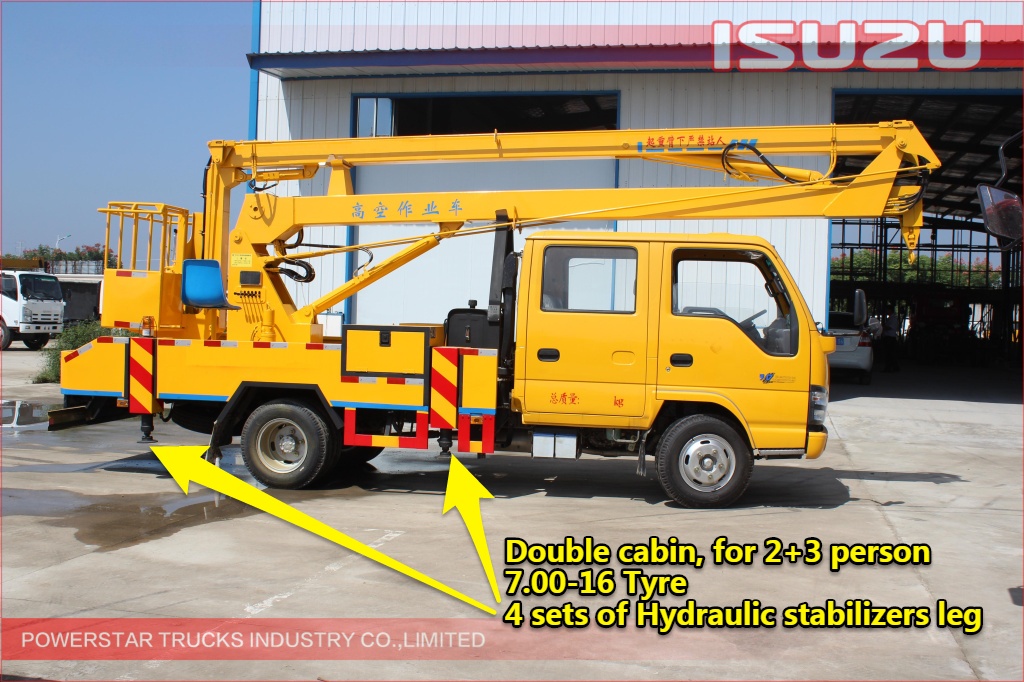

Outrigger |
Vertical span |
3200 mm |
|
Horizontal span |
3600 mm |
|
|
Traveling of vertical outrigger |
450 mm |
|
|
Adjustment |
Single adjustable |
|
|
Color |
Yellow (Any color & logos up to wish) |
|
Dimension drawing
