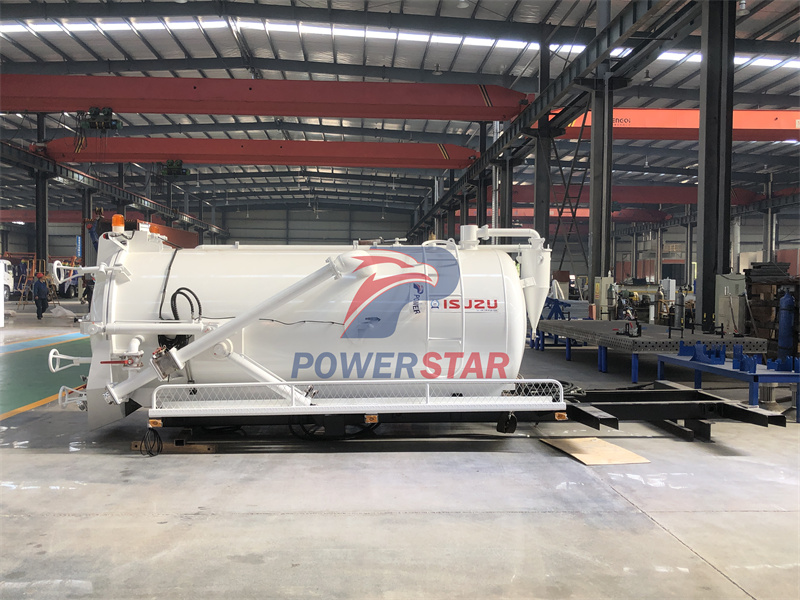

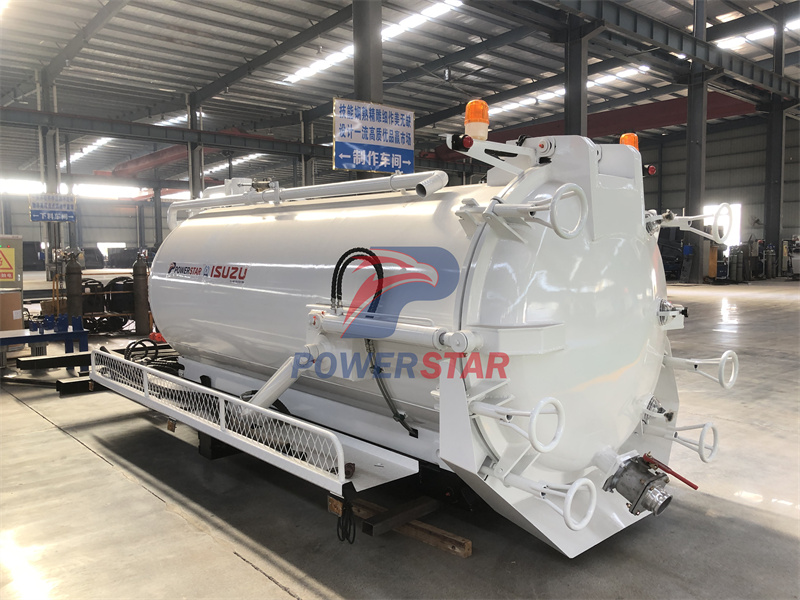

5,000 liters vacuum pump tanker body
This 5cbm sewage suction tank body adopts an efficient sewage suction pump system, which has excellent suction and dust collection capabilities, and can quickly and effectively handle various types of waste such as liquid garbage and mud. The vehicle is compact and flexible in size, suitable for narrow spaces and urban environments, and easy to operate. In addition, the tank is equipped with built-in cleaning facilities, such as high-pressure water guns, for immediate cleaning and maintenance. It is an efficient and environmentally friendly waste management solution.
Work capacity:
5000LRemarks:
5,000 liters vacuum pump tanker body
Sewage suction truck, as a special sanitation vehicle, is mainly used for cleaning and transporting dirt, sludge and liquid in urban sewers, septic tanks, sewage wells, sewage treatment plants and factories. This vehicle integrates advanced mechanical technology and environmental protection concepts, effectively improving the level of urban sanitation management and reducing environmental pollution.
The 5,000 liters vacuum pump tanker body is the core component of the sewage suction truck. It consists of a tank body, a vacuum pump system, a transmission system, a hydraulic cylinder, a hydraulic oil tank, a gear pump, a high-pressure cleaning machine, an oil-water separator, a water vapor separator, a side guard, a bumper, an operating box and other spare parts. You can purchase the upper part of the size you need, and then choose your local matching chassis for assembly. Flexible and optional.
Features:
★. Adopt MORO PM70A vacuum pump, or equivalent EU vacuum pump BP, JUROP, etc. Super powerful,highly efficient.
★. Vacuum Pump can be operated by a hydraulic motor or by an auxiliary engine

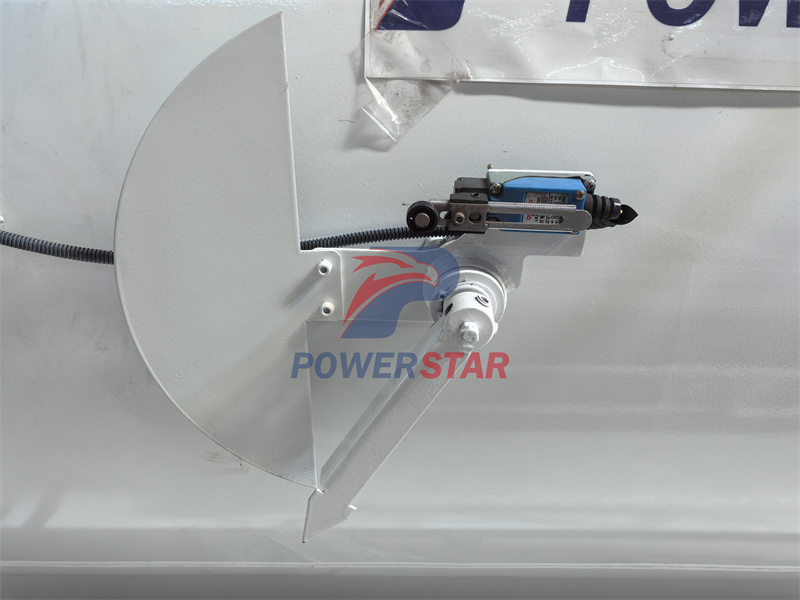

★. Equipped with an overflow system with an alarm device to effectively prevent damage to the vacuum pump when the water tank is full
★. Nice round shape desian, rational structure, durable and lona seryice life.
★. Painting and Logos100% customized And operation panel lanauaae can be Enalish, Arabic, Germany, French, Russia. etc
★. Tank capacity can be customized.
|
5,000 liters vacuum pump tanker body |
||
|
Tanker Description |
||
|
Tanker |
Capacity |
5cbm |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump |
Type |
MORO PM70A vacuum pump |
|
Free air capacity |
9400 Lt/min(332cfm) |
|
|
Air capacity at 15" Hg/50% vacuum |
298cfm |
|
|
Max. Vacuum |
28Hg (in.) |
|
|
Max. Pressure |
29psig |
|
|
Power required at 15" of vacuum |
12hp |
|
|
Power required at max. pressure |
31hp |
|
|
Rotation speed |
1100rpm |
|
|
Oil consumption |
0.046gal (US)/Hr |
|
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
78dB |
|
|
Hose |
3in |
|
|
Continuous vacuum |
18Hg (in.) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
(1) Vertical suction ≥ 7m. (2) Intake and exhaust diameter: 50mm. (3) Full tank pumping time ≤ 5min. (4) Sewage tank emptying time ≤ 4min. |
|
|
Standard configuration |
Equipped with PTO, gear pump,multi-way valve,hydraulic cylinders,hydraulic oil tank,drive shaft,Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,overflow valve,etc. |
|
|
Optional configuration |
Tanker material: stainless steel. |
|
The vacuum pump tanker body is a rugged, purpose-built component designed for heavy-duty applications in waste management and sanitation services. Designed to enhance the functionality of vacuum suction trucks, this specialized equipment is the embodiment of precision engineering and innovative design.
● Vacuum suction system
MORO PM70A pump: This is a rugged component, known for its efficient and reliable characteristics, capable of creating and maintaining the necessary vacuum force for the suction system. This powerful pump is the backbone of the tanker's functionality, ensuring seamless operation and consistent performance.
Suction pipeline: Connects the suction tank to the job site, with a one-way valve and filter device in the pipeline to prevent the backflow of dirt and impurities from entering the vacuum pump.
Control system: Includes solenoid valves, pressure sensors, control panels, etc., to control the start and stop of the vacuum pump and the automation of the suction and discharge process.

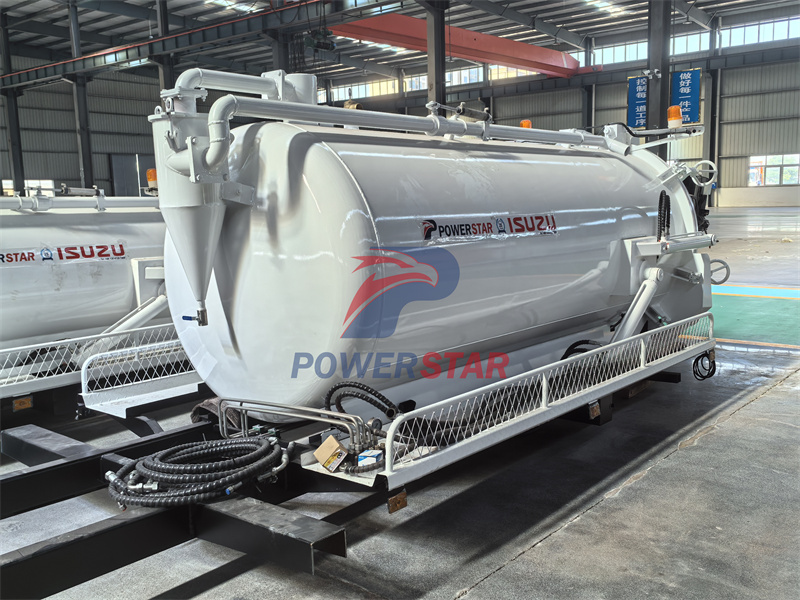

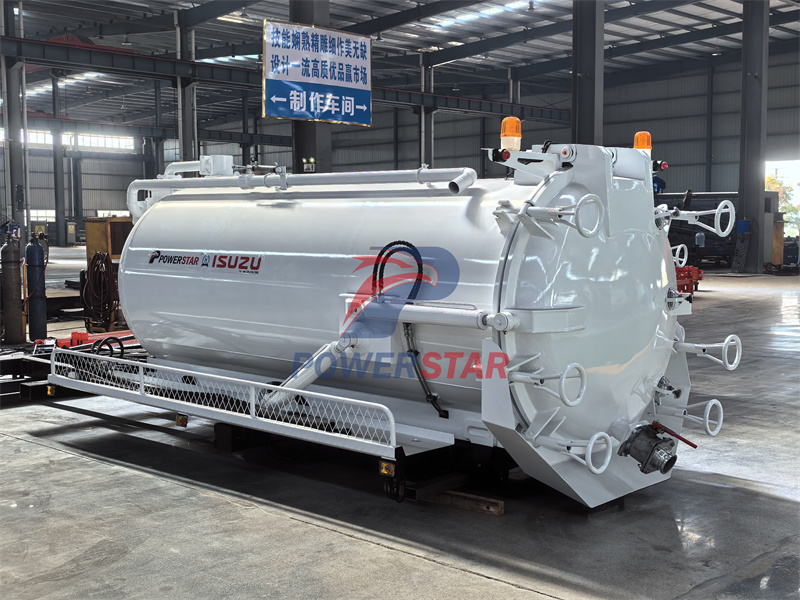

5,000 liters vacuum pump tanker body
● Complementing the pump is the suction tank, a huge storage reservoir that can hold up to 5,000 liters of sewage. Its huge capacity makes it a valuable asset for extended operations, without the need for frequent emptying, thereby maximizing productivity and efficiency. The suction tank body is usually made of high-strength, corrosion-resistant steel plates, and the interior is treated with anti-rust and anti-corrosion to adapt to the environment of long-term contact with corrosive dirt.
● To power the various hydraulic components of this complex system, the tanker is equipped with a dedicated hydraulic oil tank, which is carefully designed to ensure the optimal performance and service life of the hydraulic system. The hydraulic cylinder forms a symbiotic network with the hydraulic valve, gear pump and drive shaft to help control the movement of the tanker parts and accessories, such as suction, discharge, lifting, etc., so as to achieve precise and efficient operation.

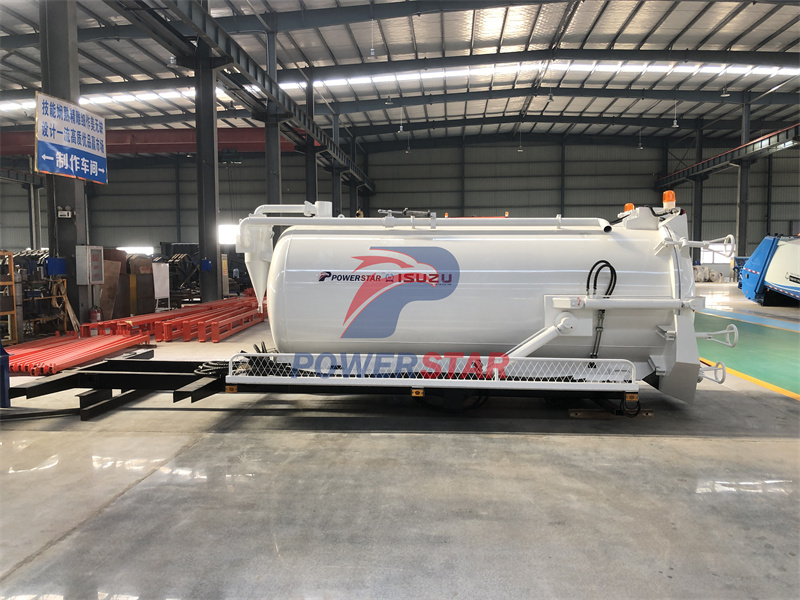

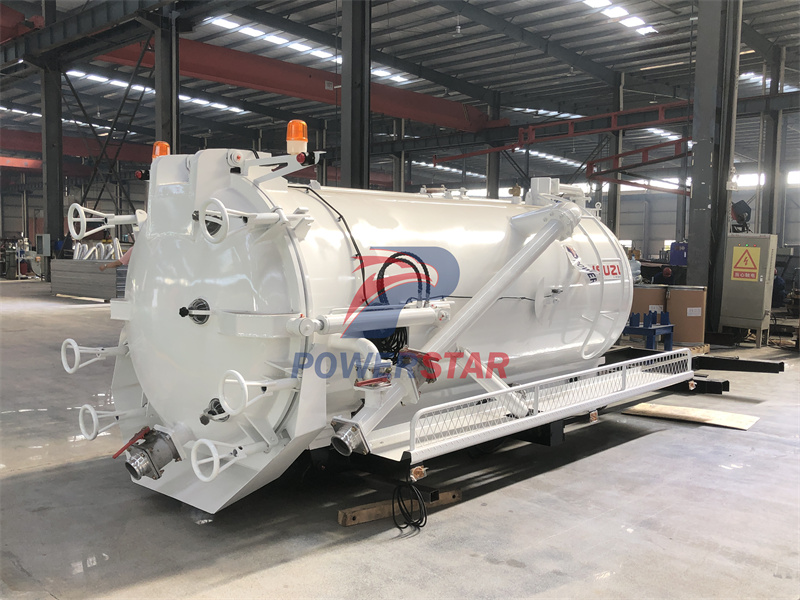

5cbm sewage suction tank body
● In addition to the core components, the vacuum pump tanker body is also equipped with a high-pressure cleaner, which is an important auxiliary equipment that enhances the versatility and practicality of the system. This component helps to maintain the cleanliness and functionality of the tanker, ensuring optimal performance and service life. High-pressure water gun connected to the high-pressure cleaner, it can be retracted and rotated to facilitate the operator to accurately clean the working area. The high-pressure water pipe connects the high-pressure water pump and the water gun, and the nozzle design is diverse to meet different cleaning needs.
● The addition of a secondary filter emphasizes the commitment to maintaining operational efficiency and environmental awareness. This important component prevents the ingress of contaminants and foreign matter, thereby protecting the integrity of the entire system and extending the service life of key components.

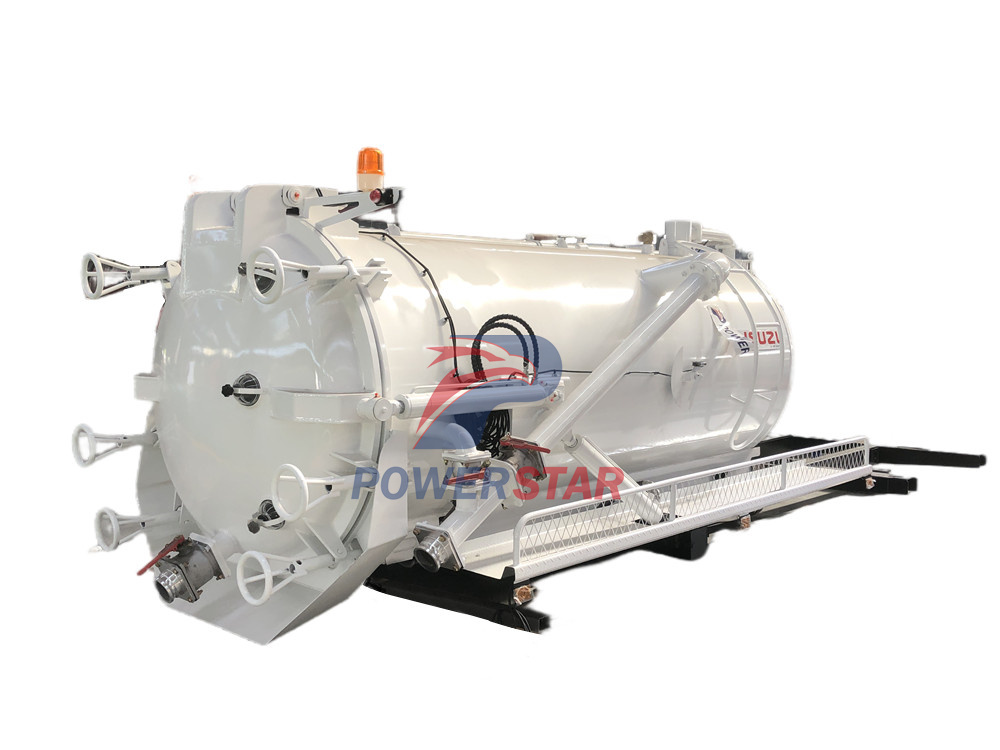

5cbm vacuum truck tanker bodies kit
● Oil-water separator and water-gas separator
Oil-water separator: used to separate the grease contained in the sucked sewage to prevent the grease from entering the vacuum pump and piping system and causing blockage or damage.
Water-gas separator: used to separate the gas (such as air, biogas, etc.) contained in the sucked sewage to ensure that the vacuum pump can work stably and avoid gas damage to the vacuum pump.

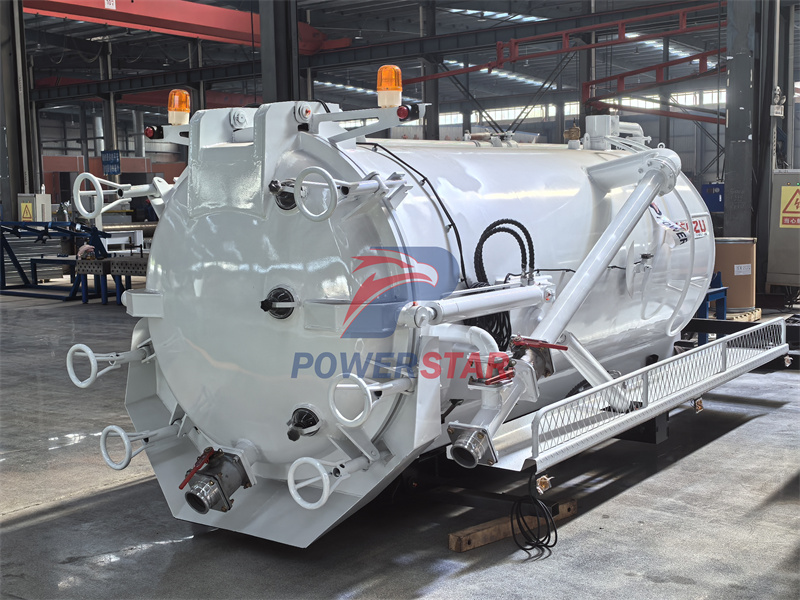

5,000 liters vacuum suction tanker body

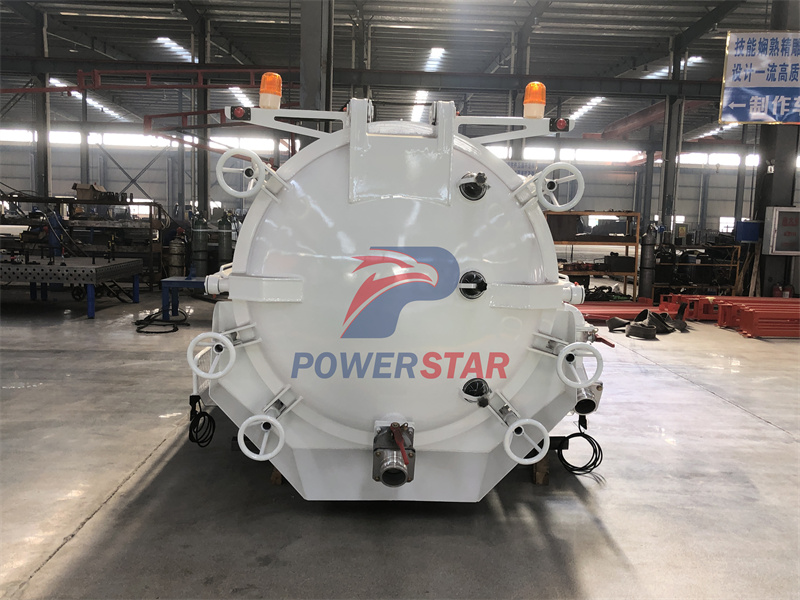

● The tailgate assembly is carefully designed for durability and easy operation to ensure that the waste is safely sealed in the vacuum tank. Its rugged design ensures reliable operation even under harsh conditions, thereby improving operational safety and efficiency.
● The inclusion of side guards and bumpers emphasizes the commitment to safety and operational integrity, providing additional protection against accidental impacts and ensuring a long service life of the tanker body in harsh environments.
● Completing this comprehensive system is the operation box, a centralized control unit that enables the operator to accurately and easily manage and monitor the various functions of the vacuum suction truck. The interface acts as a command center, facilitating seamless communication between the operator and the tanker body, ensuring optimal performance and operational efficiency.

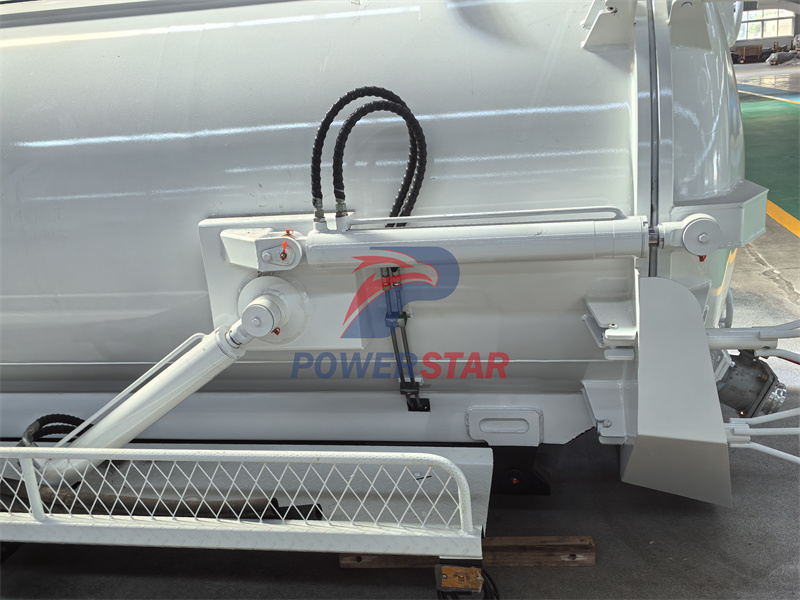

Hydraulic cylinder
Suction pipeline

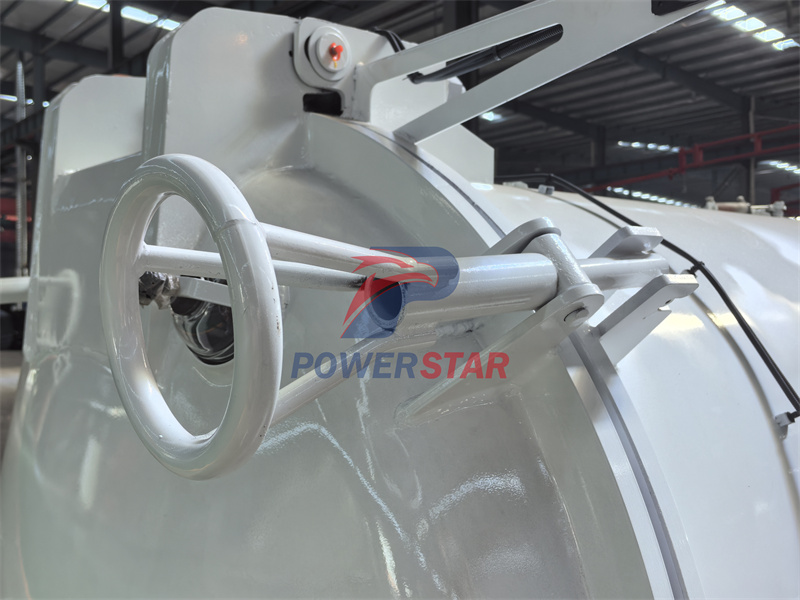

Locking device

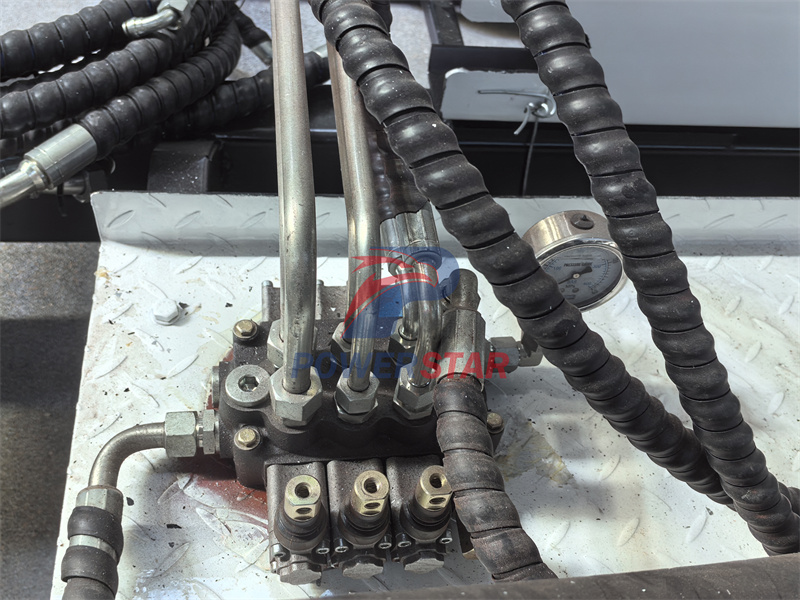

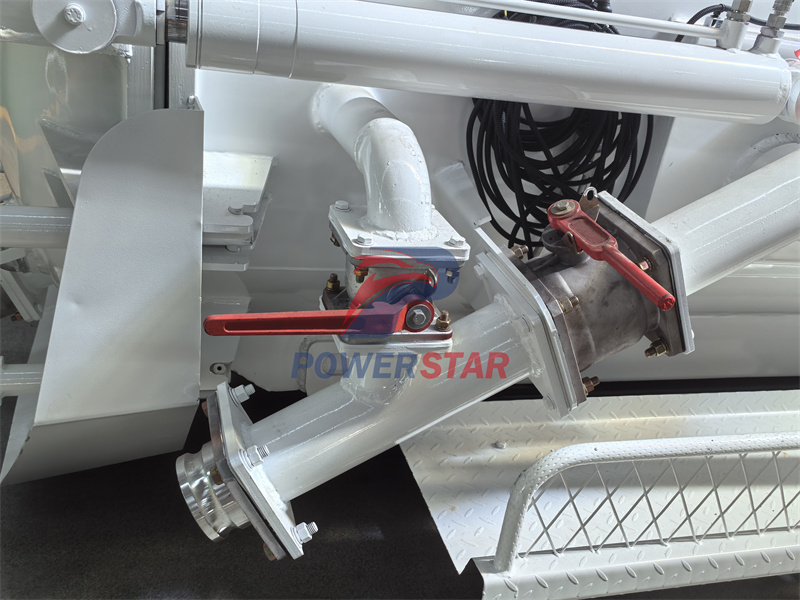

Hydraulic valve

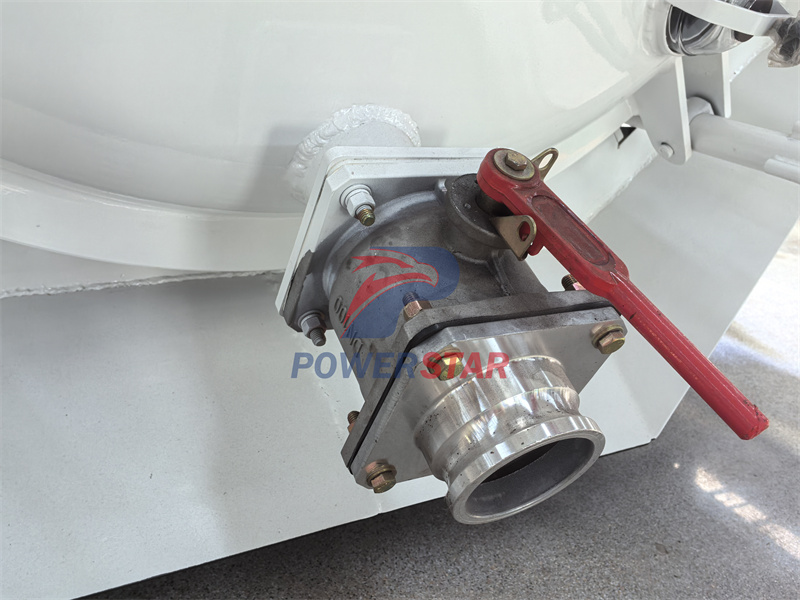

Drain valve

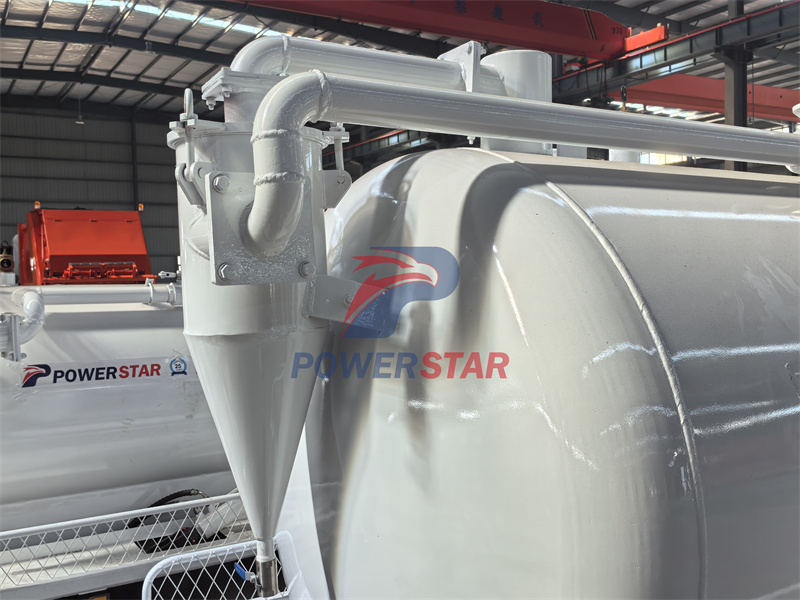

Secondary filter

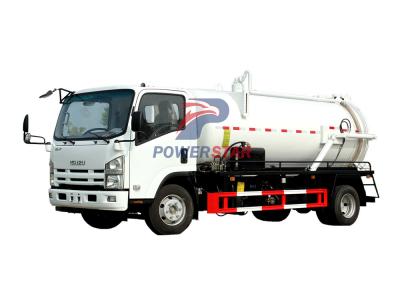

Isuzu Vacuum Sewage suction truck is used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by strong suction action which is created by a vacuum pump.
Learn More
2cbm vacuum suction set for Isuzu trucks ,tanker body set for Isuzu vacuum sewage suction truck
Learn More
The 10,000L Vacuum Truck Tanker Bodies Kit is an essential part of waste management systems, particularly in urban and industrial areas. It utilizes vacuum technology to suck and transport liquid waste from various sources, such as septic tanks, sewage treatment plants, and industrial waste sites. The kit comprises a series of interconnected components that ensure smooth operation and durability.
Learn More
This 3000-liter capacity suction truck is designed for small operations. Equipped with an efficient pump system, it can easily collect, transport and unload sewage, sludge and solid waste. It is suitable for sewage treatment and waste management tasks in residential communities, rural environments and small industrial sites. Its compact design and reasonable capacity make it a clean, convenient and versatile sanitation solution.
Learn More

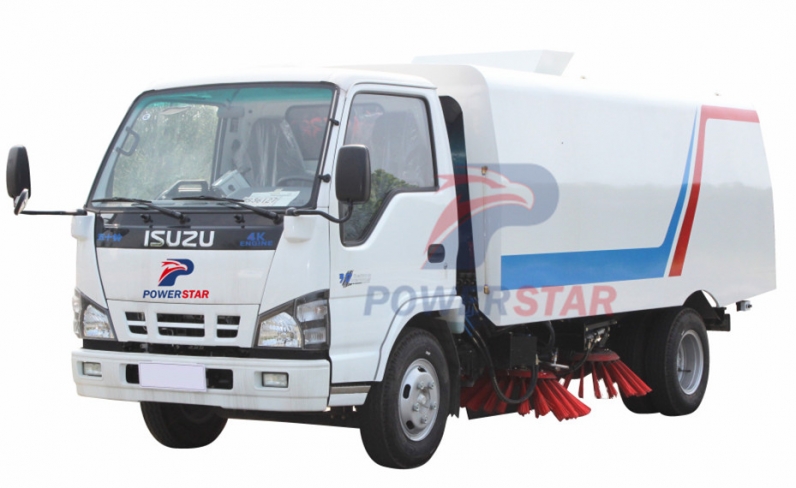

Isuzu street sweeper truck, Sweeper vehicle, Truck-mounted road sweeper truck, air road sweeper truck, road washing and sweeping truck, vacuum road sweeper truck
Learn More
The Waste Water Removal Truck from Isuzu Powerstar by the government of Honduras has the potential to significantly improve environmental sanitation and waste water management practices in the country. With its powerful capabilities, versatility, and adherence to sustainable practices, this advanced vacuum sewage water truck Iszuu offers a robust solution for the effective collection and transport of waste water. Honduras' commitment to embracing environmentally friendly technologies demonstrates its leadership in environmental conservation and sets a positive example for other nations to follow.
Learn More

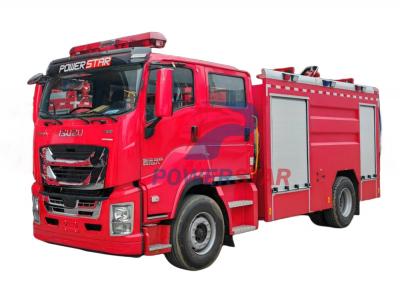

ISUZU GIGA foam fire truck is modified from the ISUZU GIGA 4×2 chassis. The liquid tank body is welded from high-quality stainless steel. The front part of the body is the equipment room, the middle part is the water tank and foam, and the rear part is the pump room. It carries 10,000KG of water, uses a CB10/60 vehicle fire pump, and has a PL32 fire cannon installed on the roof. It is an indispensable fire-fighting truck.
