Isuzu Giga Truck Sewer Jetters, especially the FVR 4x2 model with a 2500L clean water tank and 6000L vacuum tank, are powerful tools for any organization involved in sewage and drain cleaning. Whether clearing blockages in municipal sewer systems, cleaning industrial pipes, or conducting environmental cleanup projects, Isuzu Giga Truck Sewer Jetters deliver superior performance and reliability every time.
Work capacity:
8500LTruck model:
PT5180GQWEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed,manualRemarks:
Large capacity tank,high efficient dredgingIsuzu Giga Truck Sewer Jetters also called Isuzu FVR GIGA combined jetting truck,Isuzu FVR 4X2 combination jetter truck,Isuzu new FVR sewage suction truck,Isuzu FVR 240HP sewer jetting and vacuum truck.The Isuzu Giga Truck Sewer Jetters, particularly the FVR 4x2 model equipped with a 2500L cleaning water tank and a 6000L vacuum tank, represent a powerful and versatile addition to any municipal, industrial, or environmental cleanup operation. This combined jetting and vacuum truck is designed to tackle the toughest of sewage and drainage cleaning tasks, ensuring efficient and effective removal of blockages, debris, and even sludge from pipes and sewers of varying diameters and lengths.
The Isuzu Giga Truck Sewer Jetters are widely used in municipal, industrial and environmental protection fields. In the municipal field, it is mainly used for cleaning and maintenance of urban sewers; in the industrial field, it can be used for cleaning factory drainage pipes, cooling water circulation systems, etc.; in the environmental field, it can also be used for cleaning and repairing rivers, lakes and other water bodies.
Features
★ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
★ Adopt EU vacuum pump (ltaly brand) or equivalent China top brand double vacuum pumps, super powerful,highly efficient
★ Pump can be operated by a hydraulic motor or by an auxiliary engine
★ Overfil system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pumpwhen the tank is full.
★ Nice shape, rational structure, durable and long service life.
|
Isuzu GIGA truck sewer jetters |
||
|
General |
Truck model |
PT5180GQW |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
8300x2500x3350 mm |
|
|
GVW / Kerb Weight |
18,000 kg / 9,500 kg |
|
|
Cab |
Cab Capacity |
One and half row,3 persons allowed |
|
Air Conditioner |
With air conditioner |
|
|
Engine |
Fuel Type |
Diesel,6 cylinder in line |
|
Engine Brand |
ISUZU engine 6HK1-TCG61 |
|
|
Power |
240HP(177KW) |
|
|
Displacement |
7790 ml |
|
|
Emission Standard |
Euro VI |
|
|
Chassis |
Drive Type |
4X2, left hand drive |
|
Transmission |
FAST 8-speed,manual |
|
|
Wheelbase/No. & axle |
4500mm/ 2 |
|
|
Tyre Specification |
295/80R22.5 |
|
|
Tyre Number |
6 tyres and 1 spare tyre |
|
|
Max Speed |
105 km/h |
|
|
Paint |
Metallic paint |
|
|
Front axle loading |
6500kg |
|
|
Rear axle loading |
11500kg |
|
|
Superstructure |
Tank Capacity |
Tank A: 2500L cleaning water tank Tank B: 6000L vacuum tank |
|
Tank Material |
Carbon steel |
|
|
Tank lifting angel |
45 degree |
|
|
Suction time |
5min |
|
|
Suction Head |
7m |
|
|
Vacuum Pump |
2BE-204 Water circulation vacuum pump |
|
|
Ultimate vacuum 3300 Pa |
||
|
Rpm speed：980rpm/min |
||
|
Maximum pumping speed:21m3/min |
||
|
Hose |
High quality, wire strengthened hose |
|
|
Rear door can be hydraulic opened for complete discharge & solid stuff. |
||
|
All standard accessories: inlet, discharge, antifill valve..... |
||
The Isuzu Giga truck sewer jetters is a symbol of unwavering strength and precision, designed to skillfully conquer the most challenging sanitation tasks. At the heart of this marvel is the Isuzu FVR 4x2, a powerful beast with unrivalled performance. Imposing, towering and eye-catching, the Isuzu GIGA sewer jetting truck is a symbol of reliability and efficiency in the field of sanitation engineering.

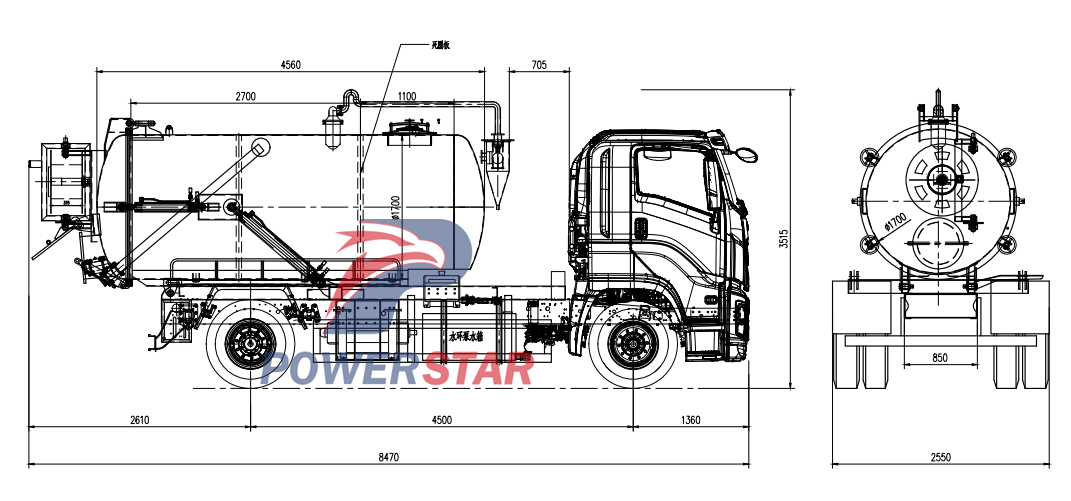

Technical drawing of Isuzu GIGA truck sewer jetters

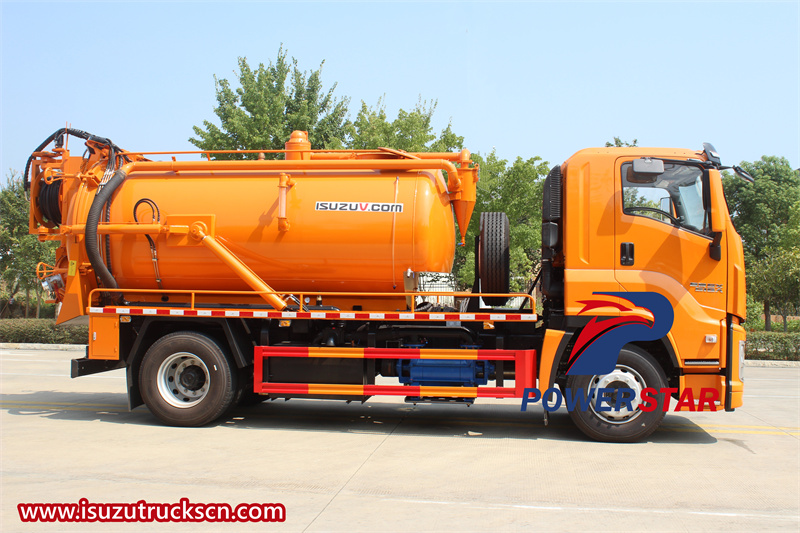

Isuzu VC61 Hydro Jetting Drain Cleaning truck
With its sleek, metallic exterior, the Isuzu FVR GIGA combined jetting truck exudes a sense of gravitas and power. Its aerodynamic silhouette and striking Isuzu logo announce its arrival, exuding authority and capability. As the sun shines on its polished surface, the Isuzu FVR 4X2 combination jetter truck gleams, ready to take on the toughest challenges with unparalleled grace.

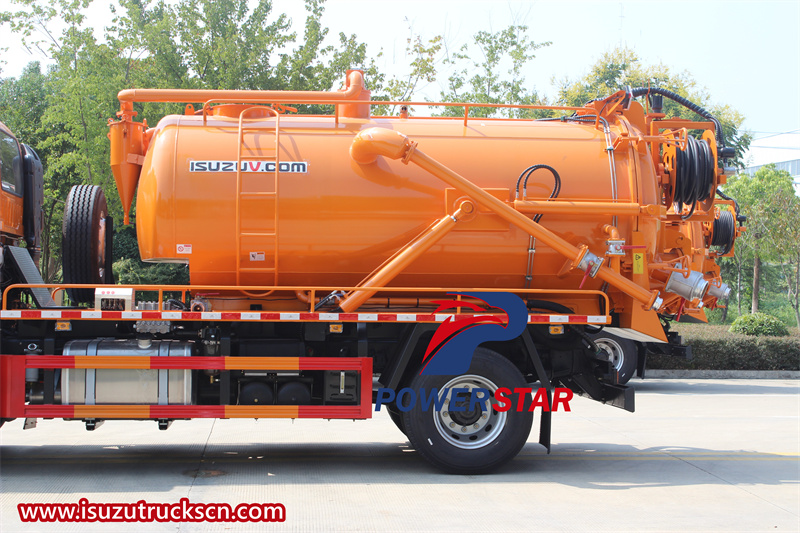

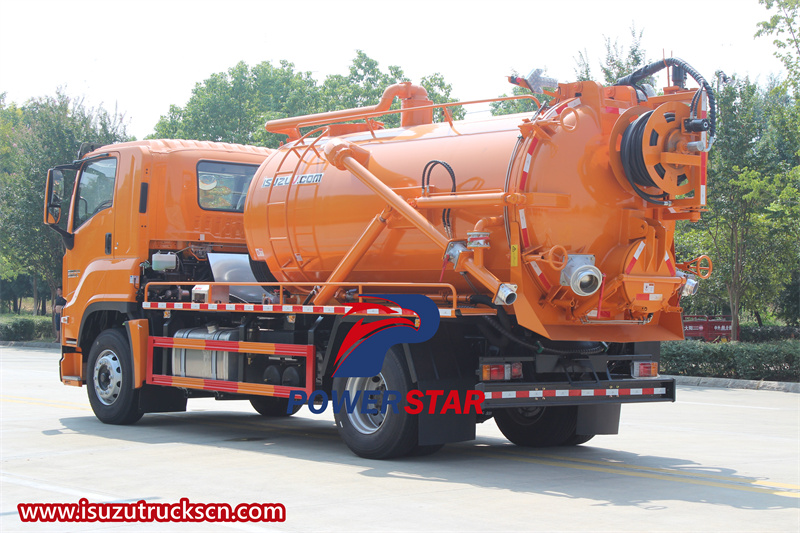

Isuzu FVR 240HP sewer jetting and vacuum truck

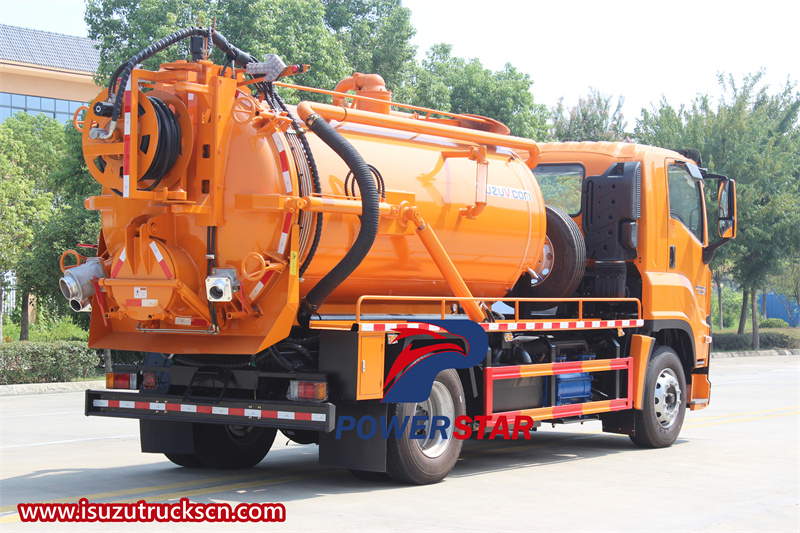

Isuzu new FVR sewage suction truck
Next to the water tank is the massive 6,000-litre vacuum tank, a behemoth in its own right. This massive chamber embodies the power of suction, ready to devour debris and waste with extreme efficiency. Its sheer size is a testament to the Giga Truck’s ability to handle large volumes of material, leaving behind only a spotless clean.
The high-pressure water jetting system is a core component of the Isuzu Giga Jetters, creating a high-pressure stream of water to effectively clear obstructions such as sediment, grease, and tree roots from sewers. By adjusting the angle and pressure of the nozzle, operators can achieve precise control for different pipes and cleaning needs.

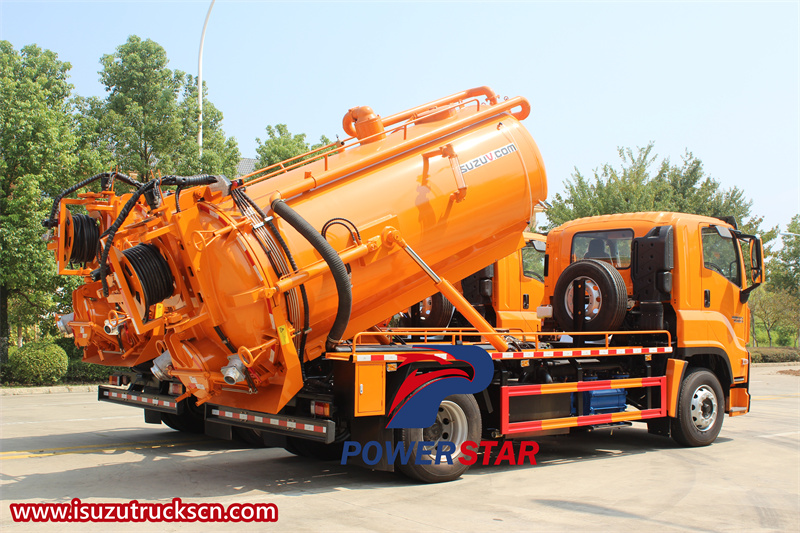

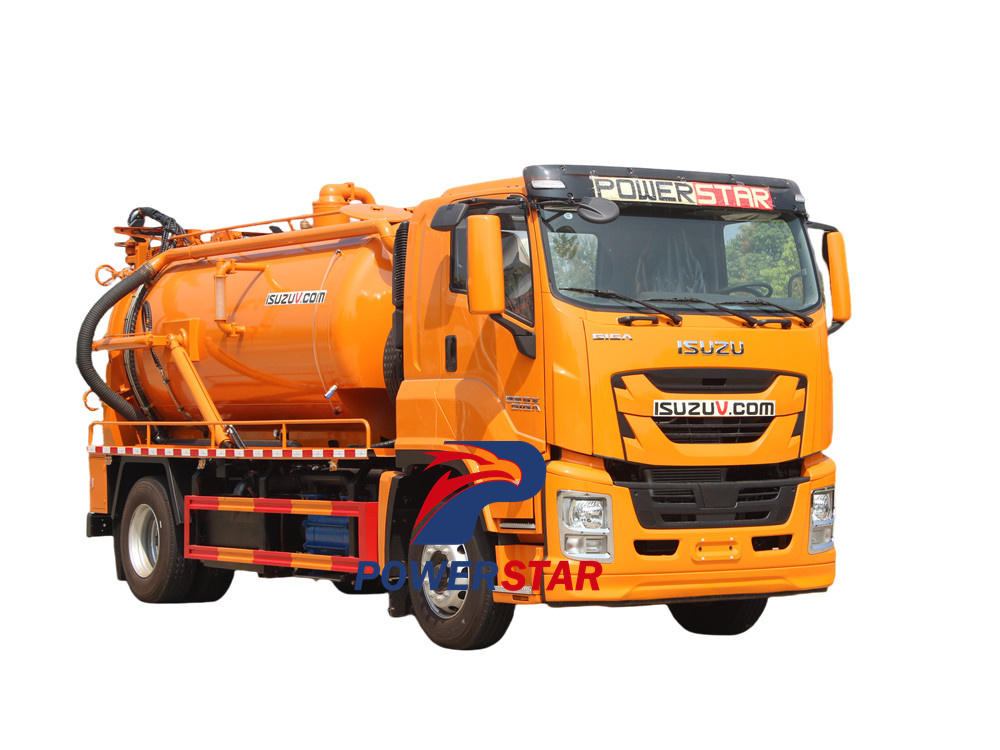

Isuzu FVR GIGA combined jetting truck
Isuzu FVR 4X2 combination jetter truck

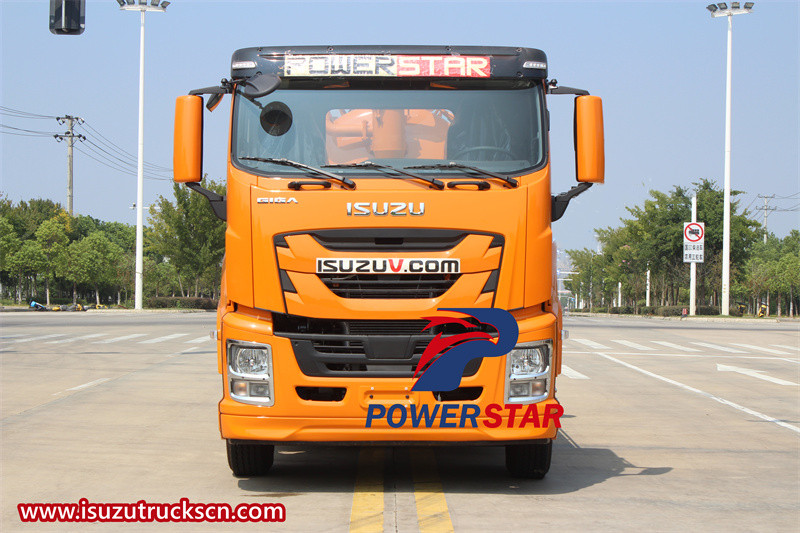

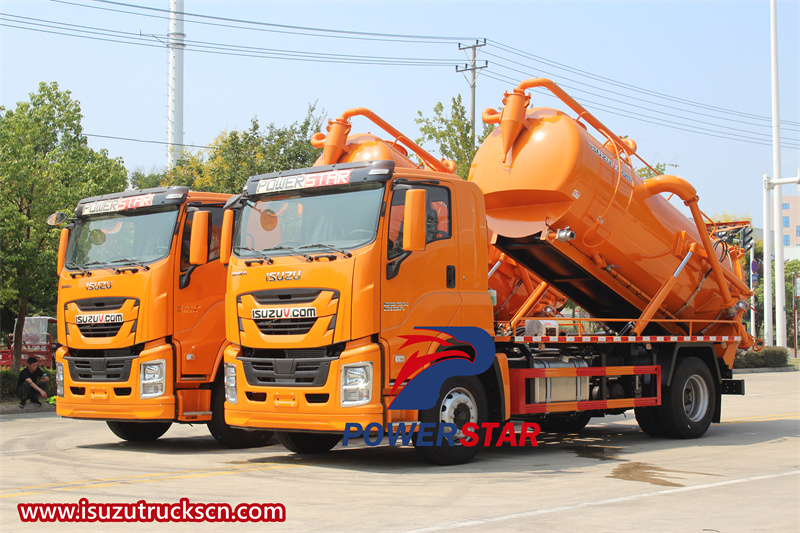

Isuzu GIGA sewer jetting truck
Isuzu Giga 8500L high pressure jetting sewage suction truck
The fusion of the jetting and vacuum systems in the Isuzu FVR 240HP sewer jetting and vacuum truck is a symphony of power and precision. The high-pressure jetting system delivers a concentrated and powerful stream of water that is capable of penetrating the most stubborn obstructions in sewers and drainage systems. This is complemented by the vacuum system, which quickly and effectively removes debris and waste, leaving a clean and unobstructed path.
As the Isuzu GIGA combined sewer cleaner truck navigates city streets and rural landscapes, its efficiency and effectiveness are evident in every task it performs. From unclogging sewers to maintaining industrial facilities, this powerful machine excels in a variety of situations, demonstrating its versatility and adaptability. The Giga Truck's ability to handle complex and demanding operations makes it a true leader in the field of sanitary engineering.
Isuzu FVR GIGA 4x2 combination jetter
Isuzu GIGA combined sewage vacuum truck
Advantages:
Powerful cleaning ability:
Isuzu Giga Jetters is equipped with an advanced high-pressure water jet system, which can generate high-intensity water flow to effectively remove stubborn dirt, grease, sediment, tree roots and other obstacles in the sewer, ensuring the unobstructed drainage system. This powerful cleaning ability greatly improves work efficiency and cleaning effect.
High adaptability and flexibility:
This model is usually equipped with a variety of nozzles and accessories, which can be adjusted according to different cleaning needs and is suitable for pipes of different diameters, materials and complexities. Whether it is a city sewer, industrial drainage pipe or other types of piping systems, Isuzu Giga sewer cleaning Jet suction trucks can show its excellent adaptability and flexibility.
Durability and reliability:
The Isuzu brand is known for its durability and reliability. Isuzu Giga Jetters inherits this fine tradition, using high-quality materials and advanced manufacturing technology to ensure that the equipment can operate stably for a long time in harsh working environments. This durability and reliability reduces users' maintenance costs and downtime, and improves the overall economic benefits.
Sewage tank,hydraulic cylinder

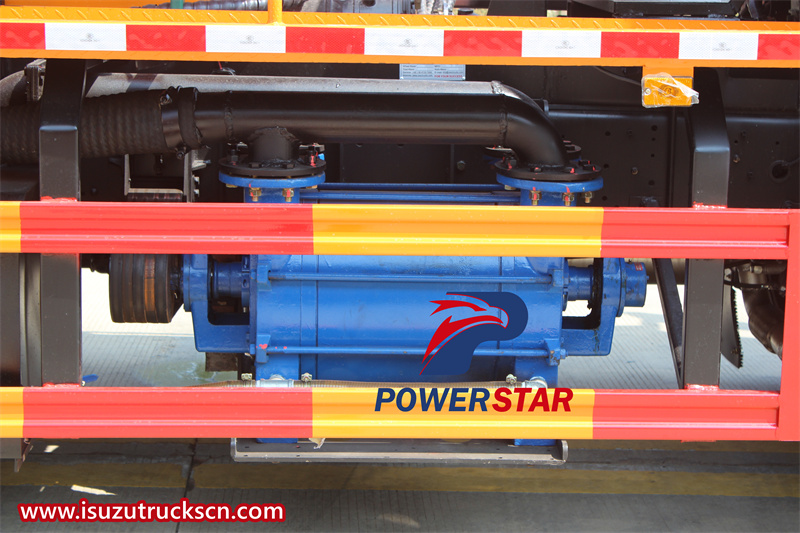

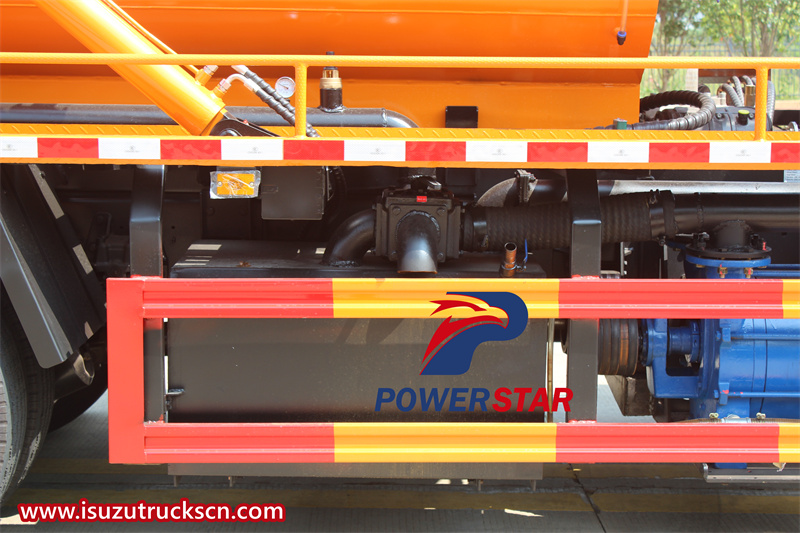

2BE-204 Water circulation vacuum pump
Environmental protection and energy saving:
In terms of design, Isuzu Giga 8500L combined vacuum Jet truck,may focus on environmental protection and energy saving. For example, the use of advanced fuel injection systems, optimization of engine performance and other measures can reduce fuel consumption and emission pollution. This helps to reduce the impact on the environment and is in line with the current global trend of environmental protection and energy conservation.
Convenience of operation:
The cockpit and control system design of Isuzu FVR combined sewer suction and Jetting trucks are humanized, making operation more convenient and comfortable. The driver can easily control the equipment to complete various cleaning tasks, reducing labor intensity. At the same time, modern instruments and displays provide rich real-time information to help drivers better understand the status of the equipment and the cleaning effect.
Efficient workflow:
Isuzu Giga Jetters may be equipped with efficient workflow designs, such as automatic control systems, quick connection interfaces, etc. These designs enable the equipment to respond quickly and operate efficiently during the cleaning process, improving overall work efficiency.
Waste water tank

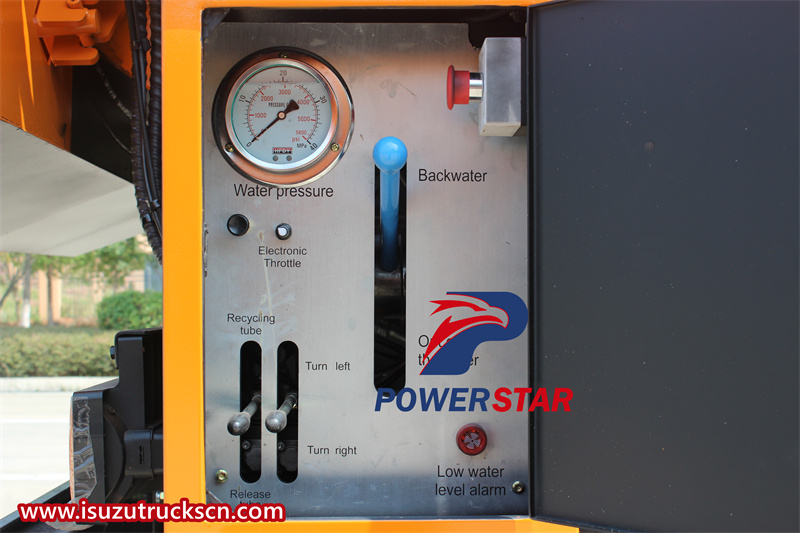

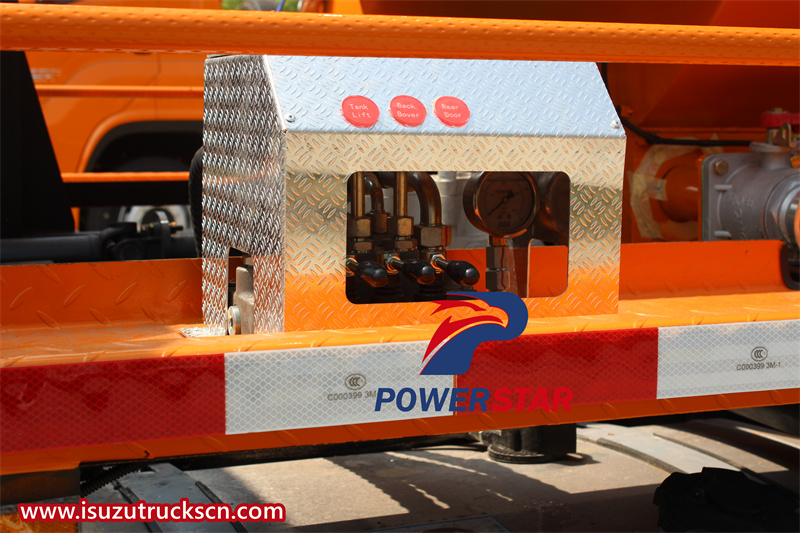

Rear hydraulic operation box

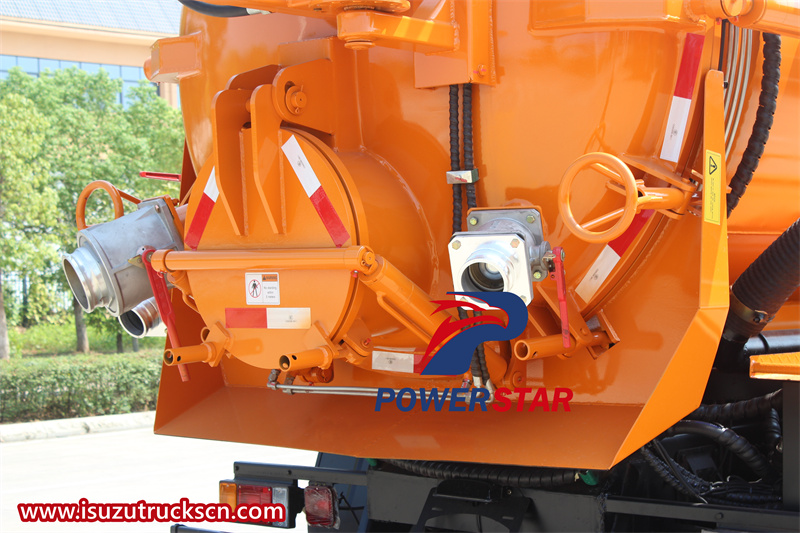

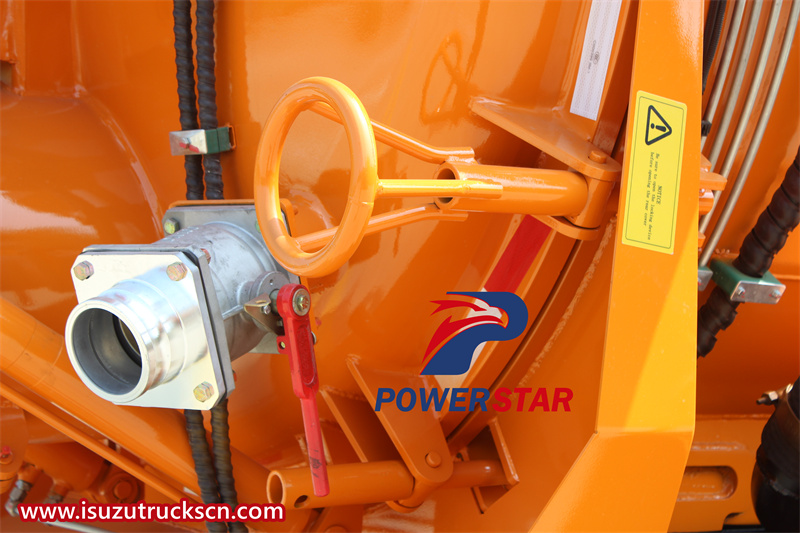

Sewage input and output
Tailgate locking device
Operating valve

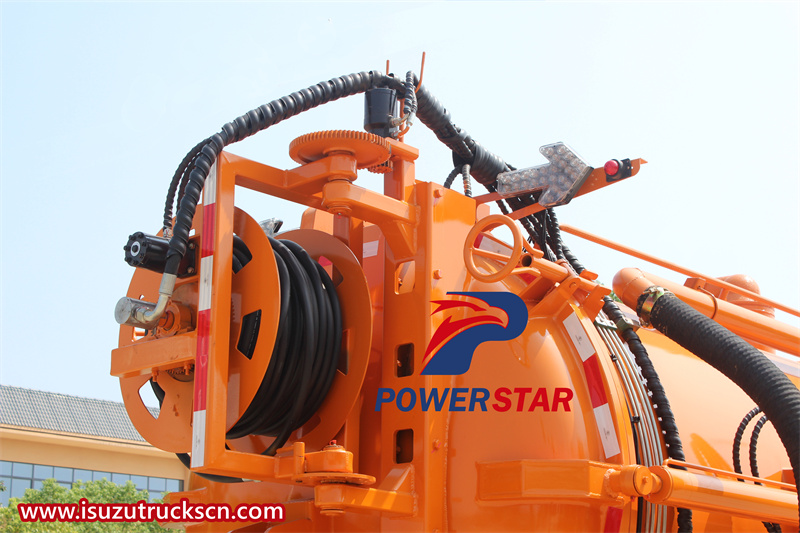

Reel
