The Isuzu VC61 is a medium heavy-duty truck specifically engineered for specialized applications, including drain cleaning. It boasts a rugged and reliable Isuzu diesel engine, renowned for its fuel efficiency, low emissions, and long-lasting performance. The engine is paired with a robust transmission system that ensures smooth and responsive power delivery, even under demanding conditions.
Work capacity:
12000LTruck model:
PT5180GXREngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4x2,LHDGear box:
FAST 12-speed,manualRemarks:
Large capacity, efficient suction and cleaning
Isuzu VC61 Hydro Jetting Drain Cleaning truck also called Isuzu FVR jetting combined cleaning sewage water tanker truck,Isuzu FVR 5X combination jetter truck,Isuzu FVR 4x2 jetting and vacuum truck,Isuzu VC61 vacuum truck with jet cleaner,Isuzu FVR 12000L combined sewer jetting truck, Isuzu VC61 FVR 4x2 combined sewage suction truck.The Isuzu VC61 Hydro Jetting Drain Cleaning truck is a specialized vehicle designed to tackle drain cleaning tasks efficiently and effectively. With a focus on enhancing productivity and ensuring thorough cleaning of drainage systems, this truck incorporates advanced technology and robust features to meet the demands of the industry.
POWERSTAR Isuzu's VC61 truck has simple design, lightweight, and fuel-efficient as quality. The streamlined shape of the front of the tractor head effectively reduces the wind resistance and reduces fuel consumption. The VC61 tractor head uses a 6HK1 engine model with maximum 240 horsepower. 4x2 drive type and 6 wheels. The interior of the cabin is spacious and comfortable, we focus on reducing fatigue driving.
Features:
····Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
····Adopt EU vacuum pump (Italy brand) or equivalent China top brand vacuum pumps,super powerful,highly efficient.
····Pump can be operated by a hydraulic motor or by an auxiliary engine.
····Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
····Nice shape ,rational structure,durable and long service life.
|
Isuzu VC61 Hydro Jetting Drain Cleaning truck |
|||
|
Vehicle Brand |
POWERSTAR |
||
|
Vehicle Model |
PT5180GWX |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
8470 * 2550 * 3515 mm |
||
|
GVW / Kerb Weight |
18,000 kg / 6,000 kg |
||
|
Axle loads |
6500/11500Kg |
||
|
Cab |
Cab Capacity |
2 persons seats with 1 sleeper |
|
|
Air Conditioner |
Air conditioner is optional |
||
|
Engine |
Fuel Type |
Diesel, 6 cylinders in-line |
|
|
Brand |
Isuzu |
||
|
Model |
6HK1-TCG61 |
||
|
Power |
240HP(177KW) |
||
|
Displacement |
7790ml |
||
|
Emission Standard |
Euro VI |
||
|
Chassis |
Drive Type |
4x2, left hand drive |
|
|
Transmission |
FAST 8-speed,manual |
||
|
Wheelbase |
4500 mm |
||
|
Front/rear overhang |
1360/2610mm |
||
|
Number of axle |
2 |
||
|
Tyre Specification |
295/80R22.5 |
||
|
Tyre Number |
6 tyres and 1 spare tyre |
||
|
Max Speed |
105 km/h |
||
|
Paint |
Metallic paint |
||
|
Superstructure |
Tank |
Tank Capacity |
12,000 Litres |
|
Tank Material |
Carbon steel |
||
|
High Pressure Pump |
Italy Imported brand o/ 16Mpa |
||
|
Suction Time |
600s |
||
|
Tank lifting angle |
45 degree |
||
|
High Pressure Hose |
60m |
||
|
High flushing height |
≥15m |
||
|
Suction Head |
7m |
||
|
Nozzles |
A cluster of nozzles included |
||
|
Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
||
|
Rear door can be hydraulic opened for complete discharge of solid stuff. |
|||
|
All standard accessories: manhole, tool kit, English manual..... |
|||
|
Optional |
** Tank material could be stainless steel. |
||
The Isuzu VC61 Hydro Jetting Drain Cleaning truck is a highly versatile and powerful machine that is essential for maintaining the integrity and functionality of drainage systems. Its advanced hydro jetting technology, rugged design, and user-friendly features make it an ideal choice for municipalities, utilities, and commercial properties alike. With its ability to quickly and efficiently remove clogs and debris from pipes of all sizes and materials, the Isuzu VC61 is a valuable asset for anyone responsible for the maintenance and repair of drainage systems.
Isuzu VC61 4x2 jetting cleaning truck is widely used in various types of pipeline cleaning tasks, such as urban drainage pipes, industrial wastewater pipes, rainwater pipes, and sewage treatment plant inlet and outlet pipes. It is not only suitable for the pre-cleaning and acceptance of new pipelines, but also for the regular maintenance and dredging of old pipelines. It has broad application prospects in municipal construction, environmental protection projects, industrial production, and residents' lives.

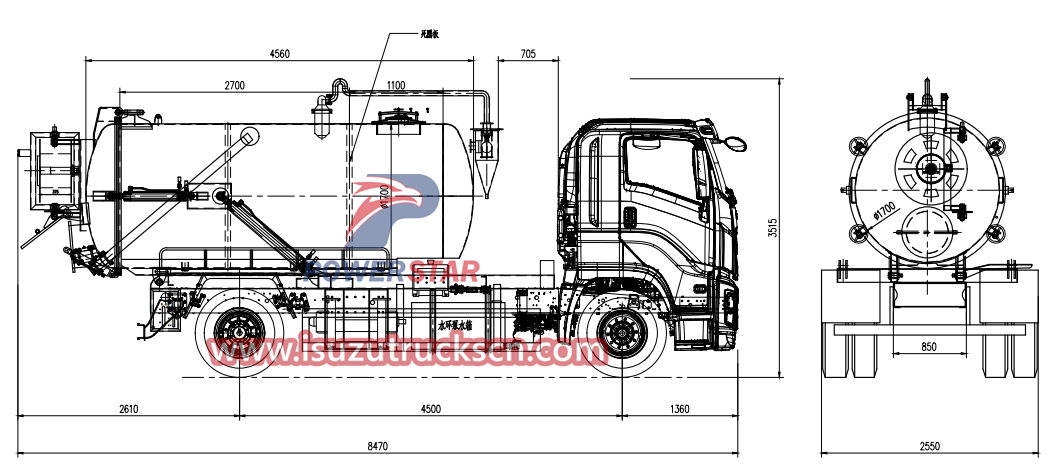

Technical drawing of Isuzu VC61 Hydro Jetting Drain Cleaning truck
The Isuzu FVR jetting combined cleaning sewage truck is a versatile and powerful machine designed specifically for tackling the toughest of drain cleaning tasks. This specialized vehicle combines the reliability and durability of an Isuzu chassis with advanced hydro jetting technology, making it an essential tool for municipalities, utilities, and commercial properties alike.
At the heart of the Isuzu FVR 5X combination jetter truck lies its advanced hydro jetting system. Hydro jetting is a highly effective method of drain cleaning that uses highly pressurized water to blast away clogs, debris, and scale buildup within pipes and drainage systems. This method is significantly more efficient and environmentally friendly than traditional mechanical cleaning methods, as it requires no chemicals and leaves no residual waste behind.

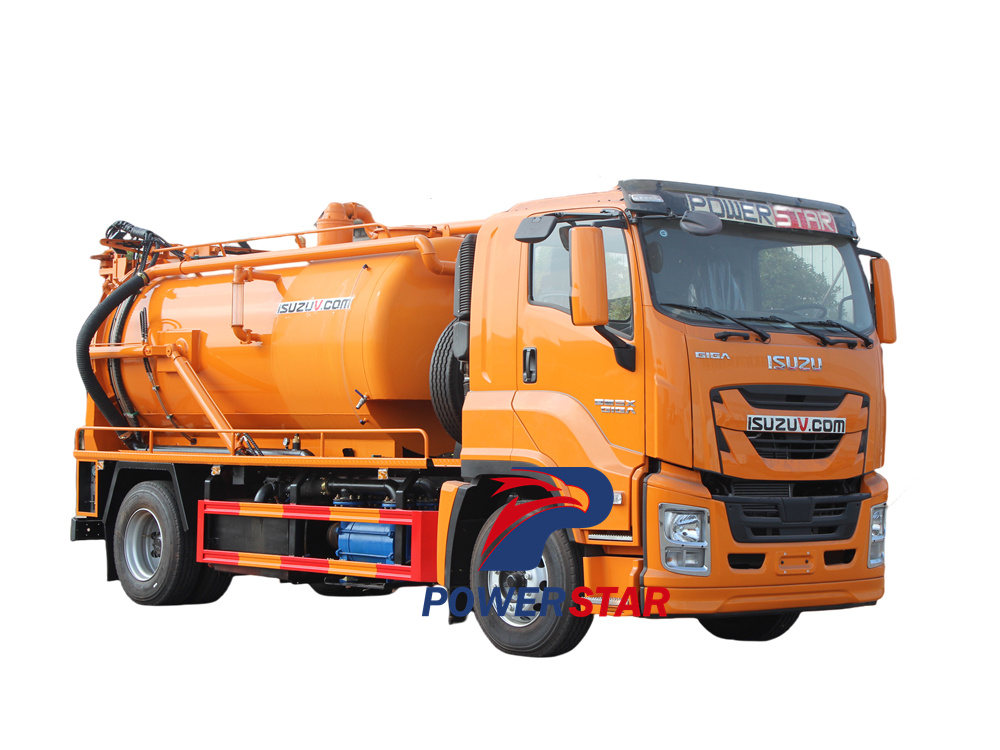

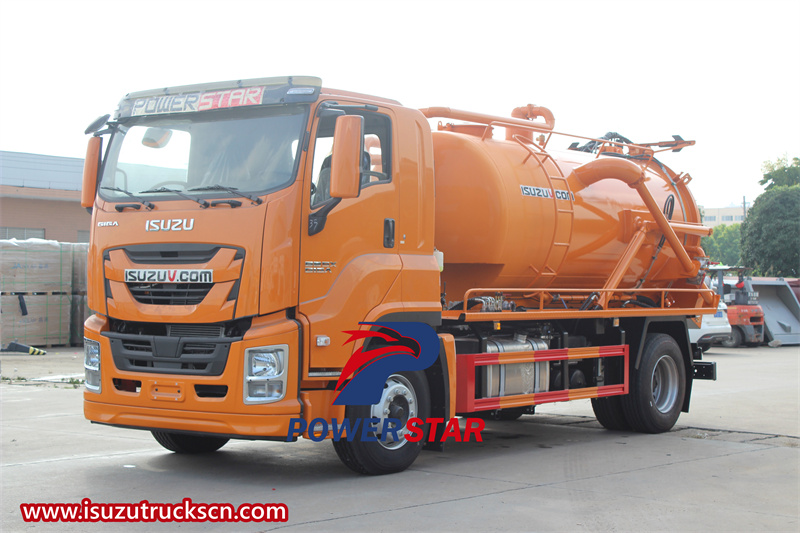

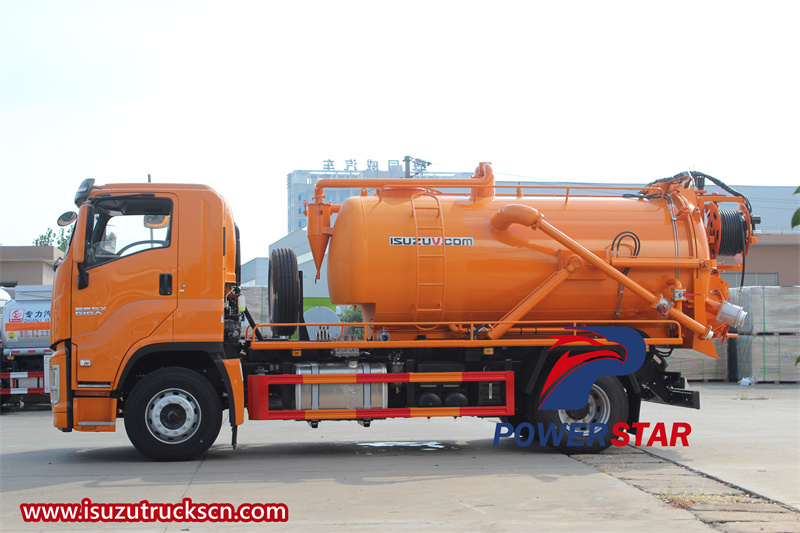

Isuzu VC61 Hydro Jetting Drain Cleaning truck
The hydro jetting system on the Isuzu VC61 is equipped with a high-pressure pump capable of generating water pressures ranging from several hundred to thousands of pounds per square inch (PSI). This level of pressure is more than sufficient to break down and remove even the most stubborn clogs, including tree roots, grease, and mineral deposits. The system also features a variety of nozzles designed to target specific areas within the pipe, allowing operators to tailor their cleaning approach to the specific needs of the job.
The Isuzu FVR 4x2 jetting and vacuum truck is designed for both functionality and ease of use. The cab is spacious and comfortable, with ergonomic seating and controls that allow operators to work efficiently and comfortably for extended periods. The vehicle is also equipped with a variety of safety features, including airbags, anti-lock brakes, and stability control systems, ensuring the safety of both the operator and those around them.
The rear of the truck is dedicated to the hydro jetting system and its supporting equipment. The high-pressure pump and water tank are mounted securely on the chassis, with easy access points for maintenance and refilling. The water tank is typically large enough to hold several hundred gallons of water, allowing for extended cleaning sessions without the need for frequent refills.

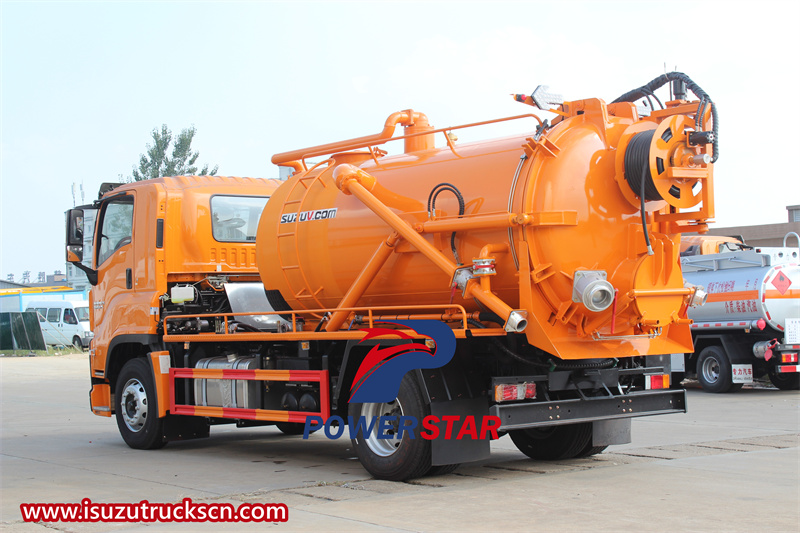

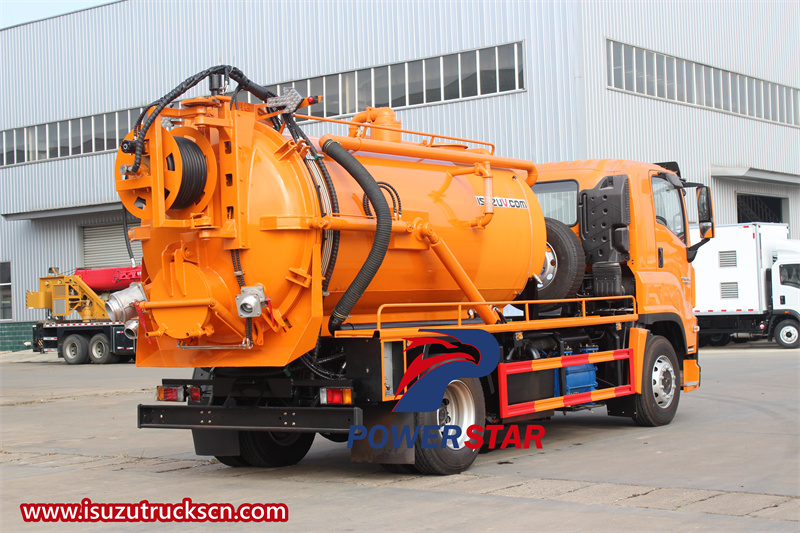

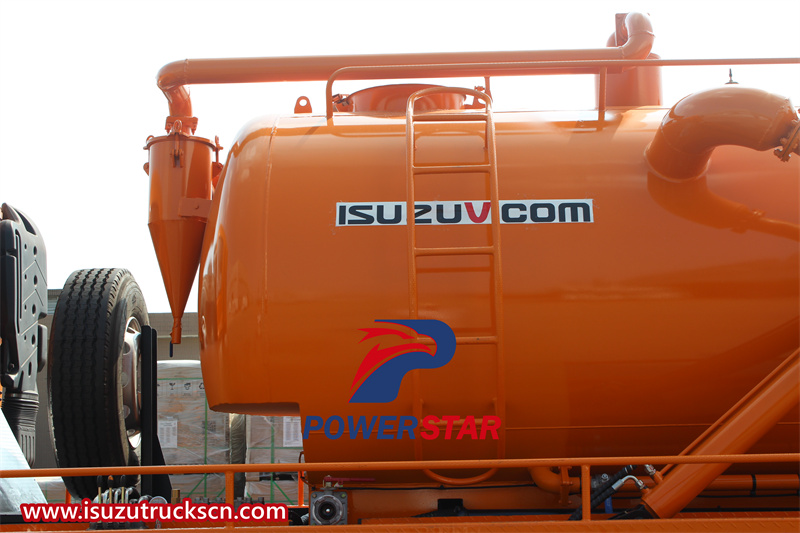

Isuzu FVR jetting combined cleaning sewage truck
The Isuzu VC61 vacuum truck with jet cleaner is capable of tackling a wide range of drain cleaning tasks, from routine maintenance to emergency repairs. Its high-pressure hydro jetting system can quickly and effectively remove clogs and debris from pipes of all sizes and materials, including PVC, cast iron, and concrete. This makes it an ideal choice for maintaining drainage systems in both residential and commercial settings.
One of the primary benefits of using the Isuzu FVR 12000L combined sewer jetting truck is its ability to significantly reduce downtime and disruption. Because the hydro jetting method is so effective, it can often clear clogs and restore flow to pipes in a fraction of the time it would take with traditional mechanical cleaning methods. This means that businesses and homeowners can get back to normal operations faster, with minimal inconvenience.

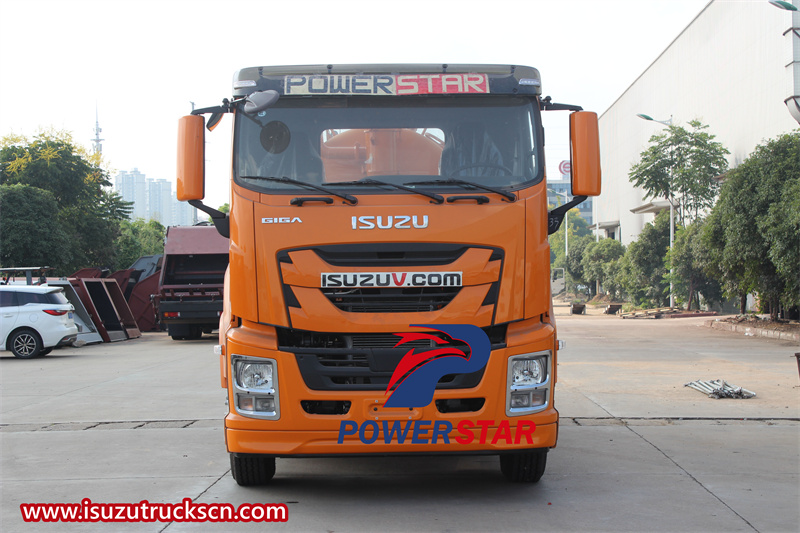

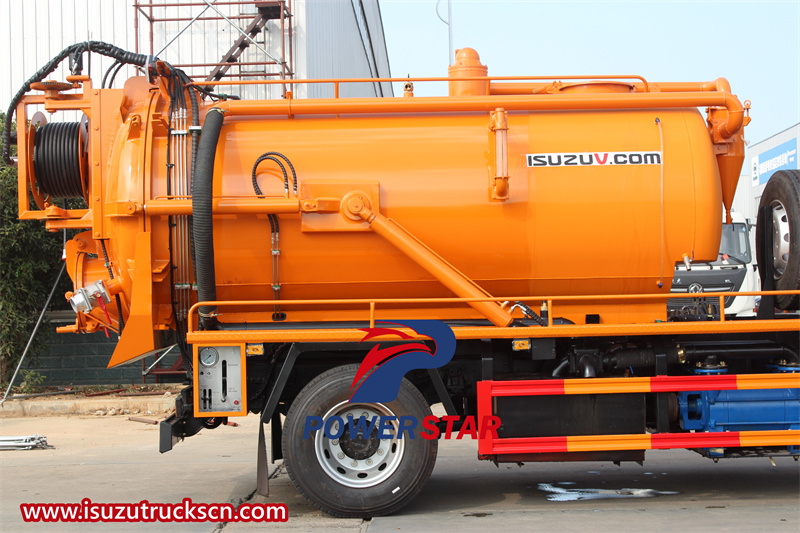

Isuzu FVR 5X combination jetter truck
Another benefit of the Isuzu VC61 is its environmental friendliness. Unlike chemical-based cleaning methods, hydro jetting requires no harmful chemicals or solvents. This not only reduces the risk of polluting the environment, but it also eliminates the need for costly disposal of hazardous waste.
Isuzu VC61 FVR 4x2 combined sewage suction truck is a special vehicle designed for efficient pipe cleaning. It uses high-pressure water jet technology to provide excellent cleaning performance while focusing on operator comfort and safety. The vehicle has a sturdy and durable structure, excellent performance and easy maintenance. It is suitable for all types of drainage systems and is committed to environmental protection practices. It has the following advantages:

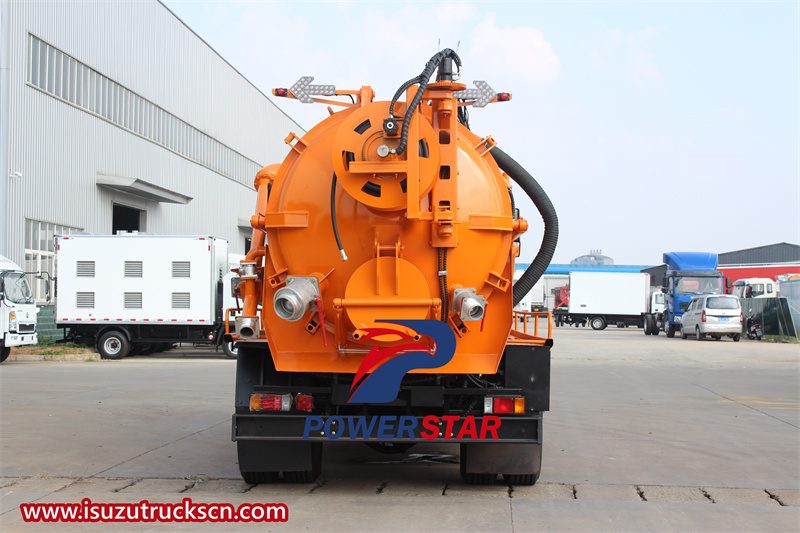

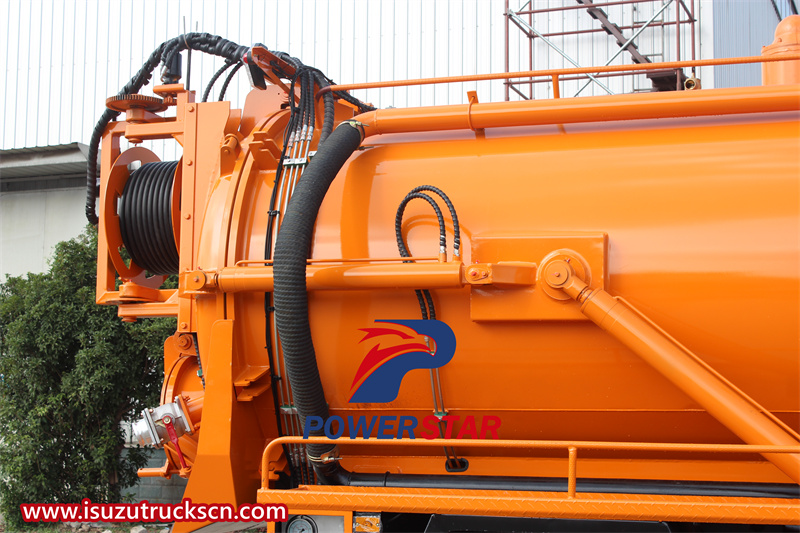

Isuzu FVR 4x2 jetting and vacuum truck
Isuzu VC61 vacuum truck with jet cleaner
Improve cleaning efficiency:
Compared with traditional manual or mechanical cleaning methods, Isuzu FVR 4X2 hydraulic jetting drain cleaning truck can significantly improve cleaning efficiency and shorten operation time.
Reduced labor intensity:
Automated and intelligent operation methods reduce the labor intensity of staff and reduce operation risks.
Protect pipeline facilities:
High-pressure water jet cleaning method will not damage the inner wall of the pipeline, which helps to extend the service life of the pipeline.
Environmental protection and energy saving:
Use environmentally friendly materials and energy-saving technologies to reduce the impact on the environment; at the same time, by optimizing the power system and transmission system, reduce fuel consumption and improve economy.
Hydraulic Cylinder

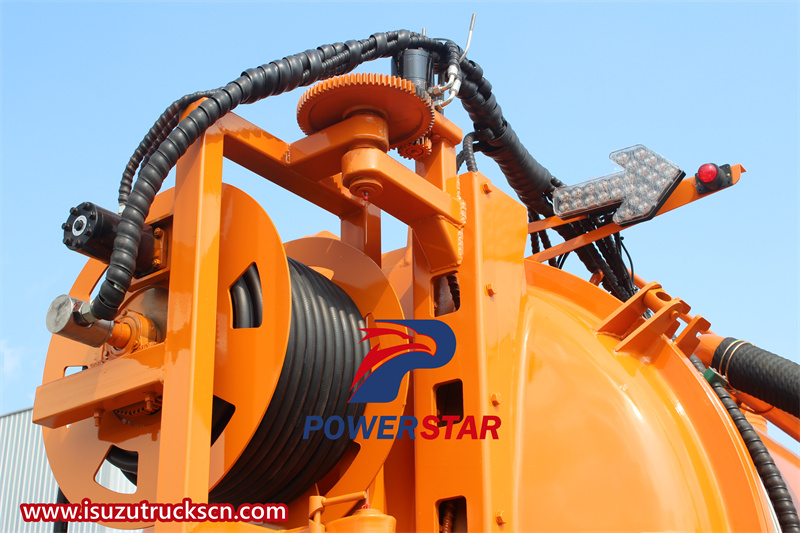

Reel

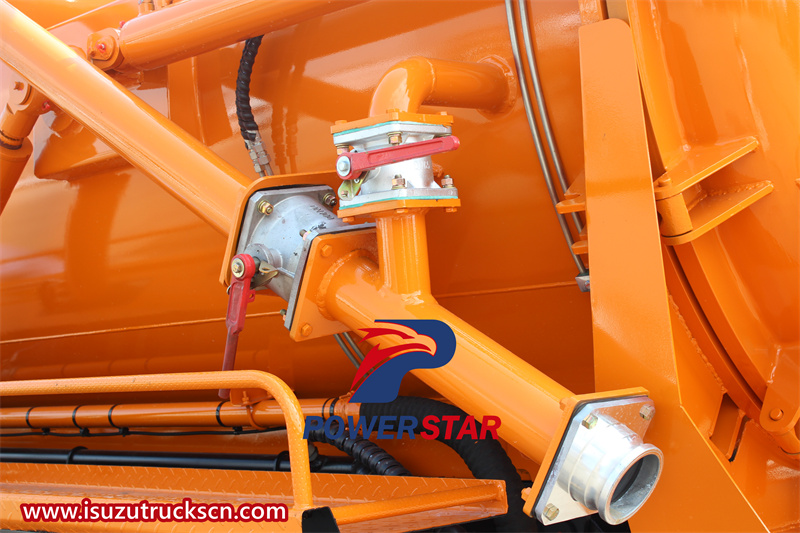

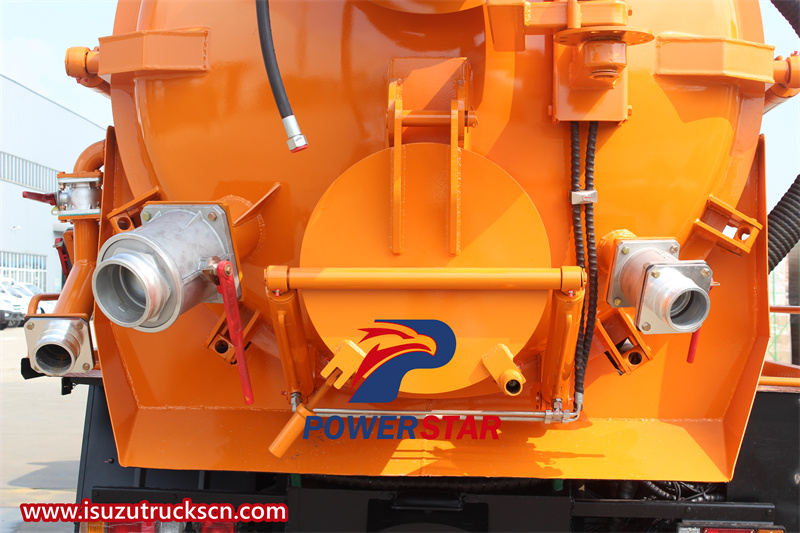

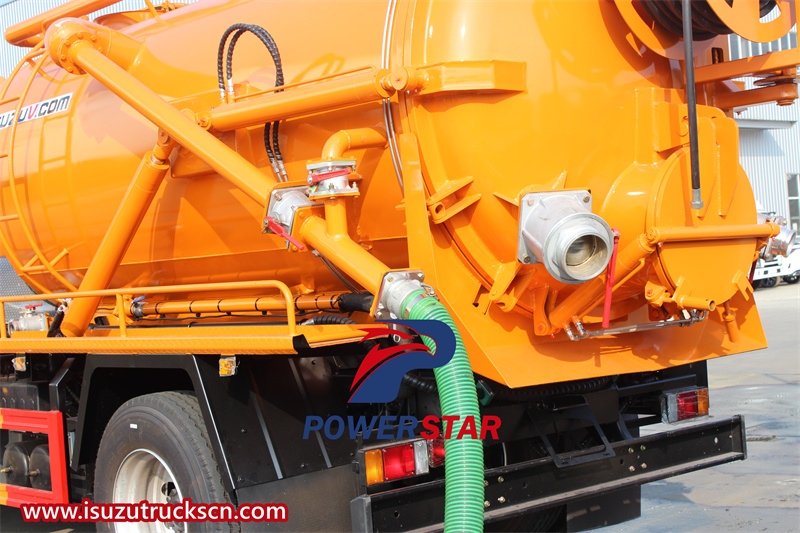

Sewage input and output

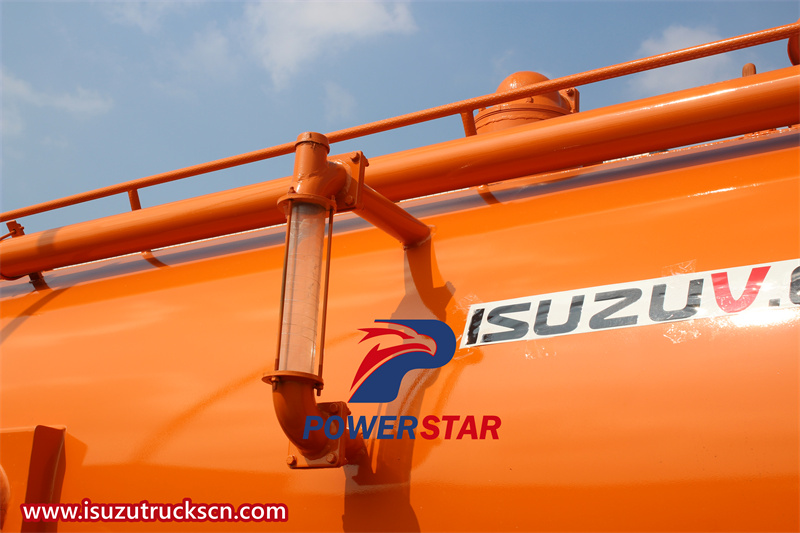

View window

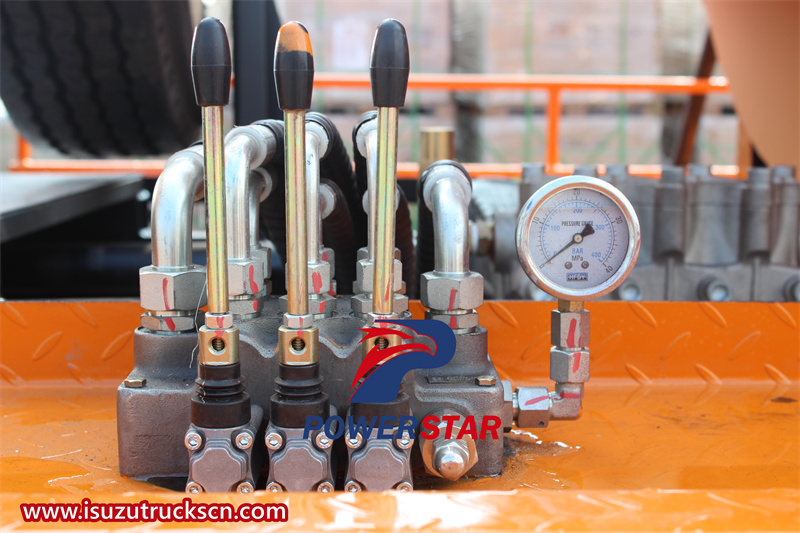

Multi-way valve

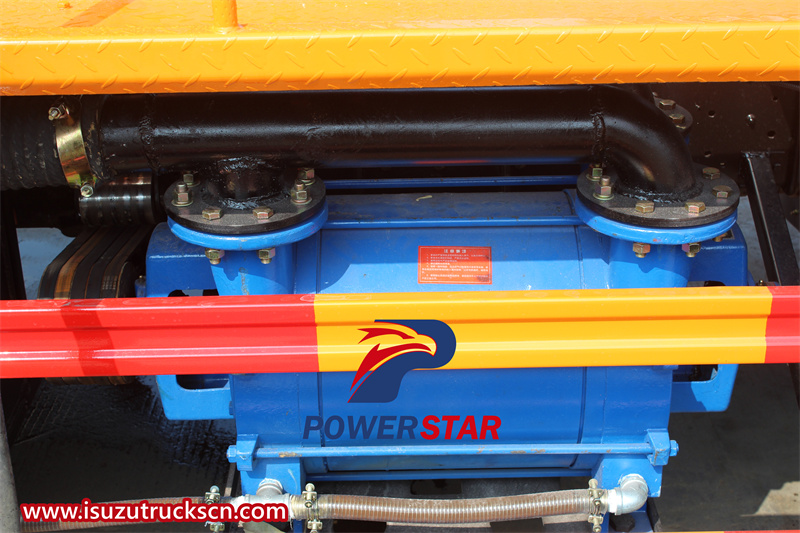

Vacuum Pump

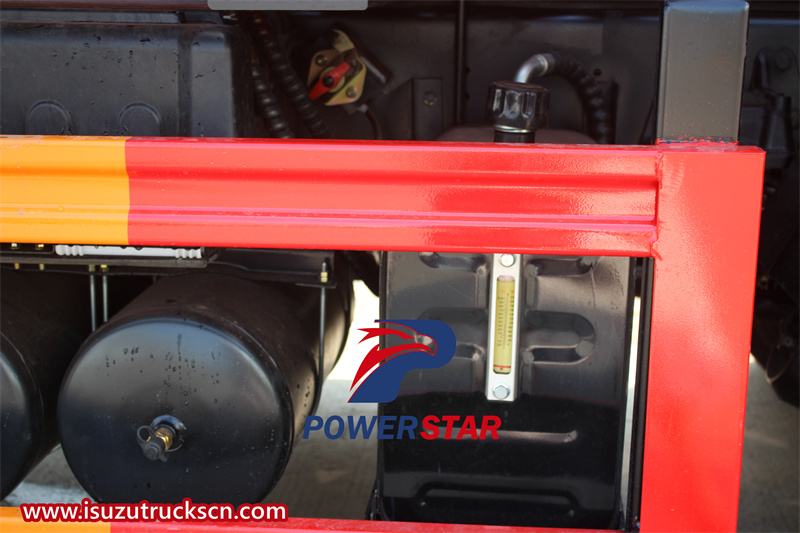

Hydraulic oil tank

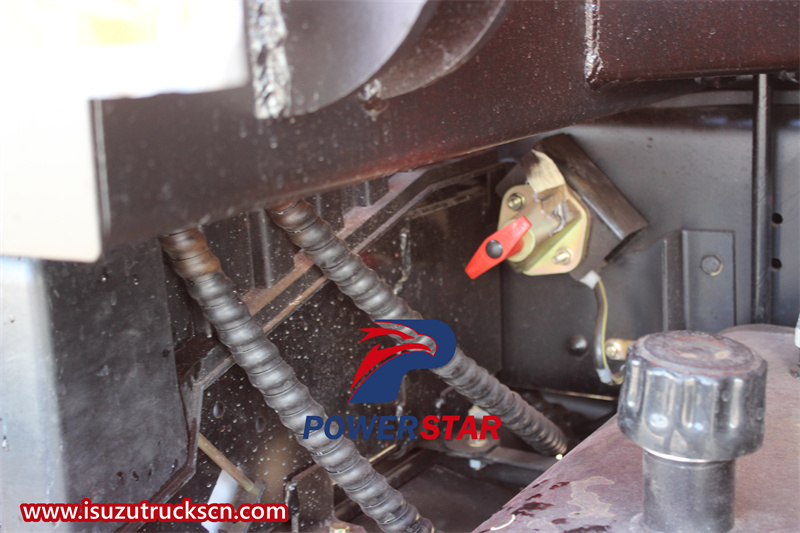

Power switch
