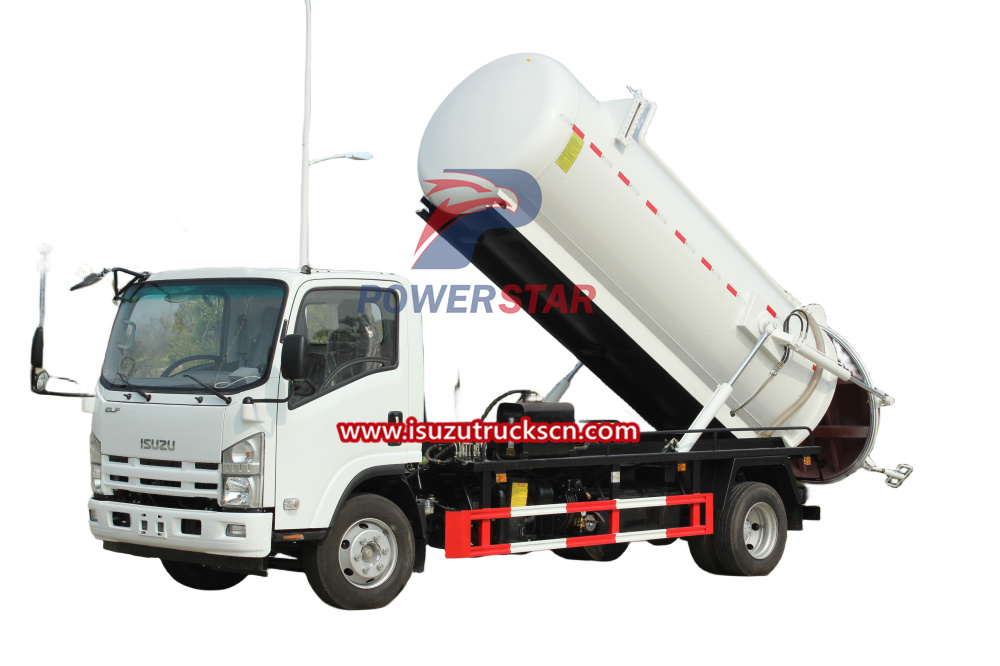

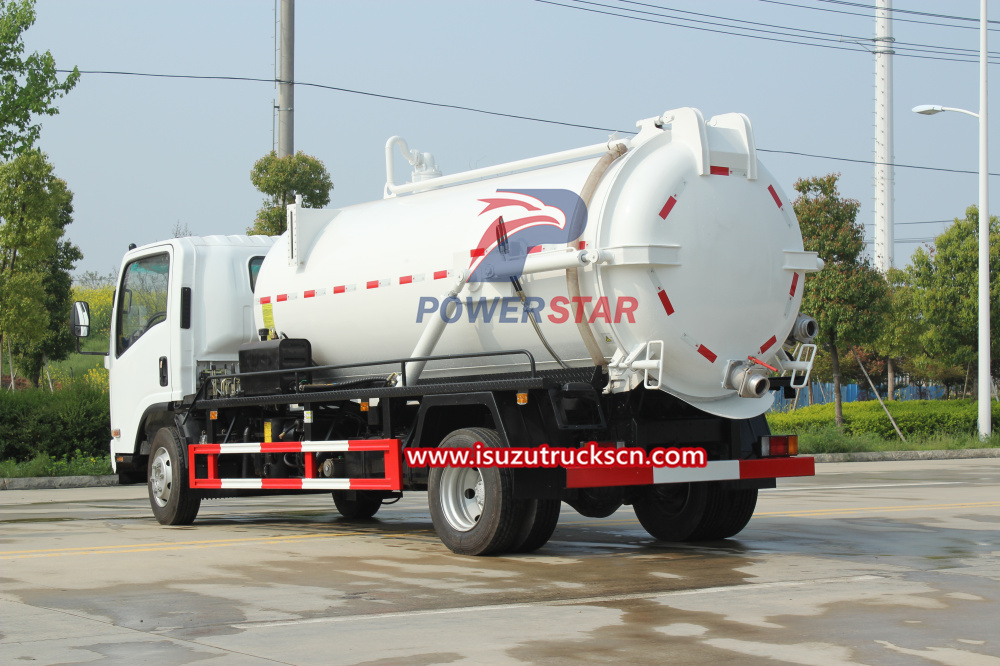

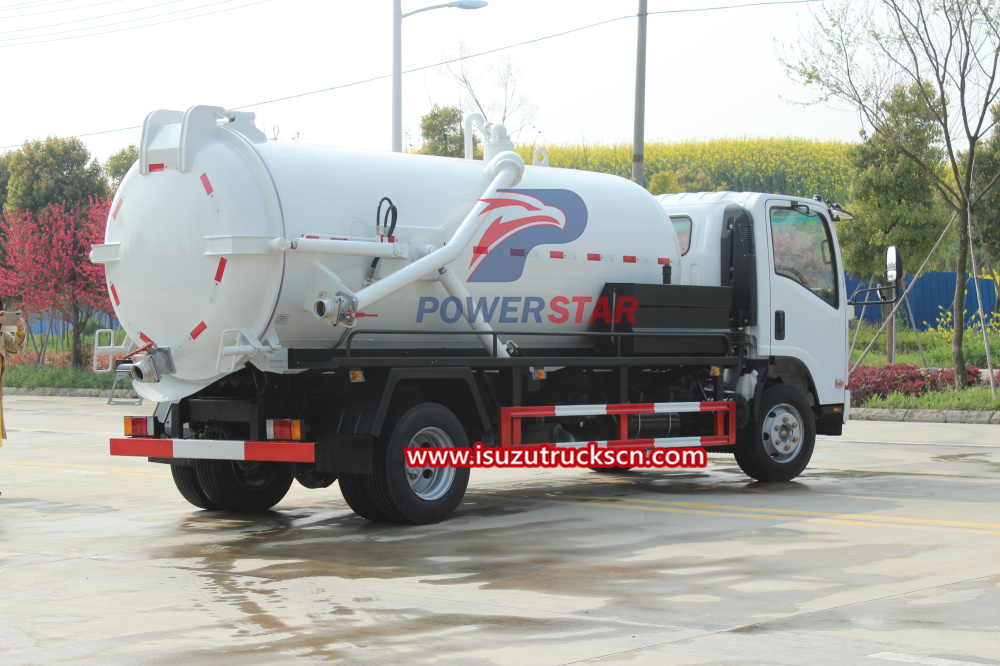

Waste water removal truck Isuzu

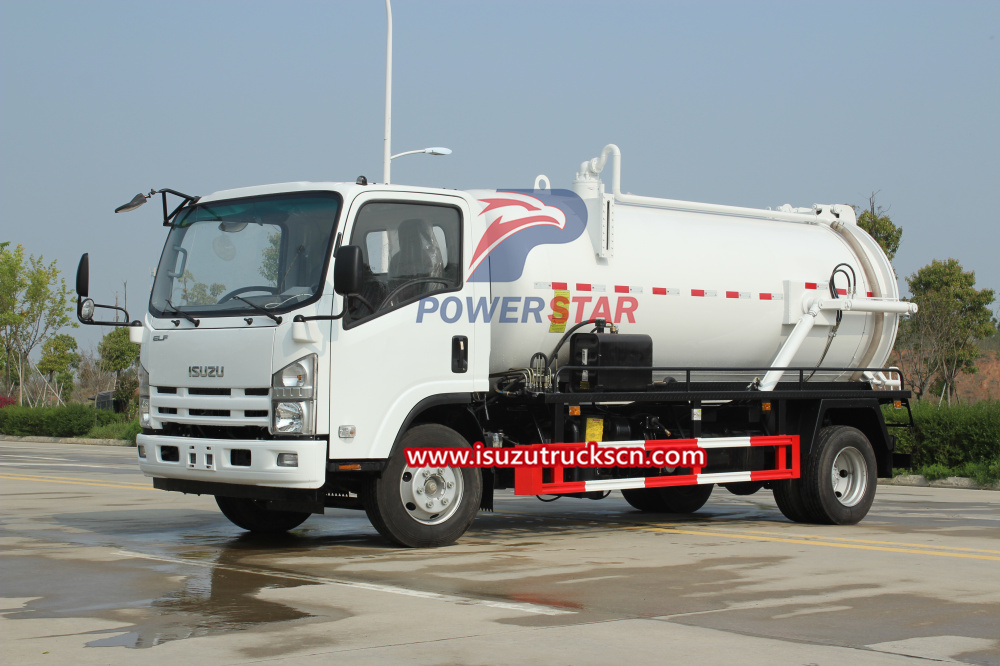

New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck
New Isuzu NPR Waste Water Vacuum Truck

Waste water removal truck Isuzu

The Waste Water Removal Truck from Isuzu Powerstar by the government of Honduras has the potential to significantly improve environmental sanitation and waste water management practices in the country. With its powerful capabilities, versatility, and adherence to sustainable practices, this advanced vacuum sewage water truck Iszuu offers a robust solution for the effective collection and transport of waste water. Honduras' commitment to embracing environmentally friendly technologies demonstrates its leadership in environmental conservation and sets a positive example for other nations to follow.

  • Work capacity:

    8000 L
  • Truck model:

    PT5120GXW
  • Engine power:

    190 HP
  • Engine type:

    Isuzu 4HK1
  • Axle drive:

    4x2
  • Gear box:

    Isuzu MSB
  • Remarks:

    Optional Italy Moro or Jurop vacuum pump

In a bid to enhance the environmental sanitation in the country, the government of Honduras has announced the exclusive introduction of a state-of-the-art Waste Water Removal Truck from Isuzu Powerstar Trucks. This remarkable vacuum cleaner truck Isuzu, equipped with advanced technology and powerful features, holds great promise for improving the overall environmental hygiene and waste water management practices in Honduras.

The Isuzu Waste Water Removal Truck is designed to efficiently remove and transport wastewater and sewage, addressing the pressing need for proper waste water management in the country. Equipped with a high-performance vacuum pump system, the truck is capable of quickly and effectively extracting large volumes of wastewater from various sources, including residential areas, industrial facilities, and drainages. This significant holding capacity not only expedites the waste water collection process but also reduces the frequency of emptying, increasing operational efficiency.




One of the key advantages of the Isuzu Waste Water Removal Truck is its versatility. With its maneuverable design, the truck can easily navigate through narrow streets and challenging terrains, ensuring accessibility to different regions of Honduras. This flexibility is crucial in addressing waste water management needs in both urban centers and remote areas.

ISUZU NPR 4x2 Waste water removal truck SPECIFICATIONS
Truck Model
PT5120GXW
Truck Brand
ISUZU NPR
Dimension (LxWxH) (unloaded)mm
7150×2400×2850
Tank volume(m³)

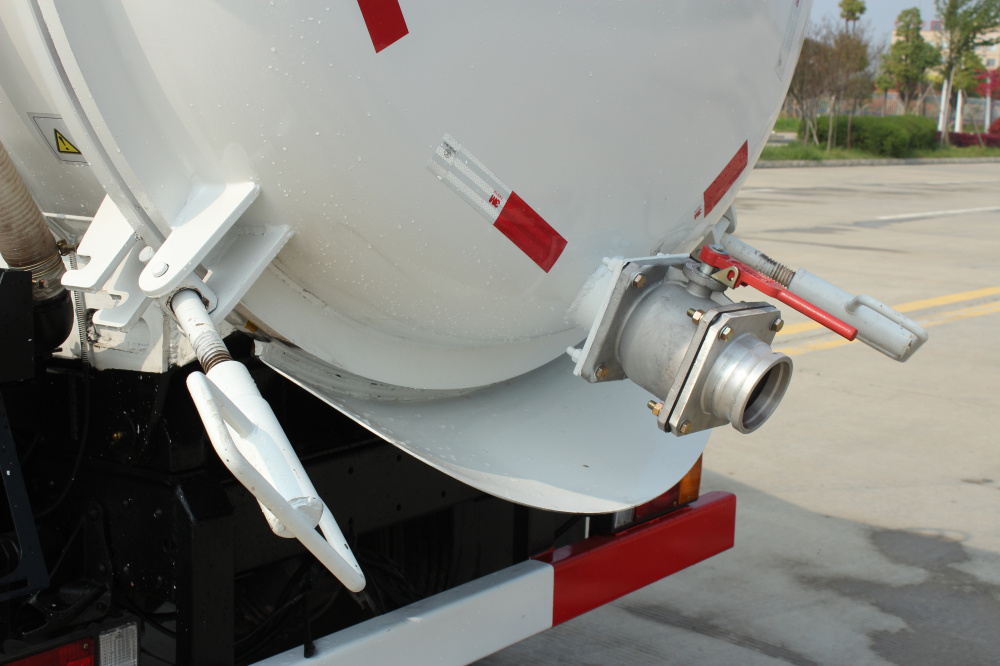

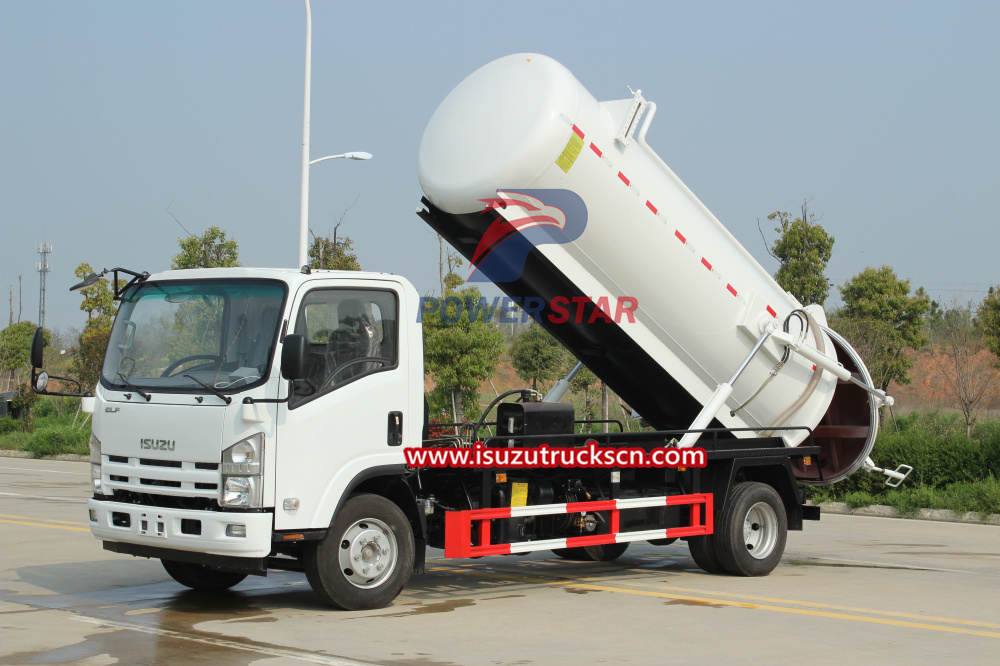

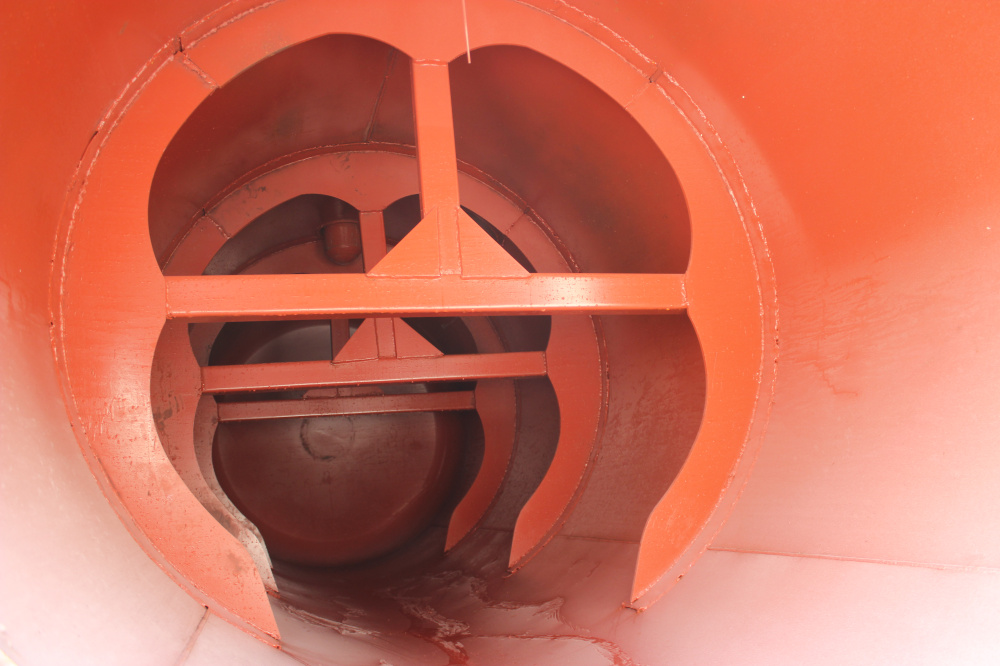

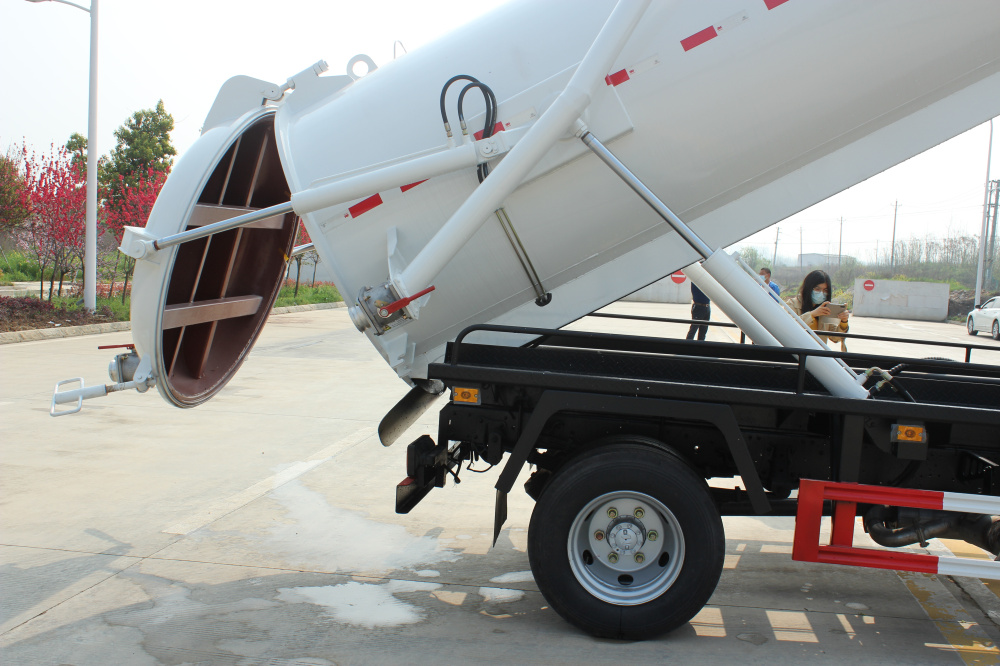

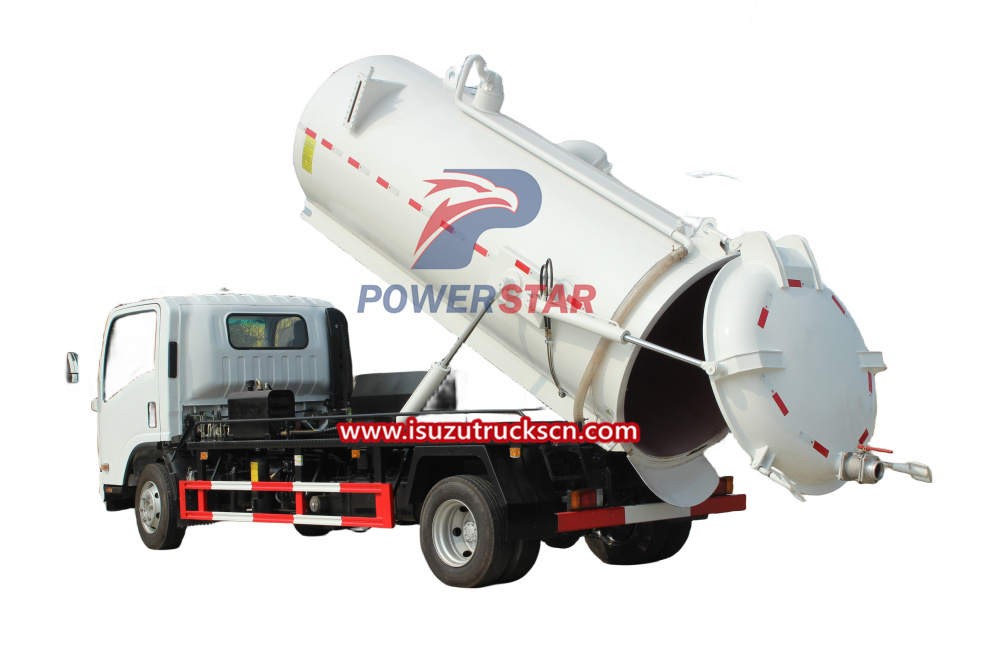

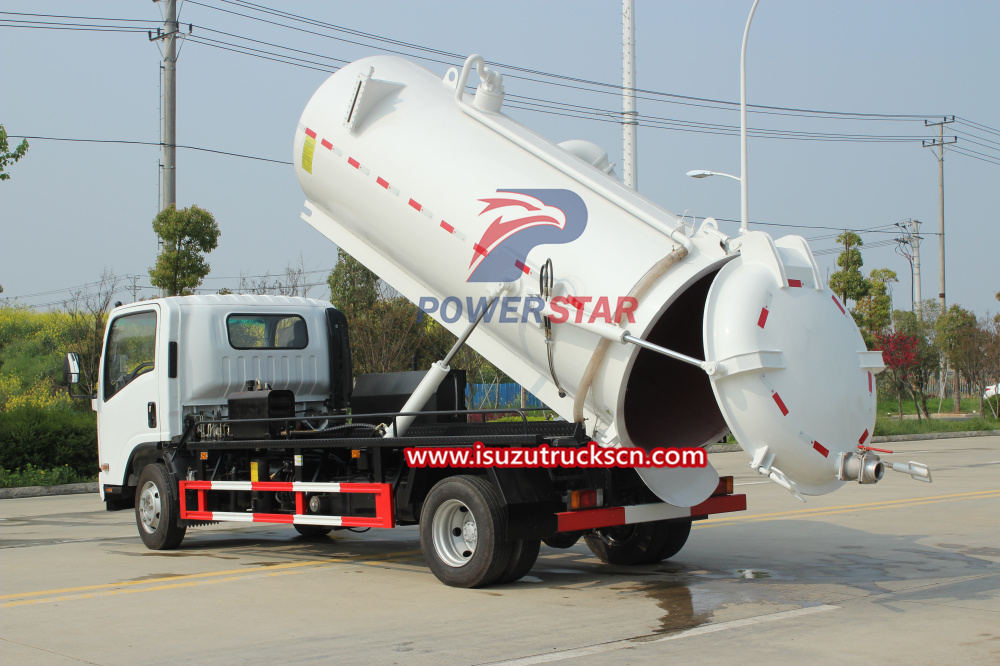

Sewage Tank Body:8m³,with lifting system,Vacuum pump,Back door hydraulic opening.
Tank Body Material:End Plate 6mm ; Tank Body 5mm;
Vacuum pump:JuropPN106D
Air flow:11000L/min
Vacuum Degree Max:-0.092Mpa
Suction Full Time:12 Minutes
Depth:6m
Rubber hose:6m
Approaching angle/ Departure angel (°)
16/15
Overhang (front/rear) (mm)
1500/1890
Wheel base (mm)
4600
Max. Driving speed (km/h)
102
Front axle loading capacity (kg)
7000
Rear axle loading capacity(kg)
16000
Curb weight (kg)
9050
Gross vehicle weight
16000
Cab Model
Isuzu NPR single cab,single bunk,all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner,left hand driving.
Engine Model
Model
ISUZU 4HK1-TC,190hp,4-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Rated Power(kw/rpm)
139/2200
Make ISUZU Euro 5 emission standard, Thermostat with 80℃ opening begin, Rigid fan
Clutch
 Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission
Model
Isuzu MSB 5s transmission ,5 forward and 1 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking Brake
(emergency brake)
Spring energy, compressed
Steering system
Model
 Steering Gear Box ,hydraulic steering with power assistance.
(Left hand driving)
Front axle
ISUZU 4000kg Front Axle,new 7-ton front axles of equipped with drum brakes.
Rear axle
ISUZU 7000 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.42;The basic configuration of ISUZUseries construction vehicle can be used in such bad environment as bad road
condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Wheels &Tire
Tyres:8.25R20 tubeless tyre with 1 Spare tire.
Electrical system
Electrics Operating voltage
24V,negative grounded
Starter
24V,7.5 Kw
Alternator
3-phase,28V,1500 W
Batteries
2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light。
Oil Tank
Square type-100L Aluminum alloy fuel tank
Packing
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for
long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to
the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

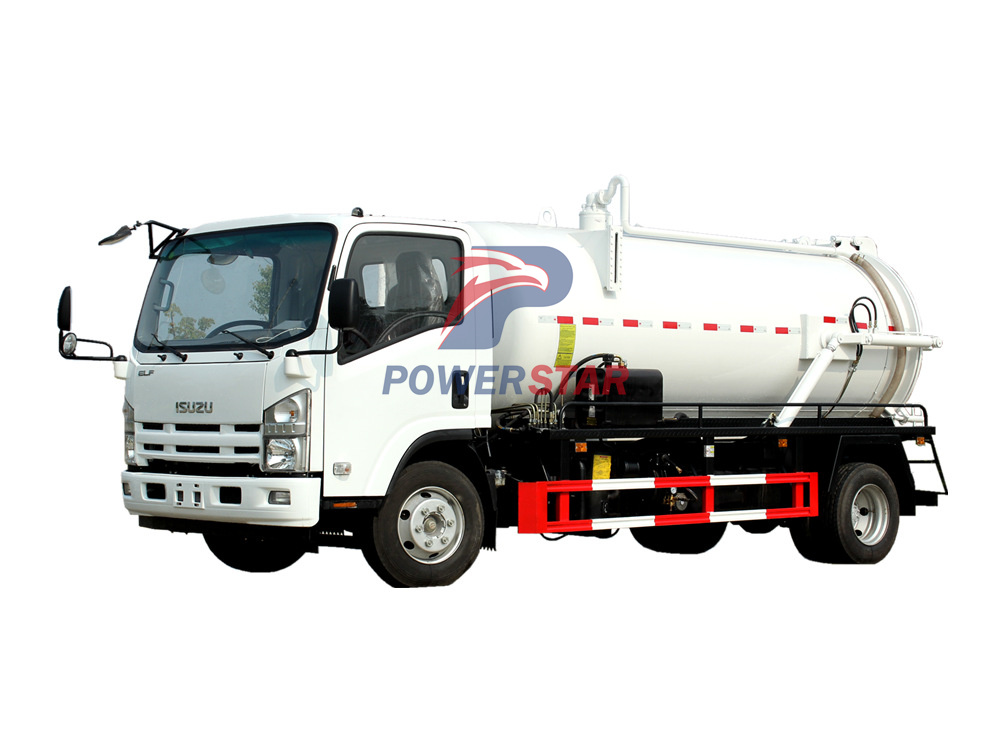

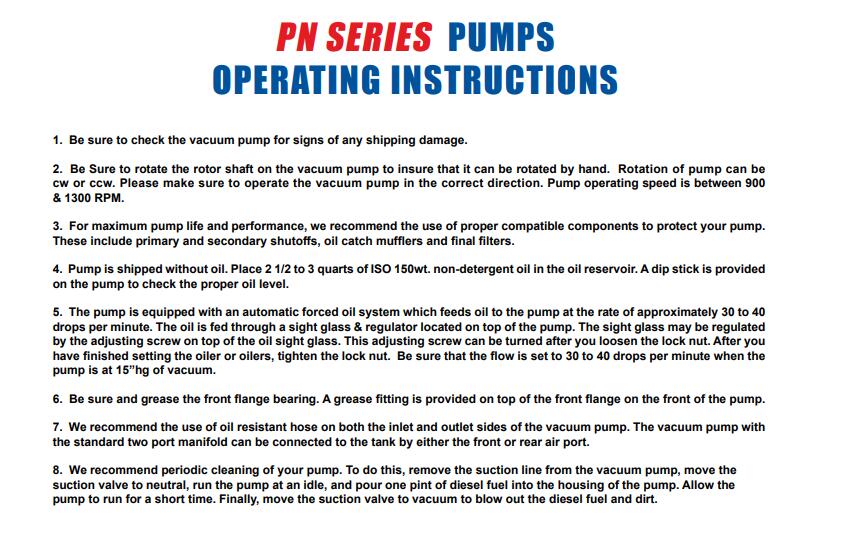

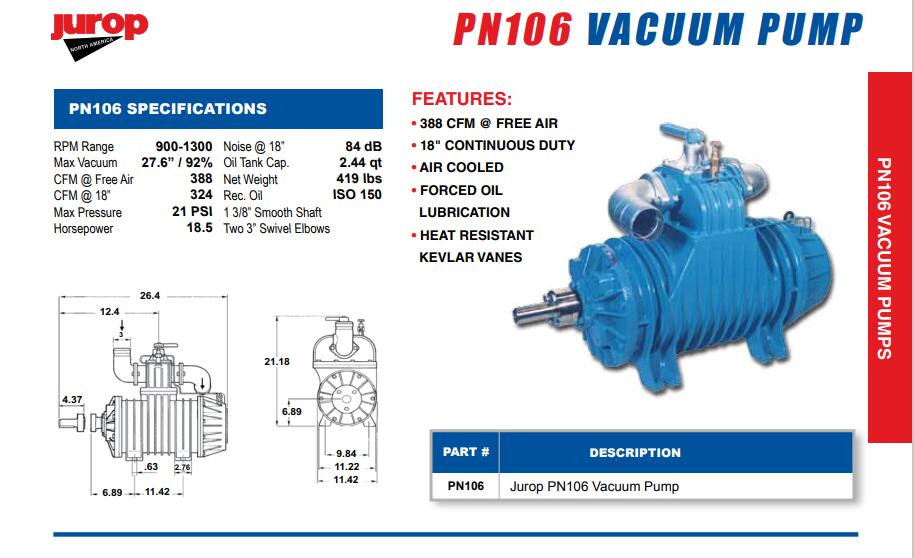

Isuzu Waste water removal truck with Jurop PN106 vacuum pump








The introduction of the Isuzu Waste Water Removal Truck holds immense positive implications for environmental sanitation in Honduras. Firstly, it significantly improves waste water management by ensuring the proper collection and transportation of sewage, reducing the risk of contamination and the spread of diseases. This contributes to creating a healthier and safer living environment for the Honduran population.

Furthermore, the enhanced waste water management capabilities of the Isuzu truck have a positive impact on Honduras' natural environment. By minimizing waste water spillage and leakages, the truck helps preserve the country's water bodies, rivers, and marine ecosystem. This fosters the conservation of natural habitats and biodiversity, showcasing Honduras' commitment to environmental stewardship.





The introduction of the Isuzu Waste Water Removal Truck also demonstrates Honduras' dedication to sustainable development. The truck adheres to international standards and regulations for waste water management, ensuring responsible and environmentally friendly practices. By adopting such advanced technologies, Honduras sets an example for other countries in the region and reinforces its commitment to preserving its natural resources.
