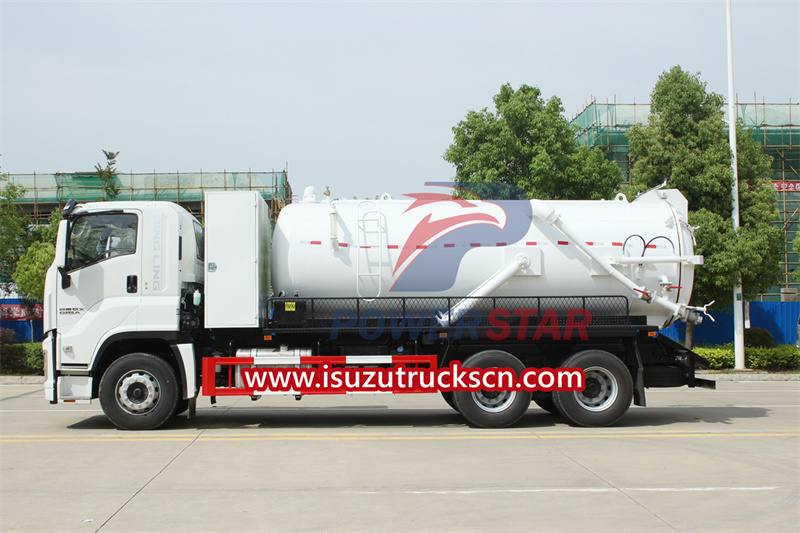

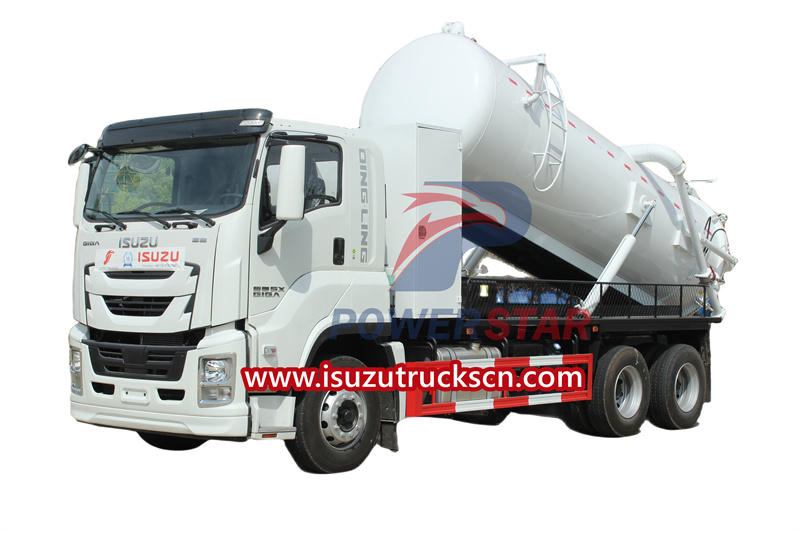

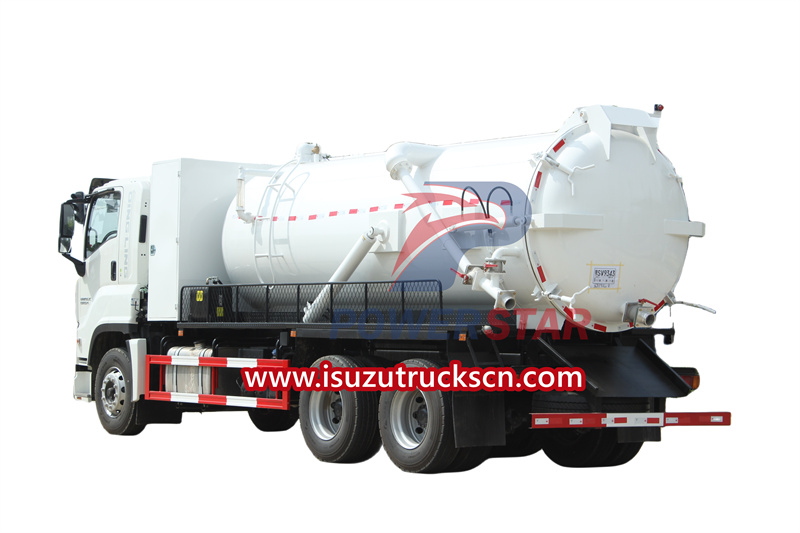

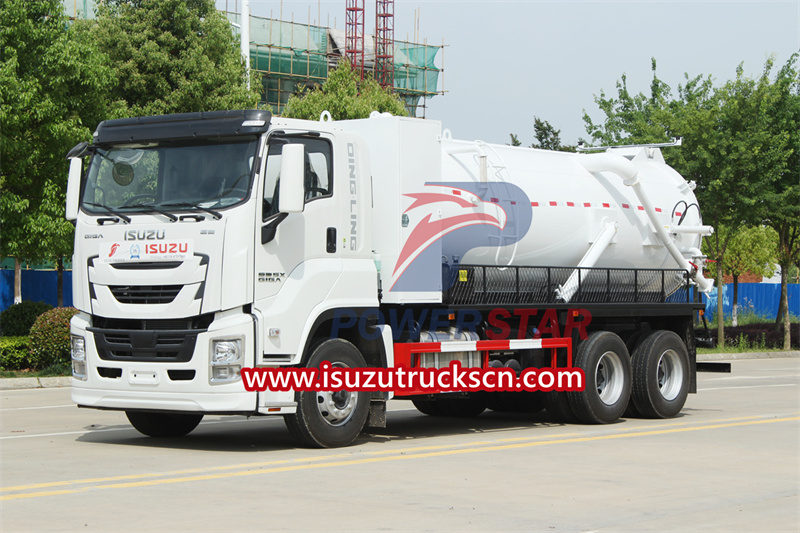

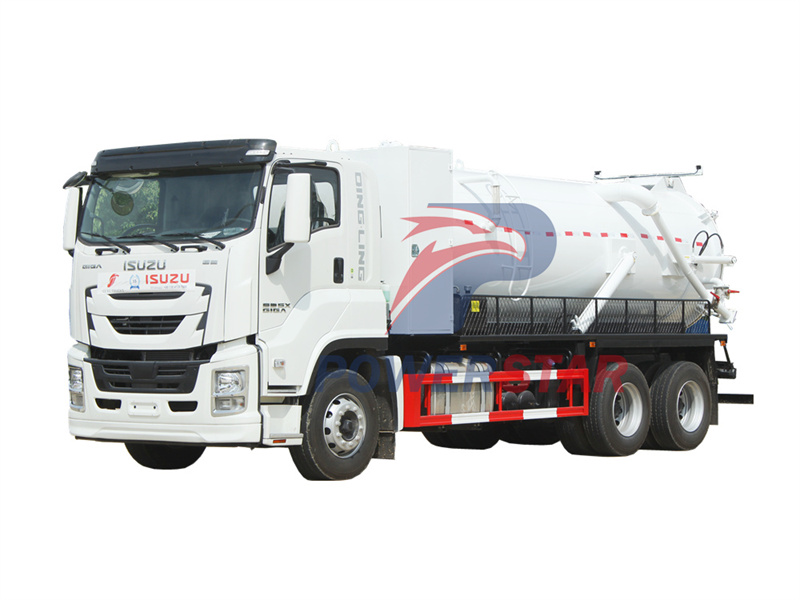

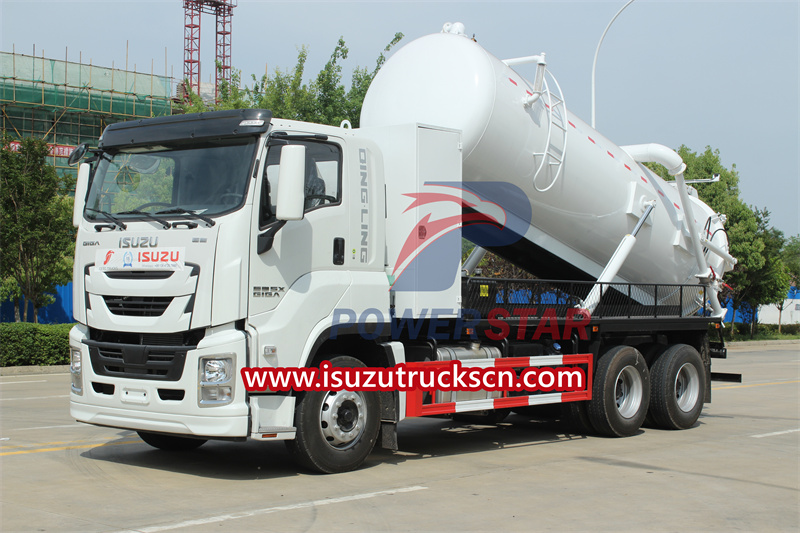

Philippine Isuzu vacuum septic tank is a device used to clean sewage and sludge. Its main function is to collect, transport and treat sewage and sludge. It is widely used in sewage treatment projects and urban cleaning work in the Philippines.
This vacuum sludge truck is equipped with a powerful vacuum pump and a large-capacity storage tank, which can efficiently extract sewage and sludge. The vacuum pump uses the principle of negative pressure to generate negative pressure in a closed system and suck sewage and sludge into the storage tank. This extraction method can ensure the integrity of sewage and sludge and avoid secondary pollution and the spread of odor.
Work capacity:
20,000 LitersTruck model:
PT5250GXWEngine power:
380 HPEngine type:
6UZ1-TCG60Axle drive:
6×4Gear box:
ZF 16-speedRemarks:
MORO pump, Jurop, BP pump available.
Philippine Isuzu vacuum septic tank has good transportation capabilities. The storage tank has a large capacity and can load a large amount of sewage and sludge, reducing frequent dumping processes and improving work efficiency. The vehicle chassis adopts the Isuzu suspension system, which has good stability and adaptability and can be transported stably in complex road environments.
The equipment also has the ability to treat sewage and sludge. Vacuum sludge trucks are equipped with special treatment equipment that can separate, filter and treat the collected sewage and sludge. Through the separation device in the system, water and sludge can be separated. The separated water is filtered and purified and can be used for cleaning work such as washing roads and watering plants. The sludge will undergo further processing, such as solid-liquid separation, dehydration, drying and other processes, to convert it into solid matter that can be used as fertilizer or energy.
The Philippine Isuzu vacuum septic tank is a highly functional and efficient piece of equipment that plays a vital role in maintaining sanitation and cleanliness in the Philippines. With a strong vacuum suction capability, it is specifically designed to remove and transport waste materials, such as human excreta, from septic tanks and other sanitation facilities.
The main function of the Philippine Isuzu vacuum septic tank is to efficiently collect and dispose of waste in a safe and hygienic manner. It is equipped with a powerful vacuum pump that creates a suction force, allowing it to effectively extract solid sludge, liquid waste, and other debris from septic tanks, sewers, and holding tanks. The waste materials are then stored in a sealed tank within the vehicle, preventing any leakage or odor.
This septic tank serves as a crucial tool in the maintenance of hygiene and public health. By regularly emptying and cleaning septic tanks, it helps prevent the build-up of waste, reducing the risk of overflowing and potential contamination of water sources. Moreover, the Philippine Isuzu vacuum septic tank ensures that waste is properly disposed of, preventing the spread of diseases and the pollution of the environment.
Philippine Isuzu vacuum septic tank is a special vehicle used to clean sewage, sludge and feces. It mainly consists of the following parts:
1. Body structure: The body is made of high-strength steel, which is strong and durable. The top of the car body is equipped with an anti-leakage and anti-splash system to ensure that there will be no sewage leakage during transportation.
2. Sewage container: The sewage container is the main part of the vehicle and is made of high-quality stainless steel, which is corrosion-resistant and pressure-resistant. The container capacity can be customized according to customer needs, with common capacities ranging from 3,000 liters to 10,000 liters.

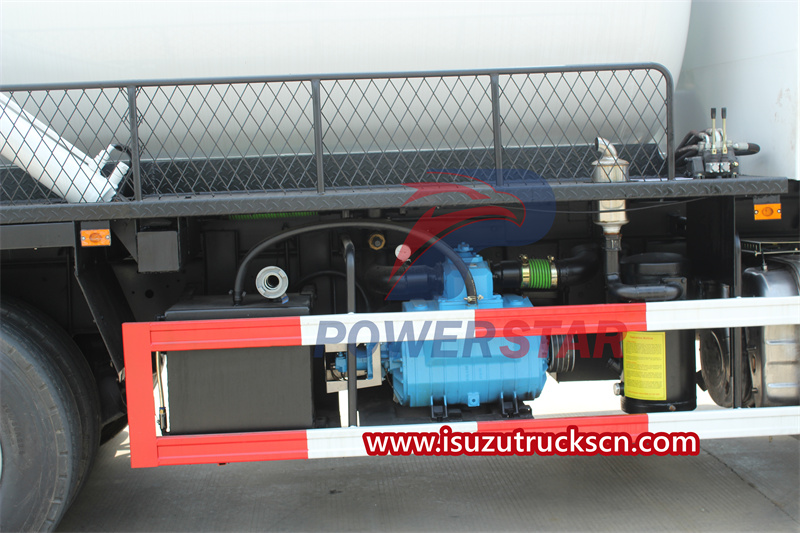

3. Vacuum pump system: The vacuum pump system is the core component of the sewage truck and mainly consists of a vacuum pump, vacuum pressure gauge and liquid level gauge. The vacuum pump draws sewage, sludge and feces into the sewage container through negative pressure suction, ensuring that the container always maintains a negative pressure state. Vacuum pressure gauges and liquid level gauges are used to monitor and control pressure and liquid level within vessels.
4. Discharge system: The discharge system mainly includes high-pressure water pumps, water pipes and nozzles, which are used to clean and flush dirt and stains in sewage containers. High-pressure water pumps can provide sufficient pressure and flow to ensure thorough cleaning of sewage containers and keep them hygienic and clean.
5. Control system: The Philippine Isuzu vacuum septic tank is equipped with an advanced control system that can accurately control vacuum pumps, high-pressure water pumps and other systems. The vehicle is equipped with an operation panel for the driver to control and monitor the working status of each part.
| Vehicle | Brand | ISUZU GIGA |
||
| Overall Dimensions L*W*H | 10000*2560*3700mm | |||
| Weights | GVW. | 25000kgs | ||
| Kurb Weight | 12305kgs | |||
| Rated Payload | 12500kgs | |||
| Chassis | Chassis Brand | ISUZU | ||
| Drive Type | 6x4 | |||
| Steering | LHD | |||
| Engine | Brand | ISUZU 6UZ1-TCG50,380HP | ||
| Power | 380HP/279KW | |||
| Emmission Level | EURO 4, 5, 6 | |||
| Performance | Max. Speed | 90km/h | ||
| Wheel base | 4565+1370mm | |||
| Tyre Specifications | 12.00R22.5 , 315/80R22.5 for option | |||
| No. of Tyre | 10 pcs (1 spare tyre included) | |||
| Cab | Cab Capacity | ISUZU GIGA Flat roof cab, 2 seats+1 bed, | ||
| Body/Superstructure | Tank | Capacity | 14-18 m³ | |
| Material | 5mm or 6mm high quality carbon steel | |||
| Vacuum pump | China famous vacuum pump | |||
| Vacuum rate | 99% thorically | |||
| Suction head | 6m-8m | |||
| Rotation speed | 500 rpm,low noise,high efficiency | |||
| Basic | Install vacuum pumps and hydraulic systems driven by engine through | |||
| Equipments | PTO. One multi-way valve, pressure gauges, water-gas separator, oil-gas separator, hydraulic oil tank, a level inspection window, hand | |||
| washing tank and a piece of 6m suction hose | ||||
| Paint | ||||
| Tank color is according to client's requirements. | ||||
| Optional Equipments | Italy or Spain vacuum pumps | |||
| Stainless steel | ||||
| Anti-rust coating inside tank | ||||
The role of Philippine Isuzu vacuum septic tank in the Philippines is reflected in the following four aspects:
1. Environmental protection: The Philippines is a country with a large population and rapid urbanization, but sanitation facilities lag behind. Isuzu vacuum septic tank can effectively solve sewage and waste disposal problems and avoid environmental pollution caused by untreated sewage. It improves water quality and sanitation by collecting sewage and solid waste from urinals, septic tanks, etc. and transporting it to appropriate treatment facilities.
2. Providing public health facilities: Some areas in the Philippines face the problem of insufficient sanitation facilities, especially in rural areas. Isuzu vacuum septic tank can provide modern sanitation facilities in these areas and improve the living environment of local residents. It can effectively collect and process human waste, reduce the risk of spreading infectious diseases and improve public health.
3. Increase employment opportunities and economic development: The introduction and use of Isuzu vacuum septic tank requires professional and technical personnel for operation and maintenance, which creates employment opportunities for the Philippines. At the same time, the production and sales of septic tanks can also promote local manufacturing and economic development. The use of this technology not only improves the level of infrastructure in cities and villages, but also provides better living conditions for local residents.
4. Improve water resources management: Isuzu vacuum septic tank can help solve the water shortage problem faced by the Philippines. By centralizing the treatment and recycling of water, septic tanks can reduce reliance on groundwater and natural water sources and provide a sustainable water supply. This is particularly important in the Philippines, a water-scarce region, and will help protect the sustainable use of currently limited water resources.
To sum up, the role of Isuzu vacuum septic tank in the Philippines is mainly reflected in environmental protection, providing public health facilities, increasing employment opportunities and economic development, and improving water resources management. Its introduction and use will play an important role in the sustainable development of the Philippines and improving people's living conditions.
Isuzu FTR Septic Tank Lorry is a specialized vehicle designed for the transportation and disposal of sewage and waste materials. It offers several features and functions that make it suitable for this purpose.
1. Efficient Waste Transportation: The Isuzu FTR Septic Tank Lorry is equipped with a large capacity tank specifically designed to hold sewage and waste materials. This allows for the efficient transportation of large quantities of waste from residential, commercial, and industrial areas to treatment or disposal facilities.
2. Vacuum Suction System: The lorry is fitted with a powerful vacuum suction system that enables it to effectively extract and collect the waste. The system is capable of generating high levels of suction, allowing for the efficient extraction of liquid and solid waste from septic tanks, grease traps, and other waste containers.
3. Sealed and Leak-Proof Structure: The septic tank on the Isuzu NPR Lorry is designed to be completely sealed and leak-proof. This ensures that there is no spillover or contamination during transport, reducing the risk of public health hazards and environmental pollution.
4. Versatile and Maneuverable: The Isuzu FTR Septic Tank Lorry is built on a versatile and maneuverable chassis, making it suitable for navigating urban areas, narrow streets, and other tight spaces. The compact size and tight turning radius allow the lorry to access remote or challenging locations where waste removal is required.
