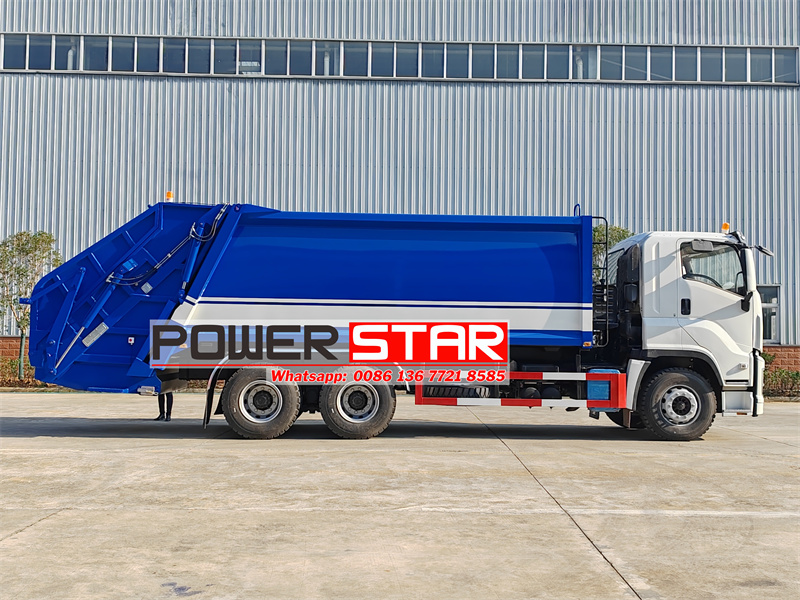

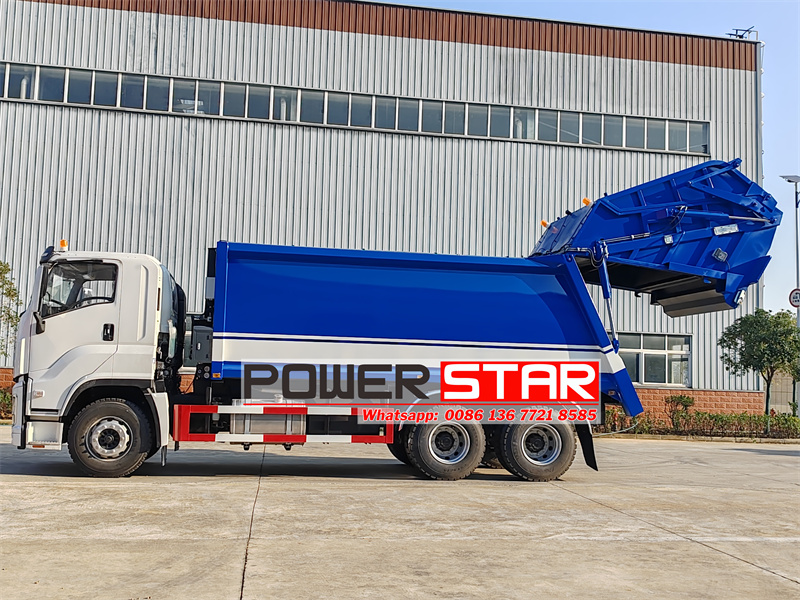

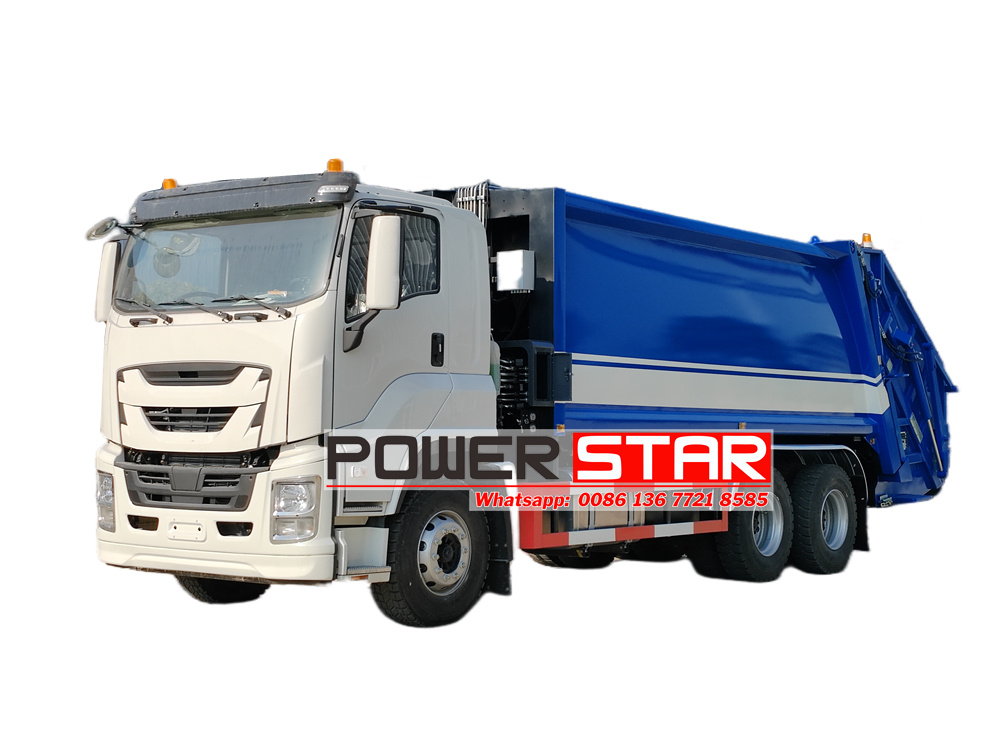

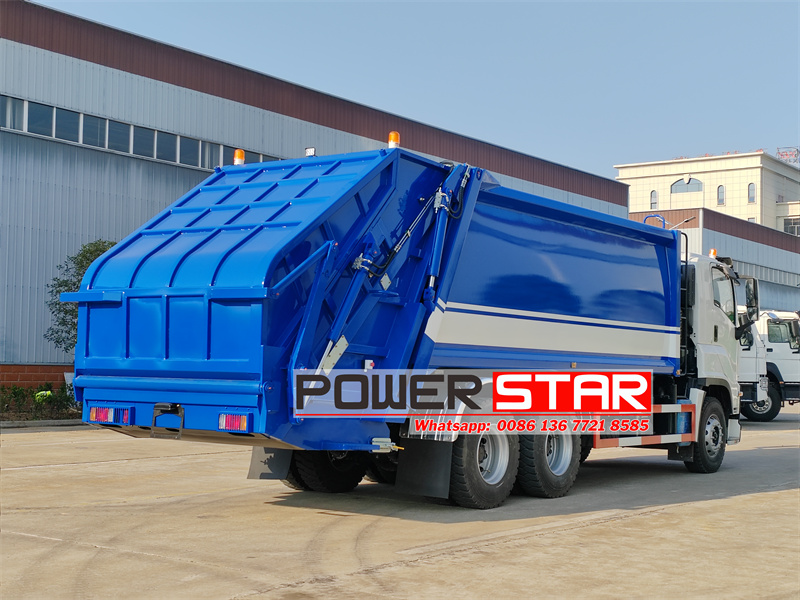

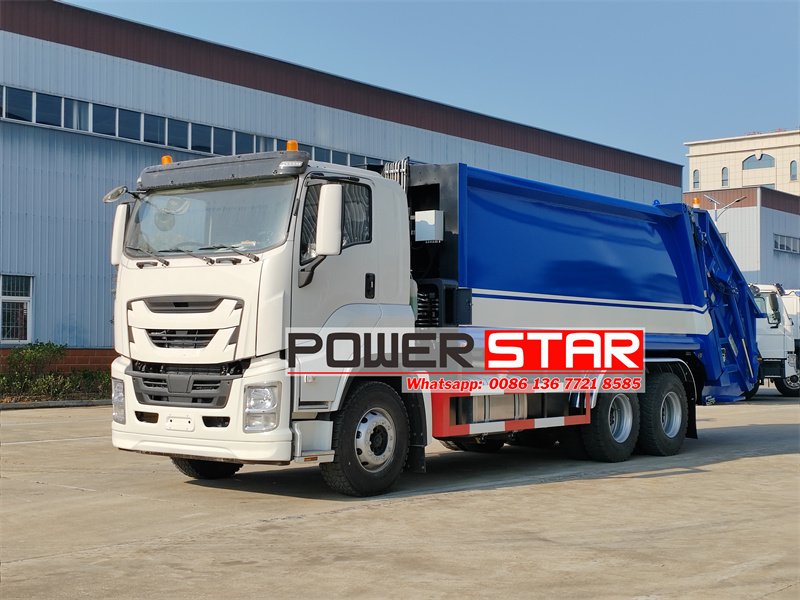

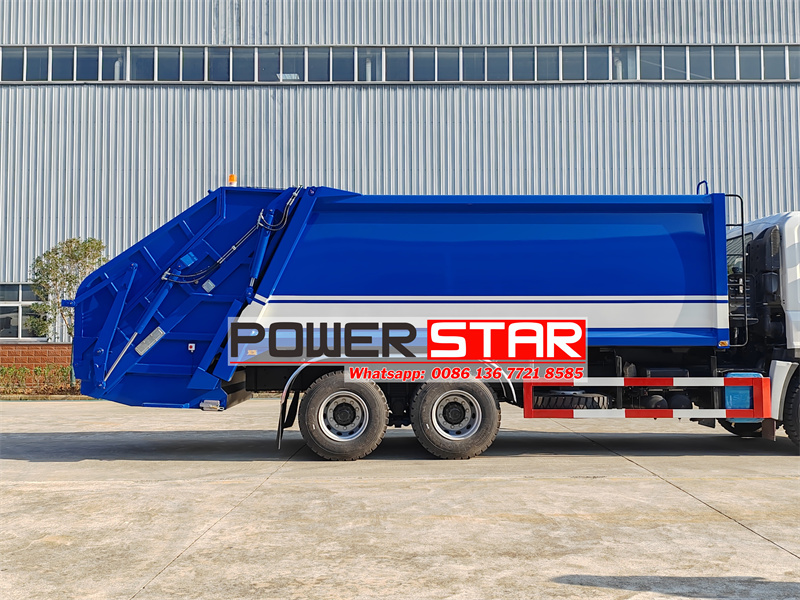

Philippine Isuzu 20 cbm rear loader garbage truck
The Isuzu GIGA 6×4 garbage compactor is equipped with an Isuzu GIGA 6x4 chassis, an Isuzu 380HP diesel engine, Euro 6 15681ml displacement, a wheelbase of 4800+1370mm/3, air brake, power steering, intercooler, 315/80R22 tires, 2 seats and 1 bed, air conditioning, power steering, loading capacity of 20 cubic meters, and a large floor-standing bucket with a fully sealed garbage bucket flipping mechanism at the tail of the garbage bin.
Work capacity:
20cbmTruck model:
PT5350GXHEngine power:
420HPEngine type:
Isuzu 6WG1-TCG60Axle drive:
6X4 (left hand drive)Gear box:
FAST 12 speed levers with 2 reverse,manualRemarks:
20cbm garbage bin,full seal flip hopperPhilippine Isuzu 20 cbm rear loader garbage truck is an advanced garbage collection and transfer vehicle designed for cities and surrounding areas in the Philippines. This model adopts a powerful 6x4 drive system, showing excellent passability and stability. It is equipped with a high-performance Isuzu 420HP diesel engine and a FAST 12-speed gearbox. The vehicle is equipped with an advanced rear-mounted garbage collection system with a loading capacity of up to 20 cubic meters. The tailgate adopts a large floor-standing bucket with a fully sealed garbage bucket flipping mechanism, which is suitable for large application scenarios such as large garbage transfer stations and landfills.
Key Features:
★ Various size body from 3cbm to 25cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★ lmported SlEMENS PLC integrated control high-efficient working
★ Diffient rear lifting systerm are optional.
★ Can be put into 20",40"container and ship to worldwide
|
Isuzu GIGA 6X4 20CBM rear loader compactor |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
10610*2550*3450mm |
|
|
GVW / Kerb Weight |
35000/10500kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Chassis |
Drive Type |
6X4 (left hand drive) |
|
Wheelbase/No. of axle |
4800+1370mm/3 |
|
|
Transmission |
FAST 12 speed levers with 2 reverse,manual |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Tire Specification |
315/80R22.5 |
|
|
Max Speed |
95/h |
|
|
Engine |
Fuel Type |
Diesel, 6 cylinder Inline,4 stroke, |
|
Model |
Isuzu 6WG1-TCG60 |
|
|
Power |
420HP/309Kw |
|
|
Maximum Torque |
2250N.m |
|
|
Maximum torque speed |
900-1300rpm |
|
|
Displacement |
15681ml |
|
|
Emission Standard |
Euro 6 |
|
|
Superstructure |
Paint |
Metallic paint |
|
Cpacity |
20 cbm |
|
|
Fill Hopper capacity |
2.4 cbm |
|
|

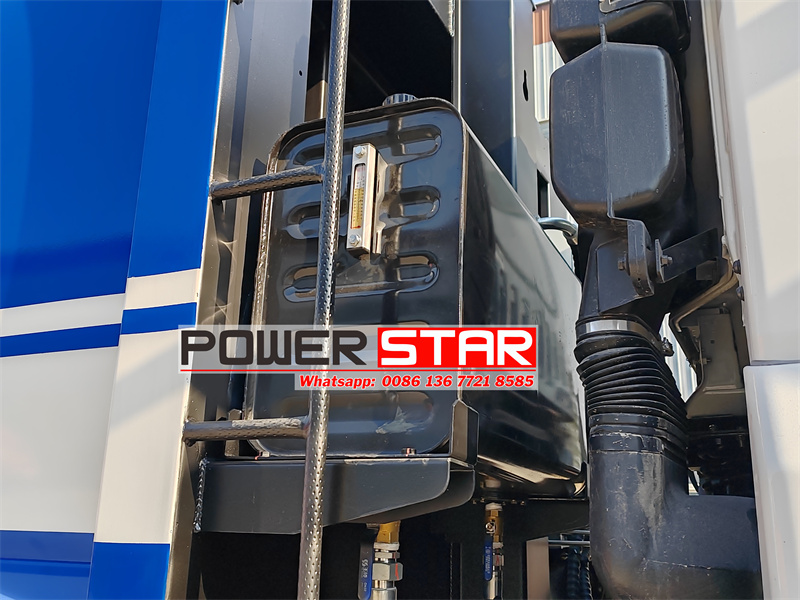

Sewage tank |
200 liters |
|
|
Filling work cycly time |
20~25 s |
|
|
Discharge model |
Horizontal Ejection |
|
|

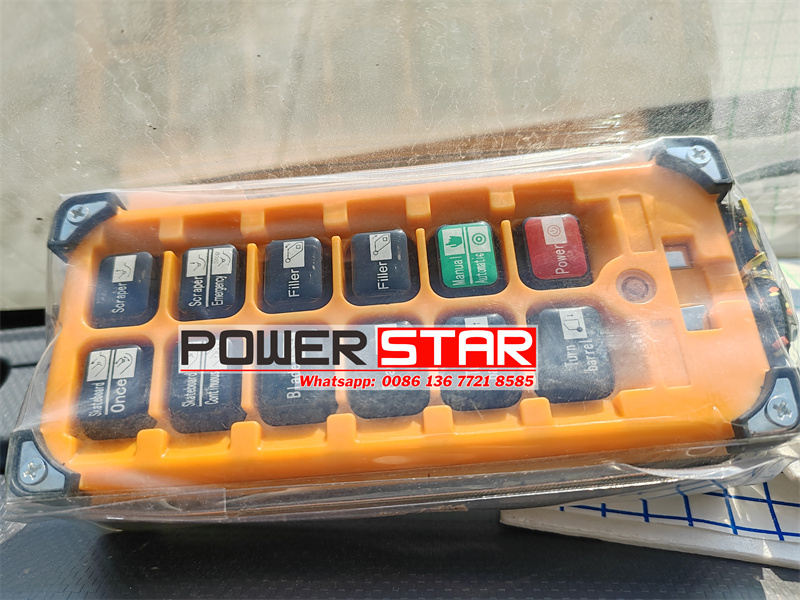

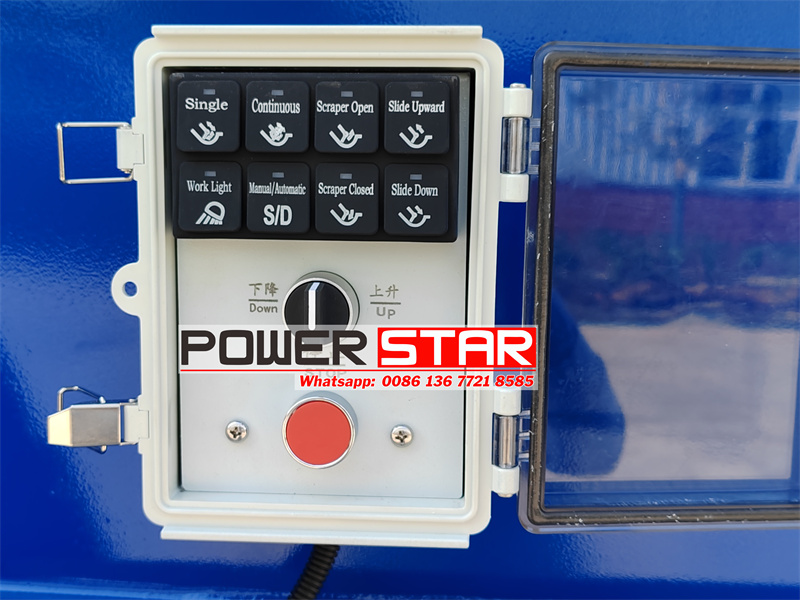

Control system |

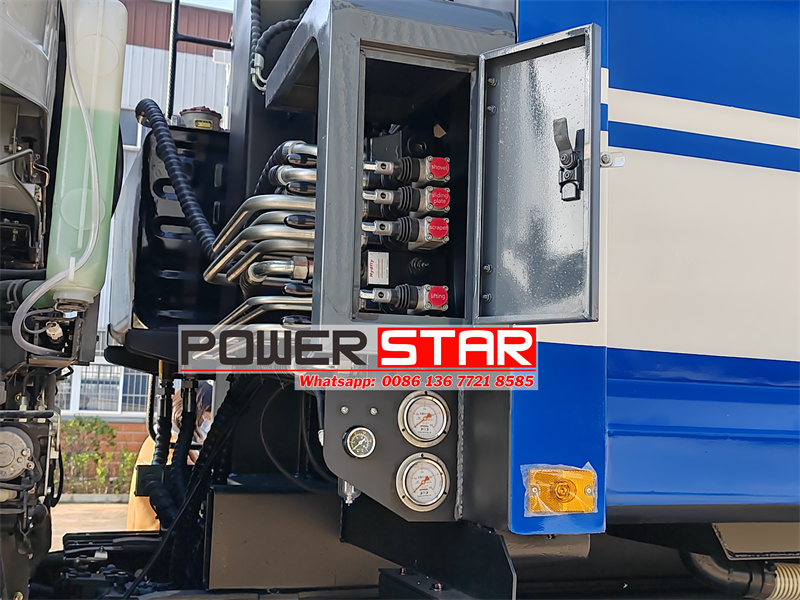

Electrically Hydraulic control Manual hydraulic control |
|
|

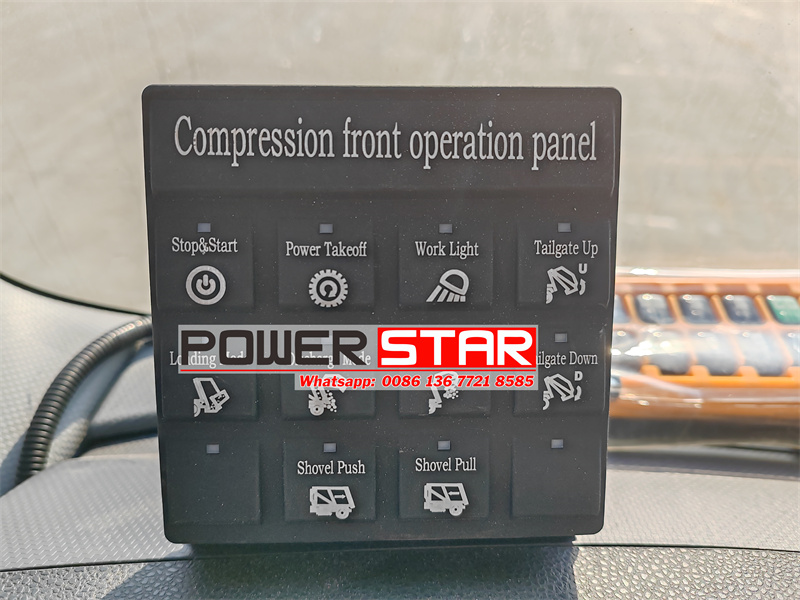

Control panel |
English or Your language |
|
|
Optional |
All standard accessories: Garbage bin lifter, ladder, warning lights, emergency stop button, |
|
Isuzu GIGA 6X4 20CBM Rear Loader Garbage Truck is a representative of compression garbage trucks. The design of its rear flip mechanism is crucial for garbage collection and loading efficiency. The following are four types of rear flip mechanisms that can be selected for compression garbage trucks, each with its own unique characteristics and applicable scenarios:
1. Bin Lift Flip Mechanism
This mechanism is usually used for loading small garbage bins or standard garbage containers. Buckets of different specifications can be fixed by flipping racks and unloaded by flipping, such as 120L, 240L, 300L, 660L plastic barrels, and round iron barrels. When the garbage truck arrives at the collection point, the driver operates the control lever, and the garbage bin lifting flip mechanism automatically grabs and lifts the garbage bin, and then flips it, so that the garbage is poured into the compression box in the car. After the flip is completed, the mechanism automatically puts the empty barrel back in place, and the whole process is fast and efficient. This mechanism is suitable for places such as residential areas and commercial blocks where garbage bins need to be replaced frequently.
2. Swing Arm Flip Mechanism
The swing arm flip mechanism is a more flexible way of loading garbage. It uses a swing arm and hydraulic drive to lift garbage containers or large garbage blocks from the ground or low platform, and then flips them into the compression box in the car. At present, many garbage stations in many areas still use pit-type swing arm buckets. The compression garbage truck equipped with a swing arm device can well replace the swing arm garbage truck, collect and transport garbage to the garbage treatment station, greatly reducing the workload. It is mainly suitable for garbage transfer in remote areas such as sparsely populated areas.
3. Semi-Sealed Flip Hopper
The semi-sealed flip hopper is a design that combines sealing and ease of operation. The front half of the hopper is usually designed to be flippable, and the flipping action is achieved by hydraulic drive to pour the garbage into the compression box. The back half of the hopper remains fixed to form a semi-enclosed space, which helps to reduce the scattering of garbage and the spread of odor during loading. This design is suitable for garbage transfer in small garbage transfer stations and urban garbage transfer.

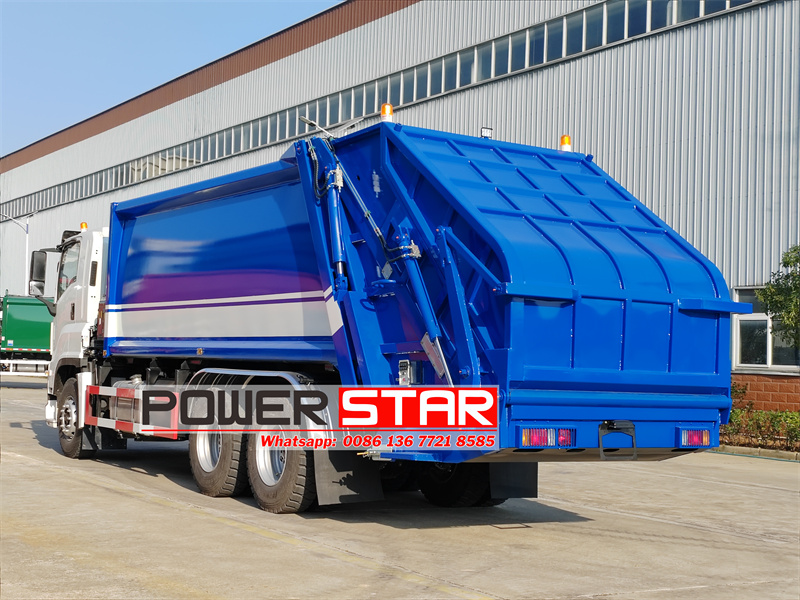

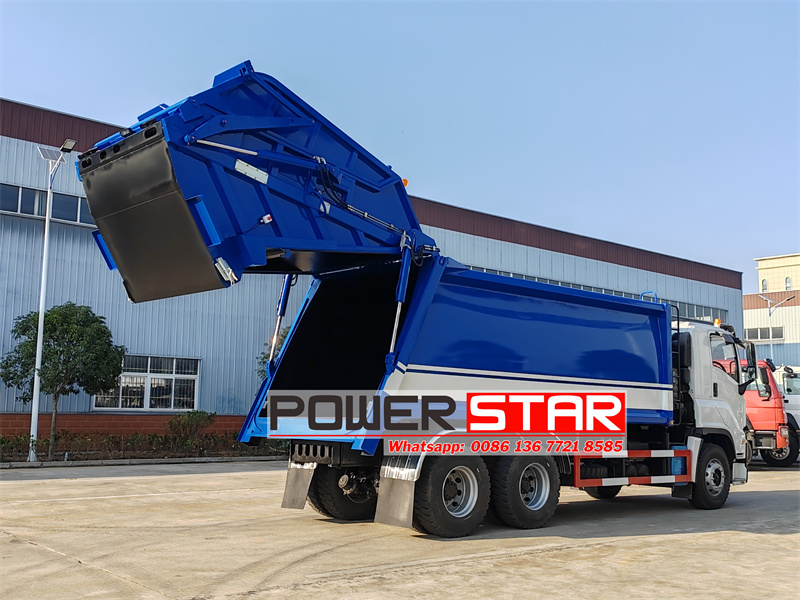

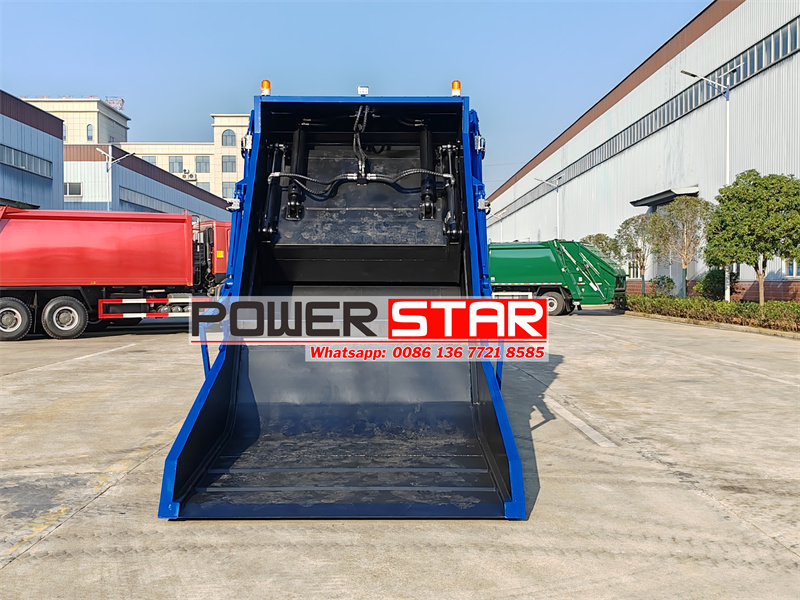

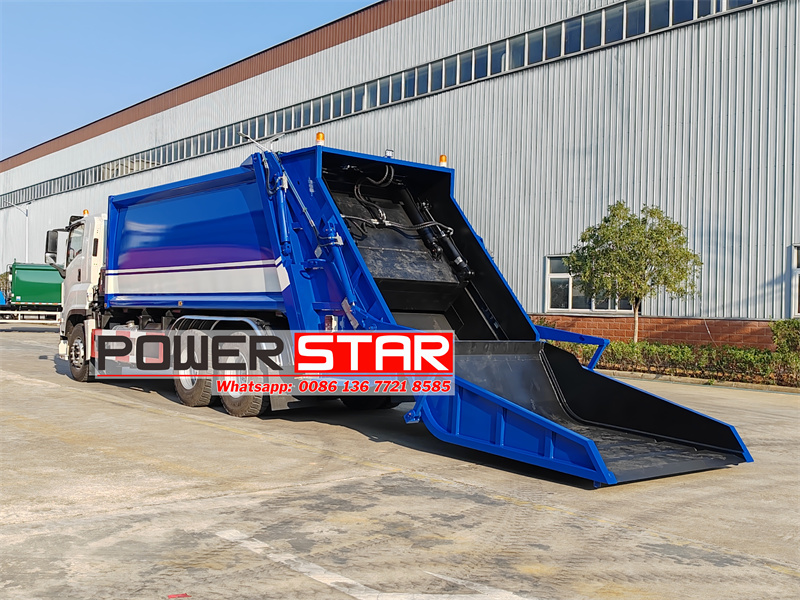

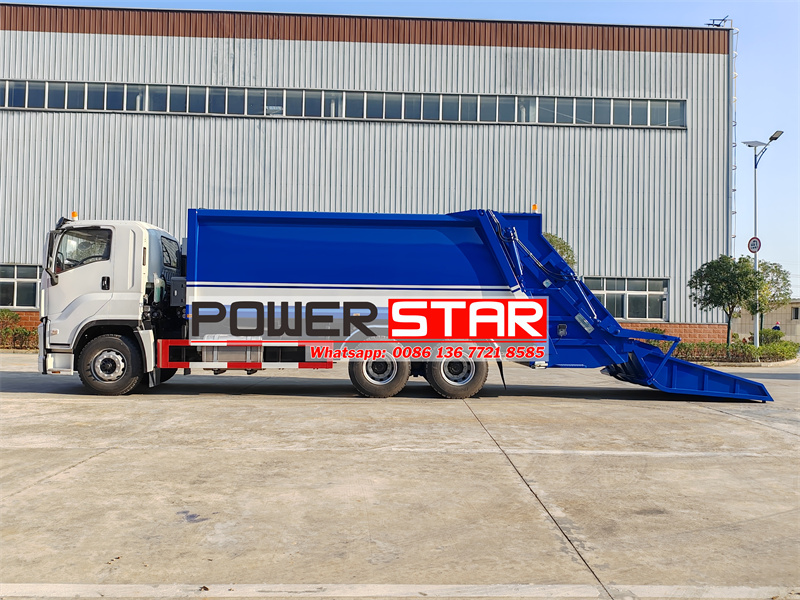

4. Full Seal Flip Hopper
The fully sealed flip hopper is one of the most advanced designs in the field of garbage collection. It completely encloses the garbage loading process, from lifting, flipping to dumping the garbage container, the entire process is carried out in a sealed environment. This design not only effectively prevents garbage scattering and odor diffusion, but also reduces noise pollution and improves the comfort of operators. The fully sealed flip hopper is mainly suitable for large-scale application scenarios such as large garbage transfer stations and landfills.
By adopting these advanced tail flip mechanisms, Isuzu GIGA 6X4 20CBM Rear Loader Garbage Truck not only improves the efficiency of garbage collection, but also meets the environmental protection needs in different scenarios, making an important contribution to the cleanliness and beauty of the city.
