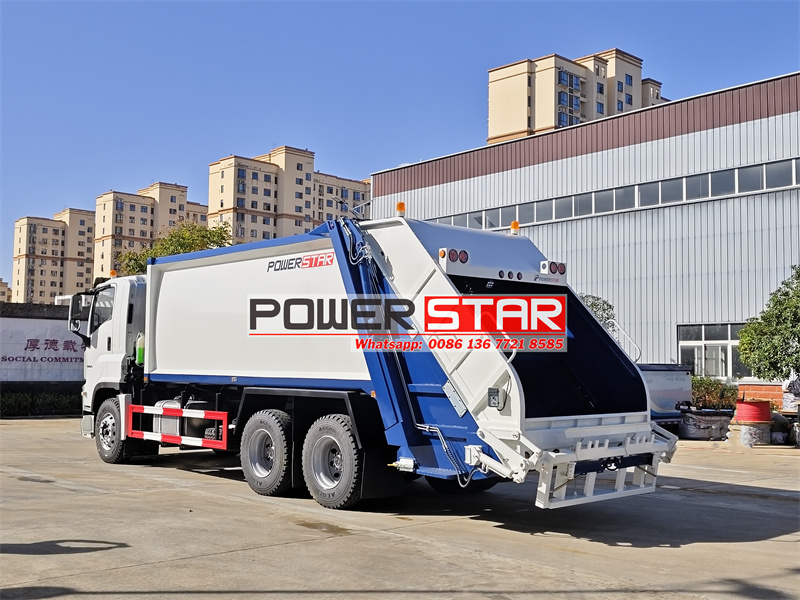

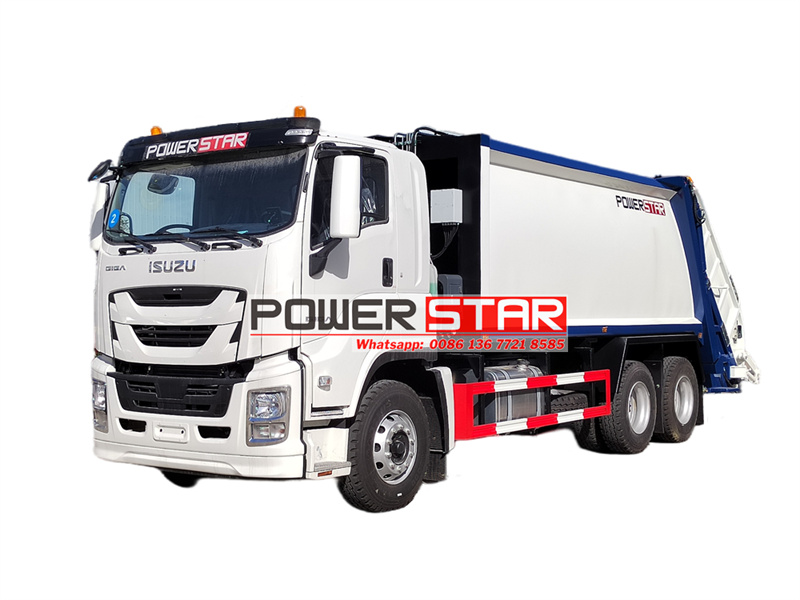

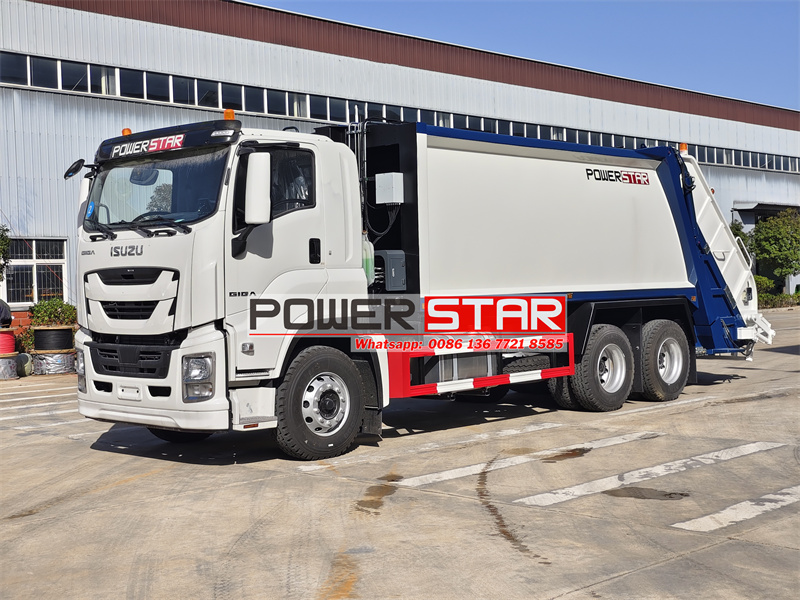

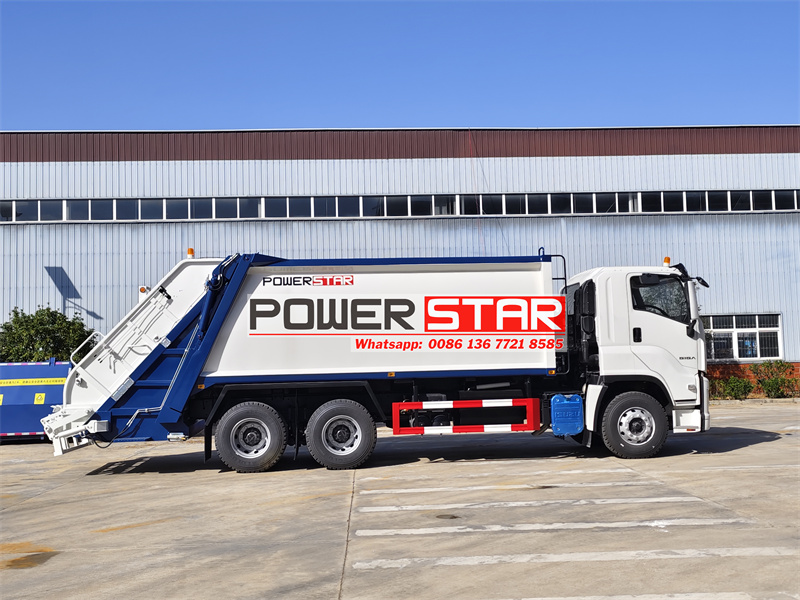

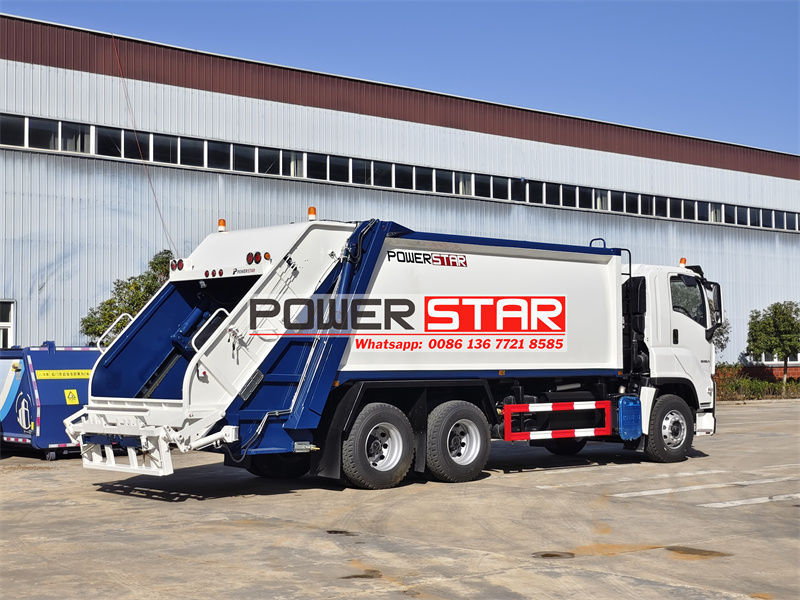

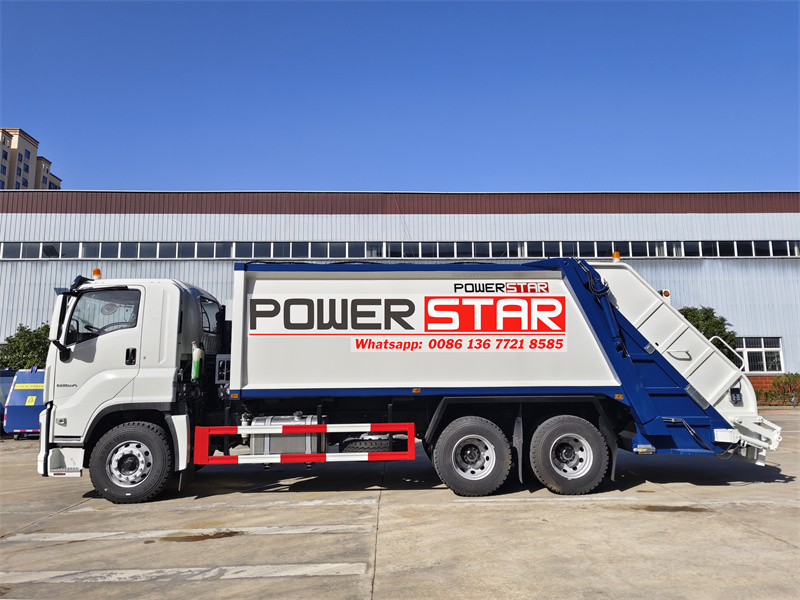

North America Isuzu GIGA 6x4 rear loader garbage truck
This Isuzu GIGA 6x4 heavy-duty garbage compactor truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning! Equipped with a 6UZ1-TCG61 engine, it has a powerful output of 380 horsepower, a displacement of 9.839L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 25-ton total weight configuration and 12.7-ton load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.
Work capacity:
20cbmTruck model:
PST5251YSLJCEngine power:
380HPEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6X4 (left hand drive)Gear box:
FAST 12 speed levers with 2 reverse,manualRemarks:
20cbm garbage bin,full seal flip hopperThis Isuzu GIGA 6x4 heavy-duty garbage compactor truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning! Equipped with a 6UZ1-TCG61 engine, it has a powerful output of 380 horsepower, a displacement of 9.839L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 25-ton total weight configuration and 12.7-ton load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.
The ISUZU GIGA garbage truck adopts an advanced 12 front and 1 rear gearbox, combined with a 6*4 drive form to ensure stability and efficiency in complex road conditions. The 20-cubic-meter curved tank body is made of Q235 special steel, with a tank body thickness of 4mm and an overall molding process. The compression ratio is as high as 1:3.4, ensuring the ultimate garbage compression efficiency. The fully automatic hydraulic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compression and unloading of the garbage compartment.
Specification:
|
Product Name |
ISUZU GIGA rear loader Truck |
|
Model |
PST5251YSLJC |
|
Driving Type |
6*4 |
|
Gross Weight |
25000kg |
|
Related Loading Mass |
12700kg |
|
Curb Weight |
11680kg |
|
Dimension |
10500*2380*2850mm |
|
Wheelbase |
4350+1350(mm) |
|
Front Axle Loading Capacity |
7000kg |
|
Rear Axle Loading Capacity |
13000kg x 2pcs |
|
Approach angle |
20° |
|
Departure angle |
13° |
|
Front Suspension |
1130mm |
|
Rear Suspension |
2140mm |
|
Tire |
295/80R22.5 |
|
Max Speed |
90 (Km/h) |
|
Fuel tank |
400L |
|
Engine parameters |
|
|
Model |
6UZ1-TCG61 |
|
Horse Power |
380 hp |
|
Displacement |
9.839L |
|
Emission Standard |
Euro 6 |
|
Type |
6-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
|
Gear Box |
|
|
Gear Box |
12 forward and 2 reverse |
|
Superstructure Parameter |
|
|
Tank Volume |
20 CBM |
|
Tank Shape |
Arc-shape |
|
Tank Material thickness |
Bottom:4mm Side:4mm |
|
Tank manufacturing process |
Whole board manufacturing |
|
Tank Material |
Q235 (Special Steel) |
|
Compression Ratio |
1 : 3.4 |
|
The effective volume of the bucket |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|
control method |
Automatic,Manual |
|
Maximum pressure of hydraulic system |
20MPa |
|
Control System |
PLC |
|
Control panel |
English or Your language |
|
Engine power control |
Fully automatic control |
|
standard accessories |

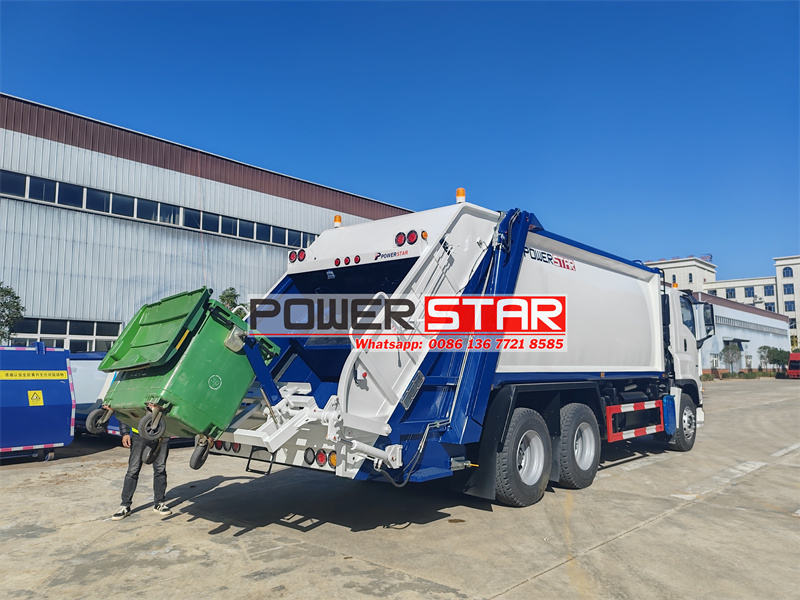

Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… |
|
Optional |
** Back alarm and Camera can be equipped. ** Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose. |
Advantage:
The 5 point performance advantages of the ISUZU GIGA 20CBM rear loader are as follows:
1. Ultimate power system: The 6UZ1-TCG61 engine is equipped with turbocharging and intercooling technology, with an output of 380 horsepower and a large displacement of 9.839L. It is not only powerful, but also fully meets the Euro 6 emission standards, reflecting the perfect balance between high efficiency, energy saving and environmental protection.
2. Leading load and stability: 6*4 drive configuration, 25 tons total weight, 12.7 tons actual load capacity, 7 tons front axle and 13 tons each on the double rear axle, ensuring excellent stability and strong passability under complex road conditions.
3. Intelligent garbage disposal: 1:3.4 high compression ratio, 20 cubic meters curved tank, single loading and unloading cycle time controlled at 40-45 seconds, PLC intelligent control system, to achieve high efficiency and accuracy of garbage disposal.
4. Excellent structure and craftsmanship: Made of Q235 special steel, the tank is 4mm thick, with 12 front and 1 rear gearbox and a maximum speed of 90km/h, showing the rigor and precision of the craftsmanship.
5. Comprehensive safety configuration: Equipped with multiple safety devices such as alarm, camera, emergency stop button, fire extinguisher, etc. English/localized control panel is provided, fully considering the operator's experience and safety needs.
PlC System:
The application of PLC system in compression garbage truck has significant advantages:
1. Precise control: The compression process is accurate to milliseconds, and the compression force, angle, and time can be precisely controlled, which increases the compression efficiency by 15-20%, reducing the risk of manual misoperation.
2. Intelligent management: Real-time data collection and monitoring, automatic recording of each garbage loading and unloading parameters, traceable operation trajectory and working status, and support for remote diagnosis and management.
3. System stability: Strong anti-interference ability, operating temperature range of -20℃ to 65℃, service life of up to 10-15 years, and failure rate lower than traditional hydraulic control systems.
4. Energy saving and environmental protection: Precisely control the energy consumption of the hydraulic system, reduce invalid energy consumption, real-time monitoring of oil temperature and pressure, and reduce energy consumption by about 20-25%.
5. Convenient maintenance: Modular design, fast fault location, remote firmware upgrade, and significantly reduced maintenance costs.
