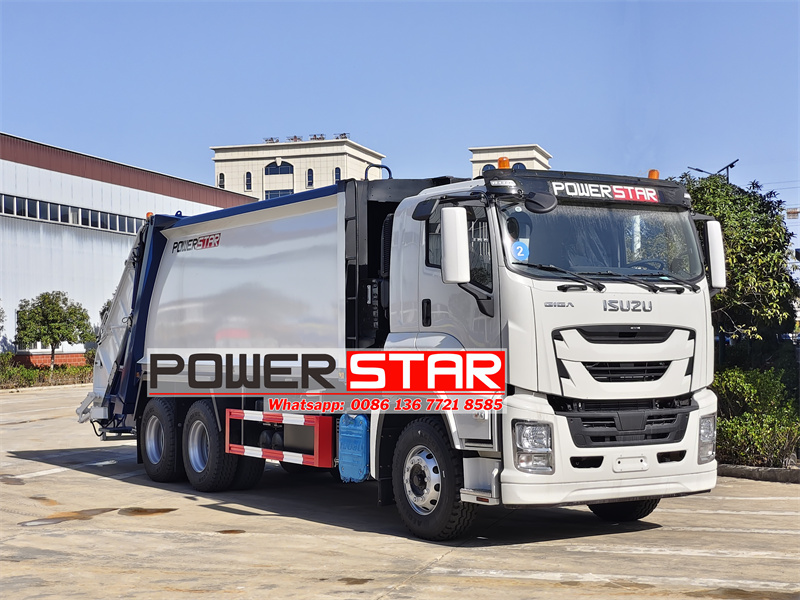

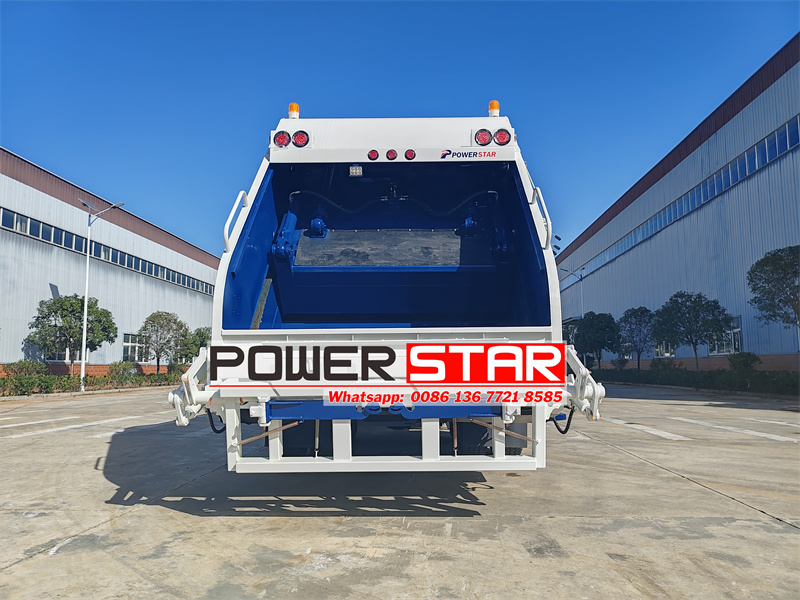

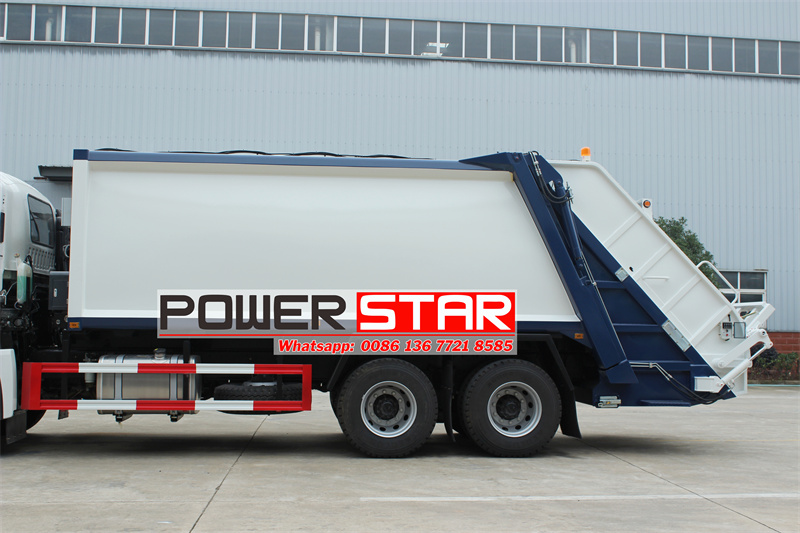

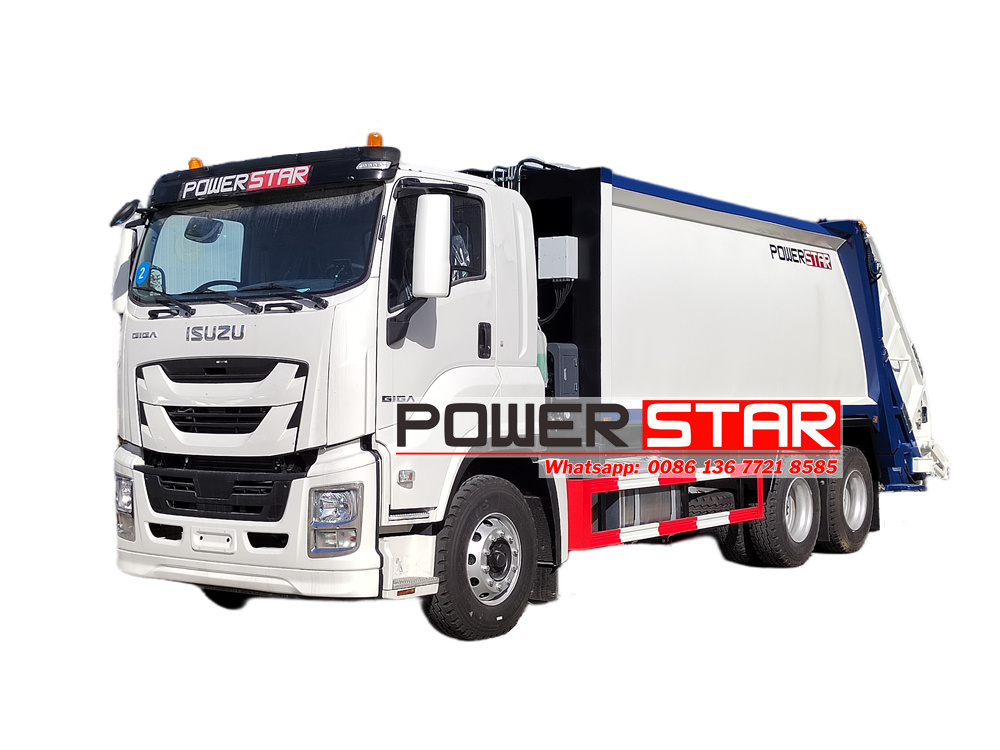

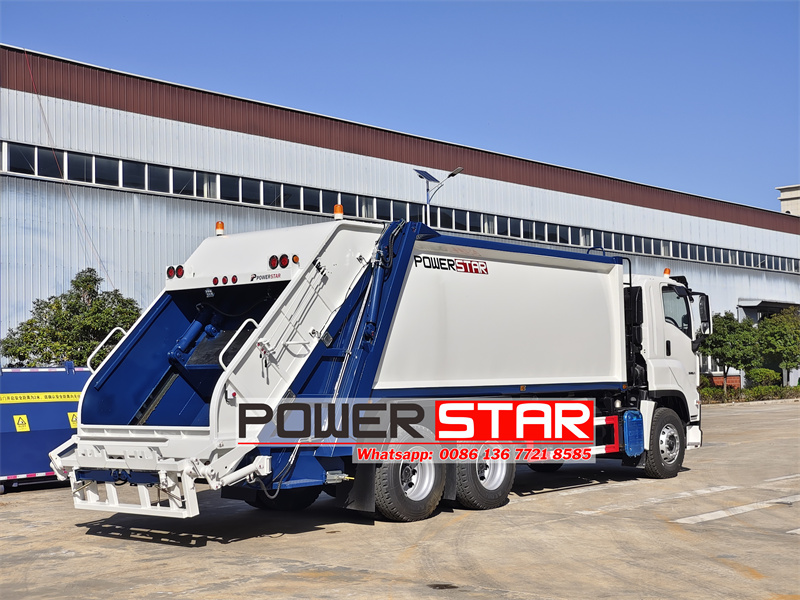

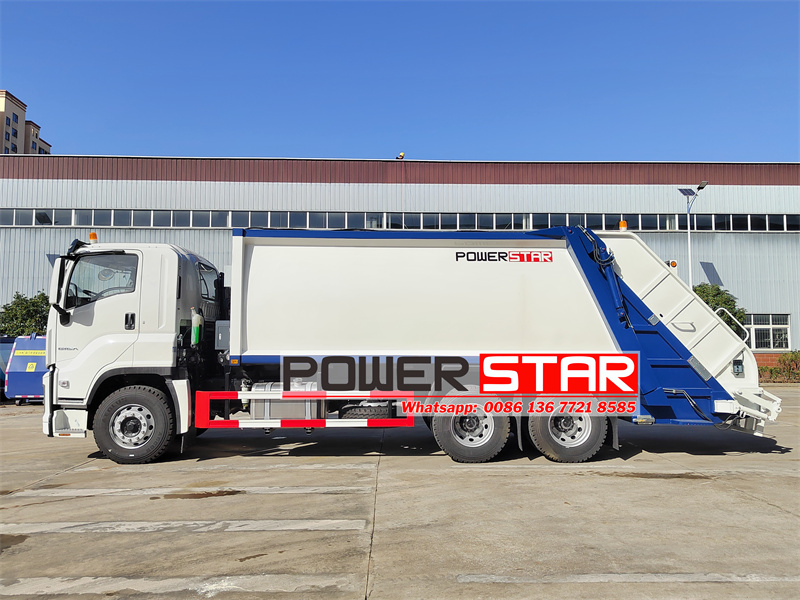

Isuzu 20 cbm rear loader compressed garbage truck

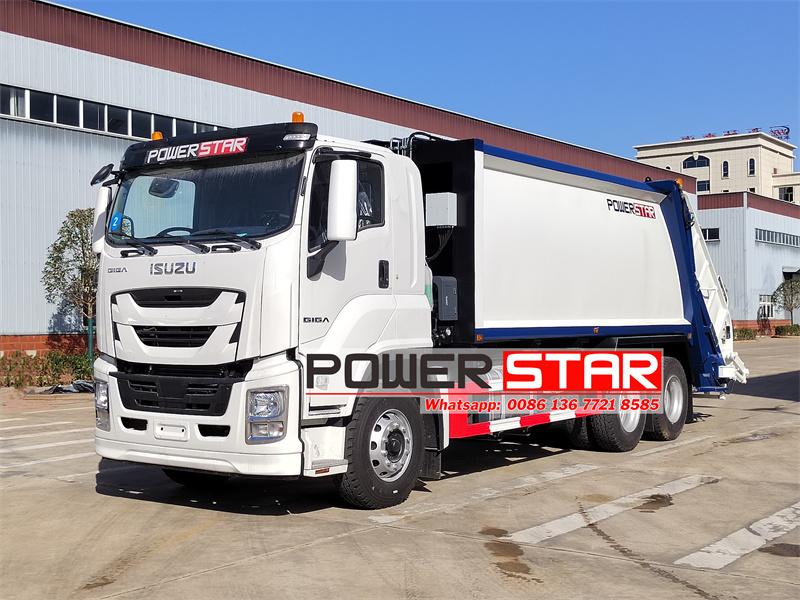

The GIGA 6x4 20cbm rear loader compactor is modified on the Isuzu VC61 6X4 GIGA chassis, the wheelbase is 4600+1370mm, with Isuzu 380HP 6UZ1 diesel engine, FAST 12 shift gearbox, A/C, USB, direction assistance, the upper body is a 20cbm garbage bin, which can dispose more waste and provide a strong support for municipal sanitation work.
Work capacity:
20cbmTruck model:
PT5250GXHEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6x4 left hand driveGear box:
FAST, 12 gears forwards and 2 reverse.,manualRemarks:
Large volume garbage bin,4 operation methodsIsuzu 20 cbm rear loader compressed garbage truck, as a heavy-duty transport vehicle designed for efficient urban garbage removal, integrates advanced technology and powerful performance, and has become an important tool for modern urban environmental sanitation maintenance.
Key Features:
★ Various size body from 3cbm to 25cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide
Core power
The vehicle is equipped with Isuzu's self-developed 6UZ1-TCG61 high-performance engine, which is a large-displacement diesel engine designed for heavy-duty commercial vehicles. Its maximum power reaches 380 horsepower 278 kilowatts, ensuring that the vehicle can still provide sufficient power output when facing complex and changing operating environments, whether it is shuttling through narrow streets or performing high-intensity garbage compression operations.
Transmission system

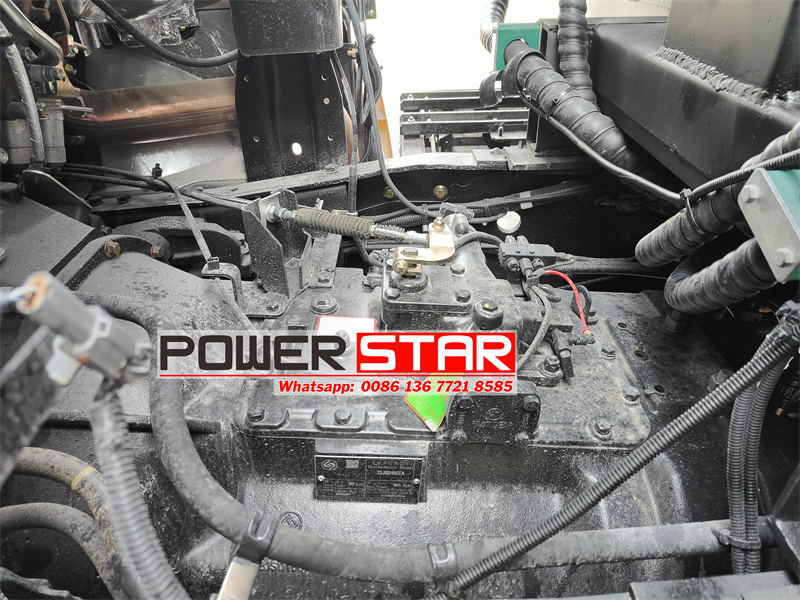

Matched with this powerful engine is the Fast brand 12-speed manual transmission, which is famous for its smooth shifting, high transmission efficiency and strong carrying capacity. The 12 forward gears provide the driver with a wide range of speed ratios, which can be flexibly adjusted according to different road conditions and operating requirements, ensuring good fuel economy and improving driving comfort and controllability.
|
Isuzu GIGA 6x4 20cbm rear loader compactor |
||
|
Main specification |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
ISUZU GIGA 6X4 |
|
|
Overall dimension(L*W*H) |
10050×2550×3400mm |
|
|
Garbage tank capacity |
20m3 |
|
|
Gross weight |
25000kg |
|
|
Curb weight |
9200kg |
|
|
Chassis |
Drive model |
6x4 left hand drive |
|
Cabin |

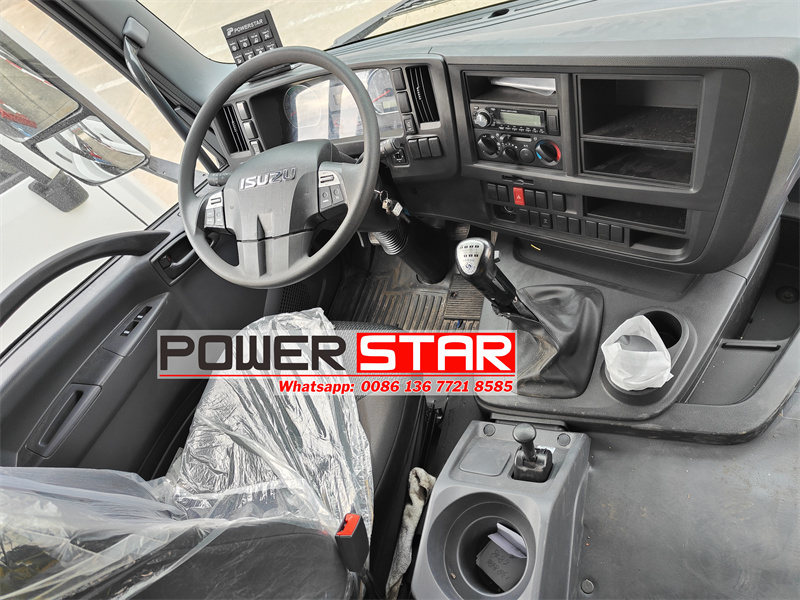

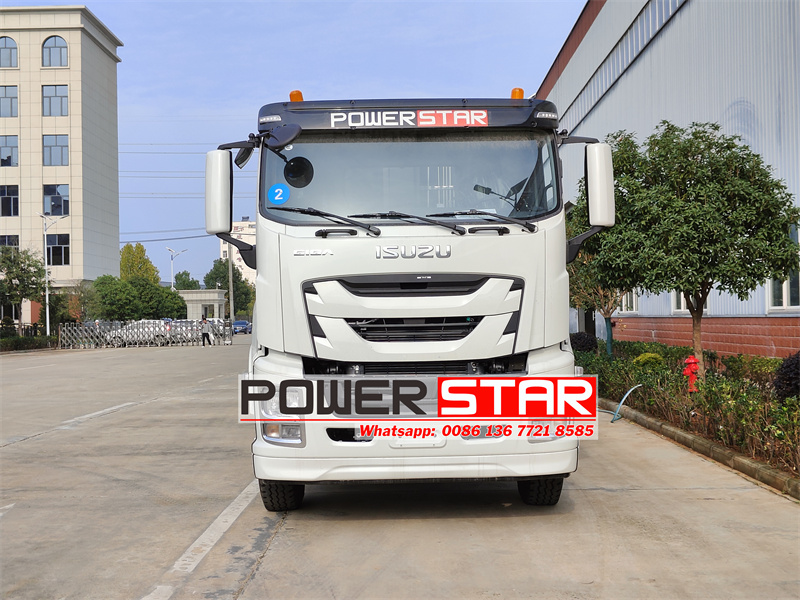

Isuzu VC61 model ,one row and a sleeper, allowable 3 passengers, A/C, USB, direction assistance |
|
|
Front axle |
7ton loading capacity |
|
|
Rear axle |
18ton loading capacity/ 2 axles |
|
|
Wheel Base |
4600mm+1370mm |
|
|
Transmission |
FAST, 12 gears forwards and 2 reverse.,manual |
|
|
Tyre size & number |
315/80R22.5,10+1 |
|
|
Max speed |
95km/h |
|
|
Engine |
Model |
6UZ1-TCG61 |
|
Engine Type |
6 cylinder in-line, Diesel, water-cooling |
|
|
Horse power |
380HP/278Kw |
|
|
Rotating speed |
1800rpm |
|
|
Max torque |
1800N.m |
|
|
Displacement |
9,839ml |
|
|
Emission |
Euro 6 |
|
|
Garbage tank |
Volume of compartment |
20m3 |
|
Thickness |
Side :4mm ; Bottom:5mm |
|
|
Material |
Carbon steel, inner epoxy anticorrosive |
|
|
Performance |
Compression ration |
≥1:3.4 |
|
Loading cycle time |
15～20 sec |
|
|

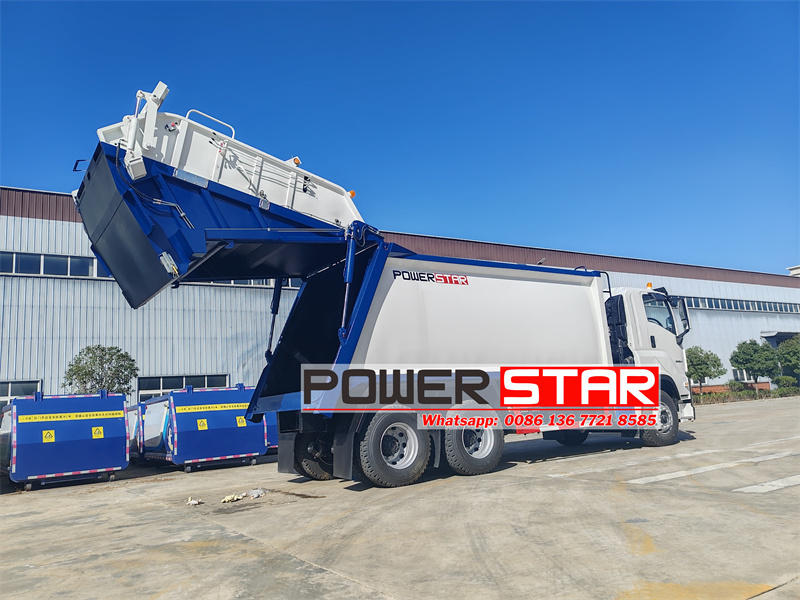

Discharging time |
10～18 sec |
|
|
Discharging system |
Horizontal ejection |
|
|
Waste water tank |
200L |
|
|
Control way |
Manually and electrical control |
|
|
Control panel |
English or your language |
|

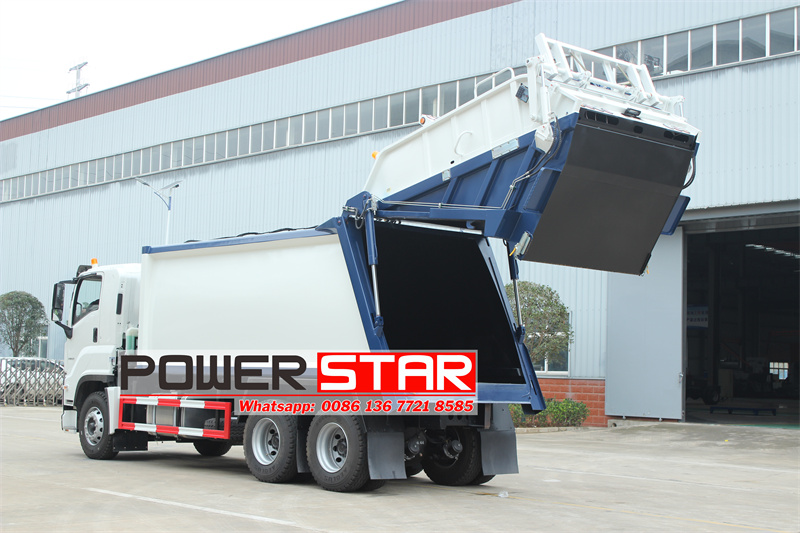

Compression mechanism

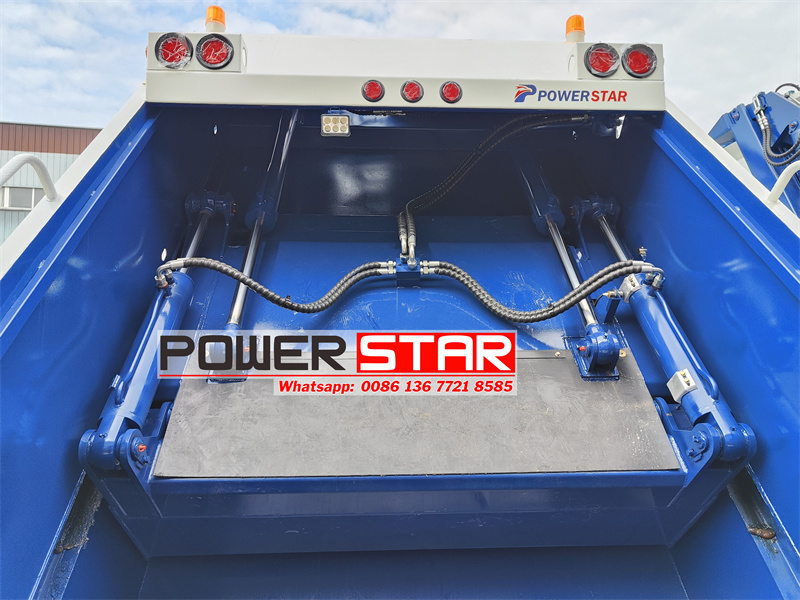

The compression mechanism of the Isuzu Giga 6x4 20 cubic compression garbage truck is the core of its efficient operation. The mechanism uses advanced hydraulic drive technology to push the compression plate to reciprocate inside the garbage bin through a high-pressure hydraulic cylinder to achieve strong compression of the garbage. During the compression process, the garbage is gradually compacted and the volume is greatly reduced, thereby improving the loading efficiency of the garbage bin.
The design of the compression plate fully considers the diversity of the garbage and the force conditions during the compression process, ensuring a smooth and efficient compression process with less wear on the garbage bin. At the same time, the compression mechanism is also equipped with an overload protection device. When encountering hard objects that are difficult to compress, it can automatically stop the compression action to avoid damage to the vehicle and the garbage bin.
Operation method
The operation method of the Isuzu Giga 6x4 20 cubic compression garbage truck is flexible and diverse. It can be remotely controlled through the electric operation box in the cab, or it can be operated at close range through the hydraulic operating lever on the driver's side, the electric control box on the left side of the tailgate, and the manual operating lever on the right side of the tailgate, meeting the operation requirements in different scenarios.

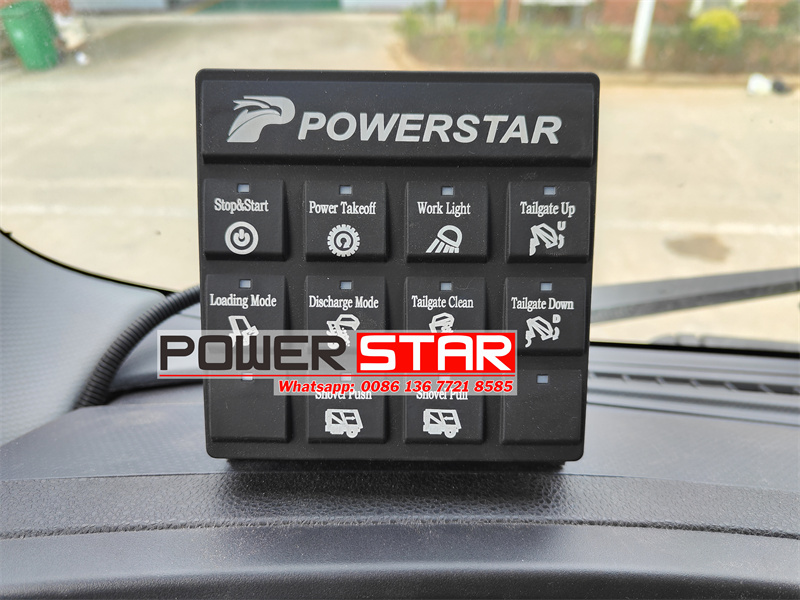

• Cab electric operation box: located in the cab, it integrates control buttons for garbage loading, compression, unloading and other functions. The driver can remotely control the garbage bin by operating these buttons, which greatly improves the convenience and safety of the operation.

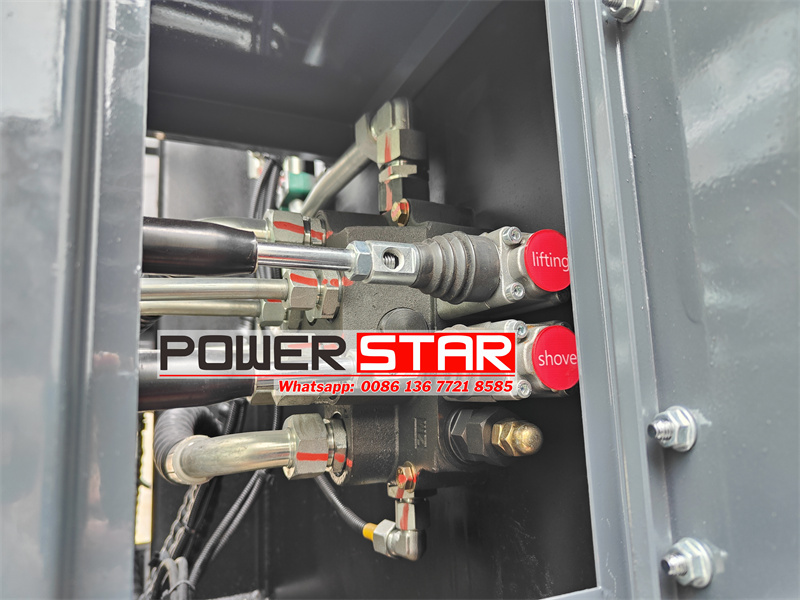

• Driving side hydraulic operating lever: located behind the driving side, which is convenient for the driver to operate manually on the ground. By operating the hydraulic lever, the driver can flexibly control the lifting of the tailgate of the garbage bin and the movement of the shovel to achieve instant compression of the garbage.

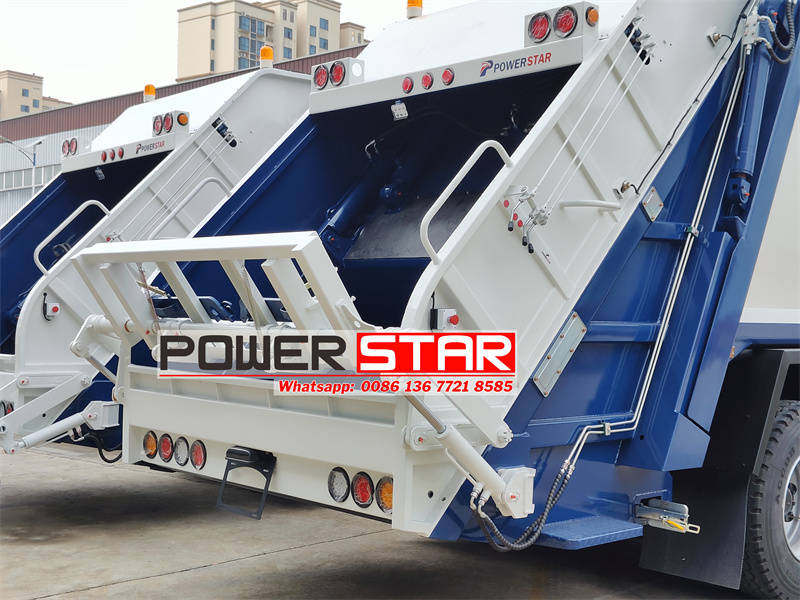

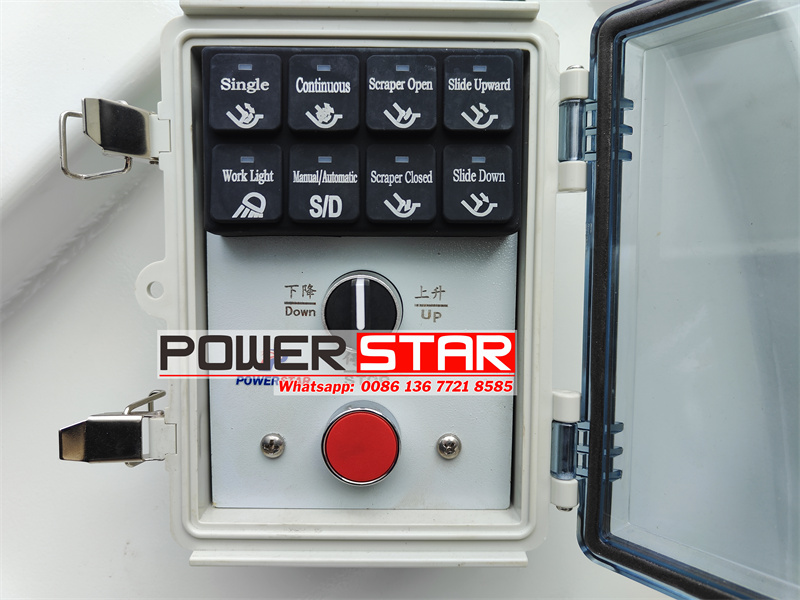

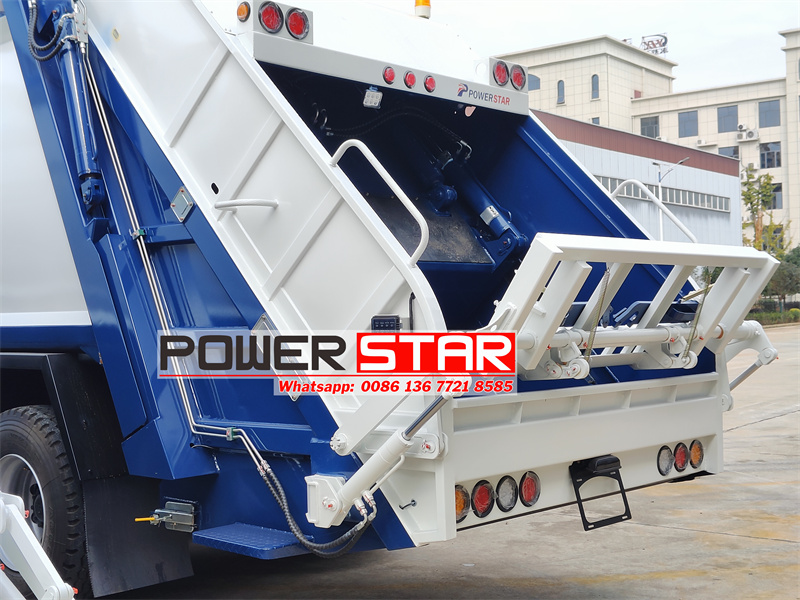

• Electric control box(left side of tailgate): installed on the left side of the tailgate, it is convenient for the operator to directly control the garbage bin at the rear of the vehicle. There are multiple control buttons in the electric control box to control the scraper, slide operation, single cycle, multiple cycle loading and other functions.
• Manual operating lever(right side of tailgate): installed on the right side of the tailgate, the pull rod can be manually operated to control the operation of the scraper and slide. As a backup operation mode, the manual operating lever can still ensure the basic functions of the garbage bin are realized when the power or hydraulic system fails.
