The Japan Isuzu 12000L Lubrication Service Trucks exemplify the pinnacle of engineering excellence, combining cutting-edge technology with unparalleled reliability to enhance operational efficiency and prolong the lifespan of critical machinery. With a steadfast dedication to quality and innovation, these trucks stand as indispensable companions in the realm of heavy-duty machinery maintenance, setting the standard for excellence and performance in the industry.
Work capacity:
12000LTruck model:
PT5220GXREngine power:
300HPEngine type:
6HK1-TCG60Axle drive:
6X4,LHDGear box:
Manual type,FAST 9-speedRemarks:
Isuzu FVZ 6X4 heavy truckJapan IsuzuLubrication Service Trucksalso called Isuzu FVZ 12000L lubrication service truck,Isuzu FVZ 6x4 heavy fuel lube service truck,Isuzu FVZ 6x4 fuel lubricant service truck,Isuzu 6x4 mobile workshops vehicles,Isuzu 6x4 fuel lubrication oil supply service truck.
Designed to meet the diverse needs of modern industry, the Japanese Isuzu Lubrication Service Truck is a versatile and reliable machine equipped with advanced fuel, grease and other lubrication systems to effectively handle lubrication tasks in various fields such as mining, construction, agriculture and heavy industry.
Features
★ Isuzu chassis, sturdy and durable,perfect performance
★ Isuzu engine, powerful power; reliable performance, no overhaul for 100,000 kilometers.
★ Efficient lubrication system
★ Tank capacity is customizable
|
Isuzu 12000L Lubrication Service Trucks |
|||
|
General |
Truck brand |
POWERSTAR |
|
|
Truck model |
PT5220GXR |
||
|
GVW(kg) |
22500 |
||
|
Curb weight(kg) |
12500 |
||
|
Wheelbase(mm) |
4650+1370mm |
||
|
Dimensions(mm) |
9000X2500X3560 mm |
||
|
Front/Rear Axle loading(kg) |
6500/16000 kg |
||
|
Max. driving speed(km/h) |
95 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
|
Service brake: dual circuit compressed air brake |
||
|
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake: engine exhaust valve brake |
|||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6 pcs with one spare tire |
|
|
Specifications |
295/80R22.5 |
||
|
Transmission |
Manual type,FAST 9-speed |
||
|
Cab |
It can accommodate three people. With Air Conditioner |
||
|
|
Brand |
Isuzu |
|
|
Model |
6HK1-TCG60 |
||
|
Power |
300HP/221Kw |
||
|
Displacement(ml) |
7790 ml |
||
|
Fuel type |
Diesel |
||
|
Cylinder type |
Inline 6 cylinder,water cooling, direct injection type, turbocharged, intercooling |
||
|
Emission standard |
Euro VI |
||
|
Fuel Tank |
|||
|
Fuel tank |
Capacity(L) |
12000 |
|
|
Tank material |
Tank material:Q235 high tensile strength steel. |
||
|
Thickness(mm) |
Side 5 Bottom 6 |
||
|
Baffle |
1 No,4 mm carbon steel |
||
|
Manhole cover |
1 manhole cover, ∮500mm 1 set with breather valve |
||
|
Bottom Valve |
1 set of API Pneumatic Bottom Valve |
||
|
Discharging valve |
1 set ∮ discharging valve |
||
|
Handrail |
Two sides |
||
|
Ladder |
At rear of tank |
||
|
Painting |
Color and design as customer's requirement |
||
Japan Isuzu 12000L Lubrication Service Trucks is a specialized mobile unit that provides on-the-go lube services for heavy machinery. Its primary purpose is to deliver precise and timely lubrication to essential components, which helps reduce wear and tear and ensure optimal performance. These trucks are equipped with advanced fuel, grease, and other lubrication systems, making them a critical asset in industrial settings where keeping machinery up and running is crucial.
Lubrication System
However, the highlight is the truck’s 12,000-liter lubrication system. This advanced system is designed to efficiently dispense various types of lubricants, including oil, grease, and other liquids, to a wide range of machinery and equipment. The system features multiple pumps and tanks, each tailored to specific lubrication needs, allowing for precise and accurate dispensing.

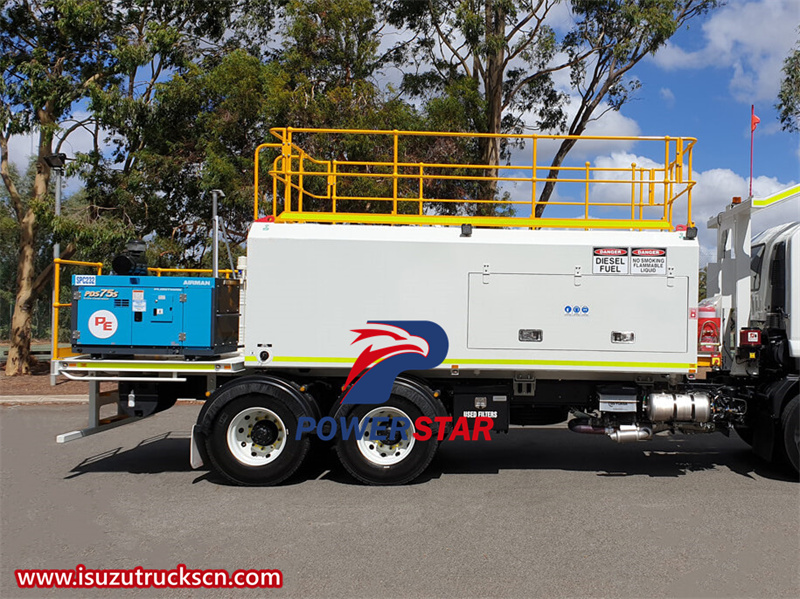

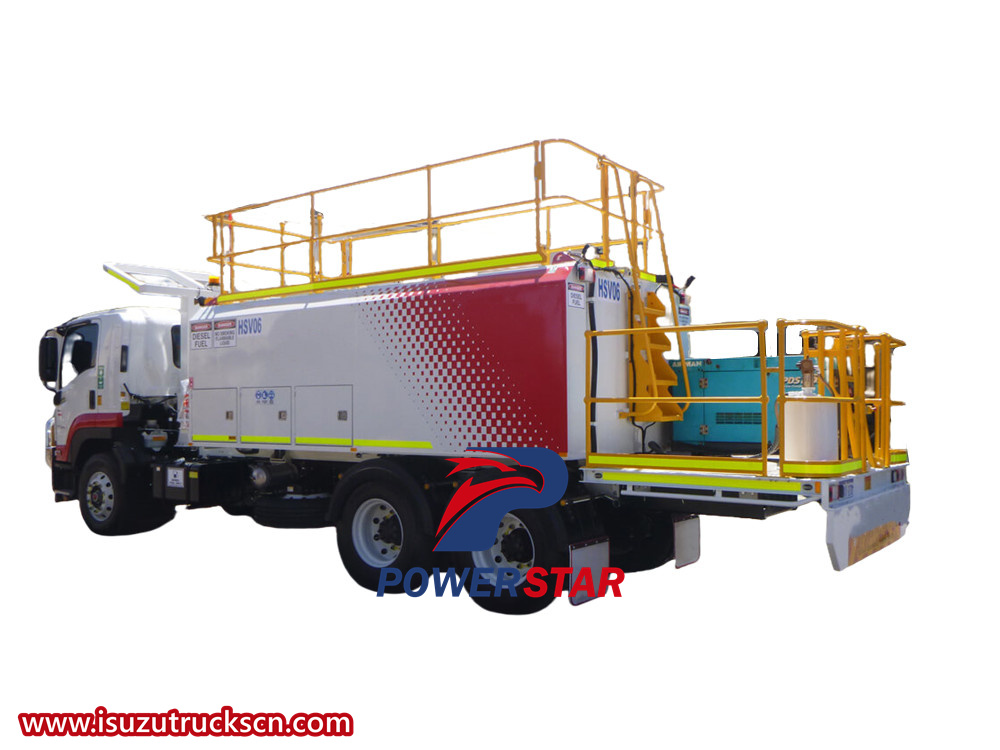

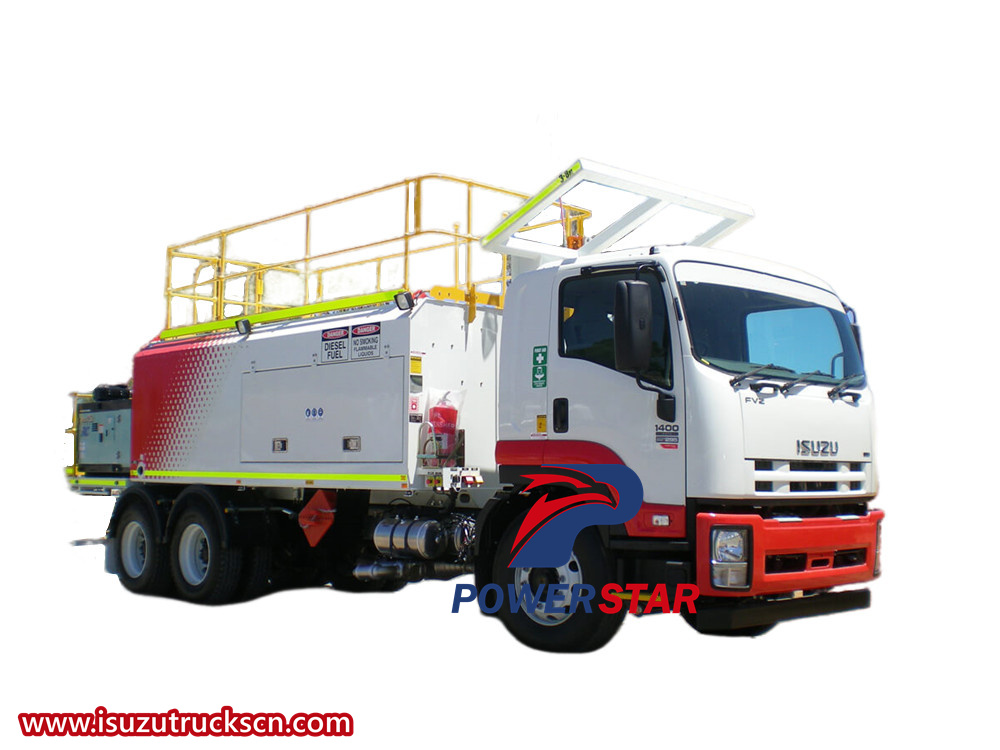

Isuzu FVZ 12000L lubrication service truck
The lubrication system is fully automated, reducing the need for human intervention and minimizing errors. Operators can easily select the lubricant they need, set the required amount, and then let the system do the rest. The system also incorporates advanced sensors and monitoring equipment to ensure that the lubrication process proceeds smoothly and efficiently with minimal downtime.
Pumping Systems
The pumping systems in the Isuzu FVZ lube service truck can lubricate machinery on the go. They are designed with reliability, precision, and versatility in mind. These systems extract lubricants from storage tanks and distribute them to the desired machinery through a network of hoses. The system’s efficiency guarantees the delivery of the correct amount of lube to the targeted components.
Hose Reels
Hose reels offer an efficient and user-friendly solution for dispensing lubricants. They make lubrication easy and organized, giving you better control over your dispensing process. Their retractable design enables you to reach every corner of your heavy machinery with flexibility and precision. This allows you to apply lubrication exactly where needed without waste or spills. Trust me, those reels are definitely the way to go!

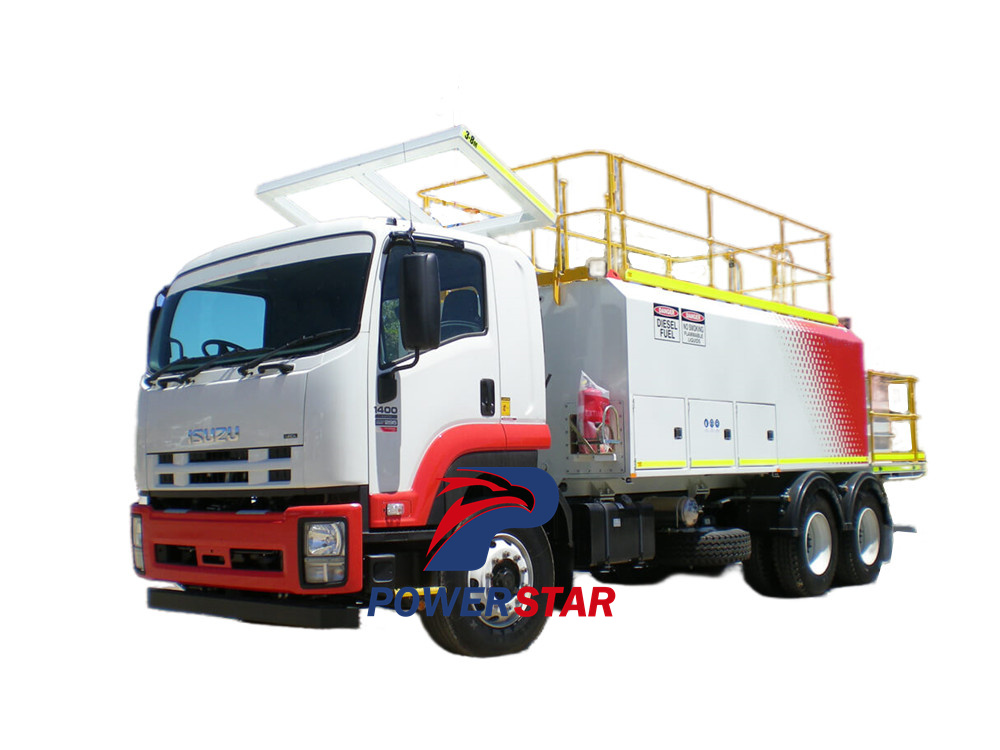

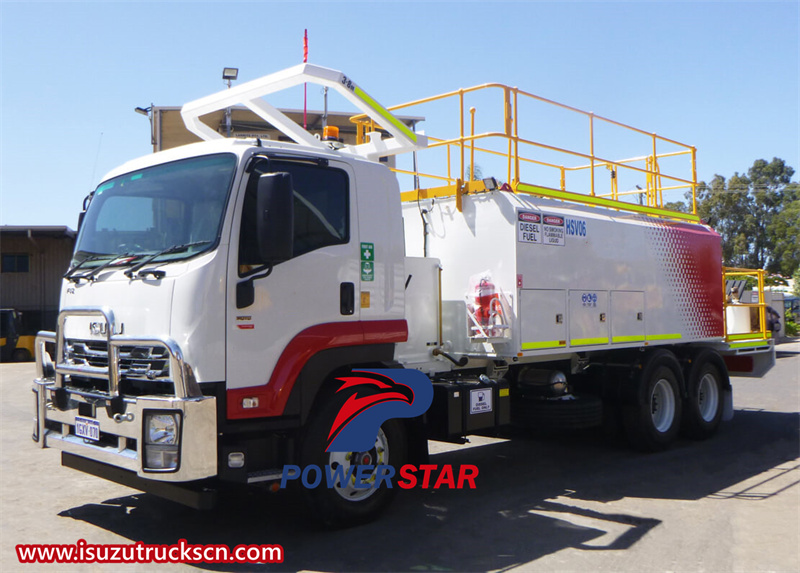

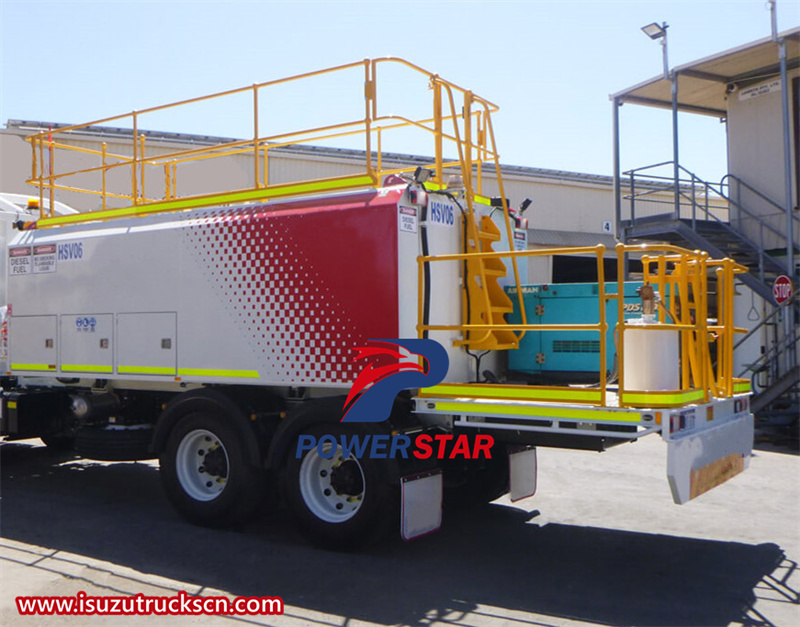

Isuzu FVZ 6x4 heavy fuel lube service truck

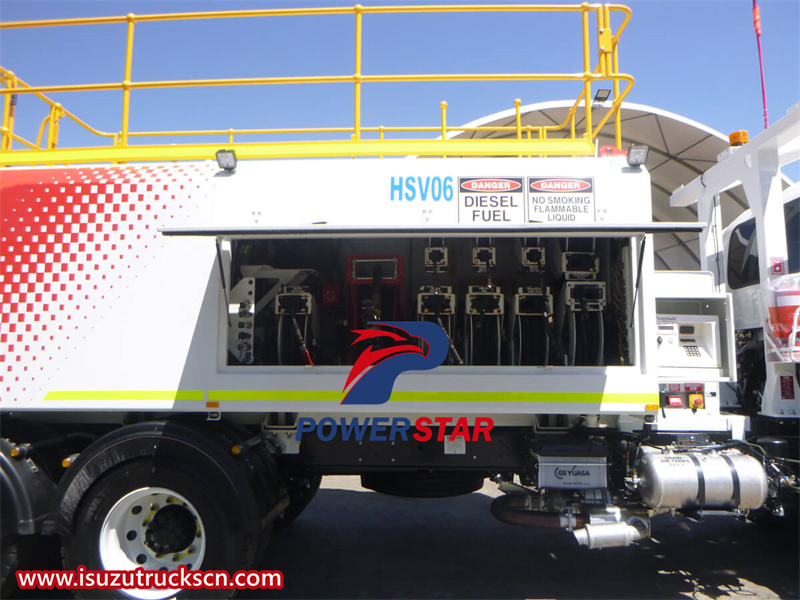

Dispensing Equipment
Have you ever considered the dispensing equipment on an Isuzu FVZ lube truck? This equipment enables precise and controlled fuel, oil, and grease delivery through nozzles, meters, and other accessories. By providing such precision, the dispensing equipment can help prevent over-lubrication or under-lubrication, which is crucial for maintaining machinery in good condition. In fact, this equipment is essential for optimizing the maintenance process and promoting overall machinery health.
These key components work together perfectly to transform a lube truck into a mobile powerhouse of maintenance efficiency. They provide secure storage for various lubricants and precise delivery through advanced pumping systems, hose reels, and dispensing equipment. All of these elements are engineered to contribute to industrial machinery’s enhanced health and longevity. As we dive deeper into lube trucks’ intricacies, you’ll better understand how these components work together to revolutionize on-site lubrication practices.

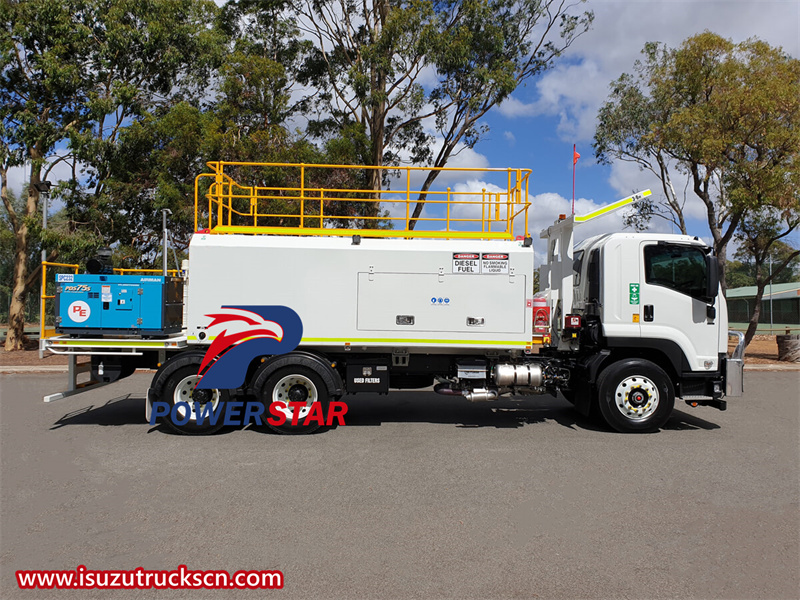

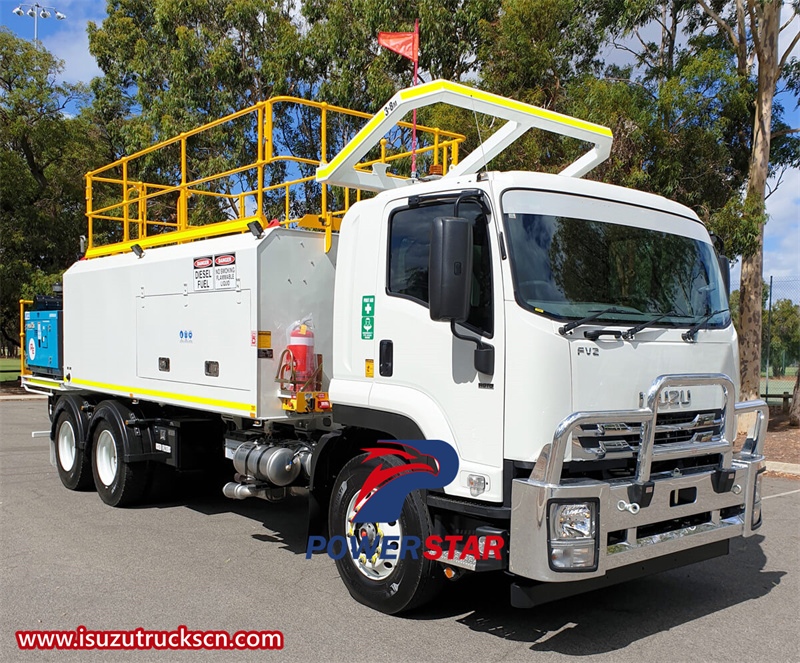

Isuzu FVZ 6x4 fuel lubricant service truck

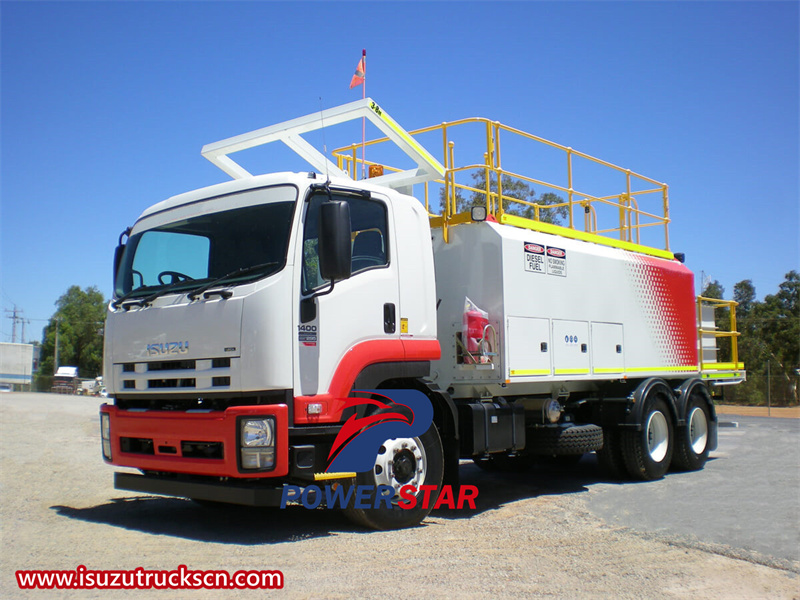

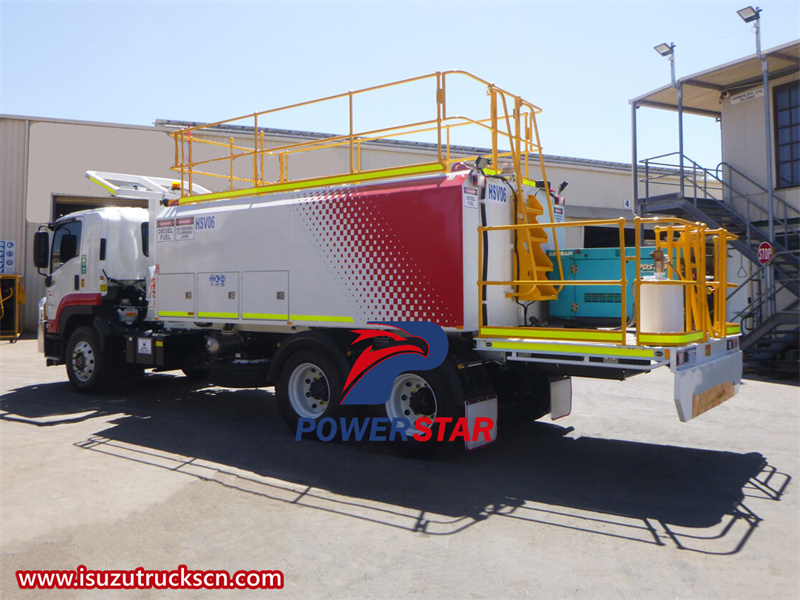

Isuzu 6x4 mobile workshops vehicles

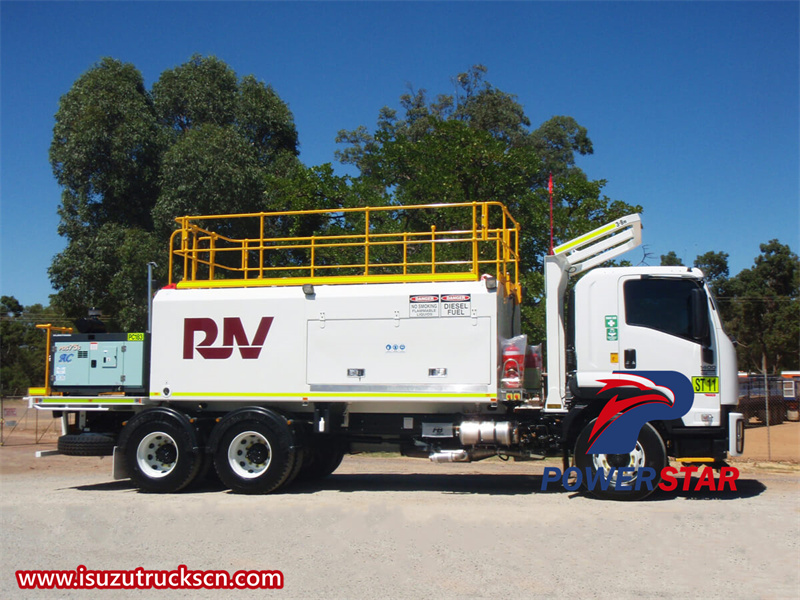

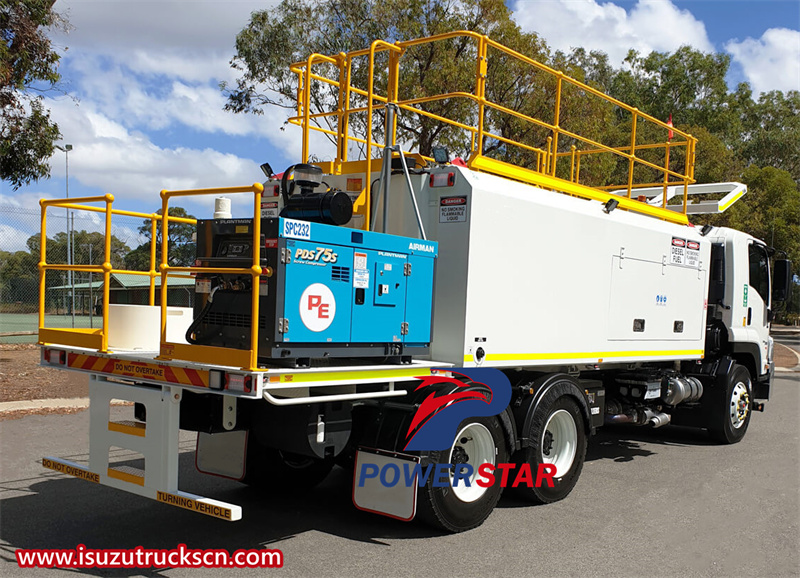

Isuzu 6x4 fuel lubrication oil supply service truck

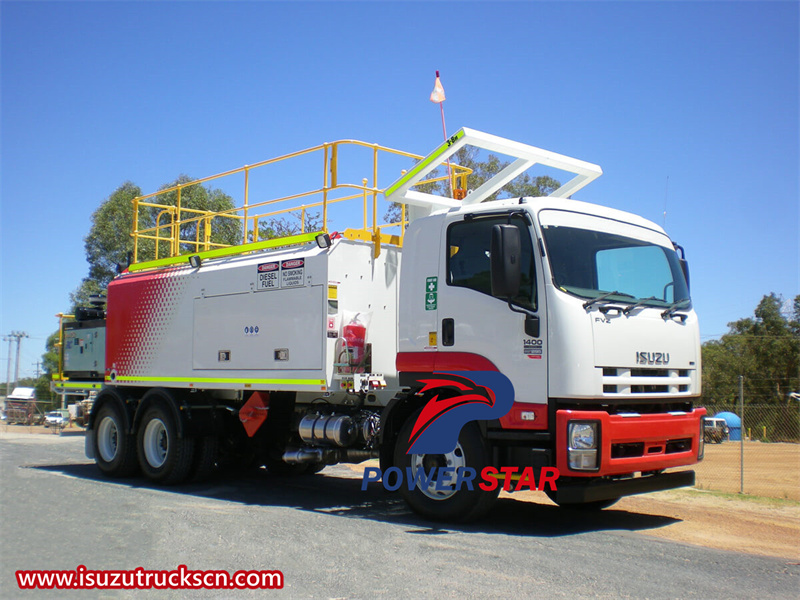

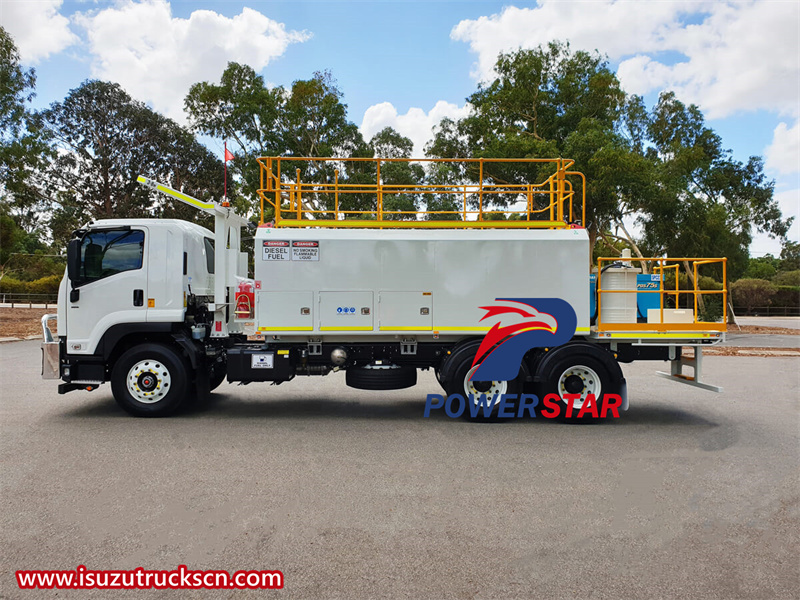

Isuzu FVZ 6x4 12000L lubrication service truck

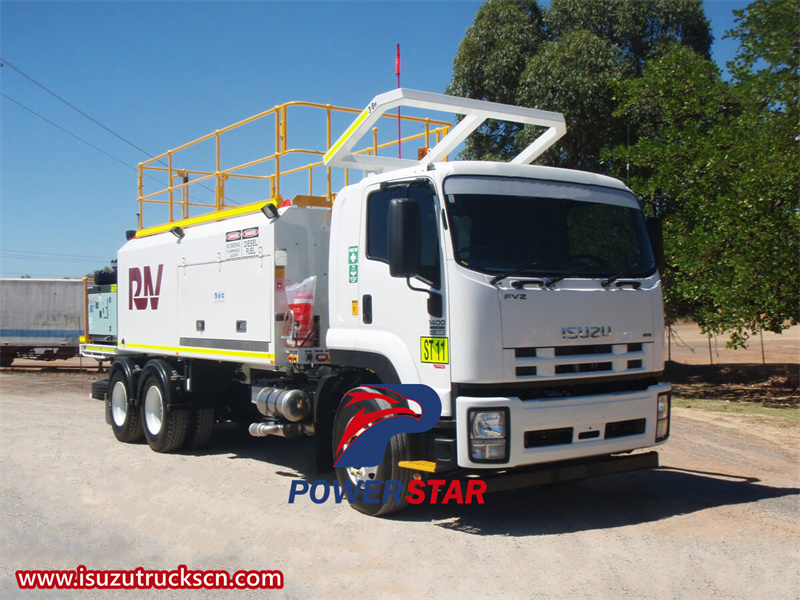

Isuzu FVZ 6x4 heavy oil lubrication service truck
Isuzu 6x4 12000L fuel lubricant service truck
Fuel tank

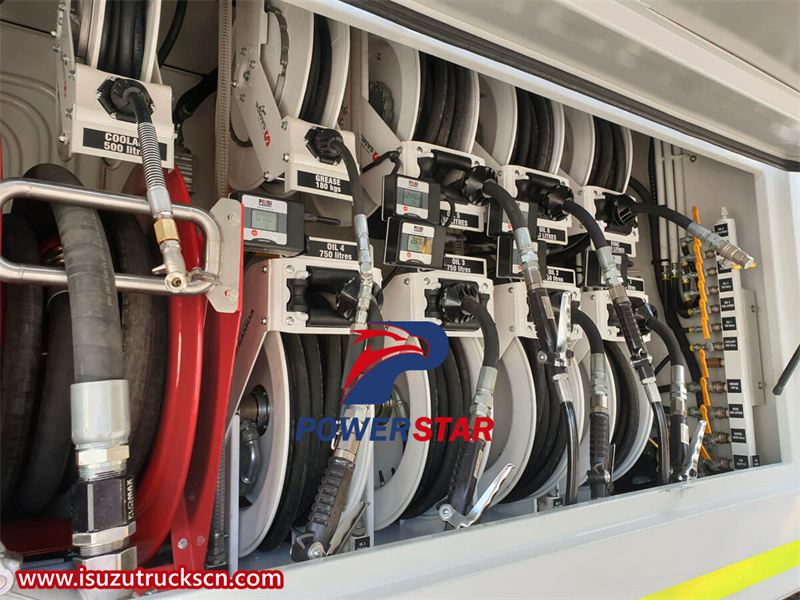

Lubricating oil reel
Lubricating oil reel

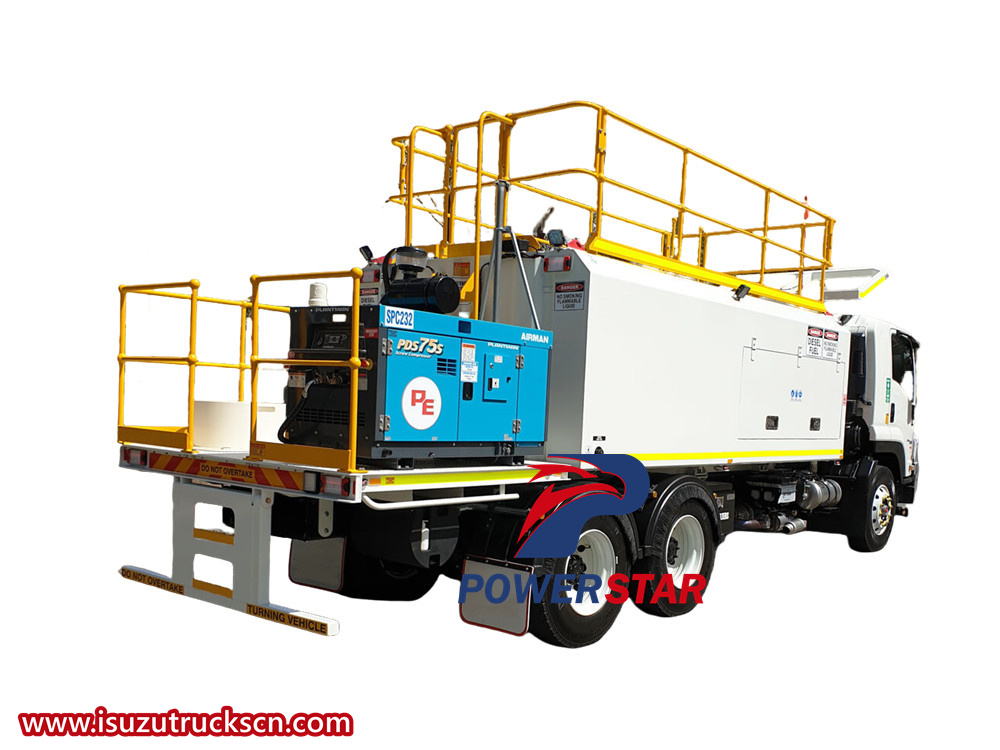

Ladders and guardrails

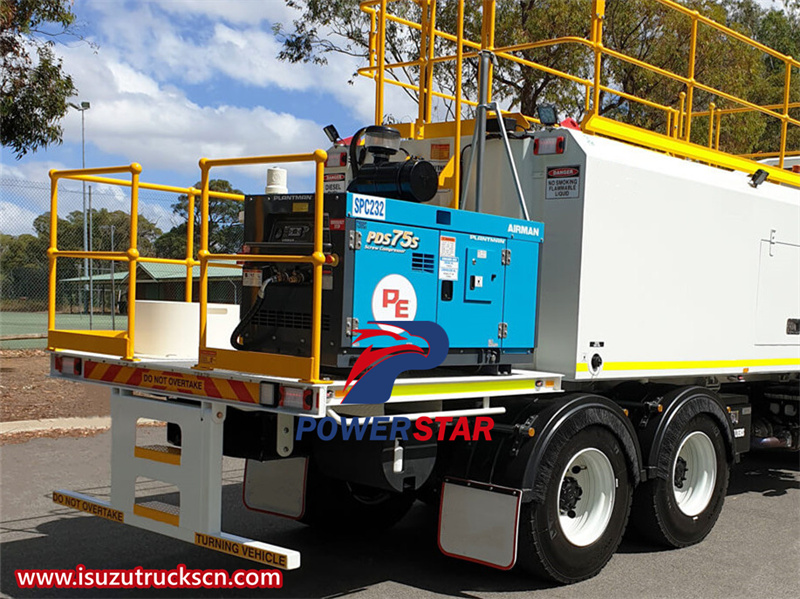

Air Compressor
